Compaq ProLiant ML370 Generation 2

Overview

Power Specifications

Standard Features

TechSpecs

QuickSpecs

Compaq Generation 2 (G2)

ProLiant

Models

ML370

Options

Memory

Storage

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 1

QuickSpecs

Compaq ProLiant ML370 Generation 2

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 2

QuickSpecs

Compaq ProLiant ML370 Generation 2

What’s New

New Smart Array 5i Plus Controller & Battery-Backed Write Cache (BBWC) Enabler bundle option kit

At A Glance

First 2-way server with advanced memory protection and high availability features for demanding remote site and data center environments Intel® Pentium® III FC-PGA2 Processors - 1.40 GHz with 512-KB second level ECC cache (dual processing capable) Integrated Dual Channel Wide Ultra3 SCSI Adapter 2X1 Interleaved memory doubles the memory bandwidth; expandable to 6GB Compaq NC3163 Fast Ethernet NIC Embedded 10/100 WOL (Wake On LAN) ServerWorks HE SuperLite Chipset featuring a Triple Peer PCI bus Architecture with 133-MHz Front Side Bus and 64-Bit/66-Mhz slots for ultimate data throughput Versatile availability features deliver the right amount protection to end users – PCI hot plug, hot plug redundant power supplies, hot plug redundant fans, Online Spare Memory 6x1" Hot Plug Wide Ultra2/Ultra3 Drive Cage standard First in class to offer multiple racking solutions – Compaq Standard, Telco, and Third Party Support for Hot Plug 2-Bay SCSI Drive Cage; increases internal hot pluggable storage capacity to an unprecedented 582.4-GB of internal storage and allows separation of boot and OS hard drives or hot plug tape to run on a separate channel from data drives

Insight Manager™ 7, SmartStart™

(RBSU) Protected by HP Services, including a three-year, Next Business Day on-site, limited, Global warranty and extended Pre-Failure Warranty that covers processors, memory and disk drives — Certain restrictions and exclusions apply. Consult the HP Customer Support Center at 1-800-345-1518 for details

, Automatic Server Recovery (ASR), ROM Based Setup Utility

Overview

Power Specifications

Standard Features

TechSpecs

Models

Standard Features

Processor

Cache Memory

Upgradability

Chipset

Memory

Network Controller

Intel Pentium III FC-PGA2 1.40 GHz Processor

512-KB second level ECC cache (full speed)

Upgradable to dual processing

ServerWorks HE SuperLite Chipset featuring a Triple Peer PCI bus Architecture with 133-MHz Front Side Bus

Note: For more information regarding ServerWorks, please see the following URL: http://www.serverworks.com/products/overview.html

Standard

Maximum

Compaq NC3163 Fast Ethernet NIC (embedded) 10/100 WOL (Wake On LAN)

Options

Memory

256 MB (PC133-MHz Registered ECC SDRAM memory)

(2 x 1 Interleaved Memory)

6 GB

Storage

Expansion Slots

I/O (6 Total, 6 available)

PCI Voltage:

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 3

QuickSpecs

Compaq ProLiant ML370 Generation 2

Storage Controller

Storage

Interfaces

64-bit/66-MHz, Hot Plug PCI

64-bit/33-MHz, Non Hot Plug PCI

Integrated Dual Channel Wide Ultra3 SCSI Adapter

(upgradable with optional Compaq Smart Array 5i Controller Option Kit)

Diskette Drives

CD-ROM

Hard Drives

Maximum Internal Storage

Parallel

Serial

Pointing Device (Mouse)

Graphics

Keyboard

External SCSI

Network RJ-45

USB Ports

1.44 MB

40x IDE CD-ROM Drive

None

1.174 TB ((6 x 146.8 GB 1 with standard internal hot plug drive cage + (2 x 146.8 GB 1 ) with optional ML3xx Internal Two Bay Hot Plug SCSI Drive Cage)

953.6 GB (6 x 146.8 GB 1 internal hot plug drive cage + 2 x

36.4 internal non-hot plug drives in the removable media bays)

Note: Please see the following URL for additional information regarding USB support:

http://www.compaq.com/products/ servers/platforms/usb-support.html

3.3 Volt or universal cards

5 Volt or universal cards

Graphics

Form Factor

Product Demo

ProLiant

Foundation Pack Software

Essentials

Integrated ATI Rage XL Video Controller with 8MB SDRAM Video Memory

Tower or Rack (5U)

To view the Product Demo, please see the following URL, then click on "PRODUCT DEMO":

http://www5.compaq.com/products/servers /ProLiantml370/index.html

Insight Manager 7

Insight Manager 7 helps maximize system uptime and performance and reduces the cost of maintaining the IT infrastructure by providing proactive notification of problems before those problems result in costly downtime and reduced productivity. Insight Manager 7 is easy to set up and provides rapid access to detailed fault and performance information gathered by the Management Agents. One-click-access to the Integrated Lights-Out or Remote Insight Lights

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 4

QuickSpecs

SmartStart

Management Agents

ActiveUpdate

ROMPaq, support software,

and configuration utilities

Compaq Survey Utility and diagnostics utilities

Optional

Value Packs

ProLiant Essentials

Compaq ProLiant ML370 Generation 2

Out Edition board allows systems administrators to take full graphical control of ProLiant servers in remote locations or lights-out data centers. Finally, Insight Manager 7 in concert with the Version Control Agents and Version Control Repository Manager enables systems administrators to version manage and update system software across groups of ProLiant servers.

SmartStart is a tool that simplifies server setup, providing a rapid way to deploy reliable and consistent server configurations. For more information, please visit the SmartStart website at

http://www.hp.com/servers/smartstart

SmartStart version supported (minimum): SmartStart 5.10

The Management Agents form the foundation for HP’s Intelligent Manageability strategy. They provide direct, browser-based access to in-depth instrumentation built into HP servers, workstations, desktops, and portables, and send alerts to Insight Manager 7 and other enterprise management applications in case of subsystem or environmental failures. For additional information about the Management Agents and other management products from HP, please visit the management website at

http://www.hp.com/servers/manage



ActiveUpdate is a web-based application that keeps IT managers directly connected to HP for proactive notification and delivery of the latest software updates.

The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options.

The most advanced configuration analysis, reporting and troubleshooting utilities used by HP and at your fingertips.

Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to address specific business problems and needs:

Rapid Deployment Pack – an automated solution for multi-server deployment and provisioning, enabling companies to quickly and easily adapt to changing business demands. Workload Management Pack – provides easier management of complex environments, improving overall server utilization and enabling Windows® 2000 customers for the first time to confidently deploy multiple applications on a single multiprocessor ProLiant Server. Recovery Server Option Pack – entry-level high availability software that will provide reliable protection and increased uptime against server hardware and operating system failures. Performance Management Pack – a

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 5

QuickSpecs

Note: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.

Note: For more information regarding ProLiant Essentials Software, please see the following URL:

http://www.hp.com/servers/proliantessentials

Industry Standard Compliance

ACPI 1.0b Compliant

PCI 2.2 Compliant

WOL Support

Microsoft® Logo certifications

PXE Support

Compaq ProLiant ML370 Generation 2

performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources.

Manageability

Security

Insight Manager 7 Management Agent Redundant ROM Remote Flash ROM Remote Lights-Out Edition (optional) Automatic Server Recovery (ASR) ROM-Based Setup Utility (RBSU) Integrated Management Log Drive Parameter Tracking (with Smart Array controller) Dynamic Sector Repairing (with Smart Array controller) Hot Spare Boot (NOTE:

processing environment, the system will automatically reboot and use the remaining good processor(s).)

Pre-Failure Warranty (covers processors, hard drives and memory)

Power-on password Keyboard password Diskette drive control Diskette boot control QuickLock, Network Server Mode Parallel and serial interface control Administrator's password Disk configuration lock

Upon the event of a failed processor or VRM in a multi-

Server Power Cords

Power Supply

System Fans

One Lowline power cord ships standard.

NOTE:

Purchase of the optional Redundant Power Supply (PN 225075-xx1) will

provide a second power cord if installed.

500 Watt-CE Mark Compliant Hot Plug Power Supply Optional Redundant Capability

3 fans ship standard. 6 total supported internally for full redundancy.

NOTE:

The additional 3 fans are available via Option Kit (PN 225073-xx1).

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 6

QuickSpecs

Required Cabling

OS Support

For required cabling information, refer to the Compaq Web site at

http://www.compaq.com/products/servers/ProLiantML370

NOTE:

This Web site is available in English only.

Microsoft Windows NT® Server Microsoft Windows 2000 Microsoft Small Business Server 2000 Novell® NetWare Novell NetWare Small Business Suite SCO® OpenServer SCO® UnixWare IBM OS/2 Warp Family LINUX® (RedHat®, SuSE®, Caldera® Server) Sun™ Solaris™ Intel Platform Edition

NOTE:

Not all storage controllers are supported under Solaris 7 and 8. Please refer to the Supported Devices list on the Solaris Driver Update download page. For Solaris 7 please see the following

http://www.compaq.com/support/files/server/us/locOsCat/36.html

For Solaris 8 please see the following:

http://www.compaq.com/support/files/server/us/locOsCat/38.html

Compaq ProLiant ML370 Generation 2

Rack Airflow Requirements

NOTE:

For a more complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at:

ftp://ftp.compaq.com/pub/products/servers/os-support-matrix-310.pdf

NOTE:

For an up-to-date listing of the latest drivers available for the Compaq ProLiant ML370, please see:

http://www.compaq.com/support/files/server/us/index.html

Rack 9000 and 10000 series Cabinets

The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The Compaq 9000 Series Rack and the new 10000 Series Racks provides enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

Rack 7000 series Cabinets

When installing a server with processors running at speeds of 550 MHz or greater in Compaq Rack 7000 series racks with glass doors (165753-001 (42U), and 163747-001 (22U)), the new processor technology requires the installation of Compaq’s new High Airflow Rack Door Inserts (327281-B21 (42U), 327281B22 (42U 6 pack), or 157847-B21 (22U)) to promote enhanced airflow for maximum cooling.

CAUTION:

requirements to ensure adequate airflow and to prevent damage to the equipment:

If a third-party rack is used, observe the following additional

Front and rear doors: and rear doors, you must allow 5,350 sq cm (830 square inches) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation). Side:

The clearance between the installed rack component and the

side panels of the rack must be a minimum of 7 cm (2.75 inches)

If your 42U server rack includes closing front

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 7

QuickSpecs

Compaq ProLiant ML370 Generation 2

Service and Support

CAUTION:

spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

NOTE:

Documentation CD provided with the server, or to the server documentation located in the Support section at the following URL:

http://www5.compaq.com/products/servers/ProLiantml370/index.html

HP Services provides a three-year, limited warranty, including Pre-Failure Warranty (coverage of hard drives, memory and processors) fully supported by a worldwide network of resellers and service providers. HP technical assistance is available 7x24, toll free in the United States and Canada. Telephone support services may be covered under warranty or available for an additional fee.

NOTE:

support.

A full range of

NOTE:

http://www.compaq.com/services

Always use blanking panels to fill all remaining empty front panel U-

For additional information, refer to the Setup and Installation Guide or the

Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site

CarePaq

Installation and start up Extended coverage hours and enhanced response times System management and performance services Availability and recovery services

For more information, customer/resellers can contact

packaged hardware and software services:

Overview

Power Specifications

Standard Features

TechSpecs

Please see the following URL regarding Warranty Information For Your HP Products:

web_statements/176738.html

For additional information regarding Worldwide Limited Warranty and Technical Support, please see the following URL

ftp://ftp.compaq.com/pub/supportinformation/ejourney/176738.pdf

NOTE:

Center at 1-800-345-1518 for details.

http://www.compaq.com/support/warranty_upgrades/

Certain restrictions and exclusions apply. Consult the Customer Support

Models

Options

Memory

Storage

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 8

QuickSpecs

Models

ML370T02P1400-512KB, 256MB

235439-xx1

Processor

Cache Memory

Memory

Network Controller

Storage Controller

Hard Drive

Internal Storage

Optical Drive

Form Factor

Compaq ProLiant ML370 Generation 2

Intel Pentium III FC-PGA 2 1.40 GHz Processor standard (up to 2 supported)

512-KB second-level ECC cache

256 MB (Standard) to 6 GB (Maximum) PC133-MHz Registered ECC SDRAM (2 x 1 Interleaved Memory)

Compaq NC3163 Fast Ethernet NIC (embedded) 10/100 WOL

Integrated Dual Channel Wide Ultra3 SCSI Adapter

None ship standard

1.174 TB maximum hot plug (with optional hard drives & drive cage)

953.6 GB maximum hot plug & non-hot plug (with optional hard drives)

40x IDE CD-ROM Drive

Tower (5U)

ML370R02P1400-512KB, 256MB

235440-xx1

Country Code Key

Processor

Cache Memory

Memory

Network Controller

Storage Controller

Hard Drive

Internal Storage

Optical Drive

Form Factor

XX=00

XX=01

XX=42

XX=03

XX=04

XX=05

XX=37

XX=AA

Intel Pentium III FC-PGA 2 1.40 GHz Processor standard (up to 2 supported)

512-KB second-level ECC cache

256 MB (Standard) to 6 GB (Maximum) PC133-MHz Registered ECC SDRAM (2 x 1 Interleaved Memory)

Compaq NC3163 Fast Ethernet NIC (embedded) 10/100 WOL

Integrated Dual Channel Wide Ultra3 SCSI Adapter

None ship standard

1.174 TB maximum hot plug (with optional hard drives & drive cage)

953.6 GB maximum hot plug & non-hot plug (with optional hard drives)

40x IDE CD-ROM Drive

Rack (5U)

U.S.

Australia

EURO

German (not available for Rack Models – please use EURO part number)

France (not available for Rack Models – please use EURO part number)

APD

PRC

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 9

QuickSpecs

Compaq ProLiant ML370 Generation 2

Overview

Power Specifications

Standard Features

Options

ProLiant ML370 G2 Unique Options

TechSpecs

Models

Smart Array 5i Plus Controller & Battery-Backed Write Cache (BBWC) Enabler Bundle

NOTE:

ProLiant ML370 G2 only.

Smart Array 5i Plus Controller & Battery-Backed Write Cache (BBWC) Enabler Bundle (Japan)

NOTE:

ProLiant ML370 G2 only.

Tower to Rack Conversion Kit

ML370 Round Hole Rail Kit

ML370 Telco Rail Kit

Compaq Hot Plug Redundant Power Supply Option Kit (U.S.)

Compaq Hot Plug Redundant Power Supply Option Kit (Australia)

Compaq Hot Plug Redundant Power Supply Option Kit (EURO)

Compaq Hot Plug Redundant Power Supply Option Kit (UK)

Compaq Hot Plug Redundant Power Supply Option Kit (Japan)

Compaq Hot Plug Redundant Fan Option Kit

Options

This option kit (PN 263697-xx1) supports the

Memory

Storage

263697-B21

263697-291

225074-B22

231122-B21

231121-B21

225075-001

225075-011

225075-021

225075-031

225075-291

225073-B21

ProLiant Essentials Value Pack Software

Rapid Deployment Pack, 1 User, V1.x

NOTE:

This license allows 1 server to be managed and

deployed via the Deployment Server.

Rapid Deployment Pack, 1 User, V1.x (Japan)

NOTE:

This license allows 1 server to be managed and

deployed via the Deployment Server.

Rapid Deployment Pack, 10 Users, V1.x

NOTE:

This license allows 10 servers to be managed and

deployed via the Deployment Server.

Rapid Deployment Pack, 10 Users, V1.x (Japan)

NOTE:

This license allows 10 servers to be managed and

deployed via the Deployment Server.

ProLiant Essentials Workload Management Pack (Featuring Resource Partitioning Manager version 2.0)

ProLiant Essentials Recovery Server Option Pack

ProLiant Essentials Performance Management Pack v2.0, Single License

NOTE:

Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to

http://www.hp.com/servers/proliantessentials or the various

ProLiant Essentials Value Pack product QuickSpecs for more information.

NOTE:

For more information regarding ProLiant Essentials Software, please see the following URL:

http://www.hp.com/servers/proliantessentials

267196-B21

267196-291

269817-B21

269817-291

303284-B21

280189-B21

306696-B21

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 10

QuickSpecs

Compaq ProLiant ML370 Generation 2

Software

HP digital asset protection

NetServer to ProLiant integrations services

HP NetServer to ProLiant integration and assessment service

NOTE:

HP identifies current levels of NetServer support, services, and management. This service helps maximize customer’s ability to add ProLiant platforms into their current environment

HP TopTools to Insight Manager 7 installation and startup service

NOTE:

Provides on-site review, installation and configuration services for Insight Manager 7. HP will also recreate, as closely as possible, the views and reports from the customer’s current TopTools configuration. This service assures a smooth transition to the ProLiant Essentials software.

HP NetServer to ProLiant Essentials Rapid Deployment Pack installation and startup service

NOTE:

Install and configure Rapid Deployment Pack in a test environment, then deploy a server image to a maximum of 250 systems in the production environment. This service helps to assure successful system deployment.

302316-001

304164-002

304163-002

304162-002

Processor

Pentium III P1400-512K Processor Option Kit

Pentium III P1266-512K Processor Option Kit

Pentium III P1133-512K Processor Option Kit

Memory

256-MB PC133-MHz Registered ECC SDRAM Memory Option Kit (2 x 128 MB)

512-MB PC133-MHz Registered ECC SDRAM Memory Option Kit (2 x 256 MB)

1024-MB PC133-MHz Registered ECC SDRAM Memory Option Kit (2 x 512 MB)

2048-MB PC133-MHz Registered ECC SDRAM Memory Option Kit (2 x 1024 MB)

Internal Storage

ML3xx Two Bay Hot Plug SCSI Drive Cage

NOTE:

The drive cage option kit (PN 244059-B21) has one 1І drive bay and one 1.6І drive bay, installed in two available removable media bays.

Optical Drives

16X DVD-ROM Drive Option Kit (Carbon)

Hard Drives

Ultra320 SCSI – Universal Hot Plug

36.4GB 10,000 rpm, U320 Universal Hard Drive, 1

72.8GB 10,000 rpm, U320 Universal Hard Drive, 1

146.8GB 10,000 rpm, U320 Universal Hard Drive, 1

18.2GB 15,000 rpm, U320 Universal Hard Drive, 1

36.4GB 15,000 rpm, U320 Universal Hard Drive, 1



231118-B21

231117-B21

238888-B21

201692-B21

201693-B21

201694-B21

201695-B21

244059-B21

217053-B21

286713-B22

286714-B22

286716-B22

286775-B22

286776-B22

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 11

QuickSpecs

Compaq ProLiant ML370 Generation 2

Storage Controllers

72.8GB 15,000 rpm, U320 Universal Hard Drive, 1

Ultra320 SCSI – Non-Hot Plug

36.4GB 10,000 rpm, U320 Non-Hot Plug Hard Drive, 1

NOTE:

All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require an optional U320 Smart Array Controller or U320 SCSI HBA to support U320 transfer rates.

NOTE:

Please see the Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature: U320 Hard Drive QS:

http://www5.compaq.com/products/quickspecs/11531_div/ 11531_div.HTML http://www5.compaq.com/products/quickspecs/11531_na/ 11531_na.HTML

Smart Array 5I Plus Controller & Battery Backed Write Cache (BBWC) Enabler Bundle

NOTE:

This option kit (PN 263697-xx1) supports the ProLiant

ML370 G2 only.

Smart Array 5I Plus Controller & Battery Backed Write Cache (BBWC) Enabler Bundle (Japan)

NOTE:

This option kit (PN 263697-xx1) supports the ProLiant

ML370 G2 only

Smart Array 532 Controller

Smart Array 532 Controller (Japan)

Smart Array 5302/128 Controller

Smart Array 5302/128 Controller (Japan)

Smart Array 5304/256 Controller

Smart Array 5304/256 Controller (Japan)

Smart Array 5312 Controller

Smart Array 5312 Controller (Japan)

Ultra3 Channel Expansion Module for Smart Array 5300 Controller

128-MB Cache Module for Smart Array 5302 Controller

RAID ADG Upgrade for Smart Array 5302

256-MB Battery-Backed Cache Module

NOTE:

This 256-MB Battery-Backed Cache Module supports the Smart Array 5300 series controllers, MSA 1000 and the Smart Array Cluster Storage

64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter

64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

(Division/World Wide)

(North America)



286778-B22

271832-B21

263697-B21

263697-291

225338-B21

225338-291

283552-B21

283552-291

283551-B21

283551-291

238633-B21

238633-291

153507-B21

153506-B21

288601-B21

254786-B21

154457-B21

129803-B21

284688-B21

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 12

QuickSpecs

NOTE:

Technical Specifications such as PCI Bus, PCI Peak Data Transfer Rate, SCSI Protocols supported, SCSI Peak Data Transfer Rate, Channels, SCSI Ports, Drives supported, Cache, RAID support, and additional information:

http://www5.compaq.com/products/quickspecs/11063_div/ 11063_div.HTML http://www5.compaq.com/products/quickspecs/10851_div/ 10851_div.HTML http://www5.compaq.com/products/quickspecs/10640_div/ 10640_div.HTML http://www5.compaq.com/products/quickspecs/11328_div/ 11328_div.HTML http://www5.compaq.com/products/quickspecs/10429_div/ 10429_div.HTML

Communications

Compaq NC3123 Fast Ethernet NIC PCI 10/100 WOL

Compaq NC3134 Fast Ethernet NIC 64 PCI Dual Port 10/100

Compaq NC3135 Fast Ethernet Module Dual 10/100 Upgrade Module for NC3134 and NC3131

Compaq NC6132 Gigabit Module 1000 SX Upgrade Module for NC3134 and NC3131

Compaq NC6133 Gigabit Module 1000LX Upgrade Module for NC3134 and NC3131

Compaq NC3133 Fast Ethernet Module 100FX Upgrade Module for NC3134 and NC3131

Compaq NC7132 10/100/1000-T Upgrade Module for NC3134 and NC3131

Compaq NC6136 Gigabit Server Adapter, 64-bit/66-MHz, PCI, 1000 SX

Compaq NC7131 Gigabit Server Adapter, 64-bit/66-MHz, PCI, 10/100/1000-T

NOTE:

with the embedded NC3163 Network Controller

Compaq ProLiant ML370 Generation 2

Please see the following Controller or SCSI Adapter QuickSpecs for

(Smart Array 5i Plus)

(Smart Array 532)

(Smart Array 5300 Series)

(Smart Array 5312)

(SCSI Adapter)

174830-B21

138603-B21

138604-B21

338456-B23

338456-B24

338456-B25

153543-B21

203539-B21

158575-B21

Any NC31XX, NC61XX or NC71XX NIC can be used for redundancy

Redundant Options

Management Options

Compaq Hot Plug Redundant Power Supply Option Kit (U.S.)

Compaq Hot Plug Redundant Power Supply Option Kit (Australia)

Compaq Hot Plug Redundant Power Supply Option Kit (EURO)

Compaq Hot Plug Redundant Power Supply Option Kit (UK)

Compaq Hot Plug Redundant Power Supply Option Kit (Japan)

Compaq Redundant Hot Plug Fan Option Kit

Remote Insight Lights-Out Edition II (NA, LA)

Remote Insight Lights-Out Edition II (EMEA)

Remote Insight Lights-Out Edition II (ROW)

Compaq Remote Insight Lights-Out Edition (NA, LA)

Compaq Remote Insight Lights-Out Edition (EURO)

225075-001

225075-011

225075-021

225075-031

225075-291

225073-B21

227251-001

227251-021

227251-371

157866-001

157866-021

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 13

QuickSpecs

Compaq ProLiant ML370 Generation 2

Compaq Remote Insight Lights-Out Edition (APD, Japan)

Security

HP/Atalla AXL600L SSL Accelerator Card for ProLiant Servers

Compaq AXL300 Accelerator PCI Card for ProLiant Servers

Monitors

Essential Series

Compaq S9500 CRT Monitor (19-inch, Carbon/Silver)

Compaq S7500 CRT Monitor (17-inch, Carbon/Silver)

Compaq S5500 CRT Monitor (15-inch Carbon/Silver)

Compaq TFT1501 Flat Panel Monitor (15-inch, Carbon/Silver, North America)

Compaq TFT1501 Flat Panel Monitor (15-inch, Carbon/Silver, Outside North America)

Compaq TFT1701 Flat Panel Monitor (17-inch, Carbon/Silver, North America)

Compaq TFT1701 Flat Panel Monitor (17-inch, Carbon/Silver, Outside North America)

Advantage Series

Compaq V7550 CRT Color Monitor (17-inch, Carbon/Silver)

Compaq TFT1720 Flat Panel Monitor (17-inch, Carbon/Silver, North America)

Compaq TFT1720 Flat Panel Monitor (17-inch, Carbon/Silver, outside North America)

Compaq FT1720M Flat Panel Monitor (17-inch, (Carbon/Silver, includes speaker, USB port, headphone, North America)

Compaq TFT1720M Flat Panel Monitor (17-inch, (Carbon/Silver, includes speaker, USB port, headphone, outside North America)

Compaq TFT1520 Flat Panel Monitor (15-inch, Carbon/Silver, North America)

Compaq TFT1520 Flat Panel Monitor (15-inch, Carbon/Silver, outside North America)

Compaq TFT1520M Flat Panel Monitor (15-inch, (Carbon/Silver includes speaker, USB port, headphone, North America)

Compaq TFT1520M Flat Panel Monitor (15-inch, (Carbon/Silver includes speaker, USB port, headphone, outside North America)

157866-371

524545-B21

227933-B21

261615-XXX

261606-XXX

261602-XXX

301042-003

P4825D-XXX

292847-003

P9019A-XXX

261611-XXX

295926-003

D5064D-XXX

301958-003

D5064P-XXX

295925-003

D5063D-XXX

301957-003

D5063P-XXX

Performance Series

HP P930 CRT Monitor (19-inch, Flat-screen, Carbon/Silver, North America)

HP P930 CRT Monitor (19-inch, Flat-screen, Carbon/Silver, Outside North America)

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

302268-003

P909W-XXX

Page 14

QuickSpecs

Compaq ProLiant ML370 Generation 2

HP P1130 CRT Monitor (21-inch, Flat-screen, Carbon/Silver, North America)

HP P1130 CRT Monitor (21-inch, Flat-screen, Carbon/Silver, Outside North America)

HP L1825 Flat Panel Monitor (18-inch, Carbon/Silver, North America)

HP L1825 Flat Panel Monitor (18-inch, Carbon/Silver, Outside North America)

HP L2025 Flat Panel Monitor (20-inch, Carbon/Silver, North America)

HP L2025 Flat Panel Monitor (20-inch, Carbon/Silver, Outside North America)

Compaq TFT1825 Flat Panel Monitor (18-inch, Carbon/Silver, North America)

Compaq TFT1825 Flat Panel Monitor (18-inch, Carbon/Silver, Outside North America)

Compaq TFT2025 Flat Panel Monitor (20-inch, Carbon/Silver, North America)

Compaq TFT2025 Flat Panel Monitor (20-inch, Carbon/Silver, Outside North America)

Rackmount Flat Panel Monitors

TFT5110R Flat Panel Monitor (Carbon)

NOTE:

Monitors larger than 17 may be too heavy for use

in rack systems.

302270-003

P4819-XXX

303486-003

P9021W-XXX

303102-003

P4831W-XXX

296751-003

P9021A-XXX

285550-003

P4831D-XXX

281683-B21

Tape Drives

NOTE:

remove the rails that come standard on the drives and then re-insert the screws in the mounting holes. Mounting screws are shipped standard with server.

Internal and External DAT Tape Drives

Internal 12/24-GB DAT Drive (opal)

Internal 12/24-GB DAT Drive (opal) (Japan)

NOTE:

such as cassettes and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/10239_div/ 10239_div.HTML http://www5.compaq.com/products/quickspecs/10239_na/ 10239_na.HTML

HP StorageWorks 20/40-GB DAT DDS-4 Tape Drive, Internal (Carbon) (WW)

HP StorageWorks 20/40-GB DAT DDS-4 Tape Drive, External (Carbon) (NA)

HP StorageWorks 20/40-GB DAT DDS-4 Tape Drive, External (Int’l) (Carbon)

HP StorageWorks 20/40-GB DAT DDS-4 Tape Drive, External (Japan) (Carbon)

HP StorageWorks Internal 20/40-GB DAT, Hot Plug (Carbon)

In order to install certain tape drives internally, you may need to

295513-B22

295513-292

Please see the 12/24-GB DAT Drive QuickSpecs for additional options

(Division/World Wide)

(North America)

157769-B22

157770-002

157770-B32

157770-292

215488-B21

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 15

QuickSpecs

NOTE:

Please see the 20/40-GB DAT Tape Drive QuickSpecs for additional options such as host bus adapters, controllers, cassettes, and for an up-todate listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/10426_div/ 10426_div.HTML http://www5.compaq.com/products/quickspecs/10426_na/ 10426_na.HTML

Internal and External AIT Tape Drives

HP StorageWorks Internal AIT 35-GB, LVD Tape Drive (Carbon)

HP StorageWorks External AIT 35-GB, LVD Tape Drive (Carbon)

HP StorageWorks External AIT 35-GB, LVD Tape Drive (Carbon) (Int’l)

HP StorageWorks External AIT 35-GB, LVD Tape Drive (Carbon) (Japan)

HP StorageWorks Internal AIT 35-GB, LVD, Hot Plug (Carbon)

Compaq ProLiant ML370 Generation 2

(Division/World Wide)

(North America)

216884-B21

216885-001

216885-B31

216885-291

216886-B21

NOTE:

Please see the AIT 35-GB, LVD Tape Drive QuickSpecs for additional options such as adapters, controllers, and cassettes, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/10712_div/ 10712_div.HTML http://www5.compaq.com/products/quickspecs/10712_na/ 10712_na.HTML

HP StorageWorks AIT 50-GB Tape Drive, Internal (Carbon) (WW)

HP StorageWorks AIT 50-GB Tape Drive, External (Carbon) (NA)

HP StorageWorks AIT 50-GB Tape Drive, External (Int’l) (Carbon)

HP StorageWorks AIT 50-GB Tape Drive, External (Japan) (Carbon)

HP StorageWorks Internal AIT 50-GB, Hot Plug (Carbon)

HP StorageWorks AIT 50GB Tape Drive, 3U Rackmount

NOTE:

Please see the AIT 50-GB Tape Drive QuickSpecs for additional options such as adapters, controllers, and cassettes, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/10425_div/ 10425_div.HTML http://www5.compaq.com/products/quickspecs/10425_na/ 10425_na.HTML

(Division/World Wide)

(North America)

157766-B22

157767-002

157767-B32

157767-292

215487-B21

274333-B21

(Division/World Wide)

(North America)

HP StorageWorks Internal AIT 100-GB Tape Drive (Carbon)

HP StorageWorks External AIT 100-GB Tape Drive (Carbon)

HP StorageWorks External AIT 100-GB Tape Drive (Carbon) (Int’l)

HP StorageWorks Internal AIT 100-GB, Hot Plug (Carbon)

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

249189-B21

249160-001

249160-B31

249161-B21

Page 16

QuickSpecs

NOTE:

Please see the AIT 100-GB Tape Drive QuickSpecs for additional options such as adapters, controllers, and cassettes, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/11062_div/ 11062_div.HTML http://www5.compaq.com/products/quickspecs/11062_na/ 11062_na.HTML

Internal and External DLT/ SDLT Tape Drives

NOTE:

Please see the 20/40-GB DLT Drive QuickSpecs for additional options such as data and cleaning cartridges, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/10234_div/ 10234_div.HTML http://www5.compaq.com/products/quickspecs/10234_na/ 10234_na.HTML

Compaq ProLiant ML370 Generation 2

(Division/World Wide)

(North America)

(Division/World Wide)

(North America)

HP StorageWorks 40/80-GB DLT Tape Drive, Internal (Carbon)

HP StorageWorks 40/80-GB DLT Tape Drive, External (Carbon) (NA)

HP StorageWorks 40/80-GB DLT Tape Drive, External (Carbon) (Japan)

HP StorageWorks Rackmount DLT 40/80, 3U (Single Drive)

HP StorageWorks Rackmount DLT 40/80, Dual Drive 3U (Two Drives)

HP StorageWorks Rackmount DLT 40/80, Tape Array III, 5U (Four Drives)

NOTE:

Please see the 40/80-GB DLT Drive QuickSpecs for additional options such as host bus adapters, controllers, cassettes, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/10658_div/ 10658_div.HTML http://www5.compaq.com/products/quickspecs/10658_na/ 10658_na.HTML

Internal and External DLT VS Tape Drives

HP StorageWorks DLT VS 40/80 Tape Drive, Internal (Carbon) (WW)

HP StorageWorks DLT VS 40/80 Tape Drive, External (Carbon) (NA)

HP StorageWorks DLT VS 40/80 Tape Drive, External (Carbon) (Int'l)

HP StorageWorks DLT VS 40/80 Tape Drive, External (Carbon) (Japan)

(Division/World Wide)

(North America)

146196-B22

146197-B22

146197-293

274332-B21

274335-B21

274337-B21

280129-B21

280129-B22

280129-B31

280129-291

NOTE:

Please see the DLT VS 40/80 Tape Drive QuickSpecs for additional options such as host bus adapters, controllers, cassettes, and for an up-todate listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/11403_div/ 11403_div.HTML http://www5.compaq.com/products/quickspecs/11403_na/ 11403_na.HTML

(Division/World Wide)

(North America)

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 17

QuickSpecs

Compaq ProLiant ML370 Generation 2

HP StorageWorks Rackmount SDLT 110/220, 3U (Single Drive)

HP StorageWorks Rackmount SDLT 110/220, Dual-Drive, 3U (Two Drives)

HP StorageWorks Rackmount SDLT 110/220, Tape Array III, 5U (Four Drives)

NOTE:

Please see the SDLT 110/220-GB Tape Drive QuickSpecs for additional options such as adapters, controllers, and media, and for an up-todate listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/10772_div/ 10772_div.HTML http://www5.compaq.com/products/quickspecs/10772_na/ 10772_na.HTML

HP StorageWorks SDLT 160/320, Internal (carbon) (WW)

HP StorageWorks SDLT 160/320, External NA (carbon)

HP StorageWorks SDLT 160/320, External WW (carbon)

HP StorageWorks SDLT 160/320, External Japan (carbon)

NOTE:

Please see the SDLT 160/320-GB Tape Drive QuickSpecs for additional options such as adapters, controllers, and media, and for an up-todate listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/11406_div/ 11406_div.HTML http://www5.compaq.com/products/quickspecs/11406_na/ 11406_na.HTML

(Division/World Wide)

(North America)

(Division/World Wide)

(North America)

274331-B21

274334-B21

274336-B21

257319-B21

257319-001

257319-B31

257319-291

External SuperLoader

DLT1 1280 SuperLoader

NOTE:

QuickSpecs for additional options and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/11330_div/ 11330_div.HTML http://www5.compaq.com/products/quickspecs/11330_na/ 11330_na.HTML

Internal and External LTO Ultrium Tape Drives

HP StorageWorks LTO Ultrium 230 Tape Drive, Internal (Carbon) WW

HP StorageWorks LTO Ultrium 230 Tape Drive, External (Carbon) NA

HP StorageWorks LTO Ultrium 230 Tape Drive, External (Carbon) Int’l

NOTE:

QuickSpecs for additional options such as controllers, and other related items, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/11415_div/ 11415_div.HTML http://www5.compaq.com/products/quickspecs/11415_na/ 11415_na.HTML

268664-B21

Please see the StorageWorks DLT1 1280 SuperLoader by Compaq

(Division/World Wide)

(North America)

Q1515A

Q1516A

Q1517A

Please see the HP StorageWorks LTO Ultrium Tape Drive

(Division/World Wide)

(North America)

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 18

QuickSpecs

Compaq ProLiant ML370 Generation 2

HP StorageWorks Ultrium 460 Tape Drive for ProLiant, Internal (Carbon) WW

HP StorageWorks Ultrium 460 Tape Drive for ProLiant, External (Carbon) NA

HP StorageWorks Ultrium 460 Tape Drive for ProLiant, External (Carbon) Int’l

NOTE:

Please see the HP StorageWorks Ultrium 460 Tape Drives for ProLiant QuickSpecs for additional options such as data and cleaning cartridges, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/11530_div/ 11530_div.HTML http://www5.compaq.com/products/quickspecs/11530_na/ 11530_na.HTML

Internal and External DAT Autoloader

20/40-GB DAT 8 Cassette Autoloader Internal (Opal)

20/40-GB DAT 8 Cassette Autoloader External (Opal)

20/40-GB DAT 8 Cassette Autoloader External (Opal) (Int’l)

20/40-GB DAT 8 Cassette Autoloader External (Opal) (Japan)

(Division/World Wide)

(North America)

Q1518A

Q1519A

Q1520A

166504-B21

166505-001

166505-B31

166505-291

NOTE:

Please see the 20/40-GB DAT DDS-4 8 Cassette Autoloader QuickSpecs for additional options such as adapters, controllers, and cassettes, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/10518_div/ 10518_div.HTML (Division/World Wide) http://www5.compaq.com/products/quickspecs/10518_na/ 10518_na.HTML (North America)

AIT Autoloader

HP StorageWorks AIT 35 GB Autoloader, Rackmount (Carbon) (NA)

HP StorageWorks AIT 35 GB Autoloader, Rackmount (Carbon) (Int’l)

HP StorageWorks AIT 35 GB Autoloader Tabletop (Carbon) (NA)

HP StorageWorks AIT 35 GB Autoloader, Tabletop (Carbon) (Int’l)

NOTE:

Please see the AIT 35-GB Autoloader QuickSpecs for additional options such as adapters, controllers, and cassettes, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/11404_div/ 11404_div.HTML http://www5.compaq.com/products/quickspecs/11404_na/ 11404_na.HTML

(Division/World Wide)

(North America)

280349-001

280349-B31

292355-001

292355-B31

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 19

QuickSpecs

StorageWorks

HP StorageWorks 1/8 Autoloader, Tabletop, Ultrium 230

HP StorageWorks 1/8 Autoloader, Tabletop, DLT VS80

HP StorageWorks 1/8 Autoloader, Rackmount kit

Rackmount Tape Drive Kits

3U Rackmount Kit

NOTE:

support up to (2) full-height or (4) half-height tape drives and compatible with multiple Single-Ended and LVD SCSI Tape Drives including the 12/24-GB DAT, 20/40-GB DAT, 20/40-GB DAT DDS-4 8 Cassette Autoloader, AIT 35-GB LVD, AIT 50 GB, 20/40-GB DLT, 40/80-GB DLT, and the SDLT 110/220-GB Tape Drives.

5U Rackmount Kit

NOTE:

support up to (4) full-height tape drives and is compatible with all Compaq DLT/SDLT tape drives including the 20/40-GB DLT, 35/70-GB DLT, 40/80-GB DLT, and the SDLT 110/220-GB tape drives.

Compaq ProLiant ML370 Generation 2

1/8 Autoloader

C9572CB

C9264CB

C9266R

274338-B21

The 3U Rackmount Kit (PN 274338-B21) can

274339-B21

The 5U Rackmount Kit (PN 274339-B21) can

NOTE:

Please see the Compaq Rackmount Tape Drive Kits QuickSpecs for additional information regarding these kits, please see the following:

http://www5.compaq.com/products/quickspecs/10854_div/ 10854_div.HTML http://www5.compaq.com/products/quickspecs/10854_na/ 10854_na.HTML

Rackmount Tape Drive Cable Kits

LVD Cable Kit, VHDCI/HD68

NOTE:

For use with the 3U RM Storage Enclosure and

DLT Tape Array III only.

LVD Cable Kit, HD68/HD68

NOTE:

For use with the 3U RM Storage Enclosure and

DLT Tape Array III only.

(Division/World Wide)

(North America)

Tape Automation

Entry Level Tape Libraries

SSL2020 AIT Library

SSL2020 AIT Mini-Library 1 drive, 20 slot Table Top

SSL2020 AIT Mini-Library 2 drive, 20 slot Table Top

SSL2020 AIT Mini-Library 1 drive, 20 slot Rackmount

SSL2020 AIT Mini-Library 2 drive, 20 slot Rackmount

SSL2020 AIT Library Pass Thru with Transport

SSL2020 AIT Library Pass Thru Extender

AIT 50-GB Drive Add-On LVD Drive for SSL2020 AIT Library

Required Adapters/Controllers for SSL2020 AIT Library

64-Bit/66-Mhz Dual Channel Wide Ultra3 SCSI Adapter

SAN Access Module for Smart Array 5302 Controller

SAN Access Module for Smart Array 5302 Controller (Japan)

168048-B21

242381-B21

175195-B21

175195-B22

175196-B21

175196-B22

175312-B21

175312-B22

175197-B21

129803-B21

216687-B21

216687-291

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 20

QuickSpecs

NOTE:

QuickSpecs for additional information including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at:

http://www5.compaq.com/products/quickspecs/10580_na/ 10580_na.HTML (North America) http://www5.compaq.com/products/quickspecs/10580_div/ 10580_div.HTML (Division/World Wide)

Please see the SSL2020 Automated AIT Tape Library Solution

Compaq ProLiant ML370 Generation 2

MSL5000 Libraries

Mainstream Tape Library

MSL5026DLX DLT Library

MSL5026DLX, 1 40/80-GB DLT, LVD Table Top

MSL5026DLX, 2 40/80-GB DLT, LVD Table Top

MSL5026DLX, 1 40/80-GB DLT, LVD Rackmount

MSL5026DLX, 2 40/80-GB DLT, LVD Rackmount

MSL5026SLSDLT Library

MSL5K Field Upgrade SDLT 110/220 Drive, LVD

231821-B21

231821-B22

231891-B21

231891-B22

231823-B22

NOTE:

Please see the StorageWorks MSL5026DLX or MSL5026SL Library QuickSpecs for additional information including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at:

http://www5.compaq.com/products/quickspecs/10860_na/ 10860_na.HTML (North America) http://www5.compaq.com/products/quickspecs/10860_div/ 10860_div.HTML (Division/World Wide)

MSL5026SL, Tabletop, 1 SDLT Drive (Graphite)

MSL5026SL, Tabletop, 2 SDLT Drives (Graphite)

MSL5026SL, Rackmount, 1 SDLT Drive (Graphite)

MSL5026SL, Rackmount, 2 SDLT Drive (Graphite)

NOTE:

Please see the StorageWorks MSL5026SL Library QuickSpecs for additional information including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at:

http://www5.compaq.com/products/quickspecs/11440_na/ 11440_na.HTML (North America) http://www5.compaq.com/products/quickspecs/11440_div/ 11440_div.HTML (Division/World Wide)

MSL5026S2 SDLT Library

MSL5026S2, Rackmount, 0 Drive Library

MSL5026S2, Rackmount, 1 Drive, SDLT2 Library

MSL5026S2, Rackmount, 2 Drives, SDLT2 Library

MSL5026S2FC, Rackmount, 1 Drive, SDLT2 Library

MSL5026S2FC, Rackmount, 2 Drives, SDLT2 Library

MSL5026S2, Tabletop, 1 Drive, SDLT2 Library

MSL5026S2, Tabletop, 2 Drives, SDLT2 Library

302511-B21

302511-B22

302512-B21

302512-B22

293472-B21

293472-B22

293472-B23

293472-B24

293472-B25

293473-B21

293473-B22

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 21

QuickSpecs

NOTE:

Please see the StorageWorks MSL5026S2 Library QuickSpecs for additional information including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at:

http://www5.compaq.com/products/quickspecs/11453_na/ 11453_na.HTML (North America) http://www5.compaq.com/products/quickspecs/11453_div/ 11453_div.HTML (Division/World Wide)

Departmental Tape Library

MSL5052SL SDLT Library

MSL5052, Rackmount, 0 Drive, SDLT ALL

MSL50502SL, SDLT, 110/220, 2 Drives, LVD, Table Top

MSL50502SL, SDLT, 110/220, 2 Drives, LVD, Rackmount

NOTE:

additional information including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at:

http://www5.compaq.com/products/quickspecs/11061_na/ 11061_na.HTML (North America) http://www5.compaq.com/products/quickspecs/11061_div/ 11061_div.HTML (Division/World Wide)

Compaq ProLiant ML370 Generation 2

255102-B21

249490-B21

249491-B21

Please see the StorageWorks MSL5052SL Library QuickSpecs for

MSL5052S2 SDLT Library

MSL5052S2, Tabletop, 2 Drives, SDLT2 Library

MSL5052S2, Rackmount, 2 Drives, SDLT2 Library

MSL5052S2FC, Rackmount, 2 Drives, SDLT2 Library

NOTE:

Please see the StorageWorks MSL5052S2 Library QuickSpecs for additional information including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at:

http://www5.compaq.com/products/quickspecs/11442_na/ 11442_na.HTML (North America) http://www5.compaq.com/products/quickspecs/11442_div/ 11442_div.HTML (Division/World Wide)

MSL5030 LTO Library

MSL5030L1, Rackmount, 0 Drive Library

MSL5030L1, Rackmount, 1 Drive, LTO1 Library

MSL5030L1, Rackmount, 2 Drives, LTO1 Library

MSL5030L1FC, Rackmount, 1 Drive, LTO1 Library

MSL5030L1FC, Rackmount, 2 Drives, LTO1 Library

MSL5030L1, Tabletop, 1 Drive, LTO1 Library

MSL5030L1, Tabletop, 2 Drives, LTO1 Library

293476-B21

293474-B21

293474-B24

301897-B21

301897-B22

301897-B23

301897-B24

301897-B25

301898-B21

301898-B22

NOTE:

Please see the StorageWorks MSL5030 LTO Library QuickSpecs for additional information including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at:

http://www5.compaq.com/products/quickspecs/11439_na/ 11439_na.HTML (North America) http://www5.compaq.com/products/quickspecs/11439_div/ 11439_div.HTML (Division/World Wide)

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 22

QuickSpecs

Compaq ProLiant ML370 Generation 2

MSL5060 LTO Library

MSL5060L1, Rackmount, 0 Drive Library

MSL5060L1, Rackmount, 2 Drives, LTO1 Library

MSL5060L1FC, Rackmount, 2 Drives, LTO1 Library

MSL5060L1, Tabletop, 2 Drives, LTO1 Library

NOTE:

Please see the StorageWorks MSL5060 LTO Library QuickSpecs for additional information including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at:

http://www5.compaq.com/products/quickspecs/11438_na/ 11438_na.HTML (North America) http://www5.compaq.com/products/quickspecs/11438_div/ 11438_div.HTML (Division/World Wide)

MSL5000 series Libraries Options

MSL5K Field Upgrade SDLT 110/220 Drive, LVD

MSL5000 SDLT2 Upgrade Drive

MSL5000 LTO1 Upgrade Drive

MSL5000 Dual Magazine LTO

MSL5000 Dual Magazine DLT

Required Adapters for MSL5000 series Libraries

64-Bit/66Mhz Dual Channel Wide Ultra3 SCSI Adapter

301899-B21

301899-B22

301899-B23

301900-B21

231823-B22

293475-B21

301901-B21

301902-B21

232136-B21

129803-B21

Smart Array Cluster Storage

Cluster Options

Smart Array Cluster Storage

Smart Array Cluster Storage Redundant Controller Option Kit

4-Port Shared Storage Module with Smart Array Multipath Software for Smart Array Cluster Storage

128-MB Cache Module for Smart Array 5302 Controller

256-MB Battery-Backed Cache Module

Compaq ProLiant Cluster HA/F100 for Windows NT and 2000 Advanced Server

Compaq ProLiant Cluster HA/F200 Upgrade Kit (NT 4.0EE to W2K AS)

Compaq ProLiant Cluster HA/F200 for Windows NT and 2000 Advanced Server

Compaq ProLiant Cluster HA/F200 for Windows NT and 2000 Advanced Server (Japan)

NOTE:

For additional information regarding the Compaq ProLiant Cluster for HA/F100, HA/F200 for Windows NT and 2000 Advanced Server please see the following QuickSpecs at:

http://www5.compaq.com/products/quickspecs/10777_na/ 10777_na.html http://www5.compaq.com/products/quickspecs/10777_div/ 10777_div.html

(North America)

(Division/World Wide)

201724-B21

218252-B21

292944-B21

153506-B21

254786-B21

309816-B21

176848-B22

380357-B23

380357-293

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 23

QuickSpecs

Compaq ProLiant ML370 Generation 2

ProLiant Cluster HA/F500 Enhanced Kit for Enterprise Virtual Array v.2

ProLiant Cluster HA/F500 Basic Kit for Enterprise Virtual Array (v.2)

ProLiant Cluster HA/F500 Basic Kit for MA8000/EMA16000

ProLiant Cluster HA/F500 Enhanced Kit for MA8000/EMA16000

ProLiant Cluster HA/F500 Enhanced DT Kit for MA8000/EMA16000

NOTE:

For additional information regarding the Compaq ProLiant Cluster for HA/F500 please see the following QuickSpecs at:

http://www5.compaq.com/products/quickspecs/10232_na/ 10232_na.html http://www5.compaq.com/products/quickspecs/10232_div/ 10232_div.html

ProLiant Cluster HA/F500 Basic Kit for MA8000/EMA16000

NOTE:

For additional information regarding the Compaq ProLiant Cluster HA/F500 for Enterprise Virtual Array please see the following QuickSpecs at:

http://www5.compaq.com/products/quickspecs/11055_na/ 11055_na.html http://www5.compaq.com/products/quickspecs/11055_div/ 11055_div.html

(North America)

(Division/World Wide)

(North America)

(Division/World Wide)

254623-B22

313047-B21

103250-B25

379937-B25

164227-B23

103250-B25

ProLiant Cluster HA/F100 for MSA1000 v2

ProLiant Cluster HA/F100 for MSA1000 v2 (Japan)

ProLiant Cluster HA/F200 for MSA1000 v2

ProLiant Cluster HA/F200 for MSA1000 v2 (Japan)

ProLiant Cluster HA/F100 for MSA1000

ProLiant Cluster HA/F100 for MSA1000 (Japan)

ProLiant Cluster HA/F200 for MSA1000

ProLiant Cluster HA/F200 for MSA1000 (Japan)

NOTE:

For additional information regarding the Compaq ProLiant Cluster HA/F100 and HA/F200 for MSA1000, please see the following QuickSpecs at:

http://www5.compaq.com/products/quickspecs/11035_na/ 11035_na.html http://www5.compaq.com/products/quickspecs/11035_div/ 11035_div.html

ProLiant Cluster HA/L100 LifeKeeper for Linux

NOTE:

For additional information regarding the ProLiant Cluster HA/L100 LifeKeeper for Linux, please see the following QuickSpecs at:

http://www5.compaq.com/products/quickspecs/11533_na/ 11533_na.html http://www5.compaq.com/products/quickspecs/11533_div/ 11533_div.html

(North America)

(Division/World Wide)

(North America)

(Division/World Wide)

252408-B22

252408-292

252409-B22

252409-292

252408-B21

252408-291

252409-B21

252409-291

303523-B21

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 24

QuickSpecs

Compaq ProLiant ML370 Generation 2

External Storage – Tower and Rack

StorageWorks Enclosure Model 4314T (tower)

StorageWorks Enclosure Model 4314T (tower) (Int’l)

StorageWorks Enclosure Model 4314T (tower) (Japan)

StorageWorks Enclosure Model 4314R (rack-mountable)

StorageWorks Enclosure Model 4314R (rack-mountable) (Int’l)

StorageWorks Enclosure Model 4314R (rack-mountable) (Japan)

StorageWorks Enclosure Model 4354R (rack-mountable)

StorageWorks Enclosure Model 4354R (rack-mountable) (Int’l)

StorageWorks Enclosure Model 4354R (rack-mountable) (Japan)

NOTE:

The StorageWorks Enclosure 4300 Family supports the Wide Ultra2/Ultra3 1 Hot Plug Hard Drives.

StorageWorks Enclosure 4200 Redundant Power Supply Option

StorageWorks Enclosure 4200 Ultra3 Single Bus I/O Module Option

StorageWorks Enclosure 4200 Ultra3 Dual Bus I/O Module Option

StorageWorks Enclosure Tower to Rack Conversion Kit

190210-001

190210-B31

190210-291

190209-001

190209-B31

190209-291

190211-001

190211-B31

190211-291

119826-B21

190212-B21

190213-B21

150213-B21

MSA1000

MSA 1000

MSA 1000 Controller

MSA Fibre Channel I/O Module

MSA1000 Fabric Switch

MSA 1000 Fibre Channel Adapter (FCA) 2101

HP StorageWorks msa hub 2/3

NOTE:

Please see the HP StorageWorks modular SAN array 1000 QuickSpecs for additional options and configuration information at:

http://www5.compaq.com/products/quickspecs/11033_na/ 11033_na.HTML http://www5.compaq.com/products/quickspecs/11033_div/ 11033_div.HTML

(North America)

(Division/World Wide)

StorageWorks Modular Array 8000/Enterprise Modular Array 12000

EMA12000 D14 60Hz

EMA12000 D14 50Hz

EMA12000 S14 60Hz

EMA12000 S14 50Hz

MA8000 60Hz

MA8000 50Hz

EMA12000 Blue 60Hz

EMA12000 Blue 50Hz

201723-B22

218231-B22

218960-B21

218232-B21

245299-B21

286763-B21

175990-B21

175990-B22

175991-B21

175991-B22

175992-B21

175992-B22

175993-B21

175993-B22

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 25

QuickSpecs

NOTE:

includes controller shelf, drive shelves and cabinet. Packaging upgrade to RA8000/ESA12000.

NOTE:

FC Hubs, FC switches, platform software, host adapters, disks and options for complete solutions at:

http://www5.compaq.com/products/quickspecs/10545_na/ 10545_na.HTML http://www5.compaq.com/products/quickspecs/10545_div/ 10545_div.HTML

StorageWorks Enterprise Modular Array 16000 FC

EMA16000 D14 50Hz (opal)

EMA16000 D14 60Hz (opal)

EMA16000 S14 50Hz (opal)

EMA16000 S14 60Hz (opal)

NOTE:

enclosure (2 pairs per single bus configuration, 4 pairs per dual bus configuration) with 1GB cache per controller pair, and 12 14-bay drive enclosures with redundant power supplies. Configure-to-Order (CTO) builds are available. Options include ACS, platform kits and software by.

NOTE:

switches, platform software, host adapters, disks and options for complete solutions at:

http://www5.compaq.com/products/quickspecs/10812_na/ 10812_na.HTML http://www5.compaq.com/products/quickspecs/10812_div/ 10812_div.HTML

Compaq ProLiant ML370 Generation 2

Options include controller, solution kits, ACS. MA8000/EMA12000

Please see the StorageWorks MA8000/EMA12000 QuickSpecs for

(North America)

(Division/World Wide)

238792-B22

238792-B21

238791-B22

238791-B21

Models include: Dual HSG80 controllers in each Model 2200

Please see the StorageWorks EMA16000 QuickSpecs for FC

(North America)

(Division/World Wide)

StorageWorks Options

64-bit/66-MHz Fibre Channel Host Adapter

NOTE:

The 64-bit/66-Mhz Fibre Channel Host Adapter has been qualified for use with the Compaq RAID Array 4000 family of products, the Enterprise Backup Solution, and the RAID Array 8000 under NetWare.

64-bit/66-MHz Fibre Channel Host Adapter (Japan)

NOTE:

The 64-bit/66-Mhz Fibre Channel Host Adapter has been qualified for use with the Compaq RAID Array 4000 family of products, the Enterprise Backup Solution (EBS) offerings, and the RAID Array 8000 under NetWare.

StorageWorks SAN Switch 2/8-EL

StorageWorks SAN Switch 2/8-EL Upgrade

StorageWorks SAN Switch 2/16-EL

UPS and PDU Power Cord Matrix

Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications for UPS and PDU units.that lists cable descriptions, requirements, and specifications for UPS units.

ftp://ftp.compaq.com/pub/products/servers/ ProLiantstorage/power-protection/powercordmatrix.pdf

120186-B21

120186-291

258707-B21

288162-B21

283056-B21

Uninterruptible Power Systems – Tower

HP UPS Model T700 (700VA, 500 Watt), Low Voltage (NA)

HP UPS Model T700 (700VA, 500 Watt), High Voltage (Int'l)

204015-001

204015-B31

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 26

QuickSpecs

Compaq ProLiant ML370 Generation 2

HP UPS Model T700 (700VA, 500 Watt), Low Voltage (Japan)

HP UPS Model T1000 XR (1000VA, 700 Watt), Low Voltage (NA)

HP UPS Model T1000 XR ((1000VA, 700 Watt), High Voltage (Int'l)

HP UPS Model T1000 XR (1000VA, 700 Watt), Low Voltage (Japan)

HP UPS Model T1500 XR (1440VA, 1050 Watt), Low Voltage (NA)

HP UPS Model T1500 XR (1500VA, 1050 Watt), High Voltage (Int'l)

HP UPS Model T1500 XR (1500VA, 1050 Watt), Low Voltage (Japan)

HP UPS Model T2200 XR (1920VA, 1600 Watt), Low Voltage (NA)

HP UPS Model T2200 XR (2080VA, 1600 Watt), High Voltage (NA)

HP UPS Model T2200 XR (2200VA, 1600 Watt), Low Voltage (NA)

HP UPS Model T2200 XR (2200VA, 1600 Watt), Low Voltage (Japan)

204015-291

204155-001

204155-B31

312803-291

204155-002

204155-B32

204155-291

204451-001

204451-002

204451-B31

204451-291

Uninterruptible Power Systems – Rack

Compaq UPS R1500 XR (1440VA, 1340 Watt), Low Voltage (NA)

Compaq UPS R1500 XR (1500VA, 1340 Watt), High Voltage (Int’l)

Compaq UPS R1500 XR (1500VA, 1340 Watt), Low Voltage (Japan)

Compaq UPS R3000 XR (2880VA, 2700 Watt), Low Voltage (NA)

Compaq UPS R3000 XR (3000VA, 2700 Watt), High Voltage (NA

Compaq UPS R3000 XR (2400VA, 2250 Watt), Low Voltage (Japan)

Compaq UPS R3000 XR (3000VA, 2700 Watt), High Voltage (Japan)

Compaq UPS R3000 XR (3000VA, 2700 Watt), High Voltage (Int’l - detachable cord)

Compaq UPS R3000 XR (3000VA, 2700 Watt), High Voltage (16A IEC309 Plug)

Compaq UPS R3000 XR (3000VA, 2700 Watt), High Voltage (16A CEE 7/7 SCHUKO Plug)

Compaq UPS R3000 XR (3000VA, 2700 Watt), High Voltage (16A BS-546 Plug)

Rack-Mountable UPS R6000 (6000VA, 6000 Watt) High Voltage (NA)

NOTE:

The UPS R6000 has a hardwired input.

Rack-Mountable UPS R6000 (6000VA, 6000 Watt) High Voltage (Int'l)

NOTE:

The UPS R6000 has a hardwired input.

204404-001

204404-B31

204404-291

192186-001

192186-002

192186-291

192186-292

192186-B31

192186-B32

192186-B33

192186-AR1

347207-001

347207-B31

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 27

QuickSpecs

Compaq ProLiant ML370 Generation 2

Rack-Mountable UPS R6000 (6000VA, 6000 Watt) High Voltage (Japan)

NOTE:

The UPS R6000 has a hardwired input.

UPS R12000 XR N+x (200-240V) (WW-hardwired)

NOTE:

The UPS R12000 XR has a hardwired input and output.

UPS Options

SNMP Serial Port Card

NOTE:

Supports tower and rack UPS XR models ranging from 1000 – 3000VA

Six Port Card

NOTE:

Supports tower and rack UPS XR models ranging from 1000 – 3000VA

High to Low Voltage Transformer (250VA)

NOTE:

Supports R6000 UPS series only. 2.5 amps @ 125 Volts max output across two NEMAa 5-15.

Extended Runtime Module, T1000 XR

NOTE:

2U each, two ERM maximum.

Extended Runtime Module, T1500 XR/T2200 XR

NOTE:

3U each, one ERM maximum.

Extended Runtime Module, R1500 XR

NOTE:

2U each, two ERM maximum.

Extended Runtime Module, R3000 XR

NOTE:

2U each, one ERM maximum.

Extended Runtime Module, R6000

NOTE:

3U each, two ERM maximum.

Extended Runtime Module, R12000 XR, 4U

NOTE:

4U each, two ERM maximum.

SNMP-EN Adapter

NOTE:

Supports R6000 UPS series only.

Multi-Server UPS Card

NOTE:

Supports R6000 UPS series only.

Scalable UPS Card

NOTE:

Supports R6000 UPS series only.

347207-291

207552-B22

192189-B21

192185-B21

388643-B21

218967-B21

218969-B21

218971-B21

192188-B21

347224-B21

217800-B21

347225-B21

123508-B21

123509-B21

Rack-Mountable PDUs – 1U/0U

(up to 12 outlets)

NOTE:

0U mounting brackets shipped with the unit (separate option kit for 1U mounting).

Compaq Power Distribution Unit-16A (200 to 240V) (WW)

NOTE:

The 16A PDU also connects to the high volt models of the UPS R3000 XR (need cable PN 340653-001 (NA)) and the UPS R6000 models. Cable PN 340653-001 required if connecting to UPS R3000 XR (192186-002 NAHigh Volt model only).

Compaq Power Distribution Unit-32A (200 to 240V) (Int’l)

Compaq Power Distribution Unit-40A (200 to 240V) (WW)

NOTE:

Please see the following Power Distribution Unit (Zero-U/1U PDU) QuickSpecs for additional options including cables:

http://www5.compaq.com/products/quickspecs/10838_na/ 10838_na.HTML http://www5.compaq.com/products/quickspecs/10838_div/ 10838_div.HTML

(North America)

(Division/World Wide)

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

207590-B21

207590-B31

207590-B23

Page 28

QuickSpecs

Modular PDUs -1U/0U

(Up to 32 outlets)

NOTE:

1U/0U mounting brackets shipped with the unit (optimized for 10000 and 9000 series racks).

HP Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127 VAC) (NA, Japan)

NOTE:

connect the low volt model of the UPS R3000 XR.

HP Modular Power Distribution Units (mPDU), High Volt Model, 24A (200-240 VAC) (NA, Japan)

HP Modular Power Distribution Units (mPDU), High Volt Model, 32A (200-240 VAC) (Int'l)

HP Modular Power Distribution Units (mPDU), High Volt Model, 40A (200-240 VAC) (WW)

NOTE:

hardwired input.

HP Modular Power Distribution Units (mPDU), High Volt Model, 16A (200-240 VAC) (WW)

NOTE:

allows for adaptability to country specific power requirements. This model may also be used with the high volt UPSs R3000 XR and R6000.

Compaq ProLiant ML370 Generation 2

252663-D71

This mPDU (252663-D71) may also be used to

252663-D72

252663-B31

252663-B21

This mPDU (252663-B21), 40A model has a

252663-B24

This PDU has a detachable input power cord and

NOTE:

Please see the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs for additional options including shorter jumper cables and country specific power cords:

http://www5.compaq.com/products/quickspecs/11041_na/ 11041_na.HTML http://www5.compaq.com/products/quickspecs/11041_div/ 11041_div.HTML

(North America)

(Division/World Wide)

PDU Options

1U PDU Mounting Brackets Kit

NOTE:

The 1U PDU Mounting Brackets are required when mounting PDU’s PN 207590-xxx series in 1U configurations.

Third Party PDU Mounting Kit

NOTE:

This kit allows you to mount the Modular PDUs in racks other than the 9000/10000 Series racks (any racks using the standard 19" rail). For more details please refer the Modular PDU QuickSpecs.

215852-B21

310777-B21

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 29

QuickSpecs

Compaq ProLiant ML370 Generation 2

Other

Enhanced Keyboard (Carbon)

Enhanced Keyboard

(Carbon)

Code

Country Key

Dash #

-005

-035

-045

-055

-065

-075

-085

-105

-125

-135

-145

-155

Description

Germany

France

Italy

Spain

Denmark

Norway

Sweden/Finland

French Canadian

Portugal

Turkey

Greek

Dash #

-175

-185

-215

-225

-235

-245

-255

-295

-335

-355

-B35

-B45

Description

Arabic

Belgium

Hungary

Czech

Solvac

Polish

Russian

Japan

Dutch

Finish

Int’l

BHCSY

Rack Builder

Please see the Rack Builder for configuration assistance at http://www.compaq.com/rackbuilder/

Rack Conversion Kit

Tower to Rack Conversion Kit

HP Rack 10000 Series

(Graphic Metallic)

HP Rack 10842 (42U, 800mm wide) – Pallet

HP Rack 10842 (42U, 800mm wide) – Shock Pallet

HP Rack 10647 (47U) – Pallet

HP Rack 10647 (47U) – Crated

HP Rack 10642 (42U) – Pallet

HP Rack 10642 (42U) – Shock Pallet

HP Rack 10642 (42U) – Crated

HP Rack 10636 (36U) – Pallet

HP Rack 10636 (36U) – Shock Pallet

HP Rack 10636 (36U) – Crated

HP Rack 10622 (22U) – Pallet

HP Rack 10622 (22U) – Shock Pallet

HP Rack 10622 (22U) – Crated

296435-xx5

225074-B22

257415-B21

257415-B22

245160-B21

245160-B23

245161-B21

245161-B22

245161-B23

245162-B21

245162-B22

245162-B23

245163-B21

245163-B22

245163-B23

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 30

QuickSpecs

NOTE:

-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels)

-B23 (crated) used for air shipments of empty racks

NOTE:

equipment installed. Not all Compaq equipment is qualified to be shipped in the Rack 10000 series.

NOTE:

such as height, width, depth, weight, and color:

http://www5.compaq.com/products/quickspecs/10995_div/ 10995_div.HTML http://www5.compaq.com/products/quickspecs/10995_na/ 10995_na.HTML

NOTE:

following URL:

-B21 (pallet) used to ship empty racks shipped on a truck

It is mandatory to use a shock pallet in order to ship racks with

Please see the Rack 10000 QuickSpecs for Technical Specifications

(Division/World Wide)

(North America)

For additional information regarding Rack Cabinets, please see the

http://www.compaq.com/racks

Compaq ProLiant ML370 Generation 2

Compaq Rack 9000 Series

(Opal)

Compaq Rack 9142 (42U) – Pallet

Compaq Rack 9142 (42U) – Shock Pallet

Compaq Rack 9142 (42U) – Crated

Compaq Rack 9136 (36U) – Pallet

Compaq Rack 9136 (36U) – Shock Pallet

Compaq Rack 9136 (36U) – Crated

Compaq Rack 9122 (22U) – Pallet

Compaq Rack 9122 (22U) – Shock Pallet

Compaq Rack 9122 (22U) – Crated

Compaq Rack 9842 (800mm wide, 42U) – Pallet

120663-B21

120663-B22

120663-B23

120664-B21

120664-B22

120664-B23

120665-B21

120665-B22

120665-B23

222192-B21

NOTE:

-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels)

-B23 (crated) used for air shipments of empty racks

NOTE:

such as height, width, depth, weight, and color:

http://www5.compaq.com/products/quickspecs/10366_div/ 10366_div.HTML http://www5.compaq.com/products/quickspecs/10366_na/ 10366_na.HTML

NOTE:

following URL:

http://www.compaq.com/racks

Rack Options for HP Rack 10000 Series

-B21 (pallet) used to ship empty racks shipped on a truck

Please see the Rack 9000 QuickSpecs for Technical Specifications

(Division/World Wide)

(North America)

For additional information regarding Rack Cabinets, please see the

Rack Blanking Panels – Graphite (Multi)

NOTE:

Contains one each of 1U, 2U, 3U, and 4U panel.

Rack Blanking Panels – Graphite (1U)

NOTE:

The Rack Blanking Panels (PN 253214-B21)

contains 10 each of (1U).

Rack Blanking Panels – Graphite (2U)

NOTE:

The Rack Blanking Panels (PN 253214-B21)

contains 10 each of (2U).

Rack Blanking Panels – Graphite (3U)

NOTE:

The Rack Blanking Panels (PN 253214-B21)

contains 10 each of (3U).

253214-B26

253214-B21

253214-B22

253214-B23

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 31

QuickSpecs

Compaq ProLiant ML370 Generation 2

Rack Blanking Panels – Graphite (4U)

NOTE:

The Rack Blanking Panels (PN 253214-B21)

contains 10 each of (4U).

Rack Blanking Panels – Graphite (5U)

NOTE:

The Rack Blanking Panels (PN 253214-B21)

contains 10 each of (5U).

800mm Wide Stabilizer Kit (Graphite)

NOTE:

Supported by the Rack 10842 cabinet only.

600mm Stabilizer Kit – Graphite

Baying Kit for Rack 10000 series (Carbon)

42U Side Panel – Graphite Metallic

110V Fan Kit (Graphite

NOTE:

Roof Mount Includes power cord with IEC320-C13 to

Nema 5-15P.

220V Fan Kit (Graphite)

NOTE:

Roof Mount Includes power cord with IEC320-C13 to

Nema 6-15P.

36U Side Panel – Graphite Metallic

47U Side Panel – Graphite Metallic

9000/10000 Series Offset Baying Kit (42U)

NOTE:

This kit can be used to connect 9000 and 10000 series racks of the same U height together. Kit contents include hardware for connecting racks and a panel to cover the 100mm gap at the rear of the two racks.

NOTE:

For additional information regarding Rack Options, please see the following URL:

http://www.compaq.com/rackoptions

253214-B24

253214-B25

255488-B21

246107-B21

248929-B21

246099-B21

257413-B21

257414-B21

246102-B21

255486-B21

248931-B21

Rack Options for Compaq Rack 9000 Series

Baying/Coupling Kit

42U Side Panel

NOTE:

The 42U Side Panel (PN 120670-B21) supports the Compaq Rack 9142 and Compaq Rack 9842.

36U Side Panel

NOTE:

The 36U Side Panel (PN 120671-B21) supports the Compaq Rack 9136.

800mm Stabilizer Option Kit (Opal)

NOTE:

The 800mm Stabilizer Kit (PN 234493-B21) supports the Rack 9842 only.

600mm Stabilizer Option Kit

9142 Extension Kit

NOTE:

The 9142 Extension Kit (PN 120679-B21) supports the Compaq Rack 9142 only.

9142 Split Rear Door (Opal)

NOTE:

The 9142 Split Rear Door (PN 254045-B21) supports the 600 mm wide, 42U 9000 series rack.

9136 Extension Kit

9142 Short Rear Door

NOTE:

The 9142 Short Rear Door (PN 218217-B21) supports the Compaq Rack 9142 only.

9136 Short Rear Door

Rack Blanking Panel (Multi)

NOTE:

Kit includes four panels in 1U, 2U, 4U, and 8U.

120669-B21

120670-B21

120671-B21

234493-B21

120673-B21

120679-B21

254045-B21

218216-B21

218217-B21

218218-B21

169940-B21

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 32

QuickSpecs

Compaq ProLiant ML370 Generation 2

Rack Blanking Panels (1U)

NOTE:

The Rack Blanking Panels (PN 189453-B21) contains 10 each of (1U).

Rack Blanking Panels (2U)

NOTE:

The Rack Blanking Panels (PN 189453-B22) contains 10 each of (2U).

Rack Blanking Panels (3U)

NOTE:

The Rack Blanking Panels (PN 189453-B23) contains 10 each of (3U).

Rack Blanking Panels (4U)

NOTE:

The Rack Blanking Panels (PN 189453-B24) contains 10 each of (4U).

Rack Blanking Panels (5U)

NOTE:

The Rack Blanking Panels (PN 189453-B25) contains 10 each of (5U).

9000/10000 Series Offset Baying Kit (42U)

NOTE:

This kit can be used to connect 9000 and 10000 series racks of the same U height together. Kit contents include hardware for connecting racks and a panel to cover the 100mm gap at

NOTE:

For additional information regarding Rack Options, please see the following URL:

http://www.compaq.com/rackoptions

the

rear of the two racks.

189453-B21

189453-B22

189453-B23

189453-B24

189453-B25

248931-B21

Rack Options for Compaq Rack 7000 Series

High Air Flow Rack Door Insert for 7122

High Air Flow Rack Door Insert for 7142

High Air Flow Rack Door Insert for 7142 (6 pack)

Compaq Networking Cable Management Kit

Compaq Rack Extension Kit for 7142

NOTE:

For additional information regarding Rack Options, please see the following URL:

http://www.compaq.com/rackoptions

Rack Options for Rack 7000, 9000 and 10000 Series

Monitor Utility Shelf

Ballast Option Kit

100kg Sliding Shelf

Rack Rail Adapter Kit (25 depth)

Monitor/Utility Shelf - Graphite

Depth Adjustable Fixed Rail

Cable Management D-Rings Kit

Console Management Controller (CMC) Option Kit

Console Management Controller (CMC) Sensors Option Kit

Console Management Controller (CMC) Locking Option Kit

Console Management Controller (CMC) Smoke Sensors Option Kit

Server Console Switch 1 x 2 port (100 to 230 VAC)

Server Console Switch 1 x 2 port (100 to 230 VAC) (Int’l)

Server Console Switch 1 x 2 port (100 to 230 VAC) (Japan)

Server Console Switch 1 x 4 port (100 to 230 VAC)

157847-B21

327281-B21

327281-B22

292407-B21

154392-B21

303606-B21

120672-B21

234672-B21

120675-B21

253449-B21

332558-B21

168233-B21

203039-B21

203039-B22

203039-B23

203039-B24

120206-001

120206-B31

120206-291

400336-001

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 33

QuickSpecs

Compaq ProLiant ML370 Generation 2

Server Console Switch 1 x 4 port (100 to 230 VAC) (Int’l)

Server Console Switch 1 x 4 port (100 to 230 VAC) (Japan)

Server Console Switch 1 x 8 port (100 to 230 VAC)

Server Console Switch 1 x 8 port (100 to 230 VAC) (Int’l)

Server Console Switch 1 x 8 port (100 to 230 VAC) (Japan)

Server Console Switch 2 x 8 port (100 to 230 VAC)

Server Console Switch 2 x 8 port (100 to 230 VAC) (Int’l)

Server Console Switch 2 x 8 port (100 to 230 VAC) (Japan)

Server Console Switch 2 x 8 port (48 VDC)

IP Console Switch Box, 1x1x16

IP Console Switch Box, 3x1x16

IP Console Interface Adapter, 8 pack

IP Console Interface Adapter, 1 pack

IP Console Expansion Module

KVM 9 PIN Adapter (4 Pack)

CPU to Server Console Cable, 12

CPU to Server Console Cable, 20

CPU to Server Console Cable, 40

CPU to Server Console Cable, 3

CPU to Server Console Cable, 7

CPU to Server Console Cable (Plenum Rated) 20

CPU to Server Console Cable (Plenum Rated) 40

IP CAT5 Cable 3 , 4 pack

IP CAT5 Cable 6 , 8 pack

IP CAT5 Cable 12 , 8 pack

IP CAT5 Cable 20 , 4 pack

IP CAT5 Cable 40 , 1 pack

Switch Box Connector Kit (115 V)

Switch Box Connector Kit (230 V)

Switch Box Connector Kit (High Voltage) (Int’l)

1U Rack Keyboard Drawer

Keyboard/Monitor/Mouse extension cables

1U Rack Keyboard & Drawer (Carbon)

NOTE:

The 1U Rack Keyboard & Drawer (PN 257054-xx1) is to be used with the Keyboards for Racks with Trackball (PN 158649-xxx).



400336-B31

400336-291

400337-001

400337-B31

400337-291

400338-001

400338-B31

400338-291

400542-B21

262585-B21

262586-B21

262587-B21

262588-B21

262589-B21

149361-B21

110936-B21

110936-B22

110936-B23

110936-B24

110936-B25

149363-B21

149364-B21

263474-B21

263474-B22

263474-B23

263474-B24

263474-B25

144007-001

144007-002

144007-B33

338056-B21

169989-001

257054-xx1

Country Code Key

XX = 001

XX = 031

XX = 041

XX = 051

XX = 061

XX = 071

XX = 081

TFT5600 Rack Keyboard Monitor

(for 1U Rack Keyboard & Drawer (PN 257054-xx1))

Germany

France

Italy

Spain

Denmark

XX = 091

XX = 101

XX = 111

XX = 131

XX = 181

XX = 291

XX = B31

Norway

Sweden/Finland

Switzerland

Portugal

Belgium

Japan

International

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

221546-xx1

Page 34

QuickSpecs

Compaq ProLiant ML370 Generation 2

Country Code Key

xx1))

XX = 001

XX = 031

XX = 041

XX = 051

XX = 061

XX = 071

XX = 081

Input Device Adjustable Rails

NOTE:

Input Device Adjustable Rails (287139-B21) are for use ONLY with the TFT5110R, TFT5600RKM and integrated keyboard/drawer which is used in mounting into third party racks.

Input Device Telco Rail

NOTE:

Input Device Telco Rails (287138-B21) are for use ONLY with the TFT5110R, TFT5600RKM and integrated keyboard/drawer which is used in mounting into third party racks.

Keyboard/Monitor/Mouse extension cables

NOTE:

For additional information regarding Rack Cabinets, please see the following URL:

http://www.compaq.com/rackoptions

(for TFT5600 RKM Rack Keyboard Monitor (PN 221546-

Germany

France

Italy

Spain

Denmark

XX = 091

XX = 101

XX = 111

XX = 131

XX = 181

XX = 291

XX = B31

Norway

Sweden/Finland

Switzerland

Portugal

Belgium

Japan

International

287139-B21

287138-B21

169989-001

Rack Options for Third Party Cabinet Racks

Round Hole Rail Kit

Telco Rail Kit

Service and Support Offerings

Services)

(CarePaq

Hardware Services 4-Hour On-site Service

4-Hour On-site Service, 5-Day x 9-Hour, 3 Years (6-3 Part Number for U.S.)

4-Hour On-site Service, 5-Day x 9-Hour Coverage, 3 Years (6-3 Part Number for Canada)

4-Hour On-site Service, 5-Day x 9-Hour Coverage, 3 Years (6-3 Part Number for EMEA)

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years (6-3 Part Number for U.S.)

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years (6-3 Part Number for Canada)

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years (6-3 Part Number for EMEA)

Installation & Start-up Services

Hardware Installation (6-3 Part Number for U.S.)

Hardware Installation (6-3 Part Number for Canada)

Hardware Installation (6-3 Part Number for EMEA)

Pre-installation planning; unpack equipment, install most current Compaq HW options internal to server at same time of server installation; assemble & test; basic user information provided; Install & configure basic functionality of Win NT Operating System plus up to 1 day start-up activity, configure print & network access services, and orientation (6-3 Part Number for Canada.)

231122-B21

231121-B21

162658-002

162658-122

324417-002

162657-002

162657-122

376912-022

401792-002

401792-122

Quote

FM-MSTEC-02

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 35

QuickSpecs

Compaq ProLiant ML370 Generation 2

Pre-installation planning; unpack equipment, install most current Compaq HW options internal to server at same time of server installation; assemble & test; basic user information provided; Install & configure basic functionality of Novell NetWare Operating System plus up to 1 day startup activity, configure print & network access services, and orientation (6-3 Part Number for Canada)

Pre-installation planning; unpack equipment, install most current Compaq HW options internal to server at same time of server installation; assemble & test; basic user information provided; Install & configure basic functionality of Novell NetWare Operating System plus up to 1 day startup activity, configure print & network access services, and orientation (6-3 Part Number for U.S.)

Server Installation and Set-Up (Installation of the server, installation of the appropriate service tools, check to ensure device SW and firmware is loaded and installation of the operating system software (6-3 Part Number for EMEA)

CarePaq Priority Services for Level

9 x 5 HW, 4-hr response, Next Available HW engineer; 9 x 5 Bronze Software Support 2-hr response for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System, Next Available Specialist (6-3 Part Number forCanada)

9 x 5 HW, 4-hr response, Next Available HW engineer; 9 x 5 Bronze Software Support 2-hr response for Novell NetWare Operating System, Next Available Specialist (6-3 Part Number for Canada)

9 x 5 HW, 4-hr response, Next Available HW engineer; 9 x 5 Bronze Software Support 2-hr response for Novell NetWare Operating System, Next Available Specialist (6-3 Part Number for U.S.)

5 x 9 4-hour H/W, 5 x 9 2-hour O/S (NT & NetWare), three years (6-3 Part Number for EMEA)

CarePaq Priority Services for 24 Level

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Bronze Software Support, 2-hr response for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System, Next Available Specialist (6-3 Part Number for U.S.)

ProLiant

Servers – Priority

240014-002

FM-NSTEC-02

240009-002

204563-022

FM-M01E2-36

239929-002

FM-N01E2-36

239969-002

179835-022

239931-002

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 36

QuickSpecs

Compaq ProLiant ML370 Generation 2

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Bronze Software Support, 2-hr response for Novell NetWare Operating System, Next Available Specialist (6-3 Part Number for U.S.)

7 x 24 4-hour H/W, 7 x 24 2-hour O/S (NT & NetWare), three years (6-3 Part Number for EMEA)

CarePaq Priority Services for Silver

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Software Support, 1-hr response, Monday – Friday, 8AM – 5PM local time, 2-hr response after hours for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System, Technical Account Manager, Technical Newsletter, SW activity review, proactive patch notification, 1 System Healthcheck per year (6-3 Part Number for U.S.)

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Subsequent System Support for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System (6-3 Part Number for U.S.)

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Software Support, 1-hr response, Monday – Friday, 8AM – 5PM local time, 2-hr response after hours for Novell NetWare Operating System, Technical Account Manager, Technical Newsletter, SW activity review (6-3 Part Number for U.S.)

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Subsequent System Support for Novell NetWare Operating System (6-3 Part Number for U.S.)

NOTE:

For more information, customer/resellers can contact

http://www.compaq.com/services

ProLiant

Servers – Priority

239971-002

179840-022

239933-002

239935-002

239973-002

239975-002

Overview

Power Specifications

Standard Features

TechSpecs

Models

Options

Memory

Storage

Memory

Compaq ProLiant ML370 Generation 2 (G2) All Models

Standard Memory

256-MB PC133-MHz Registered ECC SDRAM DIMM comes installed (2 x 128-MB SDRAM)

Standard Memory Plus Optional Memory

Up to 4,352-MB of memory is available with the optional installation of PC133-MHz Registered ECC SDRAM memory kits.

Standard Memory Replaced with Optional Memory

Up to 6,144-MB of memory is available with the removal of the standard 256 MB of memory and the optional installation of PC133-MHz Registered ECC SDRAM memory kits.

NOTE:

This chart does not represent all possible memory configurations.

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

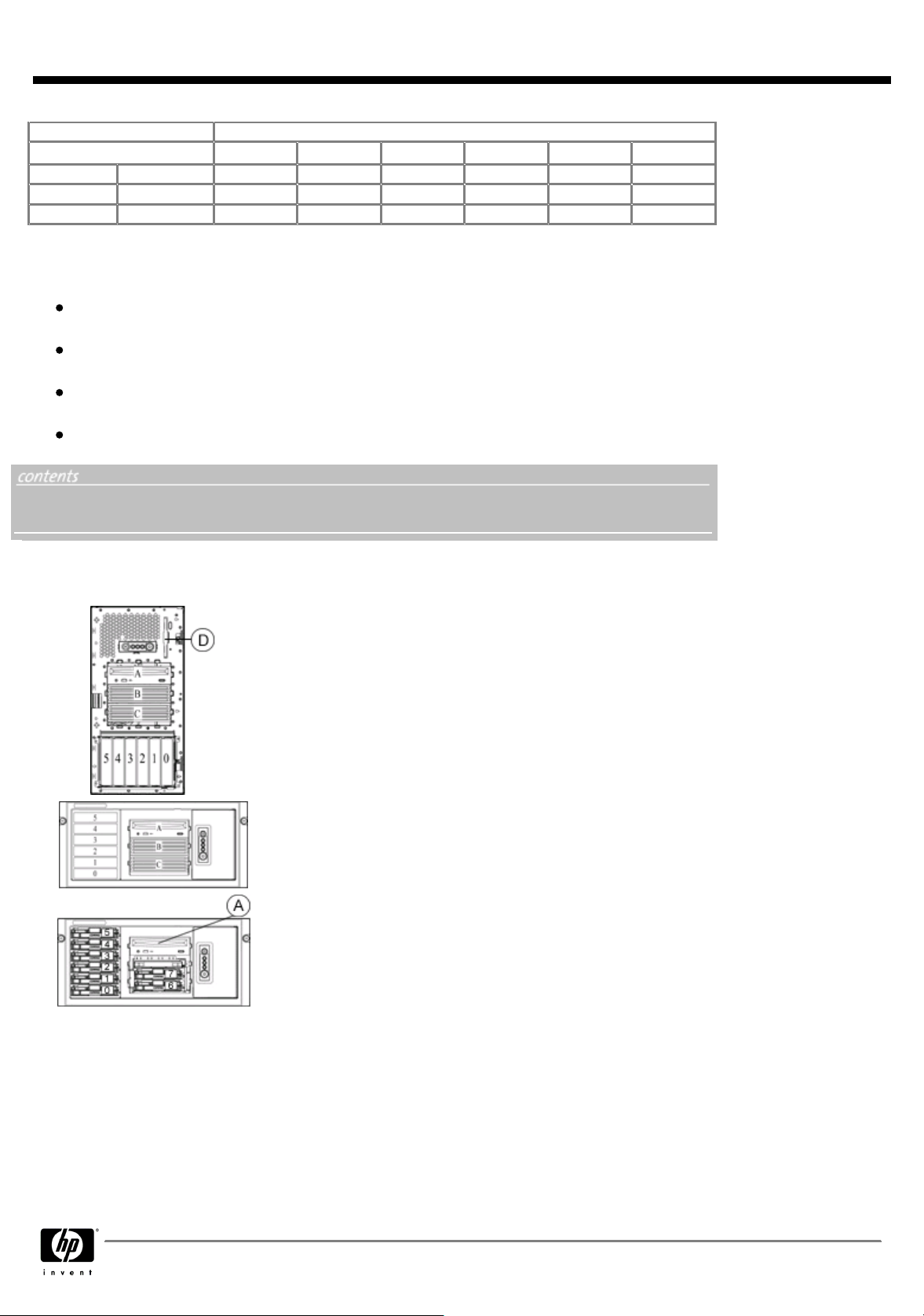

Page 37

QuickSpecs

Compaq ProLiant ML370 Generation 2

Memory

Standard

Optional

Maximum

Following are memory options available from Compaq:

2048-MB PC133-MHz Registered ECC SDRAM Memory Option Kit (2 x 1024 MB)

1024-MB PC133-MHz Registered ECC SDRAM Memory Option Kit (2 x 512 MB)

512-MB PC133-MHz Registered ECC SDRAM Memory Option Kit (2 x 256 MB)

256-MB PC133-MHz Registered ECC SDRAM Memory Option Kit (2 x 128 MB)

Overview

Power Specifications

256 MB 128 MB 128 MB 4,352 MB 6,144 MB

Standard Features

TechSpecs

1 2 3 4 5 6

128 MB 128 MB

1024 MB 1024 MB 1024 MB 1024 MB 1024 MB 1024 MB

Models

Options

Storage

0 – 5

Slot

Empty Empty Empty Empty

1024 MB 1024 MB 1024 MB 1024 MB

Memory

6 x 1 Hot Pluggable Hard Drive Bays

Storage

201695-B21

201694-B21

201693-B21

201692-B21

Drive Support

Removable Media

1.44-MB Diskette Drive

IDE CD-ROM Drive

DVD-ROM Drive Option Kit

Quantity Supported

Up to 1

Up to 2

B, C

0 - 5

B, C

0 - 7

40x IDE CD-ROM Drive

Two available half height bays

3.5  Diskette Drive

6 x 1 Wide Ultra2 Hot Pluggable Hard Drive Bays

40x IDE CD-ROM Drive

Two available half height bays

40x IDE CD-ROM Drive

6 x 1 Wide Ultra2 Hot Pluggable Hard Drive Bays plus the ML3xx Two Bay Hot Plug SCSI Drive Cage

Position Supported

A, B

Controller

Integrated

Integrated IDE

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 38

QuickSpecs

Compaq ProLiant ML370 Generation 2

ML3xx Two Bay Hot Plug SCSI Drive Cage

Up to 1

B, C

Integrated SCSI

Hard Drives

Ultra320 Hot Pluggable Drives

1-inch

146.8-GB 10,000 rpm

72.8-GB 10,000 rpm

36.4-GB 10,000 rpm

72.8-GB 15,000 rpm

36.4-GB 15,000 rpm

18.2-GB 15,000 rpm

Ultra320 – Non-Hot Plug

1-inch

36.4-GB 10,000 rpm

NOTE:

All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require

an optional U320 Smart Array Controller or U320 SCSI HBA to support U320 transfer rates.

Up to 8

(With optional ML3xx Two Bay Hot Plug SCSI Drive Cage)

Up to 3

0-7

A, B, C (Using the A position requires the removal of CD-ROM)

Integrated Dual Channel Wide Ultra3 SCSI Adapter Smart Array 532 Controller Smart Array 5302/128 Controller Smart Array 5304/256 Controller Smart Array 5312 Controller 64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

External Storage

StorageWorks Enclosure 4300 Family

(supports Ultra2/Ultra3 drives only)

MSA 1000

MSA 1000:

http://www5.compaq.com/products/quickspecs/11033_div/11033_div.HTML

Up to 25

Please see the MSA 1000 QuickSpecs below to determine configuration requirements

Maximum Storage Capacity (StorageWorks

Internal

External

Total

1.174 TB (6 x 146GB 1 Ultra 320 hot plug hard drives with standard internal drive cage + 2 x 146.8GB 1 Ultra 320 Hot plug hard drive using the optional ML3xx Two Bay Hot Plug SCSI Drive Cage)

51.380 TB (25 Storage Works Enclosures, each with 14 x 146.8GB Ultra 320 1 drives, utilizing 6 x 4 channel 5300 SCSI controllers, plus integrated external channel for the 25th channel)

52.554 TB

External

Enclosure 4300) (Hot Plug)

Smart Array 5302/128 Controller Smart Array 5304/256 Controller Smart Array 5312 Controller 64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

Please see the MSA 1000 QuickSpecs (URL below) for the latest list of supported HBA’s

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 39

QuickSpecs

Compaq ProLiant ML370 Generation 2

Quantity Supported

Tape Drives

NOTE:

For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:

http://www5.compaq.com/products/quickspecs/North_America/10233.html http://www5.compaq.com/products/quickspecs/Division/10233.html (Division/World Wide)

NOTE:

For an up-to-date listing of the latest O/S Support details for each of the Tape Storage Systems listed below, please see the following:

http://www5.compaq.com/products/quickspecs/North_America/10809.html http://www5.compaq.com/products/quickspecs/Division/10809.html

Internal AIT 100-GB, Hot Plug Internal AIT 50-GB, Hot Plug Internal AIT 35-GB, LVD Hot Plug Internal 20/40-GB DAT Drive, Hot Plug

AIT 100-GB Internal AIT 50-GB Internal AIT 35-GB LVD Internal

SDLT 110/220-GB, Internal

20/40-GB DAT DDS-4 8 Cassette Autoloader

Internal 40/80-GB DLT Enhanced

AIT 100-GB External AIT 50-GB External AIT 35-GB, LVD External

Up to 2 Up to 3

(With optional ML3xx Two Bay Hot Plug SCSI Drive Cage)

Up to 2

Up to 1

Position Supported

0+ 1, 2+ 3 0+ 1, 2+ 3, 6+ 7

B, C

External

B, C (two bays)

External

Controller

(North America)

(Division/World Wide)

Smart Array 532 Controller Smart Array 5302/128 Controller Smart Array 5304/256 Controller Smart Array 5312 Controller 64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

NOTE:

The Smart Array 532 Controller does not support the AIT 100-GB Hot Plug Tape Drive.

Integrated Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

Integrated Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 40

QuickSpecs

Compaq ProLiant ML370 Generation 2

HP StorageWorks AIT 35 GB Autoloader

SDLT 110/220-GB, External

External 40/80-GB DLT Enhanced

DLT1 1280 SuperLoader

SSL2020 AIT Library

MSL5026DLX (40/80GB DLT-based) MSL5026SL (SDLT-based) Library MSL5052SL (SDLT-based) Library MSL5052SL (SDLT-based) Library MSL5052S2 (SDLT-based) Library MSL5030L1 (LTO-based) Library MSL5060L1 (LTO-based) Library

Up to 1 (for a single HBA) Up to 2 (for a dual HBA)

Up to 2

Up to 3

Up to 2

Up to 5

2 drives per SCSI channel

External

64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

Integrated Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

64-bit Dual Channel Wide Ultra2 SCSI Adapter 64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter SAN Access Module for Smart Array 5302 Controller

64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter

Overview

Power Specifications

Standard Features

TechSpecs

Models

Options

Memory

Storage

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 41

QuickSpecs

Power Specifications

Part Number

Spare Kit

Operational Input Voltage Range

Frequency Range

(Nominal) (Hz)

(V rms)

Nominal Input Voltage

Max Rated Output Wattage Rating Nominal Input Current (A rms) Max Rated Input Wattage Rating (Watts) Max. Rated VA (Volt-Amp) Efficiency (%) Power Factor Leakage Current (mA) Maximum Inrush Current (A peak) Maximum Inrush Current duration

(Vrms)

216068-001

230993-B21

90 to 264

47 to 63 (50/60)

100 115 208 220 230 240

500 500 500 500 500 500

8.1 6.9 3.8 3.5 3.4 3.2 794 781 769 758 758 758 810 797 785 773 773 773

63 64 65 66 66 66

0.98 0.98 0.98 0.98 0.98 0.98

0.30 0.35 0.63 0.67 0.70 0.73 25 25 25 25 25 25 20 20 20 20 20 20

Compaq ProLiant ML370 Generation 2

System Specifications

ProLiant ML370 Generation 2 Fully Configured

Up to 2 Processors, 6 Memory Slots, 8 Hard Drives, 4 PCI Slots, and 2 Hot Plug Power Supplies

Nominal Input Voltage

Fully Loaded System Input Wattage (W) Fully Loaded System Thermal (BTU-Hr) System Leakage with all power supplies

loaded (mA) System Inrush Current with all power supplies

loaded (A) Power cord requirements

Notes:

* - To review typical system power ratings use the Active Answers Power Calculator which is available via the online tool located at URL:

http://activeanswers.compaq.com/aaconfiguratorcode/

To drill down to calculators:

- Click on: "ProLiant Servers"

- Click on the Server of interest. Example: ML370 G2

- Click on: "Power Calculator" link. (You may need to scroll down to see it)

(Vrms)

100 115 208 220 230 240

704 693 682 672 672 672

2399 2362 2325 2290 2290 2290

0.61 0.70 1.27 1.34 1.40 1.46

50 50 50 50 50 50

Nema 5-15P to IEC320-C13 Option no./Spare no.: See Chart below

IEC320-C13 to IEC320-C14 Option no./Spare no.: 142257002/142258-B21

Overview

Power Specifications

Standard Features

TechSpecs

Models

Options

Memory

Storage

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 42

QuickSpecs

Compaq ProLiant ML370 Generation 2

System Unit Tower

System Unit Rack

Dimensions

Weight

Input Requirements

BTU Rating

SCSI Connectors

Power Supply Output Power

Temperature Range

Relative Humidity

(non-condensing)

Maximum Wet Bulb Temperature

Acoustic Noise

Dimensions

Weight

Input Requirements

BTU Rating

SCSI Connectors

Power Supply Output Power

Temperature Range

Relative Humidity

(non-condensing)

18.46 x 8.69 x 28 in/46.88 x 22.07 x 71.12 cm

70 lb/31.75 kg (without hard drives, no RPS)

Range Line Voltage

Rated Input Voltage

Rated Input Frequency

Rated Input Current

Rated Input Power

2,732 BTU/HR

Two Internal HD68 connectors and One External VHDCI Connector supporting Ultra3

Steady State Power

Maximum Peak Power

Operating

Shipping

Operating

Non-operating

101.7°F/38.7°C

Idle (Fixed Disk Drives Spinning)

(BELS)

WAd

(dBA)

pAm

Operating (Random Seeks to Fixed Disks)

(BELS)

WAd

(dBA)

pAm

8.69 x 19.0 x 25.75 in/22.07 x 48.26 x 65.43 cm

65 lb/29.48 (without hard drives, no RPS)

Range Line Voltage

Rated Input Voltage

Rated Input Frequency

Rated Input Current

Rated Input Power

2,732 BTU/HR

Two Internal HD68 connectors and One External VHDCI Connector supporting Ultra3

Steady-State Power

Maximum Peak Power

Operating

Shipping

Operating

Non-operating

90 to 264 VAC

47 to 63 Hz

7.3A (110 V) to 3.6A (220 V)

800W

500 W

550W

41° to 95° F/5° to 35° C

-40° to 185° F/-40° to 85° C

5% to 95%

5.9

6.0

90 to 264 VAC

47 to 63 Hz

7.3A (110 V) to 3.6A (220 V)

800W

500 W

550W

41° to 95° F/5° to 35° C

-40° to 185° F/-40° to 85° C

5% to 95%

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 43

QuickSpecs

Compaq ProLiant ML370 Generation 2

Optional Redundant Power Supply

Maximum Wet Bulb Temperature

Acoustic Noise

Input Requirements

BTU Rating

Power Supply Output Power

Temperature Range

Relative Humidity

(non-condensing)

Maximum Wet Bulb Temperature

101.7°F/38.7°C

Idle (Fixed Disk Drives Spinning)

(BELS)

WAd

(dBA)

pAm

Operating (Random Seeks to Fixed Disks)

(BELS)

WAd

(dBA)

pAm

Rated Input Voltage

Rated Input Frequency

Rated Input Current

Rated Input Power

2,732 BTU/HR

Steady State Power

Maximum Peak Power

Operating

Shipping

Operating

Non-operating

101.7°F/38.7°C

5.9

6.0

90 to 264 VAC

47 to 63 Hz

7.3A (110 V) to 3.6A (220 V)

800W

500 W

550W

41° to 95° F/5° to 35° C

-40° to 185° F/-40° to 85° C

5% to 95%

1.44-MB Diskette Drive

Diskette Size

LED Indicators

Read/Write Capacity per Diskette

Drive Supported

Drive Height

Drive Rotation

Transfer Rate

Bytes/Sector

Sectors/Track

Tracks/Side

Access Times

Cylinders

Read/Write Heads

(front panel)

(high/low density)

(high/low)

3.5 in

Green

1.44 MB/720 KB

One

One-third

300 rpm

500/250 Kb/s

512

18/9

80/80

Track-to-Track (high/low)

Average (high/low)

Settling Time

Latency Average

80/80

Two

3/6 ms

94/169 ms

15 ms

100 ms

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 44

QuickSpecs

Compaq ProLiant ML370 Generation 2

40X Max IDE CD-ROM Drive

Disk

Block Size

Interface

Access Times

(typical)

Audio Output Level

Data Transfer Rate

Cache Buffer

Start-up Time

(typical)

Stop Time

Laser Parameters

Operating Conditions

Dimensions

Applicable Disk

Capacity

Mode 1

Mode 2

CD-DA

CD-XA

IDE (ATAPI)

Random

Full-Stroke

Line-Out

Sustained

Burst

128 KB

< 7 seconds

< 4 seconds

Type

Wave Length

Temperature

Humidity

(HxWxD, maximum)

Weight

CD-ROM, CD-XA, CD-DA (Mode 1, Mode 2, Form 1 and 2)

Photo CD (Single and Multi-session)

Mixed Mode (Audio and Data combined)

CD-R

540 MB (Mode 1, 12 cm)

650 MB (Mode 2, 12 cm)

2,048 bytes

2,340 bytes, 2,336 bytes

2,352 bytes

2,328 bytes

100 ms

150 ms

0.7 VRMS at 47 kOhms

150 KB/s (1X audio)

16.67 Mbytes/sec

Semiconductor Laser GaA1As

780 ± 25 nm

41° to 113°F/5° to 45°C

10% to 80%

1.7 x 5.85 x 8.11 in/4.29 x 150 x 208 cm

2.09 lb/0.95 kg

Integrated Dual Channel Wide Ultra3 SCSI Adapter

Drives Supported

Data Transfer Method

SCSI Channel Transfer Rate

Maximum Transfer Rate per PCI Bus

(peak)

SCSI Termination

SCSI Connectors

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Up to 15 SCSI devices per channel

64-bit PCI bus-master

160 MB/s per channel

267 MB/s

Active Termination

1 external, 2 internal (68-pin)

Page 45

QuickSpecs

Compaq ProLiant ML370 Generation 2

Compaq NC3163 Fast Ethernet NIC Embedded 10/100 WOL

(Wake On LAN)

Video Controller

Network Interface

Compatibility

Data Transfer Method

Network Transfer Rate

10Base-T (Half-Duplex)

10Base-T (Full-Duplex)

100Base-TX (Half-Duplex)

100Base-TX (Full-Duplex)

Connector

Cable Support

10Base-T

100Base-TX

Controller Chip

Video DRAM

Data Transfer Method

Support Resolution

640 x 480

800 x 600

1024 x 768

1152 x 864

1280 x 1024

1600 x 1200

Connector

10Base-T/100Base-TX

IEEE 802.3/802.3u compliant

32-bit bus-master PCI

10 Mb/s

20 Mb/s

100 Mb/s

200 Mb/s

RJ-45

Categories 3, 4 or 5 UTP; up to 328 feet (100 meters)

Category 5 UTP; up to 328 feet (100 meters)

ATI RAGE XL

8 MB Video SDRAM

32-bit PCI

Supported Color Depths:

16.7M, 64K, 256, 16

64K, 256, 16

VGA

Hewlett-Packard, the Hewlett-Packard logo, ActiveUpdate, Insight Manager, CarePaq, ProLiant, ROMPaq, SmartStart and StorageWorks are trademarks of Hewlett-Packard Company in the U.S. and/or other countries. Microsoft and Windows NT are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. Intel and Pentium are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. Novell and NetWare are registered trademarks or trademarks of Novell, Inc, in the U.S. and/or other countries. SuSE and its logo are registered trademarks or trademarks of SuSE AG in the U.S. and/or other countries. Linux is a registered trademark or trademark of Linus Torvalds in the U.S. and/or other countries. Caldera and SCO are registered trademarks or trademarks of Caldera International, Inc., in the U.S. and/or other countries. Red Hat is a registered trademark or trademark of Red Hat Inc., in the U.S. and/or other countries. All other product names mentioned herein may be trademarks of their respective companies.

Hewlett-Packard shall not be liable for technical or editorial errors or omissions contained herein. The information is provided "as is" without warranty of any kind and is subject to change without notice. The warranties for Hewlett-Packard products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.

DA - 10901 Worldwide QuickSpecs — Version 40 — 3.11.2003

Page 46

Compaq ML370 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
