Compaq ML350 User Manual

Download

QuickSpecs

Compaq ProLiant ML350 Generation 2

Overview

Power Specifications

Standard Features

TechSpecs

Models

Options

Memory

QuickSpecs

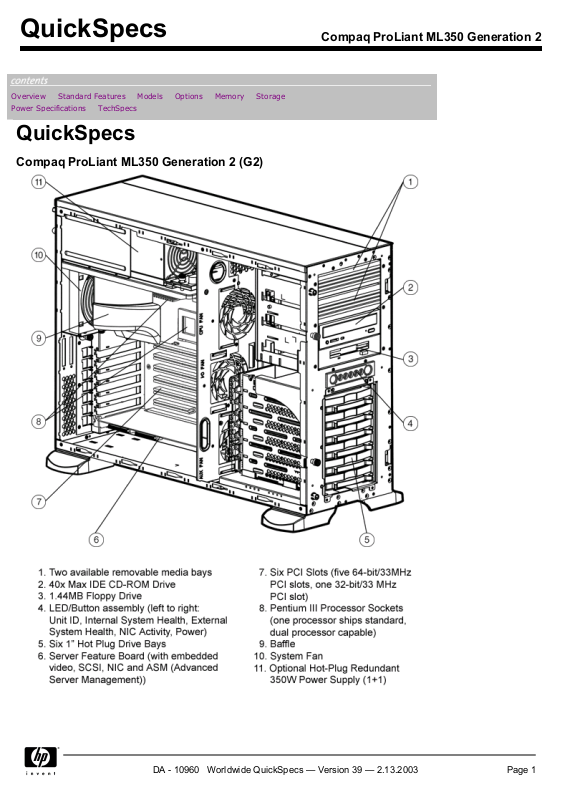

Compaq ProLiant ML350 Generation 2 (G2)

Storage

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 1

QuickSpecs

At A Glance

Compaq ProLiant ML350 Generation 2

The Compaq performance and essential availability to corporate workgroups and growing businesses Intel Pentium lll 1.40 GHz, or 1.26 GHz FC-PGA2 (Flip Chip-Pin Grid Array) processor (dual processor capability) with 512-KB second level ECC cache standard (full speed) Array Models ship with the Smart Array 532 Controller and 256-MB SDRAM Memory standard ServerWorks LE 3.0 Chipset with 133-MHz Front Side Bus 128-MB or 256-MB (Array Models) PC133-MHz Registered ECC SDRAM DIMM memory standard, expandable to 4-GB 133-MHz GTL Bus Design Six available PCI slots: five 64-bit/33-MHz PCI, one 32-bit/33-MHz PCI, two USB ports Integrated Dual Channel Wide Ultra3 SCSI Adapter Compaq NC3163 Fast Ethernet NIC (embedded) PCI 10/100 WOL (Wake On LAN) Support for up to six 1 Wide Ultra3 SCSI hot plug hard drives Internal storage capacity of up to 1.174-GB (6 x 146.8 GB 1 + 2 x 146.8 GB 1) 350W Hot-Pluggable Power Supply (standard) and an optional 350W Hot-Pluggable Redundant Power Supply available Standard 6 x 1 Wide Ultra2/Ultra3 Hot Plug Drive Cage Tool-free entry to chassis and access to components RBSU (ROM based setup utility) support, redundant ROM Compaq Server Recovery (ASR-2) Protected by Compaq Services, including a three-year, Next Business Day on-site, limited, Global warranty and extended Pre-Failure Warranty that covers processors, memory and disk drives — Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center at 1-800-3451518 for details.

ProLiant

Insight Manager

™ ML350 Generation 2 (G2) 2-way rack or tower server delivers affordable

™, Compaq

SmartStart

™, ROM-based BIOS Setup Utility, and Automatic

Overview

Power Specifications

Standard Features

TechSpecs

Models

Standard Features

Processor

the following depending on model)

Cache Memory

Upgradability

Chipset

Memory

the following depending on model)

(One of

Intel Pentium III 1.40 GHz FC-PGA2 Processor

Intel Pentium III 1.26 GHz FC-PGA2 Processor

Integrated 512-KB Level 2 ECC cache (full speed)

Upgradable to dual processing

ServerWorks LE 3.0 Chipset with 133-MHz Front Side Bus

Note: For more information regarding ServerWorks, please see the following URL:

http://www.serverworks.com/products/overview.html

Standard

Maximum

Standard

Maximum

256 MB (PC133-MHz ECC Registered SDRAM DIMM memory)

(Array Models only)

4 GB

128 MB (PC133-MHz ECC Registered SDRAM DIMM memory)

4 GB

Options

Memory

Storage

Network Controller

Compaq NC3163 Fast Ethernet NIC (embedded) PCI 10/100 WOL (Wake On LAN)

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 2

QuickSpecs

Compaq ProLiant ML350 Generation 2

Expansion Slots

Storage Controller

Storage

Interfaces

I/O (6 Total, 6 Available)

64-bit/33MHz, PCI

32-bit/33MHz, PCI

Integrated Dual Channel Wide Ultra3 SCSI Adapter Smart Array 532 Controller

Diskette Drives

CD-ROM

Hard Drives

Maximum Internal Storage

External Storage

Parallel

Serial

Pointing Device (Mouse)

Graphics

Keyboard

Network RJ-45

USB

External SCSI knockouts

5 (5 available)

available)

1 (1 available)

1.44 MB

40x IDE (ATAPI) CD-ROM Drive

None

1.174 TB (6 x 146.8 GB 1 with standard internal hot plug drive cage + (2 x 146.8 GB 1 ) with optional ML3xx Internal Two Bay Hot Plug SCSI Drive Cage)

Two external SCSI knockouts available, but requires optional ProLiant ML350 Internal to External SCSI Cable Option Kit (PN 159547-B22)

Note: Please see the following URL for additional information regarding USB support:

http://www.compaq.com/products/servers/ platforms/usb-support.html

(Array model has 4

(Array Models Only)

PCI Voltage:

3.3 Volt

5 Volt

Graphics

Form Factor

Product Demo

ProLiant Essentials Foundation Pack Software

Integrated ATI RAGE XL Video Controller with 8-MB SDRAM Video Memory

Tower or rack (5U)

To view the Product Demo, please see the following URL, then click on

PRODUCT DEMO:



http://www5.compaq.com/productsservers/proliantml350/index-g2.html

Insight Manager7Insight Manager 7 helps maximize system uptime and performance

and reduces the cost of maintaining the IT infrastructure by providing proactive notification of problems before those problems result in costly downtime and reduced productivity. Insight Manager 7 is easy to set up and provides rapid access to detailed fault and performance information gathered by the Management Agents. One-click-access to the Remote Insight Lights Out Edition board

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 3

QuickSpecs

Management Agents

SmartStart

ActiveUpdateActiveUpdate is a web-based application that keeps IT managers

ROMPaq,

support software, and configuration utilities

Survey Utility and diagnostics utilities

Optional

ProLiant Essentials Value Packs

Note: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/ProLiantessentials ProLiant Essentials Value Pack product QuickSpecs for more information.

Compaq ProLiant ML350 Generation 2

allows systems administrators to take full graphical control of ProLiant servers in remote locations or lights-out data centers. Finally, Insight Manager 7 in concert with the Version Control Agents and Version Control Repository Manager enables systems administrators to version manage and update system software across groups of ProLiant servers.

The Management Agents form the foundation for HP’s Intelligent Manageability strategy. They provide direct, browser-based access to in-depth instrumentation built into HP servers, workstations, desktops, and portables, and send alerts to Insight Manager 7 and other enterprise management applications in case of subsystem or environmental failures. For additional information about the Management Agents and other management products from HP, please visit the management website at

http://www.hp.com/servers/manage

SmartStart is a tool that simplifies server setup, providing a rapid way to deploy reliable and consistent server configurations. For more information, please visit the SmartStart website at

http://www.hp.com/servers/smartstart

SmartStart version supported (minimum): SmartStart 5.20

directly connected to HP for proactive notification and delivery of the latest software updates.

The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options.

The most advanced configuration analysis, reporting and troubleshooting utilities used by HP and at your fingertips.

Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to address specific business problems and needs:

Rapid Deployment Pack – an automated solution for multiserver deployment and provisioning, enabling companies to quickly and easily adapt to changing business demands. Workload Management Pack – provides easier management of complex environments, improving overall server utilization and enabling Windows 2000 customers for the first time to confidently deploy multiple applications on a single multiprocessor ProLiant Server. Recovery Server Option Pack – entry-level high availability software that will provide reliable protection and increased uptime against server hardware and operating system failures. Performance Management Pack – a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources.

or the various

Note: For more information regarding ProLiant Essentials Software, please see the following URL:

Note: These Web sites are available in English only.

http://www.hp.com/servers/proliantessentials

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 4

QuickSpecs

Industry Standard Compliance

Manageability

Security

ACPI V1.0B Compliant

PCI 2.2 Compliant

PXE Support

WOL Support

Microsoft Logo certifications

Insight Manager 7 Redundant ROM Remote Flash ROM Remote Insight Lights-Out Edition (optional) ProLiant RBSU (ROM-Based Setup Utility) Automatic Server Recovery-2 (ASR-2) Drive Parameter Tracking (with Smart Array Controller) Dynamic Sector Repairing (with Smart Array Controller) Pre-Failure Warranty (covers processors, memory and hard drives)

Power-on password Setup password Diskette boot control Parallel and serial interface control Disk configuration lock Power switch security

Compaq ProLiant ML350 Generation 2

Server Power Cords

Power Supply

System Fans

Required Cabling

OS Support

One Lowline power cord ships standard.

Note: Country specific power cords ship with all ProLiant ML350 G2 Models.

350 Watts, Power Factor Correction (PFC), Hot Plug 100 to 240 VAC Rated Input Voltage (Auto-sensing), CE Mark Compliant.

Note: Power Supply and optional Hot Plug Redundant Power Supply are shipped with their own fan. Note: Optional Hot Plug Redundant Power Supply available (PN 237046-xx1).

1 fan ships standard. 1 total supported internally.

For required cabling information, refer to the Compaq Web site at

http://www.compaq.com/products/servers/proliantML350

Note: This Web site is available in English only.

Microsoft Windows NT Server 4.0

Microsoft BackOffice Small Business Server 2000

Microsoft Windows 2000 Server and Advanced Server

Novell NetWare 5.1

Novell NetWare Small Business Suite 5.1

SCO OpenServer

SCO UnixWare

IBM OS/2 Warp Family for e-business and Warp Server for e-business Convenience Pack

LINUX (RedHat , SuSE , Caldera eServer, Open Linux Server)



DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 5

QuickSpecs

Note: For a more complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at:

ftp://ftp.compaq.com/pub/products/servers/os-support-matrix-310.pdf

Note: Optional hardware may be required to support some operating systems.

Note: For an up-to-date listing of the latest drivers available for the Compaq ProLiant ML350, please see:

http://www.compaq.com/support/files/server/us/index.html

Rack Airflow Requirements

Rack 9000 and 10000 series Cabinets

The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The Compaq 9000 Series Rack and the new 10000 Series Racks provides enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

Rack 7000 series Cabinets

When installing a server with processors running at speeds of 550 MHz or greater in Compaq Rack 7000 series racks with glass doors (165753-001 (42U), and 163747001 (22U)), the new processor technology requires the installation of High Airflow Rack Door Inserts (327281-B21 (42U), 327281-B22 (42U 6 pack), or 157847-B21 (22U)) to promote enhanced airflow for maximum cooling.

Compaq ProLiant ML350 Generation 2

Service and Support

CAUTION

to ensure adequate airflow and to prevent damage to the equipment:

CAUTION

in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

Note: For additional information, refer to the Setup and Installation Guide or the Documentation CD provided with the server, or to the server documentation located in the Support section at the following URL:

http://www5.compaq.com/products/servers/proliantml350/index.html

Compaq Services provides a three-year, limited warranty, including Pre-Failure Warranty (coverage of hard drives, memory and processors) fully supported by a worldwide network of resellers and service providers. Compaq technical assistance is available 7x24, toll free in the United States and Canada. Telephone support services may be covered under warranty or available for an additional fee.

Note: Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.

: If a third-party rack is used, observe the following additional requirements

Front and rear doors: rear doors, you must allow 5,350 sq cm (830 square inches) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation). Side:

The clearance between the installed rack component and the side

panels of the rack must be a minimum of 7 cm (2.75 inches)

: Always use blanking panels to fill all remaining empty front panel U-spaces

If your 42U server rack includes closing front and

A full range of

Installation and start up Extended coverage hours and enhanced response times System management and performance services Availability and recovery services

Note: For more information, customer/resellers can contact

http://www.compaq.com/services

Please see the following URL regarding Warranty Information For Your Compaq Products:

http://www.compaq.com/support/warranty_upgrades/

CarePaq

packaged hardware and software services:

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 6

QuickSpecs

Compaq ProLiant ML350 Generation 2

Overview

Power Specifications

Standard Features

Models

ML350T02 P1400512KB, 256MB Array

267124-xx1

Note: Not available in EMEA.

web_statements/176738.html

For additional information regarding Worldwide Limited Warranty and Technical Support, please see the following URL

ftp://ftp.compaq.com/pub/supportinformation/ejourney/176738.pdf

Note: Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center at 1-800-345-1518 for details.

Models

TechSpecs

Processor

Cache Memory

Memory

Network Controller

Storage Controller

Hard drive

Internal Storage

Optical Drive

Form Factor

Options

Memory

(1) Intel Pentium III FC-PGA2 1.40 GHz Processor standard (up to 2 supported)

Integrated 512-KB Level 2 ECC

256-MB (Standard) to 4-GB (Maximum) PC133-MHz ECC Registered SDRAM DIMM

Compaq NC3163 Fast Ethernet NIC (embedded) PCI 10/100 WOL

Integrated Dual Channel Wide Ultra3 SCSI Adapter and Smart Array 532 Controller

None ship standard

1.174 TB maximum hot plug (with optional hard drives & drive cage)

40x IDE (ATAPI) CD-ROM Drive

Tower (5U)

Storage

ML350T02 P1400512KB, 128MB

266241-xx1

ML350T02 P1266512KB, 256MB Array

263635--xx1

Note: Not available in EMEA.

Processor

Cache Memory

Memory

Network Controller

Storage Controller

Hard drive

Internal Storage

Optical Drive

Form Factor

Processor

Cache Memory

Memory

Network Controller

(1) Intel Pentium III FC-PGA2 1.40 GHz Processor standard (up to 2 supported)

Integrated 512-KB Level 2 ECC

128-MB (Standard) to 4-GB (Maximum) PC133-MHz ECC Registered SDRAM DIMM

Compaq NC3163 Fast Ethernet NIC (embedded) PCI 10/100 WOL

Integrated Dual Channel Wide Ultra3 SCSI Adapter

None ship standard

1.174 TB maximum hot plug (with optional hard drives & drive cage)

40x IDE (ATAPI) CD-ROM Drive

Tower (5U)

(1) Intel Pentium III FC-PGA2 1.26-GHz Processor standard (up to 2 supported)

Integrated 512-KB Level 2 ECC

256-MB (Standard) to 4-GB (Maximum) PC133-MHz ECC Registered SDRAM DIMM

Compaq NC3163 Fast Ethernet NIC (embedded) PCI 10/100 WOL

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 7

QuickSpecs

Compaq ProLiant ML350 Generation 2

ML350T02 P1266512KB, 128MB

225861-xx1

Storage Controller

Hard drive

Internal Storage

Optical Drive

Form Factor

Processor

Cache Memory

Memory

Network Controller

Storage Controller

Hard drive

Internal Storage

Optical Drive

Form Factor

Integrated Dual Channel Wide Ultra3 SCSI Adapter and Smart Array 532 Controller

None ship standard

1.174 TB maximum hot plug (with optional hard drives & drive cage)

40x IDE (ATAPI) CD-ROM Drive

Tower (5U)

(1) Intel Pentium III FC-PGA2 1.26-GHz Processor standard (up to 2 supported)

Integrated 512-KB Level 2 ECC

128-MB (Standard) to 4-GB (Maximum) PC133-MHz ECC Registered SDRAM DIMM

Compaq NC3163 Fast Ethernet NIC (embedded) PCI 10/100 WOL

Integrated Dual Channel Wide Ultra3 SCSI Adapter

None ship standard

1.174 TB maximum hot plug (with optional hard drives & drive cage)

40x IDE (ATAPI) CD-ROM Drive

Tower (5U)

ML350R02 P1400512KB, 256MB Array

267125-xx1

Note: Not available in EMEA

ML350R02 P1400512KB, 128MB

266242-xx1

Processor

Cache Memory

Memory

Network Controller

Storage Controller

Hard drive

Internal Storage

Optical Drive

Form Factor

Processor

Cache Memory

Memory

Network Controller

Storage Controller

(1) Intel Pentium III FC-PGA2 1.40 GHz Processor standard (up to 2 supported)

Integrated 512-KB Level 2 ECC

256-MB (Standard) to 4-GB (Maximum) PC133-MHz ECC Registered SDRAM DIMM

Compaq NC3163 Fast Ethernet NIC (embedded) PCI 10/100 WOL

Integrated Dual Channel Wide Ultra3 SCSI Adapter and Smart Array 532 Controller

None ship standard

1.174 TB maximum hot plug (with optional hard drives & drive cage)

40x IDE (ATAPI) CD-ROM Drive

Rack (5U)

(1) Intel Pentium III FC-PGA2 1.40 GHz Processor standard (up to 2 supported)

Integrated 512-KB Level 2 ECC

128-MB (Standard) to 4-GB (Maximum) PC133-MHz ECC Registered SDRAM DIMM

Compaq NC3163 Fast Ethernet NIC (embedded) PCI 10/100 WOL

Integrated Dual Channel Wide Ultra3 SCSI Adapter

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 8

QuickSpecs

Compaq ProLiant ML350 Generation 2

ML350R02 P1266512KB, 256MB Array

263636-xx1

Note: Not available in EMEA.

Hard drive

Internal Storage

Optical Drive

Form Factor

Processor

Cache Memory

Memory

Network Controller

Storage Controller

Hard drive

Internal Storage

Optical Drive

Form Factor

None ship standard

1.174 TB maximum hot plug (with optional hard drives & drive cage)

40x IDE (ATAPI) CD-ROM Drive

Rack (5U)

(1) Intel Pentium III FC-PGA2 1.26 GHz Processor standard (up to 2 supported)

Integrated 512-KB Level 2 ECC

256-MB (Standard) to 4-GB (Maximum) PC133-MHz ECC Registered SDRAM DIMM

Compaq NC3163 Fast Ethernet NIC (embedded) PCI 10/100 WOL

Integrated Dual Channel Wide Ultra3 SCSI Adapter and Smart Array 532 Controller

None ship standard

1.174 TB maximum hot plug (with optional hard drives & drive cage)

40x IDE (ATAPI) CD-ROM Drive

Rack (5U)

ML350R02 P1266512KB, 128MB

225862-xx1

Country Code Key

Processor

Cache Memory

Memory

Network Controller

Storage Controller

Hard drive

Internal Storage

Optical Drive

Form Factor

XX=00

XX=01

XX=02

XX=03

XX=04

XX=05

XX=37

XX=42

XX=29

XX=AA

(1) Intel Pentium III FC-PGA2 1.26 GHz Processor standard (up to 2 supported)

Integrated 512-KB Level 2 ECC

128-MB (Standard) to 4-GB (Maximum) PC133-MHz ECC Registered SDRAM DIMM

Compaq NC3163 Fast Ethernet NIC (embedded) PCI 10/100 WOL

Integrated Dual Channel Wide Ultra3 SCSI Adapter

None ship standard

1.174 TB maximum hot plug (with optional hard drives & drive cage)

40x IDE (ATAPI) CD-ROM Drive

Rack (5U)

U.S. English

Australia

Int’l

Germany

France

APD

EURO

Japan

PRC

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 9

QuickSpecs

Compaq ProLiant ML350 Generation 2

Overview

Power Specifications

Standard Features

Options

Compaq ProLiant ML350 Generation 2 (G2) Unique Options

ProLiant Essentials Value Pack Software

TechSpecs

Models

Hot Plug Redundant Power Supply Option Kit (NA, LA)

Hot Plug Redundant Power Supply Option Kit (AUST)

Hot Plug Redundant Power Supply Option Kit (EURO)

Hot Plug Redundant Power Supply Option Kit (UK)

Hot Plug Redundant Power Supply Option Kit (Japan)

ProLiant ML350 Generation 2 (G2) Tower to Rack Conversion Kit

Rapid Deployment Pack, 1 User, V1.x

Note: This license allows 1 server to be managed and deployed via the Deployment Server.

Rapid Deployment Pack, 1 User, V1.x (Japan)

Note: This license allows 1 server to be managed and deployed via the Deployment Server.

Rapid Deployment Pack, 10 Users, V1.x

Note: This license allows 10 servers to be managed and deployed via the Deployment Server.

Rapid Deployment Pack, 10 Users, V1.x (Japan)

Note: This license allows 10 servers to be managed and deployed via the Deployment Server.

ProLiant Essentials Workload Management Pack (Featuring Compaq Resource Partitioning Manager version

2.0)

ProLiant Essentials Recovery Server Option Pack

ProLiant Essentials Performance Management Pack v2.0, Single License

Note: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to

http://www.hp.com/servers/proliantessentials or the various

ProLiant Essentials Value Pack product QuickSpecs for more information.

Options

Memory

Storage

237046-001

237046-011

237046-021

237046-031

237046-291

237045-B21

267196-B21

267196-291

269817-B21

269817-291

303284-B21

280189-B21

306696-B21

Software

NetServer to ProLiant integrations services

Note: For more information regarding ProLiant Essentials Software, please see the following URL:

http://www.hp.com/servers/proliantessentials

Note: These Web sites are available in English only.

HP digital asset protection

HP NetServer to ProLiant integration and assessment service

Note: HP identifies current levels of NetServer support, services, and management. This service helps maximize customer’s ability to add ProLiant platforms into their current environment.

HP TopTools to Insight Manager 7 installation and startup service

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

302316-001

304164-002

304163-002

Page 10

QuickSpecs

Note: Provides on-site review, installation and configuration services for Insight Manager 7. HP will also re-create, as closely as possible, the views and reports from the customer’s current TopTools configuration. This service assures a smooth transition to the ProLiant Essentials software.

HP NetServer to ProLiant Essentials Rapid Deployment Pack installation and startup service

Note: Install and configure Rapid Deployment Pack in a test environment, then deploy a server image to a maximum of 250 systems in the production environment. This service helps to assure successful system deployment.

Processor

Pentium III P1400-512KB Processor Option Kit

Note: This processor option kit (PN 231118-B21) supports the ProLiant ML350 Generation 2 (G2), and ProLiant ML370 Generation 2 (G2) servers.

Pentium III P1266-512KB (FC-PGA2) Processor Option Kit

Note: This processor option kit (PN 231117-B21) supports the ProLiant ML350 Generation 2 (G2), and ProLiant ML370 Generation 2 (G2) servers.

Pentium III P1133-512KB (FC-PGA2) Processor Option Kit

Note: This processor option kit (PN 238888-B21) supports the ProLiant ML350 Generation 2 (G2), and ProLiant ML370 Generation 2 (G2) servers. It includes a heatsink and VRM.

Compaq ProLiant ML350 Generation 2

304162-002

231118-B21

231117-B21

238888-B21

Memory

(DIMMs)

Internal Storage

Optical Drives

Hard Drives

1024-MB PC133-MHz Registered ECC SDRAM DIMM Memory Option Kit

512-MB PC133-MHz Registered ECC SDRAM DIMM Memory Option Kit

256-MB PC133-MHz Registered ECC SDRAM DIMM Memory Option Kit

128-MB PC133-MHz Registered ECC SDRAM DIMM Memory Option Kit

ML3xx Two Bay Hot Plug SCSI Drive Cage

Note: The drive cage option kit (PN 244059-B21) has one 1 drive bay and one 1.6 drive bay, installed in two available removable media bays. Note: The Drive Cage must be shipped separately from your ML350 G2 server. Failure to do so can cause damage to the ML350 G2 removable media drive bays.

16X DVD-ROM Drive Option Kit (Carbon)

Ultra320 SCSI – Universal Hot Plug

36.4GB 10,000 rpm, U320 Universal Hard Drive, 1

72.8GB 10,000 rpm, U320 Universal Hard Drive, 1

146.8GB 10,000 rpm, U320 Universal Hard Drive, 1

18.2GB 15,000 rpm, U320 Universal Hard Drive, 1

36.4GB 15,000 rpm, U320 Universal Hard Drive, 1



128280-B21

128279-B21

128278-B21

128277-B21

244059-B21

217053-B21

286713-B22

286714-B22

286716-B22

286775-B22

286776-B22

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 11

QuickSpecs

Compaq ProLiant ML350 Generation 2

Storage Controllers

72.8GB 15,000 rpm, U320 Universal Hard Drive, 1

Note: All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds and will run at U3 within the ML350 G2.

Note: Please see the Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature: U320 Hard Drive QS:

http://www5.compaq.com/products/quickspecs/11531_div/ 11531_div.HTML http://www5.compaq.com/products/quickspecs/11531_na/ 11531_na.HTML

RAID LC2 Controller

RAID LC2 Controller (Japan)

Smart Array 532 Controller

Smart Array 532 Controller (Japan)

Smart Array 5302/128 Controller

Smart Array 5302/128 Controller (Japan)

Smart Array 5304/256 Controller

Smart Array 5304/256 Controller (Japan)

Ultra3 Channel Expansion Module for Smart Array 5300 Controller

128-MB Cache Module for Smart Array 5302 Controller

256-MB Battery-Back Cache Module

Note: This 256-MB Battery-Backed Cache Module supports the Smart Array 5300 series controllers, MSA 1000 and the Smart Array Cluster Storage.

Advanced Data Guarding Module for Smart Array 5302 Controller

RAID ADG Upgrade for Smart Array 5302

64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter

64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

(Division/World Wide)

(North America)



286778-B22

188044-B21

188044-291

225338-B21

225338-291

283552-B21

283552-291

283551-B21

283551-291

153507-B21

153506-B21

254786-B21

199371-B21

288601-B21

154457-B21

129803-B21

284688-B21

Note: Please see the following Controller or SCSI Adapter QuickSpecs for Technical Specifications such as PCI Bus, PCI Peak Data Transfer Rate, SCSI Protocols supported, SCSI Peak Data Transfer Rate, Channels, SCSI Ports, Drives supported, Cache, RAID support, and additional information:

http://www5.compaq.com/products/quickspecs/10652_div/ 10652_div.HTML (RAID LC2) http://www5.compaq.com/products/quickspecs/10851_div/ 10851_div.HTML http://www5.compaq.com/products/quickspecs/10640_div/ 10640_div.HTML http://www5.compaq.com/products/quickspecs/10429_div/ 10429_div.HTML (SCSI Adapter)

(Smart Array 532)

(Smart Array 5300 Series)

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 12

QuickSpecs

Wireless HAP Solution

Communications

Compaq WL410 Wireless SMB Access Point (US)

Compaq WL410 Wireless SMB Access Point (Australia)

Compaq WL410 Wireless SMB Access Point (Europe)

Compaq WL410 Wireless SMB Access Point (UK)

Compaq WL410 Wireless SMB Access Point (Japan)

Compaq WL410 Wireless SMB Access Point (China)

Compaq WL410 Wireless SMB Access Point (Korea)

Compaq WL410 Wireless SMB Access Point (S. Africa)

Compaq NC3123 Fast Ethernet NIC PCI 10/100 WOL

Compaq NC3134 Fast Ethernet NIC 64 PCI Dual Port 10/100

Compaq NC3135 Fast Ethernet Module Dual 10/100 Upgrade Module for NC3134 and NC3131

Compaq NC6132 Gigabit Module 1000 SX Upgrade Module for NC3134 and NC3131

Compaq NC3133 Fast Ethernet Module 100FX Upgrade Module for NC3134 and NC3131

Compaq NC7132 10/100/1000-T Upgrade Module for NC3134 and NC3131

Compaq NC6136 Gigabit Server Adapter, 64-bit/66MHz, PCI, 1000 SX

Compaq NC7131 Gigabit Server Adapter, 64-bit/66MHz, PCI, 10/100/1000-T

Compaq NC7132 10/100/1000-T Upgrade Module for NC3134 and NC3131

Note: Any NC31XX, NC61XX, or NC71XX NIC can be used for redundancy with the embedded NC3163 Network Controller.

56K v.90 PCI Modem

Compaq ProLiant ML350 Generation 2

191811-001

191811-011

191811-021

191811-031

191811-291

191811-AA1

191811-AD1

191811-AR1

174830-B21

138603-B21

138604-B21

338456-B23

338456-B25

153543-B21

203539-B21

158575-B21

153543-B21

239137-xx1

Country Code Key

XX = 00

XX = 01

XX = 03

XX = 04

XX = 05

XX = 06

XX = 07

XX = 08

XX = 09

XX = 10

XX = 11

XX = 12

XX = 13

XX = 14

Austria

Germany

France

Italy

Spain

Denmark

Norway

Sweden/Finland

Switzerland

French Canadian

Portugal

Turkey

XX = 15

XX = 16

XX = 17

XX = 18

XX = 24

XX = 28

XX = 29

XX = 33

XX = 35

XX = 37

XX = AB

XX = AD

XX = BB

XX = C9

Greece

S. America

ARAB

Belgium

Poland

Thailand

Japan

Netherlands

Finland

APD

Taiwan

Korea

LA MERCO

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 13

QuickSpecs

Redundant Options

Management Options

Security

Hot Plug Redundant Power Supply Option Kit (NA, LA)

Hot Plug Redundant Power Supply Option Kit (AUST)

Hot Plug Redundant Power Supply Option Kit (EURO)

Hot Plug Redundant Power Supply Option Kit (UK)

Hot Plug Redundant Power Supply Option Kit (Japan)

Remote Insight Lights-Out Edition II (NA, LA)

Remote Insight Lights-Out Edition II (EMEA)

Remote Insight Lights-Out Edition II (ROW)

Compaq Remote Insight Lights-Out Edition (NA, LA)

Compaq Remote Insight Lights-Out Edition (EURO)

Compaq Remote Insight Lights-Out Edition (APD, Japan)

HP/Atalla AXL600L SSL Accelerator Card for ProLiant Servers

Compaq AXL300 Accelerator PCI Card for ProLiant Servers

Compaq ProLiant ML350 Generation 2

237046-001

237046-011

237046-021

237046-031

237046-291

227251-001

227251-021

227251-371

157866-001

157866-021

157866-371

524545-B21

227933-B21

Monitors

CRT Country Code Key

Flat Panel TFT1825 18 Color Monitor Two-Tone (Carbon/Silver)

Flat Panel TFT1720 17 Color Monitor Two-Tone (Carbon/Silver)

Flat Panel TFT1520 15 Color Monitor Two-Tone (Carbon/Silver)

Flat Panel TFT2025 20 Color Monitor Two-Tone (Carbon/Silver)

TFT5110R Flat Panel Monitor (Carbon)

TFT5010R Flat Panel Monitor (NA)

TFT5010R Flat Panel Monitor (Int’l)

TFT5010R Flat Panel Monitor (Japan)

NORTH AMERICA (NA)/LATIN AMERICA (LA)

Dash #

-001

-002

-003

-004

-005

-006

-007

-B24

-201

-202

-C91

Description

NA Kit with US Power Cord

Carbon model with US Power Cord

Touch Screen model with US Power Cord

NAFTA model with US Power Cord (Made in Mexico)

NA Kit with Powered Speakers

GSA model with US Power Cord

NH MPR model with US power cord (Made in Mexico)

TCO model without power cord (Digital Classic)

EH model for Brazil (older Brazil models used -B29)

EH model for Brazil Carbon (older Brazil models used -B29)

EH model for Mercosur countries

296751-xxx

295926-xxx

295925-xxx

285550-xxx

281683-B21

217248-001

217248-B31

217248-291

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 14

QuickSpecs

Compaq ProLiant ML350 Generation 2

-C92

-B29

Note: All NA/LA models above are NH.

EUROPE, MIDDLE EAST AND AFRICA (EMEA)

Dash #

-021

-022

-023

-024

-025

-A91

-A92

-031

-032

-033

-035

-B21

-B23

-B27

PACIFIC/AUSTRALIA (APD)

Dash #

-B22

-B24

-B25

-B26

-011

-015

-012

-AD1

-AD2

-B28

-B35

GREATER CHINA (GCD)

Dash #

-AA1

-AA2

-KA1

-AB1

JAPAN (CKK)

Dash #

-291

-292

EH model for Mercosur countries Carbon

EH/ALADI model for Latin America

Description

NH/TCO with Eurocord (DCE Hub)

NH/MPR with Eurocord (DCE Hub) (India)

NH Carbon model with Eurocord (DCE Hub)

NH Touch Screen model with Eurocord (DCE Hub)

NH Kit with Speakers and Eurocord

NH/TCO without power cord (Dubai hub)

NH/MPR without power cord (Dubai hub)

NH/TCO with UK Cord (UK Hub)

NH/MPR with UK Cord (UK Hub)

NH/TCO carbon with UK Cord

NH Kit with Speakers and UK Cord

SH/MPR without power cord (S. Africa Hub)

SH/TCO without power cord (S. Africa Hub)

SH/TCO Carbon without power cord (S. Africa Hub)

Description

NH/MPR without power cord

NH/TCO without power cord

EH Carbon model without power cord

NH Touch Screen model without power cord

SH model with AUZ/NZ power cord

SH model with speakers AUZ/NZ power cord

SH Carbon model with AUZ/NZ power cord

NH model for Korea

NH Carbon model for Korea

EH model without power cord

EH model with speakers no power cord (Singapore)

Description

NH/China Kit with CCIB label (Local Sales)

NH/ Carbon China Kit with CCIB label (Local Sales)

NH/China Kit with CCIB label (External Sales/Bundles in HK)

NH/Taiwan kit, made in Taiwan

Description

NH/Japan Kit with 3-2 pin adapter

NH Carbon Japan Kit with 3-2 pin adapter

TFT Country Code Key

EUROPE, MIDDLE EAST & AFRICA (EMEA)

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 15

QuickSpecs

Compaq ProLiant ML350 Generation 2

Tape Drives

Dash #

-021

-031

NORTH AMERICA

Dash #

-001

-B24

APD

Dash #

-011

JAPAN (CKK)

Dash #

-291

Note: In order to install certain tape drives internally, you may need to remove the rails that come standard on the drives and then re-insert the screws in the mounting holes.

Internal and External DAT Tape Drives

Internal 12/24-GB DAT Drive (Opal)

Internal 12/24-GB DAT Drive (Opal) (Japan)

Description

Europe

Description

All NA/LA models

Description

Australia/NZ

Description

Japan

295513-B22

295513-292

Note: Please see the 12/24-GB DAT Drive QuickSpecs for additional options such as cassettes and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/10239_div/ 10239_div.HTML http://www5.compaq.com/products/quickspecs/10239_na/ 10239_na.HTML

HP StorageWorks 20/40-GB DAT DDS-4 Tape Drive, Internal (Carbon) (WW)

HP StorageWorks 20/40-GB DAT DDS-4 Tape Drive, External (Carbon) (NA)

HP StorageWorks 20/40-GB DAT DDS-4 Tape Drive, External (Int’l) (Carbon)

HP StorageWorks 20/40-GB DAT DDS-4 Tape Drive, External (Japan) (Carbon)

HP StorageWorks Internal 20/40-GB DAT, Hot Plug (Carbon)

Note: Please see the 20/40-GB DAT Tape Drive QuickSpecs for additional options such as host bus adapters, controllers, cassettes, and for an up-todate listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/10426_div/ 10426_div.HTML http://www5.compaq.com/products/quickspecs/10426_na/ 10426_na.HTML

(Division/World Wide)

(North America)

157769-B22

157770-002

157770-B32

157770-292

215488-B21

(Division/World Wide)

(North America)

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 16

QuickSpecs

Internal and External AIT Tape Drives

Note: The Internal AIT Hot Plug Drives are supported in the drive bay only. When installing an AIT tape drive into an ML350 ProLiant server you must use the special screw included with the drive kit in order for the drive to seat properly in the ML350 drive bay.

HP StorageWorks Internal AIT 35-GB, LVD Tape Drive (Carbon)

HP StorageWorks External AIT 35-GB, LVD Tape Drive (Carbon) (NA)

HP StorageWorks External AIT 35-GB, LVD Tape Drive (Carbon) (Int’l)

HP StorageWorks External AIT 35-GB, LVD Tape Drive (Carbon) (Japan)

HP StorageWorks Internal AIT 35-GB, LVD, Hot Plug (Carbon)

Note: Please see the AIT 35-GB, LVD Tape Drive QuickSpecs for additional options such as adapters, controllers, and cassettes, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/10712_div/ 10712_div.HTML http://www5.compaq.com/products/quickspecs/10712_na/ 10712_na.HTML

Compaq ProLiant ML350 Generation 2

216884-B21

216885-001

216885-B31

216885-291

216886-B21

(Division/World Wide)

(North America)

HP StorageWorks AIT 50-GB Tape Drive, Internal (Carbon) (WW)

HP StorageWorks AIT 50-GB Tape Drive, External (Carbon) (NA)

HP StorageWorks AIT 50-GB Tape Drive, External (Int’l) (Carbon)

HP StorageWorks AIT 50-GB Tape Drive, External (Japan) (Carbon)

HP StorageWorks Internal AIT 50-GB, Hot Plug (Carbon)

HP StorageWorks Rackmount AIT 50-GB, 3U (Single Drive)

Note: Please see the AIT 50-GB Tape Drive QuickSpecs for additional options such as adapters, controllers, and cassettes, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/10425_div/ 10425_div.HTML http://www5.compaq.com/products/quickspecs/10425_na/ 10425_na.HTML

HP StorageWorks Internal AIT 100-GB Tape Drive (Carbon)

HP StorageWorks External AIT 100-GB Tape Drive (carbon)

HP StorageWorks External AIT 100-GB Tape Drive (carbon) (Int’l)

HP StorageWorks Internal AIT 100-GB, Hot-Plug (carbon)

(Division/World Wide)

(North America)

157766-B22

157767-002

157767-B32

157767-292

215487-B21

274333-B21

249189-B21

249160-001

249160-B31

249161-B21

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 17

QuickSpecs

Note: Please see the AIT 100-GB Tape Drive QuickSpecs for additional options such as adapters, controllers, and cassettes, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/11062_div/ 11062_div.HTML http://www5.compaq.com/products/quickspecs/11062_na/ 11062_na.HTML

Internal and External DLT/SDLT Tape Drives

Compaq ProLiant ML350 Generation 2

(Division/World Wide)

(North America)

HP StorageWorks 40/80-GB DLT Tape Drive, Internal (Carbon)

HP StorageWorks 40/80-GB DLT Tape Drive, External (Carbon) (NA)

HP StorageWorks 40/80-GB DLT Tape Drive, External (Carbon) (Japan)

HP StorageWorks Rackmount DLT 40/80, 3U (Single Drive)

HP StorageWorks Rackmount DLT 40/80, Dual-Drive, 3U (Two Drives)

HP StorageWorks Rackmount DLT 40/80, Tape Array III, 5U (Four Drives)

Note: Please see the 40/80-GB DLT Drive QuickSpecs for additional options such as host bus adapters, controllers, cassettes, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/10658_div/ 10658_div.HTML http://www5.compaq.com/products/quickspecs/10658_na/ 10658_na.HTML

Internal and External DLT VS Tape Drives

HP StorageWorks DLT VS 40/80 Tape Drive, Internal (Carbon) (WW)

HP StorageWorks DLT VS 40/80 Tape Drive, External (Carbon) (NA)

HP StorageWorks DLT VS 40/80 Tape Drive, External (Carbon) (Int'l)

HP StorageWorks DLT VS 40/80 Tape Drive, External (Carbon) (Japan)

(Division/World Wide)

(North America)

146196-B22

146197-B22

146197-293

274332-B21

274335-B21

274337-B21

280129-B21

280129-B22

280129-B31

280129-291

Note: Please see the DLT VS 40/80 Tape Drive QuickSpecs for additional options such as host bus adapters, controllers, cassettes, and for an up-todate listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/11403_div/ 11403_div.HTML http://www5.compaq.com/products/quickspecs/11403_na/ 11403_na.HTML

HP StorageWorks Rackmount SDLT 110/220, 3U (Single Drive)

HP StorageWorks Rackmount SDLT 110/220, Dual-Drive, 3U (Two Drives)

HP StorageWorks Rackmount SDLT 110/220, Tape Array III, 5U (Four Drives)

(Division/World Wide)

(North America)

274331-B21

274334-B21

274336-B21

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 18

QuickSpecs

Note: Please see the SDLT 110/220-GB Tape Drive QuickSpecs for additional options such as adapters, controllers, and media, and for an up-todate listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/10772_div/ 10772_div.HTML http://www5.compaq.com/products/quickspecs/10772_na/ 10772_na.HTML

Compaq ProLiant ML350 Generation 2

(Division/World Wide)

(North America)

HP StorageWorks SDLT 160/320, Internal (carbon) (WW)

HP StorageWorks SDLT 160/320, External NA (carbon)

HP StorageWorks SDLT 160/320, External WW (carbon)

HP StorageWorks SDLT 160/320, External Japan (carbon)

Note: Please see the SDLT 160/320-GB Tape Drive QuickSpecs for additional options such as adapters, controllers, and media, and for an up-todate listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/11406_div/ 11406_div.HTML http://www5.compaq.com/products/quickspecs/11406_na/ 11406_na.HTML

External SuperLoader

DLT1 1280 SuperLoader

Note: Please see the QuickSpecs for additional options and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/11330_div/ 11330_div.HTML (Division/World Wide) http://www5.compaq.com/products/quickspecs/11330_na/ 11330_na.HTML (North America)

Internal and External LTO Ultrium Tape Drives

HP StorageWorks LTO Ultrium 230 Tape Drive, Internal (Carbon) WW

HP StorageWorks LTO Ultrium 230 Tape Drive, External (Carbon) NA

HP StorageWorks LTO Ultrium 230 Tape Drive, External (Carbon) Int’l

(Division/World Wide)

(North America)

StorageWorks

DLT1 1280 SuperLoader by Compaq

257319-B21

257319-001

257319-B31

257319-291

268664-B21

Q1515A

Q1516A

Q1517A

Note: Please see the HP StorageWorks LTO Ultrium Tape Drive QuickSpecs for additional options such as controllers, and other related items, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/11415_div/ 11415_div.HTML http://www5.compaq.com/products/quickspecs/11415_na/ 11415_na.HTML

HP StorageWorks Ultrium 460 Tape Drive for ProLiant, Internal (Carbon) WW

HP StorageWorks Ultrium 460 Tape Drive for ProLiant, External (Carbon) NA

HP StorageWorks Ultrium 460 Tape Drive for ProLiant, External (Carbon) Int’l

(Division/World Wide)

(North America)

Q1518A

Q1519A

Q1520A

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 19

QuickSpecs

Note: Please see the HP StorageWorks Ultrium 460 Tape Drives for ProLiant QuickSpecs for additional options such as data and cleaning cartridges, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/11530_div/ 11530_div.HTML http://www5.compaq.com/products/quickspecs/11530_na/ 11530_na.HTML

Internal and External DAT Autoloader

20/40-GB DAT 8 Cassette Autoloader Internal (Opal)

20/40-GB DAT 8 Cassette Autoloader External (Opal)

20/40-GB DAT 8 Cassette Autoloader External (Opal) (Int’l)

20/40-GB DAT 8 Cassette Autoloader External (Opal) (Japan)

Note: Please see the 20/40-GB DAT DDS-4 8 Cassette Autoloader QuickSpecs for additional options such as adapters, controllers, and cassettes, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/10518_div/ 10518_div.HTML (Division/World Wide) http://www5.compaq.com/products/quickspecs/10518_na/ 10518_na.HTML (North America)

Compaq ProLiant ML350 Generation 2

(Division/World Wide)

(North America)

166504-B21

166505-001

166505-B31

166505-291

AIT Autoloader

HP StorageWorks AIT 35 GB Autoloader, Rackmount (Carbon) (NA)

HP StorageWorks AIT 35 GB Autoloader, Rackmount (Carbon) (Int’l)

HP StorageWorks AIT 35 GB Autoloader Tabletop (Carbon) (NA)

HP StorageWorks AIT 35 GB Autoloader, Tabletop (Carbon) (Int’l)

Note: Please see the AIT 35-GB Autoloader QuickSpecs for additional options such as adapters, controllers, and cassettes, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/11404_div/ 11404_div.HTML http://www5.compaq.com/products/quickspecs/11404_na/ 11404_na.HTML

(Division/World Wide)

(North America)

280349-001

280349-B31

280349-001

280349-B31

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 20

QuickSpecs

HP StorageWorks 1/8 Autoloader

HP StorageWorks 1/8 Autoloader, Tabletop, Ultrium 230

HP StorageWorks 1/8 Autoloader, Tabletop, DLT VS80

HP StorageWorks 1/8 Autoloader, Rackmount kit

Rackmount Tape Drive Kits

3U Rackmount Kit

Note: The 3U Rackmount Kit (PN 274338-B21) can support up to (2) full-height or (4) half-height tape drives and compatible with multiple Single-Ended and LVD SCSI Tape Drives including the 12/24-GB DAT, 20/40-GB DAT, 20/40GB DAT DDS-4 8 Cassette Autoloader, AIT 35-GB LVD, AIT 50 GB, 20/40-GB DLT, 40/80-GB DLT, and the SDLT 110/220-GB Tape Drives.

5U Rackmount Kit

Note: The 5U Rackmount Kit (PN 274339-B21) can support up to (4) full-height tape drives and is compatible with all Compaq DLT/SDLT tape drives including the 20/40-GB DLT, 35/70-GB DLT, 40/80-GB DLT, and the SDLT 110/220-GB tape drives.

Compaq ProLiant ML350 Generation 2

C9572CB

C9264CB

C9266R

274338-B21

274339-B21

Tape Automation

Note: Please see the Rackmount Tape Drive Kits QuickSpecs for additional information regarding these kits, please see the following:

http://www5.compaq.com/products/quickspecs/10854_div/ 10854_div.HTML http://www5.compaq.com/products/quickspecs/10854_na/ 10854_na.HTML

Rackmount Tape Drive Cable Kits

LVD Cable Kit, VHDCI/HD68

Note: For use with the 3U RM Storage Enclosure and DLT Tape Array III only.

LVD Cable Kit, HD68/HD68

Note: For use with the 3U RM Storage Enclosure and DLT Tape Array III only.

Entry Level Tape Libraries

SSL2020 Automated AIT Library

SSL2020 AIT Mini-Library 1 drive, 20 slot Table Top

SSL2020 AIT Mini-Library 2 drive, 20 slot Table Top

(Division/World Wide)

(North America)

168048-B21

242381-B21

175195-B21

175195-B22

SSL2020 AIT Mini-Library 1 drive, 20 slot Rackmount

SSL2020 AIT Mini-Library 2 drive, 20 slot Rackmount

SSL2020 AIT Library Pass Thru with Transport

SSL2020 AIT Library Pass Thru Extender

AIT 50-GB Drive Add-On LVD Drive for SSL2020 AIT Library

175196-B21

175196-B22

175312-B21

175312-B22

175197-B21

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 21

QuickSpecs

Required Adapters/Controllers for SSL2020 AIT Library

Compaq ProLiant ML350 Generation 2

64-Bit/66-Mhz Dual Channel Wide Ultra3 SCSI Adapter

SAN Access Module for Smart Array 5302 Controller

SAN Access Module for Smart Array 5302 Controller (Japan)

Note: Please see the SSL2020 Automated AIT Tape Library Solution QuickSpecs for additional information including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at:

http://www5.compaq.com/products/quickspecs/10580_na/ 10580_na.HTML (North America) http://www5.compaq.com/products/quickspecs/10580_div/ 10580_div.HTML (Division/World Wide)

MSL5000 Libraries

Mainstream Tape Library

MSL5026DLX DLT Library

MSL5026DLX, 1 40/80-GB DLT, LVD Table Top

MSL5026DLX, 2 40/80-GB DLT, LVD Table Top

MSL5026DLX, 1 40/80-GB DLT, LVD Rackmount

MSL5026DLX, 2 40/80-GB DLT, LVD Rackmount

MSL5026SL SDLT Library

129803-B21

216687-B21

216687-291

231821-B21

231821-B22

231891-B21

231891-B22

Note: Please see the StorageWorks MSL5026DLX or MSL5026SL Library QuickSpecs for additional information including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at:

http://www5.compaq.com/products/quickspecs/10860_na/ 10860_na.HTML (North America) http://www5.compaq.com/products/quickspecs/10860_div/ 10860_div.HTML (Division/World Wide)

MSL5026SL, Tabletop, 1 SDLT Drive (Graphite)

MSL5026SL, Tabletop, 2 SDLT Drives (Graphite)

MSL5026SL, Rackmount, 1 SDLT Drive (Graphite)

MSL5026SL, Rackmount, 2 SDLT Drive (Graphite)

Note: Please see the StorageWorks MSL5026SL Library QuickSpecs for additional information including UpgradeKits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at:

http://www5.compaq.com/products/quickspecs/11440_na/ 11440_na.HTML (North America) http://www5.compaq.com/products/quickspecs/11440_div/ 11440_div.HTML (Division/World Wide)

302511-B21

302511-B22

302512-B21

302512-B22

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 22

QuickSpecs

MSL5026S2 SDLT Library

MSL5026S2, Rackmount, 0 Drive Library

MSL5026S2, Rackmount, 1 Drive, SDLT2 Library

MSL5026S2, Rackmount, 2 Drives, SDLT2 Library

MSL5026S2FC, Rackmount, 1 Drive, SDLT2 Library

MSL5026S2FC, Rackmount, 2 Drives, SDLT2 Library

MSL5026S2, Tabletop, 1 Drive, SDLT2 Library

MSL5026S2, Tabletop, 2 Drives, SDLT2 Library

Note: Please see the StorageWorks MSL5026S2 Library QuickSpecs for additional information including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at:

http://www5.compaq.com/products/quickspecs/11453_na/ 11453_na.HTML (North America) http://www5.compaq.com/products/quickspecs/11453_div/ 11453_div.HTML (Division/World Wide)

Compaq ProLiant ML350 Generation 2

Departmental Tape Library

MSL5052SL SDLT Library

MSL5052, Rackmount, 0 Drive, SDLT ALL

MSL5052SL, SDLT, 110/220, 2 Drives, LVD, Table Top

MSL5052SL, SDLT, 110/220, 2 Drives, LVD, Rackmount

293472-B21

293472-B22

293472-B23

293472-B24

293472-B25

293473-B21

293473-B22

255102-B21

249490-B21

249491-B21

Note: Please see the StorageWorks MSL5052SL Library QuickSpecs for additional information including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at:

http://www5.compaq.com/products/quickspecs/11061_na/ 11061_na.HTML (North America) http://www5.compaq.com/productsquickspecs/11061_div/ 11061_div.HTML (Division/World Wide)

MSL5052S2 SDLT Library

MSL5052S2, Tabletop, 2 Drives, SDLT2 Library

MSL5052S2, Rackmount, 2 Drives, SDLT2 Library

MSL5052S2FC, Rackmount, 2 Drives, SDLT2 Library

Note: Please see the StorageWorks MSL5052S2 Library QuickSpecs for additional information including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at:

http://www5.compaq.com/products/quickspecs/11442_na/ 11442_na.HTML (North America) http://www5.compaq.com/products/quickspecs/11442_div/ 11442_div.HTML (Division/World Wide)

293476-B21

293474-B21

293474-B24

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 23

QuickSpecs

Compaq ProLiant ML350 Generation 2

MSL5030 LTO Library

MSL5030L1, Rackmount, 0 Drive Library

MSL5030L1, Rackmount, 1 Drive, LTO1 Library

MSL5030L1, Rackmount, 2 Drives, LTO1 Library

MSL5030L1FC, Rackmount, 1 Drive, LTO1 Library

MSL5030L1FC, Rackmount, 2 Drives, LTO1 Library

MSL5030L1, Tabletop, 1 Drive, LTO1 Library

MSL5030L1, Tabletop, 2 Drives, LTO1 Library

Note: Please see the StorageWorks MSL5030 LTO Library QuickSpecs for additional information including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at:

http://www5.compaq.com/products/quickspecs/11439_na/ 11439_na.HTML (North America) http://www5.compaq.com/products/quickspecs/11439_div/ 11439_div.HTML (Division/World Wide)

MSL5060 LTO Library

MSL5060L1, Rackmount, 0 Drive Library

MSL5060L1, Rackmount, 2 Drives, LTO1 Library

MSL5060L1FC, Rackmount, 2 Drives, LTO1 Library

MSL5060L1, Tabletop, 2 Drives, LTO1 Library

301897-B21

301897-B22

301897-B23

301897-B24

301897-B25

301898-B21

301898-B22

301899-B21

301899-B22

301899-B23

301900-B21

Note: Please see the StorageWorks MSL5060 LTO Library QuickSpecs for additional information including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at:

http://www5.compaq.com/products/quickspecs/11438_na/ 11438_na.HTML (North America) http://www5.compaq.com/products/quickspecs/11438_div/ 11438_div.HTML (Division/World Wide)

MSL5000 series Libraries Options

MSL5K Field Upgrade SDLT 110/220 Drive, LVD

MSL5000 SDLT2 Upgrade Drive

MSL5000 LTO1 Upgrade Drive

MSL5000 Dual Magazine LTO

MSL5000 Dual Magazine DLT

Required Adapters for MSL5000 series Libraries

64-Bit/66Mhz Dual Channel Wide Ultra3 SCSI Adapter

231823-B22

293475-B21

301901-B21

301902-B21

232136-B21

129803-B21

Smart Array Cluster Storage

Smart Array Cluster Storage Redundant Controller Option Kit

4-Port Shared Storage Module with Smart Array Multipath Software for Smart Array Cluster Storage

128-MB Cache Module for Smart Array 5302 Controller

256-MB Battery-Backed Cache Module

201724-B21

218252-B21

292944-B21

153506-B21

254786-B21

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 24

QuickSpecs

Note: 128-MB Cache Module for Smart Array 5302 Controller (PN 153506-B21) is an upgrade cache module (128 MB Standard) for Smart Array Cluster Storage Controller. Note: Please see the Compaq Smart Array Cluster Storage QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:

http://www5.compaq.com/products/quickspecs/11050_na/ 11050_na.HTML (North America) http://www5.compaq.com/products/quickspecs/11050_div/ 11050_div.HTML (Division/World Wide)

Cluster Options

External Storage – Tower and Rack

ProLiant Cluster HA/L100 LifeKeeper for Linux

Note: For additional information regarding the ProLiant Cluster HA/L100 LifeKeeper for Linux, please see the following QuickSpecs at:

http://www5.compaq.com/products/quickspecs/11533_na/ 11533_na.html http://www5.compaq.com/products/quickspecs/11533_div/ 11533_div.html

StorageWorks Enclosure Model 4314T (tower)

StorageWorks Enclosure Model 4314T (tower) (Int’l)

StorageWorks Enclosure Model 4314T (tower) (Japan)

StorageWorks Enclosure Model 4314R (rack-mountable)

StorageWorks Enclosure Model 4314R (rack-mountable) (Int’l)

StorageWorks Enclosure Model 4314R (rack-mountable) (Japan)

StorageWorks Enclosure Model 4354R (rack-mountable)

StorageWorks Enclosure Model 4354R (rack-mountable) (Int’l)

StorageWorks Enclosure Model 4354R (rack-mountable) (Japan)

Note: The StorageWorks Enclosure 4300 Family supports the Wide Ultra3, Ultra320 1 Hot Plug Hard Drives.

Redundant Power Supply Option

Ultra3 Single Bus I/O Module Option

Ultra3 Dual Bus I/O Module Option

StorageWorks Enclosure Tower to Rack Conversion Kit

Compaq ProLiant ML350 Generation 2

303523-B21

(North America)

(Division/World Wide)

190210-001

190210-B31

190210-291

190209-001

190209-B31

190209-291

190211-001

190211-B31

190211-291

119826-B21

190212-B21

190213-B21

150213-B21

MSA1000

MSA 1000

MSA 1000 Controller

MSA Fibre Channel I/O Module

MSA1000 Fabric Switch

MSA 1000 Fibre Channel Adapter (FCA) 2101

HP StorageWorks msa hub 2/3

201723-B22

218231-B22

218960-B21

218232-B21

245299-B21

286763-B21

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 25

QuickSpecs

Note: Please see the HP StorageWorks modular SAN array 1000 QuickSpecs for additional options and configuration information at:

http://www5.compaq.com/products/quickspecs/11033_na/ 11033_na.HTML (North America) http://www5.compaq.com/products/quickspecs/11033_div/ 11033_div.HTML

Compaq UPS Power Cord Reference Guide

Please see the Compaq UPS Power Cord Reference Guide that lists cable descriptions, requirements, and specifications for Compaq UPS units.

ftp://ftp.compaq.com/pub/products/servers/proliantstorage/ power-protection/powercordmatrix.pdf

(Division/World Wide)

Compaq ProLiant ML350 Generation 2

Uninterruptible Power Systems – Tower

Compaq Pro UPS 500 (300 Watt) 120V (NA)

Compaq Pro UPS 500 (300 Watt) 120V (Int’l)

HP UPS Model T700 (700VA, 500 Watt), Low Voltage (NA)

HP UPS Model T700 (700VA, 500 Watt), High Voltage (Int’l)

HP UPS Model T700 (700VA, 500 Watt), Low Voltage (Japan)

HP UPS Model T1000 XR (1000VA, 700 Watt), Low Voltage (NA)

HP UPS Model T1000 XR (1000VA, 700 Watt), High Voltage (Int’l)

HP UPS Model T1000 XR (1000VA, 700 Watt), Low Voltage (Japan)

HP UPS Model T1500 XR (1440VA, 1050 Watt), Low Voltage (NA)

HP UPS Model T1500 XR (1500VA, 1050 Watt), High Voltage (Int’l)

HP UPS Model T1500 XR (1500VA, 1050 Watt), Low Voltage (Japan)

HP UPS Model T2200 XR (1920VA, 1600 Watt), Low Voltage (NA)

HP UPS Model T2200 XR (2080VA, 1600 Watt), High Voltage (NA)

HP UPS Model T2200 XR (2200VA, 1600 Watt), Low Voltage (NA)

HP UPS Model T2200 XR (2200VA, 1600 Watt), Low Voltage (Japan)

136386-001

136386-B31

204015-001

204015-B31

204015-291

204155-001

204155-B31

312803-291

204155-002

204155-B32

204155-291

204451-001

204451-002

204451-B31

204451-291

Uninterruptible Power Systems – Rack

Compaq UPS R1500 XR (1440VA, 1340 Watt), Low Voltage (NA)

Compaq UPS R1500 XR (1500VA, 1340 Watt), High Voltage (Int’l)

Compaq UPS R1500 XR (1500VA, 1340 Watt), Low Voltage (Japan)

Compaq UPS R3000 XR (2880VA, 2700 Watt), Low Voltage (NA)

Compaq UPS R3000 XR (3000VA, 2700 Watt), High Voltage (NA)

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

204404-001

204404-B31

204404-291

192186-001

192186-002

Page 26

QuickSpecs

Compaq ProLiant ML350 Generation 2

Compaq UPS R3000 XR (2400VA, 2250 Watt), Low Voltage (Japan)

Compaq UPS R3000 XR (3000VA, 2700 Watt), High Voltage (Japan)

Compaq UPS R3000 XR (3000VA, 2700 Watt), High Voltage (Int’l – detachable cord)

Compaq UPS R3000 XR (3000VA, 2700 Watt), High Voltage (16A IEC309 Plug)

Compaq UPS R3000 XR (3000VA, 2700 Watt), High Voltage (16A CEE 7/7 SCHUKO Plug)

Compaq UPS R3000 XR (3000VA, 2700 Watt), High Voltage (16A BS-546 Plug)

Rack-Mountable UPS R6000 (6000VA, 6000 Watt) High Voltage (NA)

Note: The UPS R6000 has a hardwired input.

Rack-Mountable UPS R6000 (6000VA, 6000 Watt) High Voltage (Int’l)

Note: The UPS R6000 has a hardwired input.

Rack-Mountable UPS R6000 (6000VA, 6000 Watt) High Voltage (Japan)

Note: The UPS R6000 has a hardwired input.

Compaq UPS R12000 XR, N+ x (200-240V) (WWhardwired)

Note: The UPS R12000 XR has a hardwired input and output.

192186-291

192186-292

192186-B31

192186-B32

192186-B33

192186-AR1

347207-001

347207-B31

347207-291

207552-B22

UPS Options

SNMP Serial Port Card

Note: Supports tower and rack UPS XR models ranging from 1000 – 3000VA.

Six Port Card

Note: Supports tower and rack UPS XR models ranging from 1000 – 3000VA.

High to Low Voltage Transformer (250VA)

Note: Supports R6000 UPS series only. 2.5 amps @ 125 Volts max output across two

Extended Runtime Module, T1000 XR

Extended Runtime Module, T1500 XR/T2200 XR

Extended Runtime Module, R1500 XR

Note: 2U each, two ERM maximum.

Extended Runtime Module, R3000 XR

Note: 2U each, one ERM maximum.

Extended Runtime Module, R6000

Note: 3U each, two ERM maximum.

Extended Runtime Module, R12000 XR, 4U

Note: 4U each, two ERM maximum.

SNMP-EN Adapter

Note: Supports R6000 UPS series only.

Multi-Server UPS Card

Note: Supports R6000 UPS series only.

Scalable UPS Card

Note: Supports R6000 UPS series only.

NEMA

5-15.

192189-B21

192185-B21

388643-B21

218967-B21

218969-B21

218971-B21

192188-B21

347224-B21

217800-B21

347225-B21

123508-B21

123509-B21

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 27

QuickSpecs

Compaq ProLiant ML350 Generation 2

Rack-Mountable PDUs – 1U/0U

(up to 12 outlets)

Note: 0U mounting brackets shipped with the unit (separate option kit for 1U mounting).

Dual Input PDUs – 1U/0U

(up to 12 outlets)

Note: 1U/0U mounting brackets shipped with the unit (optimized for 10000 and 9000 series racks).

Compaq Power Distribution Unit-16A (200 to 240V) (WW)

Note: The 16A PDU also connects to the high volt models of the UPS R3000 XR (need cable PN 340653-001 (NA)) and the UPS R6000 models. Cable PN 340653-001 required if connecting to UPS R3000 XR (192186-002 NAHigh Volt model only).

Compaq Power Distribution Unit-32A (200 to 240V) (Int’l)

Compaq Power Distribution Unit-40A (200 to 240V) (WW)

Note: Please see the following Power Distribution Unit (Zero-U/1U PDU) QuickSpecs for additional options including cables:

http://www5.compaq.com/products/quickspecs/10838 na/ 10838 na.HTML http://www5.compaq.com/products/quickspecs/10838 div/ 10838 div.HTML

Compaq Dual Input Power Distribution Unit-24A High Voltage (NA only)

Compaq Dual Input Power Distribution Unit-24A High Voltage (Int’l)

Note: Please see the following Power Distribution Unit (Zero-U/1U PDU) QuickSpecs for additional options including cables:

http://www5.compaq.com/products/quickspecs/10838 na/ 10838 na.HTML http://www5.compaq.com/products/quickspecs/10838 div/ 10838 div.HTML

(North America)

(Division/World Wide)

(North America)

(Division/World Wide)

207590-B21

207590-B31

207590-B23

191186-001

191186-B31

Modular PDUs – 1U/0U

(up to 32 outlets)

Note: 1U/0U mounting brackets shipped with the unit (optimized for 10000 and 9000 series racks).

HP Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127 VAC) (NA, Japan)

Note: This mPDU (252663-D71) may also be used to connect the low volt model of the UPS R3000 XR.

HP Modular Power Distribution Units (mPDU), High Volt Model, 24A (200-240 VAC) (NA, Japan)

HP Modular Power Distribution Units (mPDU), High Volt Model, 32A (200-240 VAC) (Int'l)

HP Modular Power Distribution Units (mPDU), High Volt Model, 40A (200-240 VAC) (WW)

Note: This mPDU (252663-B21), 40A model has a hardwired input.

HP Modular Power Distribution Units (mPDU), High Volt Model, 16A (200-240 VAC) (WW)

Note: This PDU has a detachable input power cord and allows for adaptability to country specific power requirements. This model may also be used with the high volt UPSs R3000 XR and R6000.

Note: Please see the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs for additional options including shorter jumper cables and country specific power cords:

http://www5.compaq.com/products/quickspecs/11041_na/ 11041_na.HTML http://www5.compaq.com/products/quickspecs/11041_div/ 11041_div.HTML

(North America)

(Division/World Wide)

252663-D71

252663-D72

252663-B31

252663-B21

252663-B24

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 28

QuickSpecs

PDU Options

Other

1U PDU Mounting Brackets Kit

Note: The 1U PDU Mounting Brackets are required when mounting PDU’s PN 207590-xxx series in 1U configurations.

Third Party PDU Mounting Kit

Note: This kit allows you to mount the Modular PDUs in racks other than the 9000/10000 Series racks (any racks using the standard 19" rail). For more details please refer the Modular PDU QuickSpecs.

Enhanced Keyboard (Carbon)

Mouse (Carbon)

Mouse (Carbon) (Japan)

ProLiant ML330/ML350 Internal to External SCSI Cable Option Kit

Note: The ProLiant ML330/ML350 Internal to External SCSI Cable Option Kit (PN 159547-B22) is supported by the ML330 G2/ML350 Family.

Compaq ProLiant ML350 Generation 2

215852-B21

310777-B21

296435-xx8

103180-B21

103180-291

159547-B22

Enhanced Keyboard

(Carbon)

Country Key Code

Dash #

-008

-038

-048

-058

-068

-078

-088

-089

-108

-128

-138

-148

-158

Description

Germany

France

Italy

Spain

Denmark

Norway

Sweden/Finland

French Canadian

Portugal

Turkey

Greek

Dash #

-178

-188

-218

-228

-238

-248

-258

-298

-338

-358

-B38

-B48

Description

Arabic

Belgium

Hungary

Czech

Solvac

Polish

Russian

Japan

Dutch

Finish

Int’l

BHCSY

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 29

QuickSpecs

Rack Builder

Rack Conversion Kit

HP Rack 10000 Series

(Graphite Metallic)

Please see the Compaq Rack Builder for configuration assistance at

http://www.compaq.com/rackbuilder/

ProLiant ML350 Generation 2 Tower to Rack Conversion Kit

HP Rack 10842 (42U, 800mm wide) – Pallet

HP Rack 10842 (42U, 800mm wide) – Shock Pallet

HP Rack 10647 (47U) – Pallet

HP Rack 10647 (47U) – Shock Pallet

HP Rack 10642 (42U) – Pallet

HP Rack 10642 (42U) – Shock Pallet

HP Rack 10642 (42U) – Crated

HP Rack 10636 (36U) - Pallet

HP Rack 10636 (36U) – Shock Pallet

HP Rack 10636 (36U) - Crated

HP Rack 10622 (22U) – Pallet

HP Rack 10622 (22U) – Shock Pallet

HP Rack 10622 (22U) – Crated

Compaq ProLiant ML350 Generation 2

237045-B21

257415-B21

257415-B22

245160-B21

245160-B23

245161-B21

245161-B22

245161-B23

245162-B21

245162-B22

245162-B23

245163-B21

245163-B22

245163-B23

Compaq Rack 9000 Series

(Opal)

Note: -B21 (pallet) used to ship empty racks shipped on a truck

-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels)

-B23 (crated) used for air shipments of empty racks Note: It is mandatory to use a shock pallet in order to ship racks with equipment installed. Not all Compaq equipment is qualified to be shipped in the Rack 10000 series.

Note: Please see the Rack 10000 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:

http://www5.compaq.com/products/quickspecs/10995_div/ 10995_div.HTML http://www5.compaq.com/products/quickspecs/10995_na/ 10995_na.HTML

Note: For additional information regarding Rack Cabinets, please see the following URL:

http://www.compaq.com/racks

Compaq Rack 9142 (42U) – Pallet

Compaq Rack 9142 (42U) – Shock Pallet

Compaq Rack 9142 (42U) – Crated

Compaq Rack 9136 (36U) – Pallet

Compaq Rack 9136 (36U) – Shock Pallet

Compaq Rack 9136 (36U) – Crated

Compaq Rack 9122 (22U) – Pallet

Compaq Rack 9122 (22U) – Shock Pallet

Compaq Rack 9122 (22U) – Crated

Compaq Rack 9842 (800mm wide, 42U) - Pallet

(Division/World Wide)

(North America)

120663-B21

120663-B22

120663-B23

120664-B21

120664-B22

120664-B23

120665-B21

120665-B22

120665-B23

222192-B21

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 30

QuickSpecs

Note: -B21 (pallet) used to ship empty racks shipped on a truck

-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels)

-B23 (crated) used for air shipments of empty racks

Note: Please see the Rack 9000 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:

http://www5.compaq.com/products/quickspecs/10366_div/ 10366_div.HTML http://www5.compaq.com/products/quickspecs/10366_na/ 10366_na.HTML

Note: For additional information regarding Rack Cabinets, please see the following URL: http://www.compaq.com/racks

Rack Options for HP Rack 10000 Series

Rack Blanking Panels – Graphite (Multi)

Note: Contains one each of 1U, 2U, 3U, and 4U panel.

Rack Blanking Panels – Graphite (1U)

Note: The Rack Blanking Panels (PN 253214-B21) contains 10 each of (1U).

Rack Blanking Panels – Graphite (2U)

Note: The Rack Blanking Panels (PN 253214-B21) contains 10 each of (2U).

Rack Blanking Panels – Graphite (3U)

Note: The Rack Blanking Panels (PN 253214-B21) contains 10 each of (3U).

Rack Blanking Panels – Graphite (4U)

Note: The Rack Blanking Panels (PN 253214-B21) contains 10 each of (4U).

Rack Blanking Panels – Graphite (5U)

Note: The Rack Blanking Panels (PN 253214-B21) contains 10 each of (5U).

800mm Wide Stabilizer Kit (Graphite)

Note: Supported by the Rack 10842 cabinet only.

600mm Stabilizer Kit – Graphite

Baying Kit for Rack 10000 series (Carbon)

42U Side Panel – Graphite Metallic

110V Fan Kit (Graphite)

Note: Roof Mount Includes power cord with IEC320-C13 to Nema 5-15P

220V Fan Kit (Graphite)

Note: Roof Mount Includes power cord with IEC320-C13 to Nema 6-15P.

36U Side Panel – Graphite Metallic (for 10636 Rack only)

47U Side Panel – Graphite Metallic (for 10647 Rack only)

9000/10000 Series Offset Baying Kit (42U)

Note: This kit can be used to connect 9000 and 10000 series racks of the same U height together. Kit contents include hardware for connecting racks and a panel to cover the 100mm gap at the rear of the two racks.

Note: For additional information regarding Rack Options, please see the following URL:

Compaq ProLiant ML350 Generation 2

(Division/World Wide)

(North America)

253214-B26

253214-B21

253214-B22

253214-B23

253214-B24

253214-B25

255488-B21

246107-B21

248929-B21

246099-B21

257413-B21

257414-B21

246102-B21

255486-B21

248931-B21

http://www.compaq.com/rackoptions

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 31

QuickSpecs

Compaq ProLiant ML350 Generation 2

Rack Options for Compaq Rack 9000 Series

Baying/Coupling Kit

42U Side Panel

Note: The 42U Side Panel (PN 120670-B21) supports the Compaq Rack 9142 and Compaq Rack 9842.

36U Side Panel

Note: The 36U Side Panel (PN 120671-B21) supports the Compaq Rack 9136.

800mm Stabilizer Option Kit (Opal)

Note: The 800mm Stabilizer Kit (PN 234493-B21) supports the Rack 9842 only.

600mm Stabilizer Option Kit

9142 Extension Kit

Note: The 9142 Extension Kit (PN 120679-B21) supports the Compaq Rack 9142 only.

9142 Split Rear Door (Opal)

Note: The 9142 Split Rear Door (PN 254045-B21) supports the 600 mm wide, 42U 9000 series rack.

9136 Extension Kit

9142 Short Rear Door

Note: The 9142 Short Rear Door (PN 218217-B21) supports the Compaq Rack 9142 only.

9136 Short Rear Door

Rack Blanking Panel (Multi)

Note: Kit includes four panels in 1U, 2U, 4U, and 8U.

Rack Blanking Panels (1U)

Note: The Rack Blanking Panels (PN 189453-B21) contains 10 each of (1U)

Rack Blanking Panels (2U)

Note: The Rack Blanking Panels (PN 189453-B22) contains 10 each of (2U)

Rack Blanking Panels (3U)

Note: The Rack Blanking Panels (PN 189453-B23) contains 10 each of (3U)

Rack Blanking Panels (4U)

Note: The Rack Blanking Panels (PN 189453-B24) contains 10 each of (4U)

Rack Blanking Panels (5U)

Note: The Rack Blanking Panels (PN 189453-B25) contains 10 each of (5U)

9000/10000 Series Offset Baying Kit (42U)

Note: For additional information regarding Rack Options, please see the following URL:

http://www.compaq.com/rackoptions

120669-B21

120670-B21

120671-B21

234493-B21

120673-B21

120679-B21

254045-B21

218216-B21

218217-B21

218218-B21

169940-B21

189453-B21

189453-B22

189453-B23

189453-B24

189453-B25

248931-B21

Rack Options for Compaq Rack 7000 Series

High Air Flow Rack Door Insert for 7122

High Air Flow Rack Door Insert for 7142

High Air Flow Rack Door Insert for 7142 (6 pack)

Compaq Networking Cable Management Kit

Compaq Networking Recessed Rail Management Kit

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

157847-B21

327281-B21

327281-B22

292407-B21

292406-B21

Page 32

QuickSpecs

Compaq ProLiant ML350 Generation 2

Rack Options for Rack 7000, 9000 and 10000 Series

Compaq Rack Extension Kit for 7142

Note: For additional information regarding Rack Options, please see the following URL:

Monitor Utility Shelf

Ballast Option Kit

100kg Sliding Shelf

Rack Rail Adapter Kit (25-inch depth)

Cable Management D-Rings Kit

Monitor/Utility Shelf - Graphite

Depth Adjustable Fixed Rail

Console Management Controller (CMC) Option Kit

Console Management Controller (CMC) Sensors Option Kit

Console Management Controller (CMC) Locking Option Kit

Console Management Controller (CMC) Smoke Sensors Option Kit

Server Console Switch 1 x 2 port (100 to 230 VAC)

Server Console Switch 1 x 2 port (100 to 230 VAC) (Int’l)

Server Console Switch 1 x 2 port (100 to 230 VAC) (Japan)

Server Console Switch 1 x 4 port (100 to 230 VAC)

Server Console Switch 1 x 4 port (100 to 230 VAC) (Int’l)

Server Console Switch 1 x 4 port (100 to 230 VAC) (Japan)

Server Console Switch 1 x 8 port (100 to 230 VAC)

Server Console Switch 1 x 8 port (100 to 230 VAC) (Int’l)

Server Console Switch 1 x 8 port (100 to 230 VAC) (Japan)

Server Console Switch 2 x 8 port (100 to 230 VAC)

Server Console Switch 2 x 8 port (100 to 230 VAC) (Int’l)

Server Console Switch 2 x 8 port (100 to 230 VAC) (Japan)

Server Console Switch 2 x 8 port (48 VDC)

IP Console Switch Box, 1x1x16

IP Console Switch Box, 3x1x16

IP Console Interface Adapter, 8 pack

IP Console Interface Adapter, 1 pack

IP Console Expansion Module

KVM 9 PIN Adapter (4 Pack)

CPU to Server Console Cable, 12

CPU to Server Console Cable, 20

CPU to Server Console Cable, 40

CPU to Server Console Cable, 3

CPU to Server Console Cable, 7

CPU to Server Console Cable (Plenum Rated) 20

CPU to Server Console Cable (Plenum Rated) 40

IP CAT5 Cable 3 , 4 pack

IP CAT5 Cable 6 , 8 pack

IP CAT5 Cable 12 , 8 pack

http://www.compaq.com/rackoptions



154392-B21

303606-B21

120672-B21

234672-B21

120675-B21

168233-B21

253449-B21

332558-B21

203039-B21

203039-B22

203039-B23

203039-B24

120206-001

120206-B31

120206-291

400336-001

400336-B31

400336-291

400337-001

400337-B31

400337-291

400338-001

400338-B31

400338-291

400542-B21

262585-B21

262586-B21

262587-B21

262588-B21

262589-B21

149361-B21

110936-B21

110936-B22

110936-B23

110936-B24

110936-B25

149363-B21

149364-B21

263474-B21

263474-B22

263474-B23

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 33

QuickSpecs

Compaq ProLiant ML350 Generation 2

IP CAT5 Cable 20 , 4 pack

IP CAT5 Cable 40 , 1 pack

Switch Box Connector Kit (115 V)

Switch Box Connector Kit (230 V)

Switch Box Connector Kit (High Voltage) (Int’l)

1U Rack Keyboard & Drawer (Carbon)

Note: The 1U Rack Keyboard & Drawer (PN 257054-xx1) is to be used with the Keyboards for Racks with Trackball (PN 158649-xxx).

Country Code Key

XX = 001

XX = 031

XX = 041

XX = 051

XX = 061

XX = 071

XX = 081

TFT5600 Rack Keyboard Monitor

Country Code Key

(PN 221546-xx1))

(for 1U Rack Keyboard & Drawer (PN 257054-xx1))

Germany

France

Italy

Spain

Denmark

(for TFT5600 RKM Rack Keyboard Monitor

XX = 091

XX = 101

XX = 111

XX = 131

XX = 181

XX = 291

XX = B31

Norway

Sweden/Finland

Switzerland

Portugal

Belgium

Japan

International

263474-B24

263474-B25

144007-001

144007-002

144007-B33

257054-xx1

221546-xx1

XX = 001

XX = 031

XX = 041

XX = 051

XX = 061

XX = 071

XX = 081

PCI KVM Management Card Kit

PCI KVM Remote Card Kit

Local Access Cable Kit

1U Rack Keyboard Drawer

Input Device Adjustable Rails

Note: Input Device Adjustable Rails (287139-B21) are for use ONLY with the TFT5110R, TFT5600RKM and integrated keyboard/drawer which is used in mounting into third party racks.

Input Device Telco Rail

Note: Input Device Telco Rails (287138-B21) are for use ONLY with the TFT5110R, TFT5600RKM and integrated keyboard/drawer which is used in mounting into third party racks.

Keyboard/Monitor/Mouse extension cables

Germany

France

Italy

Spain

Denmark

XX = 091

XX = 101

XX = 111

XX = 131

XX = 181

XX = 291

XX = B31

Norway

Sweden/Finland

Switzerland

Portugal

Belgium

Japan

International

232983-B21

232984-B21

232985-B21

338056-B21

287139-B21

287138-B21

169989-001

Note: For additional information regarding Rack Options, please see the following URL:

http://www.compaq.com/rackoptions

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 34

QuickSpecs

Compaq ProLiant ML350 Generation 2

Service and Support Offerings

Services)

(CarePaq

Hardware Services 4-Hour On-site Service

9 x 5 Coverage, 3 Years (2-5-2 Part Number for Canada)

9 x 5 Coverage, 3 Years (6-3 Part Number for U.S.)

9 x 5 Coverage, 3 Years (6-3 Part Number for EMEA)

24 x 7 Coverage, 3 Years (2-5-2 Part Number for Canada)

24 x 7 Coverage, 3 Years (6-3 Part Number for U.S.)

24 x 7 Coverage, 3 Years (6-3 Part Number for EMEA)

Installation & Start-up Services

Hardware Installation (2-5-2 Part Number for Canada)

Hardware Installation (6-3 Part Number for US)

Server Installation and Set-Up (Installation of the server, installation of the appropriate service tools, check to ensure device SW and firmware is loaded and installation of the operating system software (6-3 Part Number for EMEA)

Pre-installation planning; unpack equipment, install most current Compaq HW options internal to server at same time of server installation; assemble & test; basic user information provided; Install & configure basic functionality of Win NT Operating System plus up to 1 day start-up activity, configure print & network access services, and orientation (6-3 Part Number for U.S.)

Pre-installation planning; unpack equipment, install most current Compaq HW options internal to server at same time of server installation; assemble & test; basic user information provided; Install & configure basic functionality of Novell NetWare Operating System plus up to 1 day start-up activity, configure print & network access services, and orientation (6-3 Part Number for U.S.)

Pre-installation planning; unpack equipment, install most current Compaq HW options internal to server at same time of server installation; assemble & test; basic user information provided; Install & configure basic functionality of Novell NetWare Operating System plus up to 1 day start-up activity, configure print & network access services, and orientation (2-5-2 Part Number for Canada)

CarePaq Priority Services for ProLiant Servers – Priority Level

9 x 5 HW, 4-hr response, Next Available HW engineer; 9 x 5 Bronze Software Support 2-hr response for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System, Next Available Specialist (6-3 Part Number for U.S.)

FP-EL4HR-36

162676-002

324416-022

FP-EL724-36

162675-002

376910-022

FP-ELINS-IN

401791-002

204563-022

240013-002

FM-MSTEC-01

240008-002

FM-NSTEC-01

239928-002

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 35

QuickSpecs

Compaq ProLiant ML350 Generation 2

9 x 5 HW, 4-hr response, Next Available HW engineer; 9 x 5 Bronze Software Support 2-hr response for Novell NetWare Operating System, Next Available Specialist (6-3 Part Number for U.S.)

9 x 5 HW, 4-hr response, Next Available HW engineer; 9 x 5 Bronze Software Support 2-hr response for Novell NetWare Operating System, Next Available Specialist (2-5-2 Part Number for Canada)

9 x 5 4-hour H/W, 5 x 9 2-hour O/S (NT & NetWare), Three Years (6-3 Part Number for EMEA)

CarePaq Priority Services for ProLiant Servers – Priority 24 Level

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Bronze Software Support, 2-hr response for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System, Next Available Specialist (6-3 Part Number for U.S.)

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Bronze Software Support, 2-hr response for Novell NetWare Operating System, Next Available Specialist (6-3 Part Number for U.S.)

7 x 24 4-hour H/W, 7 x 24 2-hour O/S (NT & NetWare), Three years (6-3 Part Number for EMEA)

CarePaq Priority Services for ProLiant Servers – Priority Silver

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Software Support, 1-hr response, Monday – Friday, 8AM – 5PM local time, 2-hr response after hours for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System, Technical Account Manager, Technical Newsletter, SW activity review, proactive patch notification, 1 System Healthcheck per year (6-3 Part Number for U.S.)

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Subsequent System Support for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System (6-3 Part Number for U.S.)

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Software Support, 1-hr response, Monday – Friday, 8AM – 5PM local time, 2-hr response after hours for Novell NetWare Operating System, Technical Account Manager, Technical Newsletter, SW activity review (6-3 Part Number for U.S.)

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Subsequent System Support for Novell NetWare Operating System (6-3 Part Number for U.S.)

239968-002

FM-M01E1-36

FM-N01E1-36

179834-022

239930-002

239970-002

179839-022

239932-002

239934-002

239972-002

239974-002

FM-M04E1-36

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 36

QuickSpecs

proactive patch notification, 1 System Healthcheck per year (2-5-2 Part Number for Canada)

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Subsequent System Support for Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System (2-5-2 Part Number for Canada)

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Subsequent System Support for Novell NetWare Operating System (2-5-2 Part Number for Canada)

Note: For more information, customer/resellers can contact

http://www.compaq.com/services

Compaq ProLiant ML350 Generation 2

FM-M24E1-36

FM-N04E1-36

FM-N24E1-36

Overview

Power Specifications

Standard Features

TechSpecs

Models

Options

Memory

Storage

Memory

Compaq ProLiant ML350 G2 Array Models

Standard Memory

256-MB PC133-MHz Registered ECC SDRAM DIMM installed (1 x 256-MB SDRAM DIMM)

Standard Memory Plus Optional Memory

Up to 3328-MB memory is available with the optional installation of PC133-MHz Registered ECC SDRAM DIMM memory kits.

Standard Memory Replaced with Optional Memory

Up to 4096-MB of memory is available with the removal of the standard 256-MB of memory and the optional installation of PC133-MHz Registered ECC SDRAM DIMM memory kits.

Note: Charts do not represent all possible memory configurations.

Memory

1 2 3 4

Empty Empty Empty

256 MB

1024 MB 1024 MB 1024 MB

Standard Optional Maximum

256 MB 256 MB 3328 MB 4096 MB 1024 MB 1024 MB 1024 MB 1024 MB

Following are memory options available from Compaq:

1024-MB PC133-MHz Registered ECC SDRAM DIMM Memory Option Kit

512-MB PC133-MHz Registered ECC SDRAM DIMM Memory Option Kit

256-MB PC133-MHz Registered ECC SDRAM DIMM Memory Option Kit

128-MB PC133-MHz Registered ECC SDRAM DIMM Memory Option Kit

Slot

128280-B21

128279-B21

128278-B21

128277-B21

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 37

QuickSpecs

Compaq ProLiant ML350 G2 Models

Standard Memory

128-MB PC133-MHz Registered ECC SDRAM DIMM installed (1 x 128-MB SDRAM DIMM)

Standard Memory Plus Optional Memory

Up to 3200-MB memory is available with the optional installation of PC133-MHz Registered ECC SDRAM DIMM memory kits.

Standard Memory Replaced with Optional Memory

Up to 4096-MB of memory is available with the removal of the standard 128-MB of memory and the optional installation of PC133-MHz Registered ECC SDRAM DIMM memory kits.

Note: Charts do not represent all possible memory configurations.

Memory

Standard Optional Maximum

Following are memory options available from Compaq:

1024-MB PC133-MHz Registered ECC SDRAM DIMM Memory Option Kit

512-MB PC133-MHz Registered ECC SDRAM DIMM Memory Option Kit

256-MB PC133-MHz Registered ECC SDRAM DIMM Memory Option Kit

128-MB PC133-MHz Registered ECC SDRAM DIMM Memory Option Kit

128 MB 128 MB 3200 MB 4096 MB 1024 MB 1024 MB 1024 MB 1024 MB

1 2 3 4

Empty Empty Empty

128 MB

1024 MB 1024 MB 1024 MB

Slot

Compaq ProLiant ML350 Generation 2

128280-B21

128279-B21

128278-B21

128277-B21

Overview

Power Specifications

Standard Features

Storage

Drive Support

Removable Media

1.44-MB Diskette Drive

IDE (ATAPI) CD-ROM Drive

DVD-ROM Drive Option Kit

ML3xx Internal Two Bay Hot Plug SCSI Drive Cage

TechSpecs

Quantity Supported

Up to 1

Up to 2

Up to 1

Models

Options

Position Supported

B, C, D

C, D

Memory

Storage

0 - 5

C, D

Controller

Integrated

Integrated IDE (ATAPI)

Integrated IDE

Integrated SCSI

6 x 1 in SCSI Hard Drive Bays

3.5 in Diskette Drive

40x CD-ROM

Available half height bay

Hard Drives

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 38

QuickSpecs

Ultra320 Hot Pluggable Drives

1-inch

146.8-GB 10,000 rpm

72.8-GB 10,000 rpm

36.4-GB 10,000 rpm

72.8-GB 15,000 rpm

36.4-GB 15,000 rpm

18.2-GB 15,000 rpm

*Note: All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds and will run at U3 within the ML350 G2.

Up to 8

(With optional ML3xx Internal Two Bay Hot Plug SCSI Drive Cage

0-7

Integrated Dual Channel Wide Ultra3 SCSI Adapter Smart Array 532 Controller

(Note: The Smart Array 532 Controller ships standard with the Array models.)

Compaq RAID LC2 Controller Smart Array 5302/128 Controller Smart Array 5304/256 Controller 64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

Compaq ProLiant ML350 Generation 2

External Storage

StorageWorks Enclosure 4300 Family

(supports Wide Ultra2/Ultra3 1 drives)

MSA 1000

MSA 1000:

http://www5.compaq.com/products/quickspecs/11033_div/11033_div.HTML

Up to 24

Please see the MSA 1000 QuickSpecs below to determine configuration requirements

External

Integrated Dual Channel Wide Ultra3 SCSI Adapter Smart Array 532 Controller

(Note: The Smart Array 532 Controller ships standard with the Array models.)

Smart Array 5302/128 Controller Smart Array 5304/256 Controller 64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

Please see the MSA 1000 QuickSpecs (URL below) for the latest list of supported HBA’s

Maximum Storage Capacity

Internal

External

Total

Quantity Supported

– (StorageWorks Enclosure)

1.174 TB (6 x 146.8-GB 1 Ultra 320 hot plug hard drives with standard internal drive cage + 2 x 146.8-GB 1 Ultra 320 Hot plug hard drive using the optional ML3xx Internal Two Bay Hot Plug SCSI Drive Cage)

49.324 TB (14 x 146.8 GB) x 24

50.499 TB

Position Supported

Controller

Tape Drives

Note: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:

http://www5.compaq.com/products/quickspecs/North_America/10233.html http://www5.compaq.com/products/quickspecs/Division/10233.html (Division/World Wide)

Note: For an up-to-date listing of the latest O/S Support details for each of the Tape Storage Systems listed below, please see the following:

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

(North America)

Page 39

QuickSpecs

Compaq ProLiant ML350 Generation 2

http://www5.compaq.com/products/quickspecs/North_America/10809.html http://www5.compaq.com/products/quickspecs/Division/10809.html

Internal AIT 100-GB, Hot Plug Internal AIT 50-GB, Hot Plug Internal AIT 35-GB, LVD Hot Plug Internal 20/40-GB DAT Drive, Hot Plug

Internal 12/24-GB DAT Drive

Internal 40/80-GB DLT Enhanced

HP StorageWorks AIT 35 GB Autoloader

AIT 100-GB Internal AIT 50-GB Internal AIT 35-GB, LVD Internal

20/40-GB DAT 8 Cassette Autoloader Internal

AIT 100-GB External AIT 50-GB External AIT 35-GB, LVD External

External 40/80-GB DLT Enhanced

SSL2020 AIT Mini-Library

MSL5026DLX (40/80GB DLT-based) MSL5026SL (SDLT-based) Library

Up to 2 Up to 3

(With optional ML3xx Internal Two Bay Hot Plug SCSI Drive Cage)

Up to 2

Up to 1

Up to 1 (for a single HBA) Up to 2 (for a dual HBA)

Up to 2

Up to 1

Up to 3

Up to 5

2 drives per SCSI channel

0+ 1, 2+ 3 0+ 1, 2+ 3, D+ C

C + D

External

C, D

External

(Division/World Wide)

Integrated Dual Channel Wide Ultra3 SCSI Adapter Smart Array 532 Controller Smart Array 5302/128 Controller Smart Array 5304/256 Controller 64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

*Note: The Smart Array 532 Controller does not support the AIT 100-GB Hot Plug Tape Drive.

Integrated Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

Integrated Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-Bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

Integrated Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter

(North America)

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 40

QuickSpecs

MSL5052SL (SDLT-based) Library MSL5052S2 (SDLT-based) Library MSL5030L1 (LTO-based) Library MSL5060L1 (LTO-based) Library

20/40-GB DAT 8 Cassette Autoloader External

DLT1 1280 SuperLoader

Up to 1

Up to 2 drives

External

Compaq ProLiant ML350 Generation 2

64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 64-Bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

Overview

Power Specifications

Standard Features

TechSpecs

Models

Options

Power Specifications

Part Number

Spare Kit

Operational Input Voltage Range

Frequency Range

(Nominal) (Hz)

Nominal Input Voltage

Max Rated Output Wattage Rating

Nominal Input Current (A rms) Max Rated Input Wattage Rating

(Watts)

Max. Rated VA (Volt-Amp)

Efficiency (%)

Power Factor

Leakage Current (mA)

Maximum Inrush Current (A peak)

Maximum Inrush Current duration (mS)

(Vrms)

(V rms)

100 115 208 220 230 240

350 350 350 350 350 350

5.5 4.8 2.6 2.5 2.4 2.3

538 538 538 538 538 538

549 549 549 549 549 549

65 65 65 65 65 65

0.98 0.98 0.98 0.98 0.98 0.98

0.31 0.36 0.65 0.69 0.72 0.75

25 25 25 25 25 25

20 20 20 20 20 20

Memory

243406-001

249687-001

90 to 264

47 to 63 (50/60)

Storage

System Specifications

ML350 G2 Fully Configured

Up to 2 Processors, 4 Memory Slots, 8 Hard Drives, 6 PCI Slots, and 2 Hot Plug Power Supplies

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 41

QuickSpecs

Compaq ProLiant ML350 Generation 2

Nominal Input Voltage

Fully Loaded System Input Wattage (W) Fully Loaded System Input Current (A

rms)

Fully Loaded System Thermal (BTU-Hr)

Fully Loaded System VA (Volt-Amp) System Leakage with all power supplies

loaded (mA) System Inrush Current with all power

supplies loaded (A) Power cord requirements

(Vrms)

100 115 208 220 230 240

441 434 428 421 415 409

4.5 3.9 2.1 2.0 1.8 1.7

1503 1480 1458 1436 1416 1395

450 443 436 430 424 418

0.63 0.72 1.30 1.38 1.44 1.50

50 50 50 50 50 50

Nema 5-15P to IEC320-C13

IEC320-C13 to IEC320-C14

Option no./Spare no: See Power Cord chart

Option no./Spare no: 142259001/142258-B21

Notes:

ActiveAnswers

Power calculator is LIVE on ActiveAnswers website. This is an external link. Follow this link:

http://activeanswers.compaq.com/aaconfiguratorcode/configurationUi.asp?HTMLFilename =Mainselections&UiLocalization=UnitedStates&DisplayCountry=United%20States

To drill down to calculators:

- Click on: "ProLiant Servers"

- Click on the Server of interest. Example: ML350 G2

- Click on: "Power Calculator" link. (You may need to scroll down to see it)

Power Cords

Country

APD

Australia

Europe

France

Germany

Japan

PRC

Power Calculation

(13 Cord Sets)

Power Cord Part Number

139867-006

100613-003

100614-003

100611-007

100614-003

139867-006

100613-003

100661-007

100613-003

163719-002

Overview

Power Specifications

Standard Features

TechSpecs

System Unit – Tower

Dimensions

(HxWxD) (with feet/bezel)

Dimensions

(HxWxD) (without feet/bezel)

Models

Options

Memory

18.5 x 8.5 x 26 in/46.99 x 21.59 x 66.04 cm

17.5 x 8.5 x 24 in/44.50 x 21.59 x 60.96 cm

Storage

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 42

QuickSpecs

Compaq ProLiant ML350 Generation 2

Weight

(approximate)

Input Requirements

(per power supply)

Line Frequency

BTU Rating

SCSI Connectors

Power Supply Output Power

(per power supply)

Temperature Range

Relative Humidity

(non-condensing)

Acoustic Noise

60 lb/27.24 kg (without hard drives)

Rated Input Voltage

Rated Input Frequency

Input Power

Rated Input Current

50 to 60 Hz

1, 839 BTU/hr

Two internal HD68 connectors

(Support for either two internal, two external, or a mix of internal/external is available. This is achieved using an internal to external SCSI cable option kit (PN 159547-B21 or PN 159547-B22) and either of the two SCSI knockouts.)

Rated Steady-State Power

Maximum Peak Power

Operating

Storage (up to one year)

Altitudes up to 9,842.5 ft/ 3,000m

Shipping (up to 72 hours)

Altitudes up to 29,855.5 ft/ 9100m

Operating

Non-operating

Idle

100 to 120 VAC/200 to 240 VAC

50 Hz to 60 Hz

538W @ 110 VAC

6A/3A

350W

400W

50° to 93° F/10° to 35° C (No direct sustaining sunlight)

Altitude range derating: 33.8 F/1° C per

984.25 ft/300 m up to 9,842.5 ft/3,000 m

-4° to 140° F/-20° to 60° C

-20° to 140° F/-29° to 60° C

5% to 80%

5% to 90%

(Fixed Disk Drives Spinning)

(BELS)

WAd

(dBA)

pAm

Operating (Random Seeks to Fixed Disks)

(BELS)

WAd

(dBA)

pAm

6.4

6.7

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 43

QuickSpecs

Compaq ProLiant ML350 Generation 2

System Unit – Rack

Dimensions

(HxWxD)

Weight

(approximate)

Input Requirements

(per power supply)

Line Frequency

BTU Rating

SCSI Connectors

Power Supply Output Power

power supply)

Temperature Range

Relative Humidity

(non-condensing)

Acoustic Noise

(per

8.61 x19 x 24 in/21.87 x48.26 x 60.96 cm

60 lb/27.24 kg (without hard drives)

Rated Input Voltage

Rated Input Frequency

Input Power

Rated Input Current

50 to 60 Hz

1,839 BTU/hr

Two internal HD68 connectors

Rated Steady-State Power

Operating

Storage (up to one year) Altitudes up to 9,842.5 ft/ 3,000m

Shipping (up to 72 hours) Altitudes up to 29,855.5 ft/ 9100m

Operating

Non-operating

Idle (Fixed Disk Drives Spinning)

(BELS)

WAd

(dBA)

pAm

Operating (Random Seeks to Fixed Disks)

(BELS)

WAd

(dBA)

pAm

100 to 120 VAC/200 to 240 VAC

50 to 60 Hz

538W @ 110 VAC

6A/3A

3050W

50° to 93° F/10° to 35° C (No direct sustaining sunlight)

Altitude range derating: 33.8 F/1° C per

984.25 ft/300 m up to 9,842.5 ft/3,000 m

-4° to 140° F/-20° to 60° C

-20° to 140° F/-29° to 60° C

5% to 80%

5% to 90%

5.02

35.9

5.87

40.9

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 44

QuickSpecs

1.44-MB Diskette Drive

LED Indicators

panel)

Read/Write Capacity per Diskette

density)

Drive Supported

Drive Height

Drive Rotation

Transfer Rate

(high/low)

Bytes/Sector

Sectors/Track

(high/low)

Tracks/Side

(high/low)

Access Times

Cylinders

Read/Write Heads

(front

(high/low

(high/low)

Green

1.44 MB/720 KB

One

One-third

300 rpm

500/250 Kb/s

512

18/9

80/80

Track-to-Track (high/low)

Average (high/low)

Settling Time

Latency Average

80/80

Two

Compaq ProLiant ML350 Generation 2

3/6 ms

169/94 ms

15 ms

100 ms

40X Max IDE ROM Drive

(ATAPI)

CD-

Disk

Block Size

Interface

Access Times

(typical)

Audio Output Level

Data Transfer Rate

Cache Buffer

Start-up Time

(typical)

Applicable Disk

Capacity

Mode 1

Mode 2

CD-DA

CD-XA

IDE (ATAPI)

Random

Full-Stroke

Line-Out

Sustained

Burst

128 KB

< 7 seconds

CD-ROM, CD-XA, CD-DA (Mode 1, Mode 2, Form 1 and 2)

Photo CD (Single and Multi-session)

Mixed Mode (Audio and Data combined)

CD-R

540 MB (Mode 1, 12 cm)

650 MB (Mode 2, 12 cm)

2,048 bytes

2,340 bytes, 2,336 bytes

2,352 bytes

2,328 bytes

100 ms

150 ms

0.7 VRMS at 47 kOhms

150 KB/s (1X audio)

16.67 Mbytes/sec

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 45

QuickSpecs

Compaq ProLiant ML350 Generation 2

Integrated Dual Channel Wide Ultra3 SCSI Adapter

Stop Time

Laser Parameters

Operating Conditions

Dimensions

Drives Supported

Data Transfer Method

SCSI Channel Transfer Rate

Maximum Transfer Rate per PCI Bus

(peak)

SCSI Protocols

Electrical Protocol

SCSI Termination

External SCSI Connectors

Internal SCSI Connectors

< 4 seconds

Type

Wave Length

Temperature

Humidity

(HxWxD, maximum)

Weight

Semiconductor Laser GaA1As

780 ± 25 nm

41° to 113°F/5° to 45°C

10% to 80%

1.7 x 5.85 x 8.11 in/

4.29 x 150 x 208 cm

2.09 lb/0.95 kg

Up to 28 SCSI devices (14 per channel)

64-bit PCI bus-master

80 MB/s per channel

133 MB/s per channel

Wide Ultra2 SCSI

Wide-Ultra SCSI-3

Fast SCSI-2

Low Voltage Differential (LVD)

Active Termination

Two 80-Pin VHDCI connectors

Two 68-Pin Wide-Ultra SCSI-3 connectors

Video Controller

Hewlett-Packard, the Hewlett-Packard logo, ActiveAnswers, ActiveUpdate, CarePaq, Insight Manger, ProLiant, ROMPaq, SmartStart and StorageWorks are trademarks of Hewlett-Packard Company in the U.S. and/or other countries. Microsoft and Windows NT are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. Intel and Pentium are registered trademarks or trademarks of the Intel Corporation in the U.S. and/or other countries. Unix and Unixware are registered trademarks or trademarks of The Open Group in the U.S. and/or other countries. Novell and NetWare are registered trademarks or trademarks of Novell, Inc., in the U.S. and/or other countries. Linux is a registered trademark or trademark of Linus Torvalds in the U.S. and/or other countries. Caldera and SCO are registered trademarks or trademarks of Caldera International, Inc., in the U.S. and/or other countries. SuSE and its logo are registered trademarks or trademarks of SuSE AG in the U.S. and/or other countries. Red Hat is a registered trademark or trademark of Red Hat Inc., in the U.S. and/or other countries. All other product names mentioned herein may be trademarks of their respective companies.

Controller Chip

Video DRAM

Data Transfer Method

Support Resolution

640 x 480

800 x 600

1024 x 768

1152 x 864

1280 x 1024

1600 x 1200

Connector

ATI RAGE XL

8-MB Video SDRAM

32-bit PCI

Supported Color Depths:

16.7M, 64K, 256, 16

64K, 256, 16

VGA

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 46

QuickSpecs

Hewlett-Packard shall not be liable for technical or editorial errors or omissions contained herein. The information is provided "as is" without warranty of any kind and is subject to change without notice. The warranties for Hewlett-Packard products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.

Compaq ProLiant ML350 Generation 2

DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003

Page 47

Compaq ML350 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
