Compaq Mini CQ10 Notebook PC
Maintenance and Service Guide
© Copyright 2009 Hewlett-Packard
Development Company, L.P.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Intel and Atom are
trademarks of Intel Corporation in the U.S.
and other countries. Microsoft and Windows
are U.S. registered trademarks of Microsoft
Corporation. SD Logo is a trademark of its
proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: December 2009
Document Part Number: 602516-001
Safety Warning Notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the air vents. Use the computer only on a hard, flat
surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface,
such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the
skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the AC
adapter comply with the user-accessible surface temperature limits defined by the International
Standard for Safety of Information Technology Equipment (IEC 60950).
iii
iv Safety Warning Notice
Table of contents
1 Product description ........................................................................................................... 1
2 External component identification ..................................................................................... 4
Top components ....................................................................................................................... 4
TouchPad ................................................................................................................. 5
Light ........................................................................................................................ 6
Keys ........................................................................................................................ 7
Front components ..................................................................................................................... 8
Right-side components ............................................................................................................ 10
Left-side components ............................................................................................................... 11
Display components ............................................................................................................... 12
Bottom components ................................................................................................................ 13
Wireless antennas .................................................................................................................. 14
3 Illustrated parts catalog .................................................................................................. 15
Service tag ............................................................................................................................ 15
Computer major components ................................................................................................... 16
Display assembly subcomponents ............................................................................................. 20
Mass storage devices ............................................................................................................. 22
Miscellaneous parts ................................................................................................................ 23
Sequential part number listing .................................................................................................. 24
4 Removal and replacement procedures ............................................................................ 28
Preliminary replacement requirements ....................................................................................... 28
Tools required ......................................................................................................... 28
Service considerations ............................................................................................. 28
Plastic parts ............................................................................................. 28
Cables and connectors ............................................................................. 28
Drive handling ......................................................................................... 29
Grounding guidelines .............................................................................................. 30
Electrostatic discharge damage .................................................................. 30
Packaging and transporting guidelines ........................................ 31
Workstation guidelines .............................................................. 31
v
Equipment guidelines ................................................................. 32
Component replacement procedures ........................................................................................ 33
Service tag ............................................................................................................. 33
Computer feet ......................................................................................................... 34
Battery ................................................................................................................... 35

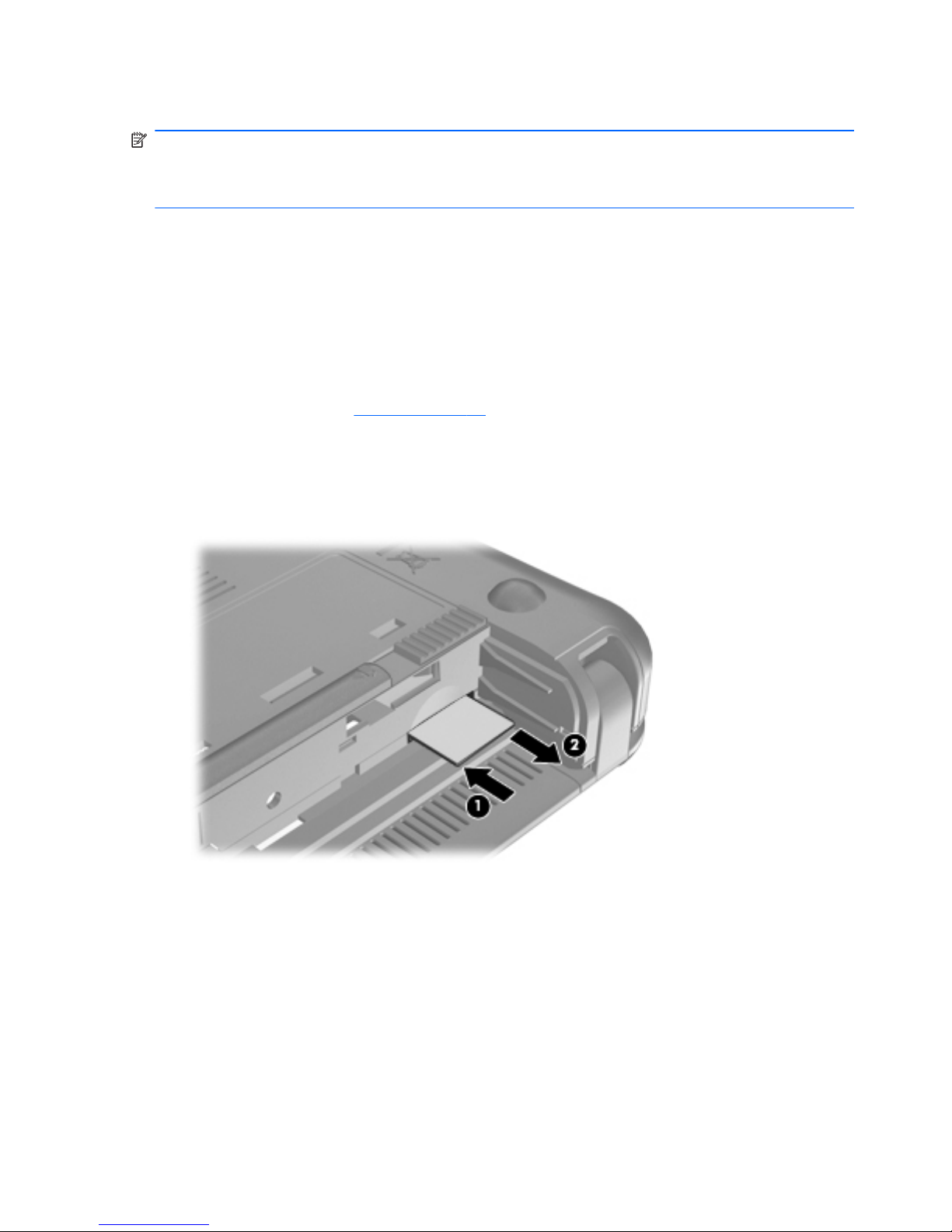

SIM ....................................................................................................................... 36
Memory module ...................................................................................................... 37
Keyboard ............................................................................................................... 39
RTC battery ............................................................................................................ 42
Mass storage devices .............................................................................................. 43
Hard drive .............................................................................................. 44
Top cover ............................................................................................................... 45
WLAN module ........................................................................................................ 48
WWAN module ..................................................................................................... 51
USB/audio board ................................................................................................... 53
DC connector/power board ..................................................................................... 54
Fan ....................................................................................................................... 55
Heat sink assembly .................................................................................................. 57
System board ......................................................................................................... 59
Display assembly .................................................................................................... 62
5 Setup Utility .................................................................................................................... 69
Starting Setup Utility ............................................................................................................... 69
Using Setup Utility .................................................................................................................. 69
Changing the language of Setup Utility ...................................................................... 69
Navigating and selecting in the Setup Utility ............................................................... 70
Displaying system information ................................................................................... 70
Restoring default settings in the Setup Utility ................................................................ 70
Exiting the Setup Utility ............................................................................................ 71
Setup Utility menus ................................................................................................................. 71
Main menu ............................................................................................................. 71
Security menu ......................................................................................................... 71
System Configuration menu ...................................................................................... 71
Diagnostics menu .................................................................................................... 72
6 Specifications ................................................................................................................. 73
Computer specifications .......................................................................................................... 73
(25.7-cm) 10.1-inch, WSVGA, AntiGlare display specifications .................................................. 74
Hard drive specifications ........................................................................................................ 75
System DMA specifications ...................................................................................................... 76
System interrupt specifications ................................................................................................. 77
System I/O address specifications ............................................................................................ 78
System memory map specifications ........................................................................................... 80
vi
7 Backup and recovery ...................................................................................................... 81
Windows XP backup and recovery ........................................................................................... 82
Backing up your information ..................................................................................... 82
Performing a recovery .............................................................................................. 83
Recovering your information ...................................................................... 84
Recovering the operating system and programs ........................................... 84
8 Connector pin assignments ............................................................................................. 85
Audio-out (headphone)/Audio-in (microphone) jack ................................................................... 85
External monitor ..................................................................................................................... 86
RJ-45 (network) ...................................................................................................................... 87
Universal Serial Bus ................................................................................................................ 88
9 Power cord set requirements .......................................................................................... 89
Requirements for all countries and regions ................................................................................. 89
Requirements for specific countries and regions ......................................................................... 90
10 Recycling ...................................................................................................................... 91
Battery .................................................................................................................................. 91
Display ................................................................................................................................. 91
Index ................................................................................................................................. 97
vii
viii
1 Product description
Category Description
Product name Compaq Mini CQ10
Processor Intel Atom N270 1.6-GHz processor, 512-KB Level 2 cache, 533-MHz front-side
bus (FSB)
Chipset Northbridge: 945GSE; 533-MHz bus speed
Southbridge: ICH7M
Graphics Intel® Graphics Media Accelerator 950
Universal Memory Architecture (UMA) graphics subsystem
Panels All display assemblies include 1 webcam, 1 microphone, 2 speakers, and
2 wireless local-area network (WLAN) antennas and cables; 2 wireless wide-area
network (WWAN) antennas and cables and a 5-band WWAN antenna and cable
is optional
Wide aspect 16:9 ratio panels
25.7-cm (10.1-inch) WSVGA (1024 × 600) AntiGlare LED
Memory One customer-accessible/upgradable memory module slot
Supports up to 2 GB of single-channel memory
DDR2 PC2-6400, 533-MHz memory module
NOTE: Although the computer supports 2-GB system memory, it only is available
with 1-GB system memory.
Supports the following configurations:
●
1024-MB total system memory (1024 × 1)
●
2048-MB total system memory (2048 × 1)
Mass storage devices Supports 9.5-mm, 6.35-cm (2.50-inch) hard drives
Serial ATA
160 GB, 5400 RPM
Optical drive Supports external USB optical drives only
Diskette drive Supports external USB diskette drives only
Audio/Visual High-definition (HD) audio
1
Category Description
Integrated 4-ohm, 1.5-W speakers (2)
Fixed integrated analog microphone
Fixed VGA webcam, 640 × 480 resolution, ƒ/2.8, up to 30 frames per second
Modem Supports external USB modems only
Ethernet Integrated Atheros® AR8132 PCI-E 10/100BASE-T Ethernet controller
Wireless Integrated wireless local area network (WLAN) and Bluetooth®
options by way of WLAN module:
Two WLAN antennas built into display assembly
Support for the following WLAN formats:
●
802.11b/g
●
802.11b/g/n
●
802.11b/g with Bluetooth
Integrated wireless wide area network (WWAN) options by way of
WWAN module:
Two WWAN antennas built into display assembly
Support for 5-band WWAN antenna option
Subscriber identity module (SIM) security (customer-accessible in battery bay)
External media cards Digital Media Slot with push-push insert/eject port supporting:
●
Memory Stick (MS)
●
MS/Pro
●
MultiMediaCard (MMC)
●
Secure Digital High Capacity (SDHC) memory card
●
xD-Picture Card
Internal media cards Two Mini Card slots:
●
Full-size Mini Card slot
●
Half-size Mini Card slot
Ports Audio-in/out (microphone/stereo headphone) with jack detection
VGA (D-sub 15) supporting external 1600 × 1200 monitor at 75 Hz and external
WUXGA monitor at 60 Hz (hot plug/unplug with auto-detect of standard- or wideaspect video)
RJ-45 (Ethernet, includes link and activity lights)
USB (3)
3-pin AC power
Keyboard/pointing device 92% keyboard
2 Chapter 1 Product description
Category Description
TouchPad, with 2 TouchPad buttons and 2-way scrolling (taps enabled by default)
Power requirements 30-W UMA AC adapter (non-Smart) with localized cable plug support
AC adapter connector on cable
6-cell Li-ion battery (55-Wh) 2.55-Ah, 6-hour target life
3-cell Li-ion battery (28-Wh) 2.55-Ah , 3-hour target life
Security Supports HP Kensington Security Lock
Operating system Preinstalled:
Windows XP Home Edition SP3
Serviceability End-user replaceable parts:
AC adapter
Battery (system)
Keyboard
Hard drive (located under the keyboard)
Memory modules
3
2 External component identification
Components included with the computer may vary by region and model. The illustrations in this chapter
identify the standard features on most computer models.
Top components
4 Chapter 2 External component identification
TouchPad
Component Description
(1) Left TouchPad button* Functions like the left button on an external mouse.
(2) TouchPad* Moves the pointer and selects or activates items on the
screen.
(3) TouchPad scroll zone Scrolls up or down.
(4) Right TouchPad button* Functions like the right button on an external mouse.
*This table describes factory settings. To view or change pointing device preferences, select Start > Control Panel >
Printers and Other Hardware > Mouse.
Top components
5
Light
Component Description
Caps lock light On: Caps lock is on.
6 Chapter 2 External component identification
Keys
Component Description
(1) Function keys Execute frequently used system functions when
pressed in combination with the fn key.
(2) fn key Executes frequently used system functions when
pressed in combination with a function key.
(3)
Windows® logo key Displays the Windows Start menu.
(4)
Windows applications key Displays a shortcut menu for items beneath the
pointer.
Top components
7
Front components
Component Description
(1)
Power light
●
On: The computer is on.
●
Blinking: The computer is in Standby.
●
Off: The computer is off or in Hibernation.
(2) Power switch
●
When the computer is off, slide the switch to
turn on the computer.
●
When the computer is on, briefly slide the
switch to initiate Hibernation.
●
When the computer is in Standby, briefly slide
the switch to exit Standby.
●
When the computer is in Hibernation, briefly
slide the switch to exit Hibernation.
If the computer has stopped responding and
Windows shutdown procedures are ineffective, slide
and hold the power switch for at least 5 seconds to
turn off the computer.
To learn more about your power settings, select
Start > Control Panel > Performance and
Maintenance > Power Options.
(3)
Drive light Blinking: The hard drive or flash drive is being
accessed.
(4)
Battery light
●
On: A battery is charging.
●
Blinking: A battery that is the only available
power source has reached a low battery level.
When the battery reaches a critical battery
level, the battery light begins blinking rapidly.
●
Off: If the computer is plugged into an external
power source, the light turns off when all
batteries in the computer are fully charged. If
the computer is not plugged into an external
power source, the light stays off until the battery
reaches a low battery level.
8 Chapter 2 External component identification
Component Description
(5)
Wireless light
●
Blue: An integrated wireless device, such as a
wireless local area network (WLAN) device, is
on.
●
Amber: All wireless devices are off.
(6) Wireless switch Turns the wireless feature on or off, but does not
establish a wireless connection.
NOTE: A wireless network must be set up in order
to establish a wireless connection.
Front components
9
Right-side components
Component Description
(1)
USB ports (2) Connect optional USB devices.
(2) Digital Media Slot Supports the following optional digital card formats:
●
Memory Stick (MS)
●
MS/Pro
●
MultiMediaCard (MMC)
●
Secure Digital High Capacity (SDHC) Memory
Card
●
xD-Picture card
(3)
External monitor port Connects an optional external display, such as a
monitor or projector, to the computer.
(4)
RJ-45 (network) jack Connects a network cable.
10 Chapter 2 External component identification
Left-side components
Component Description
(1)
Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a
deterrent, but it may not prevent the computer from
being mishandled or stolen.
(2)
Power connector Connects an AC adapter.
(3) AC adapter light On: The computer is connected to external power.
Off: The computer is not connected to external
power.
(4) Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to
cool internal components and prevent overheating. It
is normal for the internal fan to cycle on and off
during routine operation.
(5)
USB port Connects an optional USB device.
(6)
Audio-out (headphone) jack/Audio-in (microphone)
jack
Produces sound when connected to optional powered
stereo speakers, headphones, earbuds, a headset, or
television audio. Also connects an optional headset
microphone.
WARNING! To reduce the risk of personal injury,
adjust the volume before putting on headphones,
earbuds, or a headset. For additional safety
information, refer to the Regulatory, Safety and
Environmental Notices.
NOTE: When an audio component is connected to
the jack, the computer speakers are disabled.
The audio component cable must have a 4-conductor
connector.
Left-side components
11
Display components
Component Description
(1) Speakers (2) Produce sound.
(2) Internal display switch Turns off the display if the display is closed while the
power is on.
NOTE: The display switch is not visible from the
outside of the computer.
(3) Webcam Captures still photographs and videos.
NOTE: To capture videos, you need to install
additional webcam software.
(4) Webcam light On: The webcam is in use.
(5) Internal microphone Records sound.
12 Chapter 2 External component identification
Bottom components
Component Description
(1) Battery bay Holds the battery.
(2)
Battery release latches (2) Release the battery from the battery bay.
(3) Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.
(4)
Memory module compartment Contains the memory module slot.
Bottom components
13
Wireless antennas
Component Description
(1) WWAN antennas (2) (select models only)* Send and receive wireless signals to communicate with wireless
wide-area networks (WWANs).
(2) WLAN antennas (2)* Send and receive wireless signals to communicate with wireless
local area networks (WLANs).
*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around
the antennas free from obstructions.
To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental
Notices that applies to your country or region. To access these notices, click Start > Help and
Support > User Guides.
14 Chapter 2 External component identification
3 Illustrated parts catalog
Service tag
When ordering parts or requesting information, provide the computer serial number and model
description provided on the service tag:
(1) Product name: This is the product name affixed to the front of the computer.
(2) Serial number (s/n): This is an alphanumeric identifier that is unique to each product.
(3) Part number/Product number (p/n): This number provides specific information about the product's
hardware components. The part number helps a service technician to determine what components and
parts are needed.
(4) Model description: This is the alphanumeric identifier used to locate documents, drivers, and
support for the computer.
(5) Warranty period: This number describes the duration of the warranty period for the computer.
Service tag
15
Computer major components
Item Description Spare part
number
(1) Display assembly
Includes 1 webcam, 1 microphone, 2 speakers, and 2 WLAN antennas/cables; WWAN
antennas/cables on select models
See
Display assembly subcomponents on page 20 for a comprehensive list of display
assembly components.
●
25.7-cm (10.1-inch), WSVGA, AntiGlare display assembly 600125-001
16 Chapter 3 Illustrated parts catalog
Item Description Spare part
number
●
25.7-cm (10.1-inch), WSVGA, AntiGlare display assembly for use with WWAN
option
594806-001
(2) Keyboard
●
For use in Brazil 535689-201
●
For use in the Czech Republic 535689-221
●
For use in Europe 535689-A41
●
For use in Finland, Norway, and Sweden 535689-DH1
●
For use in France 535689-051
●
For use in French Canada 535689-121
●
For use in Germany 535689-041
●
For use in Greece 535689-DJ1
●
For use in Hungary 535689-211
●
For use with international models 535689-B31
●
For use in Israel 535689-BB1
●
For use in Italy 535689-061
●
For use in Latin America 535689-161
●
For use in Portugal 535689-131
●
For use in Russia 535689-251
●
For use in Saudi Arabia 535689-171
●
For use in Spain 535689-071
●
For use in Switzerland 535689-BG1
●
For use in Turkey 535689-141
●
For use in the United Kingdom 535689-031
●
For use in the United States 535689-001
(3) Top cover with TouchPad 537622-001
Mass storage devices
(4) Hard drive, 160-GB, 5400-RPM
NOTE: Each hard drive mounts in the computer using a bracket and screws of the
mounting kit.
See
Mass storage devices on page 43 for the mounting kit part number.
594809-001
(5) Heat sink assembly (includes replacement thermal material) 537619-001
(6) Fan 537613-001
Computer major components
17
Item Description Spare part
number
(7) USB/audio board (includes cable) 600124-001
(8) DC connector/power board 599188-001
Plastics/actuator kit 537612-001
(9a) Power switch and wireless switch actuators
(9b) Memory module compartment cover
(9c) Bezel for Digital Media slot
Wireless modules
(10) WLAN module
Broadcom 4312G 802.11b/g WiFi and 2070 Bluetooth 2.1+EDR Combo Adapter
(BT3.0+HS ready)
575920-001
Broadcom 43225 802.11b/g/n 2x2 WiFi Adapter 593837-001
Atheros AR9285 802.11b/g/n 1x1 WiFi Adapter
●
For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands,
and the United States
518436-001
●
For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda,
Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain,
Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia,
Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad,
Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus,
the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic,
East Timor, Ecuador, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia,
Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana,
Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau,
Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy,
the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos,
Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia,
Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands,
Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia,
Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles,
the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman,
Pakistan, Palau, Panama, Papua New Guinea, Paraguay,
the People's Republic of China, Peru, the Philippines, Poland, Portugal,
the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino,
Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone,
Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa,
South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates,
the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen,
Zaire, Zambia, and Zimbabwe
518436-002
Broadcom 4312G 802.11b/g WiFi Adapter
●
For use for use in Canada, the Cayman Islands, Guam, Puerto Rico, the United States,
and the U.S. Virgin Islands
504593-003
18 Chapter 3 Illustrated parts catalog
Item Description Spare part
number
●
For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda,
Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain,
Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia,
Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad,
Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus,
the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic,
East Timor, Ecuador, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia,
Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana,
Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau,
Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy,
the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos,
Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia,
Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands,
Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia,
Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles,
the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman,
Pakistan, Palau, Panama, Papua New Guinea, Paraguay,
the People's Republic of China, Peru, the Philippines, Poland, Portugal,
the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino,
Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone,
Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa,
South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates,
the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen,
Zaire, Zambia, and Zimbabwe
504593-004
WWAN Module
(11) Qualcomm EV-DO/HSPA WWAN module
NOTE: Available as an option.
531993-001
(12) RTC battery (includes cable and double-sided tape) 537616-001
(13) System board (includes processor and replacement thermal material)
●
Intel Atom N270 1.6-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus
(FSB)
594804-001
●
Intel Atom N270 1.6-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus
(FSB) for use with WWAN option
599187-001
(14) Memory module
●
1024-MB, PC2-6400, DDR2, 533-MHz 598861-001
●
1024-MB, PC2-6400, DDR2, 533-MHz, for use with WWAN option 600131-001
(15) Base enclosure (includes 4 rubber feet) 594810-001
(16) Battery
●
6-cell Li-ion battery (55-Wh) 2.55-Ah 537627-001
●
3-cell Li-ion battery (28-Wh) 2.55-Ah 537626-001
Computer major components
19
Display assembly subcomponents
Item Description Spare part number
(1) EMI shield and hinge covers 599189-001
(2) Display bezel with logo for use with webcam and microphone 537644-001
(3) Display hinge kit
(Includes left and right display panel hinges)
537658-001
(4) Speaker assembly
Includes 2 speakers, cable, and housing
594811-001
(5) Display panel
25.7-cm (10.1-inch) WSVGA (16:9), non-PMMA, AntiGlare
600125-001
(6) Webcam module 537660-001
(7a)
(7b)
Display cable kit (not illustrated)
Includes:
●
Display/webcam cable
●
WLAN antenna assembly (530 × 1.37 mm and 440 × 1.37 mm)
579571-001
(8) Microphone assembly (44 dB, 4.9 × 2.2, omnidirectional) 581323-001
20 Chapter 3 Illustrated parts catalog
Item Description Spare part number
(9) WWAN antenna assembly (optional) 538022-001
(10) Display back cover with logo 594808-001
Display screw kit (not illustrated)
Includes 14 PM2.0×3.0×4.0×0.4T screws
538510-001
Display assembly subcomponents
21
Mass storage devices
NOTE: Each hard drive spare part kit includes a mounting bracket.
Item Description Spare part number
(1) Hard drive, 160 GB, 5400 RPM 594809-001
Hard drive mounting kit (not illustrated, includes mounting bracket and 4 PM3.0×3.0×4.5
screws)
537641-001
22 Chapter 3 Illustrated parts catalog
Loading...
