Model 4300 Family Ultra3 LVD Disk Enclosure
Addendum for Use with the MA8000/EMA12000
Storage System

This document summarizes features and characteristics of using the Model 4310R, Model 4350R,
Model 4314R, and Model 4354R disk enclosures in an MA8000/EMA12000 Storage System,
running ACS version 8.5.

Compaq StorageWorks™

First Edition (August 2000)
Part Number: EK-U3LVD-AA. A01

Compaq Computer Corporation

2 Compaq StorageWorks Model 4300 Family Ultra3 LVD Disk Enclosure

© 2000 Compaq Compute r Corporation.
COMPAQ, the Compaq logo and StorageWorks are registered in U.S. Patent and Trademark

Office.
All othe r product nam es mentioned herein may be trademarks or registered trademarks of their

respective companies.
Compaq shall not be liab le for techni cal or editorial errors or omissions contained herei n. The

information in this document is subject to change without notice.
THE INFORMATION IN THIS PUBLICATI ON IS PROVIDED “AS IS” WITHOUT

WARRANTY OF ANY KIND. THE ENTIRE RISK ARISING OUT OF THE USE OF THIS
INFORMATION REMAINS WITH RECIPIENT. IN NO EVENT SHALL COMPAQ BE
LIABLE FOR ANY DIRECT, CONSEQUENTIAL, INCIDENTAL, SPECIAL, PUNITIVE
OR OTHER D AMAGES WHATSOEVER (INCLUDING WITHOUT LIMITATION,
DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION OR LOSS
OF BUSINESS INFORMATION), EVEN IF COMPAQ HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES AND WHETHER IN AN ACTION OF CONTRACT
OR TOR T, INCLUDING NEGLIGENCE.

The limit ed w arranties for Compaq products are exclusiv ely set forth in the
documentat ion accompanying such products. Nothing herein should be construed as
constituting a fur ther or additional warranty.

Printed in the U.S.A.

Addendum for Use with the MA8000/EMA12000 Storage System 3

Disk Enclosures

The Model 4300 family of Ultra3 SCSI disk enclosures is made up of four models:

■ Model 4310R disk enclosure - 10 drive bays , single-bus I/O module.

■ Model 4350R disk enclosure - 10 drive bays , dual-bus I/O module.

Figure 1 shows the drive enclosure bay numbering for Models 4310R and 4350R.

Figure 1. Model 4310R and 4350R 10-Drive Enclosure Bay Numbering

■

Model 4314R disk enclosure - 14 drive bays , single-bus I/O module.

■ Model 4354R disk enclosure - 14 drive bays , dual-bus I/O module.

Figure 2 shows the drive enclosure bay numbering for Models 431 4R and 4354R.

Figure 2. Model 4314R and 4354R 14-Drive Enclosure Bay Numbering

CXO7381A

2

3

4

5

6

7

8

9

1

10

CXO7380A

9

8

7

6

5

4

3

2

1

10

11

12

13

14

4 Compaq StorageWorks Model 4300 Family Ultra3 LVD Disk Enclosure

MA8000/EMA12000 Storage System
Installation

WARNING: A shock hazard exists at the backplane when the controller enclosure

bays or cache module bays are empty.
Be sure the enclosures are empty, then mount the enclosures into the rack. DO NOT

use the disk enclosure handles to lift the enclosure. The handles cannot support the
weight of the enclosure. Only use these handles to position the enclosure in the
mounting brackets.

Use two people to lift, align, and install any enclosure into a rack. Failure to use two
people might cause personal injury and/or equipment damage.

CAUTION: Controller and disk enclosures have no power switches. Make sure the
controller enclosures and disk enclosures are physically configured before turning the
PDU on and connecting the power cords. Failure to do so can cause equipment
damage.

1. Be sure the enclosures are empty before mounting them into the rack. If necessary,
remove the following elements from the controller e n closure:

❏ Environmental Moni toring Unit (EMU) ❏ Power Supplies
❏ External Cache Batteries (ECBs) ❏ Fans

If necessary, remove the following elements from the disk enclosure:

❏ Power Supply/Blower Assemblies ❏ Disk Drives
❏ Environmental Moni toring Unit (EMU) ❏ I/O Modules

Refer to the Compaq StorageWorks Model 2100 and 2200 UltraSCSI Controller User
Guide, Compaq StorageWorks Enclosure 4200 Family LVD Disk Enclosure User
Guide, and Compaq StorageWorks Enclosure 4300 Family LVD Disk Enclosur e User
Guide the for further inform ation.

2. Install brackets onto the controller enclosu re and disk enclosures. Us ing two people,
mount the enclosures into the rack. Refer to the mounting kit documentation for
further information.

3. Install the elements. Install the disk drives (up to 12 disk drives in the Mode l 4314R
disk enclosure s , or up to 14 dis k drives in the Model 4354R disk enclosu r es). Make
sure you install blank panels in any unus ed bays.

Addendum for Use with the MA8000/EMA12000 Storage System 5

NOTE: Fibre channel cabling information is shown to illustrate supported configurations. In a
dual-bus disk enclosure configuration, disk enclosures 1, 2, and 3 are stacked below the
controller enclosure—two SCSI Buses per enclosure

(see Figure 3). In a single-bus disk

enclosure configuration, disk enclosures 6, 5, and 4 are stacked above the controller enclosure
and disk enclosures 1, 2, and 3 are stacked below the controller enclosure—one SCSI Bus per
enclosure(see Figure 4).

4. Connect the six VHDCI UltraSCSI bus cabl es between the controller and disk
enclosures as shown in Figure 3 for a dual bus system and Figure 4 for a single bus
system. Note that the maximum supported cable le ngths are 1, 2, 3, 5, and 10 mete rs .

Figure 3. Dual-Bus MA8000/EMA12000 Storage System

1

SCSI Bus 1 Cable

2

SCSI Bus 2 Cable

3

SCSI Bus 3 Cable

4

SCSI Bus 4 Cable

5

SCSI Bus 5 Cable

6

SCSI Bus 6 Cable

7

AC Power Inputs

8

Fibre Channel Ports

1

3

2

5
6

4

7

8

CXO7383A

6 Compaq StorageWorks Model 4300 Family Ultra3 LVD Disk Enclosure

Figure 4. Single-Bus MA8000/EMA12000 Storage System

5. Connect the A C power cords from the appropriate rac k AC outl ets to the c ontroll er and
disk enclosures.

1

SCSI Bus 1 Cable

2

SCSI Bus 2 Cable

3

SCSI Bus 3 Cable

4

SCSI Bus 4 Cable

5

SCSI Bus 5 Cable

6

SCSI Bus 6 Cable

7

AC Power Inputs

8

Fibre Channel Ports

1

8

2
3

6

CXO7382A

4

5

7

Addendum for Use with the MA8000/EMA12000 Storage System 7

Creating Storage Maps

The controller can operate either in a BA370 enclosure or in a Model 2200 controller
enclosure.

The Model 2200 contr oller enclosure can be combined with the following:

■ Model 4214R disk enclosure - Ultra2 S CSI with 14 drive bays, single-bus I/O

module.

■ Model 4254 disk enclosure - Ultra2 SCSI with 14 drive bays, dual-bus I/O module.

NOTE: The Model 4214R uses the same storagemaps as the Model 4314R and the Model 4254
uses the same storage maps as the Model 4354R disk enclosures.

■

Model 4310R disk enclosure - Ultra3 S CSI with 10 drive bays, single-bus I/O
module. Figure 5 show s the addresses for each device in a six-shelf sing le-bus
config uration . A maximum of six Model 4310R disk enc losur es can be used with each
Model 2200 controller enclosure.

NOTE: The storage map for the Model 4310R reflects the disk enclosures physical location in
the rack. Disk enclosures 6, 5, and 4 are stacked above the controller enclosure and disk
enclosures 1, 2, and 3 are stacked below the controller enclosure.

■

Model 4350R disk enclosure - Ultra3 SCSI with 10 drive bays, dual-bus I/O module.
Figure 6 shows th e address es for each de vic e in a three- shelf dual-b us confi gurati on. A
maximum of three Model 4350R disk enclosur es can be used with each Model 2200
controller enclosu re.

■ Model 4314R disk enclosure - Ultra3 S CSI with 14 drive bays, single-bus I/O

module. Figure 7 show s the addresses for each device in a six-shelf sing le-bus
config uration . A maximum of six Model 4314R disk enc losur es can be used with each
Model 2200 controller enclosure.

NOTE: The storage map for the Model 4314R reflects the disk enclosures physical location in
the rack. Disk enclosures 6, 5, and 4 are stacked above the controller enclosure and disk
enclosures 1, 2, and 3 are stacked below the controller enclosure.

■

Model 4354R disk enclosure - Ultra3 SCSI with 14 drive bays, dual-bus I/O module.
Figure 8 shows th e address es for each de vic e in a three- shelf dual-b us confi gurati on. A
maximum of three Model 4354R disk enclosur es can be used with each Model 2200
controller enclosu re.

8 Compaq StorageWorks Model 4300 Family Ultra3 LVD Disk Enclosure

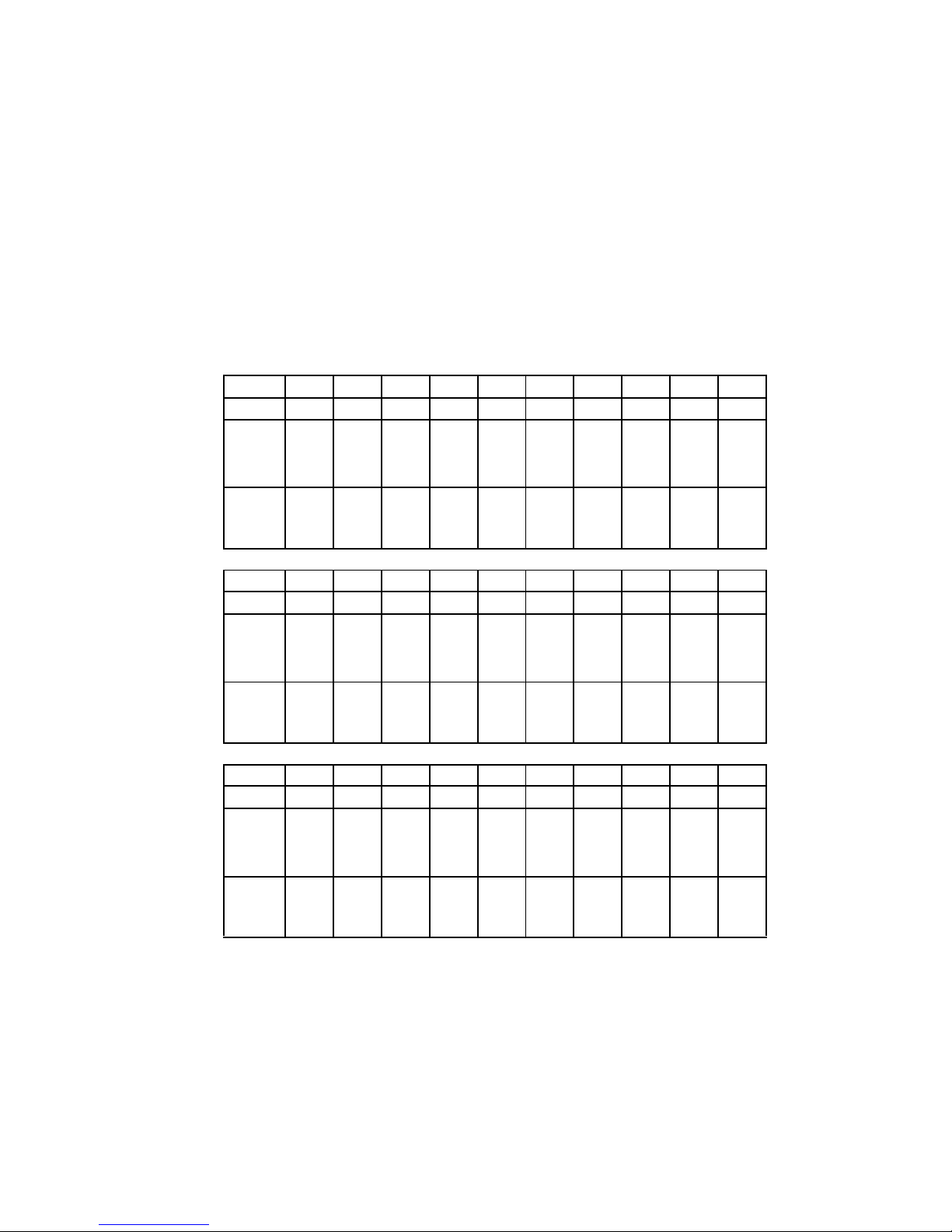

Figure 5. PTL addressing in a single-bus configuration, using six Model 4310R disk enclosures

Model 4310R Disk Enclosure Shelf 6 (single-bus)

Bay12345678910

SCSI ID 00 01 02 03 04 05 08 10 11 12

DISK ID

Disk60000

Disk60100

Disk60200

Disk60300

Disk60400

Disk60500

Disk60800

Disk61000

Disk61100

Disk61200

Model 4310R Disk Enclosure Shelf 5 (single-bus)

Bay12345678910

SCSI ID 00 01 02 03 04 05 08 10 11 12

DISK ID

Disk50000

Disk50100

Disk50200

Disk50300

Disk50400

Disk50500

Disk50800

Disk51000

Disk51100

Disk51200

Model 4310R Disk Enclosure Shelf 4 (single-bus)

Bay12345678910

SCSI ID 00 01 02 03 04 05 08 10 11 12

DISK ID

Disk40000

Disk40100

Disk40200

Disk40300

Disk40400

Disk40500

Disk40800

Disk41000

Disk41100

Disk41200

Model 4310R Disk Enclosure Shelf 1 (single-bus)

Bay12345678910

SCSI ID 00 01 02 03 04 05 08 10 11 12

DISK ID

Disk10000

Disk10100

Disk10200

Disk10300

Disk10400

Disk10500

Disk10800

Disk11000

Disk11100

Disk11200

Model 4310R Disk Enclosure Shelf 2 (single-bus)

Bay12345678910

SCSI ID 00 01 02 03 04 05 08 10 11 12

DISK ID

Disk20000

Disk20100

Disk20200

Disk20300

Disk20400

Disk20500

Disk20800

Disk21000

Disk21100

Disk21200

Model 4310R Disk Enclosure Shelf 3 (single-bus)

Bay12345678910

SCSI ID 00 01 02 03 04 05 08 10 11 12

DISK ID

Disk30000

Disk30100

Disk30200

Disk30300

Disk30400

Disk30500

Disk30800

Disk31000

Disk31100

Disk31200

Addendum for Use with the MA8000/EMA12000 Storage System 9

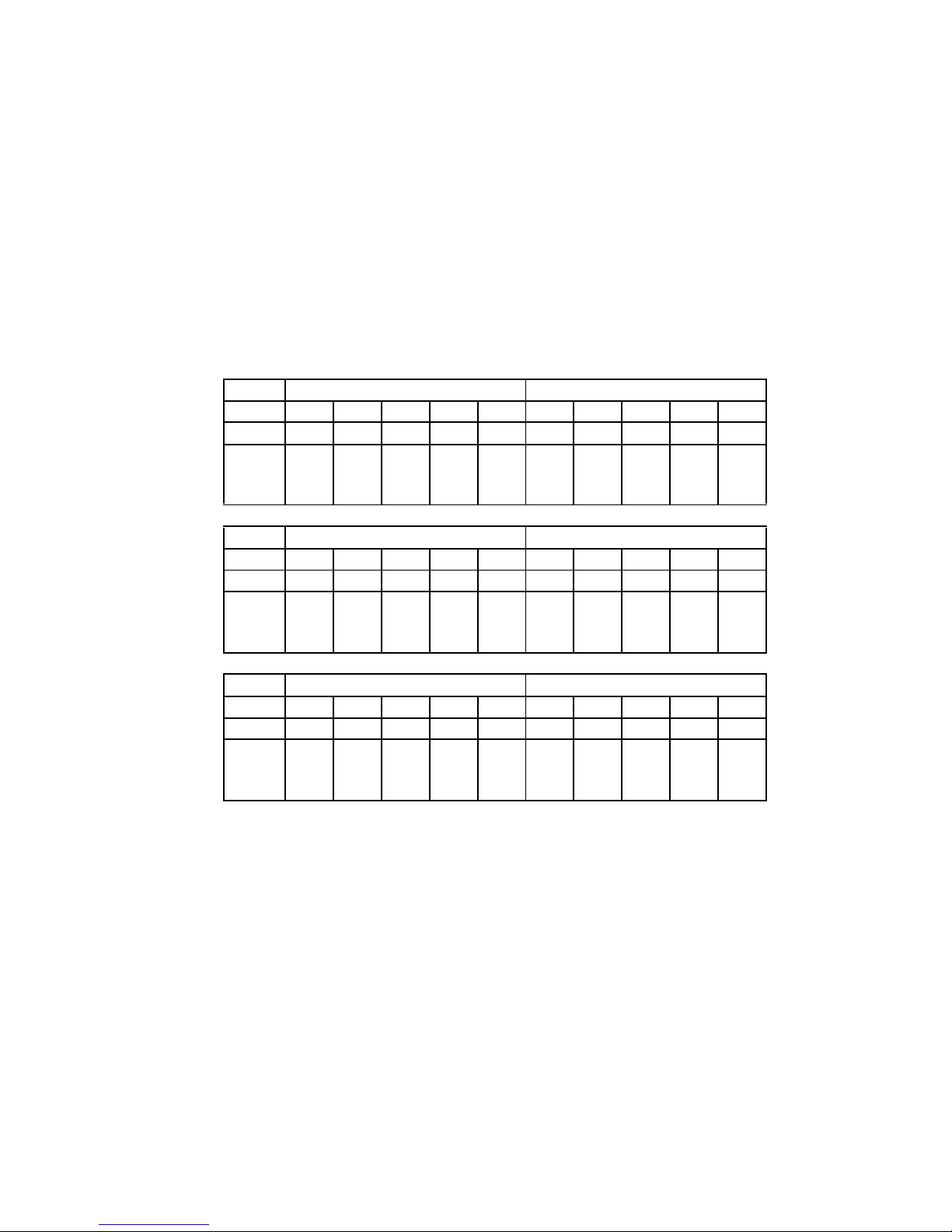

Figure 6. PTL addressing in a dual-bus configuration, using three Model 4350R disk enclosures

Model 4350R Disk Enclosure Shelf 1 (dual-bus)

SCSI Bus A SCSI Bus B

Bay 12345678910

SCSI ID 00 01 02 03 04 00 01 02 03 04

DISK ID

Disk10000

Disk10100

Disk10200

Disk10300

Disk10400

Disk20000

Disk20100

Disk20200

Disk20300

Disk20400

Model 4350R Disk Enclosure Shelf 2 (dual-bus)

SCSI Bus A SCSI Bus B

Bay 12345678910

SCSI ID 00 01 02 03 04 00 01 02 03 04

DISK ID

Disk30000

Disk30100

Disk30200

Disk30300

Disk30400

Disk40000

Disk40100

Disk40200

Disk40300

Disk40400

Model 4350R Disk Enclosure Shelf 3 (dual-bus)

SCSI Bus A SCSI Bus B

Bay 12345678910

SCSI ID 00 01 02 03 04 00 01 02 03 04

DISK ID

Disk50000

Disk50100

Disk50200

Disk50300

Disk50400

Disk60000

Disk60100

Disk60200

Disk60300

Disk60400

10 Compaq StorageWorks Model 4300 Family Ultra3 LVD Disk Enclosure

Figure 7. PTL addressing in a single-bus configuration, using six Model 4314R disk enclosures

Model 4314R Disk Enclosure Shelf 6 (single-bus)

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 09 10 11 12 13 14 15

DISK ID

Disk60000

Disk60100

Disk60200

Disk60300

Disk60400

Disk60500

Disk60800

Disk60900

Disk61000

Disk61100

Disk61200

Disk61300

not

supported

not

supported

Model 4314R Disk Enclosure Shelf 5 (single-bus)

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 09 10 11 12 13 14 15

DISK ID

Disk50000

Disk50100

Disk50200

Disk50300

Disk50400

Disk50500

Disk50800

Disk50900

Disk51000

Disk51100

Disk51200

Disk51300

not

supported

not

supported

Model 4314R Disk Enclosure Shelf 4 (single-bus)

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 09 10 11 12 13 14 15

DISK ID

Disk40000

Disk40100

Disk40200

Disk40300

Disk40400

Disk40500

Disk40800

Disk40900

Disk41000

Disk41100

Disk41200

Disk41300

not

supported

not

supported

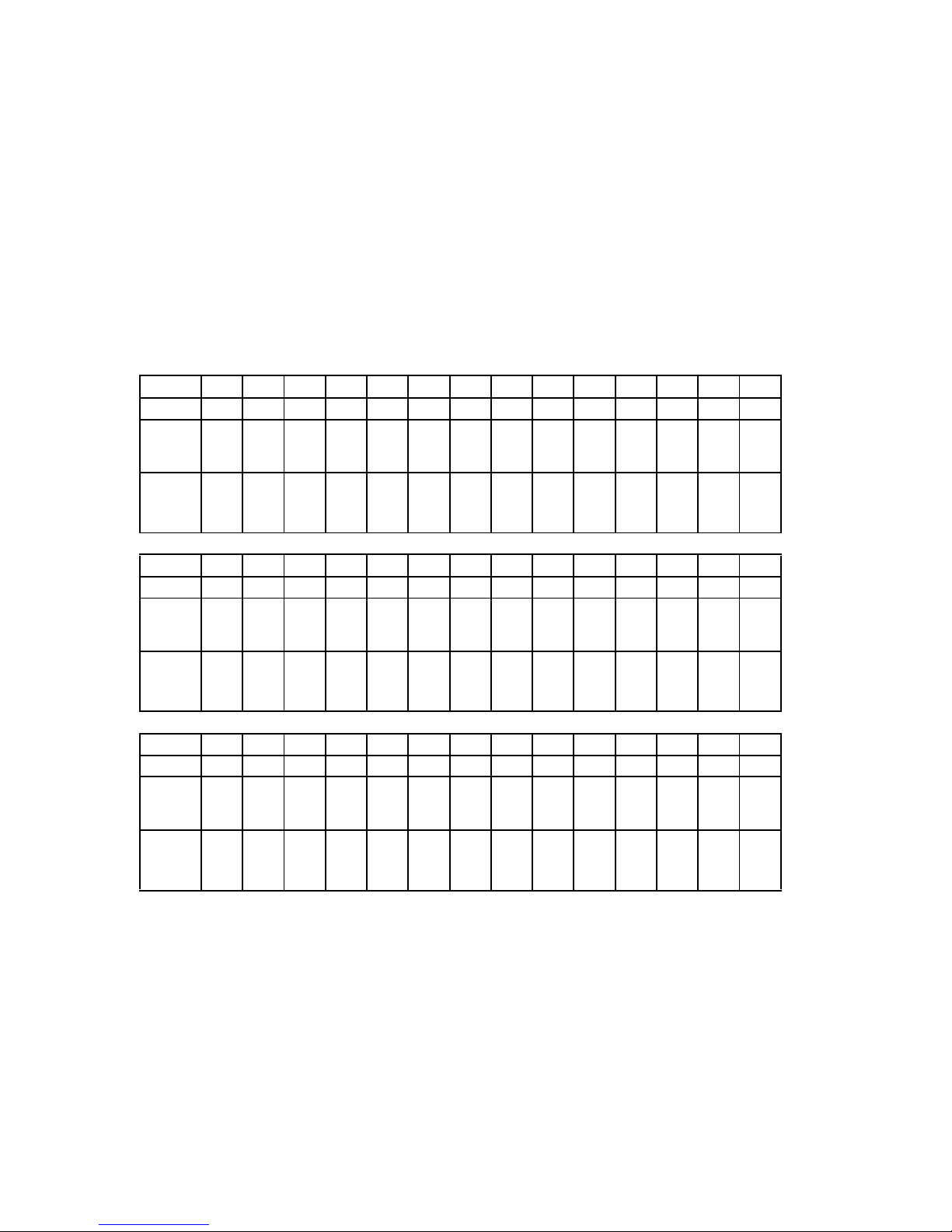

Model 4314R Disk Enclosure Shelf 1 (single-bus)

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 09 10 11 12 13 14 15

DISK ID

Disk10000

Disk10100

Disk10200

Disk10300

Disk10400

Disk10500

Disk10800

Disk10900

Disk11000

Disk11100

Disk11200

Disk11300

not

supported

not

supported

Model 4314R Disk Enclosure Shelf 2 (single-bus)

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 09 10 11 12 13 14 15

DISK ID

Disk20000

Disk20100

Disk20200

Disk20300

Disk20400

Disk20500

Disk20800

Disk20900

Disk21000

Disk21100

Disk21200

Disk21300

not

supported

not

supported

Model 4314R Disk Enclosure Shelf 3 (single-bus)

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 09 10 11 12 13 14 15

DISK ID

Disk30000

Disk30100

Disk30200

Disk30300

Disk30400

Disk30500

Disk30800

Disk30900

Disk31000

Disk31100

Disk31200

Disk31300

not

supported

not

supported

Addendum for Use with the MA8000/EMA12000 Storage System 11

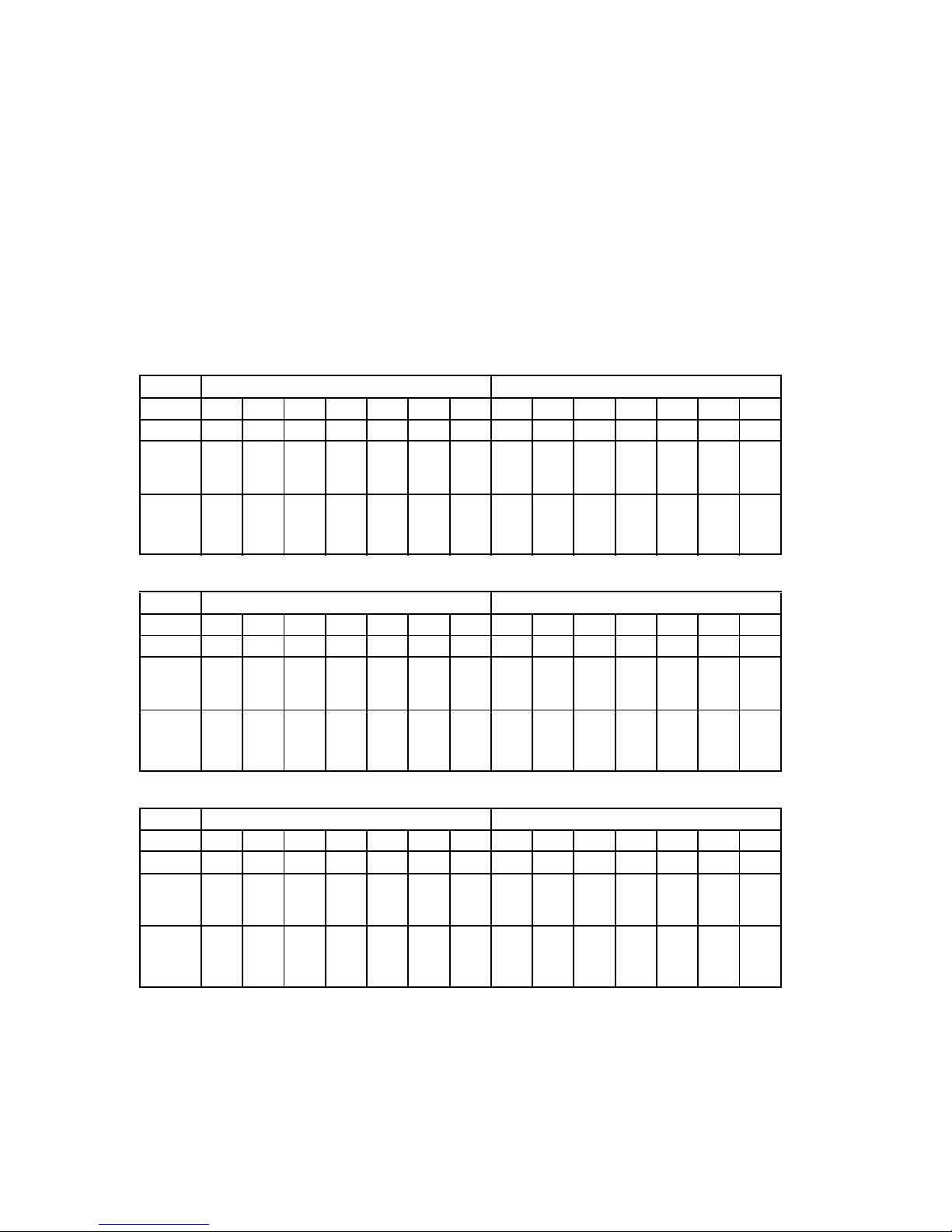

Figure 8. PTL addressing in a dual-bus configuration, using three Model 4354R disk enclosures

Model 4354R Disk Enclosure Shelf 1 (dual-bus)

SCSI Bus A SCSI Bus B

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 00 01 02 03 04 05 08

DISK ID

Disk10000

Disk10100

Disk10200

Disk10300

Disk10400

Disk10500

Disk10800

Disk20000

Disk20100

Disk20200

Disk20300

Disk20400

Disk20500

Disk20800

Model 4354R Disk Enclosure Shelf 2 (dual-bus)

SCSI Bus A SCSI Bus B

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 00 01 02 03 04 05 08

DISK ID

Disk30000

Disk30100

Disk30200

Disk30300

Disk30400

Disk30500

Disk30800

Disk40000

Disk40100

Disk40200

Disk40300

Disk40400

Disk40500

Disk40800

Model 4354R Disk Enclosure Shelf 3 (dual-bus)

SCSI Bus A SCSI Bus B

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 00 01 02 03 04 05 08

DISK ID

Disk50000

Disk50100

Disk50200

Disk50300

Disk50400

Disk50500

Disk50800

Disk60000

Disk60100

Disk60200

Disk60300

Disk60400

Disk60500

Disk60800

12 Compaq StorageWorks Model 4300 Family Ultra3 LVD Disk Enclosure

Example Storage Maps for the HSG80

Example Storage Map - Model 4310R Disk Enclosure

Figure 9 shows an example of four Model 4310R disk enc los ures (single-bus I/O).

■ Unit D100 is a 4-member RAID 3/5 storageset named R1. R1 consists of Disk10000,

Disk20000, Disk30000, and Disk 40000.

■ Unit D101 is a 2-member str iped mirrorset named S1. S1 con si sts of M1 and M2:
❏ M1 is a 2-member mirrorset cons is ting of Disk10100 and Disk20100.
❏ M2 is a 2-member mirrorset cons is ting of Disk30100 and Disk40100.

■ Unit D102 is a 2-member mirrorset na me d M3. M3 con si sts of Disk10200 and

Disk20200.

■ Unit D103 is a 2-member mirrorset na me d M4. M4 con si sts of Disk30200 and

Disk40200.

■ Unit D104 is 3-member stri peset n amed S2. S2 consi sts of Dis k10300, Disk20 300, and

Disk30300.

■ Unit D105 is a single (JBOD) disk named Disk40300.

■ Unit D106 is a 3-member RAID 3/5 storageset named R2. R2 consists of Disk10400,

Disk20400, and Disk30400.

■ Unit D107 is a single (JBOD) disk named Disk40400.

■ Unit D108 is a 4-member stripeset named S3. S3 consists of Disk10500, Disk20500,

Disk30500, and Disk40500.

■ Unit D1 is a 2-member striped mirro rset named S4. S4 consists of M4 and M5:
❏ M4 is a 2-member mirrorset cons is ting of Disk10800 and Disk20800.
❏ M5 is a 2-member mirrorset cons is ting of Disk30800 and Disk40800.

■ Unit D2 is a 4-member RAID 3/5 stor ageset named R3. R3 consists of Disk11000,

Disk21000, Disk31000, and Disk41000.

■ Unit D3 is a 4-member stripeset named S5. S5 consists of Disk11100, Disk21100,

Disk31100, and Disk41100.

■ Unit D4 is a 2-member mirrorset named M7. M7 consists of Disk11200 and

Disk21200.

■ Disk31200 and Disk41200 are spareset members.

Addendum for Use with the MA8000/EMA12000 Storage System 13

Figure 9. Model 4310R disk enclosure - example storage map

Model 4310R Disk Enclosure Shelf 4 (single-bus)

Bay12345678910

SCSI ID 00 01 02 03 04 05 08 10 11 12

D100

R1

D101

S1

M2

D103

M4

D105 D107

D108

S3

D1
S4

M6

D2
R3

D3
S5

spare

DISK ID

Disk40000

Disk40100

Disk40200

Disk40300

Disk40400

Disk40500

Disk40800

Disk41000

Disk41100

Disk41200

Model 4310R Disk Enclosure Shelf 1 (single-bus)

Bay12345678910

SCSI ID 00 01 02 03 04 05 08 10 11 12

D100

R1

D101

S1

M1

D102M3D104S2D106R2D108

S3

D1

S4

M5

D2
R3

D3
S5

D4
M7

DISK ID

Disk10000

Disk10100

Disk10200

Disk10300

Disk10400

Disk10500

Disk10800

Disk11000

Disk11100

Disk11200

Model 4310R Disk Enclosure Shelf 2 (single-bus)

Bay12345678910

SCSI ID 00 01 02 03 04 05 08 10 11 12

D100

R1

D101

S1

M1

D102M3D104S2D106R2D108

S3

D1

S4

M5

D2
R3

D3
S5

D4
M7

DISK ID

Disk20000

Disk20100

Disk20200

Disk20300

Disk20400

Disk20500

Disk20800

Disk21000

Disk21100

Disk21200

Model 4310R Disk Enclosure Shelf 3 (single-bus)

Bay12345678910

SCSI ID 00 01 02 03 04 05 08 10 11 12

D100

R1

D101

S1

M2

D103M4D104S2D106R2D108

S3

D1

S4

M6

D2
R3

D3
S5

spare

DISK ID

Disk30000

Disk30100

Disk30200

Disk30300

Disk30400

Disk30500

Disk30800

Disk31000

Disk31100

Disk31200

14 Compaq StorageWorks Model 4300 Family Ultra3 LVD Disk Enclosure

Example Storage Map - Model 4350R Disk Enclosure

Figure 10 shows an example of three Model 4350R disk enclosur es (dual-bus).

■ Unit D100 is a 6-member RAID 3/5 storageset named R1. R1 consists of Disk10000,

Disk20000, Disk30000, Disk 40000, Disk50000, and Disk60000.

■ Unit D101is a 6-member RAID 3/5 stora ges et named R2. R2 consists of Dis k10100,

Disk20100, Disk30100, Disk 40100, Disk50100, and Disk60100.

■ Unit D102 is a 2-member str iped mirrorset named S1. S1 con si sts of M1 and M2:
❏ M1 is a 2-member mirrorset cons is ting of Disk10200 and Disk20200.
❏ M2 is a 2-member mirrorset cons is ting of Disk30200 and Disk40200.

■ Unit D103 is a 2-member mirrorset na me d M3. M3 con si sts of Disk50200 and

Disk60200.

■ Unit D1 is 4-member strip es et named S2. S2 consists of Dis k10300, Disk20300,

Disk30300, and Disk40300.

■ Unit D2 is a 2-member mirrorset named M4. M4 consists of Disk50300 and

Disk60300.

■ Unit D3 is a 2-member striped mirro rset named S3. S3 consists of M5 and M6:
❏ M5 is a 2-member mirrorset cons is ting of Disk10400 and Disk20400.
❏ M6 is a 2-member mirrorset cons is ting of Disk30400 and Disk40400.

■ Unit D4 is a single (JBOD) disk named Disk50400.

■ Disk60400 is a spar eset member .

Addendum for Use with the MA8000/EMA12000 Storage System 15

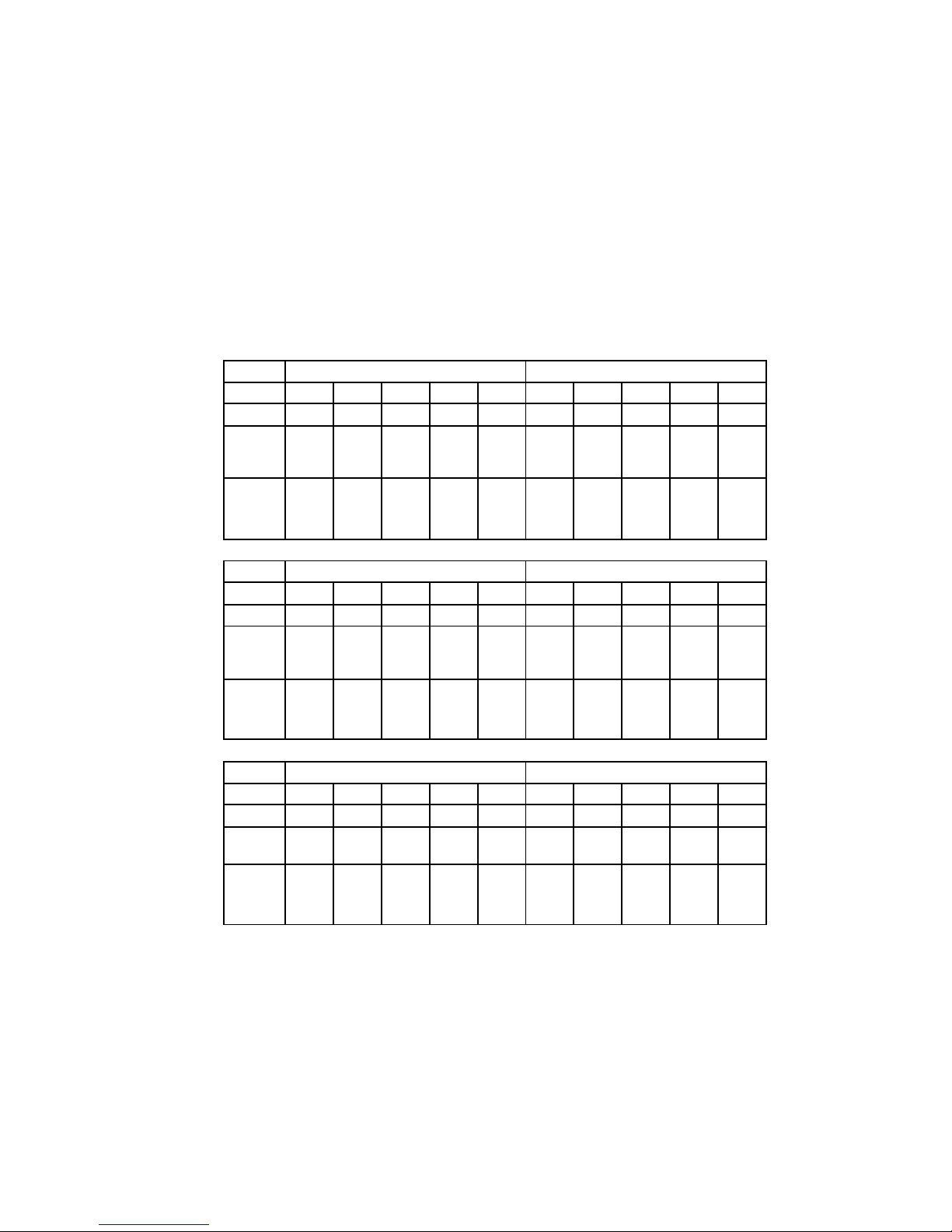

Figure 10. Model 4350R disk enclosure - example storage map

Example Storage Map - Model 4314R Disk Enclosure

Figure 11 shows an example of four Model 4314R dis k enc losures (single-bus I/O).

■ Unit D100 is a 4-member RAID 3/5 storageset named R1. R1 consists of Disk10000,

Disk20000, Disk30000, and Disk 40000.

Model 4350R Disk Enclosure Shelf 1 (dual-bus)

SCSI Bus A SCSI Bus B

Bay 12345678910

SCSI ID 00 01 02 03 04 00 01 02 03 04

D100R1D101

R2

D102

S1

M1

D1
S2

D3
S3

M5

D100R1D101

R2

D102

S1

M1

D1
S2

D3
S3
M5

DISK ID

Disk10000

Disk10100

Disk10200

Disk10300

Disk10400

Disk20000

Disk20100

Disk20200

Disk20300

Disk20400

Model 4350R Disk Enclosure Shelf 2 (dual-bus)

SCSI Bus A SCSI Bus B

Bay 12345678910

SCSI ID 00 01 02 03 04 00 01 02 03 04

D100R1D101

R2

D102

S1

M2

D1
S2

D3

S3

M6

D100R1D101

R2

D102

S1

M2

D1
S2

D3
S3
M6

DISK ID

Disk30000

Disk30100

Disk30200

Disk30300

Disk30400

Disk40000

Disk40100

Disk40200

Disk40300

Disk40400

Model 4350R Disk Enclosure Shelf 3 (dual-bus)

SCSI Bus A SCSI Bus B

Bay 12345678910

SCSI ID 00 01 02 03 04 00 01 02 03 04

D100R1D101R2D103M3D2

M4

D4

D100R1D101R2D103M3D2

M4

spare

DISK ID

Disk50000

Disk50100

Disk50200

Disk50300

Disk50400

Disk60000

Disk60100

Disk60200

Disk60300

Disk60400

16 Compaq StorageWorks Model 4300 Family Ultra3 LVD Disk Enclosure

■ Unit D101 is a 2-member str iped mirrorset named S1. S1 con si sts of M1 and M2:
❏ M1 is a 2-member mirrorset cons is ting of Disk10100 and Disk20100.
❏ M2 is a 2-member mirrorset cons is ting of Disk30100 and Disk40100.

■ Unit D102 is a 2-member mirrorset na me d M3. M3 con si sts of Disk10200 and

Disk20200.

■ Unit D103 is a 2-member mirrorset na me d M4. M4 con si sts of Disk30200 and

Disk40200.

■ Unit D104 is 3-member stri peset n amed S2. S2 consi sts of Dis k10300, Disk20 300, and

Disk30300.

■ Unit D105 is a single (JBOD) disk named Disk40300.

■ Unit D106 is a 3-member RAID 3/5 storageset named R2. R2 consists of Disk10400,

Disk20400, and Disk30400.

■ Unit D107 is a single (JBOD) disk named Disk40400.

■ Unit D108 is a 4-member stripeset named S3. S3 consists of Disk10500, Disk20500,

Disk30500, and Disk40500.

■ Unit D1 is a 2-member striped mirro rset named S4. S4 consists of M4 and M5:
❏ M4 is a 2-member mirrorset cons is ting of Disk10800 and Disk20800.
❏ M5 is a 2-member mirrorset cons is ting of Disk30800 and Disk40800.

■ Unit D2 is a 4-member RAID 3/5 stor ageset named R3. R3 consists of Disk10900,

Disk20900, Disk30900, and Disk40900.

■ Unit D3 is a 4-member stripeset named S5. S5 consists of Disk11000, Disk21000,

Disk31000, and Disk41000.

■ Unit D4 is a 2-member mirrorset named M7. M7 consists of Disk11100 and

Disk21100.

■ Unit D5 is a 2-member stripeset named S6. S6 consists of Disk31100 and Disk41100.

■ Unit D6 is a 4-member RAID 3/5 stor ageset named R4. R4 consists of Disk11200,

Disk21200, Disk31200, and Disk41200.

■ Unit D7 is a 2-member mirrorset named M8. M8 consists of Disk11300 and

Disk21300.

■ Disk31300 and Disk41300 are spareset members.

Addendum for Use with the MA8000/EMA12000 Storage System 17

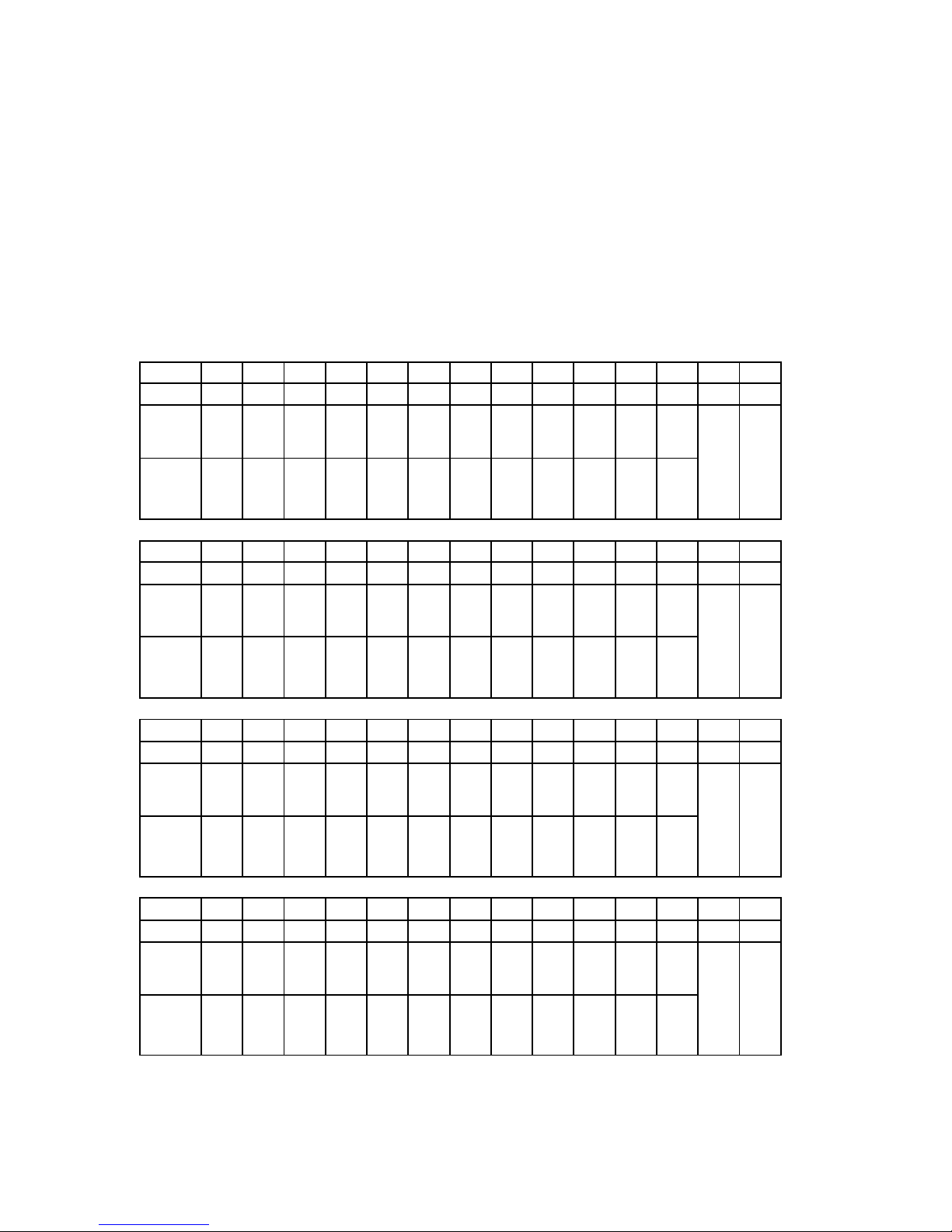

Figure 11. Model 4314R disk enclosure - example storage map

Model 4314R Disk Enclosure Shelf 4 (single-bus)

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 09 10 11 12 13 14 15

D100

R1

D101

S1

M2

D103

M4

D105 D107

D108

S3

D1
S4
M6

D2R3D3S5D5S6D6

R4

spare

not

supported

not

supported

DISK ID

Disk40000

Disk40100

Disk40200

Disk40300

Disk40400

Disk40500

Disk40800

Disk40900

Disk41000

Disk41100

Disk41200

Disk41300

Model 4314R Disk Enclosure Shelf 1 (single-bus)

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 09 10 11 12 13 14 15

D100

R1

D101

S1

M1

D102M3D104S2D106R2D108

S3

D1
S4
M5

D2R3D3S5D4M7D6R4D7

M8

not

supported

not

supported

DISK ID

Disk10000

Disk10100

Disk10200

Disk10300

Disk10400

Disk10500

Disk10800

Disk10900

Disk11000

Disk11100

Disk11200

Disk11300

Model 4314R Disk Enclosure Shelf 2 (single-bus)

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 09 10 11 12 13 14 15

D100

R1

D101

S1

M1

D102M3D104S2D106R2D108

S3

D1
S4
M5

D2R3D3S5D4M7D6R4D7

M8

not

supported

not

supported

DISK ID

Disk20000

Disk20100

Disk20200

Disk20300

Disk20400

Disk20500

Disk20800

Disk20900

Disk21000

Disk21100

Disk21200

Disk21300

Model 4314R Disk Enclosure Shelf 3 (single-bus)

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 09 10 11 12 13 14 15

D100

R1

D101

S1

M2

D103M4D104S2D106R2D108

S3

D1
S4
M6

D2R3D3S5D5S6D6

R4

spare

not

supported

not

supported

DISK ID

Disk30000

Disk30100

Disk30200

Disk30300

Disk30400

Disk30500

Disk30800

Disk30900

Disk31000

Disk31100

Disk31200

Disk31300

18 Compaq StorageWorks Model 4300 Family Ultra3 LVD Disk Enclosure

Example Storage Map - Model 4354R Disk Enclosure

Figure 12 shows an example of three Model 4354R disk enclosur es (dual-bus).

■ Unit D100 is a 6-member RAID 3/5 storageset named R1. R1 consists of Disk10000,

Disk20000, Disk30000, Disk 40000, Disk50000, and Disk60000.

■ Unit D101is a 6-member RAID 3/5 stora ges et named R2. R2 consists of Dis k10100,

Disk20100, Disk30100, Disk 40100, Disk50100, and Disk60100.

■ Unit D102 is a 2-member str iped mirrorset named S1. S1 con si sts of M1 and M2:
❏ M1 is a 2-member mirrorset cons is ting of Disk10200 and Disk20200.
❏ M2 is a 2-member mirrorset cons is ting of Disk30200 and Disk40200.

■ Unit D103 is a 2-member mirrorset na me d M3. M3 con si sts of Disk50200 and

Disk60200.

■ Unit D104 is a 2-member str iped mirrorset named S2. S2 con si sts of M3 and M4:
❏ M3 is a 2-member mirrorset cons is ting of Disk10300 and Disk20300.
❏ M4 is a 2-member mirrorset cons is ting of Disk30300 and Disk40300.

■ Unit D105 is a 2-member str ipeset named S3. S3 consists of Disk50300 and

Disk60300.

■ Unit D1 is 4-member strip es et named S4. S4 consists of Dis k10400, Disk20400,

Disk30400, and Disk40400.

■ Unit D2 is a 2-member mirrorset named M5. M5 consists of Disk50400 and

Disk60400.

■ Unit D3 is a 2-member striped mirro rset named S5. S5 consists of M6 and M7:
❏ M6 is a 3-member mirrorset consisting of Disk10500, Disk20500, and Disk30500.
❏ M7 is a 2-member mirrorset cons is ting of Disk40500 and Disk50500.

■ Unit D4 is a single (JBOD) disk named Disk60500.

■ Unit D5 is a 4-member RAID 3/5 stor ageset named R3. R3 consists of Disk10800,

Disk20800, Disk30800, Disk and 40800.

■ Disk50800 and Disk60800 are spareset members.

Addendum for Use with the MA8000/EMA12000 Storage System 19

Figure 12. Model 4354R disk enclosure - example storage map

Model 4354R Disk Enclosure Shelf 1 (dual-bus)

SCSI Bus A SCSI Bus B

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 00 01 02 03 04 05 08

D100R1D101

R2

D102

S1

M1

D104

S2

M3

D1
S4

D3
S5

M6

D5R3D100R1D101

R2

D102

S1
M1

D104

S2
M3

D1
S4

D3
S5

M6

D5
R3

DISK ID

Disk10000

Disk10100

Disk10200

Disk10300

Disk10400

Disk10500

Disk10800

Disk20000

Disk20100

Disk20200

Disk20300

Disk20400

Disk20500

Disk20800

Model 4354R Disk Enclosure Shelf 2 (dual-bus)

SCSI Bus A SCSI Bus B

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 00 01 02 03 04 05 08

D100R1D101

R2

D102

S1

M2

D104

S2

M4

D1
S4

D3

S5

M6

D5R3D100R1D101

R2

D102

S1
M2

D104

S2
M4

D1
S4

D3

S5

M7

D5
R3

DISK ID

Disk30000

Disk30100

Disk30200

Disk30300

Disk30400

Disk30500

Disk30800

Disk40000

Disk40100

Disk40200

Disk40300

Disk40400

Disk40500

Disk40800

Model 4354R Disk Enclosure Shelf 3 (dual-bus)

SCSI Bus A SCSI Bus B

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 00 01 02 03 04 05 08

D100R1D101R2D103M3D105S3D2

M5

D3

S5M7spare

D100R1D112R2D103M3D105S3D2

M5

D4 spare

DISK ID

Disk50000

Disk50100

Disk50200

Disk50300

Disk50400

Disk50500

Disk50800

Disk60000

Disk60100

Disk60200

Disk60300

Disk60400

Disk60500

Disk60800

20 Compaq StorageWorks Model 4300 Family Ultra3 LVD Disk Enclosure

Subsystem Enclosure Templates

The following are storage map te mp lates you can use to help keep track of the loc ation of
devices and storagesets in your shelves.

■ Storage Map Template for Model 4350R Disk Enclosure s

NOTE: The storage map templates for the Model 4310R and Model 4214R or 4314R reflect the
disk enclosures physical location in the rack. Disk enclosures 6, 5, and 4 are stacked above the
controller enclosure and disk enclosures 1, 2, and 3 are stacked below the controller enclosure.

■

Storage Map Template for Model 4310R Disk Enclosure s

■ Storage Map Template for Model 4214R or 4314R Disk Enclosures

■ Storage Map Template for Model 4254 or 4354R Disk Enclosures

Addendum for Use with the MA8000/EMA12000 Storage System 21

Storage Map Template for Model 4350R Disk Enclosures

Model 4350R Disk Enclosure Shelf 1 (dual-bus)

SCSI Bus A SCSI Bus B

Bay 12345678910

SCSI ID 00 01 02 03 04 00 01 02 03 04

DISK ID

Disk10000

Disk10100

Disk10200

Disk10300

Disk10400

Disk20000

Disk20100

Disk20200

Disk20300

Disk20400

Model 4350R Disk Enclosure Shelf 2 (dual-bus)

SCSI Bus A SCSI Bus B

Bay 12345678910

SCSI ID 00 01 02 03 04 00 01 02 03 04

DISK ID

Disk30000

Disk30100

Disk30200

Disk30300

Disk30400

Disk40000

Disk40100

Disk40200

Disk40300

Disk40400

Model 4350R Disk Enclosure Shelf 3 (dual-bus)

SCSI Bus A SCSI Bus B

Bay 12345678910

SCSI ID 00 01 02 03 04 00 01 02 03 04

DISK ID

Disk50000

Disk50100

Disk50200

Disk50300

Disk50400

Disk60000

Disk60100

Disk60200

Disk60300

Disk60400

22 Compaq StorageWorks Model 4300 Family Ultra3 LVD Disk Enclosure

Storage Map Template for Model 4310R Disk Enclosures

continued on the following page

Model 4310R Disk Enclosure Shelf 6 (single-bus)

Bay12345678910

SCSI ID 00 01 02 03 04 05 08 10 11 12

DISK ID

Disk60000

Disk60100

Disk60200

Disk60300

Disk60400

Disk60500

Disk60800

Disk61000

Disk61100

Disk61200

Model 4310R Disk Enclosure Shelf 5 (single-bus)

Bay12345678910

SCSI ID 00 01 02 03 04 05 08 10 11 12

DISK ID

Disk50000

Disk50100

Disk50200

Disk50300

Disk50400

Disk50500

Disk50800

Disk51000

Disk51100

Disk51200

Model 4310R Disk Enclosure Shelf 4 (single-bus)

Bay12345678910

SCSI ID 00 01 02 03 04 05 08 10 11 12

DISK ID

Disk40000

Disk40100

Disk40200

Disk40300

Disk40400

Disk40500

Disk40800

Disk41000

Disk41100

Disk41200

Addendum for Use with the MA8000/EMA12000 Storage System 23

continued from previous page

Model 4310R Disk Enclosure Shelf 1 (single-bus)

Bay12345678910

SCSI ID 00 01 02 03 04 05 08 10 11 12

DISK ID

Disk10000

Disk10100

Disk10200

Disk10300

Disk10400

Disk10500

Disk10800

Disk11000

Disk11100

Disk11200

Model 4310R Disk Enclosure Shelf 2 (single-bus)

Bay12345678910

SCSI ID 00 01 02 03 04 05 08 10 11 12

DISK ID

Disk20000

Disk20100

Disk20200

Disk20300

Disk20400

Disk20500

Disk20800

Disk21000

Disk21100

Disk21200

Model 4310R Disk Enclosure Shelf 3 (single-bus)

Bay12345678910

SCSI ID 00 01 02 03 04 05 08 10 11 12

DISK ID

Disk30000

Disk30100

Disk30200

Disk30300

Disk30400

Disk30500

Disk30800

Disk31000

Disk31100

Disk31200

24 Compaq StorageWorks Model 4300 Family Ultra3 LVD Disk Enclosure

Storage Map Template for Model 4214R or 4314R Disk
Enclosures

continued on the following page

Model 4314R Disk Enclosure Shelf 6 (single-bus)

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 09 10 11 12 13 14 15

DISK ID

Disk60000

Disk60100

Disk60200

Disk60300

Disk60400

Disk60500

Disk60800

Disk60900

Disk61000

Disk61100

Disk61200

Disk61300

not

supported

not

supported

Model 4314R Disk Enclosure Shelf 5 (single-bus)

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 09 10 11 12 13 14 15

DISK ID

Disk50000

Disk50100

Disk50200

Disk50300

Disk50400

Disk50500

Disk50800

Disk50900

Disk51000

Disk51100

Disk51200

Disk51300

not

supported

not

supported

Model 4314R Disk Enclosure Shelf 4 (single-bus)

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 09 10 11 12 13 14 15

DISK ID

Disk10000

Disk10100

Disk10200

Disk10300

Disk10400

Disk10500

Disk10800

Disk10900

Disk11000

Disk11100

Disk11200

Disk11300

not

supported

not

supported

Addendum for Use with the MA8000/EMA12000 Storage System 25

continued from the previous page

Model 4314R Disk Enclosure Shelf 1 (single-bus)

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 09 10 11 12 13 14 15

DISK ID

Disk10000

Disk10100

Disk10200

Disk10300

Disk10400

Disk10500

Disk10800

Disk10900

Disk11000

Disk11100

Disk11200

Disk11300

not

supported

not

supported

Model 4314R Disk Enclosure Shelf 2 (single-bus)

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 09 10 11 12 13 14 15

DISK ID

Disk20000

Disk20100

Disk20200

Disk20300

Disk20400

Disk20500

Disk20800

Disk20900

Disk21000

Disk21100

Disk21200

Disk21300

not

supported

not

supported

Model 4314R Disk Enclosure Shelf 3 (single-bus)

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 09 10 11 12 13 14 15

DISK ID

Disk30000

Disk30100

Disk30200

Disk30300

Disk30400

Disk30500

Disk30800

Disk30900

Disk31000

Disk31100

Disk31200

Disk31300

not

supported

not

supported

26 Compaq StorageWorks Model 4300 Family Ultra3 LVD Disk Enclosure

Storage Map Template for Model 4254 or 4354R Disk
Enclosures

Model 4354R Disk Enclosure Shelf 1 (dual-bus)

SCSI Bus A SCSI Bus B

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 00 01 02 03 04 05 08

DISK ID

Disk10000

Disk10100

Disk10200

Disk10300

Disk10400

Disk10500

Disk10800

Disk20000

Disk20100

Disk20200

Disk20300

Disk20400

Disk20500

Disk20800

Model 4354R Disk Enclosure Shelf 2 (dual-bus)

SCSI Bus A SCSI Bus B

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 00 01 02 03 04 05 08

DISK ID

Disk30000

Disk30100

Disk30200

Disk30300

Disk30400

Disk30500

Disk30800

Disk40000

Disk40100

Disk40200

Disk40300

Disk40400

Disk40500

Disk40800

Model 4354R Disk Enclosure Shelf 3 (dual-bus)

SCSI Bus A SCSI Bus B

Bay 1234567891011121314

SCSI ID 00 01 02 03 04 05 08 00 01 02 03 04 05 08

DISK ID

Disk50000

Disk50100

Disk50200

Disk50300

Disk50400

Disk50500

Disk50800

Disk60000

Disk60100

Disk60200

Disk60300

Disk60400

Disk60500

Disk60800
