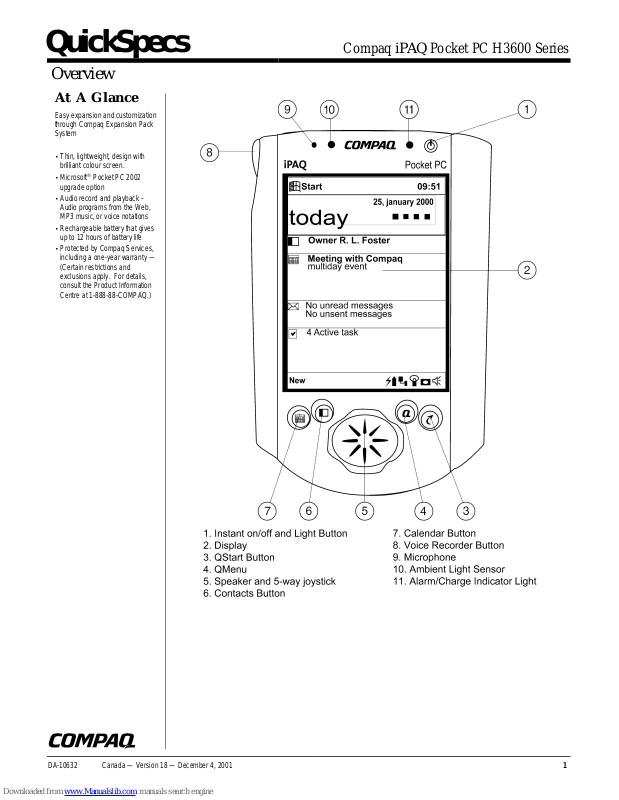

QuickSpecs
Overview
At A Glance
Easy expansion and customization
through Compaq Expansion Pack
System
•
Thin, lightw eight, design with
brilliant colour screen.
•
Microsoft Pocket PC 2002
upgrade option
•
Audio record and playback –
Audio programs from the Web,
MP3 music, or voice notations
•
Rechargeable battery that gives
up to 12 hours of battery life
•
Protected by Compaq Services,
including a o ne-year warrant y —
(Certain res trictions an d
exclusions apply. For det ails,
consult the Product Inform ation
Centre at 1-88 8-88-COMPAQ.)
Compaq iPAQ Pocket PC H3600 Series
DA-10632 Canada — Version 18 — December 4, 2001
1
QuickSpecs
Standard Features
Models
Compaq iPAQ Pocket PC H3670 with 64 MB of SDRAM
222527-001 English
222527-121 French (with AZERTY virtual on-screen keyboard)
Compaq iPAQ Pocket PC H3650
170294-001 English
170294-121 French (with AZERTY virtual on-screen keyboard)
Compaq iPAQ Pocket PC H3635 with CF Card Expansion Pack and Expansion Jacket
170294-004 Retail (English only at this time) Includes Peacemaker Pro and Zio Golf software
Processor
Memory
Interfaces
Navigator Button 1 Five-way joystick
Side Panel Recorder Button 1
Bottom Panel Reset Switch 1
Stylus Eject Button 1
Communications Port includes serial port
Infrared Port 1 (115 Kbps)
Speaker 1
Light Sensor 1
Microphone 1
Communications Port 1 (with USB/Serial connectivity)
Stereo Audio Output Jack 1 (standard 3.5 mm)
Cradle Inter faces
Display Colour (4096 colours (12 bit) touch-sensitive reflective thin film transistor (TFT) liquid crystal display (LCD)
Power Supply 950 mAh Lithium Polymer, rechargeable in docking cradle or with AC Adapter
Note: Battery life will vary based on an estimated typical use pattern of an average user, the configuration of the
Audio Capabilities
206-MHz Intel StrongARM SA-1110 32-bit RISC Processor
64-MB or 32-MB SDRAM depending on model, 16-MB Flash ROM Memory
Front Panel Buttons 5 buttons plus five-way joystick; (1 on/off and backlight button
Connector 1
Cable 1 USB or Serial cable connects to PC - optional
DC Jack connector for AC Adapter 1
Stylus Holder 2 holes on left and right front
Stabilizing Arm Release Button 1 Arms engage sides of Pocket PC when no Expansion Pack is
Cradle USB Cradle Included
computer and the usage pattern of the individual user. Use of some attachments may significantly decrease
battery life.
Audio record and playback (play MP3 music or audio programs from the Web)
One-touch instant-record button
Bundled AudiblePlayer on Compaq CD
Integrated speaker, stereo headphone jack
Integrated microphone
Compaq iPAQ Pocket PC H3600 Series
and (2-5) customizable application buttons)
in use
DA-10632 Canada — Version 18 — December 4, 2001
2
QuickSpecs
Standard Features
Compaq iPAQ Pocket PC H3600 Series
Ergonomic Design Features
Compaq Software Bundle
Operating System Windows
Service and Support One year limited warranty, with optional Next Business Day replacement CarePaq in North America
Instant-on/off and backlight
5-way joystick
Touch-sensitive display for stylus or fingertip
5 customizable application launch buttons – Calendar, Contacts, QStart, Qmenu, and Recorder buttons, which can
all be customized.
4 alarm settings
Speaker on front-side of unit
These are all apps in the OS, not part of “Compaq Software Bundle”
Powered by Microsoft Windows for Pocket PC and Microsoft ActiveSync
Calendar, Contacts, Pocket Excel, Pocket Word
Tasks, Voice Recorder, Notes, Pocket Internet Explorer
Calculator, Solitaire
Inbox, File Explorer
These are the extras that Compaq put in ROM
QMenu, Asset Viewer, Qstart
QUtility Picture Viewer, Contacts Backup
These are the extras on the Compaq CD-ROM
Pocket Asset Manager, Reference Guide (pdf format) and Virtual Tour
AudiblePlayer and AudibleManager
Ilium eWallet and ListPro
These are on the Microsoft CD-ROM
ActiveSync 3.1, Microsoft Outlook
Pocket Streets, Transcriber, Microsoft Money, Windows Media Manager,
Microsoft Reader eBooks, Internet Explorer 5.0
Note: Some software may not be available in French on the French product.
Powered Pocket PC
(Certain restrictions and exclusions apply. For details, consult the Product Information Centre at 1-888-88COMPAQ.)
®
2000,
®
3.1
DA-10632 Canada — Version 18 — December 4, 2001
3
QuickSpecs
Options
Compaq iPAQ Pocket PC H3600 Series
Operating System
Expansion Packs
Style Packs
Memory/Sto rage
Note: CF Expansion Pack required.
Power
Synchronization
USB Autosync Cable
Serial Autosync Cable
Communications
Cases
Sport Case, Moss
Sport Case, Marine
Sport Case, Sunshine
Sport Case, Black
Other
Microsoft
Note: Please visit: http://www.compaqordercenter.com/ipaq2002upgrade
CF Card Expansion Pack
PC Card Expansion Pack
Dual-Slot PC Card Expansion Pack
GSM/GPRS Wireless Data and Voice Pack
Bluetooth Wireless Pack with CF Card Slot
Cover Pack
Colour Style Pack with styli (Emerald Green, Sapphire Blue, Ruby Red)
Colour Style Pack with styli (Amethyst Purple, Amber Orange, and Smoky Quartz)
CompactFlash (CF) 32-MB Memory Card
CompactFlash (CF) 64-MB Memory Card
AC Adapter
Auto Adapter
Serial Cradle
USB Cradle
WL110 Wireless PC Card (requires PC Card Expansion Pack)
56K V.90 CompactFlash Fax Modem (requires CF Card Expansion Pack)
RS-232 Serial Cable
Executive Leather Case
Expandable Case
3-Stylus Replacement Kit
Targus Stowaway Portable Keyboard for Compaq iPAQ Pocket PCs (English)
Pocket PC 2002 Upgrade
for available upgrades.
170339-B21
170338-B21
216198-B21
219936-B21
232568-B21
249707-B21
224254-B21
224255-B21
104703-004
104703-003
402143-001
180743-B21
176482-B21
176481-B21
191007-B21
191008-B21
191808-B21
148908-001
236251-B21
170340-B21
217883-B21
227256-B21
227255-B21
227257-B21
170341-B21
176184-B21
227262-B21
DA-10632 Canada — Version 18 — December 4, 2001
4
QuickSpecs
Technical Specifications
Compaq iPAQ Pocket PC H3600 Series
System Unit
TFT Colour Display
Rechargeable Battery
AC Adapter
Dimensions (HxWxD) 5.11 x 3.28 x 0.62 in/12.99 x 8.33 x 1.57 cm
130 x 83.5 tapering to 77.5 x 15.9 mm
Weight 0.393 lb/0.178 kg (including battery)
Operating Temperature 32° to 104°F/0° to 40°C
Operating Humidity 20% to 90%
Regulatory Marks Electrical FCC Class B, VCCI, CE, C-Tick,
Safety CE Marking, C-UL, NOM
RAM 32 MB H3650 / 64 MB H3670
ROM (Flash) 16 MB
Number of Colours 4096
Resolution (WxH) 240 x 320
Dot Pitch 0.24 mm
Viewable Image (WxH) 2.26 x 3.02 in (3.77 in diagonal)/57.6 x 76.82 cm (96 mm diagonal)
Display Type Colour (4096 colours (12 bit) reflective thin film transistor (TFT) liqu id crystal display
(LCD)
Battery Life 32 MB up to 12 hours, 950 mAh Lithium Polymer rechargeable battery
64 MB up to 10 hours, 950 mAh Lithium Polymer rechargeable battery
Dimensions (HxWxD) 2.86 x 1.86 x 1.83 in/7.26 x 4.72 x 4.63 cm
Cord Length (approximate) 6 ft/1.83 m
Power Supply Ratings Voltage Range 100 to 240 V Switching
Input Current 0.3 A
Input Frequency 50 to 60 Hz
Output Voltage 5 VDC
Output Current 2 Amp
Compaq PCs use genuine Microsoft
www.microsoft.com/piracy/howtotell
©2001 Compaq Canada Corporation. All rights reserved. Compaq is a trademark of Compaq Computer Corporation.
Microsoft and Windows are trademarks of Microsoft Corporation in the U.S. and other countries. The information in this
publication is subject to change without notice. Printed in Canada.
Windows
DA-10632 Canada — Version 18 — December 4, 2001
5
