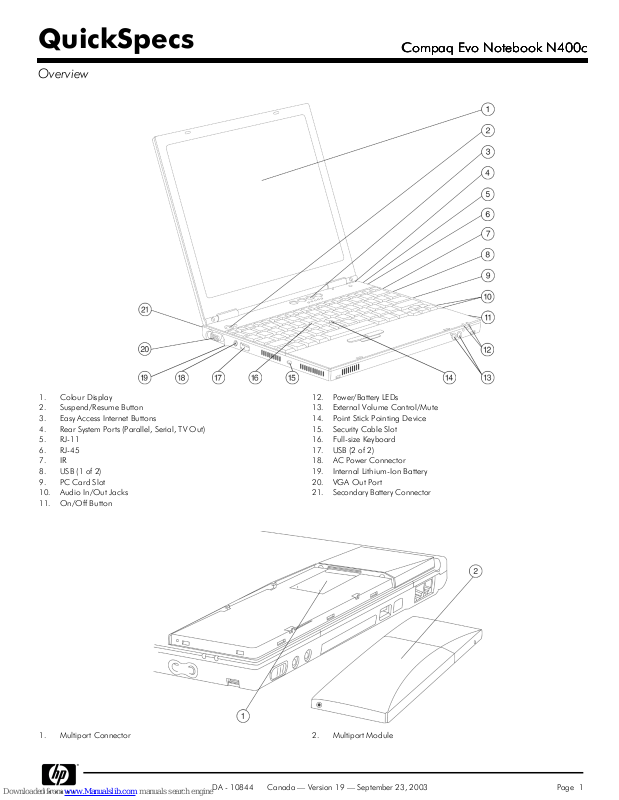

1.
Colour Display
12.
Power/Battery LEDs
2.
Suspend/Resume Button
13.
External Volume Control/Mute
3.
Easy Access Internet Buttons
14.
Point Stick Pointing Device
4.
Rear System Ports (Parallel, Serial, TV Out)
15.
Security Cable Slot
5.
RJ-11
16.
Full-size Keyboard
6.
RJ-45
17.
USB (2 of 2)
7.
IR
18.
AC Power Connector
8.
USB (1 of 2)
19.
Internal Lithium-Ion Battery
9.
PC Card Slot
20.
VGA Out Port
10.
Audio In/Out Jacks
21.
Secondary Battery Connector
11.
On/Off Button
1.
Multiport Connector
2.
Multiport Module
QuickSpecs
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Overview
DA - 10844 Canada — Version 19 — September 23, 2003
Page 1
What's New
What's NewWhat's New
What's New
Mobile Intel® Pentium® III 850 MHz processor with SpeedStep™ technology
At A Glance
At A GlanceAt A Glance
At A Glance
Weighs only 3.5 lb/1.59 kg
Less than 1 in/2.3 cm thin
12.1-inch XGA TFT display
128-MB SDRAM upgradeable to 512 MB
20-GB User removable SMART hard drive
Integrated mini PCI 56K V.90 modem plus 10/100 NIC
Complete set of system ports
Microsoft® Windows® XP Professional Edition/Microsoft Windows 2000 (dual install)
Protected by a Three-year, Worldwide Limited Warranty — Certain restrictions and exclusions apply. For details, consult the Product Information
Centre at 1-888-882-6672.
What's Special
What's SpecialWhat's Special
What's Special
Ultra-light weight – 3.5 lb/1.59 kg
Innovative MultiPort
Full sized keyboard
Support for up to four batteries*
Optional Mobile Expansion Unit providing Multimedia, storage and enhanced security features
Magnesium display enclosure
Compatible with current Compaq enterprise docking solutions
Industry leading PC lifecycle solutions
NOTE:
NOTE: NOTE:
NOTE:
* = Requires optional MEU.
QuickSpecs
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Overview
DA - 10844 Canada — Version 19 — September 23, 2003
Page 2
Processor and Panel
Processor and PanelProcessor and Panel
Processor and Panel
850 MHz Mobile Intel Pentium III processor with SpeedStep technology with 256-KB L2 cache
12.1-inch TFT XGA display with 1024x768 resolution up to 16.7M colours
Memory
MemoryMemory
Memory
Standard
128-MB SDRAM
Maximum
512-MB SDRAM (with two slots)
NOTE:
NOTE: NOTE:
NOTE:
Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only
Compaq branded memory modules to ensure compatibility.
NOTE:
NOTE: NOTE:
NOTE:
256-MB and 512-MB 133-MHz memory are not compatible with the Evo Notebook N400c.
Communications
CommunicationsCommunications
Communications
Type III Mini PCI 56K (V.90) modem plus 10/100 NIC Combo
NOTE:
NOTE: NOTE:
NOTE:
Designed only to allow faster downloads from V.90 compliant sources. Maximum achievable download
transmission rates currently do not reach 56 KB/s, and will vary with line conditions.
NOTE:
NOTE: NOTE:
NOTE:
Communication availability is subject to country regulatory approval.
Keyboard
KeyboardKeyboard
Keyboard
Full size desktop compatible keyboard, special feature hotkeys for instant access to power conservation,
QuickLock/QuickBlank (ex: FN+F6), toggle between internal and external, or simultaneous displays, battery gauge,
MultiPort on/off, speaker volume control, and brightness
Easy Access Internet
Easy Access InternetEasy Access Internet
Easy Access Internet
Buttons
ButtonsButtons
Buttons
The Evo Notebook N400c comes with four Easy Access Buttons designed to increase customer productivity by providing
one-touch access to helpful Compaq information, favorite Internet destinations, files, or applications.
Pointing Device
Pointing DevicePointing Device
Pointing Device
Pointstick
PC Card Slots
PC Card SlotsPC Card Slots
PC Card Slots
One Type II PC Card Slot that supports both 32-bit CardBus
(Full support in Microsoft Windows 9.x and Windows 2000)
and 16-bit PCMCIA Cards
Storage
StorageStorage
Storage
Diskette Drives
Optional Floppy Drive*
Optional SuperDisk 2X LS –120 Drive*
Optical Drives
DVD/CD-RW Combo Drive*
CD-RW Drive*
DVD-ROM Drive*
CD-ROM Drive*
Hard Drive
20-GB SMART
NOTE:
NOTE: NOTE:
NOTE:
* = Requires optional Mobile Expansion Unit (MEU).
QuickSpecs
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Standard Features
DA - 10844 Canada — Version 19 — September 23, 2003
Page 3
Multimedia
MultimediaMultimedia
Multimedia
Compaq Premier·Sound for enhanced stereo audio (with optional MEU)
Integrated 16-bit Sound Blaster Pro-compatible stereo audio
Integrated speaker and microphone
External volume controls
Headphone-out
Microphone in
Software MPEG1 support
DVD movie playback software
DVD-ROM Drive with DVD movie playback*
DVD/CD-RW Combo Drive*
CD-ROM Drive*
2X AGP Graphics
8-MB SDRAM
NOTE:
NOTE: NOTE:
NOTE:
* = Requires optional Mobile Expansion Unit (MEU).
Interfaces
InterfacesInterfaces
Interfaces
MultiPort
1
PC Card
One Type II
Enhanced Parallel EPP/ECP
1
Serial Port
1
External Monitor
1
TV-out
1
Headphone/Line-out
1
Microphone in
1
AC Power
1
RJ-11 (modem)
1 (Model dependent)
RJ-45 (NIC)
1 (Model dependent)
Infrared Port
1 (4 Mb/s support)
(IrDA 4 MB compliant. IR performance will vary depending on performance of IR
peripherals and application used.)
USB Port
2
LED status indicators
7
Graphics
GraphicsGraphics
Graphics
ATI Mobility M1 with 8-MB SDRAM
Display
Display Display
Display
(External)
Up to 32-bit per pixel colour depth
Supports 640 x 480, 800 x 600, 1024 x 768, 1152 x 864, 1280 x 1024, or 1600 x 1200 resolutions up to 100-Hz refresh
rate, dependent upon monitor capability, and resolution and colour depth settings
Display
DisplayDisplay
Display
(Internal)
12.1-inch TFT XGA display with 1024 x 768 resolution up to 16.7M colours
Operating System
Operating SystemOperating System
Operating System
One of the following
Dual installation of Microsoft Windows XP Professional Edition and Microsoft Windows 2000
Microsoft Windows 2000 preinstalled/Microsoft Windows NT 4.0 on Quick Restore CD
Microsoft Windows 98 SE preinstalled
QuickSpecs
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Standard Features
DA - 10844 Canada — Version 19 — September 23, 2003
Page 4
Software
SoftwareSoftware
Software
Compaq Insight Management Agents
Diagnostics for Microsoft Windows
DVD Playback Software (with optional MEU)
Altiris eXpress™ Client
Compaq Power Management
Compaq Security Management
Safety and Comfort Guide
Acrobat Reader
Reference Guide
System Recovery
System RecoverySystem Recovery
System Recovery
Each unit is shipped with a CD kit for quick recovery (erases hard disk and restores manufacturer installed image) and
software recovery (installs only selected standard software).
Intelligent Manageability
Intelligent ManageabilityIntelligent Manageability
Intelligent Manageability
Compaq Intelligent Manageability, a key component of PC Lifecycle Solutions, is the broad set of manageability features
found on Compaq Deskpro EN desktops, Armada notebooks, Evo Clients, Professional Workstations, iPAQ Deskside and
ProLiant server products. These best-in-class features on PC clients comply with industry standards, such as DMI and Wired
for Management, while pioneering new ground in client manageability. Compaq introduced the industry's first line of
manageable clients in 1995 and has been driving the industry ever since. With Compaq's lifecycle management
philosophy, enterprises have all of the pieces for end-to-end management and proven tools for hassle-free management of
PCs. The combination of these tools will significantly lower the Total Cost of Ownership of managing the computing
environment. Intelligent Manageability offers solutions in the areas of Initial Configuration and Deployment, Asset
Tracking and Security, Software Updating and Management, and Fault Notification and Recovery. For more information,
visit these Compaq websites:
http://www.compaq.com/im; http://www.compaq.com/easydeploy
;
http://www.compaq.com/solutions/pcsolutions NOTE:
NOTE: NOTE:
NOTE:
These Web sites are available in English only.
Security
SecuritySecurity
Security
Configuration Control Hardware
Memory Change Alert
Ownership Tag
Setup Password
Power-On Password
DriveLock
Enabled for PC SmartCard options
Power Supply
Power SupplyPower Supply
Power Supply
External AC Adapter (only 0.39 lb/0.18 kg, 6-foot/1.8 metre) power cord included. Total length including External AC
adapter is 12 feet/3.66 metre
Battery
BatteryBattery
Battery
The Evo Notebook N400c 4-cell internal main Lithium-Ion battery provides over two hours of battery life; over four hours
achieved using optional external battery.
NOTE:
NOTE: NOTE:
NOTE:
Actual results may vary with product model, configuration, and individual usage. Compaq results of 2:31 (hr:min)
were achieved running the eTesting Labs Inc.'s BatteryMark™ Test version 4.0.1 on an N400c with an Intel Pentium III 700
MHz CPU, 12.1-inch XGA panel, 128-MB RAM, 20-GB HDD, 4-cell Lithium-Ion battery, and combination NIC/modem.
System parameters were set according to Ziff Davis recommendations: panel brightness 50%, hard drive standby and video
idle time three minutes, and Intel SpeedStep battery optimized mode.
NOTE:
NOTE: NOTE:
NOTE:
Actual results may vary with product model, configuration, and individual usage. Compaq results of 2:16 (hr:min)
were achieved running the eTesting Labs Inc.'s BatteryMark Test version 4.0.1 on an N400c with an Intel Pentium III 850
MHz CPU, 12.1-inch XGA panel, 128-MB RAM, 20-GB HDD, 4-cell Lithium-Ion battery, and combination NIC/modem.
System parameters were set according to Ziff Davis recommendations: panel brightness 50%, hard drive standby and video
idle time 3 minutes, Intel SpeedStep battery optimized mode and battery conservation mode set to high.
NOTE:
NOTE: NOTE:
NOTE:
These tests were performed without independent verification by eTesting Labs Inc. eTesting Labs Inc. makes no
representations or warranties as to the result of the test. BatteryMark is a trademark of Ziff Davis Publishing Holdings Inc.
and affiliate of eTesting Labs Inc. in the U.S. and other countries.
QuickSpecs
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Standard Features
DA - 10844 Canada — Version 19 — September 23, 2003
Page 5
Power Conservation
Power ConservationPower Conservation
Power Conservation
Intel SpeedStep technology (allows a Battery Optimized Mode where CPU draws 50% of normal power yet affords 70 to 80%
of maximum PIII processing speed)
Hibernation
Instant-on via Standby
Pop-ups with three presets
One custom level of power conservation
ACPI compliant
MultiBay Devices
MultiBay DevicesMultiBay Devices
MultiBay Devices
(with optional MEU)
MultiBay devices may be swapped with the system powered on (hot) or in suspend mode (warm) under Microsoft Windows
98 SE or Windows 2000 (except MultiBay Zip drive or MultiBay secondary hard drive).
MultiBay devices can be swapped with system power off under any supported operating system.
NOTE:
NOTE: NOTE:
NOTE:
Microsoft Windows NT 4.0 does not support hot swapping of the CD-RW drive.
MultiPort
MultiPortMultiPort
MultiPort
Integrated MultiPort expands functionality via user removable MultiPort Modules. MultiPort modules can provide integrated
wireless communications and enhanced security features. MultiPort modules can be hot swapped with the system powered
on (hot) or in suspend mode (warm) under any supported operating system. The MultiPort interface is based on the USB 1.1
Standard Specification
NOTE:
NOTE: NOTE:
NOTE:
Microsoft Windows NT does not support USB technology.
Service and Support
Service and SupportService and Support
Service and Support
Compaq Services includes a Three-year, Worldwide Limited Warranty, pick-up or carry-in, toll-free 7 x 24 hardware
technical phone support. Optional services include upgrade to Three-year Standard Warranty, Onsite Warranty, or
Application and Operating System Support.
NOTE:
NOTE: NOTE:
NOTE:
Certain restrictions and exclusions apply. For details, consult the Product Information Centre at 1-888-882-6672.
http://www.compaq.com/support/warranty_upgrades/product_specific_warranty.html
NOTE:
NOTE: NOTE:
NOTE:
This Web site is available in English only.
Naming Convention
Naming ConventionNaming Convention
Naming Convention
The Etymology of a Model name:
QuickSpecs
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Standard Features
DA - 10844 Canada — Version 19 — September 23, 2003
Page 6
N4CP850X220C25PoL
N4CP850X220C25PoLN4CP850X220C25PoL
N4CP850X220C25PoL
P/N 470026-529/-633
Display
DisplayDisplay
Display
12.1-inch colour TFT XGA
Processor
ProcessorProcessor
Processor
Mobile Intel Pentium III 850 MHz
Cache Memory
Cache MemoryCache Memory
Cache Memory
256-KB, L2 Cache
Memory
MemoryMemory
Memory
Standard
256-MB SDRAM
Maximum
512-MB SDRAM
Optical Drive
Optical DriveOptical Drive
Optical Drive
None
Hard Drive
Hard DriveHard Drive
Hard Drive
20-GB SMART
Modem
ModemModem
Modem
Type III Mini PCI 56K (V.90) modem plus 10/100 NIC Combo
Graphics
GraphicsGraphics
Graphics
ATI Mobility M 8-MB SDRAM
Audio
AudioAudio
Audio
Compaq Premier·Sound
Operating System
Operating SystemOperating System
Operating System
Microsoft Windows XP/Windows 2000
MultiPort
MultiPortMultiPort
MultiPort
Optional wireless modules available
N4CP850X220C12P6L
N4CP850X220C12P6LN4CP850X220C12P6L
N4CP850X220C12P6L
P/N 470022-683/-684
Display
DisplayDisplay
Display
12.1-inch colour TFT XGA
Processor
ProcessorProcessor
Processor
Mobile Intel Pentium III 850 MHz
Cache Memory
Cache MemoryCache Memory
Cache Memory
256-KB, L2 Cache
Memory
MemoryMemory
Memory
Standard
128-MB SDRAM
Maximum
512-MB SDRAM
Optical Drive
Optical DriveOptical Drive
Optical Drive
None
Hard Drive
Hard DriveHard Drive
Hard Drive
20-GB SMART
Modem
ModemModem
Modem
Type III Mini PCI 56K (V.90) modem plus 10/100 NIC Combo
Graphics
GraphicsGraphics
Graphics
ATI Mobility M 8-MB SDRAM
Audio
AudioAudio
Audio
Compaq Premier·Sound
Operating System
Operating SystemOperating System
Operating System
Microsoft Windows 2000/Windows NT 4.0
MultiPort
MultiPortMultiPort
MultiPort
Optional wireless modules available
N4CP850X220C12P8L
N4CP850X220C12P8LN4CP850X220C12P8L
N4CP850X220C12P8L
P/N 470022-682/-649
Display
DisplayDisplay
Display
12.1-inch colour TFT XGA
Processor
ProcessorProcessor
Processor
Mobile Intel Pentium III 850 MHz
Cache Memory
Cache MemoryCache Memory
Cache Memory
256-KB, L2 Cache
Memory
MemoryMemory
Memory
Standard
128-MB SDRAM
Maximum
512-MB SDRAM
Optical Drive
Optical DriveOptical Drive
Optical Drive
None
Hard Drive
Hard DriveHard Drive
Hard Drive
20-GB SMART
Modem
ModemModem
Modem
Type III Mini PCI 56K (V.90) modem plus 10/100 NIC Combo
Graphics
GraphicsGraphics
Graphics
ATI Mobility M 8-MB SDRAM
Audio
AudioAudio
Audio
Compaq Premier·Sound
Operating System
Operating SystemOperating System
Operating System
Microsoft Windows 98SE
MultiPort
MultiPortMultiPort
MultiPort
Optional wireless modules available
QuickSpecs
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Standard Features
DA - 10844 Canada — Version 19 — September 23, 2003
Page 7
Memory
MemoryMemory
Memory
128-MB (133 MHz) Memory Upgrade
197897-B25
64-MB (133 MHz) Memory Upgrade
197896-B25
256-MB (100 MHz) Memory Upgrade
161554-B21
NOTE:
NOTE: NOTE:
NOTE:
Due to the non-industry standard nature of some third-party memory modules, we strongly
recommend using only Compaq branded memory modules to ensure compatibility.
Monitors
MonitorsMonitors
Monitors
TFT8020 Flat Panel Colour 18-inch (carbon)
159244-xxx
TFT5010 Flat Panel Colour 15-inch (carbon)
154486-xxx
P1210 CRT 22-inch (carbon/silver)
230538-001
P910 CRT 19-inch (carbon/silver)
230535-001
S710 CRT 17-inch (carbon)
154499-002
S510 CRT 15-inch (carbon)
168636-002
MultiBay Hard Drives
MultiBay Hard DrivesMultiBay Hard Drives
MultiBay Hard Drives
30-GB SMART Hard Drive
212791-B25
20-GB SMART Hard Drive
212790-B25
MultiBay Storage Devices
MultiBay Storage DevicesMultiBay Storage Devices
MultiBay Storage Devices
DVD/CD-RW Combo Drive
260472-B25
CD-RW Drive
136186-B25
DVD-ROM Drive
138230-B25
CD-ROM Drive
298452-B25
SuperDisk 2X LS –120 Drive
197895-B25
Floppy Drive
226935-B25
Iomega Zip 250 Drive
217387-B25
Other Storage Devices
Other Storage DevicesOther Storage Devices
Other Storage Devices
IBM 1-GB Microdrive (PC card Device)
217390-B25
USB Disk-on-Key – 8 MB
249552-B25
USB Diskette drive
230330-B25
Mobile Expansion Unit
Mobile Expansion UnitMobile Expansion Unit
Mobile Expansion Unit
(MEU)
(MEU)(MEU)
(MEU)
MEU with CD-RW drive and Floppy drive
234281-B25
MEU with 8X DVD-ROM drive and Floppy drive
234280-B25
MEU with 24X Max CD-ROM drive* and Floppy drive
234279-B25
NOTE:
NOTE: NOTE:
NOTE:
* = Data transfer rates will vary from 150 KB/s to 3600 KB/s.
QuickSpecs
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Options
DA - 10844 Canada — Version 19 — September 23, 2003
Page 8
Connectivity
ConnectivityConnectivity
Connectivity
Compaq Type III Mini PCI 56K (V.90) Modem
225640-B31
Compaq Type III Mini PCI 56K (V.90) Modem plus 10/100 NIC Combo
225642-B31
Compaq Type III Mini PCI 56K (V.90) Modem plus 10/100 IPSEC NIC Combo
225638-B31
Compaq M420 56K Global Modem
317900-001
10/100 TX PC Card UTP Controller
335506-B21
100Base TX Ethernet Upgrade
225435-001
1394 PC Card
177593-B25
NOTE:
NOTE: NOTE:
NOTE:
For additional compatible PC Cards, view the Compaq PC Card Solutions List on the
Compaq Web site at:
http://www.compaq.com/support/techpubs/pcmcia/
NOTE:
NOTE: NOTE:
NOTE:
This Web site is available in English only.
NOTE:
NOTE: NOTE:
NOTE:
Designed only to allow faster downloads from V.90 compliant sources. Maximum achievable
download transmission rates currently do not reach 56 KB/s, and will vary with line conditions.
Modem only supports Microsoft Windows 9.x and Windows NT 4.0.
Wireless Connectivity
Wireless ConnectivityWireless Connectivity
Wireless Connectivity
802.11b MultiPort Wireless LAN module
233412-xx1
Bluetooth MultiPort module
228057-B21
Compaq WL110 Wireless LAN PC Card
191808-B21
Compaq WL510 Wireless Enterprise Access Point
216709-001
Compaq WL410 Wireless SMB Access Point
191811-001
Compaq WL310 Home Office Access Point
191813-001
Compaq Range Extender Antenna
230268-B21
Expansion Bases
Expansion BasesExpansion Bases
Expansion Bases
Expansion Base
383500-xx1
Expansion Base with Intel NIC
120266-xx1
Expansion Base Tower Stand
123129-B25
Convenience Base
382500-xx1
Convenience Base with Intel NIC
120971-xx1
Convenience Base Monitor Cover
122931-xx1
Port Replicator EM
382300-xx1
NOTE:
NOTE: NOTE:
NOTE:
The Evo Notebook N400c requires the optional Mobile Expansion Unit (MEU) for docking
with any of the expansion bases listed above.
Power
PowerPower
Power
4-cell primary Lithium-Ion battery (internal)
232593-B25
4-cell secondary Lithium-Ion battery (external)
236309-B25
4-cell secondary Lithium-Ion high capacity travel battery (external)
236310-B25
Common Power Solutions
Common Power SolutionsCommon Power Solutions
Common Power Solutions
MultiBay Battery (6-cells)*
387937-B25
External Battery Charger **
135555-xxx
AC Adapter 65W
265602-001
Auto Power Adapter/Charger
401043-B25
Aircraft Power Adapter
386504-B21
AC Line Cord (3.1 m/10-ft)
217932-xx2
NOTE:
NOTE: NOTE:
NOTE:
* = Use of this option with the Evo Notebook N400c requires the optional Mobile Expansion
Unit (MEU).
NOTE:
NOTE: NOTE:
NOTE:
** = The Universal Battery Charger will charge the N400c external handle batteries. It will
not charge the N400c internal primary battery.
QuickSpecs
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Options
DA - 10844 Canada — Version 19 — September 23, 2003
Page 9
Input Devices
Input DevicesInput Devices
Input Devices
Wireless Keyboard and Mouse
251385-008
External Enhanced III Keyboard (carbon)
118003-008
Compaq 2 Button Mouse (carbon)
103180-B21
USB 2 Button Scroll Mouse (carbon)
195255-B25
External 10-Key Numeric Keypad (carbon)
294317-B21
Security
SecuritySecurity
Security
Biometric PC Card
146805-B25
Security Cable Lock
294316-B21
Compaq Smart Card PC Card Reader
135646-B25
PC Guardian Lock
261680-B21
Useful Accessories
Useful AccessoriesUseful Accessories
Useful Accessories
MP1400 Microportable Projector
174626-xx1
MP1800 Microportable Projector
180226-xx1
MP2800 Microportable Projector
180228-xx1
Multimedia Adapter & Remote Kit (comes with the MP1800)
174963-001
MP1600 Video Adapter
116298-001
MP1600 Lamp replacement kit
118052-001
MP1800/1400 Lamp replacement kit
189789-001
MP2800 Lamp replacement kit
215464-001
Carrying Cases
Carrying CasesCarrying Cases
Carrying Cases
Compaq Ultralight Case (nylon)
167336-B21
Compaq Ultralight Case (leather)
242359-B25
Compaq Plus Case
242360-B25
Compaq Professional Case (nylon)
242361-B25
Compaq Professional Case (leather)
242362-B25
Evo Notebook N400c, Armada M300 and Armada M700 specific
Evo Notebook N400c, Armada M300 and Armada M700 specificEvo Notebook N400c, Armada M300 and Armada M700 specific
Evo Notebook N400c, Armada M300 and Armada M700 specific
Compaq M Series Portfolio Case
167337-B21
QuickSpecs
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Options
DA - 10844 Canada — Version 19 — September 23, 2003
Page 10
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Standard Memory
Standard MemoryStandard Memory
Standard Memory
0-MB of memory on system board,
2 Slots total
1-128-MB DIMM installed in Slot 1
1-Additional open Memory Slot
Memory
MemoryMemory
Memory
Slot 1
Slot 1Slot 1
Slot 1 Slot 2
Slot 2Slot 2
Slot 2
128 MB
128 MB128 MB
128 MB
Empty
EmptyEmpty
Empty
Standard Memory with Optional Memory Upgrades
Standard Memory with Optional Memory UpgradesStandard Memory with Optional Memory Upgrades
Standard Memory with Optional Memory Upgrades
Support for up to 512-MB of SDRAM is available with the installation of optional SDRAM Memory Upgrades.
Up to
Up toUp to
Up to
Slot 1
Slot 1Slot 1
Slot 1 Slot 2
Slot 2Slot 2
Slot 2
128 MB
128 MB128 MB
128 MB 128 MB
128 MB128 MB
128 MB
Empty
EmptyEmpty
Empty
192 MB
192 MB192 MB
192 MB 128 MB
128 MB128 MB
128 MB
64 MB
64 MB64 MB
64 MB
256 MB
256 MB256 MB
256 MB 128 MB
128 MB128 MB
128 MB 128 MB
128 MB128 MB
128 MB
320 MB
320 MB320 MB
320 MB 256 MB
256 MB256 MB
256 MB
64 MB
64 MB64 MB
64 MB
384 MB
384 MB384 MB
384 MB 256 MB
256 MB256 MB
256 MB 128 MB
128 MB128 MB
128 MB
512 MB
512 MB512 MB
512 MB 256 MB
256 MB256 MB
256 MB 256 MB
256 MB256 MB
256 MB
NOTE:
NOTE: NOTE:
NOTE:
This chart does not represent all possible memory configurations. Due to the non industry standard nature of some third-party memory modules, we
strongly recommend using only Compaq branded memory modules to ensure compatibility.
Following are memory options available from Compaq:
256-MB (100-MHz) Memory Upgrade
161554-B21
128-MB (133-MHz) Memory Upgrade
197987-B25
64-MB (133-MHz) Memory Upgrade
197986-B25
NOTE:
NOTE: NOTE:
NOTE:
Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only Compaq branded memory
modules to ensure compatibility.
NOTE:
NOTE: NOTE:
NOTE:
256-MB and 512-MB 133-MHz memory are not compatible with the Evo Notebook N400c.
QuickSpecs
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Memory
DA - 10844 Canada — Version 19 — September 23, 2003
Page 11
1. Hard Drive
2. MultiBay
3. MultiBay
Drive Support
Drive SupportDrive Support
Drive Support
System Drive Support
System Drive SupportSystem Drive Support
System Drive Support
Removable Media
Removable MediaRemovable Media
Removable Media
Quantity Supported
Quantity SupportedQuantity Supported
Quantity Supported
Drive Supported
Drive SupportedDrive Supported
Drive Supported
1.44-MB Diskette Drive
Up to 1
External connects via parallel port
Hard Drives
Hard DrivesHard Drives
Hard Drives
20-GB 4200 rpm SMART Hard Drive
Up to 1
Hard Drive Bay
MEU Drive Support
MEU Drive SupportMEU Drive Support
MEU Drive Support
Removable Media
Removable MediaRemovable Media
Removable Media
Quantity Supported
Quantity SupportedQuantity Supported
Quantity Supported
Drive Bay Supported
Drive Bay SupportedDrive Bay Supported
Drive Bay Supported
1.44-MB Diskette Drive
Up to 1
MultiBay
CD-RW Drive
Up to 2
MultiBay
DVD-ROM Drive
Up to 2
MultiBay
CD-ROM Drive
Up to 2
MultiBay
DVD/CD-RW Combo Drive
Up to 2
MultiBay
Zip 250 Drive
Up to 2
MultiBay
Super Disk 2X LS-120 Drive
Up to 2
MultiBay
Secondary Hard Drives
Secondary Hard DrivesSecondary Hard Drives
Secondary Hard Drives
10-GB SMART Hard Drive
Up to 2
MultiBay
20-GB SMART Hard Drive
Up to 2
MultiBay
30-GB SMART Hard Drive
Up to 2
MultiBay
QuickSpecs
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Storage
DA - 10844 Canada — Version 19 — September 23, 2003
Page 12
System Unit
System UnitSystem Unit
System Unit
Dimensions
Dimensions Dimensions
Dimensions
(HxWxD)
12.1-inch TFT panel display
0.89 x 10.5 x 9.5 in (2.2 x 26.6 x 24.2 cm)
Weight
WeightWeight
Weight
Minimum/Maximum
3.5 lb (1.58 kg)
Stand-Alone Power
Stand-Alone PowerStand-Alone Power
Stand-Alone Power
Requirements
RequirementsRequirements
Requirements
Nominal Operating Voltage
(Li-Ion)
14.8 VDC
Maximum Operating Power
40W
Peak Operating Power
50W
Temperature
TemperatureTemperature
Temperature
Operating
50° to 95°F (10° to 35°C)
Non-operating
–4° to 140°F (–20° to 60°C)
Relative Humidity
Relative HumidityRelative Humidity
Relative Humidity
Operating
10% to 90% relative humidity, non-condensing
Non-operating
5% to 90% relative humidity, 101.6°F (38.7°C) maximum
wet bulb temperature
Shock
ShockShock
Shock
Operating
10 G, 11 ms, half-sine
Non-operating
60 G, 11 ms, half-sine
Vibration
VibrationVibration
Vibration
Operating
0.5 G, 10 to 500 Hz, 0.5 Oct/Min sweep rate
Non-operating
1.0 G, 10 to 500 Hz, 0.5 Oct/Min sweep rate
Maximum Altitude
Maximum AltitudeMaximum Altitude
Maximum Altitude
(unpressurized)
Operating
0 to 10,000 ft (3,048 m) (14.7 to 10.1 psia)
Non-operating
0 to 30,000 ft (9,144 m) (14.7 to 4.4 psia)
12.1-Inch Colour TFT
12.1-Inch Colour TFT12.1-Inch Colour TFT
12.1-Inch Colour TFT
XGA Display
XGA DisplayXGA Display
XGA Display
Dimensions
DimensionsDimensions
Dimensions
(H x W)
10.3 x 7.8 in (26.1 x 19.9 cm)
Diagonal Size
Diagonal SizeDiagonal Size
Diagonal Size
12.1 in (30.7 cm)
Mounting
MountingMounting
Mounting
Internal
Number of Colours
Number of ColoursNumber of Colours
Number of Colours
16M
Contrast Ratio
Contrast RatioContrast Ratio
Contrast Ratio
125:1
Refresh Rate
Refresh RateRefresh Rate
Refresh Rate
60 Hz
Brightness
BrightnessBrightness
Brightness
130 nit typical AC only/70 on battery115 nit minimum
Pixel Resolution
Pixel ResolutionPixel Resolution
Pixel Resolution
Pitch
0.264 x 0.264 mm
Format
1024 x 768
Configuration
RGB Stripe
Backlight
BacklightBacklight
Backlight
CCFT
Character Display
Character DisplayCharacter Display
Character Display
80 x 25
Total Power Consumption
Total Power ConsumptionTotal Power Consumption
Total Power Consumption
4W
QuickSpecs
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Technical Specifications
DA - 10844 Canada — Version 19 — September 23, 2003
Page 13
Hard Drives
Hard DrivesHard Drives
Hard Drives
20-GB
20-GB20-GB
20-GB
MultiBay Drive Adapter
MultiBay Drive AdapterMultiBay Drive Adapter
MultiBay Drive Adapter
Dimensions (H x W x D)
0.5 x 5.21 x 4.97 in (1.27 x 13.25 x 12.61 cm)
Weight
0.15 lb (0.07 kg)
Drive Weight
Drive WeightDrive Weight
Drive Weight
0.21 lb (95 g)
Capacity
CapacityCapacity
Capacity
20 GB
Height
HeightHeight
Height
0.374 in (9.5 mm)
Width
WidthWidth
Width
2.5 in (70 mm)
Interface
InterfaceInterface
Interface
ATA
Transfer Rate Synchronous
Transfer Rate SynchronousTransfer Rate Synchronous
Transfer Rate Synchronous
(maximum)
100 MB/s (Drive Capability)
Seek Time
Seek TimeSeek Time
Seek Time
(typical reads, including
settling)
Single Track
3 ms
Average
12 ms (read)
Full-Stroke
23 ms
Rotational Speed
4200 rpm
Logical Blocks
Logical BlocksLogical Blocks
Logical Blocks
~ 39,070,080
External AC Adapter
External AC AdapterExternal AC Adapter
External AC Adapter
Weight
WeightWeight
Weight
0.39 lb (0.18 kg)
Power Supply
Power SupplyPower Supply
Power Supply
(Input)
Operating Voltage
90 to 260 VAC RMS
Operating Current
1.3 A RMS
Operating Frequency Range
47 to 63 Hz AC
Maximum Transient
4/50 kV
Internal Lithium-Ion
Internal Lithium-IonInternal Lithium-Ion
Internal Lithium-Ion
Battery Pack
Battery PackBattery Pack
Battery Pack
Weight
WeightWeight
Weight
0.49 lb (0.22 kg)
Cells
CellsCells
Cells
4-cell Lithium-Ion
Energy
EnergyEnergy
Energy
Voltage
14.4 V
Amp-hour capacity
1.96 Ah
Watt-hour capacity
28Wh
Temperature
TemperatureTemperature
Temperature
Operating
41° to 95°F (5° to 35°C)
Non-operating
–4° to 140°F (–20° to 60°C)
Battery Re-Charge Time
Battery Re-Charge TimeBattery Re-Charge Time
Battery Re-Charge Time
System in OFF mode or
Standby
2 hours
System ON (depending of
system power consumption)
2-5 hours
Secondary Lithium-Ion
Secondary Lithium-IonSecondary Lithium-Ion
Secondary Lithium-Ion
Battery Pack
Battery PackBattery Pack
Battery Pack
Dimensions
DimensionsDimensions
Dimensions
(H x W x D)
0.9 x 10.47 x 0.9 in (2.3 x 26.6 x 2.3 cm)
Weight
WeightWeight
Weight
0.49 lb (0.22 kg)
Cells
CellsCells
Cells
4-cell Lithium-Ion
Energy
EnergyEnergy
Energy
Voltage
14.4 V
Amp-hour capacity
1.96 Ah
Watt-hour capacity
28Wh
Temperature
TemperatureTemperature
Temperature
Operating
41° to 95°F (5° to 35°C)
Non-operating
–4° to 140°F (–20° to 60°C)
QuickSpecs
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Technical Specifications
DA - 10844 Canada — Version 19 — September 23, 2003
Page 14
Secondary High Capacity
Secondary High CapacitySecondary High Capacity
Secondary High Capacity
Lithium-Ion Battery Pack
Lithium-Ion Battery PackLithium-Ion Battery Pack
Lithium-Ion Battery Pack
Dimensions
DimensionsDimensions
Dimensions
(H x W x D)
1.8 x 10.6 x 1.2 in (4.6 x 26.6 x 2.3 cm)
Weight
WeightWeight
Weight
0.93 lb (0.42 kg)
Cells
CellsCells
Cells
4-cell Lithium-Ion
Energy
EnergyEnergy
Energy
Voltage
14.4 V
Amp-hour capacity
2.6 Ah
Watt-hour capacity
37.4 Wh
Temperature
TemperatureTemperature
Temperature
Operating
41° to 95°F (5° to 35°C)
Non-operating
–4° to 140°F (–20° to 60°C)
MultiBay Lithium-Ion
MultiBay Lithium-IonMultiBay Lithium-Ion
MultiBay Lithium-Ion
Battery Pack
Battery Pack Battery Pack
Battery Pack
(6-cell)
Dimensions
DimensionsDimensions
Dimensions
(H x W x D)
0.5 x 5.21 x 4.97 in (1.27 x 13.25 x 12.61 cm)
Weight
WeightWeight
Weight
0.81 lb (0.37 kg)
Energy
EnergyEnergy
Energy
Voltage
10.8 V
Amp-hour capacity
2.8 Ah
Watt-hour capacity
30.2 Wh
Temperature
TemperatureTemperature
Temperature
Operating
32° to 122° F (0° to 50° C)
Non-operating
32° to 140° F (0° to 60° C)
Battery Re-Charge Time
Battery Re-Charge TimeBattery Re-Charge Time
Battery Re-Charge Time
System in OFF mode or
Standby
2 hours
System ON
2 to 5 hours
MultiBay DVD/CD-RW
MultiBay DVD/CD-RWMultiBay DVD/CD-RW
MultiBay DVD/CD-RW
Combo Drive
Combo DriveCombo Drive
Combo Drive
MultiBay Drive
MultiBay DriveMultiBay Drive
MultiBay Drive
Dimensions (H x W x D)
0.5 x 5.21 x 4.97 in (1.27 x 13.25 x 12.61 cm)
Weight
0.74 lb (0.33 kg)
Centre Hole Diametre
Centre Hole DiametreCentre Hole Diametre
Centre Hole Diametre
0.59 in (1.5 cm)
Disk Diametre
Disk DiametreDisk Diametre
Disk Diametre
12 cm/8 cm
Disk Thickness
Disk ThicknessDisk Thickness
Disk Thickness
0.047 in (1.2 mm)
Track Pitch
Track PitchTrack Pitch
Track Pitch
0.74 µm
Access Times
Access TimesAccess Times
Access Times
(typical reads, including
settling)
Random
< 150 ms
Full-Stroke
< 225 ms
Audio Output Level
Audio Output LevelAudio Output Level
Audio Output Level
Line-out
0.7 Vrms
Cache Buffer
Cache BufferCache Buffer
Cache Buffer
128 KB (minimum)
Data Transfer Rate
Data Transfer RateData Transfer Rate
Data Transfer Rate
(typical, including settling)
CD-R (8X)
1200 KB/s (150 KB/s at 1X CD rate)
CD-RW (8X)
1200 KB/s (150 KB/s at 1X CD rate)
CD-ROM (24X)
3600 KB/s (150 KB/s at 1X CD rate)
DVD (8X)
10,800 KB/s (1352 KB/s at 1X DVD rate)
Normal PIO Mode 4
(single burst)
16.6 MB/s
Start-up Time
Start-up TimeStart-up Time
Start-up Time
< 15 seconds
Stop Time
Stop TimeStop Time
Stop Time
< 6seconds
QuickSpecs
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Technical Specifications
DA - 10844 Canada — Version 19 — September 23, 2003
Page 15
MultiBay CD-RW Drive
MultiBay CD-RW DriveMultiBay CD-RW Drive
MultiBay CD-RW Drive
MultiBay Drive
MultiBay DriveMultiBay Drive
MultiBay Drive
Dimensions (H x W x D)
0.5 x 5.21 x 4.97 in (1.27 x 13.25 x 12.61 cm)
Weight
0.74 lb (0.33 kg)
Centre Hole Diametre
Centre Hole DiametreCentre Hole Diametre
Centre Hole Diametre
0.59 in (1.5 cm)
Disk Diametre
Disk DiametreDisk Diametre
Disk Diametre
12 cm/8 cm
Disk Thickness
Disk ThicknessDisk Thickness
Disk Thickness
0.047 in (1.2 mm)
Track Pitch
Track PitchTrack Pitch
Track Pitch
0.74 µm
Access Times
Access TimesAccess Times
Access Times
(typical reads, including
settling)
Random
< 150 ms
Full-Stroke
< 225 ms
Audio Output Level
Audio Output LevelAudio Output Level
Audio Output Level
Line-out
0.7 Vrms
Cache Buffer
Cache BufferCache Buffer
Cache Buffer
128 KB (minimum)
Data Transfer Rate
Data Transfer RateData Transfer Rate
Data Transfer Rate
(typical, including settling)
Sustained (16X)
150 KB/s
Sustained 4X CD-RW
5,520 KB/s
Normal PIO Mode 4
(single burst)
16.6 MB/s
Start-up Time
Start-up TimeStart-up Time
Start-up Time
< 15 seconds
Stop Time
Stop TimeStop Time
Stop Time
< 6 seconds
MultiBay DVD-ROM Drive
MultiBay DVD-ROM DriveMultiBay DVD-ROM Drive
MultiBay DVD-ROM Drive
MultiBay Drive
MultiBay DriveMultiBay Drive
MultiBay Drive
Dimensions (H x W x D)
0.5 x 5.21 x 4.97 in (1.27 x 13.25 x 12.61 cm)
Weight
0.66 lb (0.3 kg)
Centre Hole Diametre
Centre Hole DiametreCentre Hole Diametre
Centre Hole Diametre
0.59 in (1.5 cm)
Disk Diametre
Disk DiametreDisk Diametre
Disk Diametre
12 cm/8 cm
Disk Thickness
Disk ThicknessDisk Thickness
Disk Thickness
0.43 in (1.09 cm)
Track Pitch
Track PitchTrack Pitch
Track Pitch
0.74 µm
Access Times
Access TimesAccess Times
Access Times
(typical reads, including
settling)
Random (typical)
< 180 ms DVD Media
Full-Stroke (typical)
< 300 ms DVD Media
Random (typical)
< 120 ms CD Media
Full-Stroke (typical)
< 200 ms CD Media
Cache Buffer
Cache BufferCache Buffer
Cache Buffer
512 KB/s (minimum)
Data Transfer Rate
Data Transfer RateData Transfer Rate
Data Transfer Rate
(typical, including settling)
Max 24X CD
3600 KB/s (150 KB/s at 1X CD rate)
Max 8X DVD
10,800 KB/s (1352 KB/s at 1X DVD rate)
Normal PIO Mode 4
(single burst)
16.6 MB/s
Start-up Time
Start-up TimeStart-up Time
Start-up Time
< 12 seconds
Stop Time
Stop TimeStop Time
Stop Time
< 3 seconds
QuickSpecs
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Technical Specifications
DA - 10844 Canada — Version 19 — September 23, 2003
Page 16
MultiBay 24X CD-ROM
MultiBay 24X CD-ROMMultiBay 24X CD-ROM
MultiBay 24X CD-ROM
Drive
DriveDrive
Drive
MultiBay Drive
MultiBay DriveMultiBay Drive
MultiBay Drive
Dimensions (H x W x D)
0.5 x 5.21 x 4.97 in (1.27 x 13.25 x 12.61 cm)
Weight
0.50 lb (0.22 kg)
Applicable Disk
Applicable DiskApplicable Disk
Applicable Disk
CD-ROM (Mode 1, 2 and 3), CD-XA ready (Mode 2, Form 1 and 2), CD-I ready (Mode 2,
Form 1 and 2), CD-R (read only), CD Plus, Photo CD (Single and Multi-session), CDExtra, Video CD, CD-WO (fixed packets only), CD-Bridge
Centre Hole Diametre
Centre Hole DiametreCentre Hole Diametre
Centre Hole Diametre
0.59 in (15 mm)
Disk Diametre
Disk DiametreDisk Diametre
Disk Diametre
12 cm, 8 cm
Disk Thickness
Disk ThicknessDisk Thickness
Disk Thickness
0.047 in (0.12 cm)
Track Pitch
Track PitchTrack Pitch
Track Pitch
1.6 µm
Access Times
Access TimesAccess Times
Access Times
(typical reads, including
settling)
Random
< 150 ms
Full-Stroke
< 300 ms
Audio Output Level
Audio Output LevelAudio Output Level
Audio Output Level
Line-out
0.7 Vrms
Cache Buffer
Cache BufferCache Buffer
Cache Buffer
128 KB
Data Transfer Rate
Data Transfer RateData Transfer Rate
Data Transfer Rate
(typical, including settling)
Sustained (16X)
150 KB/s (sustained 1X)
Variable
1500 to 3600 KB/s (10X to 24X)v
Normal PIO Mode 4
(single burst)
16.66 MB/s
Start-up Time
Start-up TimeStart-up Time
Start-up Time
< 8 seconds
Stop Time
Stop TimeStop Time
Stop Time
< 4 seconds
MultiBay Diskette Drive
MultiBay Diskette DriveMultiBay Diskette Drive
MultiBay Diskette Drive
MultiBay Drive
MultiBay DriveMultiBay Drive
MultiBay Drive
Dimensions (H x W x D)
0.5 x 5.21 x 4.97 in (1.27 x 13.25 x 12.61 cm)
Weight
0.51 lb (230 g)
Diskette Size
Diskette SizeDiskette Size
Diskette Size
3.5 in
Activity Indicator
Activity IndicatorActivity Indicator
Activity Indicator
On system
Height
HeightHeight
Height
0.5 in (1.27 cm)
Bytes per Sector
Bytes per SectorBytes per Sector
Bytes per Sector
512
Sectors per track
Sectors per trackSectors per track
Sectors per track
High density
18 (1.44 MB)/15 (1.2 MB)
Low density
9
Tracks per side
Tracks per sideTracks per side
Tracks per side
High density
80 (1.44 MB)/80 (1.2 MB)
Low density
80
Read/Write heads
Read/Write headsRead/Write heads
Read/Write heads
2
Access Times
Access TimesAccess Times
Access Times
Track-to track (high/low)
3 ms/6 ms
Average (high/low)
94 ms/174 ms
Settling time
15 ms
Latency average
100 ms
QuickSpecs
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Technical Specifications
DA - 10844 Canada — Version 19 — September 23, 2003
Page 17
MultiBay SuperDisk 2X LS-
MultiBay SuperDisk 2X LS-MultiBay SuperDisk 2X LS-
MultiBay SuperDisk 2X LS120 Drive
120 Drive120 Drive
120 Drive
MultiBay Drive
MultiBay DriveMultiBay Drive
MultiBay Drive
Dimensions (H x W x D)
0.5 x 5.21 x 4.97 in (1.27 x 13.25 x 12.61 cm)
Weight
0.61 lb (0.28 kg)
Maximum Transfer Rate
Maximum Transfer RateMaximum Transfer Rate
Maximum Transfer Rate
From Disk
896 KB/s
Sustained
375 to 900 KB/s
120 MB Physical Format
120 MB Physical Format120 MB Physical Format
120 MB Physical Format
Number of Heads
2
Bytes per Sector
512
Sectors per Track
51 to 92
Zones/Side
55
Data Tracks per Side
1736
Servo Tracks
900
Sector Interleave
1:1
Access Times
Access TimesAccess Times
Access Times
(including setting)
Track–to–track
20 ms
Average
70 ms
Latency Average
41.67
Operating Conditions
Operating ConditionsOperating Conditions
Operating Conditions
Temperature
41° to 131° F(5° to 55° C)
Humidity
10% to 80% RH
Operating System Support
Operating System SupportOperating System Support
Operating System Support
Microsoft Windows 95, Windows NT 4.0
Option Kit Contents
Option Kit ContentsOption Kit Contents
Option Kit Contents
LS-120 Drive, 17 mm MultiBay Adapter, Software, Documentation
NOTE:
NOTE: NOTE:
NOTE:
Drivers for the LS-120 Drive are standard in Microsoft Windows 95/OSR2, Windows NT 3.51/SP5, and Windows
NT 4.0. Use the LS-120 Option Support Diskette (included in option kit) with earlier releases of Windows 95 and NT 3.51.
MultiBay Iomega Zip 250
MultiBay Iomega Zip 250MultiBay Iomega Zip 250
MultiBay Iomega Zip 250
Drive
DriveDrive
Drive
Dimensions
DimensionsDimensions
Dimensions
(H x W x D)
5.26 x 5.24 x 5.71 in (13.35 x 13.3 x 14.5 cm)
Weight
WeightWeight
Weight
9.8 oz or Xg (277.8 g)
Transfer Rates
Transfer RatesTransfer Rates
Transfer Rates
250 Media: 1200 – 2400 KB/s
100 Media: 138 – 1400 KB/s
Access Times
Access TimesAccess Times
Access Times
(including setting)
Track–to–track: 5 ms
Average: 40 ms
Latency Average: 10 ms
Maximum: 70 ms
Operating Conditions
Operating ConditionsOperating Conditions
Operating Conditions
Temperature
41° to 124.7° F (5° to 51.5° C)
Humidity
10% to 80% RH
Operating System Support
Operating System SupportOperating System Support
Operating System Support
Microsoft Windows 95, 98, Windows NT 4.0, Windows 2000, Windows Me
Option Kit Contents
Option Kit ContentsOption Kit Contents
Option Kit Contents
Zip 250 Drive, Documentation
QuickSpecs
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Technical Specifications
DA - 10844 Canada — Version 19 — September 23, 2003
Page 18
802.11b MultiPort
802.11b MultiPort802.11b MultiPort
802.11b MultiPort
Module
ModuleModule
Module
Form Factor
Form FactorForm Factor
Form Factor
Compaq "MultiPort"
Weight
WeightWeight
Weight
0.22 lb (100 g) (maximum)
Operating Temperature
Operating TemperatureOperating Temperature
Operating Temperature
Operating, 14° to 149° F (–10° to 65° C)
Storage Temperature
Storage TemperatureStorage Temperature
Storage Temperature
Non-operating, –40° to 176° F (–40° to 80° C)
Humidity
HumidityHumidity
Humidity
Operating
10% to 90%
Non-operating
5% to 95%
Altitude
AltitudeAltitude
Altitude
Operating
0 to 15,000 ft (4,572 m)
Non-operating
0 to 40,000 ft (12,192 m)
Plug and Play
Plug and PlayPlug and Play
Plug and Play
USB 1.1 compliant
Microsoft Windows Plug and Play compliant
RF Network Standard
RF Network StandardRF Network Standard
RF Network Standard
IEEE 802 Part 11b (802.11b)
Frequency Band
Frequency BandFrequency Band
Frequency Band
2.4000 to 2.4835 GHz
2.4465 to 2.4835 GHz (France)
2.4000 to 2.4697 GHz (Japan)
Number of Selectable
Number of SelectableNumber of Selectable
Number of Selectable
Sub-channels
Sub-channelsSub-channels
Sub-channels
Worldwide Certification
Worldwide CertificationWorldwide Certification
Worldwide Certification
United States (FCC)
11
France (FR)
4
Japan (JP)
14
Other countries
13
Data Rates
Data RatesData Rates
Data Rates
1, 2, 5.5, 11 Mbps
Antenna type
Antenna typeAntenna type
Antenna type
Internally integrated within module (with special polarization diversity)
WEP Security
WEP SecurityWEP Security
WEP Security
64-bit encryption keys compliant to IEEE 802.11
128-bit encryption key compliant to IEEE 802.11
Ability to enter keys manually or via pass-phrase
Network Architecture
Network ArchitectureNetwork Architecture
Network Architecture
Models
ModelsModels
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Points Required)
Modulation Technique
Modulation TechniqueModulation Technique
Modulation Technique
Direct Sequence Spread Spectrum: DBPSK, DQPSK, CCK
Receiver Sensitivity – Bit
Receiver Sensitivity – BitReceiver Sensitivity – Bit
Receiver Sensitivity – Bit
Error Rate (1E-5)
Error Rate (1E-5)Error Rate (1E-5)
Error Rate (1E-5)
11 Mbps
5.5 Mbps
2 Mbps
1 Mbps
-85 dBm
-87 dBm
-91 dBm
-94 dBm
Maximum Receive Level
Maximum Receive LevelMaximum Receive Level
Maximum Receive Level
–4 dBm
Output Power
Output PowerOutput Power
Output Power
(approximately)
18 dBM
Operating Voltage
Operating VoltageOperating Voltage
Operating Voltage
5V power operation
Power Management
Power ManagementPower Management
Power Management
Keystroke Fn+F2 Power On/Off control
Power Consumption
Power ConsumptionPower Consumption
Power Consumption
Transfer mode: < 600 mA, maximum
Receive mode: > 400 mA, maximum
Standby mode: > 1 mA, maximum
Transmit Power
Transmit PowerTransmit Power
Transmit Power
10 to 100mW
It is preferable to have the user configurable output power to save battery life for laptop
users or in high AP coverage areas
Power Saving Option
Power Saving OptionPower Saving Option
Power Saving Option
802.11 Compliant Power Saving
Power Saving Mode selectable through the configuration utility
ACPI compliant power management
Media Access Protocol
Media Access ProtocolMedia Access Protocol
Media Access Protocol
CSMA/CA (Collision Avoidance) with ACK
OS Support
OS SupportOS Support
OS Support
Microsoft Windows 98/98SE
Microsoft Windows 2000
Microsoft Windows Millennium
Protocols Supported
Protocols SupportedProtocols Supported
Protocols Supported
TCP/IP
IPX/SPX
UDP
QuickSpecs
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Technical Specifications
DA - 10844 Canada — Version 19 — September 23, 2003
Page 19
Transmit Power
Transmit PowerTransmit Power
Transmit Power
10 to 100mW
It is preferable to have the user configurable output power to save battery life for laptop
users or in high AP coverage areas
LED Activity
LED ActivityLED Activity
LED Activity
Flashing LED – AP Search Mode
Solid LED – On
LED Off – Power Off
Throughput, Data Rate
Throughput, Data RateThroughput, Data Rate
Throughput, Data Rate
and Operating Distance
and Operating Distanceand Operating Distance
and Operating Distance
Throughput
ThroughputThroughput
Throughput
Data Rate
Data RateData Rate
Data Rate
Operating Distance
Operating DistanceOperating Distance
Operating Distance
> 4.5 Mbps
11 Mbps
1000 feet – Open sight
100 feet – Closed space (Steel Space)
> 2 Mbps
5.5 Mbps
1100 feet – Open sight
200 feet – Closed space (Steel Space)
> 700 Kbps
1 Mbps
1200 feet – Open sight
300 feet – Closed space (Steel Space)
Bluetooth MultiPort
Bluetooth MultiPortBluetooth MultiPort
Bluetooth MultiPort
Module
ModuleModule
Module
Form Factor
Form FactorForm Factor
Form Factor
Compaq "MultiPort"
Bluetooth
BluetoothBluetooth
Bluetooth
1.1 Compliant
Dimensions
DimensionsDimensions
Dimensions
2.2 x 6.6 x 0.55 in (5.6 x 16.7 x 1.4 cm)
Weight
WeightWeight
Weight
0.22 lb (100 g) (maximum)
Temperature
TemperatureTemperature
Temperature
Operating
-50° to 104° F (10° to 40° C)
Non-operating
–4° to 140° F (–20° to 60° C)
Humidity
HumidityHumidity
Humidity
Operating
10% to 90%
Non-operating
5% to 95%
Altitude
AltitudeAltitude
Altitude
Operating
0 to 10,000 ft (3,048 m)
Non-operating
0 to 30,000 ft (9,144 m)
Plug and Play
Plug and PlayPlug and Play
Plug and Play
USB 1.1 compliant
Microsoft Windows Plug and Play compliant
Frequency Band
Frequency BandFrequency Band
Frequency Band
2,4000 to 2.4835 GHz
Number of Available
Number of AvailableNumber of Available
Number of Available
Channels
ChannelsChannels
Channels
79 (1 MHz) available channels
Data Rates and
Data Rates andData Rates and
Data Rates and
throughput
throughputthroughput
throughput
1 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 723.2 kbps/57.6 kbps asymmetric or 433.9 kbps
symmetric
Antenna type
Antenna typeAntenna type
Antenna type
Internally integrated within module (with special polarization diversity)
Range
RangeRange
Range
328 ft (100 m)
Profile Support
Profile SupportProfile Support
Profile Support
General Access Profile
Service Discovery Application Profile
Serial Port Profile
Generic Object Exchange Profile
File Transfer Profile
Synchronization Profile
Dial-Up Networking Profile
LAN Access Profile
Object Push Profile
QuickSpecs
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Technical Specifications
DA - 10844 Canada — Version 19 — September 23, 2003
Page 20
Usage Models
Usage ModelsUsage Models
Usage Models
Service Discovery (determine what Bluetooth devices are within range and support
authorization)
Synchronization
SynchronizationSynchronization
Synchronization
:
PDAs to PCs
Portable to Desktop
File Transfer:
File Transfer:File Transfer:
File Transfer:
File and directory browsing and navigation on another Bluetooth device.
File copying
Object manipulation – including add, delete, create new folders etc.
Wireless link to Corporate LAN using several Bluetooth devices sharing the same
Access Point:
Access Point:Access Point:
Access Point:
Corporate email, network neighborhood, access to LAN applications, file transfer, ftp,
Internet browsing, etc, using TCP/IP
Wireless link to WAN thru cell phone
GSM/SMS, PCS, PHS, DECT, RAM, ARDIS,
CDPD, etc.
Agnostic to WAN technology
Send/receive SMS messages
Wireless link to Printer
Adhoc peer to peer networking (two computers) or Personal Area Networking (PAN) using
NDIS (< 7 computers)
Adhoc Bluetooth Pico-networking (point to multi-point)
Object Push – Business card or appointment exchange
Transmit Power
Transmit PowerTransmit Power
Transmit Power
< 20 dBM (Bluetooth Class 1)
Receive Sensitivity
Receive SensitivityReceive Sensitivity
Receive Sensitivity
Better than –70 dBM at 0.1 % raw bit error rate
Link Topology
Link TopologyLink Topology
Link Topology
Point to Point, Multipoint Pico Nets up to 7 slaves
Security
SecuritySecurity
Security
Full support of Bluetooth Security Provisions
Network Architecture
Network ArchitectureNetwork Architecture
Network Architecture
Models
ModelsModels
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Points Required)
Power Requirement
Power RequirementPower Requirement
Power Requirement
Peak
< 1500 mW
Average
< 500 mW
Standby
< 250 mW
Power Management
Power ManagementPower Management
Power Management
Microsoft Windows ACPI, and USB Bus Support
Keystrokes Fn+F2 Power On/Off control
Self configurable to optimize power conservation in all operating modes, including
Standby, Hold, Park, and Sniff
OS Support
OS SupportOS Support
OS Support
Microsoft Windows 98/98SE
Microsoft Windows 2000
Microsoft Windows Millennium
Protocols Supported
Protocols SupportedProtocols Supported
Protocols Supported
TCP/IP
IPX/SPX
UDP
LED Activity
LED ActivityLED Activity
LED Activity
Solid Blue LED – On
LED Off – Power Off
Certifications
CertificationsCertifications
Certifications
All necessary regulatory approvals for countries we support including:
- FCC (47 CFR) Part 15C, Section 15.247 & 15.249
- ETS 300 328, ETS 300 826
- Low Voltage Directive IEC950
- UL, CSA, and CE Mark
QuickSpecs
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Technical Specifications
DA - 10844 Canada — Version 19 — September 23, 2003
Page 21
Type III Mini PCI 56K
Type III Mini PCI 56KType III Mini PCI 56K
Type III Mini PCI 56K
(V.90) Modem plus
(V.90) Modem plus(V.90) Modem plus
(V.90) Modem plus
10/100 NIC Combo
10/100 NIC Combo10/100 NIC Combo
10/100 NIC Combo
Form Factor
Form FactorForm Factor
Form Factor
Mini-PCI Type III per Specification
OS Support
OS SupportOS Support
OS Support
(with all released Service Packs)
Microsoft Windows 98 (Gold, SE), Windows NT4.0, Windows 2000, Windows Millennium
Edition, DOS Application Support under Windows
Power Management
Power ManagementPower Management
Power Management
Support
SupportSupport
Support
APM Revision 1.2, ACPI, Compaq Power Management Extensions for Microsoft Windows
NT
Approvals/
Approvals/Approvals/
Approvals/
Certifications
CertificationsCertifications
Certifications
UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15 Class B,
Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark, Other Countries
Modem Device Driver
Modem Device DriverModem Device Driver
Modem Device Driver
Name
NameName
Name
Lucent Win Modem
Data Mode Capabilities
Data Mode CapabilitiesData Mode Capabilities
Data Mode Capabilities
V.90 (a-law, mu-law)
K56flex (a-law, mu-law)
V.8bis
V.80
V42.bis, MNP5 (Compression)
V.42 (LAPM, MNP2-4) (Error Correction)
V.34 (file date: 10/96)
Optional symbol rates:
Optional symbol rates:Optional symbol rates:
Optional symbol rates:
2800, 3429
Asymmetric Symbol rates
Synchronous primary channel data signaling rates:
Synchronous primary channel data signaling rates:Synchronous primary channel data signaling rates:
Synchronous primary channel data signaling rates:
3600, 31200
Automatic rate re-negotiation
V.32bis
V.32
V.23
V.22bis
V.22
V.21
Bell 212A
Bell 103J
Fax Mode Capabilities
Fax Mode CapabilitiesFax Mode Capabilities
Fax Mode Capabilities
TIA-578-S (Class 1)
T.30, T.4 (Group 3)
V.17
V.29
V.27ter
V.21 Channel 2
Command Set
Command SetCommand Set
Command Set
V.250 (Partial)
TIA-602
Identification: +GMI, +GMM, +GMR
Port control: +IPR, +ICF, +IFC, + Iirr
Modulation: +MS, +MR, +MA
Error control: +ES, +ER, +EB, +ESR, +ETBM
Data compression: +DS, +DR
V.251
NIC Device Driver Name
NIC Device Driver NameNIC Device Driver Name
NIC Device Driver Name
Intel PRO/100 P Mobile Combo Adapter
Data Link Layers
Data Link LayersData Link Layers
Data Link Layers
IEEE 802.2 LLC
SNAP
QuickSpecs
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Technical Specifications
DA - 10844 Canada — Version 19 — September 23, 2003
Page 22
Ethernet Features
Ethernet FeaturesEthernet Features
Ethernet Features
10 Mbps Ethernet: IEEE 802.3 standard 10BASE-T
100 Mbps Ethernet: IEEE 802.3u standard 100BASE-TX
Full Duplex at 10 and 100Mbps
Auto-Negotiation
Wake on LAN from all power managed states,
including soft off (S5)
Boot on LAN from OFF
Lower Power State on Link Loss
Software support
Software supportSoftware support
Software support
IBM LAN Server Version 1.2, 1.3, 2.0, 4.0
Microsoft NT 3.51, NT 4.0. Windows 2000
Novell Netware 3.1x, 4.x, 5.x
Protocol support
Protocol supportProtocol support
Protocol support
TCP/IP
Novell IPX/SPX and Microsoft compatible
Novel IPX ODI
Microsoft NetBEUI
IBM DLC
©2003 Hewlett-Packard Development Company, L.P.
All rights reserved. Microsoft, and Windows are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. Pentium, the
Intel, Inside Logo, Centrino and SpeedStep are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. BatteryMark is a
trademark of Ziff Davis Publishing Holdings Inc., and affiliate of eTesting Labs Inc., in the U.S. and other countries. All other product names mentioned
herein may be trademarks of their respective companies.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The warranties for HP products are
set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.
HP shall not be liable for technical or editorial errors or omissions contained herein.
QuickSpecs
Compaq Evo Notebook N400c
Compaq Evo Notebook N400cCompaq Evo Notebook N400c
Compaq Evo Notebook N400c
Technical Specifications
DA - 10844 Canada — Version 19 — September 23, 2003
Page 23
Loading...
