Maintenance and Service Guide
Compaq Evo Notebook N410c and N400c Series
Document Part Number: 268629-001
July 2002
This guide is a troubleshooting reference used for maintaining and servicing the notebook. It provides comprehensive information on identifying notebook features, components, and spare parts, troubleshooting notebook problems, and performing notebook disassembly procedures.
© 2002 Compaq Computer Corporation
Compaq, Evo, and the Compaq logo are trademarks of Compaq Information Technologies Group, L.P.
Microsoft and Windows are trademarks of Microsoft Corporation.
Intel and Pentium are trademarks of Intel Corporation.
All other product names mentioned herein may be trademarks of their respective companies.
Compaq shall not be liable for technical or editorial errors or omissions contained herein. The information in this document is provided “as is” without warranty of any kind and is subject to change without notice. The warranties for Compaq products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.
Maintenance and Service Guide First Edition (July 2002) Document Part Number: 268629-001
Contents
1 Product Description
1.1 Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2
1.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–12
1.2 Clearing a Password. . . . . . . . . . . . . . . . . . . . . . . . . 1–13
1.3 Power Management . . . . . . . . . . . . . . . . . . . . . . . . . 1–14
1.3 Computer External Components . . . . . . . . . . . . . . . 1–15
1.4 Design Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–27
2 Troubleshooting
2.1 Computer Setup and
Diagnostics Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
Selecting Computer Setup or
Compaq Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
Selecting from the File Menu . . . . . . . . . . . . . . . . . . 2–3
Selecting from the Security Menu. . . . . . . . . . . . . . . 2–4
Selecting from the Advanced Menu . . . . . . . . . . . . . 2–5
2.2 Using Compaq Diagnostics . . . . . . . . . . . . . . . . . . . . 2–7
Obtaining, Saving, or Printing
Configuration Information. . . . . . . . . . . . . . . . . . . . . 2–7
Obtaining, Saving, or Printing Diagnostic
Test Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8
2.3 Troubleshooting Flowcharts. . . . . . . . . . . . . . . . . . . 2–10
Maintenance and Service Guide iii
Contents
3 Illustrated Parts Catalog
3.1 Serial Number Location . . . . . . . . . . . . . . . . . . . . . . . 3–1
3.2 Computer System Major Components. . . . . . . . . . . . 3–2
3.3 Miscellaneous Plastics Kit Components . . . . . . . . . 3–10
3.4 Mass Storage Devices . . . . . . . . . . . . . . . . . . . . . . . 3–12
3.5 Miscellaneous Spare Parts . . . . . . . . . . . . . . . . . . . . 3–14
4 Removal and Replacement Preliminaries
4.1 Tools Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
4.2 Service Considerations. . . . . . . . . . . . . . . . . . . . . . . . 4–2
Plastic Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2
Cables and Connectors . . . . . . . . . . . . . . . . . . . . . . . 4–2
4.3 Preventing Damage to Removable Drives . . . . . . . . . 4–3
4.4 Preventing Electrostatic Damage . . . . . . . . . . . . . . . . 4–4
4.5 Packaging and Transporting Precautions . . . . . . . . . . 4–4
4.6 Workstation Precautions . . . . . . . . . . . . . . . . . . . . . . 4–5
4.7 Grounding Equipment and Methods . . . . . . . . . . . . . 4–6
5 Removal and Replacement Procedures
5.1 Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–1
5.2 Disassembly Sequence Chart . . . . . . . . . . . . . . . . . . . 5–2
5.3 Preparing the Notebook for Disassembly . . . . . . . . . 5–3
5.4 Computer Feet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–6
5.5 Palm Rest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–7
5.6 Memory Expansion Board . . . . . . . . . . . . . . . . . . . . 5–14
5.7 Hard Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–18
5.8 Mini PCI Communications Board . . . . . . . . . . . . . . 5–20
5.9 Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–22
5.10 Real Time Clock (RTC) Battery . . . . . . . . . . . . . . 5–26
5.11 Switch Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–27
5.12 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–29
5.13 Modem Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–32
5.14 System Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–37
iv Maintenance and Service Guide
6 Specifications
A Connector Pin Assignments
B Power Cord Set Requirements
3-Conductor Power Cord Set . . . . . . . . . . . . . . . . . . . . . . B–1
General Requirements . . . . . . . . . . . . . . . . . . . . . . . . B–1
Country-Specific Requirements . . . . . . . . . . . . . . . . . . . . B–2
C Screw Listing
Index
Contents
Maintenance and Service Guide v
1
Product Description
The Compaq Evo Notebook N410c and N400c Series offer advanced modularity, 1.20-GHz, 1.00-GHz, 850-MHz, or 700-MHz Intel Pentium III processors with 64-bit architecture, industry-leading Accelerated Graphics Port (AGP) implementation, and extensive multimedia support. The notebook provides desktop functionality and connectivity through the optional Mobile Expansion Unit (MEU).
Figure 1-1. Compaq Evo Notebook N410c and Evo Notebook N400c
Maintenance and Service Guide 1–1
Product Description
1.1 Models
Model naming conventions are shown in Tables 1-1 through 1-3.
Table 1-1
Compaq Evo Notebook N410c and N400c
Model Naming Conventions
Key
N4c P 120 X2 30 0 C 128 O XXXXXX-XXX
123456789 10
Key Description Options
1 Brand/Series
designator
2 Processor type P = Intel Pentium III
3 Processor speed 120 = 1.20 GHz
4Display type/
size/resolution
5 Hard drive size 30 = 30.0 MB 20 = 20.0 MB
6 Optical drive
designator
7 Integrated
communication
8 RAM 25 = 256 MB
9 Operating system E = Windows XP
N = Evo Notebook 4 = Ultra portable
c = Common
850 = 850 MHz
100 = 1.00 GHz
X = XGA (1024 × 768)
0 = None
M = Modem 0 = None
12 = 128 MB
Home O = Windows XP Pro o = Windows XP/
Windows 2000
dual install
700 = 700 MHz
C = Modem/NIC
combination card
0 = None
2 = Windows 2000 6 = Windows 2000/
Window NT 4.0 dual install
8 = Windows 98
10 SKU#
1–2 Maintenance and Service Guide
Product Description
Table 1-2
Compaq Evo Notebook N410c Models
The following Evo Notebook N410c models use config. code KVB2 and features:
■
TouchPad pointing device
■
4-cell, 2.0-Ah lithium ion (Li ion) battery pack
■
3-year warranty with on-site service
■
16 MB of integrated video memory
N410c P 120 X2 30 0 C 25 O
United States 470040-185
N410c P 120 X2 30 0 C 0 O
United States 470040-184
N410c P 120 X2 30 0 C 25 2
United States 470040-182
N410c P 120 X2 30 0 C 0 2
United States 470040-183
Maintenance and Service Guide 1–3
Product Description
Table 1-2
Compaq Evo Notebook N410c Models
The following Evo Notebook N410c models use config. code KVBZ and features:
■
TouchPad pointing device
■
4-cell, 2.0-Ah Li ion battery pack
■
3-year warranty
■
16 MB of integrated video memory
N410c P 120 X2 30 0 C 25 O
(Continued)
Asia Pacific Australia Belgium Brazil Czech Republic Denmark Europe International France French Canada Germany Greece/Poland Hong Kong Hungary Israel Italy Japan Japan (English) Korea Latin America
470037-654 470037-652 470037-564 470037-651 470037-576 470037-582 470037-589 470037-592 470037-557 470037-596 470037-599 470037-659 470037-624 470037-626 470037-628 470037-645 470037-647 470037-660 470037-649
Latin America
(NAFTA) The Netherlands Norway People’s
Republic of
China Portugal Russia Saudi Arabia Slovenia Spain Sweden Switzerland Ta iw an Tu rk ey United Kingdom United States United States
(NAFTA)
470037-597
470037-629 470037-631 470037-655
470037-632 470037-634 470037-559 470037-635 470037-637 470037-638 470037-640 470037-657 470037-642 470037-643 470037-550 470037-600
1–4 Maintenance and Service Guide
Table 1-2
Compaq Evo Notebook N410c Models
N410c P 120 X2 30 0 C 25 2
(Continued)
Product Description
Asia Pacific Australia Belgium Brazil Czech Republic Denmark Europe International France French Canada Germany Greece/Poland Hong Kong Hungary Israel Italy Japan Japan (English) Korea Latin America
470037-758 470037-756 470037-716 470037-753 470037-719 470037-721 470037-723 470037-725 470037-663 470037-727 470037-728 470037-761 470037-729 470037-730 470037-731 470037-748 470037-750 470037-762 470037-751
Latin America
(NAFTA) The Netherlands Norway People’s
Republic of
China Portugal Russia Saudi Arabia Slovenia Spain Sweden Switzerland Ta iw an Tu rk ey United Kingdom United States United States
(NAFTA)
470037-574
470037-732 470037-734 470037-759
470037-735 470037-737 470037-711 470037-739 470037-740 470037-742 470037-745 470037-760 470037-743 470037-744 470037-662 470037-690
Maintenance and Service Guide 1–5
Product Description
Table 1-2
Compaq Evo Notebook N410c Models
N410c P 100 X2 20 0 C 25 O
(Continued)
Asia Pacific Australia Belgium Brazil Czech Republic Denmark Europe International France French Canada Germany Greece/Poland Hong Kong Hungary Israel Italy Japan Japan (English) Korea
470040-136 470040-135 470040-044 470040-134 470040-057 470040-058 470040-114 470040-115 470040-006 470040-116 470040-117 470040-139 470040-118 470040-119 470040-120 470040-131 470040-132 470040-140
Latin America The Netherlands Norway People’s
Republic of
China Portugal Russia Saudi Arabia Slovenia Spain Sweden Switzerland Ta iw an Tu rk ey United Kingdom United States
470040-133 470040-121 470040-122 470040-137
470040-123 470040-124 470040-020 470040-125 470040-126 470040-127 470040-128 470040-138 470040-129 470040-130 470039-997
1–6 Maintenance and Service Guide
Table 1-2
Compaq Evo Notebook N410c Models
N410c P 100 X2 20 0 C 25 2
(Continued)
Product Description
Asia Pacific Australia Belgium Brazil Czech Republic Denmark Europe International France French Canada Germany Greece/Poland Hong Kong Hungary Israel Italy Japan Japan (English) Korea
470040-177 470040-176 470040-150 470040-175 470040-151 470040-152 470040-153 470040-154 470040-149 470040-155 470040-156 470040-180 470040-157 470040-158 470040-159 470040-171 470040-172 470040-181
Latin America The Netherlands Norway People’s
Republic of
China Portugal Russia Saudi Arabia Slovenia Spain Sweden Switzerland Ta iw an Tu rk ey United Kingdom United States
470040-174 470040-160 470040-161 470040-178
470040-162 470040-163 470040-164 470040-165 470040-166 470040-167 470040-168 470040-179 470040-169 470040-170 470040-148
Maintenance and Service Guide 1–7
Product Description
Table 1-2
Compaq Evo Notebook N410c Models
The following Evo Notebook N410c models use config. code KVBZ and features:
■
TouchPad pointing device
■
4-cell, 2.0-Ah Li ion battery pack
■
1-year warranty
■
16 MB of integrated video memory
N410c P 120 X2 30 0 C 25 O
Hong Kong 470037-594
N410c P 120 X2 30 0 C 25 2
Hong Kong 470037-565
The following Evo Notebook N410c models use config. code KVB1 and features:
■
TouchPad pointing device
■
4-cell, 2.0-Ah Li ion battery pack
■
1-year warranty
■
16 MB of integrated video memory
(Continued)
N410c P 100 X2 30 0 C 25 O
Japan 470037-593
N410c P 100 X2 30 0 C 12 2
Japan 470037-534
1–8 Maintenance and Service Guide
Product Description
Table 1-3
Compaq Evo Notebook N400c Models
The following Evo Notebook N400c models use config. code JMWZ and features:
■
TouchPad pointing device
■
4-cell, 2.0-Ah Li ion battery pack
■
1-year warranty with on-site service
■
16 MB of integrated video memory
N400c P 850 X2 20 0 0 25 6
European
470026-527 Thailand 470026-528
International
N400c P 850 X2 20 0 C 25 6
Australia Belgium Brazil Czech Republic Denmark France French Canada Germany Greece/Poland Hong Kong Hungary Israel Italy Japan Japan English Korea Latin America Latin America
(NAFTA)
The Netherlands
470026-698 470031-219 470031-236 470031-220 470031-221 470026-534 470026-533 470026-535 470031-223 470031-239 470031-224 470031-225 470026-536 470026-693 470026-694 470031-240 470026-695 470026-532
470031-228
Norway People’s
Republic of
China Portugal Russia Saudi Arabia Slovakia/
Slovenia Spain Sweden Switzerland
Ta iw an Thailand Tu rk ey United Kingdom United States United States
(NAFTA)
470031-229 470031-237
470031-231 470031-232 470031-226 470031-233
470031-410 470031-234 470026-749
and
470026-750 470031-238 470026-697 470031-235 470026-537 470026-529 470026-531
Maintenance and Service Guide 1–9
Product Description
Table 1-3
Compaq Evo Notebook N400c Models
N400c P 700 X2 20 0 C 12 6
(Continued)
Asia Pacific Australia Belgium Brazil Czech Republic Denmark France French Canada Germany Greece/Poland Hong Kong Hungary Israel Italy Japan Japan English Korea Latin America Latin America
(NAFTA)
The Netherlands
470013-784 470013-786 470013-762 470013-782 470013-763 470013-764 470013-765 470013-761 470013-766 470013-767 470013-792 470013-768 470013-717 470013-721 470013-776 470013-778 470013-794 470013-780 470013-690
470013-738
Norway People’s
Republic of
China Portugal Russia Saudi Arabia Slovakia/
Slovenia Spain Sweden/Finland Switzerland
Ta iw an Tu rk ey United Kingdom United States United States
(NAFTA)
470013-742 470013-788
470013-746 470013-752 470013-733 470013-756
470013-758 470013-760 470013-769
and 470013-770 470013-790 470013-772 470013-774 470013-471 470013-689
1–10 Maintenance and Service Guide
Table 1-3
Compaq Evo Notebook N400c Models
N400c P 700 X2 20 0 C 12 8
(Continued)
Product Description
Asia Pacific Australia Belgium Brazil Czech Republic Denmark France French Canada Germany Greece/Poland Hong Kong Hungary Israel Italy Japan Japan English Korea Latin America Latin America
(NAFTA)
470013-783 470013-785 470013-695 470013-781 470013-696 470013-697 470013-698 470013-694 470013-699 470013-711 470013-791 470013-715 470013-716 470013-720 470013-775 470013-777 470013-793 470013-779 470013-686
The Netherlands Norway People’s
Republic of
China Portugal Russia Saudi Arabia Slovakia/
Slovenia Spain Sweden/Finland Ta iw an Tu rk ey United Kingdom United States United States
(NAFTA)
470013-736 470013-740 470013-787
470013-744 470013-750 470013-732 470013-755
470013-757 470013-759 470013-789 470013-771 470013-773 470013-470 470013-683
N400c P 700 X2 20 0 0 12 6
European
International
N400c P 700 X2 20 0 0 12 8
European
International
470013-678 Asia Pacific 470013-679
470013-676 Asia Pacific 470013-677
Maintenance and Service Guide 1–11
Product Description
1.2 Features
The notebook has the following features:
■
Intel Pentium III 1.20-GHz, 1.00-GHz, 850-MHz, or 700-MHz processor, with 256-KB integrated cache, varying by notebook model
■
ATI Mobility M1, 8-MB SDRAM
■
128 MB standard memory, expandable to 512 MB
■
Microsoft Windows 98, Windows 2000, Windows NT, or Windows XP preinstalled, varying by notebook model
■
12.1-inch, XGA, TFT (1024 × 768) or 12.1-inch, SVGA, TFT (800 × 600) display, with over 16.8 million colors, varying by notebook model
■
TouchPad or pointing stick pointing device (pointing stick available only on Evo Notebook N400c models)
■
Mini PCI 56K V.90 modem, or optional Mini PCI V.90 modem plus 10/100 NIC combination card
■
Support for one Type II PC Card slot with support for both 32-bit CardBus and 16-bit PC Cards
■
External AC adapter with power cord
■
Supports a 4-cell Li ion primary battery pack in the battery bay and an external 4-cell Li ion or 9-cell high-capacity battery pack
■
40-, 30-, 20-, or 10-GB high-capacity hard drive
■
Connectors for Mobile Expansion Unit (MEU), MultiPort wireless communication devices, stereo speaker/headphone, microphone, universal serial bus (USB), RJ-45 network, RJ-11 modem, parallel, serial, video out, external monitor, and AC power
■
Speaker
1–12 Maintenance and Service Guide
1.2 Clearing a Password
If the notebook you are servicing has an unknown password, follow these steps to clear the password. These steps also clear CMOS.
1. Prepare the notebook for disassembly. Refer to Section 5.3, “Preparing the Computer for Disassembly,” for more information.
2. Remove the real time clock (RTC) battery (refer to Section
5.10, “Real Time Clock (RTC) Battery”).
3. Wait approximately five minutes.
4. Replace the RTC battery and reassemble the notebook.
5. Connect AC power to the notebook. Do not reinsert any battery packs at this time.
Product Description
6. Turn on the notebook.
All passwords and all CMOS settings are clear.
Maintenance and Service Guide 1–13
Product Description
1.3 Power Management
The notebook comes with a collection of power management features that extends battery operating time and conserves power. The notebook supports the following power management features:
■
Standby
■
Hibernation
■
Setting customized by the user
■
Hotkeys for setting level of performance
■
Smart battery that provides an accurate battery power gauge
■
Battery calibration
■
Lid switch suspend/resume
■
Power switch
■
Standby button
■
Advanced Configuration and Power Management (ACP) compliant
1–14 Maintenance and Service Guide
Product Description
1.3 Computer External Components
The external components on the display and left side of the notebook are shown in Figure 1-2 and described in Table 1-4.
Figure 1-2. Front Panel Components
Table 1-4
Front Panel Components
Item Component Function
1 Vent Allows airflow to cool internal
components.
2 Display release latch Releases the display to open the
notebook.
3 Volume buttons (2) Adjust or mute the system volume.
4 MultiPort Connects wireless communication
devices, such as a Bluetooth or
802.11b MultiPort Module, and other options.
Maintenance and Service Guide 1–15
Product Description
The external components on the right side of the notebook are shown in Figure 1-3 and described in Table 1-5.
Figure 1-3. Right Side Components
Table 1-5
Right Side Components
Item Component Function
1 Power switch Turns the notebook on or off or
exits Standby.
2 Stereo speaker/
headphone jack
Connects stereo speakers, headphones, headset, or television audio.
1–16 Maintenance and Service Guide
Product Description
Table 1-5
Right Side Components
Item Component Function
3 Microphone jack Connects a single sound channel
4 PC Card eject button Ejects a PC Card from the PC
5 PC Card slot Supports 32-bit (CardBus) and
6 USB connector Connects USB devices.
7 Infrared port Links another IrDA-compliant
(Continued)
microphone.
Card slot.
16-bit PC Cards.
device for wireless communication.
8 RJ-45 jack (network models
only)
9 RJ-11 jack (internal modem
models only)
Connects the network cable.
A network cable is
✎
included with network models.
Connects the modem cable to an internal modem.
A modem cable is
✎
included with internal modem models.
Maintenance and Service Guide 1–17
Product Description
The external components on the left side of the notebook are shown in Figure 1-4 and described in Table 1-6.
Figure 1-4. Left Side Components
1–18 Maintenance and Service Guide
Product Description
Table 1-6
Left Side Components
Item Component Function
1 External monitor connector Connects an external monitor or
overhead projector.
2 Power jack Connects any one of the following:
■
AC adapter
■
Optional automobile power adapter/charger
■
Optional aircraft power adapter
3 USB connector Connects USB devices.
4 Vents Allow airflow to cool internal
components.
The forward vent is
✎
present only on Evo Notebook 400c models.
5 Security cable slot Attaches an optional security cable
to the notebook.
Maintenance and Service Guide 1–19
Product Description
Computer keyboard components are shown in Figure 1-5 and described in Table 1-7.
Figure 1-5. Keyboard Components (TouchPad Model)
Table 1-7
Keyboard Components
Item Component Function
1 Power/Standby button
2 Easy Access buttons (4) Provide quick access to the
■
Turns on the notebook if it is off.
■
Initiates and exits Standby.
■
When pressed with the Fn key, initiates Hibernation.
Internet.
1–20 Maintenance and Service Guide
Product Description
Table 1-7
Keyboard Components
Item Component Function
3 Microphone Inputs single-channel sound to the
4 Embedded numeric keypad Converts keys to numeric keypad.
5 Cursor control keys Move the cursor around the
6 Palm rest Provides TouchPad and TouchPad
(Continued)
notebook; can be used whether the notebook is open or closed.
screen.
buttons or the pointing stick buttons. Also protects the internal hard drive, internal memory expansion slot, and modem/NIC mini PCI slot connector.
7 Windows application key Displays a menu when using a
Microsoft application. The menu is the same one that is displayed by pressing the right mouse button.
8 Right TouchPad button
(TouchPad models only)
9 TouchPad
(TouchPad models only)
10 Left TouchPad button
(TouchPad models only)
11 Windows logo key Displays Windows Start menu.
12 Caps lock key Turns on the caps lock function.
Functions like the right mouse button on an external mouse.
Moves the mouse cursor, selects, and activates.
Functions like the left mouse button on an external mouse.
Maintenance and Service Guide 1–21
Product Description
Computer top components are shown in Figure 1-6 and described in Table 1-8.
Figure 1-6. Keyboard Components (Pointing Stick Model—Evo Notebook N400c models only)
Table 1-8
Keyboard Components
Item Component Function
1
2 Hard drive light On: The primary hard drive is
3 MultiBay light On: A MultiBay drive in the
through
F1
function keys Perform preset functions.
F12
being accessed.
optional MEU or an external diskette drive connected to the notebook is being accessed.
1–22 Maintenance and Service Guide
Product Description
Table 1-8
Keyboard Components
Item Component Function
4 Num lock light On: Num lock is on and the
5 Caps lock light On: Caps lock is on.
6 Scroll lock light On: Scroll lock is on.
7 Battery light On: A battery pack is charging.
(Continued)
embedded numeric keypad is enabled.
Blinking: A battery pack that is the only available power source has reached a low-battery condition.
8 Power light On: Power is turned on.
Blinking: Computer is in Standby. The power light also blinks if a
battery pack that is the only available power source reaches a critical low-battery condition while Hibernation is disabled.
9 Pointing stick Moves the mouse cursor.
10 Right pointing stick button Functions like the right mouse
button on an external mouse.
11 Scroll button Can be set to scroll, magnify, or
function like the third button on an external mouse.
12 Left pointing stick button Functions like the left mouse
button on an external mouse.
13
key Used with hotkeys to perform
Fn
preset hotkey functions.
Maintenance and Service Guide 1–23
Product Description
The external components on the bottom of the notebook are shown in Figure 1-7 and described in Table 1-9.
Figure 1-7. Bottom Components
1–24 Maintenance and Service Guide
Table 1-9
Bottom Components
Item Component Function
Product Description
1 External battery release
Release the external battery pack.
latches (2)
2 Docking connector Connects the notebook to an
optional Mobile Expansion Unit.
3 Battery bay Holds the primary battery pack.
4 Primary battery release
latches (2)
Release the primary battery pack from the battery bay.
5 Fan Provides airflow to cool internal
components.
6 Memory expansion
compartment cover
Covers the memory expansion compartment that contains one memory expansion slot for a memory expansion board.
7 Certificate of Authenticity label Contains the Product Key, which
may need to be entered before using some Windows operating systems.
8 Speaker Produces sound.
9 Serial number Identifies the notebook; needed
when you call Compaq customer support.
Maintenance and Service Guide 1–25
Product Description
The notebook rear panel components are shown in Figure 1-8 and described in Table 1-10.

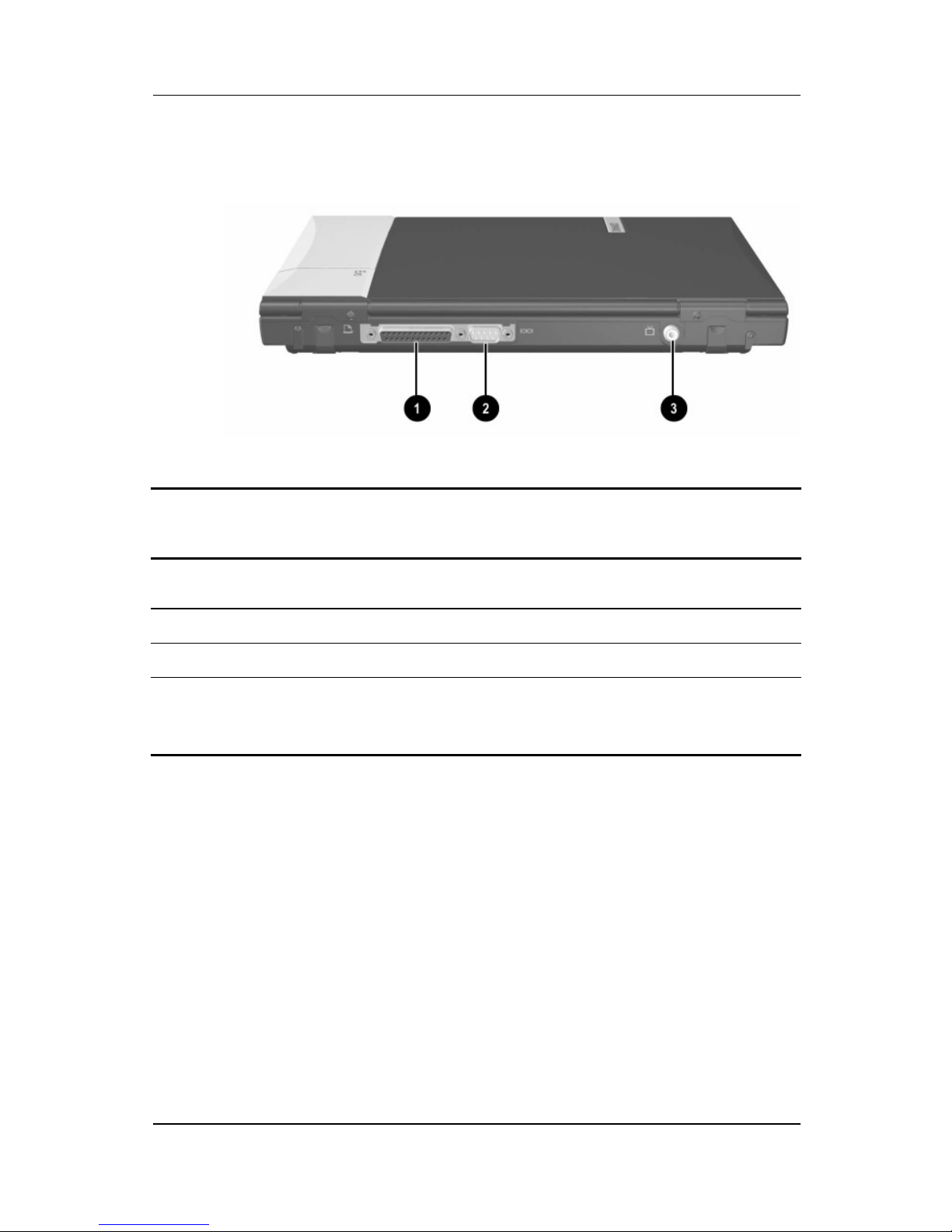

Figure 1-8. Rear Panel Components
Table 1-10
Rear Panel Components
Item Component Function
1 Parallel connector Connects a parallel device.
2 Serial connector Connects a serial device.
3 Composite TV connector Connects a television, VCR,
camcorder, overhead projector, or video capture card.
1–26 Maintenance and Service Guide
1.4 Design Overview
This section presents a design overview of key parts and features of the notebook. Refer to Chapter 3, “Illustrated Parts Catalog,” to identify replacement parts, and Chapter 5, “Removal and Replacement Procedures,” for disassembly steps.
The system board provides the following device connections:
■
Memory expansion board
■
Hard drive
■
Display
■
Keyboard/TouchPad or pointing stick
■
Audio
■
Intel Pentium III processor
Product Description
Ä
■
Fan
■
PC Card
■
Modem or modem/NIC
The notebook uses an electrical fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist. These conditions are affected by high external temperatures, system power consumption, power management/battery conservation configurations, battery fast charging, and software applications. Exhaust air is displaced through the ventilation grill located on the right side of the notebook.
CAUTION: To properly ventilate the notebook, allow at least a
7.6-cm. (3-inch) clearance on the left side of the notebook.
Maintenance and Service Guide 1–27
Troubleshooting
WARNING: Only authorized technicians trained by Compaq should
Å
2.1 Computer Setup and
repair this equipment. All troubleshooting and repair procedures are detailed to allow only subassembly/module level repair. Because of the complexity of the individual boards and subassemblies, no one should attempt to make repairs at the component level or make modifications to any printed wiring board. Improper repairs can create a safety hazard. Any indication of component replacement or printed wiring board modification may void any warranty or exchange allowances.
2
Diagnostics Utilities
Selecting Computer Setup or Compaq Diagnostics
The notebook features two Compaq system management utilities:
■
Computer Setup—A system information and customization utility that can be used even when your operating system is not working or will not load. This utility includes settings that are not available in Windows.
Maintenance and Service Guide 2–1
Troubleshooting
■
Compaq Diagnostics—A system information and diagnostic utility that is used within your Windows operating system. Use this utility whenever possible to:
❏
Display system information.
❏
Test system components.
❏
Troubleshoot a device configuration problem in Windows 2000, Windows XP Professional, or Windows XP Home.
Using Computer Setup
Information and settings in Computer Setup are accessed from the File, Security, or Advanced menus:
1. Turn on or restart the notebook. Press
while the
F10
F10 = ROM Based Setup message is displayed in the lower-left corner of the screen.
❏
To change the language, press
❏
To view navigation information, press
❏
To return to the Computer Setup menu, press
F2.
F1.
esc.
2. Select the File, Security, or Advanced menu.
3. To close Computer Setup and restart the notebook:
❏
Select File > Save Changes and Exit and press
enter.
or
❏
Select File > Ignore Changes and Exit and press
enter.
4. When you are prompted to confirm your action, press
F10.
2–2 Maintenance and Service Guide
Selecting from the File Menu
Table 2-1
File Menu
Select To Do This
Troubleshooting
System Information
Save to Floppy Save system configuration settings to a diskette.
Restore from Floppy Restore system configuration settings from a
Restore Defaults Replace configuration settings in Computer
Ignore Changes and Exit Cancel changes entered during the current
Save Changes and Exit Save changes entered during the current
■
View identification information about the notebook, a docking base, and any battery packs in the system.
■
View specification information about the processor, memory and cache size, and system ROM.
diskette.
Setup with factory default settings. (Identification information is retained.)
session, then exit and restart the notebook.
session, then exit and restart the notebook.
Maintenance and Service Guide 2–3
Troubleshooting
Selecting from the Security Menu
Table 2-2
Security Menu
Select To Do This
Setup Password Enter, change, or delete a setup password.
(The setup password is called an administrator password in Compaq Computer Security, a program accessed from the Windows Control Panel.)
Power-on Password Enter, change, or delete a power-on password.
DriveLock Passwords Enable/disable DriveLock; change a DriveLock
User or Master password.
Drive Lock Settings are accessible only
✎
when you enter Computer Setup by turning on (not restarting) the notebook.
Password Options Password options can be
selected only when a power-on password has been set.
Device Security Enable/disable:
System IDs Enter identification numbers for the notebook,
Enable/disable:
■
QuickLock
■
QuickLock on Standby
■
QuickBlank
To enable QuickLock on Standby or
✎
QuickBlank, you must first enable QuickLock.
■
Ports or diskette drives*
■
Diskette write*
■
CD-ROM or diskette startup
Settings for a DVD-ROM can be
✎
entered in the CD-ROM field.
a docking base, and all battery packs in the system.
*Not applicable to SuperDisk LS-120 drives.
2–4 Maintenance and Service Guide
Troubleshooting
Selecting from the Advanced Menu
Table 2-3
Advanced Menu
Select To Do This
Language (or press F2) Change the Computer Setup language.
Boot Options Enable/disable:
■
QuickBoot, which starts the notebook more quickly by eliminating some startup tests. (If you suspect a memory failure and want to test memory automatically during startup, disable QuickBoot.)
■
MultiBoot, which sets a startup sequence that can include most bootable devices and media in the system.
Device Options ■
Enable/disable the embedded numeric keypad at startup.
■
Enable/disable multiple standard pointing devices at startup. (To set the notebook to support only a single, usually nonstandard, pointing device at startup, select Disable.)
■
Enable/disable USB legacy support for a USB keyboard. (When USB legacy support is enabled, the keyboard works even when a Windows operating system is not loaded.)
■
Set an optional external monitor or overhead projector connected to a video card in a docking base as the primary device. (When the notebook display is set as secondary, the notebook must be shut down before undocking from a docking base.)
Maintenance and Service Guide 2–5
Troubleshooting
Table 2-3
Advanced Menu
Select To Do This
(Continued)
Device Options
(continued)
■
Change the parallel port mode from Enhanced Parallel Port (EPP, the default setting) to standard, bidirectional, EPP or Enhanced Capabilities Port (ECP).
■
Set video-out mode to NTSC (default), PAL, NTSC-J, or PAL-M.*
■
Enable/disable all settings in the SpeedStep window. (When Disable is selected, the notebook runs in Battery Optimized mode.)
■
Specify how the notebook recognizes multiple identical docking bases that are identically equipped. (Select Disable to recognize the docking bases as a single docking base; select Enable to recognize the docking bases individually, by serial number.)
■
Enable/disable the reporting of the processor serial number by the processor to the software.
HDD Self Test Options Run a quick comprehensive self test on hard
drives in the system that support the test features.
* Video modes vary even within regions. However, NTSC is common in North America; PAL, in Europe, Africa, and the Middle East; NTSC-J, in Japan; and PAL-M, in Brazil. Other South and Central American regions may use NTSC, PAL, or PAL-M.
2–6 Maintenance and Service Guide
2.2 Using Compaq Diagnostics
When you access Compaq Diagnostics, a scan of all system components is displayed on the screen before the Compaq Diagnostics window opens.
You can display more or less information from anywhere within Compaq Diagnostics by selecting Level on the menu bar.
Compaq Diagnostics is designed to test Compaq components. If non-Compaq components are tested, the results may be inconclusive.
Obtaining, Saving, or Printing Configuration Information
1. Access Compaq Diagnostics by selecting Start > Settings > Control Panel > Compaq Diagnostics.
Troubleshooting
2. Select Categories, then select a category from the drop-down list.
❏
To save the information, select File > Save As.
❏
To print the information, select File > Print.
3. To close Compaq Diagnostics, select File > Exit.
Maintenance and Service Guide 2–7
Troubleshooting
Obtaining, Saving, or Printing Diagnostic Test Information
1. Access Compaq Diagnostics by selecting Start > Settings > Control Panel > Compaq Diagnostics.
2. Select the Test tab.
3. In the scroll box, select the category or device you want to test.
4. Select a test type:
❏
Quick Test—Runs a quick, general test on each device in a selected category.
❏
Complete Test—Performs maximum testing on each device in a selected category.
❏
Custom Test—Performs maximum testing on a selected device.
◆
To run all tests for your selected device, click Check All.
◆
To run only the tests you select, click Uncheck All, then select the checkbox for each test you want to run.
2–8 Maintenance and Service Guide
5. Select a test mode:
❏
Interactive Mode—Provides maximum control over the testing process. You determine whether the test was passed or failed, and you may be prompted to insert or remove devices.
❏
Unattended Mode—Does not display prompts. If errors are found, they are displayed when testing is complete.
6. Click Begin Testing.
7. Select a tab to view a test report:
❏
Status tab—Summarizes the tests run, passed, and failed during the current testing session.
❏
Log tab—Lists tests run on the system, the number of times each test has run, the number of errors found on each test, and the total run time of each test.
Troubleshooting
❏
Error tab—Lists all errors found in the notebook with their error codes.
8. Select a tab to save the report:
❏
Log tab—Select Save.
❏
Error tab—Select Save.
9. Select a tab to print the report:
❏
Log tab—Select File > Save As, then print the file from your folder.
Maintenance and Service Guide 2–9
Troubleshooting
2.3 Troubleshooting Flowcharts
Table 2 -4
Troubleshooting Flowcharts Overview
Flowchart Description
2.1 Initial Troubleshooting
2.2 No Power, Part 1
2.3 No Power, Part 2
2.4 No Power, Part 3
2.5 No Power, Part 4
2.6 No Video, Part 1
2.7 No Video, Part 2
2.8 Nonfunctioning Docking Station
2.9 No Operating System (OS) Loading
2.10 No OS Loading From Hard Drive, Part 1
2.11 No OS Loading From Hard Drive, Part 2
2.12 No OS Loading From Hard Drive, Part 3
2.13 No OS Loading From Diskette Drive
2.14 No OS Loading From CD- or DVD-ROM Drive
2.15 No Audio, Part 1
2.16 No Audio, Part 2
2.17 Nonfunctioning Device
2.18 Nonfunctioning Keyboard
2.19 Nonfunctioning Pointing Device
2.20 No Network or Modem Connection
2–10 Maintenance and Service Guide
Flowchart 2.1 - Initial Troubleshooting
Begin
troubleshooting.
N
Troubleshooting
Is there power?
Y
Beeps,
LEDs, or error
messages?
Y
Is there video?
(no boot)
Y
Is the OS
loading?
Y
Is there sound?
Y
Flowchart 2.2,
No Power, Part 1.
N
LED board,
connections.
N
Flowchart 2.6,
No Video, Part 1.
N
Flowchart 2.9,
No OS Loading.
N
Flowchart 2.15,
No Audio.
Go to
Check
speaker
Go to
Go to
Go to
All drives working?
Y
Keyboard/
pointing device
working?
Y
Connecting
to network
or modem?
Y
End
N
Flowchart 2.17, Nonfunctioning
N
Flowchart 2.18, Nonfunctioning
Keyboard,
or Flowchart 2.19,
Nonfunctioning
Pointing Device.
N
Flowchart 2.20,
No Network or
Connection.
Go to
Device.
Go to
Go to
Modem
Maintenance and Service Guide 2–11
Troubleshooting

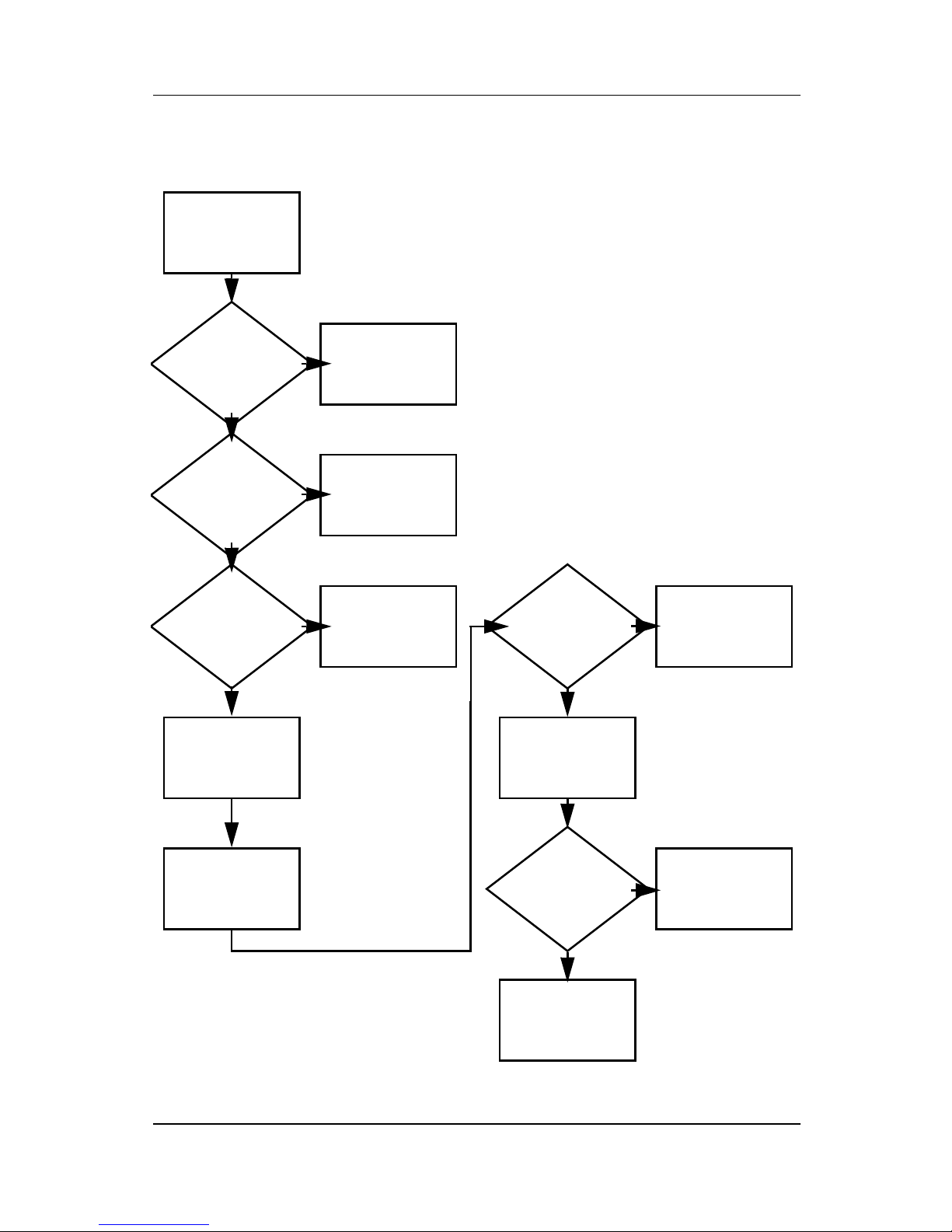

Flowchart 2.2 - No Power, Part 1
No power
(power LED
is off).
Remove from
docking station
(if applicable).
Y
Y
N
Power up
on battery
power?
Power up
on AC
power?
Power up
in docking
station?
N
*Reset power.
Power up
on battery
power?
N
Go to
Flowchart 2.3,
No Power,
Part 2.
Y
N
*Reset power.
Power up
on AC
power?
N
Go to
Flowchart 2.4,
No Power,
Part 3.
Y
Y
Done
*On some models there is a separate reset
button. On some models the notebook may be reset using the Standby switch and either the lid switch or the main power switch.
1. Reseat the power cables in the docking station and at the AC outlet.
2. Ensure that the AC power source is active.
3. Ensure that the power strip is working.
Done
2–12 Maintenance and Service Guide
YN
Power up
in docking
station?
Go to
Flowchart 2.8,
Nonfunctioning
Docking Station.
Flowchart 2.3 - No Power, Part 2
Continued from
Flowchart 2.2,
No Power, Part 1.
Visually check for
debris in battery
socket and clean
if necessary.
Y
Troubleshooting
Power on?
N
Check battery
by recharging,
moving it to
another notebook,
or replacing it.
Power on?
Y
Done
Done
N
Replace
power supply
(if applicable).
N
Go to
Power on?
Flowchart 2.4,
No Power,
Part 3.
Y
Maintenance and Service Guide 2–13
Done
Troubleshooting

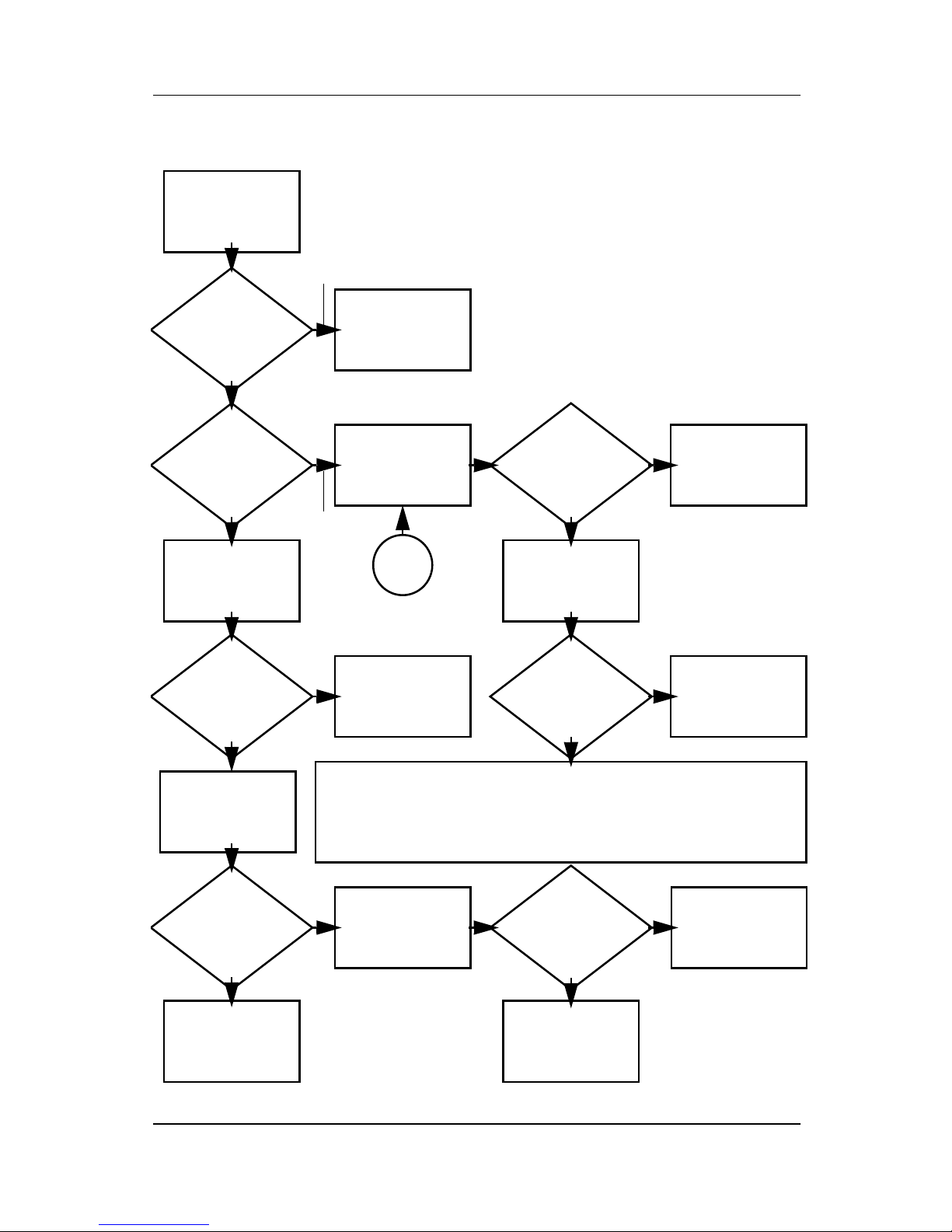

Flowchart 2.4 - No Power, Part 3
Continued from
Flowchart 2.3,
No Power, Part 2.
Plug directly
into AC outlet.
Y
Power LED
on?
N
Reseat AC adapter
in notebook and
at power source.
Power on?
N
Power outlet
active?
Y
Replace
power cord.
Done
Y
Done
N
Try different
outlet.
Internal or
external AC
adapter?
Internal
Go to
Flowchart 2.5,
No Power,
Part 4.
Y
External
Replace external
AC adapter.
N
Power on?
Y
Power on?
N
2–14 Maintenance and Service Guide
Done
Done

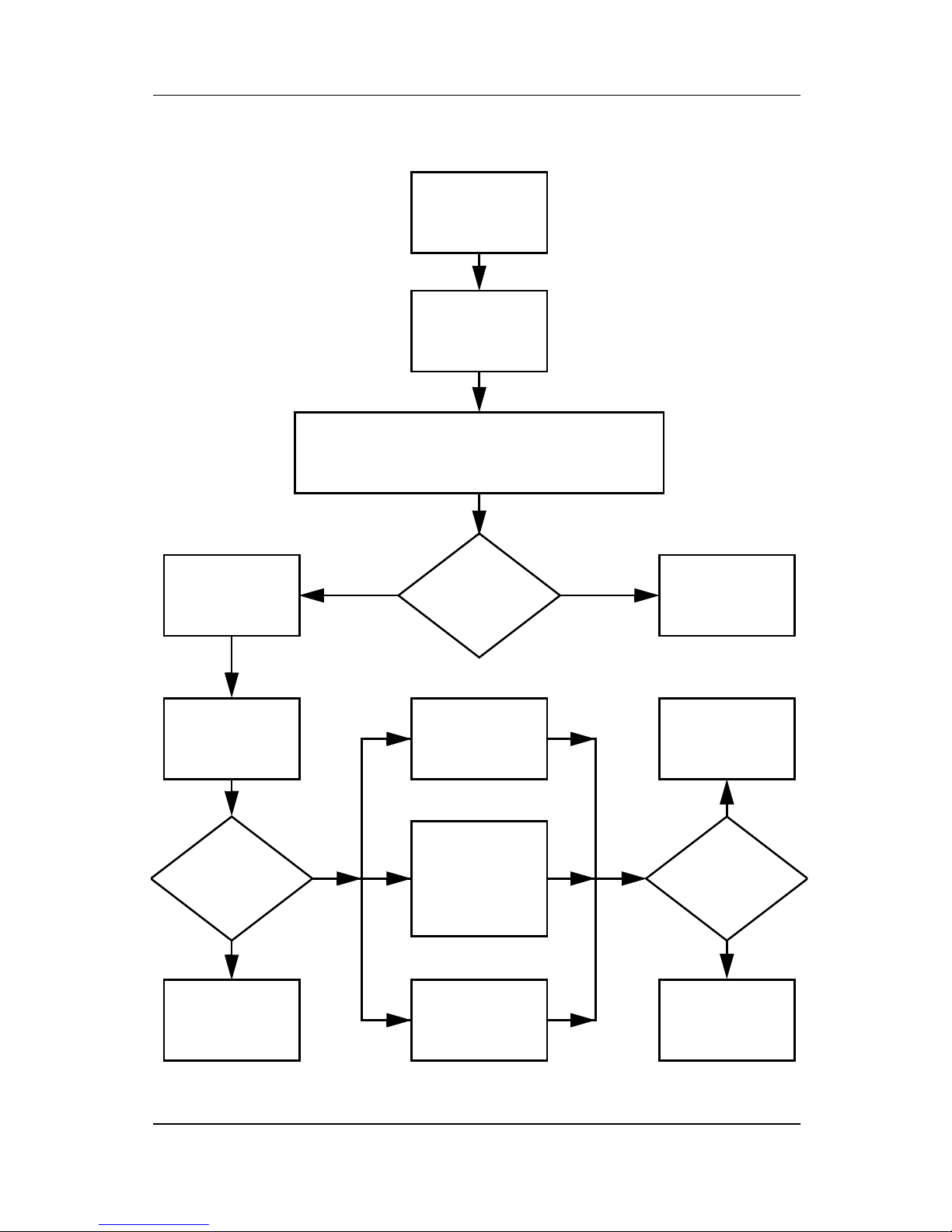

Flowchart 2.5 - No Power, Part 4
Continued from
Flowchart 2.4,
No Power, Part 3.
Open
notebook.
Y
Reseat loose
Loose or
damaged
parts?
N
components
and boards
and replace
damaged items.
Troubleshooting
Close
notebook and
retest.
Power on?
Y
Done
N
Replace the following items (if applicable). Check notebook operation after each replacement:
1. Internal DC-DC converter*
2. Internal AC adapter
3. Processor board*
4. System board*
*Replace these items as a set to prevent shorting out among components.
Maintenance and Service Guide 2–15
Troubleshooting
Flowchart 2.6 - No Video, Part 1
No video.
Docking
station
Stand-alone
or docking
Internal or
display*?
External
brightness.
Video OK?
N
station?
Stand-alone
external
Adjust
Flowchart 2.7,
No Video, Part 2.
Internal
Y
Go to
Adjust
brightness.
A
Done
* To change from internal to external display, use the hotkey combination.
Y
Video OK? Done
N
Press lid
switch to ensure
operation.
Y
Video OK?
N
Done
Check for bent
pins on cable.
N
Video OK?
YY
Done
2–16 Maintenance and Service Guide
Replace the following one at a time. Test after each replacement.
1. Cable between notebook and notebook display (if applicable)
2. Inverter board (if applicable)
3. Display
4. System board
N
Try another display.
Internal and
external
video OK?
Done
Replace
system
board.
Flowchart 2.7 - No Video, Part 2
Continued from
Flowchart 2.6,
No Video, Part 1.
Remove
notebook from
docking station,
if connected.
Troubleshooting
Adjust
display
brightness.
N
Video OK?
Flowchart 2.6,
No Video, Part 1.
Y
Check that notebook is properly
seated in docking station,
for bent pins on cable, and for
monitor connection.
Y
Video OK?
Go to “A” in
Done
Check brightness
of external
monitor.
Video OK?
N
Try another
external
monitor.
Internal
and external
video OK?
Y
Done
Y
Done
N
Adjust external
monitor display.
Maintenance and Service Guide 2–17
N
Go to
Flowchart 2.8,
Nonfunctioning
Docking Station.
Troubleshooting
Flowchart 2.8 - Nonfunctioning Docking Station (if applicable)
Nonfunctioning
docking station.
Reseat power
cord in docking
station and
power outlet.
Check voltage
setting on
docking station.
Reset monitor
cable connector at
docking station.
Docking
station
operating?
N
Remove notebook, reseat all internal parts,
and replace any
damaged items in
docking station.
Reinstall notebook
into docking
station.
Y
Docking
station
operating?
Done
N
Y
Done
Replace the following docking station components one at a time. Check notebook operation after each replacement.
1. Power supply
2. I/O board
3. Backplane board
4. Switch box
5. Docking motor mechanism
2–18 Maintenance and Service Guide
Troubleshooting
Flowchart 2.9 - No Operating System (OS) Loading
No OS
loading.*
Reseat power cord
in docking
station and
power outlet.
* Before beginning troubleshooting, always check cable connections, cable ends, and drives for bent or damaged pins.
No OS loading
from hard drive,
go to Flowchart 2.10,
No OS Loading from
Hard Drive, Part 1.
No OS loading
from diskette drive,
go to Flowchart 2.13,
No OS Loading from
Diskette Drive.
No OS loading
from CD- or
DVD-ROM drive,
go to Flowchart 2.14,
No OS Loading
from CD- or
DVD-ROM Drive.
Maintenance and Service Guide 2–19
Troubleshooting
Flowchart 2.10 - No OS Loading from Hard Drive, Part 1
OS not
loading from
hard drive.
Nonsystem
disk message?
N
Reseat
external
hard drive.
OS loading?
N
Boot from
CD?
Y
Check the setup
utility for correct
booting order.
Y
Go to
Flowchart 2.11,
No OS Loading
from Hard Drive,
Part 2.
Y
Done
N
N
Go to
Boot from
diskette?
Y
Flowchart 2.13,
No OS
Loading from
Diskette Drive.
N
Boot from
hard drive?
Y
Done
2–20 Maintenance and Service Guide
Change boot
priority through
the setup utility
and reboot.
Boot from
hard drive?
Y
N
Go to Flowchart 2.17, Nonfunctioning
Device.
Troubleshooting
Flowchart 2.11 - No OS Loading from Hard Drive, Part 2
Continued from Flowchart 2.10, No OS Loading
from Hard Drive,
Part 1.
CD or
diskette in
drive?
Y
Remove
diskette and
reboot.
N
1. Replace hard drive.
2. Replace system board.
N
Reseat
hard drive.
Hard drive
accessible?
Run FDISK.
Y
Done
Boot from
hard drive?
N
Boot from
diskette drive?
Y
Hard drive
accessible?
Y
Go to
Flowchart 2.12,
No OS Loading
from Hard Drive,
Part 3.
Y
N
Flowchart 2.13,
No OS Loading
N
Done
Go to
from Diskette
Drive.
Done
Hard drive
partitioned?
Y
Hard drive
formatted?
Y
Y
Computer
booted?
Go to Flowchart 2.12, No OS Loading
from Hard Drive,
Part 3.
N
Create partition, then format hard drive to bootable
C:\ prompt.
N
Format hard drive
and bring to
a bootable
C:\ prompt.
Load OS using
Restore CD
N
(if applicable).
Maintenance and Service Guide 2–21
Troubleshooting
Flowchart 2.12 - No OS Loading from Hard Drive, Part 3
Continued from
Flowchart 2.11, No OS Loading
from Hard Drive,
Part 2.
N
System
files on hard
drive?
Y
Virus
on hard
drive?
N
Run SCANDISK
and check for
bad sectors.
Can bad
sectors
be fixed?
Install OS
and reboot.
Y
OS
Clean virus.
loading from
hard drive?
Y
Done
N
Y
Diagnostics
on diskette?
Replace
hard drive.
N
N
Replace
hard drive.
Run diagnostics
and follow
recommendations.
Y
Fix bad
sectors.
2–22 Maintenance and Service Guide
hard drive?
Y
Boot from
Done
N
Replace
hard drive.
Troubleshooting
Y
Flowchart 2.13 - No OS Loading from Diskette Drive
OS not loading
from
diskette drive.
Nonsystem
disk message?
Boot
from another
device?
Y
Reseat
diskette drive.
OS
loading?
Done
N
Y
Bootable
diskette
in drive?
N
Install bootable
diskette and
reboot notebook.
YN
N
Go to Flowchart 2.17, Nonfunctioning
Device.
Check diskette
for system files.
Try different
diskette.
Diskette
drive enabled
in the setup
utility?
Y
Diskette
drive boot
order?
Change boot
priority using
the setup utility.
N
Enable drive
and cold boot
notebook.
Nonsystem
disk error?
Y
1. Replace diskette drive.
2. Replace system board.
N
Y
Clear CMOS.
Refer to
Section 1.3,
“Clearing a
Password,” for
instructions.
Go to Flowchart 2.17, Nonfunctioning
Device.
OS
loading?
NN
Y
Done
Maintenance and Service Guide 2–23
Troubleshooting
Y
N
Flowchart 2.14 - No OS Loading from CD- or DVD-ROM Drive
No OS
loading from
CD- or
DVD-ROM Drive.
Boots from
CD or DVD?
N
Reseat
drive.
Install
bootable disc
and reboot
notebook.
N
bootable disc.
Disc
in drive?
Install
Y
bootable disc.
Bootable
disc in
drive?
Try another
Y
Done
Y
Boots from
CD or DVD?
Done
N
N
Booting
from another
device?
Y
Y
Booting
order
correct?
N
Correct boot
order using
the setup utility.
2–24 Maintenance and Service Guide
Go to Flowchart 2.17, Nonfunctioning
Device.
Clear CMOS.
Refer to
Section 1.3,
“Clearing a
Password,” for
instructions.
Go to Flowchart 2.17, Nonfunctioning
Device.
Flowchart 2.15 - No Audio, Part 1
Y
Turn up audio
No audio.
internally or
externally.
N
Troubleshooting
Audio? Done
Notebook in docking station (if applicable)?
N
Go to
Flowchart 2.16,
No Audio, Part 2.
Y
Undock
Internal
audio?
N
Go to
Flowchart 2.16,
No Audio, Part 2.
Y
Replace the following docking station components one at a time as applicable. Check after each change.
1. Reseat docking station audio cable.
2. Replace audio cable.
3. Replace speaker.
4. Replace docking station audio board.
5. Replace backplane board.
6. Replace I/O board.
Y
Go to
Flowchart 2.17,
Nonfunctioning
Device.
Audio? Done
N
Maintenance and Service Guide 2–25
Troubleshooting
Flowchart 2.16 - No Audio, Part 2
Continued from Flowchart 2.15,
No Audio, Part 1.
N
Audio driver in OS configured?
Reload
audio drivers.
Y
N
Correct
drivers for
application?
Load drivers
and set
configuration
in OS.
Y
Connect to
external
speaker.
Replace audio
board and
Audio?
YN
speaker connections in notebook
(if applicable).
Audio? Done
YN
2–26 Maintenance and Service Guide
1. Replace internal speakers.
2. Replace audio board (if applicable).
3. Replace system board.
Flowchart 2.17 - Nonfunctioning Device
Nonfunctioning
device.
Reseat
device.
Unplug the nonfunctioning device
from the notebook and inspect cables
and plugs for bent or broken pins or
other damage.
Troubleshooting
Clear
CMOS.
Reattach device.
Close notebook,
plug in power,
and reboot.
Device
boots
properly?
Y
Y
Any physical
device detected?
Fix or
replace
broken item.
N
Possible bad
hard drive.
Replace drive.
N
Possible bad NIC.
Replace card. If
integrated NIC, replace system
board.
Go to
Flowchart 2.9,
No OS Loading.
N
Device
boots
properly?
Y
Done
Maintenance and Service Guide 2–27
Possible bad diskette drive. Replace drive.
Done
Troubleshooting
Flowchart 2.18 - Nonfunctioning Keyboard
Keyboard
not operating
properly.
Connect notebook
to good external
keyboard.
N
External
device
works?
Y
Reseat internal
keyboard
connector
(if applicable).
OK?
Y
Done Done
Replace
system
board.
N
Replace internal
keyboard or
cable.
Y
OK?
2–28 Maintenance and Service Guide
N
Replace
system
board.
Troubleshooting
Flowchart 2.19 - Nonfunctioning Pointing Device
Pointing device
not operating
properly.
Connect notebook
to good external
pointing device.
N
External
device
works?
Y
Reseat internal
pointing device
connector
(if applicable).
OK?
Y
Done Done
Replace
system
board.
N
Replace internal
pointing device or
cable.
Y
OK?
Maintenance and Service Guide 2–29
N
Replace
system
board.
Troubleshooting
Flowchart 2.20 - No Network or Modem Connection
No network
or modem
connection.
N
Network
or modem jack
active?
Y
Digital
line?
N
NIC/modem
configured
in OS?
Y
Disconnect all
power from
the notebook
and open.
Replace jack or
Y
to nondigital
N
drivers and
reconfigure.
have jack
activated.
Connect
line.
Reload
N
Replace
NIC/modem
(if applicable).
OK?
Y
Done
Reseat
NIC/modem
(if applicable).
2–30 Maintenance and Service Guide
Y
OK? Done
N
Replace
system
board.
Illustrated Parts Catalog
This chapter provides an illustrated parts breakdown and a reference for spare part numbers and option part numbers.
3.1 Serial Number Location
When ordering parts or requesting information, provide the notebook serial number and model number located on the bottom of the notebook (Figure 3-1).
3

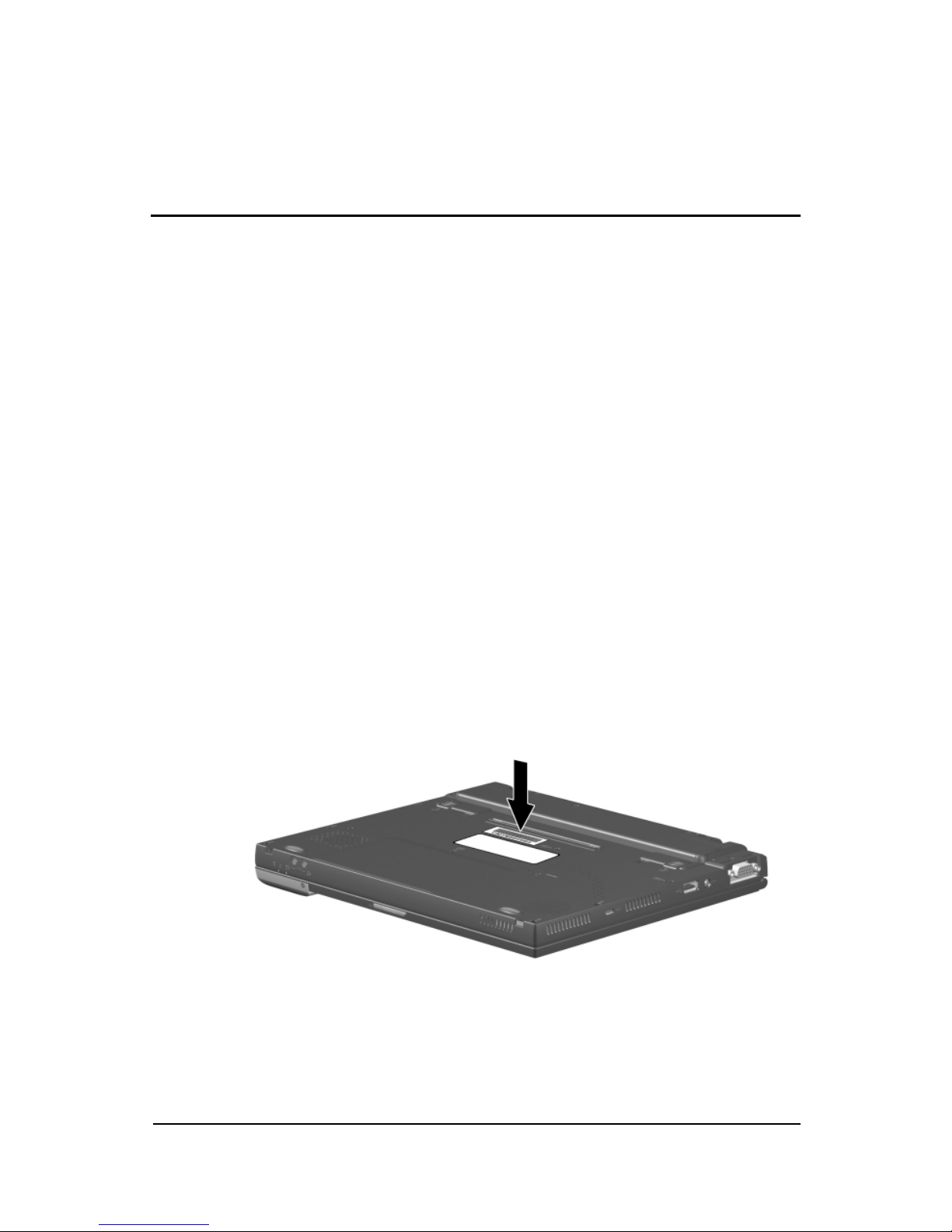

Figure 3-1. Serial Number Location
Maintenance and Service Guide 3–1
Illustrated Parts Catalog
3.2 Computer System Major Components
Figure 3-2. Computer System Major Components
3–2 Maintenance and Service Guide
Computer System Major Components
Item Description
1 Displays
Illustrated Parts Catalog
Table 3-1
Spare Part Number
12.1-inch, XGA, CTFT (for use only with Evo Notebook N410c models)
12.1-inch, SVGA, CTFT (for use only with Evo Notebook N400c models)
Miscellaneous Plastics Kit 231454-001
2a 2b 2c 2d 2e 2f
MultiPort cover Left display support Center display support Right display support RTC battery Display lid switch board (used
only with Evo Notebook N400c models)
2g 2h
Hard drive spacer Memory expansion
compartment cover
3 Palm rests
with TouchPad and two buttons (for use with
TouchPad models)
with three buttons (for use with pointing stick
models—Evo Notebook N400c models only)
292383-001
231448-001
Not Illustrated
■
TouchPad cable
■
PC Card slot weight saver
■
External battery slot spacers
■
Computer feet
■
External monitor connector cover
231449-001
231591-001
Maintenance and Service Guide 3–3
Illustrated Parts Catalog
Computer System Major Components (continued)
3–4 Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-1
Computer System Major Components
Item Description
4 Keyboard without pointing stick (for use with TouchPad models)
(Continued)
Spare Part Number
Arabic Belgian Brazilian Czech Danish French French
Canadian
German Greek Hebrew Hungarian International Italian Japanese
Keyboard with pointing stick (for use only with
Evo Notebook N400c models)
Belgian Brazilian Czech Danish French French
Canadian German Hungarian International Italian Japanese Korean
230514-171 230514-181 230514-201 230514-221 230514-081 230514-051
230514-121 230514-041 230514-151 230514-211 230514-BB1 230514-002 230514-061 230514-291
230515-181 230515-201 230515-221 230515-081 230515-051
230515-121 230515-041 230515-211 230515-002 230515-061 230515-291 230515-AD1
Korean Latin American
Spanish Norwegian Portuguese Russian Slovakian Spanish Swedish/
Finnish Swiss Taiwanese Tu rk i sh U.K. English U.S. English
Latin American Spanish
Norwegian Portuguese Spanish Swedish/
Finnish Swiss Taiwanese Tu rk i sh U.K. English U.S. English
230514-AD1 230514-161 230514-091 230514-131 230514-251 230514-BA1 230514-071
230514-101 230514-111 230514-AB1 230514-141 230514-031 230514-001
230515-161 230515-091 230515-131 230515-071
230515-101 230515-111 230515-AB1 230515-141 230515-031 230515-001
Maintenance and Service Guide 3–5
Illustrated Parts Catalog
Computer System Major Components (continued)
3–6 Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-1
Computer System Major Components
Item Description
5 Switch cover 231453-001
6 Hard drives
(Continued)
Spare Part Number
40 GB 30 GB 20 GB
10 GB
7 System boards (includes fan and heat sink)
For use only with Evo Notebook N410c models
1.20-GHz Intel Pentium III processor
1.00-GHz Intel Pentium III processor
For use only with Evo Notebook N400c models
850-MHz Intel Pentium III processor 700-MHz Intel Pentium III processor
8 Base enclosures
For use only with Evo Notebook N410c models
(includes NTSC module and battery terminals)
For use only with Evo Notebook N410c models
(includes NTSC module, RJ45/RJ11 module, and battery terminals)
265495-001 304095-001 235540-001 and 218371-001 218370-001
292387-001 292386-001
253104-001 231446-001
292384-001
231452-001
Maintenance and Service Guide 3–7
Illustrated Parts Catalog
Computer System Major Components (continued)
3–8 Maintenance and Service Guide
Computer System Major Components
Item Description
9 Modem cables
Illustrated Parts Catalog
Table 3-1
(Continued)
Spare Part Number
For use only with Evo Notebook N410c models
(includes RJ45/RJ11 connector module, display lid switch board, microphone, and modem/microphone/NIC cable bundle)
For use only with Evo Notebook N400c models
(includes display lid switch board, microphone, and microphone cable)
10 Battery packs
Primary Li ion battery pack, 4 cell
For use only with Evo Notebook N410c models For use with Evo Notebook N410c and
N400c models External Li ion battery pack, 4 cell External high capacity battery pack, 9 cell
For use only with Evo Notebook N410c models For use with Evo Notebook N410c and
N400c models
11 Mini PCI communication boards
Lucent Win Modem + Intel PRO-100 (S)P
Mobile Combo Adapter
Type III mini PCI combination 56 Kbps modem/NIC
board
Type III mini PCI 56 Kbps modem board
302781-001
231451-001
292389-001 231445-001
230609-001
292388-001 155065-001
230339-001
230338-001 230337-001
Maintenance and Service Guide 3–9
Illustrated Parts Catalog
3.3 Miscellaneous Plastics Kit Components
Figure 3-3. Miscellaneous Plastics Kit Components
3–10 Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-2
Miscellaneous Plastics Kit Components
Spare Part Number 231454-001
Item Description Item Description
1 MultiPort cover 8 RTC battery
2 Right display support 9 TouchPad cable
3 Center display support 10 External monitor connector
cover
4 Left display support 11 PC Card slot weight saver
5 Display lid switch board (used
only with Evo Notebook 400c models)
6 Hard drive spacer 13 External battery slot spacers
7 Computer feet
12 Memory expansion
compartment cover
Maintenance and Service Guide 3–11
Illustrated Parts Catalog
3.4 Mass Storage Devices
Figure 3-4. Mass Storage Devices
3–12 Maintenance and Service Guide
Item Description
1 Hard drives
Illustrated Parts Catalog
Table 3-3
Mass Storage Devices
Spare Part Number
40 GB 30 GB 20 GB
10 GB
2
2a 2b
External diskette drive
External diskette drive cable External diskette drive cradle
3 Optical drives
The following options are for use only with the
Mobile Expansion Unit: 8X Max DVD-ROM drive
24X Max CD-ROM drive CD-RW drive DVD-ROM/CD-RW combination drive
265495-001 304095-001 235540-001 and 218371-001 218370-001
241995-001 and 135233-001
135232-001 175375-001
173949-001 and 202837-001 228746-001 153992-001 238878-001
Maintenance and Service Guide 3–13
Illustrated Parts Catalog
3.5 Miscellaneous Spare Parts
Table 3-4
Miscellaneous Spare Parts (not illustrated)
Spare Part
Description
Automobile adapter 261699-001
Battery charger 153991-001
Bluetooth MultiPort Module 230336-001
External AC adapters
Number
65 W, slim line 50 W, slim line
Memory expansion boards
For use only with Evo Notebook N410c models
133 MHz, 256 MB 133 MHz, 256 MB 133 MHz, 128 MB 133 MHz, 128 MB
For use with all Evo Notebook N410c and N400c models
100 Mhz, 256 MB 100 Mhz, 128 MB 100 Mhz, 64 MB
239704-001 163444-001
238879-001 212683-001 212682-001 212681-001
167136-001 135244-001 135243-001
3–14 Maintenance and Service Guide
Miscellaneous Spare Parts (not illustrated)
Description
Mobile Expansion Units
Illustrated Parts Catalog
Table 3-4
(Continued)
Spare Part Number
For use only with Evo Notebook N410c models For use with Evo Notebook N410c and N400c models
Power cords (3 W, black, 6 feet)
Australian Danish European/Middle
Eastern/African
Italian
246959-011 246959-081
246959-021 246959-061
Japanese Korean Swiss U.K. English U.S. English
Miscellaneous Screw Kit, includes the following screws
(Refer to Appendix C, “Screw Listing,” for more information on screw specifications and usage.)
■
Torx T8 Metric 2.0 × 6.0
■
Torx T8 Metric 2.0 × 3.5
■
Phillips P0 Metric 2.0 × 5.0
■
5.0 mm × 9.5 screwlock
■
Phillips P0 Metric 2.0 × 3.0
■
Phillips P0 Metric 2.0 × 4.0
■
Phillips P0 Metric 2.0 × 7.0 barrel screw
292385-001 231450-001
246959-291 246959-AD1 246959-AG1 246959-031 246959-001
231455-001
Maintenance and Service Guide 3–15
Illustrated Parts Catalog
Miscellaneous Spare Parts (not illustrated)
Description
Modems
Table 3-4
(Continued)
Spare Part Number
Type III mini PCI combination 56 Kbps modem/NIC board Type III mini PCI 56 Kbps modem board PC Card modem
Modem adapters
Czech German Hungarian
Modem cable 234962-001
Modem cable adapters
Australian Belgian French
RJ-11 P55 adapters
Danish Finnish
RJ-11 PTT adapter (used in the United Kingdom) 158593-031
234963-221 304398-041 234963-211
304398-011 304398-181l 304398-051
316904-081 316904-351
Norwegian Swiss
Italian Swedish
233558-001 233557-001 233564-001
234963-091 198294-111
316904-061 316904-101
3–16 Maintenance and Service Guide
Removal and Replacement
This chapter provides essential information for proper and safe removal and replacement service.
4.1 Tools Required
You will need the following tools to complete the removal and replacement procedures:
■
Magnetic screwdriver
■
Phillips P0 screwdriver
4
Preliminaries
■
Torx T8 screwdriver
■
Tool kit (includes connector removal tool, loopback plugs, and case utility tool)
Maintenance and Service Guide 4–1
Removal and Replacement Preliminaries
4.2 Service Considerations
The following sections include some of the considerations that you should keep in mind during disassembly and assembly procedures.
As you remove each subassembly from the notebook, place the
✎
Plastic Parts
subassembly (and all accompanying screws) away from the work area to prevent damage.
Using excessive force during disassembly and reassembly can damage plastic parts. Use care when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.
Cables and Connectors
Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Ensure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.
CAUTION: When servicing the notebook, ensure that cables are
Ä
placed in their proper locations during the reassembly process. Improper cable placement can damage the notebook.
4–2 Maintenance and Service Guide
Removal and Replacement Preliminaries
4.3 Preventing Damage to Removable Drives
Removable drives are fragile components that must be handled with care. To prevent damage to the notebook, damage to a removable drive, or loss of information, observe the following precautions:
■
Before removing or inserting a hard drive, shut down the notebook. If you are unsure whether the notebook is off or in Hibernation, turn the notebook on, then shut it down.
■
Before removing a diskette drive or optical drive, ensure that a diskette or disc is not in the drive. Ensure that the optical drive tray is closed.
■
Before handling a drive, ensure that you are discharged of static electricity. While handling a drive, avoid touching the connector.
■
Handle drives on surfaces that have at least one inch of shock-proof foam.
■
Avoid dropping drives from any height onto any surface.
■
After removing a hard drive, CD-ROM drive, or a diskette drive, place it in a static-proof bag.
■
Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.
■
Avoid exposing a drive to temperature extremes or to liquids.
■
If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable form of protective packaging and label the package “Fragile: Handle With Care.”
Maintenance and Service Guide 4–3
Removal and Replacement Preliminaries
4.4 Preventing Electrostatic Damage
Many electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases the discharge contains enough power to alter device parameters or melt silicon junctions.
A sudden discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry. Often the spark is neither felt nor heard, but damage occurs.
An electronic device exposed to electrostatic discharge may not be affected at all and can work perfectly throughout a normal cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life expectancy.
4.5 Packaging and Transporting Precautions
Use the following grounding precautions when packaging and transporting equipment:
■
To avoid hand contact, transport products in static-safe containers, such as tubes, bags, or boxes.
■
Protect all electrostatic-sensitive parts and assemblies with conductive or approved containers or packaging.
■
Keep electrostatic-sensitive parts in their containers until the parts arrive at static-free workstations.
■
Place items on a grounded surface before removing items from their containers.
■
Always be properly grounded when touching a sensitive component or assembly.
4–4 Maintenance and Service Guide
Removal and Replacement Preliminaries
■
Store reusable electrostatic-sensitive parts from assemblies in protective packaging or nonconductive foam.
■
Use transporters and conveyers made of antistatic belts and roller bushings. Ensure that mechanized equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.
4.6 Workstation Precautions
Use the following grounding precautions at workstations:
■
Cover the workstation with approved static-dissipative material (refer to Table 4-2).
■
Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and equipment.
■
Use conductive field service tools, such as cutters, screwdrivers, and vacuums.
■
When using fixtures that must directly contact dissipative surfaces, only use fixtures made of static-safe materials.
■
Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and Styrofoam.
■
Handle electrostatic-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these items only at static-free workstations.
■
Avoid contact with pins, leads, or circuitry.
■
Turn off power and input signals before inserting or removing connectors or test equipment.
Maintenance and Service Guide 4–5
Removal and Replacement Preliminaries
4.7 Grounding Equipment and Methods
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
■
When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors, connect a wrist strap with alligator clips.
■
When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps) can be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one-megohm resistance between the operator and ground. To be effective, the conductive strips must be worn in contact with the skin.
Other grounding equipment recommended for use in preventing electrostatic damage includes:
■
Antistatic tape
■
Antistatic smocks, aprons, and sleeve protectors
■
Conductive bins and other assembly or soldering aids
■
Nonconductive foam
■
Conductive tabletop workstations with ground cords of one-megohm resistance
■
Static-dissipative tables or floor mats with hard ties to the ground
■
Field service kits
■
Static awareness labels
■
Material-handling packages
4–6 Maintenance and Service Guide
Removal and Replacement Preliminaries
■
Nonconductive plastic bags, tubes, or boxes
■
Metal tote boxes
■
Electrostatic voltage levels and protective materials
Table 4-1 shows how humidity affects the electrostatic voltage levels generated by different activities.
Table 4-1
Typical Electrostatic Voltage Levels
Relative Humidity
Event 10% 40% 55%
Walking across carpet 35,000 V 15,000 V 7,500 V
Walking across vinyl floor 12,000 V 5,000 V 3,000 V
Motions of bench worker 6,000 V 800 V 400 V
Removing DIPS from plastic tube 2,000 V 700 V 400 V
Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V
Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V
Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V
Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V
A product can be degraded by as little as 700 V.
✎
Table 4-2 lists the shielding protection provided by antistatic bags and floor mats.
Table 4-2
Static-Shielding Materials
Material Use Voltage Protection Level
Antistatic plastic Bags 1,500 V
Carbon-loaded plastic Floor mats 7,500 V
Metallized laminate Floor mats 5,000 V
Maintenance and Service Guide 4–7
5
Removal and Replacement
Procedures
This chapter provides removal and replacement procedures.
There are 31 different Torx T8 and Phillips screws and screwlocks, in 6 different sizes, that must be removed when servicing the notebook. Make special note of the size and location of each screw during removal and replacement.
Refer to Appendix C, “Screw Listing,” for detailed information on screw sizes, locations, and usage.
5.1 Serial Number
Report the notebook serial number to Compaq when requesting information or ordering spare parts. The serial number is located on the bottom of the notebook (Figure 5-1).
Figure 5-1. Serial Number Location
Maintenance and Service Guide 5–1
Removal and Replacement Procedures
5.2 Disassembly Sequence Chart
Use the chart below to determine the section number to be referenced when removing notebook components.
Table 5-1
Disassembly Sequence Chart
# of Screws
Section Description
5.3 Preparing the notebook for disassembly 0
Primary battery pack
Optional external battery pack
5.4 Computer feet 0
Removed
5.5 Palm rest 4
5.6 Memory expansion board 1
5.7 Hard drive 0
5.8 Mini PCI communications board 0
5.9 Keyboard 4
5.10 Real time clock (RTC) battery 0
5.11 Switch cover 4
5.12 Display 4
5.13 Modem cable 2
5.14 System board 12 on Evo Notebook N410c models
10 on Evo Notebook
N400c models
5–2 Maintenance and Service Guide
Removal and Replacement Procedures
5.3 Preparing the Notebook for Disassembly
Perform the following steps before disassembling the notebook:
1. Turn off the notebook.
2. Undock the notebook and Mobile Expansion Unit (MEU) from the docking base, if applicable.
3. Disconnect the notebook from the MEU, if applicable.
4. Disconnect the AC adapter and external devices.
5. Remove the primary battery pack by following these steps:
a. Turn the notebook bottom side up with the front facing
forward.
Maintenance and Service Guide 5–3
Removal and Replacement Procedures
b. Slide the left primary battery release latch forward 1
(Figure 5-2).
c. Slide the right primary battery release latch forward and
hold it in place
2
.
d. Swing the front edge of the primary battery pack up and
back
3
.
e. Lift the primary battery pack out of the battery bay
Figure 5-2. Removing the Primary Battery Pack
4
.
5–4 Maintenance and Service Guide
Removal and Replacement Procedures
6. Remove the optional external battery pack, if installed, by following these steps:
a. Turn the notebook bottom side up with the front facing
forward.
b. Make sure the external battery pack is located behind the
notebook rear panel.
c. Slide the external battery release latches toward the
inside of the notebook
(Figure 5-3).
1
d. Rotate the external battery pack 90 degrees toward the
notebook
2
.
e. Remove the battery pack from the notebook
Figure 5-3. Removing the Optional External Battery Pack
3
.
Maintenance and Service Guide 5–5
Removal and Replacement Procedures
5.4 Computer Feet
The base feet are adhesive-backed rubber pads. The base feet are included in the Miscellaneous Plastics Kit (spare part number 231454-001). Refer to Figure 5-4 for the locations of the notebook feet.
Figure 5-4. Replacing the Computer Feet
5–6 Maintenance and Service Guide
5.5 Palm Rest
Spare Part Number Information
Palm rests
Removal and Replacement Procedures
Palm Rest
with TouchPad and two buttons (for use with TouchPad
models)
with three buttons (for use with pointing stick
models—Evo Notebook N400c models only)
The palm rest must be removed to access the internal memory expansion slot, the hard drive, and the modem/NIC board.
1. Prepare the notebook for disassembly (Section 5.3).
2. Turn the notebook bottom side up with the front facing forward.
231449-001
231591-001
Maintenance and Service Guide 5–7
Removal and Replacement Procedures

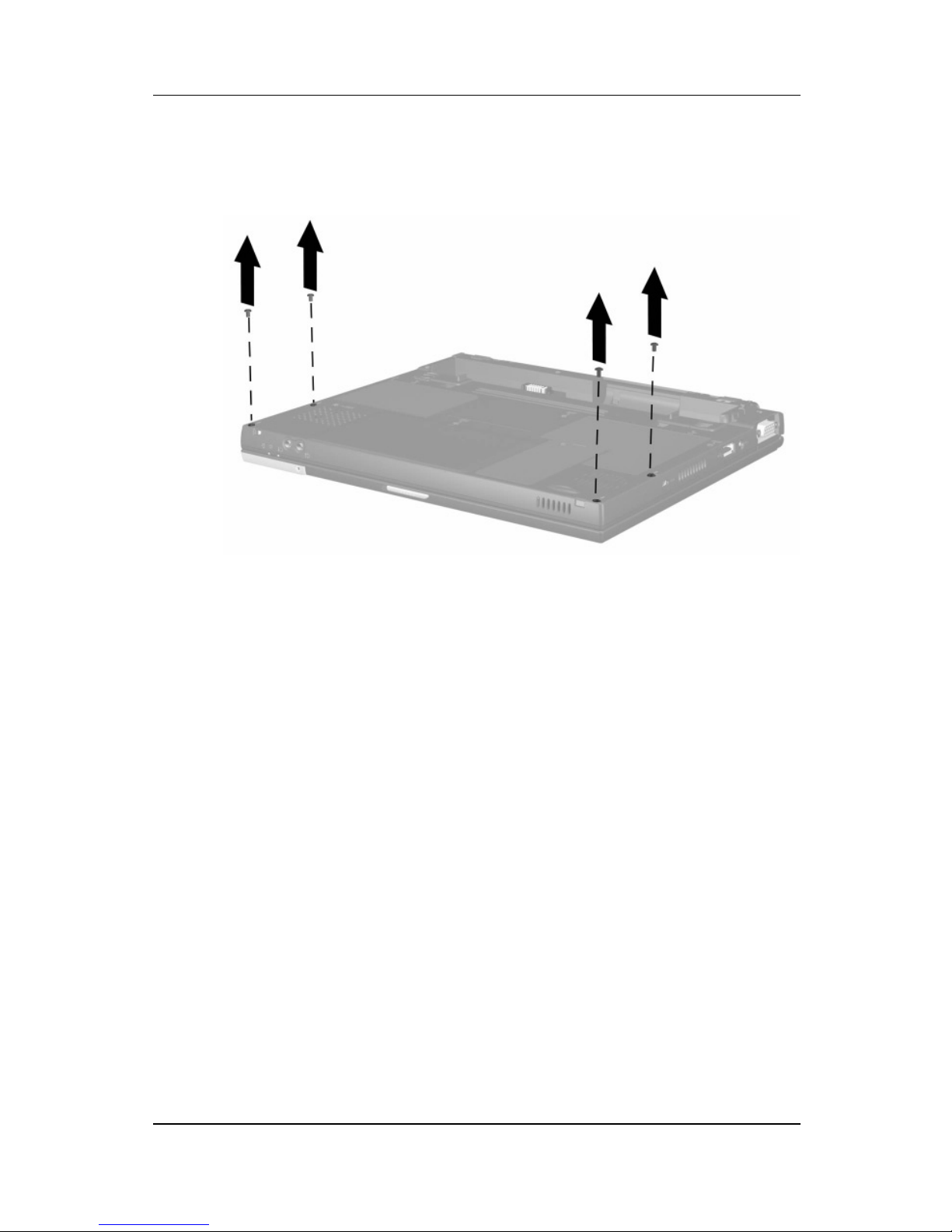

3. Remove the four TM2.0 × 6.0 screws that secure the palm rest to the base enclosure (Figure 5-5).
Figure 5-5. Removing the Palm Rest Screws
4. Turn the notebook top side up with the front facing forward.
5. Open the notebook.
5–8 Maintenance and Service Guide
Removal and Replacement Procedures
6. Press forward on the back edge of the palm rest between the right side of the space bar and the right
key to disengage
Alt
the palm rest from the base enclosure (Figure 5-6).
Figure 5-6. Releasing the Palm Rest
Maintenance and Service Guide 5–9
Removal and Replacement Procedures
7. Lift up the back edge of the palm rest 1 until the RTC battery
and TouchPad cables 3 prevent it from lifting any farther
2
(Figure 5-7).
Figure 5-7. Releasing the Palm Rest (continued)
5–10 Maintenance and Service Guide
Removal and Replacement Procedures
8. While holding the palm rest at a 45 degree angle, slide the front edge of the palm rest forward
(Figure 5-8).
1
9. After the front edge of the palm rest clears the base enclosure, swing the front edge of the palm rest up and back the palm rest on the keyboard
3
.
and rest
2
Figure 5-8. Releasing the Palm Rest (continued)
Maintenance and Service Guide 5–11
Removal and Replacement Procedures
10. Remove the RTC battery from the retaining clip 1 (Figure 5-9).
The RTC battery is included in the Miscellaneous Plastics Kit
✎
(spare part number 231454-001).
11. Disconnect the TouchPad cable TouchPad.
Figure 5-9. Removing the RTC Battery and Disconnecting the TouchPa d Cable
from the connector on the
2
5–12 Maintenance and Service Guide
✎
Removal and Replacement Procedures
Evo Notebook N400c models only—Models with pointing stick keyboards have a pointing stick button cable that needs to be disconnected prior to removing the palm rest. Perform Steps 12 and 13 before removing the palm rest on a pointing stick model.
12. Release the zero insertion force (ZIF) connector to which the pointing stick button cable is attached pointing stick button cable
(Figure 5-10).
2
and disconnect the
1
Figure 5-10. Disconnecting the Pointing Stick Button Cable
13. Remove the palm rest and set it aside.
Reverse the above procedure to install the palm rest.
Maintenance and Service Guide 5–13
Removal and Replacement Procedures
Before installing the palm rest on TouchPad models, make sure
✎
the TouchPad respective notches in the palm rest (Figure 5-11).
and RTC battery cables 2 are routed through the
1
Figure 5-11. Routing the RTC Battery and TouchPad Cables
5.6 Memory Expansion Board
The Compaq Evo Notebook N410c notebook has two memory
✎
expansion slots: one is located on the bottom of the notebook and the other is located under the palm rest. The procedure for removing a memory expansion board from a memory expansion socket is identical for both locations.
Follow these steps to remove a memory expansion board from the slot in the bottom of the notebook:
1. Prepare the notebook for disassembly (Section 5.3).
2. Turn the notebook bottom side up with the front facing forward.
5–14 Maintenance and Service Guide
Removal and Replacement Procedures
3. Remove the TM2.0 × 6.0 screw 1 that secures the memory expansion compartment cover to the base enclosure (Figure 5-12).
4. Lift the back edge of the memory expansion compartment cover and swing it up and forward
2
.
Figure 5-12. Removing the Memory Expansion Compartment Cover
Maintenance and Service Guide 5–15
