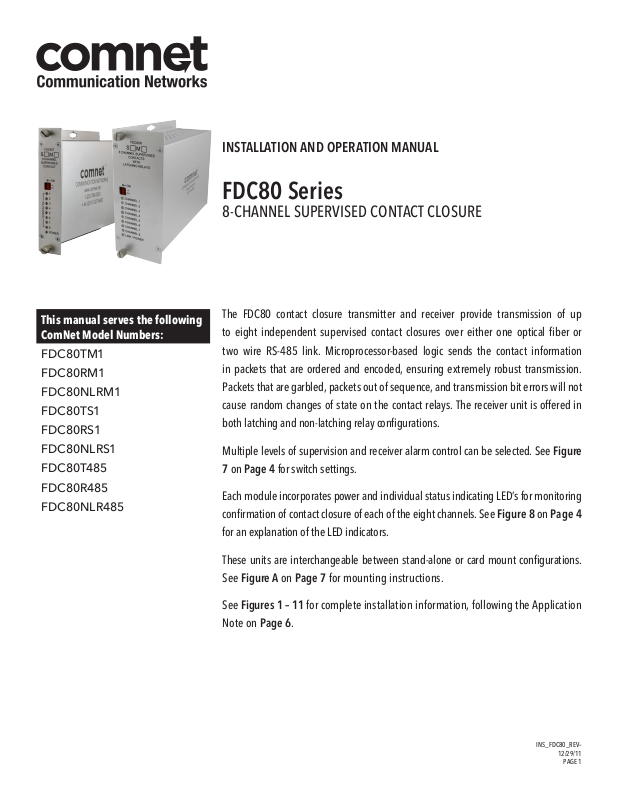

INSTALLATION AND OPERATION MANUAL

FDC80 Series

8-CHANNEL SUPERVISED CONTACT CLOSURE

This manual serves the following
ComNet Model Numbers:

FDC80TM1

FDC80RM1

FDC80NLRM1

FDC80TS1

FDC80RS1

FDC80NLRS1

FDC80T48 5

FDC80R485

FDC80NLR485

The FDC80 contact closure transmitter and receiver provide transmission of up
to eight independent supervised contact closures over either one optical fiber or
two wire RS-485 link. Microprocessor-based logic sends the contact information
in packets that are ordered and encoded, ensuring extremely robust transmission.
Packets that are garbled, packets out of sequence, and transmission bit errors will not
cause random changes of state on the contact relays. The receiver unit is offered in
both latching and non-latching relay configurations.

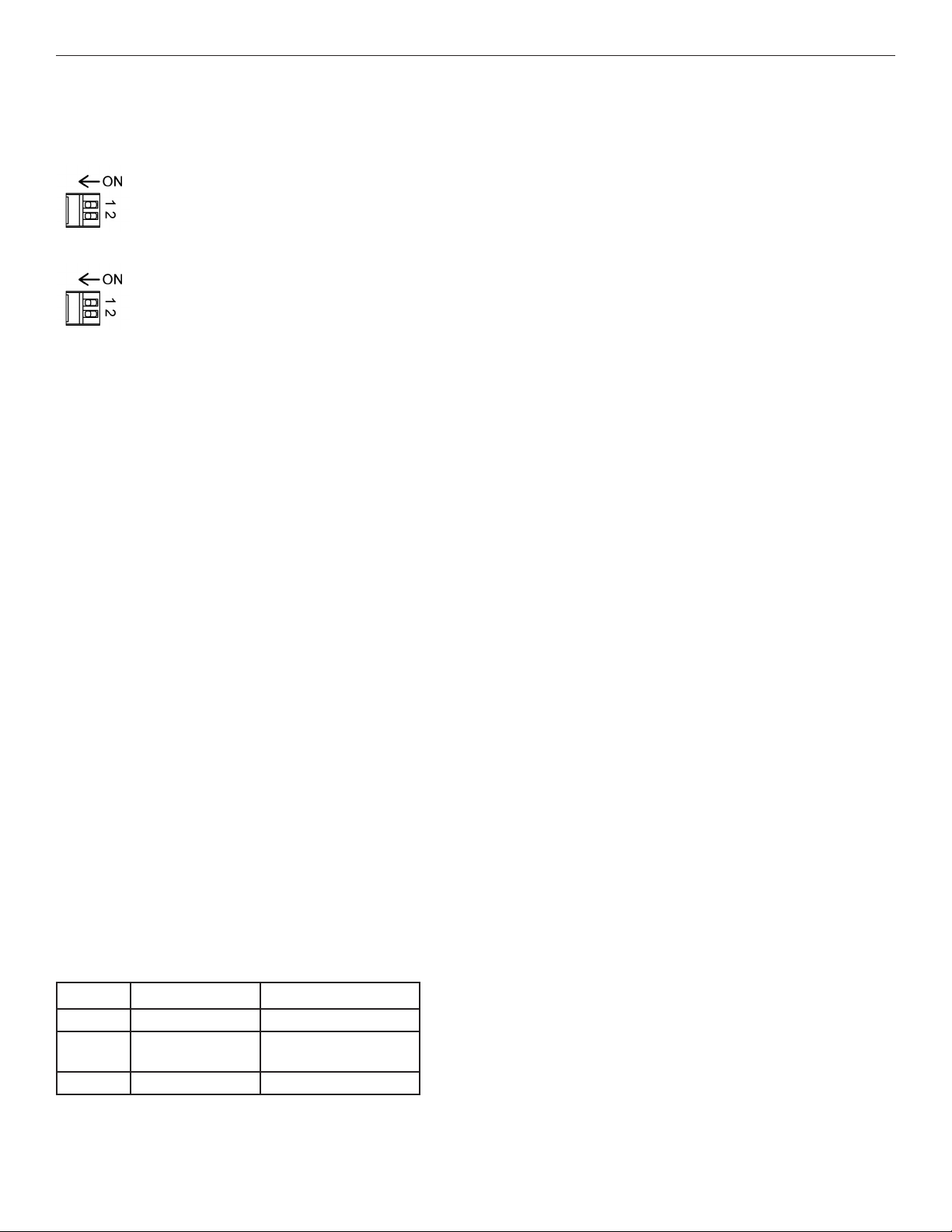

Multiple levels of supervision and receiver alarm control can be selected. See Figure
7 on Page 4 for switch settings.

Each module incorporates power and individual status indicating LED’s for monitoring
confirmation of contact closure of each of the eight channels. See Figure 8 on Page 4
for an explanation of the LED indicators.

These units are interchangeable between stand-alone or card mount configurations.

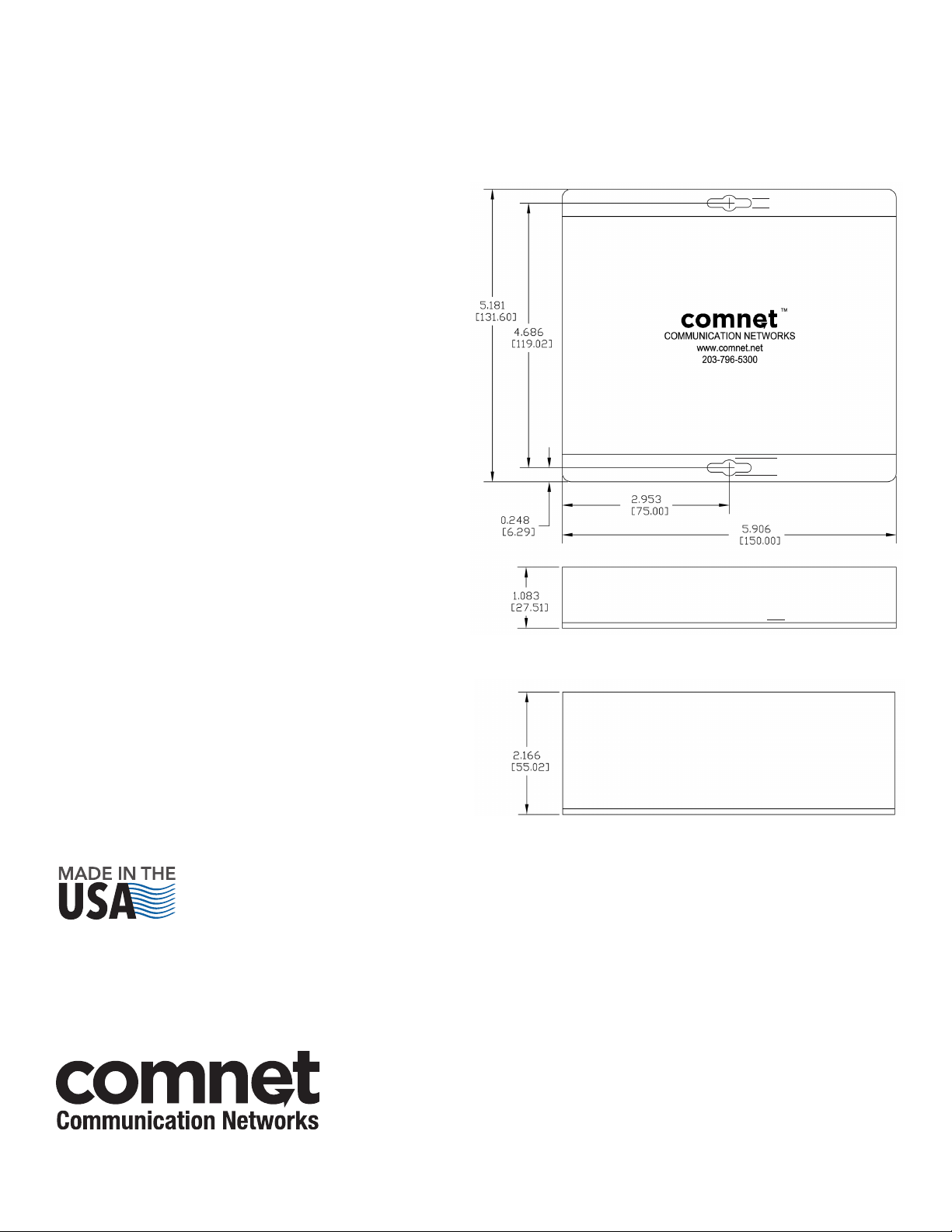

See Figure A on Page 7 for mounting instructions.

See Figures 1 – 11 for complete installation information, following the Application
Note on Page 6.

INS_FDC80_REV–

12/29/11

PAGE 1

INSTALLATION AND OPERATION MANUAL FDC80

FIGURE 1 – FDC80 OPTICAL

MULTIMODE OR SINGLE MODE
OPTICAL FIBER (Depending on Model)

BLACK
BLACK WITH WHITE STRIPE

Power Supply:
Surface Mount: 8–15 VDC @ 150mA
Rack Mount: From Rack

NOTE: Remove Electrical Connector

for Rack Mount Units

FIGURE 2 – FDC80 TRANSMITTER FIGURE 3 – FDC80 RECEIVER

REAR PANEL REAR PANELFRONT PANEL FRONT PANEL

TECH SUPPORT: 1.888.678.9427

INS_FDC80_REV–

12/29/11

PAGE 2

INSTALLATION AND OPERATION MANUAL FDC80

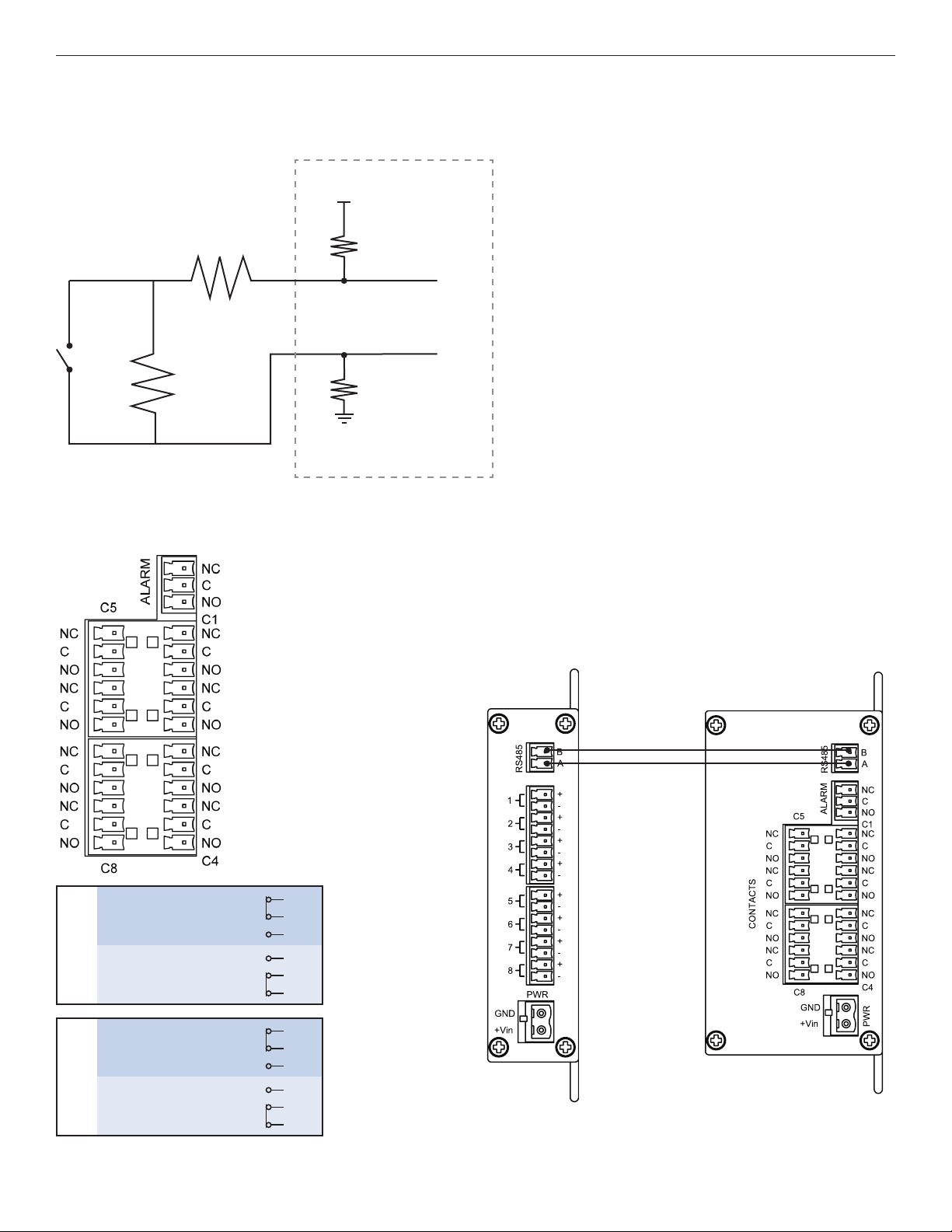

FIGURE 4 – FDC80 RS-485

RS485 2 Wire

BLACK
BLACK WITH WHITE STRIPE

Power Supply:
Surface Mount: 8–15 VDC @ 150mA
Rack Mount: From Rack

NOTE: Remove Electrical Connector

for Rack Mount Units

FIGURE 5 – FDC80 RS-485 TRANSMITTER FIGURE 6 – FDC80 RS-485 RECEIVER

REAR PANEL REAR PANELFRONT PANEL FRONT PANEL

TECH SUPPORT: 1.888.678.9427

INS_FDC80_REV–

12/29/11

PAGE 3
