Comnet FDC10M1B User Manual

Mechanical Installation Instructions

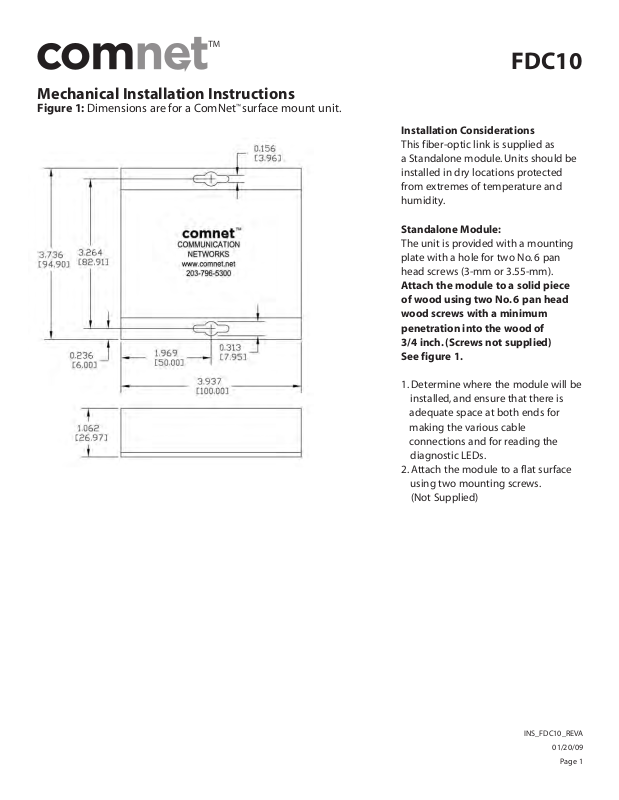

Figure 1: Dimensions are for a ComNet™surface mount unit.

FDC10

Installation Considerations

This fiber-optic link is supplied as
a Standalone mo
installed in dry locations protected
from extremes of temperature and
humidity.

Standalone Module:

The unit is provided with a mounting

e with a hole f

plat
head screws (3-mm or 3.55-mm).

Attach the module to a solid piece

o

od using two No. 6 pan head

of w
wood screws with a minimum
penetration into the wood of
3/4 inch. (Screws not supplied)
See figure 1.

dule. Units should be

or two No. 6 pan

1. Determine where the module will b
installed

adequate space at both ends for
making the various cable
connections and for reading the

diagnostic LEDs.

2. Attach the module to a flat surface
using two mounting screws.
(Not Supplied)

, and ensure that there is

e

INS_FDC10_REVA

01/20/09

Page 1

FDC10

INSTALLATION INSTRUCTIONS

Communication Networks

3 Corporate Drive • Danbury, CT 06810 • USA
Tel:[phone] • Toll Free: 1-888-678-9427
www.comnet.net

MULTIMODE
OR
SINGLE MODE
OPTICAL
FIBER

BI-DIRECTIONAL

CONTACT CLOSURE TRANSCEIVER

LEDS: RED = “No Activity”

GRN = “Activity”

NOTE: RED DOES NOT MEAN “Error”

Power Sources - The product should only be operated from the recommended power source.

Use only a UL Class 2 indoor/dry or Class 3 outdoor/wet power supply.

WARNING: Unit is to be used with a Listed Class 2 or LPS power supply rated 9-12 VDC @ 1A.

WARNING: This unit should be installed in a restricted access location; available through the use

of a lock and key or other means of security. Access should be limited to service personnel who
have been instructed about the reasons for the restrictions to the location. Any and all
precautions should be taken and controlled by the authority responsible for the location.

BLACK WITH WHITE STRIPE

BLACK
