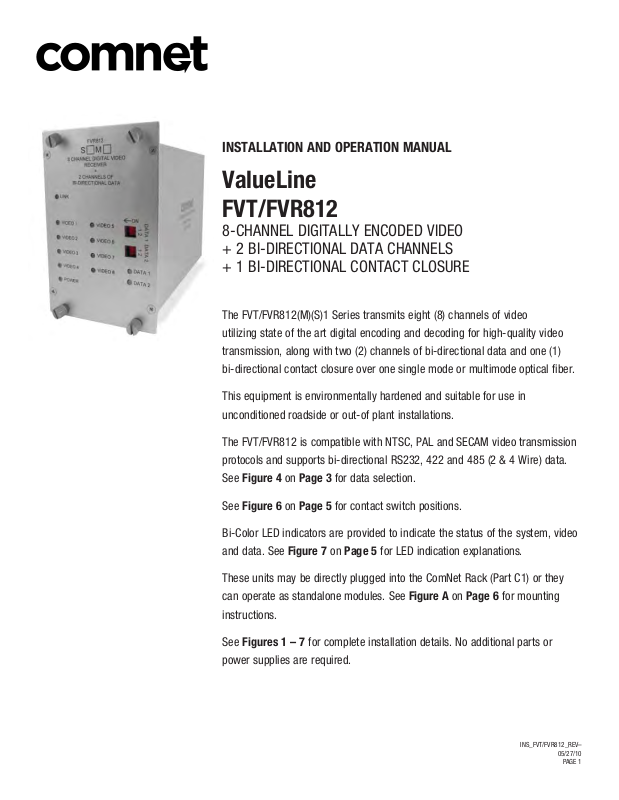

INSTALLATION AND OPERATION MANUAL

ValueLine
FVT/FVR812

8-CHANNEL DIGITALLY ENCODED VIDEO
+ 2 BI-DIRECTIONAL DATA CHANNELS
+ 1 BI-DIRECTIONAL CONTACT CLOSURE

The FVT/FVR812(M)(S)1 Series transmits eight (8) channels of video

utilizing state of the art digital encoding and decoding for high-quality video

transmission, along with two (2) channels of bi-directional data and one (1)

bi-directional contact closure over one single mode or multimode optical fiber.

This equipment is environmentally hardened and suitable for use in

unconditioned roadside or out-of plant installations.

The FVT/FVR812 is compatible with NTSC, PAL and SECAM video transmission

protocols and supports bi-directional RS232, 422 and 485 (2 & 4 Wire) data.

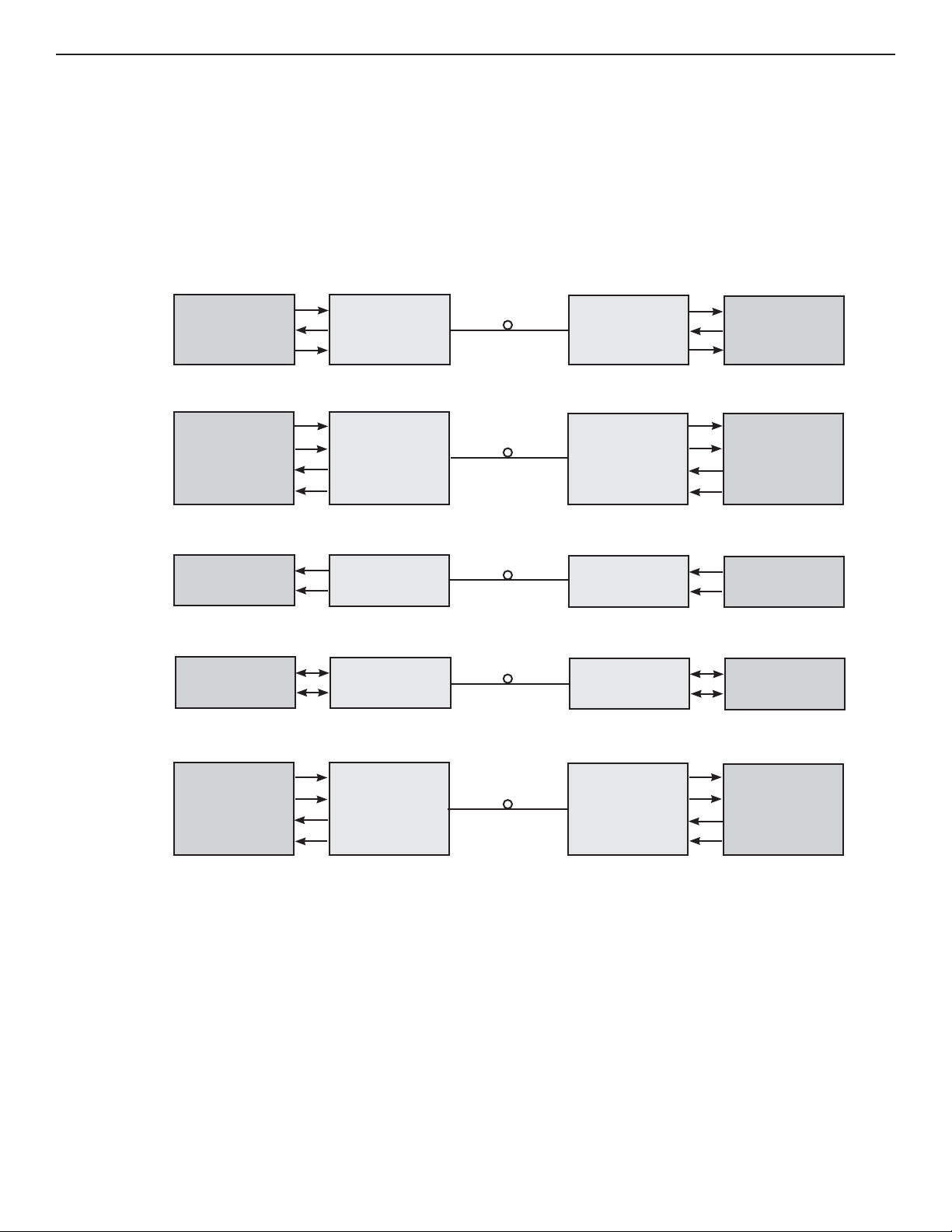

See Figure 4 on Page 3 for data selection.

See Figure 6 on Page 5 for contact switch positions.

Bi-Color LED indicators are provided to indicate the status of the system, video

and data. See Figure 7 on Page 5 for LED indication explanations.

These units may be directly plugged into the ComNet Rack (Part C1) or they

can operate as standalone modules. See Figure A on Page 6 for mounting

instructions.

See Figures 1 – 7 for complete installation details. No additional parts or

power supplies are required.

INS_FVT/FVR812_REV–

05/27/10

PAGE 1

INSTALLATION AND OPERATION MANUAL FVT/FVR812

FIGURE 1 – FVT/FVR812 TRANSMITTER AND RECEIVER

MULTIMODE OR SINGLE MODE
OPTICAL FIBER

BLACK

BLACK WITH WHITE STRIPE

FIGURE 2 – FVT812 TRANSMITTER

REAR PANEL REAR PANELFRONT PANEL FRONT PANEL

FIGURE 3 – FVR812 RECEIVER

NOTE: Remove Electrical Connector for Rack Mount Units

TECH SUPPORT: 1.888.678.9427

INS_FVT/FVR812_REV–

05/27/10

PAGE 2
