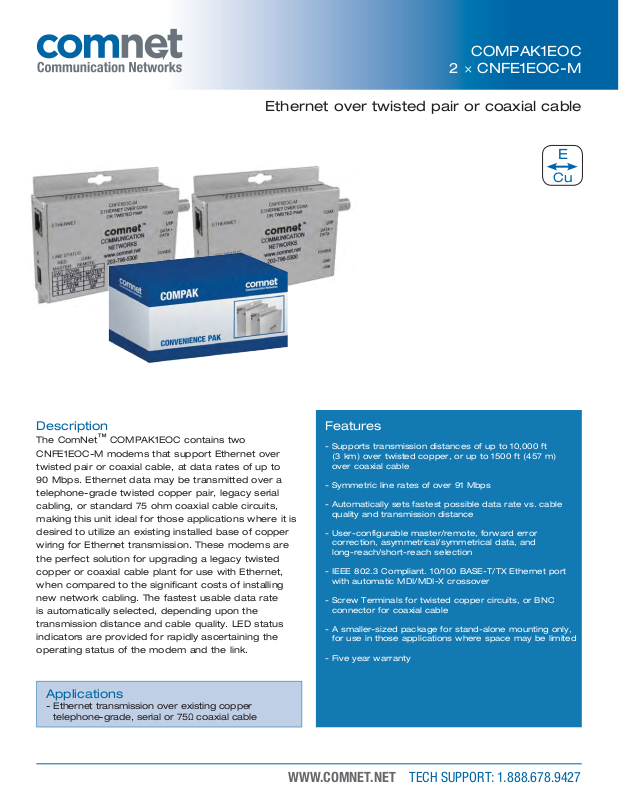

Comnet COMPAK1EOC Specsheet
COMPAK1EOC
2 × CNFE1EOC-M
Ethernet over twisted pair or coaxial cable
E
Cu
Description
The ComNet™ COMPAK1EOC contains two
CNFE1EOC-M modems that support Ethernet over
twisted pair or coaxial cable, at data rates of up to
90 Mbps. Ethernet data may be transmitted over a
telephone-grade twisted copper pair, legacy serial
cabling, or standard 75 ohm coaxial cable circuits,
making this unit ideal for those applications where it is
desired to utilize an existing installed base of copper
wiring for Ethernet transmission. These modems are
the perfect solution for upgrading a legacy twisted
copper or coaxial cable plant for use with Ethernet,
when compared to the significant costs of installing
new network cabling. The fastest usable data rate
is automatically selected, depending upon the
transmission distance and cable quality. LED status
indicators are provided for rapidly ascertaining the
operating status of the modem and the link.
Applications
- Ethernet transmission over existing copper
telephone-grade, serial or 75Ω coaxial cable
Features
- Supports transmission distances of up to 10,000 ft
(3 km) over twisted copper, or up to 1500 ft (457 m)
over coaxial cable
- Symmetric line rates of over 91 Mbps
- Automatically sets fastest possible data rate vs. cable
quality and transmission distance
- User-configurable master/remote, forward error
correction, asymmetrical/symmetrical data, and
long-reach/short-reach selection
- IEEE 802.3 Compliant. 10/100 BASE-T/TX Ethernet port
with automatic MDI/MDI-X crossover
- Screw Terminals for twisted copper circuits, or BNC
connector for coaxial cable
- A smaller-sized package for stand-alone mounting only,
for use in those applications where space may be limited
- Five year warranty
WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
COMPAK1EOC
2 × CNFE1EOC-M
specifications
Ethernet over twisted pair or coaxial cable
INTERFACE
Ethernet Port:
Ethernet connector: RJ45
Cable: Cat 5, Cat 5e, Cat 6
Data Rate: 10/100Mbps
Distance: 100m (328ft)
Line Side Port 1 (Twisted Pair):
UTP connector: Screw Terminal Block
Cable: Telephone-grade 19 to 26 AWG (one twisted pair)
Throughput: (Downstream / Upstream)
1000 ft (305 m) 70 Mbps / 68 Mbps
2500 ft (762 m) 26 Mbps / 17 Mbps
5000 ft (1524 m) 16 Mbps / 1 Mbps
7500 ft (2286 m) 5 Mbps / 0.5 Mbps
10,000 ft (3048 m) 1 Mbps / 0.25 Mbps
Line Side Port 2 (75Ω Coax):
Coaxial connector: BNC
Impedance: 75 ohm coax
Throughput: (Downstream / Upstream)
200 ft (61 m) 88 Mbps / 95 Mbps
500 ft (152 m) 85 Mbps / 93 Mbps
1000 ft (305 m) 83 Mbps / 89 Mbps
1500 ft (457 m) 76 Mbps / 83 Mbps
USER-CONFIGURABLE SELECTION OF:
- Master/Remote Operation
- Symmetrical/Asymmetrical Data
- Forward Error Correction
- Long or Short Range operation for optimal BER (Bit Error Rate) performance
ELECTRICAL & MECHANICAL
Power:
Stand Alone: 12–27 VAC @ < 320 mA or
8-27 VDC @ < 320 mA
Overload Protection: Automatic Resettable
Solid-State Current Limiters
Circuit Board: Meets IPC Standard
SIZE (L×W×H)
Small (CNFE1EOC-M): 4.1 × 3.7 × 1.1 in.,
(10.4 × 9.4 × 2.8 cm)
Shipping Weight: <2 lbs./0.9 kg
ENVIRONMENTAL
MTBF: >100,000 hours
Operating Temp: 0° C to +60° C
Storage Temp: -40° C to +85° C
Relative Humidity: 0% to 95% (non-condensing)*
* May be extended to humidity with condensation conditions by adding suffix ‘/C’
MADE IN THE
USA
PART
NUMBER
MEDIA
DESCRIPTION
2 × CNFE1EOC-M Ethernet over Twisted Pair or CoaxCOMPAK1EOC N/ASee “Interface” Above See “Interface” Above
FE FE
CNFE1EOC-M
Twisted Pair
Coaxial Cable
3 CORPORATE DRIVE | DANBURY, CT 06810 | USA
T: 203.796.5300 | F: 203.796.5303 | TECH SUPPORT: 1.888.678.9427 | INFO@COMNET.NET
8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE
T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET
REQUIRED
CNFE1EOC-M
OR
MAX.
DISTANCE
CAT 5e/6
# RACK
SLOTS
08.17.10© 2010 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC.
