Mini Video Transmitter and Receiver with (AGC)
COMPAK11M
INCLUDED
The ComNet™ FVT11M video mini-transmitter and FVR11M video mini-receiver
supports transmission and reception of a fixed video signal using AM modulation on
one multimode fiber optic cable. The FVT11M video transmitter is compatible with
the FVR11M, FVR10M, FVR21, and FVR22 receivers. The FVR11M utilizes Automatic
Gain Control (AGC) and is compatible with the ComNet FVT11M and the FVT20
transmitters. Plug-and-play design ensures ease of installation requiring no electrical
or optical adjustments.
HARDENED
1
FEATURES
› AM Video Transmitter and Receiver
› NTSC, PAL, SECAM compatible
› The receiver utilizes Automatic Gain Control (AGC)
› Full color compatibility
› No in-field electrical or optical adjustments required
› Voltage transient protection on all power and signal input/
output lines provides protection from power surges and
other voltage transient events.
› Bi-Color (Red/Green) Video Present indicating LEDs
› Lifetime Warranty
APPLICATIONS
› CCTV (Fixed Video)
* Small Form-Factor Pluggable Module. Sold separately.
LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
COMPAK11M
SPECIFICATIONS
Mini Video Transmitter and Receiver with (AGC)
Video
Video Input TX 1 volt pk-pk (75 ohms)
Video Output RX 1 volt pk-pk (AGC controlled)
Bandwidth 5 Hz - 10 MHz¹
Differential Gain <5%
Differential Phase <5˚
Tilt <1%
Signal-to-Noise Ratio (SNR) 60 dB
Max. RG-59 COAX Distance 100m (300ft) Camera to Fiber Optic Module to
maintain 6Mhz Bandwidth
Wavelength 850 nm, Multimode
Number Of Fibers 1
Connectors
Optical ST
Power Terminal Block
Video BNC (Gold Plated Center-Pin)
Indicating LEDs - Video Present
Power
Operating Voltage Range 8 to 15 VDC
FVT11M Power Consumption 2 W
FVR11M Power Consumption 1 W
Electrical & Mechanical
Max. RG59 Cable Length 750 ft.
Circuit Board Meets IPC Standard
Size FVT11M 2.3 × 1.6 × 1.1 in. (5.7 × 4.1 × 2.8 cm)
FVR11M 4.0 × 3.7 × 1.0 in (10.4 × 9.5 × 2.7 cm)
Shipping Weight <2 lb./0.9 kg
Environmental
MTBF >100,000 hours
Operating Temp -40˚ C to +75˚ C
Storage Temp -40˚ C to +85˚ C
Relative Humidity 0% to 95% (non-condensing)²
[1] At 6 dB Attenuation
[2] May be extended to condensation conditions by adding suffix ‘/C’
to model number for conformal coating.
INCLUDED IN KIT
Fibers
Part Number Wavelength Connector
FV T11M Mini Video Transmitter ST 1 Multimode 14 dB 4 km (2.5 mi)
FVR 11M AGC Mini Video Receiver ST 1 Multimode 14 dB 4 km (2.5 mi)
Accessories DC Plug in Power Supply, 90-264VAC, 50/60Hz (Included)
Options [1] Add suffix ‘/C’ for Conformally Coated Circuit Boards to extend to condensation conditions (Extra charge, consult fac tory)
[3] Distance may be limited by optical dispersion.
Complies with FDA Performance Standard for Laser Products, Title 21, Code of Federal Regulations, Subchapter J. In a continuing effort to improve
and advance technology, product specifications are subject to change without notice.
Required Fiber
Optical Power
Budget Max. Distance³

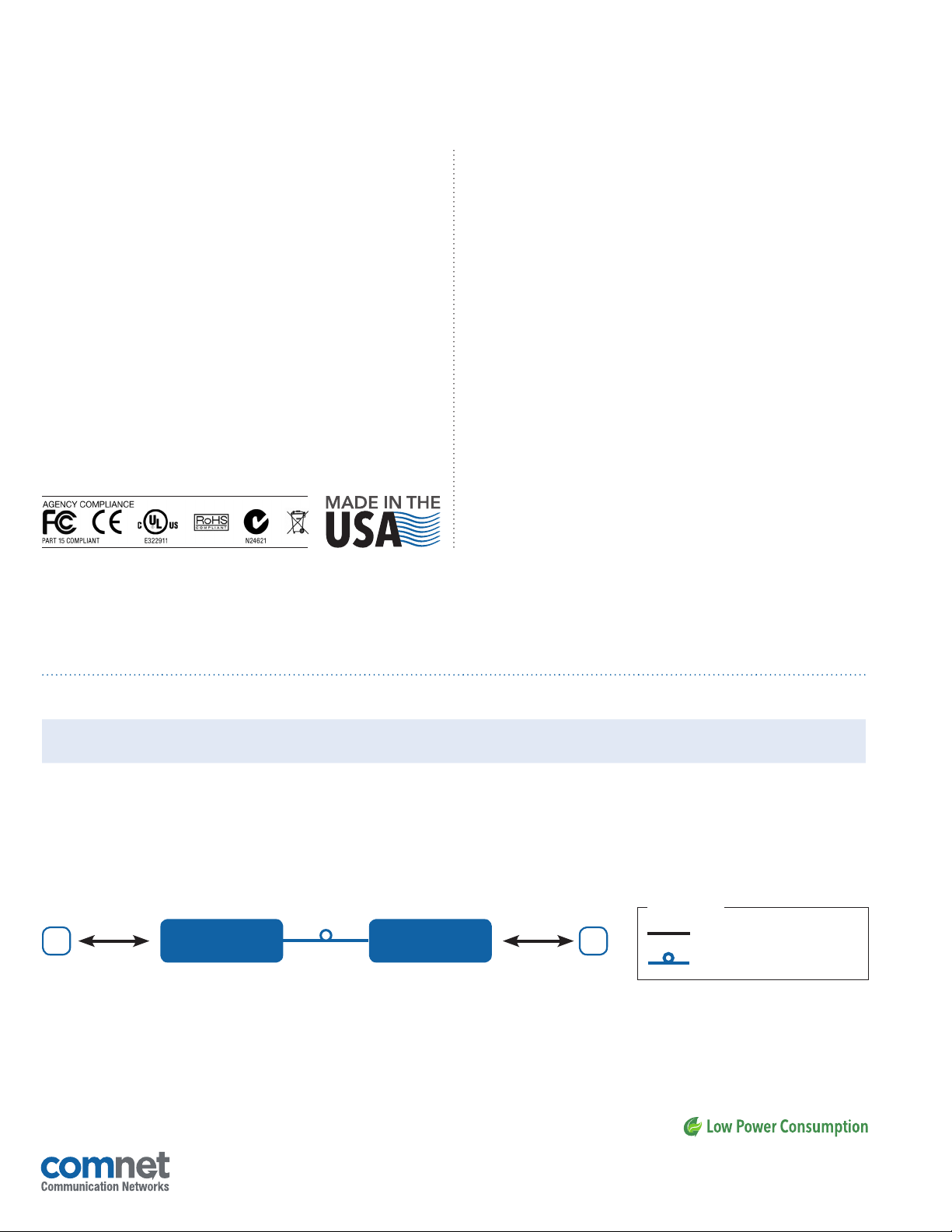

TYPICAL APPLICATION
