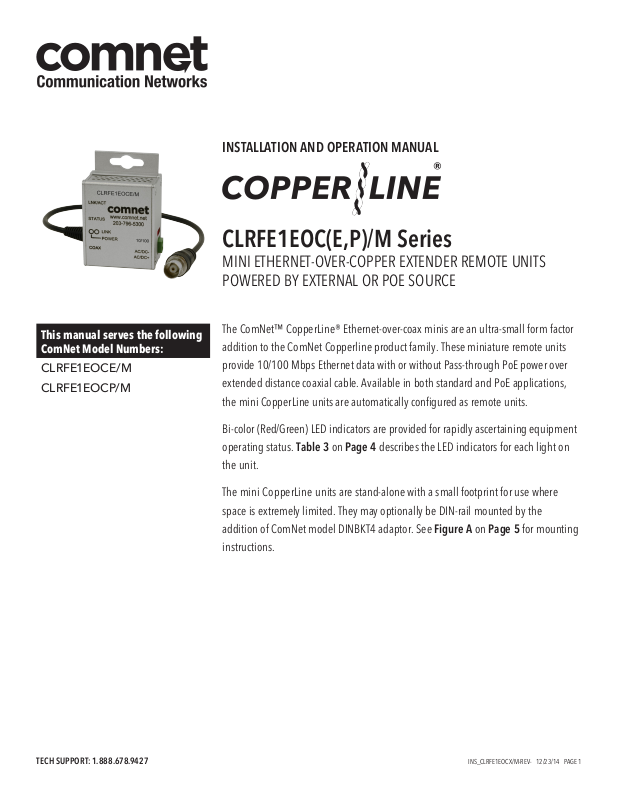

INSTALLATION AND OPERATION MANUAL

CLRFE1EOC(E,P)/M Series

MINI ETHERNET-OVER-COPPER EXTENDER REMOTE UNITS
POWERED BY EXTERNAL OR POE SOURCE

This manual serves the following
ComNet Model Numbers:

CLRFE1EOCE/M

CLRFE1EOCP/ M

The ComNet™ CopperLine® Ethernet-over-coax minis are an ultra-small form factor
addition to the ComNet Copperline product family. These miniature remote units
provide 10/100 Mbps Ethernet data with or without Pass-through PoE power over
extended distance coaxial cable. Available in both standard and PoE applications,
the mini CopperLine units are automatically configured as remote units.

Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment
operating status. Table 3 on Page 4 describes the LED indicators for each light on
the unit.

The mini CopperLine units are stand-alone with a small footprint for use where
space is extremely limited. They may optionally be DIN-rail mounted by the
addition of ComNet model DINBKT4 adaptor. See Figure A on Page 5 for mounting
instructions.

INS_CLRFE1EOCX/M-REV- 12/23/14 PAGE 1TECH SUPPORT: 1.888.678.9427

INSTALLATION AND OPERATION MANUAL CLRFE1EOC(E,P)/M SERIES

FIGURE 1 – CLRFE1EOCE/M SINGLE CHANNEL COAX REMOTE EXTERNALLY POWERED UNIT

ETHERNET

Black w/ White

EXT DISTANCE

FRONT

REAR

Stripe (AC or DC–)
Black (AC or DC+)

Power: 9 to 36 VDC

OR 24 VAC

Power Consumption: 1.5 W

10/100 data rate DIP switch

See Installation Instructions, Step 1

FIGURE 2 – CLRFE1EOCP/M SINGLE CHANNEL COAX REMOTE PASS-THROUGH-POE POWERED UNIT

ETHERNET

EXT DISTANCE

FRONT

REAR

Power: Supplied via PoE

from Head End

Power Consumption: 1.5 W

10/100 data rate DIP switch

See Installation Instructions, Step 1

TECH SUPPORT: 1.888.678.9427

INS_CLRFE1EOCX/M-REV- 12/23/14 PAGE 2
