INSTALLATION AND OPERATION MANUAL
CLFE(X)UTP
ETHERNET-OVER-UTP/TWISTED PAIR EXTENDER
WITH PASS-THROUGH POE
Important Safety Warning:
Read and keep these directions
Heed all warnings
Follow all instructions
Do not use this apparatus near water
Clean only with a dry cloth
Install in accordance with the manufacturer’s
instructions
This installation should be made by a qualified
service person and should conform to all local codes
See further safety instructions on Page 8
The ComNet™ CopperLine® CLFE(X)UTP Ethernet over UTP line consists of four
models that support 100Mbps Ethernet as well as Pass-through Power over Ethernet
(PoE) over twisted pair cable (CAT5, UTP). These models support transmission
distances of up to 3,000 feet (914m) at 10 Mbps, or 2,100 feet (640m) at 100 Mbps.
The CLFE1UTP, the CLFE4UTP, CLFE8UTP and the CLFE16UTP transport, one, four,
eight or sixteen channels respectively. The IEEE 802.3-compliant Ethernet electrical
interface of these Ethernet extenders also meets the requirements for IEEE 802.3af
PoE power, passing-through up to 30 watts of power per port to the powered device
(PD). The CLFE(X)UTP series may also be used interchangeably with other CopperLine
Ethernet-over-UTP extenders.
Environmentally hardened to the requirements of NEMA TS-1/ TS-2 for most out-ofplant applications, and true plug-and-play design ensures ease of installation and
operation.
LED indicators are provided for rapidly ascertaining the operating status of the
device. See Figures 6 – 8 on Page 7 for LED explanations.
Packaged in a rugged aluminum housing, these units are designed for desktop or standalone mounting. The CLFE8UTP and CLFE16UTP are offered in EIA 19” 1U high rack for
easy installation. See Figures A through C on Page 8 for mounting instructions.
See Figures 1 – 8 for complete installation details.
INS_CLFEXUTP_REV–
09/28/11
PAGE 1
INSTALLATION AND OPERATION MANUAL CLFE(X)UTP
FIGURE 1 – CLFE1UTP
CAT5/6
UTP
FIGURE 2 – CLFE1UTP
2 1
For 1-pair mode, use the first pair of pins (pins 1 & 2) of the
“Extended Ethernet” RJ-45 port on the left panel.
Note: 4-pair mode is required for PoE.
Ground
Screw*
CAT5/6
POWER SUPPLY
–
CONNECTION
+
via external power adaptor
Optional, if there
is no power supply
connected to the unit
it will try to detect PoE.
RIGHT PANELLEFT PANEL
Note: Center
pin on power
connector is
positive (+).
* WARNING: A ground connection is
required for the surge protection to work.
Failure to ground properly voids the
warranty and may cause damage.
FIGURE 3 – CLFE4UTP
LEFT PANEL RIGHT PANEL
CAT5/6 or UTP
CAT5/6
TECH SUPPORT: 1.888.678.9427
Ground
Screw*
* WARNING: A ground connection is
required for the surge protection to work.
Failure to ground properly voids the
warranty and may cause damage.
INS_CLFEXUTP_REV–
09/28/11
PAGE 2
INSTALLATION AND OPERATION MANUAL CLFE(X)UTP
PASS-THROUGH PoE OPERATIONS FOR THE CLFE1UTP
ComNet’s CopperLine CLFE1UTP extended distance IP data and PoE maintains the safety standards for communications found
within the 802.3af PoE standards. This is for the protection of products operating in the extended distance transmission chain. In the
event of malfunctions the communication system is designed to shut down power transmission to avoid device damage.
The CLFE1UTP can be powered by a local power source (12 Volts D.C. or 24 Volts A.C.) or from a single PSE source, such as a
network switch’s PoE port using its unique Pass-through PoE feature (4-pair mode only). This latter feature eliminates the need for
CLFE1UTP local power while also providing power for the camera (See full installation instructions, Page 6).
Powering The CLFE1UTP Transceivers
Input with
external power
plug installed.
Under normal operating conditions CLFE1UTP transceivers should be powered using the PoE source. External power to the
CLFE1UTP should be restricted to installations where a camera requires local power.
When installing the CLFE1UTP, the following conditions apply which will affect its operations.
The CLFE1UTP is provided with the ability to operate using a local external power supply. The standard accessory local power
adaptor plug can be used for power supplies that do not have the CLFE1UTP’s standard power input connector. When inserting
the adaptor into the power input, the CLFE1UTP is only powered from a local power source and not from a PSE source. The camera
will continue receiving power from the PSE source and operations will be normal.
However, if the external plug adaptor is inserted in the CLFE1UTP and no power is applied, the CLFE1UTP will not power up even
if a PoE source is present, the camera will continue to receive power. In this case the CLFE1UTP is not operational and no data will
flow.
If the CLFE1UTP is externally powered and PSE power is lost, power to the CLFE1UTP must be recycled in order for the PSE to
recognize the PD (Camera).
External
power adapter
(included)
TECH SUPPORT: 1.888.678.9427
INS_CLFEXUTP_REV–
09/28/11
PAGE 3
INSTALLATION AND OPERATION MANUAL CLFE(X)UTP
FIGURE 4 – CLFE8UTP
12V Power Supply
CAT5/6 or UTP
CAT5/6 or UTP
CAT5/6
FIGURE 5 – CLFE16UTP
CAT5/6 or UTP CAT5/6 or UTP
CAT5/6 CAT5/6
CAT5/6
Ground Screw*
* WARNING: A ground connection is
required for the surge protection to work.
Failure to ground properly voids the
warranty and may cause damage.
12V Power Supply
CAT5/6 or UTP CAT5/6 or UTP
CAT5/6 CAT5/6
Ground Screw*
TECH SUPPORT: 1.888.678.9427
* WARNING: A ground connection is
required for the surge protection to work.
Failure to ground properly voids the
warranty and may cause damage.
INS_CLFEXUTP_REV–
09/28/11
PAGE 4
INSTALLATION AND OPERATION MANUAL CLFE(X)UTP

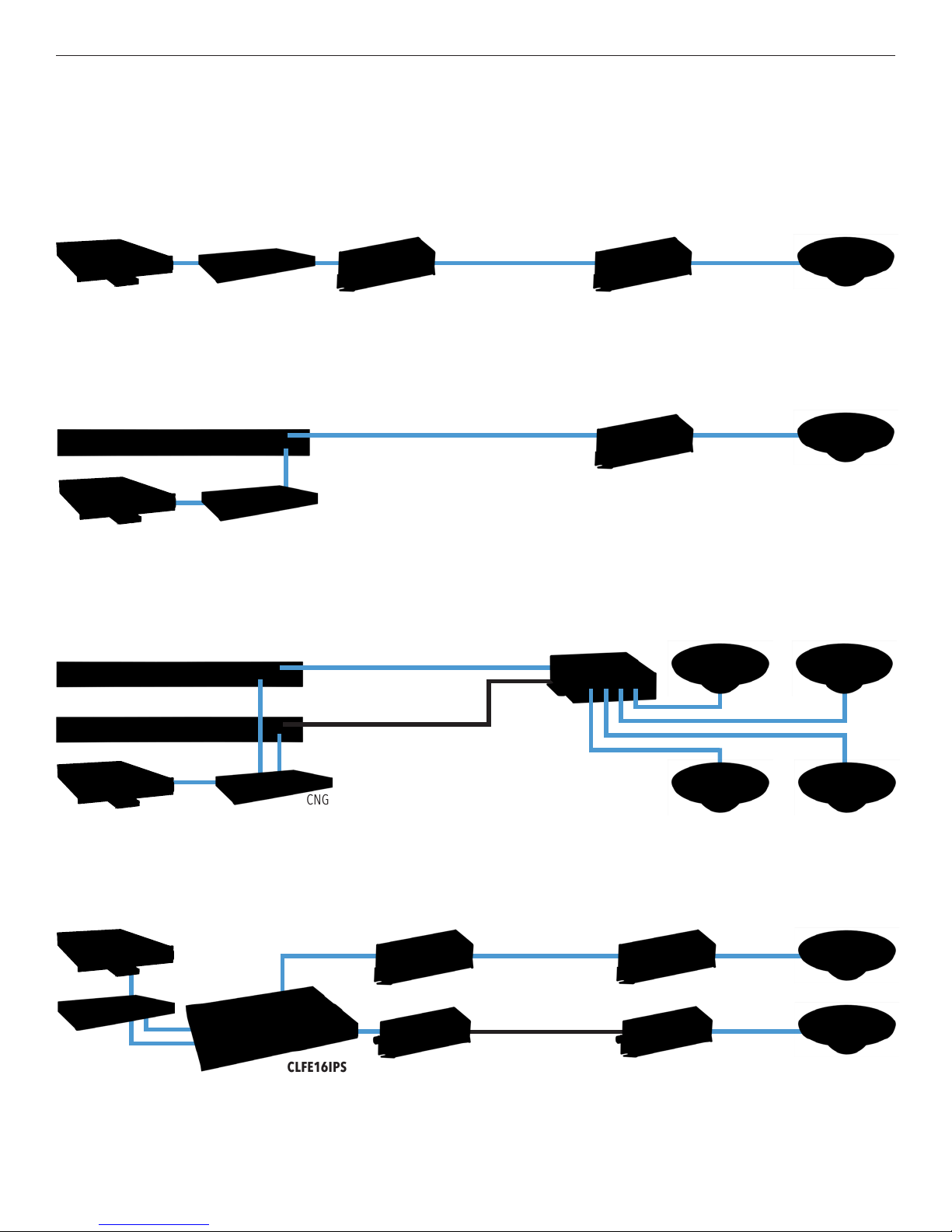

FIGURE 6 – POSSIBLE ETHERNET CONFIGURATIONS
Multiple Configurations are possible. Consult ComNet Design Center.
Single Port CopperLine over UTP
NVR PoE Switch
CNGE2FE24MSP
OE
CLFE1UTP CLFE1UTP
Multi Port CopperLine over UTP
CLFE16UTP
PoE Switch
NVR
CNGE2FE24MSP
OE
CopperLine 4-Port Switch Extended over UTP or Coax
CLFE16UTP
CLFE16UTP
≤3,000ft (914m) Cat-5
≤5,000ft (1524m) Coax
OR
3,000ft
≤
(914m) Cat-5
3,000ft
≤
(914m) Cat-5
CLFE4US1TPC
(100m) C at-5
≤328ft
CLFE1UTP
≤328ft
(100m) C at-5
≤328ft
(100m) C at-5
IP Cameras
IP Cameras
PoE Camera
PoE Camera
NVR
CNGE2FE24MSPOE
CopperLine Managed High Power Midspan
NVR
Switch
CNGE2FE24MS
TECH SUPPORT: 1.888.678.9427
CLFE16IPS
PoE Switch
≤3,000ft (914m) Cat-5
CLFE1UTP CLFE1UTP
≤5,000ft (1524m) Coax
CLFE1UTP CLFE1UTP
Da
ta + Power
ta +Power
Da
PoE Camera
PoE Camera
INS_CLFEXUTP_REV–
09/28/11
PAGE 5
INSTALLATION AND OPERATION MANUAL CLFE(X)UTP
IP CAMERA-END
INSTALLATION (CLFE1UTP)
Off
On
Set the S1 10/100BaseT dip switch
to the appropriate rate based on the
required maximum data rate and
maximum distance. OFF = 10BaseT;
ON = 100BaseT
Set the S2 Master/Slave dip switch to ON for “Master” mode
Set the S3 1- or 4-pair dip switch ON for 1-pair or OFF for
4-pair operation.
For systems not utilizing PoE, connect the 12V Power Supply
to the power connector of the CLFE1UTP. A power adapter
connector is provided to simplify connection.
CAUTION: If the external power adaptor is connected
with no power applied, the CLFE1UTP will not
recognize the PoE source and the system will be
inoperative.
Connect the IP camera RJ-45 connector to the 10/100BaseT
Ethernet port of the CLFE1UTP using a standard Cat5/6
cable, 100m length (max).
Connect one end of the long UTP cable to the RJ-45
connector of the CLFE1UTP.
The link LED on the 10/100 connector should be “ON” to
indicate proper connection between the camera and the
CLFE1U TP.
ETHERNET SWITCH/NVR-END
INSTALLATION (CLFE1UTP)
Off
On
S1 S2 S3S1 S2 S3
Set the S2 Master/Slave dip switch to
OFF for “Slave” mode
Set the S1 and S3 dip switches to match
the setting on the camera-end.
CLFE4UTP, CLFE8UTP
and CLFE16UTP:
For each channel used, set the
S1 S2 S3 S4
1-P
4-P
appropriate dip switches for each
10
100
S1 S2 S3 S4
channel to match the camera end.
Note: Multichannel units are preset to
“Slave” mode. No adjustment required.
For systems not utilizing PoE, connect the 12V Power Supply
to the power connector of the selected CLFE(X)UTP.
Connect the RJ-45 connector of the Ethernet switch to the
10/100BaseT Ethernet port of the selected CLFE(X)UTP using
a standard Cat5/6 cable, 100m length (max).
Connect one end of the long UTP cable to the RJ-45
connector of the selected CLFE(X)UTP.
The Link LED on the 10/100 Ethernet connector should be
“ON” to indicate proper connection between the switch and
the selected CLFE(X)UTP.
The Link LED (Red for 100BaseT, Green for 10BaseT) will be
“ON” and not flashing to indicate confirmed connection
between the CLFE1UTP and selected CLFE(X)UTP extenders.
TECH SUPPORT: 1.888.678.9427
INS_CLFEXUTP_REV–
09/28/11
PAGE 6
INSTALLATION AND OPERATION MANUAL CLFE(X)UTP
FIGURE 7 – POWER LED INDICATORS
POWER
RED
OFF
Power is on
Power is off
FIGURE 7 – EXTENDED LED INDICATORS
TRAFFIC (Extended) 10/100BaseT
GREEN
YELLOW
RED
OFF
– Connection is OK,
10BaseT mode
Flashing, Traffic present –
– Connection is OK,
100BaseT mode
No traffic –
FIGURE 8 – ETHERNET LED INDICATORS
TRAFFIC (Standard) Link
GREEN
YELLOW
OFF
Flashing – Connection is
OK with traffic
– Connection is OK
No connection No connection
–
TECH SUPPORT: 1.888.678.9427
INS_CLFEXUTP_REV–
09/28/11
PAGE 7
MECHANICAL INSTALLATION INSTRUCTIONS CLFE(X)UTP
INSTALLATION CONSIDERATIONS
The CLFE1UTP and CLFE4UTPare supplied as Standalone modules. The
CLFE8UTP and CLFE16UTP can be installed as Standalone modules or can
be rack-mounted with the addition of the provided 19-Inch Rack-Mounting
Ear Brackets.
FIGURE A
Dimensions are for the CLFE1UTP standalone ComNet module
3.73" (9.5cm)
FIGURE B
Dimensions are for the CLFE4UTP standalone ComNet module
3.3"
(8.4cm)
3.6" (9.2cm)
1.6" (4cm)
1.15" (3cm)
1.6" (4cm)
1.6" (4cm)
FIGURE C
Dimensions are for the CLFE8UTP and CLFE16UTP ComNet modules
17" (43.2cm)
TECH SUPPORT: 1.888.678.9427
3.25"
(8.25cm)
1.75"
(4.45cm)
INS_CLFEXUTP_REV–
09/28/11
PAGE 8
MECHANICAL INSTALLATION INSTRUCTIONS
• Read and keep these directions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Install in accordance with the manufacturer’s instructions.
• This installation should be made by a qualified service person and should
conform to all local codes.
• DO NOT bundle UTP or Coax signals in the same conduit as high-voltage
wiring.
• To reduce the risk of fire or electrical shock, do not expose these products
to rain, moisture, dripping or splashing.
• No objects filled with liquids, such as vases, shall be placed on the
equipment.
• DO NOT install the unit in a place where the operating ambient
temperature exceeds 75ºC.
• Make sure that the external power supply output voltage is in the
recommended range.
• Do not install near any heat sources such as radiators, heat registers, stoves
or other apparatus (including DVRs) that produce heat.
• Protect the power cord from being walked on or pinched, particularly at
the power source, convenience receptacles and the point where they exit
from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long
periods of time.
• Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as when a power
supply cord or plug is damaged, liquid has been spilled, objects have
fallen inside the apparatus, the apparatus has been exposed to rain or
moisture, do not operate normally or has been dropped.
• The main plus is used as the disconnect device and shall remain readily
operable.
WARNING: To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture. This apparatus shall not be
exposed to dripping or splashing and no objects filled with
liquids, such as vases shall be placed on the apparatus.
WARNING: This apparatus is a Class I product. This product must be
connected to a mains socket outlet through an AC to DC
power supply.
WARNING: The mains plug is used as the disconnect device and shall
remain readily operable.
WARNING: For non-PoE applications, unit is to be connected to a mains
socket outlet through a Listed Class I power supply rated
12 VDC or 24 VAC.
© 2012 Communications Ne tworks Cor poration. All Rights Reser ved. “ComNet ” and the “ComNet L ogo” are registered trademarks of C ommunication Networ ks, LLC.
3 CORPORATE DRIVE | DANBURY, CT 06810 | USA
T: 203.796.5300 | F: 203.796.5303 | TECH SUPPORT: 1.888.678.9427 | INFO@COMNET.NET
8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE
T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET
INS_CLFEXUTP_REV–
09/28/11
PAGE 9
Loading...
