INSTALLATION AND OPERATION MANUAL
CLEK11EOC
COPPERLINE® VALUE KIT: POINT-TO-POINT
ETHERNET-OVER-COAX EXTENDER
This manual serves the following
ComNet Model Numbers:
C L E K11EO C:
1 × CL EL1E OC /M
1 × CLER1EO C/ M
The ComNet CopperLine® Ethernet-over-coax minis are an ultra-small form factor
addition to the ComNet Copperline product family. These miniature remote units
provide 10/100 Mbps Ethernet data over extended distance coaxial cable, up to
1,200 feet (400 meters). The mini CopperLine units will allow extended distance
over copper to be used in standard applications where space is extremely limited.
A DIP Switch allows configurable selection of 10 Mbps or 100 Mbps speed these
units are simple to install. This CopperLine® Value kit provides two units with
power supplies.
Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment
operating status. Step 5 on Page 3 describes the LED indicators for each light on the unit.
The CLER1EOC/M mini units are stand-alone, or may be DIN-rail mounted by the
addition of ComNet model DINBKT4 adaptor. See Figure A on Page 4 for mounting
instructions.
INS_CLEK11EOC_REV– 10/27/11 PAGE 1TECH SUPPORT: 1.888.678.9427
INSTALLATION AND OPERATION MANUAL CLEK11EOC

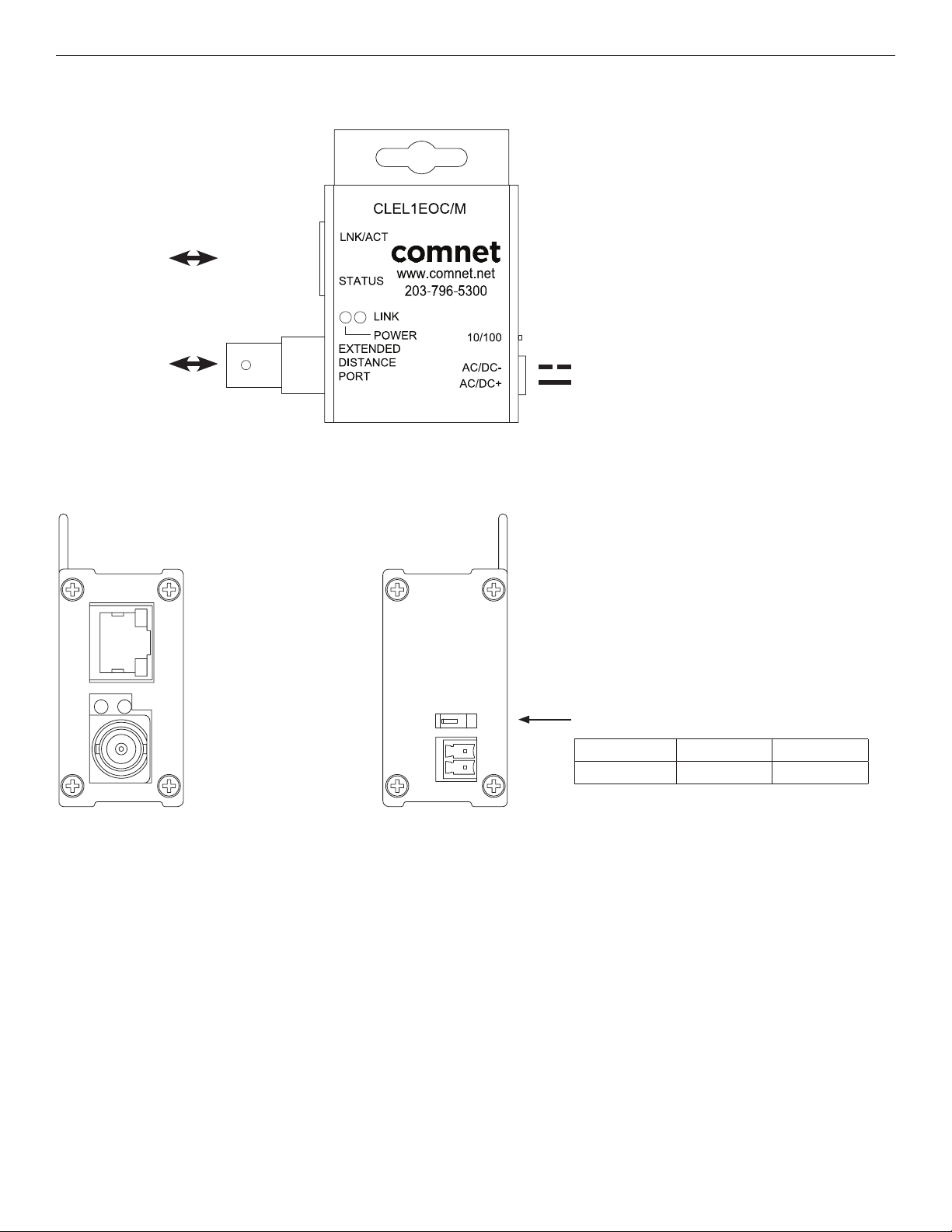

FIGURE 1 – CLE(L,R)1EOC/M MINI SINGLE CHANNEL COAX UNIT
Operating Power: 12 VDC
OR 24 VAC
Power Consumption: 1.5 W
ETHERNET
Black w/ White
EXT DISTANCE
Stripe (AC or DC–)
Black (AC or DC+)
FIGURE 2 – CLE(L,R)1EOC/M MINI SINGLE CHANNEL COAX UNIT
UP
DOWN
10/100 data rate DIP switch
Switch UP DOWN
10/100 10 Mbps 100 Mbps
See Installation Instructions for more information
TECH SUPPORT: 1.888.678.9427
INS_CLEK11EOC_REV– 10/27/11 PAGE 2
