CommScope ION-U EU L 17EP/17EP User Manual

ION

®

-U

ION-U EU L 17EP/17EP

User's Manual

M0200AJA

Page 2

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

DISCLAIMER:
This document has been developed by CommScope, and is intended for the use of its

customers and customer support personnel. The information in this document is subject to
change without notice. While every effort has been made to eliminate errors, CommScope
disclaims liability for any difficulties arising from the interpretation of the information
contained herein. The information contained herein does not claim to cover all details or
variations in equipment, nor to provide for every possible incident to be met in connection
with installation, operation, or maintenance. This document describes the performance of the
product under the defined operational conditions and does not cover the performance under
adverse or disturbed conditions. Should further information be desired, or should particular

problems arise which are not covered sufficiently for the purchaser’s purposes, contact

CommScope.
CommScope reserves the right to change all hardware and software characteristics without

notice.
COPYRIGHT:
© Copyright 2018 CommScope Inc. All Rights Reserved.
This document is protected by copyright. No part of this document may be reproduced,

stored in a retrieval system, or transmitted, in any form or by any means, electronic,
mechanical photocopying, recording, or otherwise without the prior written permission of
CommScope.

TRADEMARKS

All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of

CommScope. Names of products mentioned herein are used for identification purposes only
and may be trademarks and / or registered trademarks of their respective companies.

Andrew Wireless Systems GmbH, 02-May-2018

Table of Contents

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 3

TABLE OF CONTENTS

1. GENERAL 7

1.1. USED ABBREVIATIONS 7

1.2. HEALTH AND SAFETY 8

1.3. PROPERTY DAMAGE WARNINGS 8

1.4. COMPLIANCE 9

1.5. ABOUT COMMSCOPE 13

1.6. INTERNATIONAL CONTACT ADDRESSES FOR CUSTOMER SUPPORT 14

2. INTRODUCTION 16

2.1. PURPOSE 16

2.2. ION-U LOW POWER REMOTE/EXTENSION UNITS 16

3. FUNCTIONAL DESCRIPTION 17

3.1. GENERAL 17

3.2. SISO AND MIMO OPERATION 18

3.3. ION-U EU L 17EP/17EP PORTS 21

4. COMMISSIONING 23

4.1. LOW POWER EU MECHANICAL INSTALLATION 23

4.1.1. Health and Safety for mechanical installation 23

4.1.2. Property Damage Warnings for mechanical installation 23

4.1.3. Mounting bracket 24

4.1.3.1. Mount to a wall 24

4.1.3.2. Mount to a pole 25

4.1.4. Threaded pins 27

4.1.5. Wall mounting procedure – Single Unit 28

4.1.6. Wall mounting procedure – Dual Units 30

4.1.7. Pole mounting procedure – single and dual 34

4.2. LOW POWER EU ELECTRICAL INSTALLATION 35

4.2.1. Health and Safety for electrical installation 35

4.2.2. Property Damage Warnings for electrical installation 35

4.2.3. Connections 37

4.2.4. Grounding (Earthing) 38

4.2.5. Mains power connection 39

Table of Contents

Page 4

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

4.2.6. Antenna connection 42

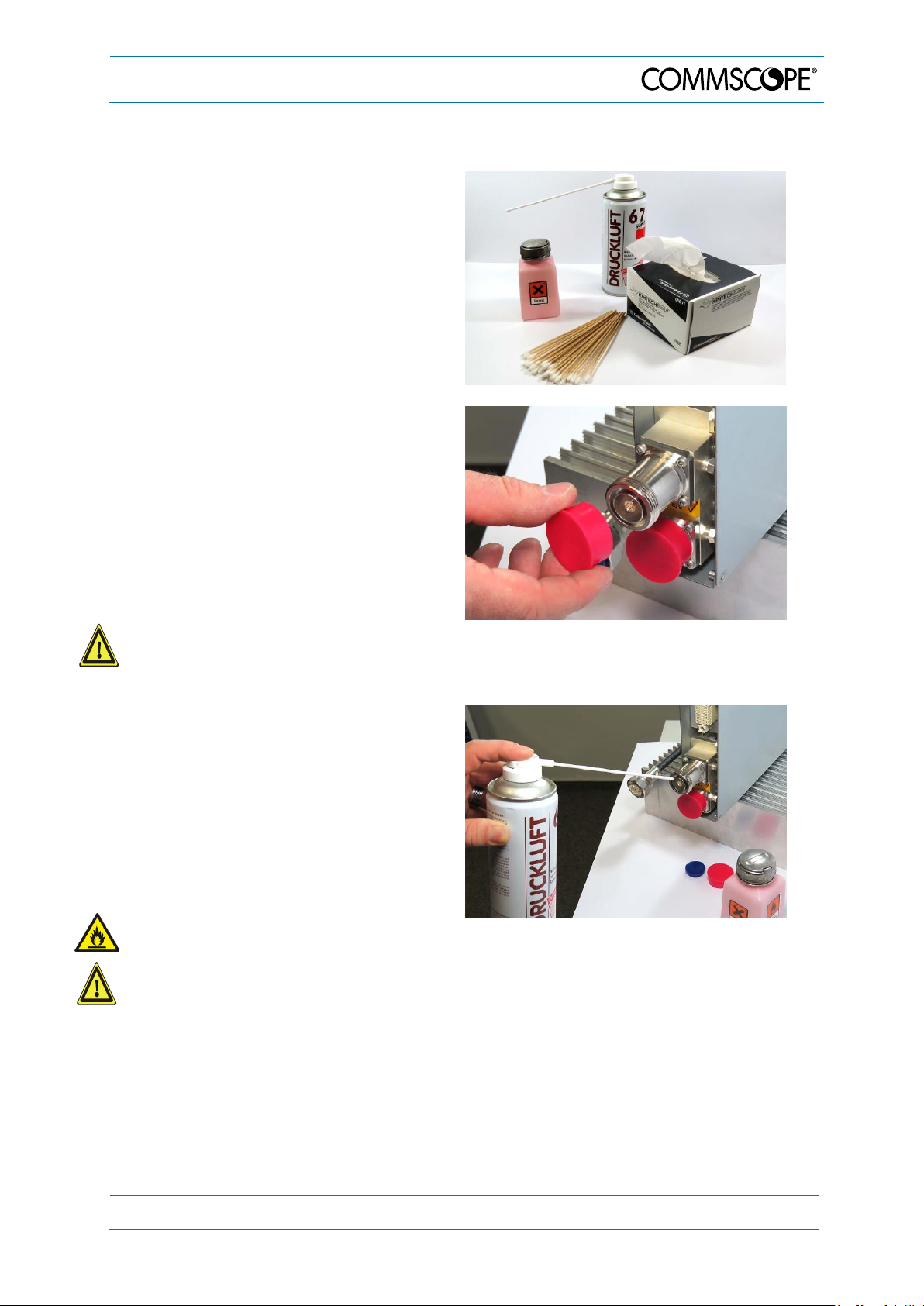

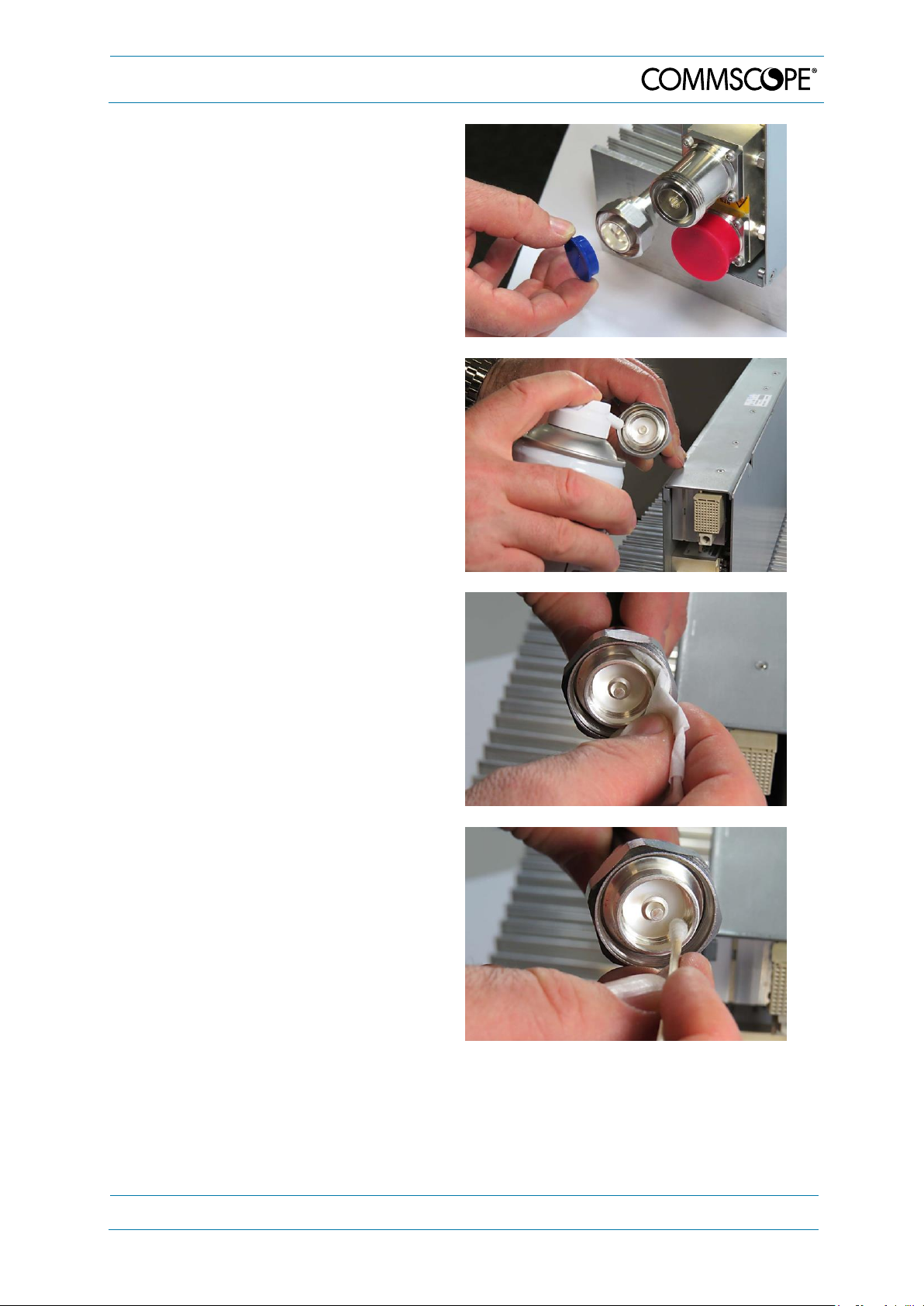

4.2.6.1. Cleaning procedure for RF cable connectors 43

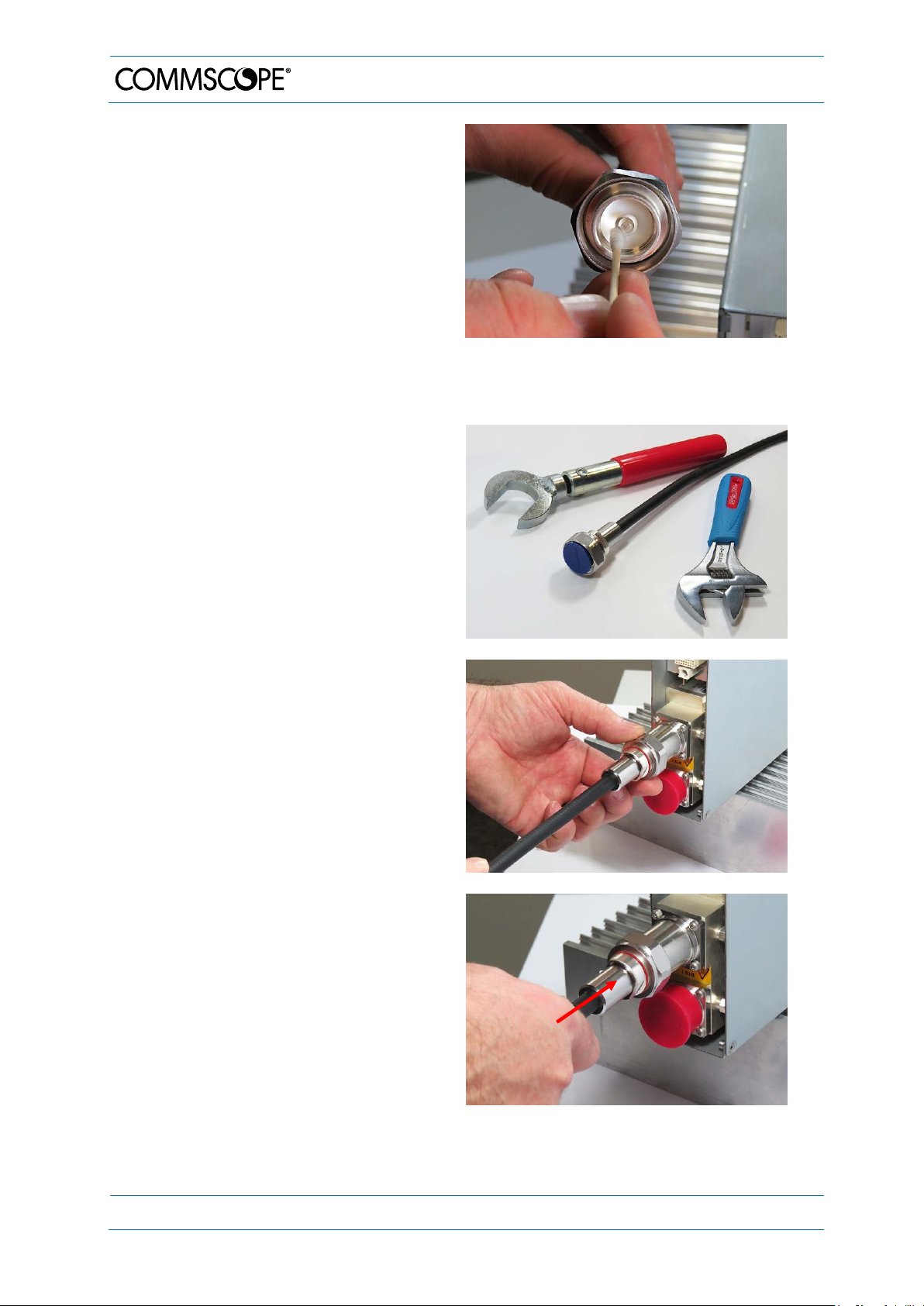

4.2.6.2. Antenna cable connector assembly 46

4.2.7. Expansion ports connections 48

4.2.8. Control connector RS-232 LOCAL- Local Interface 49

4.2.9. Control connector RS-232 CTRL 49

4.3. LOW POWER EU ALARMS 50

4.3.1. Bite and alarms 50

4.3.2. Status LED alarms 51

4.4. EXTERNAL ALARM INPUTS 52

4.5. TROUBLESHOOTING 52

5. LOW POWER EU MAINTENANCE 53

5.1. GENERAL 53

5.2. EU POWER SUPPLY REPLACEMENT 54

6. APPENDIX 58

6.1. ILLUSTRATIONS 58

6.1.1. Dimensions and Mounting 58

6.1.2. ION-U EU L Cable Kits 60

6.1.3. LP RU, EU L 25T/25T, and EU L 23/23 Ports 60

6.2. SPECIFICATIONS 63

6.3. SPARE PARTS 63

7. LIST OF CHANGES 64

8. INDEX 65

Figures and Tables

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 5

FIGURES AND TABLES

figure 3-1 ION-U EU L 17EP/17EP block diagram .................................................... 17

figure 3-2 Remote Unit, SISO ................................................................................... 18

figure 3-3 Remote Unit, MIMO two units paired ........................................................ 18

figure 3-4 One RU one EU one antenna RF ............................................................. 18

figure 3-5 Two RUs one EU two antennas RF .......................................................... 19

figure 3-6 Two RUs two EUs two antennas RF ........................................................ 19

figure 3-7 Two RUs three EUs (2300 MHz Optimized) RF ....................................... 20

figure 3-8 Two RUs three EUs (RU band loss minimized) RF ................................ .. 20

figure 3-9 EU L 17EP/17EP connectors and Status LEDs ........................................ 21

figure 4-1 Mounting bracket ...................................................................................... 24

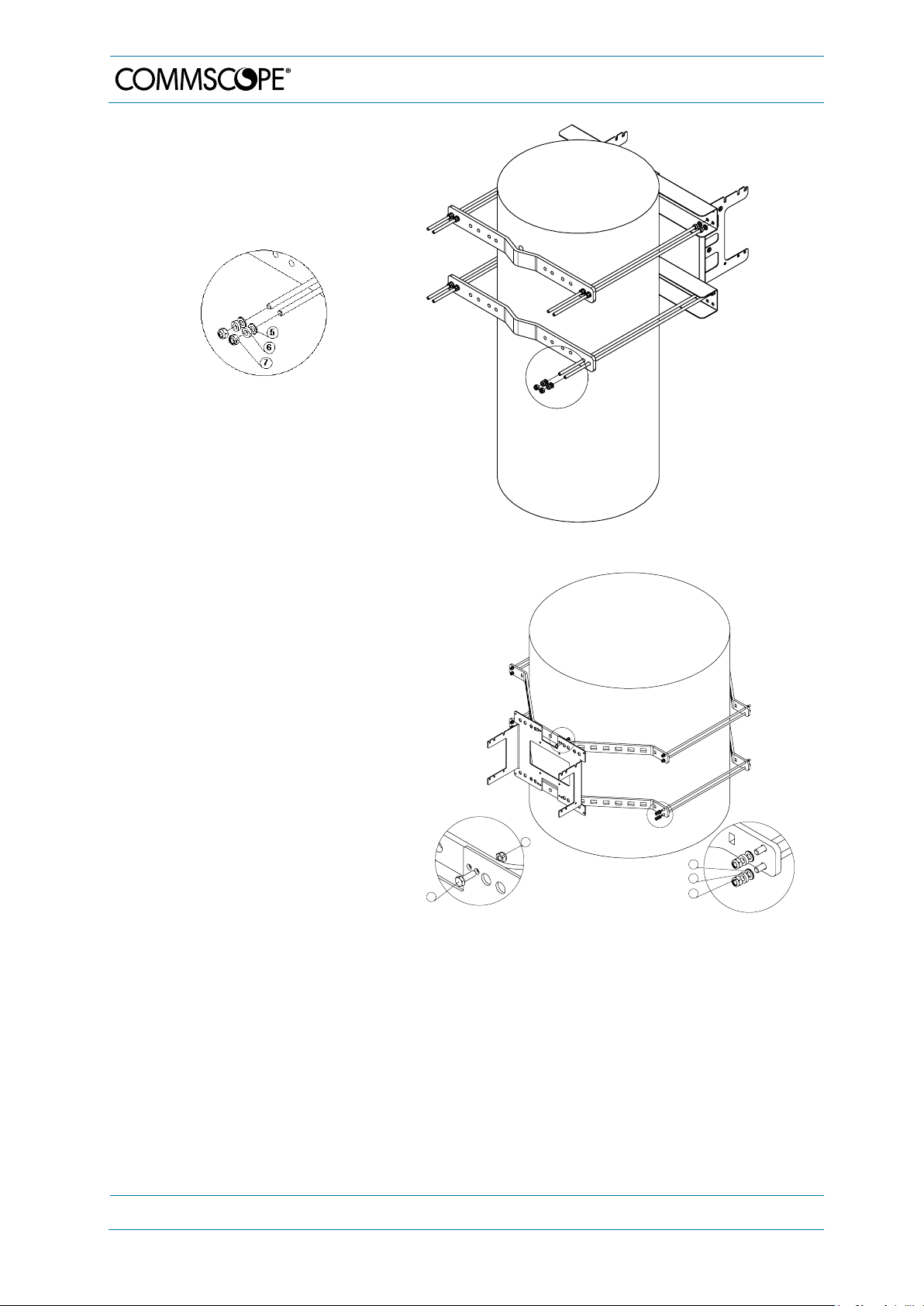

figure 4-2 Pole-mounting kit 4” to 18” ....................................................................... 26

figure 4-3 Pole-mounting kit 40” ................................................................................ 26

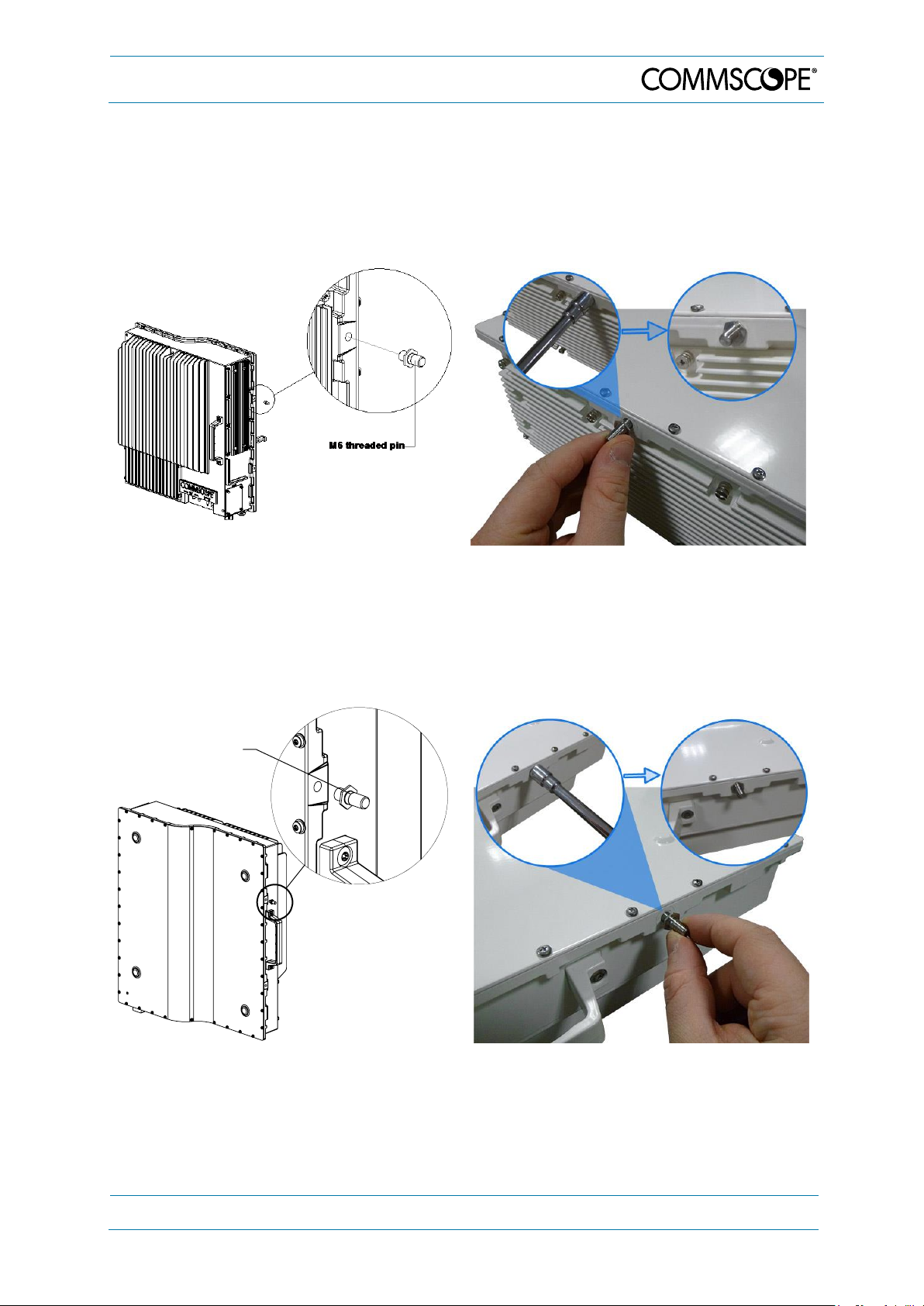

figure 4-4 EU threaded pin power supply side .......................................................... 27

figure 4-5 EU threaded pin narrow side .................................................................... 27

figure 4-6 Place EU onto wall mounting bracket – single mount ............................... 28

figure 4-7 Install M6x12 screws and washers for single mount................................. 29

figure 4-8 Attach M6 nut to threaded pins for single mount ...................................... 29

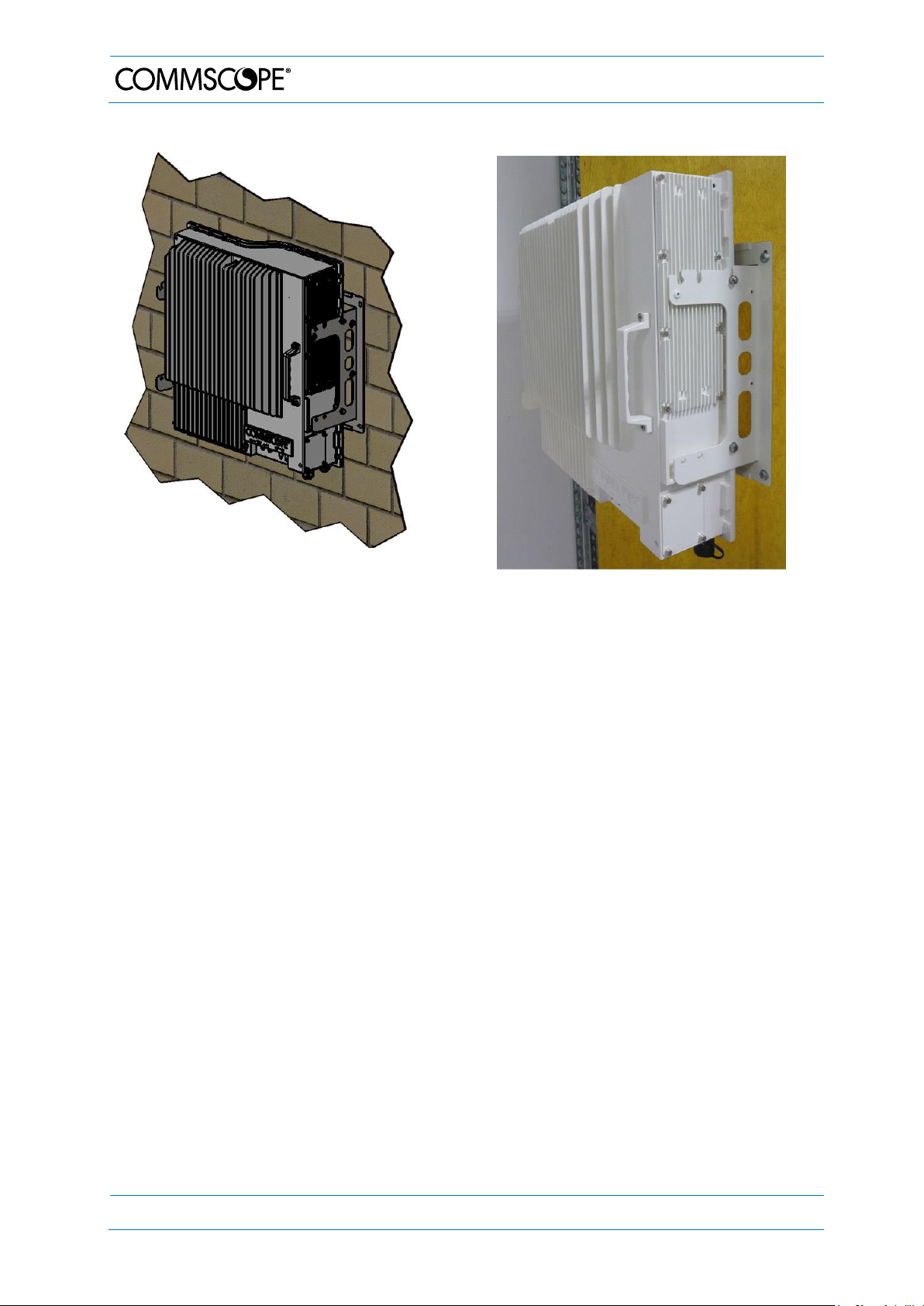

figure 4-9 Completed single EU mount ..................................................................... 30

figure 4-10 1st unit placed on wall mounting bracket ................................................. 31

figure 4-11 Install M6x12 screws and washers ......................................................... 31

figure 4-12 Attach M6 nut to threaded pins ............................................................... 32

figure 4-13 2nd unit on wall mounting bracket ........................................................... 32

figure 4-14 Install M6x12 screws and washers 2nd unit ............................................. 33

figure 4-15 Attach M6 nut to threaded pins for 2nd unit ............................................. 33

figure 4-16 Completed dual unit mount ..................................................................... 34

figure 4-17 Grounding bolts ...................................................................................... 38

figure 4-18 Grounding bolt, schematic view .............................................................. 38

figure 4-19 AC power cable ...................................................................................... 39

figure 4-20 DC power cable ...................................................................................... 39

figure 4-21 Vdc/100 power cable .............................................................................. 40

figure 4-22 Connect mains plug ................................................................................ 41

figure 4-23 Antenna connection ................................................................................ 47

figure 4-24 Expansion ports ...................................................................................... 48

figure 4-25 RS-232 connector ................................................................................... 49

figure 4-26 RS-232 connector ................................................................................... 49

figure 5-1 Disconnect mains power .......................................................................... 54

figure 5-2 EU power supply location ......................................................................... 54

figure 5-3 8 EU power supply screws ....................................................................... 55

figure 5-4 EU power supply with cables .................................................................... 55

figure 5-5 EU power supply input cable .................................................................... 55

figure 5-6 EU power supply output cable .................................................................. 56

figure 5-7 EU with power supply removed ................................................................ 56

figure 5-8 EU with replacement power supply .......................................................... 56

figure 5-9 EU insert power supply ............................................................................. 57

figure 5-10 Reconnect mains power ......................................................................... 57

Figures and Tables

Page 6

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

figure 6-1 ION-U Low Power EU mounting bracket .................................................. 58

figure 6-2 ION-U Low Power Unit dimensions ................................ .......................... 58

figure 6-3 Installation drawing of ION-U L Unit single ............................................... 59

figure 6-4 Installation drawing of ION-U L Unit dual .................................................. 59

figure 6-5 LP RU connectors and Status LED .......................................................... 60

figure 6-6 EU L 23/23 connectors and Status LEDs ................................................. 61

figure 6-7 EU L 25T/25T connectors and Status LEDs ............................................. 62

table 1-1 List of international contact addresses ....................................................... 15

table 4-1 Specified torques ....................................................................................... 24

table 4-2 AC power cable ......................................................................................... 39

table 4-3 DC power cable ......................................................................................... 39

table 4-4 Vdc/100 power cable ................................................................................. 40

table 4-5 RS-232 connector, pin assignment ............................................................ 49

table 4-6 RS-232 connector, pin assignment ............................................................ 49

table 4-7 RS-232 LOCAL and CTRL connections .................................................... 50

table 4-8 Status LED alarms ..................................................................................... 51

table 6-1 Extension Unit Cable kit ............................................................................. 60

1. General

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 7

1. General

1.1. Used Abbreviations

AC/DC Alternating current / Direct Current
ALC Automatic Level Control
BITE Built-In Test Equipment
BTS Base Transceiver Station
CDMA Code Division Multiple Access
CE “Conformité Européenne” (“European Conformity”)
CPD Channel Power Detection
DL Downlink
DoC Declaration of Conformity
EP Extension Port
ESD Electrostatic Discharge
EU Extension Unit
GSM Global System for Mobile Communication
GND Ground (Earth)
GUI Graphical User Interface
ICP3 Intercept Point 3rd order
ID No Identification Number
ION Intelligent Optical Network
ISDE Innovation, Sciences et Développement économique Canada
ISED Innovation, Science and Economic Development Canada; formerly IC / Industry Canada
LED Light Emitting Diode
LMT Local Maintenance Terminal
LTE Long Term Evolution
MIMO Multiple Input Multiple Output
MS Mobile Station
MU Main Unit
NF Noise Figure
OMC Operations and Maintenance Center
OTRx Optical Transceiver = SRMU (Subrack Master Unit)
PDU Power Distribution Unit
PIM Passive Intermodulation

Pin Input power
P

out

Output power
PSU Power Supply Unit
Rev Revision
RF Radio Frequency
RU Remote Unit
RX Receiver
SISO Single Input Single Output
SNMP Simple Network Management Protocol
TX Transmitter
UL Uplink
UMTS Universal Mobile Telecommunication System
UPS Uninterruptible Power Supply
VSWR Voltage Standing Wave Ratio
WCDMA Wideband Code Division Multiple Access
WDM Wavelength Division Multiplex
XML Extensible Markup Language

1. General

Page 8

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

1.2. Health and Safety

1. Danger: Electrical hazard. Danger of death or fatal injury from electrical

current. Obey all general and regional installation and safety regulations

relating to work on high voltage installations, as well as regulations covering

correct use of tools and personal protective equipment.

2. Danger: Electrical hazard. Danger of death or fatal injury from electrical

current inside the unit in operation. Before opening the unit, disconnect

mains power.

3. Caution: High frequency radiation in operation. Risk of health hazards associated

with radiation from the unit’s inner conductor of the antenna port(s). Disconnect

mains before connecting or replacing antenna cables.

4. Caution: High frequency radiation in operation. Risk of health hazards associated

with radiation from the antenna(s) connected to the unit. Implement prevention

measures to avoid the possibility of close proximity to the antenna(s) while in

operation.

1.3. Property Damage Warnings

1. Attention: Due to power dissipation, the Extension Unit may reach a very high

temperature. Do not operate this equipment on or close to flammable materials.

Use caution when servicing the unit.

2. Attention: Only authorized and trained personnel are allowed to open the unit and

get access to the inside.

3. Notice: Although the Extension Unit is internally protected against overvoltage, it

is strongly recommended to ground (earth) the antenna cables close to the

repeater’s antenna connectors for protection against atmospheric discharge.

4. Notice: ESD precautions must be observed. Before commencing maintenance

work, use the available grounding (earthing) system to connect ESD protection

measures.

5. Notice: Only suitably qualified personnel are allowed to work on this unit and only

after becoming familiar with all safety notices, installation, operation and

maintenance procedures contained in this manual.

6. Notice: Keep operating instructions within easy reach and make them available to

all users.

1. General

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 9

7. Notice: Read and obey all the warning labels attached to the unit. Make sure that

all warning labels are kept in a legible condition. Replace any missing or damaged

labels.

8. Notice: Only license holders for the respective frequency range are allowed to

operate this unit.

9. Notice: Make sure the repeater settings are correct for the intended use (refer to

the manufacturer product information) and regulatory requirements are met. Do not

carry out any modifications or fit any spare parts, which are not sold or

recommended by the manufacturer.

1.4. Compliance

1. Notice: For installations which have to comply with European EN50385 exposure

compliance requirements, the following Power Density limits/guidelines (mW/cm²)

according to ICNIRP are valid:

o 0.2 for frequencies from 10 MHz to 400 MHz
o F (MHz) / 2000 for frequencies from 400 MHz to 2 GHz
o 1 for frequencies from 2 GHz to 300 GHz

2. Notice: For installations, which have to comply with FCC RF exposure

requirements, the antenna selection and installation must be completed in a way to

ensure compliance with those FCC requirements. Depending on the RF frequency,

rated output power, antenna gain, and the loss between the repeater and antenna,

the minimum distance D to be maintained between the antenna location and human

beings is calculated according to this formula:

]/[

][

][

2

4

cmmW

mW

cm

PD

P

D







where

• P (mW) is the radiated power at the antenna, i.e. the max. rated repeater
output power in addition to the antenna gain minus the loss between the
repeater and the antenna.

• PD (mW/cm²) is the allowed Power Density limit acc. to 47 CFR 1.1310 (B) for
general population / uncontrolled exposures which is

o F (MHz) / 1500 for frequencies from 300MHz to 1500MHz
o 1 for frequencies from 1500MHz to 100,000MHz

RF exposure compliance may need to be addressed at the time of licensing, as
required by the responsible FCC Bureau(s), including antenna co-location
requirements of 1.1307(b)(3).

1. General

Page 10

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

3. Notice: Installation of this equipment is in full responsibility of the installer, who has
also the responsibility, that cables and couplers are calculated into the maximum
gain of the antennas, so that this value, which is filed in the FCC Grant and can be
requested from the FCC data base, is not exceeded. The industrial boosters are
shipped only as a naked booster without any installation devices or antennas as it
needs for professional installation.

4. Notice: For installations which have to comply with FCC/ISED requirements:

English:

This device complies with FCC Part 15. Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept
any interference, including interference that may cause undesired operation of the
device.

This device complies with Health Canada’s Safety Code. The installer of this device
should ensure that RF radiation is not emitted in excess of the Health Canada’s

requirement. Information can be obtained at http://www.hc-sc.gc.ca/ewh-

semt/pubs/radiation/radio_guide-lignes_direct-eng.php.

Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.

Antenna Stmt for ISED:

This device has been designated to operate with the antennas having a maximum gain of
9 dBi. Antennas having a gain greater than 9 dBi are prohibited for use with this device
without consent by ISED regulators. The required antenna impedance is 50 ohms.

The antenna(s) used for this transmitter must be installed to provide a separation distance
of at least 100 cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter. Users and installers must be provided with antenna
installation instructions and transmitter operating conditions for satisfying RF exposure
compliance.

French:

Cet appareil est conforme à FCC Partie15. Son utilisation est soumise à Les deux

conditions suivantes: (1) cet appareil ne peut pas provoquer d’interférences et (2) cet

appareil doit accepter Toute interférence, y compris les interférences qui peuvent causer
un mauvais fonctionnement du dispositif.

Cet appareil est conforme avec Santé Canada Code de sécurité 6. Le programme
d’installation de cet appareil doit s’assurer que les rayonnements RF n’est pas émis au­delà de I’exigence de Santé Canada. Les informations peuvent être obtenues:

http://www.hc-sc.gc.ca/ewh-semt/pubs/radiation/radio_guide-lignes_direct-fra.php

Les changements ou modifications non expressément approuvés par la partie

responsable de la conformité pourraient annuler l’autorité de l’utilisateur à utiliser
cet équipement.

Antenne Stmt pour ISDE:

Ce dispositif a été désigné pour fonctionner avec les antennes ayant un gain maximal de
9 dBi. Antennes ayant un gain plus grand que 9 dBi sont interdites pour une utilisation
avec cet appareil sans le consentement des organismes de réglementation d’ISDE.
L’impédance d’antenne requise est 50 ohms.

1. General

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 11

L’antenne (s) utilisé pour cet émetteur doit être installé pour fournir une distance de
séparation d’au moins 100 cm de toutes les personnes et ne doit pas être co-localisées

ou opérant en conjonction avec une autre antenne ou émetteur. Les utilisateurs et les

installateurs doivent être fournis avec des instructions d’installation de l’antenne et des
conditions de fonctionnement de l’émetteur pour satisfaire la conformité aux expositions

RF.

5. Notice: Corresponding local particularities and regulations must be observed. For
national deviations, please refer to the respective documents included in the
manual CD that is delivered with the unit.

6. Notice: The unit complies with Overvoltage Category II. It also complies with the

surge requirement according to EN 61000-4-5 (fine protection); however,
installation of an additional medium (via local supply connection) and/or coarse
protection (external surge protection) is recommended depending on the individual
application in order to avoid damage caused by overcurrent.

For Canada and US, components used to reduce the Overvoltage Category shall
comply with the requirements of IEC 61643-series. As an alternative, components
used to reduce the Overvoltage Category may comply with ANSI/IEEE C62.11,
CSA Certification Notice No. 516, CSA C22.2 No. 1, or UL 1449. Suitability of the
component for the application shall be determined for the intended installation.

7. Note: For a Class B digital device or peripheral:
This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference.

8. Note: For a Class A digital device or peripheral:
This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
own expense.

9. Note: This unit complies with European standard EN60950.

1. General

Page 12

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Required Distances between the ION-U EU L and Antennas

The table below lists the distance that must be maintained between low power ION-U
Extension Units and antennas. Please also see the requirements listed in the Antenna

Stmt for ISED and Antenne Stmt pour ISDE on pages 10 and 11.

ION-U Model

Antenna gain
without cable

loss (dBi)

Maximum Distance

FCC

ISED

Meters

Inches

Meters

Inches

ION-U EU L 17EP/17EP

9

.502

19.76

.717

28.23

Equipment Symbols Used / Compliance

Please observe the meanings of the following symbols used in our equipment and the
compliance warnings:

Symbol

Compliance

Meaning / Warning

---

FCC

For industrial (Part 20) signal booster:
WARNING: This is NOT a CONSUMER device. It is
designed for installation by FCC LICENSEES and
QUALIFIED INSTALLERS. You MUST have an FCC
LICENSE or express consent of an FCC Licensee to
operate this device. Unauthorized use may result in
significant forfeiture penalties, including penalties in
excess of $100,000 for each continuing violation.

---

ISED

WARNING: This is NOT a CONSUMER device. It is
designed for installation by an installer approved by an
ISED licensee. You MUST have an ISED LICENCE or
the express consent of an ISED licensee to operate
this device.

AVERTISSEMENT: Ce produit N’EST PAS un appareil

de CONSOMMATION. Il est conçu pour être installé
par un installateur approuvé par un titulaire de licence

d’ISDE. Pour utiliser cet appareil, vous DEVEZ détenir
une LICENCE d’ISDE ou avoir obtenu le consentement
exprès d’un titulaire de licence autorisé par ISDE.

CE

To be sold exclusively to mobile operators or
authorized installers – no harmonized frequency
bands, operation requires license. Intended use: EU
and EFTA countries

Indicates conformity with the RED directive
2014/53/EU and RoHS directive 2011/65/EU.

CE

Indicates conformity with the RED directive
2014/53/EU and RoHS directive 2011/65/EU certified
by the notified body no. 0700.

WEEE Recycling

Country specific information about collection and recycling arrangements per the
Waste Electrical and Electronic Equipment (WEEE) Directive and implementing
regulations is available on CommScope’s website.

http://www.commscope.com/About-Us/Corporate-Responsibility-and-Sustainability/Environment/#recycling

1. General

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 13

1.5. About CommScope

CommScope is the foremost supplier of one-stop, end-to-end radio frequency (RF)
solutions. Part of the CommScope portfolio are complete solutions for wireless
infrastructure from top-of-the-tower base station antennas to cable systems and
cabinets, RF site solutions, signal distribution, and network optimization. For patents
see www.cs-pat.com.

CommScope has global engineering and manufacturing facilities. In addition, it
maintains field engineering offices throughout the world.

Andrew Wireless Systems GmbH based in Buchdorf/ Germany, which is part of
CommScope, is a leading manufacturer of coverage equipment for mobile radio

networks, specializing in high performance, RF and optical repeaters. Our optical
distributed networks and RF repeater systems provide coverage and capacity solution
for wireless networks in both indoor installations and outdoor environments, e.g.
tunnels, subways, in-trains, airport buildings, stadiums, skyscrapers, shopping malls,
hotels and conference rooms.

Andrew Wireless Systems GmbH operates a quality management system in
compliance with the requirements of ISO 9001 and TL 9000. All equipment is
manufactured using highly reliable material. To maintain highest quality of the
products, comprehensive quality monitoring is conducted at all fabrication stages.
Finished products leave the factory only after a thorough final acceptance test,
accompanied by a test certificate guaranteeing optimal operation.

Hereby Andrew Wireless Systems declares that the radio equipment type Repeater is
in compliance with Directive 2014/53/EU.
The full text of the EU declaration is available at the following internet address:

www.commscope.com/collateral/Declarations_of_Conformity/.

According to the DoC, our “CE”-marked equipment can be used in all member
states of the European Union.

Note: Exceptions of and national deviations from this intended use may be

possible. To observe corresponding local particularities and
regulations, please refer to the respective documents (also in national
language) which are included in the manual CD delivered.

To make the most of this product, we recommend you carefully read the instructions
in this manual and commission the system only according to these instructions.

For technical assistance and support, please also contact the local office or
CommScope directly at one of the addresses listed in the following chapter.

1. General

Page 14

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

1.6. International Contact Addresses for Customer Support

Canada

A

M

E

R

I
C
A

S

United States

CommScope Canada

Andrew LLC, A CommScope Company

Mail

505 Consumers Road, Suite 803
Toronto M2J 4V8, Canada

Mail

620 North Greenfield Parkway
Garner, NC 27529, U.S.A.

Phone

[phone] (Office)
[phone] (Cell)

Phone

[phone]

Fax

[phone]

Fax

[phone]

E-mail

[e-mail]

E-mail

[e-mail]

Caribbean & South American Region

Caribbean & Central American Region

CommScope Cabos do Brasil Ltda.

CommScope Mexico S.A. de C.V.

Mail

CALA Tech Support for Distributed

Coverage & Capacity Solutions (DCCS)
products:

Rua Guaporanga, 49
Praça Seca – Rio de Janeiro – RJ
ZIP: 21320-180, Brazil

Mail

CALA Tech Support for Distributed

Coverage & Capacity Solutions
(DCCS) products:

Av. Insurgentes Sur 688, Piso 6
Col. Del Valle, CP: 03100
Mexico City, Mexico

Phone

[phone] (Cell)
[phone] (Office)

Phone

[phone] (Office)

Fax

+ 55-15-2102-4001

Fax

[phone]

E-mail

[e-mail]

E-mail

[e-mail]

China, India and Rest of Asia

A
P
A
C

Australia & New Zealand

Andrew International Corporation

Andrew Corporation (Australia) Pty Ltd.

Mail

Room 915, 9/F
Chevalier Commercial Centre
8 Wang Hoi Rd
Kowloon Bay, Hong Kong

Mail

Unit 1
153 Barry Road
Campbellfield
VIC 3061, Australia

Phone

[phone]

Phone

[phone]

Fax

[phone]

Fax

[phone]

E-mail

[e-mail]

E-mail

[e-mail]

Middle East & North Africa

Africa

&

Middle

East

South Africa

CommScope Solutions International Inc.

(Branch)

Andrew Wireless Solutions Africa

(PTY) LTD

Mail

PO Box 48 78 22
Unit 3206, Floor 32,
Jumeirah Business Center 5,
Jumeirah Lakes Towers,
Dubai, United Arab Emirates

Mail

11 Commerce Crescent West
Eastgate, Sandton
PO Box 786117
Sandton 2146
South Africa

Phone

[phone]

Phone

+ 27 11-719-6000

Fax

[phone]

Fax

+ 27 11-444-5393

E-mail

[e-mail]

E-mail

[e-mail]

1. General

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 15

United Kingdom

E

U
R

O

P
E

Scandinavia

Andrew Wireless Systems UK Ltd

Andrew Norway (AMNW)

Mail

Unit 15, Ilex Building
Mulberry Business Park
Fishponds Road
Wokingham Berkshire
RG41 2GY, England

Mail

P.O. Box 3066
Osloveien 10
Hoenefoss 3501
Norway

Phone

[phone]

Phone

+ 47 32-12-3530

Fax

[phone]

Fax

+ 47 32-12-3531

E-mail

[e-mail]

E-mail

[e-mail]

Germany

France

Andrew Wireless Systems GmbH

CommScope France

Mail

Industriering 10
86675 Buchdorf
Germany

Mail

Immeuble Le Lavoisier
4, Place des Vosges
92052 Courbevoie, France

Phone

[phone]

Phone

[phone]

Fax

[phone]

Fax

[phone]

E-mail

[e-mail]

E-mail

[e-mail]

Austria

Switzerland

Andrew Wireless Systems (Austria) GmbH

CommScope Wireless Systems AG

Mail

Weglgasse 10
2320 Wien-Schwechat
Austria

Mail

Tiergartenweg 1
CH-4710 Balsthal
Switzerland

Phone

[phone]

Phone

[phone]

Fax

[phone]

Fax

[phone]

E-mail

[e-mail]

E-mail

[e-mail]

Italy

Iberia Region – Spain & Portugal

CommScope Italy S.r.l., Faenza, Italy

Andrew España S.A. A CommScope Company

Mail

Via Mengolina, 20
48018 Faenza (RA)
Italy

Mail

Avda. de Europa, 4 – 2ª pta.
Parque Empresarial de la Moraleja
Alcobendas, Madrid 28108, Spain

Phone

[phone]

Phone

[phone]

Fax

[phone]

Fax

[phone]

E-mail

[e-mail]

E-mail

[e-mail]

Czech Republic

CommScope Solutions Czech Republic

C-Com, spol. s r.o

Mail

U Moruší 888
53006 Pardubice, Czech Republic

Phone

[phone] (Office)
[phone] (Mobile)

Fax

[phone]

E-mail

[e-mail]

table 1-1 List of international contact addresses

2. Introduction

Page 16

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

2. Introduction

2.1. Purpose

Mobile telephone and public safety systems transmit signals in two directions between
base transceiver station (BTS) and mobile stations (MS) within the signal coverage
area to carry voice and data traffic.

If weak signal transmissions occur within the coverage area because of indoor
applications, topological conditions or distance from the transmitter, extension of the
transmission range can be achieved by means of an optical distributed antenna system
(DAS).

Office buildings, sports arenas, college campuses, industrial parks, and other areas of
high demand require the specialized capacity boost that an optical DAS can provide to
meet increasing customer demands for voice and data.

An optical DAS contains optical Master Units and a sufficient number of Remote Units
to provide the necessary coverage. The number of the Remote Units depends on the
coverage requirements of the DAS. The Remote Units are connected to the Master
Unit with optical links.

The Master Unit is the connection to the Base Transceiver Stations. The configuration
of a Master Unit depends on the number of the Remote Units and the frequency range.

RF signals are transported to and from the Remote Units via optical fibers.

The ION-U system includes high power and low power Remote Units designed to meet
the specific requirements of a given DAS. An ION-U Master Unit can support both high
power and low power RUs simultaneously.

2.2. ION-U Low Power Remote/Extension Units

The ION-U Low Power Remote Units are scalable and integrated with up to:

• 5-band (Cell700, LMR800, Cell850, PCS1900, AWS-3 1700/2100) or

• 6-band with additional Extension Unit

• 7-band with two additional Extension Units

SISO capability. Two RUs can be operated as a pair for MIMO operation. These units
are compatible with analog, GSM, EDGE, IS-95, CDMA2000, EVDO, W-CDMA,
HSDPA, LTE and iDEN modulation standards. These Remote Units feature
independent downlink and uplink gain adjustments and an integrated channel power
detector for in-band spectrum and PIM analysis and end-to-end auto leveling.

3. Functional Description

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 17

3. Functional Description

3.1. General

figure 3-1 ION-U EU L 17EP/17EP block diagram

In the Downlink (DL) path, the Extension Unit provides:

• RF amplification of the converted RF signal for transmission while maintaining
a good signal-to-noise ratio

• RF filtering to reject spurious emissions

In the Uplink (UL) path, the Extension Unit provides:

• RF amplification to boost the signals received by the antennas to maintain a
good signal-to-noise ratio

• RF filtering to reject spurious emissions

• Automatic Level Control (ALC) to adjust the RF signal level to meet blocking

requirements

RF

DPX 17EP

Antenna combiner

DPX 17EP

Antenna combiner

Antenna from

RU1

AUX from

RU 2

RS232 to RU1

Local RS232

RS232 to RU2

Local RS232

Antenna from

EU Path 2

AUX from

RU 1

ANT 1

ANT 2

PSU

eCPD 1

eCPD 2

probe 1

probe 2

Antenna from

EU Path 1

Antenna from

RU2

AUX from
EU Path 1

AUX from
EU Path 2

3. Functional Description

Page 18

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

3.2. SISO and MIMO Operation

The architecture of the ION-U low power supports both SISO and MIMO operation.
MIMO operation is achieved by pairing two RUs.
The following figures show views of a single Remote Unit for SISO applications and
two Remote Units paired for MIMO applications.

figure 3-2 Remote Unit, SISO

figure 3-3 Remote Unit, MIMO two

units paired

The ION-U EU L 17EP/17EP Extension unit with integrated antenna port combiner
together with ION-U L 7/80-85/17(E)P/19P allows for further options.

Required RS-232 connections are not shown in the following drawings. Please
see chapters 4.2.8, 4.2.9, and table 4-7 for more information.

figure 3-4 One RU one EU one antenna RF

ION-U RU1

E1

E2

A1

Master Unit

e

o

e

o

e

o

e

o

ION-U EU L

17EP/17EP

Optical

Expansion

Antenna

ID

Antenna Ports

ID

Expansion Ports

A1

RU1 ANT OUT  EU L 17EP/17EP RU IN1

E1

RU1 EXP DL/UL ports  EU L
17EP/17EP EXP RU DL/UL Path 1

A2

EU L 17EP/17EP ANT-1  Antenna

3. Functional Description

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 19

figure 3-5 Two RUs one EU two antennas RF

figure 3-6 Two RUs two EUs two antennas RF

ION-U RU1

ION-U RU2

E1

E2

A2

A1

A4

A3

Master Unit

e

o

e

o

e

o

e

o

ION-U EU L

17EP/17EP

Optical

Expansion

Antenna

ID

Antenna Ports

ID

Expansion Ports

A1

RU1 ANT OUT  EU L 17EP/17EP RU IN1

E1

RU1 EXP DL/UL ports  EU L 17EP/17EP EXP RU DL/UL Path 1

A2

RU2 ANT OUT  EU L 17EP/17EP RU IN2

E2

RU2 EXP DL/UL ports  EU L 17EP/17EP EXP RU DL/UL Path 2

A3

EU L 17EP/17EP ANT-1  Antenna

A4

EU L 17EP/17EP ANT-2  Antenna

ION-U RU1

ION-U EU L

17EP/17EP

ION-U RU2

ION-U EU L

25T/25T
or 23/23

E1

E2

E3

A2

A1

E4

A6

A5

Master Unit

e

o

e

o

e

o

e

o

A4

A3

Optical

Expansion

Antenna

ID

Antenna Ports

ID

Expansion Ports

A1

RU 1 ANT OUT  EU L 17EP/17EP RU IN1

E1

RU1 EXP DL/UL ports  EU L 17EP/17EP EXP RU DL/UL Path 1

A2

RU 2 ANT OUT  EU L 17EP/17EP RU IN2

E2

RU2 EXP DL/UL ports  EU L 17EP/17EP EXP RU DL/UL Path 2

A3

EU L ANT-1  EU L 17EP/17EP EU IN1

E3

EU L 17EP/17EP EXP EU DL/UL Path 1  EU L EXP RU DL/UL Path 1

A4

EU L ANT-2  EU L 17EP/17EP EU IN2

E4

EU L 17EP/17EP EXP EU DL/UL Path 2  EU L EXP RU DL/UL Path 2

A5

EU L 17EP/17EP ANT-1  Antenna

A6

EU L 17EP/17EP ANT-2  Antenna

3. Functional Description

Page 20

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

figure 3-7 Two RUs three EUs (2300 MHz Optimized) RF

figure 3-8 Two RUs three EUs (RU band loss minimized) RF

ION-U RU1

ION-U EU L

17EP/17EP

ION-U RU2

ION-U EU

L 23/23

E1

E2

E3

A2

A1

A3

A4

E4

A7

A8

Master Unit

e

o

e

o

e

o

e

o

ION-U EU
L 25T/25T

A5

A6

E6

E5

Optical

Expansion

Antenna

ID

Antenna Ports

ID

Expansion Ports

A1

RU 1 ANT OUT  EU L 17EP/17EP RU IN1

E1

RU1 EXP DL/UL ports  EU L 17EP/17EP EXP RU DL/UL Path 1

A2

RU 2 ANT OUT  EU L 17EP/17EP RU IN2

E2

RU2 EXP DL/UL ports  EU L 17EP/17EP EXP RU DL/UL Path 2

A3

EU L 17EP/17EP ANT-1  EU L 23/23 4-21 IN1

E3

EU L 17EP/17EP EXP EU DL/UL Path 1  EU L 25T/25T EXP RU DL/UL Path 1

A4

EU L 17EP/17EP ANT-2  EU L 23/23 4-21 IN2

E4

EU L 17EP/17EP EXP EU DL/UL Path 2  EU L 25T/25T EXP RU DL/UL Path 2

A5

EU L 23/23 ANT-1  EU L 25T/25T 4-23 IN1

E5

EU L 25T/25T EXP EU DL/UL ports Path 1  EU L 23/23 EXP DL/UL Path 1 ports

A6

EU L 23/23 ANT-2  EU L 25T/25T 4-23 IN2

E6

EU L 25T/25T EXP EU DL/UL ports Path 2 EU L 23/23 EXP DL/UL Path 2 ports

A7

EU L 25T/25T ANT-1  Antenna

A8

EU L 25T/25T ANT-2  Antenna

ION-U RU1

ION-U EU L

17EP/17EP

ION-U RU2

ION-U EU

L 23/23

E1

E1

E3

A2

A1

A5

A6

E4

A7

A8

Master Unit

e

o

e

o

e

o

e

o

ION-U EU
L 25T/25T

A4

A3

E6

E5

Optical

Expansion

Antenna

ID

Antenna Ports

ID

Expansion Ports

A1

RU 1 ANT OUT  EU L 17EP/17EP RU IN1

E1

RU1 EXP DL/UL ports  EU L 17EP/17EP EXP RU DL/UL Path 1

A2

RU 2 ANT OUT  EU L 17EP/17EP RU IN2

E2

RU2 EXP DL/UL ports  EU L 17EP/17EP EXP RU DL/UL Path 2

A3

EU L 23/23 ANT-1  EU L 17EP/17EP EU IN1

E3

EU L 17EP/17EP EXP EU DL/UL Path 1  EU L 25T/25T EXP RU DL/UL Path 1

A4

EU L 23/23 ANT-2  EU L 17EP/17EP EU IN2

E4

EU L 17EP/17EP EXP EU DL/UL Path 2  EU L 25T/25T EXP RU DL/UL Path 2

A5

EU L 17EP/17EP ANT-1  EU L 25T/25T 4-23 IN1

E5

EU L 25T/25T EXP EU DL/UL ports Path 1  EU L 23/23 EXP DL/UL Path 1 ports

A6

EU L 17EP/17EP ANT-2  EU L 25T/25T 4-23 IN2

E6

EU L 25T/25T EXP EU DL/UL ports Path 2 EU L 23/23 EXP DL/UL Path 2 ports

A7

EU L 25T/25T ANT-1  Antenna

A8

EU L 25T/25T ANT-2  Antenna

3. Functional Description

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 21

3.3. ION-U EU L 17EP/17EP Ports

The RF, mains power, alarm, power control, and expansion ports are located on the
bottom of the EU. Please see the Appendix to view other LP EU and RU port layouts.

A

Expansion DL RU port path 2

M

Mains power connector

B

Expansion UL RU port path 2

N

Grounding (earthing) bolts

C

Expansion DL EU port path 2

O

EU IN1 RF path 1

D

Expansion UL EU port path 2

P

EU IN2 RF path 2

E

Expansion DL RU port path 1

Q

RU IN1 RF path 1

F

Expansion UL RU port path 1

R

RU IN2 RF path 2

G

Expansion DL EU port path 1

S

ANT-1 – RF to antenna path 1

H

Expansion UL EU port path 1

T

ANT-2 – RF to antenna path 2

I

Status LED path 2

U

Local Port RS-232 path 1

J

Status LED path 1

V

Ctrl connector path 1

K

Probe path 2

W

Local Port RS-232 path 2

L

Probe path 1

X

Ctrl connector path 2

figure 3-9 EU L 17EP/17EP connectors and Status LEDs

ANT -1, ANT-2 Antenna Ports

The EU has two duplex 4.3-10 female antenna ports for transmitting and
receiving signals to and from distributed antennas. These RF ports can be connected
directly to antennas (i.e. using RF jumper cables) or through splitters, allowing
additional antennas to be fed by the EU.

RU IN1, RU IN2 Antenna Ports

The EU has two duplex 4.3-10 female antenna ports for connecting to the
antenna ports of two ION-U L Remote Units. The signals are combined and fed to the
ANT-1, ANT-2 ports of the EU.

S T K

L

A B C D I K L

M

N

R

Q

S

T

U

V

W

E F G H J X P

O

3. Functional Description

Page 22

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

EU IN1, EU IN2 Antenna Ports

The EU has two duplex 4.3-10 female antenna ports for connecting to the
antenna ports of an ION-U EU L Expansion Unit. The signals are combined and fed to
the ANT-1, ANT-2 ports of the ION-U EU L 17EP/17EP.

Status LEDs

The status LEDs provide a visual warning of an alarm condition. The color of

the LED indicates the severity of the alarm.

RU Expansion Ports

The RU DL and UL Expansion ports for path 2 and the RU DL and UL Expansion
ports for path 1 are QMA female connectors that are used to connect to the

Expansion ports of two RUs.

EU Expansion Ports

The EU DL and UL Expansion ports for path 2 and the EU DL and UL Expansion
ports for path 1 are QMA female connectors that are used to connect to the

Expansion ports of an additional EU such as an ION-U EU L 23/23.

Mains Connector

The EU receives its power through the Mains connector . The type of connector
depends on the EU model. A 4-pin Amphenol connector is used for AC models and
standard DC models. A 7-pin Amphenol connector is used for DC models powered by
a dual cable supply.

Ctrl Connector

The Ctrl connectors are DB-9 male connectors and are used for external modem
communication with RUs.

Local Port RS-232

The RS-232 ports are standard DB-9 female connectors used for external
modem communication with another EU.

Probe Port

The probe ports are QMA measurement probes that allow the measurement of
the antenna outputs without disconnecting the antennas. The coupling is as follows:

Port

Coupling dB typ.

1700 MHz

41dB

O P I J A B E F C D G H M

V

X

U W K

L

4. Commissioning

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 23

4. Commissioning

Read and observe the health and safety and property damage warnings as well as the
description carefully to avoid mistakes and proceed step-by-step as described.

• Attention: Do not operate the Extension Unit without terminating the antenna
connectors. The antenna connectors may be terminated by connecting them to
their respective antennas or to a dummy load.

• Notice: Only qualified personnel should carry out the electrical, mechanical,
commissioning, and maintenance activities that require the unit to be powered
on when open.

• When opening the Extension Unit, do not damage the warranty labels on the
internal devices. The warranty is void if the seals are broken.

• Ensure that all connections have been performed according to chapter 4.2.3
Connections.

4.1. Low Power EU Mechanical Installation

4.1.1. Health and Safety for mechanical installation

Read and observe chapter 1.2 Health and Safety.

1. Caution: Risk of injury by the considerable weight of the unit falling. Ensure there
is adequate manpower to handle the weight of the system.

2. Caution: Risk of serious personal injury by equipment falling due to improper
installation. The installer must verify that the supporting surface will safely support
the combined load of the electronic equipment and all attached hardware and
components. The screws and dowels (wall anchors) used should also be
appropriate for the structure of the supporting wall.

4.1.2. Property Damage Warnings for mechanical installation

1. Attention: Do not install the unit in a way or at a place where the specifications
outlined in the Environmental and Safety Specifications leaflet of the supplier are
not met.

2. Attention: Due to power dissipation, the unit may reach a very high temperature.
Ensure sufficient airflow for ventilation.

3. Notice: Exceeding the specified load limits may cause the loss of warranty.

4. Notice: When connecting and mounting the cables (RF, optical, mains, ...) ensure
that no water can penetrate into the unit through these cables.

4. Commissioning

Page 24

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

5. Notice: If any different or additional mounting material is used, ensure that the
mounting remains as safe as the mounting designed by the manufacturer. The
specifications for stationary use of the Unit must not be exceeded. Ensure that the
static and dynamic strengths are adequate for the environmental conditions of the
site. The mounting itself must not vibrate, swing or move in any way that might
cause damage to the Unit.

Specified torques must be observed for certain mounting procedures according to the
following table:

Type

Pins

Hex nuts

Screws

Thread

M 6

M 6

M6

Specified torques

3.3 N-m

3.3 N-m

3.3 N-m

table 4-1 Specified torques

4.1.3. Mounting bracket

4.1.3.1. Mount to a wall

1. Check the suitability of the wall-mounting kit and the wall.

2. Install the mounting bracket using 4 M6 screw anchors (not included*) or suitable
lag bolts according to the drilling layout. Confirm that the bracket is securely
fastened to the wall. Installer must verify that the supporting surface will safely
support the combined load of the electronic equipment and all attached hardware
and components.

* The M6 screw anchors are not included as part of the EU delivery because the suitable type
depends on the on-site conditions (wall structure and materials). Use screw anchors that are
appropriate for the mounting surface.

figure 4-1 Mounting bracket

4. Commissioning

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 25

4.1.3.2. Mount to a pole

Mounting kits are available for poles from 4“ to 18” (10.2 cm to 45.8 cm) and for 40” (1
m).

1. Mount the mounting bracket to
the four screw pins of the two
pole-mounting brackets with M6
plain washers (9), split lock
washers (10) and self lock nuts
(8).

2. Screw a M8 nut (4) to one end
of each of the eight threaded
bolts and slide a plain washer
(5) on the bolt.

3. Screw the end of the threaded
bolts (with the nut and washer)
from the inner side to the
welded nuts of the pole­mounting bracket. Use the nuts
that allow to mount the
mounting kit with the threaded
bolts as close to the pole as
possible. Lock the screwing by
fastening the M8 nut.

4. Commissioning

Page 26

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

4. Mount the pole-mounting kit
with the two brackets and M8
plain washers (5), split lock
washers (6), and self lock nuts
(7) to the pole.

Take care to mount the brackets
congruently and not at an angle.

figure 4-2 Pole-mounting kit 4” to 18”

Mounting the 40” pole-mounting kit
is similar, except:

• the pole-mounting bracket

provides no screw pins, but the
mounting bracket is fastened
with four screws M8 x 25 (2)
and M8 self lock nuts (3).

• the pole-mounting bracket

provides no welded nuts but all
the threaded bolts are mounted
with M8 plain washers (7), split
lock washers (6) and nuts.

figure 4-3 Pole-mounting kit 40”

2

3

3

6

7

4. Commissioning

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 27

4.1.4. Threaded pins

1. Attach an M6 threaded pin to the unit by inserting it into the threaded hole adjacent
to the power supply and turning it clockwise. Tighten the pin securely with a socket
wrench.

figure 4-4 EU threaded pin power supply side

2. Attach an M6 threaded pin to the nit by inserting it into the threaded hole above
the handle and turning it clockwise. Tighten the pin securely with a socket wrench.

figure 4-5 EU threaded pin narrow side

M6 threaded pin

4. Commissioning

Page 28

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

4.1.5. Wall mounting procedure – Single Unit

1. Follow the instructions for mounting the bracket and installing the threaded pins

in chapter 4.1.3.

2. Install the unit on the wall-mounting bracket by lifting it into place and using

both handles and lowering it down onto the bracket. The M6 pins must align
with the slots in the bracket to support the unit.

figure 4-6 Place EU onto wall mounting bracket – single mount

4. Commissioning

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 29

3. Fasten the lower section of the unit to the bracket using a washer and an M6x12

screw (on both sides). Slide a washer over each screw and then insert the
screw and tighten it securely.

figure 4-7 Install M6x12 screws and washers for single mount

4. Fasten the unit to the bracket using a washer and M6 nut. Slide the washer

over the threaded pins that you installed previously (chapter 4.1.3) and then
screw the nut onto the pins (on both sides) and tighten securely.

figure 4-8 Attach M6 nut to threaded pins for single mount

5. Confirm that all screws and nuts have been fastened and the unit is securely

mounted to the wall.

M6x12 screw

Washer

M6 nut

Washer

4. Commissioning

Page 30

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

figure 4-9 Completed single EU mount

4.1.6. Wall mounting procedure – Dual Units

1. Follow the instructions for mounting the bracket and installing the threaded pins in
chapter 4.1.3.

2. Install the first unit on the wall-mounting bracket by lifting the unit into place and
lowering it down onto the bracket. The M6 pins must align with the slots in the
bracket to support the unit. Note that the first unit is installed with the curved side
facing you, which is the opposite of the installation procedure for single (one unit)
mounting.

4. Commissioning

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 31

figure 4-10 1st unit placed on wall mounting bracket

3. Fasten the lower section of the first unit to the bracket using a washer and an
M6x12 screw (on both sides). Slide a washer over each screw and then insert the
screw and tighten it securely.

figure 4-11 Install M6x12 screws and washers

4. Fasten the unit to the bracket using a washer and M6 nut. Slide the washer over
the threaded pins that you installed previously (chapter 4.1.3) and then screw the
nut onto the pins (on both sides) and tighten securely.

M6x12 screw

Washer

4. Commissioning

Page 32

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

figure 4-12 Attach M6 nut to threaded pins

5. Install the second unit on the wall-mounting bracket by lifting the unit into place
and lowering it down onto the bracket. The 2nd unit is reversed in direction from the
1st unit. The M6 pins must align with the slots in the bracket to support the unit.

figure 4-13 2nd unit on wall mounting bracket

6. Fasten the lower section of the second unit to the bracket using a washer and an
M6x12 screw (on both sides). Slide a washer over each screw and then insert the
screw and tighten it securely.

Washer

M6 Nut

4. Commissioning

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 33

figure 4-14 Install M6x12 screws and washers 2nd unit

7. Fasten the unit to the bracket using a washer and M6 nut. Slide the washer over
the threaded pins that you installed previously (chapter 4.1.3) and then screw the
nut onto the pins (on both sides) and tighten securely.

figure 4-15 Attach M6 nut to threaded pins for 2nd unit

8. Confirm that all screws and nuts have been fastened and the unit is securely
mounted to the wall.

M6x12 screw

Washer

Washer
M6 Nut

4. Commissioning

Page 34

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

figure 4-16 Completed dual unit mount

4.1.7. Pole mounting procedure – single and dual

The pole mounting procedures are identical to the wall mounting procedures described
in chapters 4.1.5 Wall mounting procedure – Single Unit and 4.1.6 Wall mounting
procedure – Dual Units, except for the mounting of the mounting bracket described in
chapter 4.1.3.2 Mount to a pole.

4. Commissioning

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 35

4.2. Low Power EU Electrical Installation

4.2.1. Health and Safety for electrical installation

Read and observe chapter 1.2 Health and Safety.

1. Danger: Electrical hazard. Danger of death or fatal injury from electrical
current. Obey all general and regional installation and safety regulations
relating to work on high voltage installations, as well as regulations covering
correct use of tools and personal protective equipment.

2. Danger: Electrical hazard. Danger of death or fatal injury from electrical
current inside the unit in operation. Before opening the unit, disconnect
mains power.

4.2.2. Property Damage Warnings for electrical installation

1. Attention: It is compulsory to ground (earth) the unit before connecting the power
supply. Grounding bolts are provided on the cabinet to connect the ground-bonding
cable.

2. Attention: If the mains connector of the unit is not easily accessible, a disconnect
device in the mains power circuit must be provided within easy reach.

3. Attention: A connection of the mains supply to a power socket requires the power
socket to be nearby the unit.

4. Attention: Before connecting or disconnecting the mains connector at the unit,
ensure that mains power supply is disconnected.

5. Attention: Make sure that an appropriate circuit breaker acting as a disconnect
device (as required by IEC/EN60950-1) and an overcurrent limiting device are
connected between mains power and the unit.

6. Attention: Incorrectly wired connections can destroy electrical and electronic
components.

7. Notice: Although the unit is internally protected against overvoltage, it is strongly
recommended to ground (earth) the antenna cables close to the antenna
connectors of the unit for protection against atmospheric discharge. In areas with
strong lightning, it is strongly recommended to install additional lightning
protection.

8. Notice: To avoid corrosion at the connectors caused by electrochemical
processes, the material of the cable connectors must not cause a higher potential
difference than 0.6 V (see electrochemical contact series).

4. Commissioning

Page 36

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

9. Notice: Use an appropriate torque wrench for the coupling torques:

- for N-type connectors (2 N-m / 20 in lb) with 13/16 in opening,
e. g. item no. 244379 available from the CommScope e-catalog

- for 4.3-10 type connectors (5 N-m, 44 in lb) with 22mm (7/8) in
opening

Do NOT use your hands or any other tool (e.g. a pair of pliers). This might cause
damage to the connector and lead to a malfunction of the unit.

10. Notice: For unstabilized electric networks, which frequently generate spikes, the
use of a voltage limiting device is advised.

11. Notice: Observe the labels on the front panels before connecting or disconnecting
any cables.

12. Notice: Unused connectors must be closed with their protective covers to ensure
water tightness.

4. Commissioning

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 37

4.2.3. Connections

ION-U Low Power EU Connectors/Indicators

Port/Conn

Purpose

Type

LOCAL

RS-232

These connectors are used for external modem
communication with another EU.

DB-9 Female

STATUS

These LEDs provide a visual warning of an alarm
condition. The color of the LED indicates the
severity of the alarm.

LED

CTRL

These connectors are used for external modem
communication with RUs.

DB-9 Male

EXPANSION

RU DL

Path 1/ Path 2

These connectors are used to connect to the DL
Expansion ports of up to two Remote Units.

QMA Female

EXPANSION

RU UL

Path 1/ Path 2

These connectors are used to connect to the UL
Expansion ports of up to two Remote Units.

QMA Female

EXPANSION

EU DL

Path 1/ Path 2

These connectors are used to connect to the DL
Expansion ports of another Extension Unit to
provide an additional band of coverage.

QMA Female

EXPANSION

EU UL

Path 1/ Path 2

These connectors are used to connect to the UL
Expansion ports of another Extension Unit to
provide an additional band of coverage.

QMA Female

MAINS

(Vac/Vdc)

This connector provides the power to RU models
that use standard AC (85 to 265 Vac) or RU
models that use standard DC (-60 to -38 Vdc)
power.

Amphenol C016

Series, 4-Pin

MAINS

(Vdc/100)

This connector provides power to RU models
used in locations where the power drawn on each
cable must be limited to a maximum of 100 VA.

Amphenol C016

Series, 7-Pin

Grounding

Bolts

Ground (earth) bolts for connecting the
mandatory ground cable to the EU.

M6 bolts, hex

nut, & washers

ANT 1 / ANT 2

These connectors are used for transmitting and
receiving signals to and from an antenna or
antenna splitter.

4.3-10

RU IN1 /

RU IN2

These connectors are used for transmitting and
receiving signals to and from the antenna port of
an RU.

4.3-10

EU IN1 /

EU IN2

These connectors are used for transmitting and
receiving signals to and from the antenna port of
an EU.

4.3-10

4. Commissioning

Page 38

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

4.2.4. Grounding (Earthing)

The EU must be grounded (earthed).

1. Connect an earth-bonding cable to the grounding bolt connection provided on the

outside of the unit (near the Mains connector) as shown in figure 4-17. Do not use
the grounding connection to connect external devices.

figure 4-17 Grounding bolts

figure 4-18 Grounding bolt, schematic view

2. After loosening the hex nut(s), connect the earth-bonding cable between the two
washers as illustrated in the figures above.

3. Then, fasten all parts again by tightening the hex nut(s).

4. Connect the other end of the ground wire to a suitable permanent ground following
local electrical code practices.

4. Commissioning

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 39

4.2.5. Mains power connection

Before connecting electrical power to the units, the system must be grounded (earthed)
as described in the previous chapter.

The Mains power must be connected to the Mains connector of the unit for operation
of the EU. A power cable is delivered with each EU. The type of power cable delivered
is dependent on the type of power supply in the unit.

The AC power cable is a 3.2 m (10.5 ft) 16 AWG cable with a 4-pin Amphenol C016
series plug on one end to connect to the EU Mains connector. The other end of the
cable is un-terminated with 3 end splices to connect to the AC power source. A 10 m
(33.7 ft) AC power cable is also available as an option.

4-Pin Amphenol C016

Series

Pin

Name

Color

1

Phase

Black

2

Neutral

White

3

n.c.

n.c

4

Ground

Green

figure 4-19 AC power cable

table 4-2 AC power cable

The standard DC power cable is a 3.2 m (10.5 ft) 13 AWG cable with a 4-pin Amphenol
C016 series plug on one end to connect to the EU Mains connector. The other end of
the cable is un-terminated with 2 end splices to connect to the -48 Vdc power source.

4-Pin Amphenol C016

Series

Pin

Name

Color

1

n.c

n.c

2

–48V

Black

3

0V

Red

4

n.c.

n.c

figure 4-20 DC power cable

table 4-3 DC power cable

black

Amphenol 4-Pin
female connector

Protective Cap

3x end splice

white

green

B0400A4A

RU Mains

Connector

4

3

2

1

black

Amphenol 4-Pin
female connector

Protective Cap

2x end splice

red

B0400A5A

RU Mains
Connector

4

3

2

1

4. Commissioning

Page 40

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

The Vdc/100 power cable is available for locations where the power drawn on each
cable must be limited to a maximum of 100 VA. This cable is a 3.2 m (10.5 ft) 16 AWG
cable with a 7-pin Amphenol C016 series plug on one end to connect to the EU Mains
connector. The other end of the cable is un-terminated with 4 end splices to connect
to the -48 Vdc power source.

7-Pin Amphenol C016

Series

Pin

Name

Color

1

0V

White

2

–48V

Black

3

n.c.

-

4

0V

Red

5

–48V

Green

6

n.c

- 7 n.c

-

figure 4-21 Vdc/100 power cable

table 4-4 Vdc/100 power

cable

Notice: For the AC power supply connection, a minimum cross section of 1.5 mm2 is

required and for the DC power supply connection, a minimum cross section of 2.5
mm2 is required. Each wire must observe the applicable national regulations
regarding loop impedance, voltage drop, and methods of installation. Make sure to
connect the correct voltage to the unit.

Notice: Do not connect or disconnect the power cable at the mains connector while

power is on. Turn off mains* power before connecting the power cable at the unit,
then, engage mains power again.

* Mains power must be interruptible with an external delay-actions mains breaker. For

the mains breaker, observe the following recommendation:

120 Volt / 20 Amp max. or 240 Volt / 16 Amp, single-phase, 50 / 60 Hz AC service is
needed, i.e. the external AC breaker should be 20 Amps max. for 120-Volt service or
13 to 16 Amps for 240-Volt service.

-48 Volt / 40 Amp max. DC service is needed, i.e. the external DC breaker should be

40 Amps max for -48 VDC service. For the DC power supply, observe the local
regulations of the DC service provider.

Use the following method to install and connect the Mains power to the EU:

1. Locate the Mains power cable that was delivered with the EU.

2. Locate or install a suitable power junction box or receptacle near the unit and
route the power cable from the power source to the EU. Do not connect the
cable to the unit’s Mains connector at this time. The power source must be
interruptible.

1

2

4

5

7

Amphenol 7-Pin
female connector

Protective Cap

4x end splice

B0400A6A

RU Mains
Connector

4. Commissioning

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 41

3. The Mains cable must be properly secured observing local regulations and
electrical codes. Be sure to allow enough slack in the cable at the EU to plug or
unplug the cable into the Mains connector.

4. Wire the power cable to the junction box or receptacle. Refer to the color code
and pin numbers shown in figure 4-19 (AC cable), figure 4-20 (DC cable), or
figure 4-21 (Vdc/100 cable) depending on the type of power supply used by the
unit.

5. With the cable’s Mains plug disconnected from the EU, turn the circuit breaker

on, unscrew the plug’s protective cover, and carefully test the plug with a

voltmeter to ensure that the voltage and polarity are correct.

6. Once the testing has been completed, turn off the circuit breaker.

7. Unscrew the protective cover from the Mains connector of the unit.

8. Insert the plug into the Mains connector (figure 4-22) and tighten the clamping
ring until it is hand tight. Do not over-tighten the clamping ring.

figure 4-22 Connect mains plug

Clamping ring

Mains plug

Mains
connector

Protective
cover

4. Commissioning

Page 42

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

4.2.6. Antenna connection

The Extension Unit has six 4.3-10 connectors. For mounting the cable connector, it is
recommended to refer to the corresponding documentation of the connector
manufacturer. The bending radius of the antenna cables must remain within the given
specifications.

The selection of cable and antenna is an important consideration. Choose the type of
cable best suited for the antenna. Consider that a cable with higher loss is less
expensive but impairs performance.

Notice: Use an appropriate torque wrench for the coupling torques:

- for N-type connectors (2 N-m / 20 in lb) with 13/16 in opening,
e. g. item no. 244379 available from the CommScope e-catalog

- for 4.3-10 type connectors (5 N-m, 44 in lb) with 22mm (7/8) in
opening

Do NOT use your hands or any other tool (e.g. a pair of pliers). This might cause
damage to the connector and lead to a malfunction of the unit.

Attention: To minimize passive inter-modulation (PIM) distortion, attention has to be

paid to the physical condition of the connector junctions:

• Do not use connectors that show signs of corrosion on the metal surface.

• Prevent the ingress of water or dirt into the connector.

• Use protective caps for the connectors when not mounted.

• Before mounting clean the connectors with dry compressed air.

• Before mounting clean the mating surfaces of the connector with a lint-free

alcohol-drenched cloth on a wooden or non-metallic item.

• Attach and torque the connectors properly.

• Avoid metallic abrasion when mounting the connectors by only screwing the

connecting nut, but not turning the whole connector.

• Use a torque wrench to fasten the connector, see above.

• Clean the protective caps before mounting for antenna cable replacement.

4. Commissioning

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 43

4.2.6.1. Cleaning procedure for RF cable connectors

1. What is needed for the cleaning?
a. Isopropyl alcohol or similar
b. Compressed air
c. Lint-free wipe
d. Cotton buds

2. Remove protective cap from the RF
connector.

Caution: Risk of injury by flying particles when compressed air is used. Wear
protective clothing, especially protective glasses.

3. Remove metal chips and small
particles from the mating and inner
surfaces of the connector using
compressed air.

Warning: Flammable material. Risk of fire. Keep away from sources of ignition.
Caution: Eye irritant product. Risk of eye irritation. Avoid contact with eyes and skin.

Wear protective clothing, especially protective glasses.

4. Commissioning

Page 44

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

4. Clean the connector winding with
lint-free wipe drenched with
isopropyl alcohol.

5. Clean the lip of the inner ring with a
cotton bud drenched with isopropyl
alcohol.

6. Clean the inside surface of the
inner ring with a cotton bud
drenched with isopropyl alcohol.

7. Clean the inside of the center
conductor spring tines with a cotton
bud drenched with isopropyl
alcohol.

4. Commissioning

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 45

8. Clean in the similar way the
connector of the connected cable.
Remove protective caps from the
unit connector first.

9. Remove metal chips and small
particles from the mating and inner
surfaces of the connector using
compressed air.

10. Continue with the winding area
using lint-free wipe drenched with
isopropyl alcohol.

11. Continue with the inside mating
surface of the inner ring.

4. Commissioning

Page 46

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

12. Clean the outside surface of the
center pin.

4.2.6.2. Antenna cable connector assembly

1. What is needed for the connector

assembly?

a. Torque wrench.
b. (Adjustable) counter

wrench

2. Join the connectors and turn the

coupling nut until the thread grips.

3. Push in the connector until it clicks.

4. Commissioning

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 47

4. Fasten the coupling nut hand-tight.

Do not turn the connector but the
coupling nut only.

5. Retain the cable connector with the

counter wrench and fasten the
coupling nut with the
torque wrench until the torque is
applied (torque wrench clicks).

For angled antenna connectors use your hand to retain the cable connector and
fasten the coupling nut with the torque wrench. Make sure only the coupling nut is
turned, not the cable connector.

figure 4-23 Antenna connection

Antenna cable

Torque wrench

Counter wrench

4. Commissioning

Page 48

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

4.2.7. Expansion ports connections

The Expansion ports are QMA-F connectors that are used to connect to one or two
Remote Units and an additional Extension Unit to provide extra bands of coverage.
Ports are available for Path 1 and Path 2. The cables (1.5 m) required are included in
the EU delivery

1. Connect an RF cable with QMA male connectors between the DL Expansion
port connector of the RU and the RU UL port of the Extension Unit for Path 1. If
a second RU is used, connect it to the RU DL expansion port of the EU for Path

2. Press the QMA connectors of the cable onto the Expansion port connectors
until they click into place to connect the cable.

2. Connect an RF cable with QMA male connectors between the UL Expansion
port connector of the RU and the RU UL port of the Extension Unit for Path 1. If
a second RU is used, connect it to the RU UL expansion port of the EU for Path

2. Press the QMA connectors of the cable onto the Expansion port connectors
until they click into place to connect the cable.

3. If an additional EU is used, connect an RF cable with QMA male connectors
between the EU DL Expansion port connector of the 17EP/17EP EU to the DL
Expansion port of the second Extension Unit for Path 1. Repeat the connection
process for Path 2. Press the QMA connectors of the cable onto the Expansion
port connectors until they click into place to connect the cable.

4. If an additional EU is used, connect an RF cable with QMA male connectors
between the EU UL Expansion port connector of the 17EP/17EP EU to the UL
Expansion port of the second Extension Unit for Path 1. Repeat the connection
process for Path 2. Press the QMA connectors of the cable onto the Expansion
port connectors until they click into place to connect the cable.

figure 4-24 Expansion ports

4. Commissioning

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 49

4.2.8. Control connector RS-232 LOCAL- Local Interface

These DB-9 female connectors are used for local access to this EU part and for
external modem communication between this EU and an additional “downstream” EU.

DB-9 Female

PIN

Assignment

1

Booster presence IN

2

RS232 Tx

3

RS232 Rx

4

n.c.

5

GND

6

n.c.

7

n.c.

8

Booster presence OUT

9

n.c.

figure 4-25 RS-232 connector

table 4-5 RS-232 connector, pin assignment

Connect the RS-232 cable (1.5m, contained in delivery of EU) from the LOCAL port of
this EU to the CTRL port of the “downstream” EU.

4.2.9. Control connector RS-232 CTRL

These DB-9 male connectors are used for external modem communication between

this EU and an “upstream” RU or EU.

DB-9 Male

PIN

Assignment

1

Booster presence OUT

2

RS232 Rx

3

RS232 Tx

4

n.c.

5

GND

6

n.c.

7

n.c.

8

Booster presence IN

9

n.c.

figure 4-26 RS-232 connector

table 4-6 RS-232 connector, pin assignment

Connect the RS-232 cable (1.5m, contained in delivery of EU) from the CTRL port of
this EU to the LOCAL port of the “upstream” RU or EU.

4. Commissioning

Page 50

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Typical RS-232 connections for a system with up to two Remote Units and up to three
Extension Units are shown in the table below:

RS-232 LOCAL and CTRL Connections

Path 1 (RU 1)

Path 2 (RU 2)

RU 1 LOCAL  EU 1 CTRL Path 1

RU 2 LOCAL  EU 1 CTRL Path 2

EU 1 LOCAL Path 1  EU 2 CTRL Path 1

EU 1 LOCAL Path 2  EU 2 CTRL Path 2

EU 2 LOCAL Path 1  EU 3 CTRL Path 1

EU 2 LOCAL Path 2  EU 3 CTRL Path 2

EU 3 LOCAL Path 1  Not Connected

EU 3 LOCAL Path 2  Not Connected

table 4-7 RS-232 LOCAL and CTRL connections

4.3. Low Power EU Alarms

4.3.1. Bite and alarms

The Built-In Test concept comprises the monitoring of the power supplies and the
power amplifiers.

All alarms that occur can be checked via software at the Master Unit.

4. Commissioning

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 51

4.3.2. Status LED alarms

For local supervision, a status LED on the connector panel of the Extension Unit
adjacent to the Expansion ports provides a visual warning of an alarm condition. The
color of the LED indicates the severity of the alarm. Detailed alarm information is
available through the ION-U software interface. This table lists the alarm conditions
and possible on-site measures that could be performed to resolve the issues
responsible for triggering the alarms.

Alarm Name

Description

Remedy

Temperature Alarm

too high temperature

check ventilation and environment

VSWR Alarm

bad RF cabling / mismatched

antenna

check cable / antenna

RF Low Output AWS

too low RF signal

check BTS output level/attenuator

configuration/RF cabling

DL AWS band alarm

hw failure on RF section

change unit

UL AWS band alarm

hw failure on RF section

change unit

UL Overdrive/ALC Limiting

AWS

too high RF signal feeding device

check unit/attenuator configuration

Internal bus alarm

internal I2CBUS communication

malfunction

change unit

External 1 Alarm

external input alarm

check external device/ check alarm

connection

External 2 Alarm

external input alarm

check external device/ check alarm

connection

Power Supply 1 Alarm

internal power supply alarm

change/verify unit

Power Supply 2 Alarm

internal power supply alarm

change/verify unit

Power Supply 1 exceeded load

threshold

too high power supply load

change/verify unit

Power Supply 2 exceeded load

threshold

too high power supply load

change/verify unit

Power Supply 1 partial

availability

internal power supply alarm /

partial power available

change/verify unit

Power Supply 2 partial

availability

internal power supply alarm /

partial power available

change/verify unit

High Power Consumption

too high power supply load

change/verify unit

Low Power Consumption

too low power supply load

change/verify unit

table 4-8 Status LED alarms

4. Commissioning

Page 52

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

4.4. External Alarm Inputs

With the external alarm inputs, it is possible to monitor the status of connected devices,
e.g. a UPS, via software. All alarm inputs are normally high (5 V) without connection.
The polarity (high/ low) can be set via the software at the Master Unit (for details please
see the appropriate ION-U software manual).

The device to be monitored must be connected so that the alarm contacts will be closed
in case of an alarm (I max = 8 mA). The alarm inputs are potential-free with common
ground (earth).

Subminiature circular connectors series 712 with five contacts, which are contained in
the alarm kit, can be ordered directly from the Binder Connector Group, the
manufacturer, or indirectly from CommScope.

4.5. Troubleshooting

The status of the Extension Unit can be checked via the Master Unit (for details please
refer to the ION-U software manual). Locally, the status can be checked at the LED,
see chapter 4.3.2.

5. Low Power EU Maintenance

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 53

5. Low Power EU Maintenance

5.1. General

Read and observe chapter 1.2 Health and Safety.

 Note: The Extension Unit does not require preventative maintenance

measures.

Maintenance of the ION-U Low Power units should be performed by replacing only
components that are described in this chapter. In order to maintain the warranty, avoid
unintentional damage to the seals on the modules.

The spare parts list includes only units that can be replaced in the field without tuning
or soldering work.
Please contact your CommScope sales representative or DCCS Technical Support for
a current ION-U LP EU parts list.

 Note: When sending back the unit, use appropriate packaging. Use of the

original packaging for shipping the unit is strongly recommended.

 Note: Defective parts should only be replaced by original parts from the

supplier. All service work performed inside the housing is performed at
the users own risk.

 Note: Label any unlabeled cables before disconnecting them to ensure correct

reconnection.

For most maintenance procedures, appropriate tools are required to ensure correct
handling. All of these tools can be ordered from the supplier.

 Note: All unit screws have a right-hand thread, and are tightened by turning the

screws clockwise and loosened by turning them counter-clockwise with
an appropriate tool.

Due to the design of the Extension Unit, the power supply is the only component that
should be replaced in the field. Please contact the supplier for replacement of any other
components.

5. Low Power EU Maintenance

Page 54

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

5.2. EU Power Supply Replacement

The power supply for the EU is a field replaceable module. The type of power supply
used by the unit (AC, DC, or Vdc/100) is dependent on the model number.

Attention: Before starting any maintenance on the EU, read and observe chapter 1.2

Health and Safety and the electrical installation information in chapter 4.2.1 Health
and Safety for electrical installation.

1. Danger: Electrical hazard. Danger of death or fatal injury from electrical
current inside the unit in operation. Before opening the unit, disconnect
mains power.

2. Caution: The unit reaches high temperature in operation. Risk of burns by
hot surface. Do not touch the unit before it has sufficiently cooled down.

1. Switch off the circuit breaker

supplying power to the EU.

2. Once you have confirmed that

the power has been shut down,
remove Mains power
connector from the unit.

figure 5-1 Disconnect mains power

3. Locate the power supply on the
right side of the Extension Unit.

figure 5-2 EU power supply location

Mains plug

Power
supply

5. Low Power EU Maintenance

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 55

4. Use a #2 Phillips head or
slotted screwdriver to loosen
the 8 universal slot/Phillips
captive power supply screws
and carefully remove the
supply. The weight of the
power supply must be
supported as you loosen the
screws to prevent damage to
the supply.

figure 5-3 8 EU power supply screws

5. Carefully remove the power
supply from the unit. Do not
attempt to support the weight
of the supply with the attached
input and output cables.

figure 5-4 EU power supply with cables

6. Locate the input cable
connector for the power supply
on the right side of the supply.

7. Loosen the 3 Phillips head
terminal screws and remove
the connector.

figure 5-5 EU power supply input cable

Mains
connector

Loosen 8 universal
slot/Phillips screws

5. Low Power EU Maintenance

Page 56

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

8. Locate the output connector for
the power supply on the left
side of the supply.

9. Loosen the 2 Phillips head
screws and remove the output
connector.

figure 5-6 EU power supply output cable

10. Remove the defective supply.

figure 5-7 EU with power supply removed

11. Replace the defective power
supply with the new power
supply.
It is very important to confirm
that the replacement supply is
the same type as the original
supply. The AC, DC, and

Vdc/100 supplies are not
interchangeable.

12. Reconnect the input and output
connectors, and tighten the
associated terminal screws.

figure 5-8 EU with replacement power supply

5. Low Power EU Maintenance

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 57

13. Insert the power supply into the
EU carefully to avoid damaging
any cables. The supply must
be supported until the 8
universal slot/Phillips captive
power supply screws have
been tightened.

14. Tighten the 8 universal
slot/Phillips captive power
supply screws.

figure 5-9 EU insert power supply

15. Reconnect the Mains power
plug.

16. Switch on the breaker and
check the EU for proper
operation.

figure 5-10 Reconnect mains power

6. Appendix

Page 58

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

6. Appendix

6.1. Illustrations

6.1.1. Dimensions and Mounting

figure 6-1 ION-U Low Power EU mounting bracket

figure 6-2 ION-U Low Power Unit dimensions

6. Appendix

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 59

figure 6-3 Installation drawing of ION-U L Unit single

figure 6-4 Installation drawing of ION-U L Unit dual

6. Appendix

Page 60

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

6.1.2. ION-U EU L Cable Kits

A cable kit is included with each ION-U Low Power Extension Unit as shown in table
6-1 below. One PSU cable (AC or DC version) is included with each Remote Unit.

ION-U EU L Cable Kit

Qty

Cable and Description

Length

1

PSU cable (Either AC or DC version depending on power supply type)

2

4.3-10-M to 4.3-10-M (equivalent cable loss of 0.141”, outdoor rated)

1.5 m

2

N-M to 4.3-10-F adapter

4

QMA-M to QMA-M (equivalent cable loss of 0.141”, outdoor rated)

1.5 m

2

RS232 for modem communication RU-EU

1.5 m

table 6-1 Extension Unit Cable kit

6.1.3. LP RU, EU L 25T/25T, and EU L 23/23 Ports

Low Power Remote Unit

A

Mains power connector

G

Pwr/Ctrl connector

B

Grounding (earthing) bolts

H

Alarm connector

C

RF antenna port

I

Expansion UL port

D

Probe

J

Expansion DL port

E

Local Port RS-232

K

Optical ports

F

Status LED

figure 6-5 LP RU connectors and Status LED

A B C

D

E F G H I J K

6. Appendix

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 61

EU L 23/23 Extension Unit

A

Expansion DL port path 2

J

Grounding (earthing) bolts

B

Expansion UL port path 2

K

RF antenna port 4-21 IN path 1

C

Expansion DL port path 1

L

RF antenna port 4-21 IN path 2

D

Expansion UL port path 1

M

RF antenna port OUT path 2

E

Status LED path 2

N

RF antenna port OUT path 1

F

Status LED path 1

O

Local Port RS-232 path 1

G

Probe path 2

P

Ctrl connector path 1

H

Probe path 1

Q

Local Port RS-232 path 2

I

Mains power connector

R

Ctrl connector path 2

figure 6-6 EU L 23/23 connectors and Status LEDs

A B C D E F G

H

I J L K N M O P Q

R

6. Appendix

Page 62

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

EU L 25T/25T Extension Unit

A

Expansion DL RU port path 2

L

Status LED path 1

B

Expansion UL RU port path 2

M

Mains power connector

C

Expansion DL EU port path 2

N

Grounding (earthing) bolts

D

Expansion UL EU port path 2

O

RF antenna port 4-23 IN1 path 1

E

Expansion DL RU port path 1

P

RF antenna port 4-23 IN2 path 2

F

Expansion UL RU port path 1

Q

ANT-1 RF antenna port OUT path 1

G

Expansion DL EU port path 1

R

ANT-2 RF antenna port OUT path 2

H

Expansion UL EU port path 1

S

CTRL connector path 2

I

Status LED path 2

T

Local Port RS-232 path 2

J

Alarm connector path 2

U

CTRL connector path 1

K

Alarm connector path 1

V

Local Port RS-232 path 1

figure 6-7 EU L 25T/25T connectors and Status LEDs

A

B C D

I

L

M Q R V E F G

H

J

U T O P S N K

6. Appendix

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 63

6.2. Specifications

This manual is valid for the following Extension Units:

ID No

Denomination

7769134-xxxx

ION-U EU L 17EP/17EP

7769134-0001

ION-U EU L 17EP/17EP VAC

7769134-0002

ION-U EU L 17EP/17EP VDC/100

* The xxxx suffix is the identifier for the specific configuration of the Remote or Extension Unit.

For ION-U Low Power Extension Unit specifications, please refer to the online
CommScope Product Catalog at

http://www.commscope.com/Product-Catalog/Wireless/Product/Distributed-Coverage-and-Capacity/

or contact Technical Support at https://www.CommScope.com/wisupport.

6.3. Spare Parts

Maintenance of the RU should be performed on an FRU (Field Replaceable Unit) basis
only. If any other part not contained in the following list needs to be replaced, please
contact customer service for additional instructions.

Designation:

ID No

Power Supply Unit Vac RPS150-Vac

7658962-xx

Power Supply Unit Vdc 100 RPS150-Vdc/100

7662384-xx

Expansion port RF cable, 1.5 m

F1A-PQMQM-1M5

4.3-10 to 4.3-10 RF cable, 1.5 m

F1A-HMHM-1M5-P

RS232 cable, 1.5 m

7702134-xx

The manufacturer reserves the right to replace the spare parts listed above by
equivalent substitutes.

7. List of Changes

Page 64

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

7. List of Changes

Version

Changes

Release Date

M0200AJA

Initial Release

02-May-2018

8. Index

M0200AJA_ION-U_EU_L_17EP_17EP.docx User’s Manual for ION®-U

Page 65

8. Index

A

Alarms

Bite and Alarms ............................................... 50

External Inputs ................................................. 52

Status LED ....................................................... 51

Ant IN ................................................................... 37

Ant RF .................................................................. 37

B

Block Diagram

ION-U EU L 17EP/17EP .................................. 17

C

Cable Kits ............................................................. 60

Commissioning

General ............................................................ 23

CommScope ......................................................... 13

Compliance............................................................. 9

Connections

Antenna ........................................................... 42

Power .............................................................. 39

Connectors

EU Ctrl connector ............................................ 22

EU Mains connector ........................................ 22

Contact Addresses, Customer Support .......... 14, 15

Ctrl connector ....................................................... 37

D

Declaration of Conformity (DoC) ........................... 13

E

EU AC power cable .............................................. 39

EU DC power cable .............................................. 39

EU Power Supply Replacement ........................... 54

EU Vdc/100 power cable ...................................... 40

Expansion DL ....................................................... 37
