CommScope ION-M8P S User Manual

Optical Remote Unit

ION™-M8P S

Manual
MF0132APB

© Copyright 2012 CommScope, Inc.
All rights reserved.

Andrew Solutions is a trademark of CommScope, Inc.
All information contained in this manual has been revised thoroughly. Yet Andrew

Solutions accepts no liability for any omissions or faults.
Andrew Solutions reserves the right to change all hard- and software characteristics

without notice.
Names of products mentioned herein are used for identification purposes only and

may be trademarks and / or registered trademarks of their respective companies.
No parts of this publication may be reproduced, stored in a retrieval system,

transmitted in any form or by any means, electronical, mechanical photocopying,
recording or otherwise, without prior written permission of the publisher.

Andrew Wireless Systems GmbH, 13-February-2012

2 of 42

TABLE OF CONTENTS

1. GENERAL 6

1.1. USED ABBREVIATIONS 6

1.2. HEALTH AND SAFETY WARNINGS 8

1.3. ABOUT ANDREW SOLUTIONS 10

1.4. INTERNATIONAL CONTACT ADDRESSES FOR CUSTOMER SUPP ORT 11

2. INTRODUCTION 13

2.1. PURPOSE 13

2.2. THE ION-M8P S (INTELLIGENT OPTICAL NETWORK; MMR) 13

2.3. OPTIONAL EQUIPMENT - RELAY ALARM CONNECTING BOARD 14

3. COMMISSIONING 15

3.1. MECHANICAL INSTALLATION 15

3.1.1. General 15

3.1.2. Wall and Pole Mounting 16

3.2. ELECTRICAL INSTALLATION 17

3.2.1. General 17

3.2.2. Connections 18

3.2.3. Grounding 18

3.2.4. Power Connection 19

3.3. CONNECTION OF THE ANTENNA CABLES 20

3.4. CONNECTION OF THE RF CABLES MAIN UNIT TO COMBINING UNIT 20

3.5. OPTICAL-FIBRE-CABLE CONNECTION - RULES 21

3.5.1. Protective Plug 22

3.5.2. Protective-Tube Kit 24

3.6. COMMISSIONING 26

4. ALARMS 29

4.1. BITE AND ALARMS 29

4.2. HANDLING OF ALARMS 29

4.3. ALARM STATUS 29

4.4. STATUS LED ALARMS 29

4.5. RELAY ALARM CONNECTING BOARD 31

4.5.1. External-Alarm Inputs and Outputs 31

3 of 42

4.5.2. Layout and Connector Description 32

4.6. REDUNDANCY RELAY CONFIGURATION 33

4.7. TROUBLESHOOTING 34

5. MAINTENANCE 35

5.1. GENERAL 35

5.2. OPENING AND CLOSING OF THE CABINET 36

5.3. REPLACEMENT OF POWER SUPPLY (AC & DC TYPES) 37

5.4. REPLACEMENT OF FAN UNIT 38

6. SPECIFICATIONS 39

6.1.1. Electrical Specifications 39

6.1.2. Mechanical Specifications 39

6.1.3. Environmental and Safety Specifications 39

6.2. SPARE PARTS LIST 40

7. INDEX 41

8. LIST OF CHANGES 42

4 of 42

FIGURES AND TABLES

figure 3-1 Wall mounting........................................................................................... 16

figure 3-2 Pole mounting .......................................................................................... 16

figure 3-3 ION-M8P S, connector flange, exemplary................................................ 18

figure 3-4 Grounding bolt.......................................................................................... 18

figure 3-5 AC mains plug.......................................................................................... 19

figure 3-6 DC mains plug.......................................................................................... 19

figure 3-7 Protective-plug assembly ......................................................................... 22

figure 3-8 Tube-kit installation................................................................................... 25

figure 4-1 Alarm triggering........................................................................................ 30

figure 4-2 Relay alarm connecting board, description of connectors........................ 32

figure 4-3 Alarm-output contacts, alarm condition .................................................... 33

figure 4-4 Redundancy connection, cabling.............................................................. 33

figure 4-5 Redundancy RF relay............................................................................... 33

figure 4-6 Redundancy connectors, Main Unit and Substitute Unit........................... 33

figure 5-1 Locker with key......................................................................................... 36

figure 5-2 Front and top cover screws...................................................................... 36

figure 5-3 Screws of PSU AC ................................................................................... 37

figure 5-4 Screws of optional PSU DC...................................................................... 37

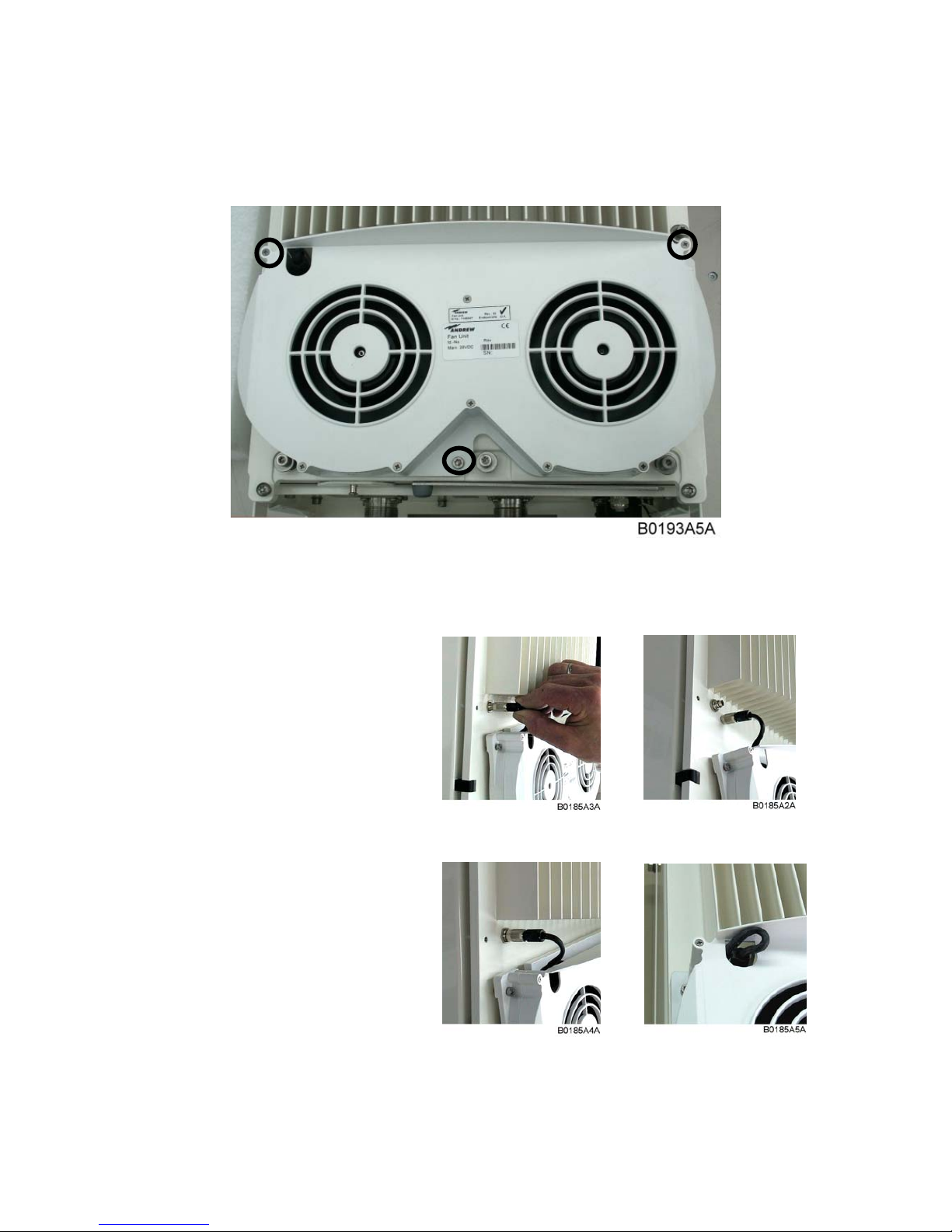

figure 5-5 Fan unit screws ........................................................................................ 38

figure 5-6 Fan-connector cable................................................................................. 38

table 1-1 List of international contact addresses....................................................... 12

table 4-1 Status LED alarms..................................................................................... 30

table 4-2 Relay alarm connecting board connectors, pin assignment....................... 32

table 5-1 Specified torques for various screw types ................................................. 35

5 of 42

1. GENERAL

1.1. USED ABBREVIATIONS

3GPP 3rd Generation Partnership Project
4G 4

th

Generation
ALC Automatic Level Control
AMPS American Mobile Phone System or Advanced Mobile Phone System
AWS Advanced Wireless Services
BBU Battery Backup Unit
BCCH Broadcast Control Channel
BITE Built-In Test Equipment
BTS Base Transceiver Station
CDMA Code Division Multiple Access
CEPT Conférénce Européenne des Postes et Télécommunications
CF Center Frequency
CFO Center Frequency Offset
CPD Channel Power Detection
DL Downlink
DoC Declaration of Conformity
EDGE Enhanced Data Rates for GSM Evolution
ESD Electrostatic Discharge
ETS European Telecommunication Standard
ETSI European Telecommunication Standards Institute
FCC Federal Communications Commission
FRU Field Replaceable Unit
FSK Frequency Shift Keying
GSM Global System for Mobile Communication
GUI Graphical User Interface
I

2

C-Bus Inter Integrated Circuit Bus (Philips)
ID No Identification Number
IF Intermediate Frequency
LMT Local Maintenance Terminal
LNA Low-Noise Amplifier
LO Local Oscillator
LRU Last Replaceable Unit
LTE Long Term Evolution
MIMO Multiple Input Multiple Output
MS Mobile Station
OMC Operation and Maintenance Center
OTRx Optical Transceiver = SRMU (Subrack Master Unit)
PCMCIA Personal Computer Modem Communication International Association
PCS Personal Communication System
PSTN Public Switched Telephone Network
R&TTE Radio & Telecommunications Terminal Equipment
Rev Revision
RF Radio Frequency
RLP Radio Link Protocol
RSSI Receive Signal Strength Indication
RTC Real-Time Clock
RX Receiver

6 of 42

SCL Serial Clock
SDA Serial Data
SISO Single Input Single Output
SPD Switching Point Detector
SRMU Subrack Master Unit = OTRx (Optical Transceiver)
TCH Traffic Channel
TDD Time-Division Duplex
TDMA Time Division Multiple Access
TX Transmitter
UL Uplink
UMR Universal Measurement Receiver
UMTS Universal Mobile Telecommunication System
UPS Uninterruptible Power Supply
VSWR Voltage Standing Wave Ratio
WDM Wavelength Division Multiplex
WiMAX Worldwide Interoperability for Microwave Access

7 of 42

1.2. HEALTH AND SAFETY WARNINGS

1. Only suitably qualified personnel is allowed to work on this unit and only after

becoming familiar with all safety notices, installation, operation and maintenance
procedures contained in this manual.

2. Read and obey all the warning labels attached to the unit. Make sure that the

warning labels are kept in a legible condition and replace any missing or
damaged labels.

3. Obey all general and regional installation and safety regulations relating to work

on high voltage installations, as well as regulations covering correct use of tools
and personal protective equipment.

4. Keep operating instructions within easy reach and make them available to all

users.

5. It is the responsibility of the network provider to implement prevention measures

to avoid health hazards which may be associated to radiation from the antenna(s)
connected to the unit.

6. Note for a Class A digital device or peripheral:

This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own
expense.

7. Make sure, access is restricted to qualified personnel.

8. Only licence holders for the respective frequency range are allowed to operate

this unit.

9. Corresponding local particularities and regulations must be observed. For national

deviations please refer to the respective documents included in the manual CD
delivered.

10. Use this equipment only for the purpose specified by the manufacturer. Do not

carry out any modifications or fit any spare parts which are not sold or
recommended by the manufacturer. This could cause fires, electric shock or other
injuries.

11. Due to power dissipation, the repeater may reach a very high temperature. Do not

operate this equipment on or close to flammable materials.

8 of 42

12. Before opening the unit, disconnect mains.

13. ESD precautions must be observed! Before commencing maintenance work, use

the available grounding system to connect ESD protection measures.

14. This unit complies with European standard EN60950.

15. Make sure the repeater settings are according to the intended use (see also

product information of manufacturer) and regulatory requirements are met.

16. Although the repeater is internally protected against overvoltage, it is strongly

recommended to earth the antenna cables close to the repeater’s antenna
connectors for protection against atmospheric discharge.

17. Laser radiation! Do not stare into the beam; do not view it directly or with optical

instruments.

9 of 42

1.3. ABOUT ANDREW SOLUTIONS

Andrew Wireless Systems GmbH based in Buchdorf/ Germany, is a leading
manufacturer of coverage equipment for mobile radio networks, specializing in high
performance, RF and optical repeaters. Our optical distributed networks and RF
repeater systems provide coverage for every application: outdoor use, indoor
installations, tunnels, subways and many more.

Andrew Wireless Systems GmbH has unparalleled experience in providing RF
coverage and capacity solution for wireless networks in both indoor and outdoor
environment and belongs to Andrew Solutions, a CommScope Company.

Andrew Solutions is the foremost supplier of one-stop, end-to-end radio frequency
(RF) solutions. Our products are complete solutions for wireless infrastructure from
top-of-the-tower base station antennas to cable systems and cabinets, RF site
solutions, signal distribution, and network optimization.

Andrew Solutions has global engineering and manufacturing facilities. In addition, it
maintains field engineering offices throughout the world.

We operate a quality management system in compliance with the requirements of
ISO 9001. All equipment is manufactured using highly reliable material. In order to
ensure constant first-rate quality of the products, comprehensive quality monitoring is
conducted at all fabrication stages. Finished products leave the factory only after a
thorough final acceptance test, accompanied by a test certificate guaranteeing
optimal operation.

 Note: Exceptions of and national deviations from this intended use may be

possible. To observe corresponding local particularities and
regulations, please refer to the respective documents (also in
national language) which are included in the manual CD delivered.

To make the most of this product, we recommend you carefully read the instructions
in this manual and commission the system only according to these instructions.

For technical assistance and support, please also contact the local office or Andrew
Solutions directly at one of the addresses listed in the following chapter.

10 of 42

1.4. INTERNATIONAL CONTACT ADDRESSES FOR CUSTOMER SUPPORT

Americas:

Canada United States

Andrew Solutions Canada

Andrew Solutions,

Andrew LLC, A CommScope Company

Mail

620 North Greenfield Parkway
Garner, NC 27529
U.S.A.

Mail

620 North Greenfield Parkway
Garner, NC 27529
U.S.A.

Phone

[phone] (Office)
[phone] (Mobile)

Phone [phone]

Fax [phone] Fax [phone]

E-mail

[e-mail],
[e-mail]

E-mail [e-mail]

Brazil & South America

Mexico, Central America &

Caribbean region

CommScope Cabos do Brasil Ltda.

Andrew Corporation Mexico,

SA DE CV

Mail

Av. Com. Camilo Julio 1256
Zonal Industrial CP 597
Sorocaba SP 18086-000
Brazil

Mail

Av. Insurgentes Sur 688, Piso 6
Col. Del Valle, CP: 03100
Mexico City
Mexico

Phone + 55-15-9104-7722 Phone

[phone] (Office)
[phone] (Mobile)

Fax + 55-15-2102-4001 Fax [phone]
E-mail [e-mail]

E-mail [e-mail]

APAC Countries:

China, India and Rest of Asia Australia & New Zealand

Andrew International Corporation Andrew Corporation (Australia) Pty Ltd.

Mail

Room 915, 9/F
Chevalier Commercial Centre
8 Wang Hoi Rd
Kowloon Bay
Hong Kong

Mail

Unit 1
153 Barry Road
Campbellfield
VIC 3061

Australia
Phone [phone] Phone [phone]
Fax [phone] Fax [phone]

E-mail [e-mail]

E-mail [e-mail]

11 of 42

Europe:

United Kingdom France

Andrew Solutions UK Ltd CommScope France

Mail

Unit 15, Ilex Building
Mulberry Business Park
Fishponds Road
Wokingham Berkshire
RG41 2GY
England

Mail

Immeuble Le Lavoisier
4, Place des Vosges
92052 Courbevoie
France

Phone [phone] Phone

[phone]

Fax [phone] Fax

[phone]

E-mail [e-mail]

E-mail [e-mail]

Germany Czech Republic

Andrew Wireless Systems GmbH

Andrew Solutions Czech Republic

C-Com, spol. s r.o

Mail

Industriering 10
86675 Buchdorf
Germany

Mail

U Moruší 888
53006 Pardubice

Czech Republic
Phone [phone] Phone [phone]
Fax [phone] Fax [phone]

E-mail [e-mail]

E-mail [e-mail]

Austria Switzerland

Andrew Wireless Systems (Austria) GmbH Andrew Wireless Systems AG

Mail

Weglgasse 10
2320 Wien-Schwechat
Austria

Mail

Tiergartenweg 1

CH-4710 Balsthal

Switzerland
Phone [phone] Phone [phone]
Fax [phone] Fax [phone]

E-mail [e-mail]

E-mail [e-mail]

Italy Spain and Portugal

Commscope Italy S.r.l., Faenza, Italy

Andrew Solutions España S.A.

A Commscope Company

Mail

Via Mengolina, 20
48018 Faenza (RA)
Italy

Mail

Avda. de Europa, 4 - 2ª pta.
Parque Empresarial La Moraleja
28108 Alcobendas (Madrid)

Spain
Phone [phone] Phone [phone]
Fax [phone] Fax [phone]
E-mail [e-mail]

E-mail [e-mail]

table 1-1 List of international contact addresses

12 of 42

2. INTRODUCTION

2.1. PURPOSE

Cellular telephone systems transmit signals in two directions between a base
transceiver station (BTS) and mobile stations (MS) within the signal coverage area.

If weak signal transmissions occur within the coverage area because of indoor
applications, topological conditions or distance from the transmitter, extension of the
transmission range can be achieved by means of an optical distribution system.

Such a system contains an optical master unit and several remote units. The number
of the remote units depends on the hardware and software configuration. The remote
units are connected to the master unit with optical links. The optical loss must be less
than 10 dB inclusive optical couplers or splitters.

The master unit is the connection to the base transceiver stations. The configuration
of a master unit depends on the number of the remote units and the frequency range.

The optical transmission uses WDM-systems with a wavelength of 1550 nm in the
uplink and 1310 nm in the downlink.

2.2. THE ION-M8P S (I NTELLIGENT OPTICAL NETWORK; MMR)

The Andrew ION-M8P S is a multi-operator remote unit with various extension units.
It is used in conjunction with a master unit in the ION optical distribution system. This
system transports the entire 700 MHz public safety and 800 MHz LMR frequency
bands simultaneously, providing a cost-efficient solution for distributing capacity from
one or more base stations.

The ION-M8P S transports signals on the RF layer in a very inexpensive manner.
This means that multiple operators and multiple technologies are moved
simultaneously from a cluster of base stations to a remote location over the same
fiber.

The ION optical distribution system is a cost-effective coverage solution for dense
urban areas, tunnels, subway, airports, convention centers, high-rise buildings and
other locations where physical structures increase path loss. It has been specifically
designed to reduce zoning problems and to provide homogeneous coverage. The
compact, mechanical design is specifically architected to mount at poles or along
side structures in such a way that it has a minimum visual impact.

The ION-M8P S performance is available both in single or multi-band configuration
supporting 700 MHz, and 800 MHz in parallel. It has been specifically tested and
optimized for TDMA, CDMA2000, and WCDMA. Furthermore it is provisioned for
future improvements to modulations (e.g. HSPA+, EV-DO and OFDM) and frequency
bands. In addition it is backwards compatible to legacy standards such as Analog.

13 of 42

The ION is easily set-up and supervised via a graphical user interface (GUI). Remote
units can be commissioned through the use of built-in test equipment. An auto
leveling function compensates for the optical link loss making installation easy and
quick. The entire system may be monitored remotely via an Andrew OMC. This is a
comprehensive management platform with SNMP protocol and X.733 standard
implemented. Should a sophisticated interface not be required, the master unit can
be directly connected to the alarm interface of a base station via relay alarming.

Features:

 Multi-band, multi-operator support
 Reduced visual impact form factor
 High, efficient power amplifier
 Single fiber for multiple bands and multiple remotes
 Comprehensive operations and management system for configuration and

alarming

 OMC with SNMP according to X.733 standard
 Easy installation and commissioning
 Redundancy configuration option

2.3. OPTIONAL EQUIPMENT - REL AY ALARM CONNECTING BOARD

For further information on the relay alarm connecting board please refer to chapter

4.5 Relay Alarm Connecting Board.

14 of 42

3. COMMISSIONING

3.1. MECHANICAL INST ALLATION

3.1.1. General

Read the health and safety warnings in chapter 1.2 Health and Safety Warnings.

1. Do not install the unit in a way or at a place where the specifications
outlined in the Environmental and Safety Specifications leaflet of the
manufacturer are not met.

2. It is strongly recommended to install the unit vertically. If a different
installation of the remote unit is required, please contact customer service
for further information.

3. It is recommended only to use the mounting hardware delivered by the
manufacturer. If different mounting hardware is used, the specifications for
stationary use of the remote unit must not be exceeded.

 Note: Exceeding the specified load limits may cause the loss of warranty!

4. The unit is considerably heavy. Make sure that a suitable mounting surface
is used. Ensure there is adequate manpower to handle the weight of the
system.

5. Due to power dissipation, the remote unit may reach a very high
temperature. Ensure sufficient airflow for ventilation. Above and below the
unit a minimum distance of 300 mm to ceiling, floor, etc. has to be kept.
Also observe the instructions in the individual mounting procedures.

6. For outdoor installations, the pre-mounted front cover must be installed.

7. For indoor installations where the ambient temperature can reach above
40°C, the cover has to be removed.

8. When connecting and mounting the cables (RF, optical, mains, ...) ensure
no water can penetrate into the unit through these cables.

If any different or additional mounting material is used, ensure that the mounting
remains as safe as the mounting designed by the manufacturer. Ensure that the
static and dynamic strengths are adequate for the environmental conditions of the
site. The mounting itself must not vibrate, swing or move in any way that might cause
damage to the remote unit.

15 of 42

3.1.2. Wall and Pole Mounting

Wall and pole mounting equipment for the unit is available. For the according
mounting please refer to the mounting plan (drawing) that is part of the delivery.

figure 3-1 Wall mounting figure 3-2 Pole mounting

V1628M1

V1628M0

16 of 42

3.2. ELECTRICAL INSTALLATION

3.2.1. General

Read the health and safety warnings in chapter 1.2 Health and Safety Warnings.

1. This unit contains dangerous voltages. Loss of life, severe personal injury or
property damage can be the result if the instructions contained in this manual are
not followed.

2. It is compulsory to ground the unit before connecting power supply. A grounding
bolt is provided on the cabinet to connect the ground-bonding cable.

3. Although the remote unit is internally protected against overvoltage, it is strongly
recommended to earth the antenna cables close to the antenna connectors of the
remote unit for protection against atmospheric discharge. In areas with strong
lightning it is strongly recommended to insert additional lightning protection.

4. If the mains connector of the remote unit is not easily accessible, a disconnect
device in the mains circuit must be provided within easy reach.

5. Before connecting or disconnecting the mains connector at the remote unit,
ensure that mains supply is disconnected.

6. Make sure that an appropriate circuit breaker and an overcurrent limiting device
are connected between mains and remote unit.

7. A connection of mains supply to a power socket requires the power socket to be
nearby the remote unit.

8. Incorrectly wired connections can destroy electrical and electronic components.

9. To avoid corrosion at the connectors caused by electrochemical processes, the
material of the cable connectors must not cause a higher potential difference than

0.6 V (see electrochemical contact series).

10. Use an appropriate torque wrench for the coupling torque (25 N-m / 19 ft lb) of
7/16-DIN connectors with 1 ¼-inch opening to tighten the 7/16-type antenna
connectors. For example, use torque wrench of item no. 244377 available from
the Andrew e-catalog. Do NOT use your hands or any other tool (e.g. a pair of
pliers)! This might cause damage to the connector and lead to a malfunction of
the Remote Unit.

11. For unstabilized electric networks which frequently generate spikes, it is advised
to use a voltage limiting device.

12. The unit complies with the surge requirement according to EN 61000-4-5 (fine
protection); however, it is recommended to install an additional medium (via local
supply connection) and/or coarse protection (external surge protection) depending
on the individual application in order to avoid damage caused by overcurrent.

13. Observe the labels on the front panels before connecting or disconnecting any
cables.

17 of 42

3.2.2. Connections

18 of 42

figure 3-3 ION-M8P S, connector flange, exemplary

3.2.3. Grounding

Grounding must be carried out. Connect an earth-bonding cable to the grounding
connection provided at the outside of the remote unit (see chapter 3.2.2

Connections). Do not use the grounding connection to connect external devices.

figure 3-4 Grounding bolt

Optical
connector

Status LED

Mains
connector

BBU connector

AUX

Connector to Substitute Unit

c

onnector

N-antenna connectors

Connectors to

main unit

Connectors to

Redundant RU

After loosening the hex nut, connect the earth-bonding cable between the two
washers as illustrated in the figure above. Then, fasten all parts again with the hex
nut.

The PE cables must have a minimum cross section of 16mm2.

3.2.4. Power Connection

Before connecting electrical power to the units, the system must be grounded as
described in the previous chapter.

Mains power must be connected at the mains connector of the unit (see chapter

3.2.2 Connections).

The power supply plug is part of the delivery. The correct wiring of the power supply
plug is as follows:

figure 3-5 AC mains plug figure 3-6 DC mains plug

For the AC power supply connection, a minimum cross section of 1.5

mm2 is required and for the DC power supply connection, a minimum
cross section of 2.5 mm2 is required. Each wire must observe the
applicable national regulations regarding loop impedance, voltage drop,
and methods of installation. Make sure to connect the correct voltage to
the unit.

19 of 42

 Note: Do not connect or disconnect the power cord at the mains connector

while power is on. Turn off mains * power before connecting the
power cord at the remote unit, then, engage mains again.

* Mains power must be interrupted with an external mains breaker. For the mains

breaker, observe the following recommendation:

120 Volt / 20 Amp max. or 240 Volt / 16 Amp, single-phase, 50 / 60 Hz AC service is
needed, i.e. the external AC breaker should be 20 Amps max. for 120-Volt service or
16 Amps for 240-Volt service.

For the DC power supply, observe the local regulations of the DC service provider.

3.3. CONNECTION OF THE ANTENNA CABLES

The Main Unit has N connectors. For its location, please refer to chapter 3.2.2
Connections. However, the Combining Unit has 7/16 antenna connectors (described

in separate manual). For mounting the cable connectors, it is recommended to refer
to the corresponding documentation of the connector manufacturer. The bending
radius of the antenna cables must remain within the given specifications.

For the selection of cable and antenna it should be considered that, on the one hand,
a cable with higher loss is less expensive but, on the other hand, it impairs
performance.

Use an appropriate torque wrench for the coupling torque of N-type
connectors (2 N-m / 20 in lb), with 13/16 inch opening to tighten the N-type
antenna connectors. For example, use torque wrench of item no. 244379

available from the Andrew e-catalog. Do NOT use your hands or any other

tool (e.g. a pair of pliers)! This might cause damage to the connector and
lead to a malfunction of the Remote Unit.

Use an appropriate torque wrench for the coupling torque (25 N-m / 19 ft

lb) of 7/16-DIN connectors with 1 ¼-inch opening to tighten the 7/16-type
antenna connectors. For example, use torque wrench of item no. 244377
available from the Andrew e-catalog. Do NOT use your hands or any other
tool (e.g. a pair of pliers)! This might cause damage to the connector and
lead to a malfunction of the Remote Unit.

3.4. CONNECTION OF THE RF CABLES MAIN UNIT TO COMBINING UNIT

To connect RF cables to Combining Unit, connect corresponding ports according to
frequency as labelled. For orientation of the location of connectors please refer to the
illustrations of Main Unit in chapter 3.2.2 Connections and/ or of Combining Unit in
chapter 4.6 Redundancy Relay Configuration.

20 of 42

3.5. OPTICAL-FIBRE-CABLE CONNECTION - RULES

Optical signals are transmitted by use of optical fibres. When connecting these fibres
observe the following instructions.

 Note: Care should be taken when connecting and disconnecting

fibre-optic cables. Scratches and dust significantly affect system
performance and may permanently damage the connector. Always
use protective caps on fibre-optic connectors not in use.

In general, optical fibres do not need special protective measures. However,
protection against environmental influences e.g. rodents and humidity must be
considered.

The optical fibre is a single-mode fibre. Type is E9/125 µm with the following
minimum requirements.

Attenuation: <0.36 dB / km @ 1310 nm / <0.26 dB / km @ 1550 nm
Dispersion: <3.5 ps / nm km @ 1310 nm / <18.0 ps / nm km @ 1550 nm

The specified bending radius of the optical fibres must not be exceeded. The pigtails
for the connection between mini master and remote unit must have a sufficient
length. A protection for the feeding into units must be given. For ION-M8P S, the
system attenuation of the optical fibres, including the connectors, must not exceed 10
dB.

System attenuation and attenuation of optical components must be determined. This
can be achieved by measuring attenuation and reflection with an appropriate
measuring instrument. For pigtails, a total value of < 0.4 dB (measured to a reference
plug) can be assumed due to the dead zone of the reflectometer. These
measurements must be made with a sufficient length of optical fibre, at the input and
output of the device which has to be measured.

Fibre-cable connectors have to be of the same type (E2000APC) as the connectors
used for the unit. The fibre-optic cables are connected to the optical transceiver.

Angled connectors are not compatible with straight optical connectors;
non-compatibility of connectors will result in permanent damage to
both connectors.

Before connecting the fibre cables, follow the procedure below to ensure optimized
performance. It is important for these procedures to be carried out with care:

21 of 42

 Remove fibre-optic protective caps.
 Do not bend the fibre-optic cable in a tight radius (< 4 cm) as this may cause

cable damage and interrupt transmission.

 Using high-grade alcohol and lint-free cotton cleaning swabs, clean the end of

the fibre-optic cable that will be inserted in the optical connectors on the donor
interface box.

 Blow out the laser receptacle with clean and dry compressed air to remove

any particulate matter.

 Connect the fibre-optic cables by inserting the cable end into the laser

receptacle and aligning the key (on the cable end) with the keyed slot.

 Do not use any index matching gels or fluids of any kind in these connectors.

Gels are intended for laboratory use and attract dirt in the field.

3.5.1. Protective Plug

Connection:
A protective plug is provided for the connection of the fibre-optic cables.

figure 3-7 Protective-plug assembly

 Note: Only high-quality connectors must be used for this type of plug.

Qualified brands are Diamond or Huber & Suhner.

22 of 42

For plug assembly, observe the following instruction:

1. Pass one or two contacts through the
backshell and the clamp ring.

2. Place the contact(s) on the lower insulation body by pushing the groove of the
contact into the cavity. If there is only one contact, cavity A must be used. *

3. Then, mount the upper insulation body on the lower insulation body. **

4. Bring the insulator into the plug. The narrow groove of the insulator must be fitted
into the stamp of the plug.

* To release the contact for disassembling, push the inner snap to the side and pull the contact out.
** To release upper and lower insulation bodies for disassembling, use a small screwdriver and

carefully open the snap-connections at the left and the right side of the insulator without
damaging them.

5. Fasten the insulator by screwing the
backshell tight onto it. Use a spanner
with opening 32 to screw the
backshell tight (no gap).

6. Place the appropriate seal parts (with
one groove for one contact or two
grooves for two contacts) over the
cable(s) and push them into the
backshell.

Seals with
one groove

No gap

Cavity B

Upper insulation body

Cavity A

23 of 42

7. Bring the plastic ring over the cable(s), push it into the backshell and compress
the seals and plastic ring by screwing the clamp ring tight (no gap) using a
spanner with opening 20. ***

8. Connect the plug to the optical-fibre
connector of the remote unit, again by
fitting a stamp on the plug into the
groove of the connector.

9. To lock the connector, push the black
locking ring forward.****

Screw tight until gap is closed

24 of 42

*** For disassembling, release the clamping ring and remove the seals and the plastic ring first.
**** Locking mechanism: The system of locking the plug is based on a “push-pull” mechanism. The

locking ring has to be pushed forward to lock the connector and pulled back to free the
connection.

3.5.2. Protective-Tube Kit

As additional protection for the optical fibres, this connector type can be
supplemented by a special tube kit. To fasten the tube correctly, first unscrew the
clamp ring (if already installed) of the original plug kit.

Then, proceed according to the following instruction:

Groove

Push forward to lock, pull
back to free connection

Scr ew t he reducer t o
t he pr ot ect i v e pl ug
backs hel l wi t hout gap.

Pl ace the appr opr i ate seal
par t s (wi th) one groove f or
one contact or two gr ooves
f or t wo cont act s ) ov er t he
cabl e(s ) and push t hem int o
t he back shel l.

G1 055M 0

pr ot ect i v e pl ug

f i br e cabl e

re ducer

coupling

pr ot ect i ve t ube

pl as tic r i ng

figure 3-8 Tube-kit installation

Push the fibre-optic cable
carefully through the tube until
it comes out at the other end.

25 of 42

3.6. COMMISSIONING

Read the health and safety warnings in chapter 1.2 Health and Safety Warnings as
well as the description carefully to avoid mistakes and proceed step by step as
described!

 Do not operate the remote unit without terminating the antenna connectors.

The antenna connectors may be terminated by connecting them to their
respective antennas or to a dummy load.

 Only qualified personnel should carry out the electrical, mechanical,

commissioning and maintenance activities that require the unit to be powered
on when open.

 When opening the remote unit do not damage the warranty labels on the

internal devices. The warranty is void if the seals are broken.

 Ensure that all connections have been performed according to chapter 3.2

Electrical Installation.

26 of 42

Commissioning an ION-M Remote Unit

Start

Mechanical installation

Fasten wall or pole mounting kit to wall or

pole.

Manual for Remote

Unit

Electrical connections

Connect grounding cable and

ground the RU.

Mains

Switch mains power on.

Philips

screwdriver

Screw driver

Spanner, size

13 mm

Electrical connections

Connect AC (DC) power to the power

cable. Ensure there is a circuit breaker

between mains and RU.

RF connection

Connect antenna cable to antenna port.

Optical connections

Mount the optical fibre with E2000 APC8°

connector into the connector. Plug the

connector into the RU.

Mechanical installation

Mount RU to mounting kit, ensure suffient

air flow and avoid thermal short circuits.

Preperation

Unpack RU, RU accessories and

mounting kit.

External devices

Connect external devices to the external

in or alarm out connectors, or to the

connecting board inside the RU.

G1055Z

0

G1055Z0

Mounting kit

Spanner, size

13 mm
Drilling

machine

Dowels

Screw driver

Grounding cable

Spanner 13 mm

Mains cable

Connecting kit

Alarm kit

(M-cabinet)

E2000 APC8° connector

Spanner with opening 32

27 of 42

Output:

All RUs okay.

Go to MU

External error

Close the door (RUs wi th a door).
Check externally connected devices.
Check fibre loss of optical link.
Check optical connectors.
Clean optical connectors.
Check optical output power of corresponding
OTRx at master unit.
ALC alarm: Decrease DL input power of
affected band.
VSWR alarm: Check antenna and cable.

LED status

Proceed to MU to set up the SW

Orange

Yes

Internal Error

Change power supply (RUs with a
door)

.

Reduce environmental temperature.
Eliminate thermal short circuit.
Disconnect and connect mains. Fans
should run. If not, replace the fans at
RU.
MU: Change amplifier setting at MU
controller

Red

LED statusYellow

Green

Red

Finished setting up

all RUs?

Green

Spare RU
available?

Yes

Contact customer

service

No

Yes

LED on?

Check power switch inside RU
(RUs with door).
Check mains cabling.
Check mains power.

No

No

28 of 42

4. ALARMS

4.1. BITE AND ALARMS

The Built-In Test concept comprises the monitoring of the power supplies, the power
amplifiers and the optical interface.

All occurring alarms can be checked via software at the master unit.

4.2. HANDLING OF ALARMS

As soon as the software acknowledges a valid alarm, a message is transmitted to the
master unit.

If the reason for the alarm has been cleared or if the alarm should continue, a new
alarm message will not be repeated. If there was an interruption of at least five
seconds after acknowledgement, a new alarm message will be generated.

4.3. ALARM STATUS

For details refer to the corresponding software documentation of the master unit.

4.4. STAT US LED ALARMS

For local supervision, a status LED on the connector flange of the remote unit gives
an indication of possible reasons for alarms. The position of the status LED is
illustrated in chapter 3.2.2 Connections. This table shows possible on-site measures
that could be checked before referring to the master unit alarm list.

Status LED indication Alarms Possible on-site measures

Green

No alarm 
Status ok

Door alarm Close the door (RUs with door).
Alarms not directly related to RU:
External alarms

Check externally connected devices.

Optical alarm Rx

Check fibre loss of optical link.
Check optical connectors.
Clean optical connectors.

(MU: Check optical output power of
corresponding OTRx at master unit).

Orange

ALC alarm

(MU: Decrease DL input power of
affected band).

29 of 42

Status LED indication Alarms Possible on-site measures

Alarms directly related to RU:

Power 28 V

Change power supply (RUs with door).
Replace the affected remote unit.

Temperature

Reduce environmental temperature.
Eliminate thermal short circuit.

Fan *

Disconnect and connect mains. Fans

should run. If not, replace the fans at RU.
I²C Disconnect and connect mains.
Optical alarm Tx Exchange RU.

Red

A

mplifier “Power

Down”

(MU: Change amplifier setting at MU

controller).

Status LED off Mains

Check power switch inside of RU (RUs

with door).

Check mains cabling.

Check mains power.

table 4-1 Status LED alarms

* only applicable if the RU is equipped with a fan

V1651A2

clear

Alarm LED

Alarm transmit

Alarm cause

raise

> 5 s

< 5 s

raise

> 5 s

clear

figure 4-1 Alarm triggering

For the position of the LED see chapter 3.2.2 Connections.
Explic

it troubleshooting is available in the MU software, (software manual or WEB

Interface).

30 of 42

4.5. RELAY AL ARM CONNECTING BOARD

4.5.1. External-Alarm Inputs and Outputs

There are four alarm inputs and four alarm outputs. The alarm outputs are potential­free relay contacts. They can be used to monitor alarms with an external-alarm
indicator. Each alarm output can be set individually to any alarm at the remote unit.
For details please refer to the according chapter in the software manual of the master
unit.

 Note: The manu facturer / supplier of this system accepts no liability for

damage caused by equipment connected to external outputs or by
effects from such equipment.

With the external-alarm inputs, it is possible to monitor the status of connected
devices, e.g. a UPS, via software. All alarm inputs are normally high (5 V) without
connection.

The device to be monitored must be connected so that the alarm contacts will be
closed in case of an alarm (maximum switching power of 28 Vdc, 0.5 A).

The location of the external-alarm inputs and outputs is illustrated in the following
chapter 4.5.2 Layout and Connector Description. Settings have to be done via the
ION-M Master Controller and are described in the according software documentation.

Please note that at the remote unit (RU), the alarm ground of the external-alarm
inputs is linked with the ground at the RU.

31 of 42

4.5.2. Layout and Connector Description

32 of 42

figure 4-2 Relay alarm connecting board, description of connectors

Connector PIN Description Connector PIN Description

1 Ext. Alarm 1 Common 1

Ext. Alarm IN 1
2 Ext. Alarm 2 Common 2 Ext. Alarm IN 2
3 Ext. Alarm 3 Common 3 Ext. Alarm IN 3

Ext. Alarm

INPUTS * 1

4 Ext. Alarm 4 Common

Ext. Alarm

INPUTS * 2

4 Ext. Alarm IN 4

*

Voltage: 0 - 5 V; Current: max. 7 mA (each input)

*

Voltage: 0 - 5 V; Current: max. 7 mA (each input)

Connector PIN Description Connector PIN Description

1 Alarm OUT 1 Common 1 Alarm OUT 1 Open
2 Alarm OUT 2Common 2

Alarm OUT 2 Open

3 Alarm OUT 3 Common 3 Alarm OUT 3 Open

Alarm
OUTPUTS 1

4 Alarm OUT 4 Common

Alarm
OUTPUTS 2

4 Alarm OUT 4 Open

1 Alarm OUT 1 Closed
2 Alarm OUT 2 Closed
3 Alarm OUT 3 Closed

Alarm
OUTPUTS 3

4 Alarm OUT 4 Closed

table 4-2 Relay alarm connecting board connectors, pin assignment

+28 V GND

Ext.

Alarm Outputs

RF Relay for
redundancy switchover

1

2

3

Alarm
In

p

uts

2

1

The alarm outputs are potential-free.
They can be used to monitor alarms with
an external alarm indicator. Devices
connected to these outputs must not
exceed a maximum switching power of
28 Vdc, 0.5 A. For the location of the
connecting clamps of the alarm outputs
see figure above.

Clamp 2

Clamp 1

Clamp 3

figure 4-3 Alarm-output contacts, alarm condition

4.6. REDUNDANCY RELAY CONFIGURATION

Main Unit

Substitute Unit

Combining Unit

UL

DL

AC/DC cable, 1.2 m IP67
side labelled "MA IN"

AC/DC cable, 1.2m IP67
side labelled "Subsitute"

G1131M4

figure 4-4 Redundancy connection, cabling

 Note: The Combining Unit illustrated above is not part of this delivery.
Redundancy Relay – Description

figure 4-5 Redundancy RF relay figure 4-6 Redundancy connectors,

Main Unit and Substitute Unit

Exterior
connectors &
cables

Cables in

Connector flange

interior cabinet

RF relay

33 of 42

Via the redundancy relay (see illustration below), signals are switched from the Main
Unit to the Substitute Unit in case an alarm raise appears in the main unit. Alarms
that shall switch service to Substitute Unit in alarm condition can be selected via web
interface, see description in separate software manual.

 Note: When the redundancy option is used, External Alarm IN 1, Alarm

OUT 1 and Alarm OUT 2 are not available.

4.7. TROUBLESHOOTING

The status of the remote unit can be checked via the master unit (for details please
refer to the software manual of the Master Controller). Locally, the status can be
checked at the LED, see chapter 3.2.2 Connections.

34 of 42

5. MAINTENANCE

5.1. GENERAL

Read the health and safety warnings in chapter 1.2 Health and Safety Warnings.

 Note: The remote unit does not require preventative maintenance

measures.

Maintenance of the ION-M8P S should be performed on a FRU (Field Replaceable
Unit) basis only. Do not damage the warranty labels on the components, as this voids
the warranty.

The spare parts list contains only units that can be replaced without tuning or
soldering work.

 Note: When sending back the unit, use an appropriate packaging, see

chapter 6.1.3 Environmental and Safety Specifications. We
strongly recommend using the original packaging!

 Note: Defect parts should only be replaced by original parts from the

supplier. All interventions inside the housing are at one’s own risk.



Note: During maintenance ensure that the unit has been disconnected

from mains.

 Note: Before disconnecting any cables, label any unlabelled cables to

ensure correct reconnection.

To replace an FRU, use the appropriate tools. Replacement tools may be ordered
from the supplier. All screws have a right-hand thread, turn the tool clockwise for
tightening and counter-clockwise for loosening.

SMA connectors have a specified torque of 100 Ncm. Use an appropriate tool to
fasten and unfasten these connectors. Do not over-tighten the connectors or screws.
The table below shows various screws with their respective torques.

Screw Type Tallow-drop Socket-head-cap Countersunk-head

Thread size Specified Torque (in Ncm)

M 2.0 40 not in use 40
M 2.5 82 not in use 82
M 3.0 145 100 145
M 4.0 330 330 330
M 5.0 650 tbd. 650

table 5-1 Specified torques for various screw types

If any FRU not contained in the following chapter needs to be replaced, contact
customer service for additional instructions.

35 of 42

5.2. OPENING AND CLOSING OF THE CABINET

figure 5-1 Locker with key

figure 5-2 Front and top cover

screws

 Before opening the cabinet of the unit, observe

the instructions in chapter 3.1.1 General.

 To open the cabinet of the remote unit, first

dismount the locker by unlocking it with the key
(which is part of the delivery) and pulling it out
carefully in direction of the arrow marked in
figure 5-1 Locker with key.

 If the front cover is installed (see mechanical

installation in chapter 3.1.1 General) remove
the cover by loosening the four M5 socket head
cap screws (circle-marked in figure 5-2 Front
and top cover screws). Do not remove those
screws. When they are loosened, the front
cover can be taken off.

 Before opening the cabinet, disconnect the

mains connector illustrated in chapter 3.2.2
Connections.

 To open the cabinet, unscrew the nine M5

socket head cap screws (captive) of the top
cover of the remote unit (see figure 5-2 Front
and top cover screws).

 After maintenance work, re-connect mains.
 Close the cabinet.
 To ensure safe operation, mount the front cover

if required (see mechanical installation in
chapter 3.1.1 General).



Check the status of the status LED. Ensure it is
showing a green light.

Front cover

Locker

Nine top
cover
screws

36 of 42

5.3. REPLACEMENT OF POWER SUPPLY (AC & DC TYPES)

 Note: In standard delivery, only the AC power supply unit (PSU) is

equipped. The DC PSU may only be equipped as an option.

 To remove a power supply (AC and/or DC), first switch off the power supply,

disconnect mains (primary DC or AC connector), mains cable and DC connector.

 Unscrew the 2 hexagon socket-head-cap screws (circle-marked in illustration

below) on the left-hand side and loosen the other 3 socket-head-cap screws in the
middle and on the right-hand side with a hexagon key.

 Pull the power supply out.
 Apply a thin layer of heat-conducting paste to the surface of the new PSU that

contacts the cabinet when installed.

 Carefully insert the new power supply.
 Fasten the two socket-head-cap screws.
 Re-connect all cables and connectors.

figure 5-3 Screws of PSU AC

In case the DC PSU is equipped please see following picture:

figure 5-4 Screws of optional PSU DC

PSU AC

Mains AC
connector

Secondary
DC
connector

Socket­head cap
screws

Mains
primary
DC
c

onnector

Secondary

Socket­head cap
screws

PSU DC

DC
c

onnector

37 of 42

5.4. REPLACEMENT OF FAN UNIT

The fan unit is an FRU in the ION-M8P S.

figure 5-5 Fan unit screws

Unscrew the three M5x16 socket-head screws by which the fan unit is screwed to the
cabinet. Be careful not to lose the according washers.

Take off the fan unit and disconnect
the connector cable from the
cabinet.

To install the new fan unit, proceed
in reverse order.

In order not to squeeze the fan
connector cable, take care to
position it correctly after its re­connection.

figure 5-6 Fan-connector cable

38 of 42

6. SPECIFICATIONS

6.1.1. Electrical Specifications

ION-M7P/8P S

Electrical

Mains power

85 Vac to 264 Vac
115 Vac or 230 Vac

Power supply

Power consumption 550 watts 1)

Optical

Connectors E2000/APC 8°
Optical return loss 45 dB minimum
Fiber type Single mode E9/125 mm
Optical link budget 0 dB to 10 dB

6.1.2. Mechanical Specifications

Height, width, depth * 546 x 320 x 310 mm (21.5 x 12.6 x 12.2 in)
Weight 28 kg (61.5 Ib)

* Spacing required: 40 mm (1.66 in) around unit. Do not block air inlet and outlet. Vertical mounting -

300 mm above and below - is compulsory.

All data is subject to change without notice.

6.1.3. Environmental and Safety Specifications

 Note: For detailed information, please refer to the Environmental and

Safety Specifications leaflet of the supplier, related to ETS 300 019
(European Telecommunication Standard).

Operating temperature range -33° C to +50° C

RF part IP66

Ingress protection

Fan part IP55

All data is subject to change without notice.

39 of 42

6.2. SPARE PARTS LIST

The following lists contains all parts available for the remote unit. The configuration of
the delivered unit meets the requirements of the customer and can differ depending
on the state of the delivery.

Maintenance of the ION-M8P S should be performed on a FRU (Field Replaceable
Unit) basis only. Do not damage the warranty labels on the components, as this voids
the warranty.

The spare parts list contains only units that can be replaced without tuning or
soldering work.

Parts list of the remote unit ION-M8P S:

Designation: ID No FRU

ION-M8P S 7611167

Cover 7160735 x
Locker 7163617 x
Crossbandcoupler 1:2 763-775 806-824 7613541-00
Fan Unit 7159547
Fin. Ampl. 716-775 43 dB 7601520-00
Fin. Ampl. 851-894 43 dB 7543140-00
Low Noise Ampl. 806-824 32 dB 7612434-00
OTRx 70-85/90/17-21 RU-LS 7604302-00
PCB P3129 Control Unit RCM161-C LT 7578167-01
PCB P3394 Distribution/Control board 7612785-00
Power Supply Unit AC IN 100-240V 750 W 7516410-00 x
Power Supply Unit DC IN 48V 700 W 7159125 x
Redundancy Kit 7612622
Wall Mounting Kit 7160068 x
Pole mounting Kit for K-/ L-/ Q-Cabinet 7163746 x
Manual for ION-M8P S 7612414-00

Accessory

Protective Tube Kit 7162182 x

The manufacturer reserves the right to replace the spare parts listed above by

equivalent substitutes!

40 of 42

41 of 42

7. INDEX

A

Abbreviations.......................................................... 6

Address of Andrew Wireless Systems GmbH....... 12

Alarms

Alarm Status....................................................29

Bite and Alarms ............................................... 29

External............................................................ 31

Handling of Alarms .......................................... 29

List................................................................... 34

Outputs............................................................ 31

RU ................................................................... 34

Status LED....................................................... 29

Andrew Solutions.................................................. 10

C

Commissioning

General............................................................ 26

Connecting Board

with Relays ................................................ 31, 32

Connection Rules

Optical Fibres................................................... 21

Optical-Fibre Cables........................................ 21

Connections

Antenna Cables............................................... 20

Connector Flange............................................ 18

Optical-Fibre Cables........................................ 21

Power .............................................................. 19

RF Cables MU to CU....................................... 20

Contact Addresses............................................... 11

Customer Support Addresses............................... 11

F

Fan Connector Cable ........................................... 38

Fan Unit

Replacement.................................................... 38

Screws............................................................. 38

G

General................................................................. 36
