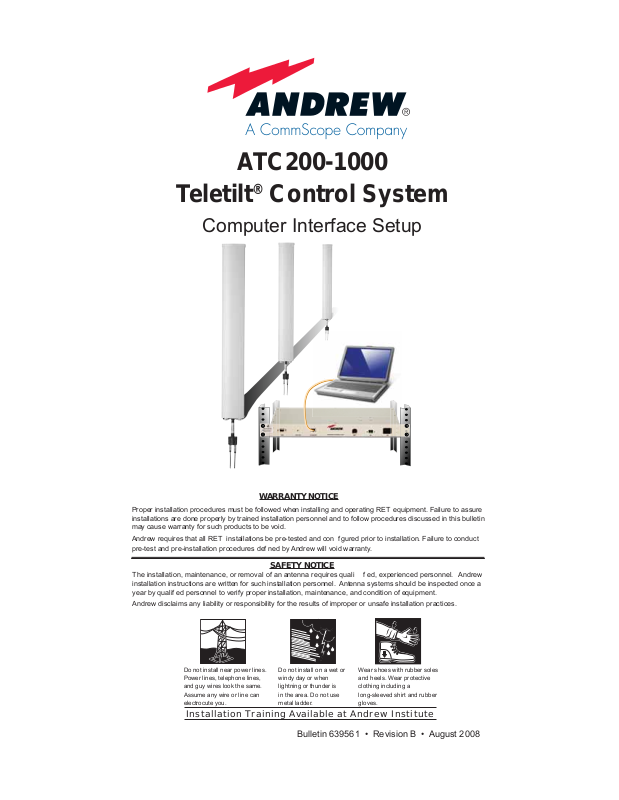

ATC200-1000
®
Teletilt
Computer Interface Setup
Control System
WARRANTY NOTICE
Proper installation procedures must be followed when installing and operating RET equipment. Failure to assure
installations are done properly by trained installation personnel and to follow procedures discussed in this bulletin
may cause warranty for such products to be void.
Andrew requires that all RET installations be pre-tested and con f gured prior to installation. Failure to conduct
pre-test and pre-installation procedures def ned by Andrew will void warranty.
The installation, maintenance, or removal of an antenna requires quali f ed, experienced personnel. Andrew
installation instructions are written for such installation personnel. Antenna systems should be inspected once a
year by qualif ed personnel to verify proper installation, maintenance, and condition of equipment.
Andrew disclaims any liability or responsibility for the results of improper or unsafe installation practices.
Do not install near power lines.
Power lines, telephone lines,
and guy wires look the same.
Assume any wire or line can
electrocute you.
SAFETY NOTICE
Do not install on a wet or
windy day or when
lightning or thunder is
in the area. Do not use
metal ladder.
Wear shoes with rubber soles
and heels. Wear protective
clothing including a
long-sleeved shirt and rubber
gloves.
Installation Training Available at Andrew Institute
Bulletin 639561 • Revision B • August 2008
This bulletin provides a quick reference approach to establishing
communication between the ATC200-1000 Teletilt® controller and a local PC/
laptop (see Bulletin 639514 for the complete user guide). Generally, the IP
address is temporarily confi gured on the PC/laptop to be compatible with
the ATC200-1000 controller. Andrew Wireless Services has developed an IP
confi guration tool to provide a safe and easy method for confi guring the IP
addressing on the PC/laptop. This bulletin covers setup using the Andrew IP
Confi g Tool program.
Pre-Installation Notes:
• The Andrew IP Confi g Tool is compatible with Windows® 2000 and Windows® XP.
• Andrew recommends that you register online to receive notifi cations for updates
made to the software and antenna defi nition fi le. It is also recommended that the
CommScope web site be checked every 30 days for updated software or
documentation.
•
If using the 48V power connection, ensure wires are properly connected.
Reversal of wire connection can cause permanent damage to the controller.
• Before installing antennas equipped with actuators to the tower, each actuator should
be connected to the controller and tested for proper operation.
guide is included with the ATC200-1000 controller or Teletilt antenna.
• It is recommended that prior to antenna installation on the tower, the serial number,
antenna type, and location where the antenna will be installed on the tower be recorded on the Site Confi guration Worksheet provided.
A quick reference
Using Andrew IP Confi g Tool to Access Controller
1. Download Andrew IP Confi g Tool.
• From the Andrew Products tab on www.commscope.com, click on Antennas→
Base Station Antenna Systems→Teletilt RET System→Downloads→Teletilt
Software, Firmware, Tools, and Manuals as seen on the screen below. The
ATC200-1000 software, IP Confi guration Software Tool, and Antenna Defi nition fi les
can be downloaded from the links provided.
• Unzip the ipconfi gtool.exe fi le. Double click this fi le and follow the on-screen
prompts to complete the Andrew IP Confi g Tool installation.
Click on Teletilt Software, Firmware,
Tools, and Manuals.
2. Use Andrew IP Confi g Tool to set up a new connection on the local computer.
• Double-click on the IP Confi g Tool icon that was placed on the computer’s desktop
during installation.
• Follow the directions illustrated on the following two screens to temporarily change
the IP settings on the local PC/laptop.
1. Click on New IP Info tab.
2. Click on Local Area Connection.
3. Enter a new IP address that is one digit lower than the controller’s default setting.
4. Click Apply new IP confi guration button.
5. New IP settings shown, replacing the original IP settings on the local PC/laptop.
1
2
5
4
3. Create a backup fi le for future sessions.
• Follow the steps illustrated below.
1. Click on Backup/Restore tab.
2. Click on the Backup button.
3
4. Click on OK.
3. Type in a name for the new IP backup f le.
(Example: Cellsite name where controller resides)
4. Use Andrew IP Confi g Tool to access the controller.
• Verify that the controller is powered up and connected to the computer’s Ethernet
port using the Ethernet crossover cable provided. To start a new session, double click on the IP Conf g Tool icon on the computer’s desktop.
• Follow the directions illustrated on the screen shown below to restore temporary
IP settings on the PC/laptop that were saved in the IP Conf g Tool.
1. Click on Backup/Restore tab.
2. Select the backup f le.
3. Click on Restore.
• Open an Internet browser (Netscape and Mozilla are not supported).
If the ATC200-1000 controller interface does not automatically appear in the
Internet browser, type in the controller’s IP address into the URL address window,
and click on Go. The factory default IP address for the ATC200-1000 controller
is: 192.168.255.141.
• After verifying that the controller’s interface can be viewed in the Internet
browser, the Internet browser should be minimized while using the IP Conf g Tool
to upload software updates.
4. Backup IP settings
are restored to local
computer.
Using Andrew IP Confi g Tool to Upload Software Updates
to the Controller
1. The following software fi les can be uploaded to the controller:
RET-AN-RT_*.ascu Controller Software Interface File
RET-AN-KR_*.ascu Controller Operating Kernal File
RET -AN-AT_*.ascu Antenna Def nition File
• Asterisk (*) in f lename represents the version number. Use the f le with the
highest number preceding the f le extension for each type f le to ensure the
latest version data is uploaded.
• Note that ATM200 actuator software can only be uploaded to the actuators after
a Device Search has been performed. See Bulletin 639513, ATC200-1000 Teletilt
Control System Equipment Installation Overview Quick Guide, for the Device
Search procedure.
2. Follow steps 1 through 9 illustrated on the following screens to upload
software updates to the controller.
1. Click on FTP Server tab on the IP Conf g main screen. See Screen 1.
2. Click on Find Files to open the Find Files dialog box shown in Screen 2.
3. Click on Find fi les. See Screen 2.
4. Select latest version f le(s).
5. Click Add Selected Files.
6. Click on Finish to return to Screen 1, and view uploaded software updates.
7. To upload f les (Screen 1), click on one f le at a time.
8. Click on Upload.
9. Enter IP address for active controller and click OK.
Screen 1
1
Screen 2
7
9
2
8
3
4
5
6
10. The software f le is uploaded through the internet browser, which opens the
ATC200-1000 operating window on the PC/laptop.
11. Click on Back to see the uploaded antenna def nition f les list on the
controller ’s Software Confi guration screen displaying the Reboot button.
12. Antenna def nition f les take affect instantly after upload, e.g.
(RET -AN-AT_*.ascu).
If uploading controller operating f rmware, you must reboot for updates
to take affect, e.g. (RET-AN-RT_*.ascu).
13. Click on Close.
10
11
12
13
Note: See www.commscope.com for complete user guide, Bulletin 639514.
