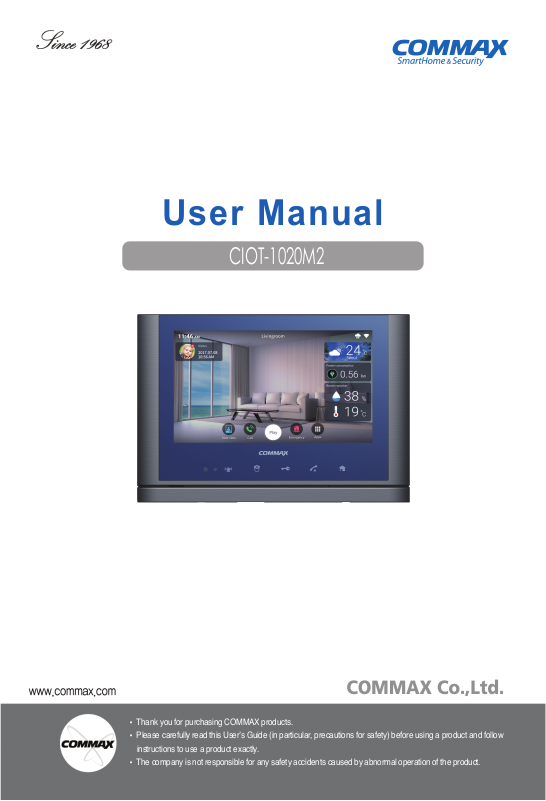

Commax CIOT-1020M2 User Manual

User Manual

CIOT-1020M2

• Thank you for purchasing COMMAX products.

•Thank you for purchasing COMMAX products.

• Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow

•Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow

instructions to use a product exactly.

instructions to use a product exactly.

• The company is not responsible for any safety accidents caused by abnormal operation of the product.

•The company is not responsible for any safety accidents caused by abnormal operation of the product.

Table of Contents

Safety Warnong & Caution ·············································2

1. Main funciton ·························································4
Basic Screen Conguration ········································7

2. Home Screen ·························································9
Home Area ····························································9

2.1. Editing a space list ·········································· 10

2.2. Registering a device ········································ 11

2.3. Placing device (move / delete) ···························· 14

2.4. Controlling devices ·········································· 17

2.5. Widget area ··················································· 17

3. House Reporter ····················································· 19

3.1.Edit house reporter ··········································· 19

3.2. Setting the weather area ···································· 20

4. Control ······························································· 22

4.1. Control lighting ··············································· 22

4.2. Multi-sensor ·················································· 23

4.3. Magnetic sensor ·············································· 24

4.4. Adding devices ··············································· 24

4.5. Edit device ···················································· 25

5. Application ·························································· 33

5.1. Interphone ····················································· 33

5.2. Door entrance ················································ 34

5.3. Call log ························································· 36

5.4. security ························································· 36

5.5. Checking visitor ·············································· 39

5.6. Etc App ························································ 41

5.7. Setting the Wall Pad ········································· 44

6. Scene / Booking Control ········································· 55

1

Safety Warning & Caution

Please follow the things described below in order to prevent any
danger or property damage.

Prohibition.

Warning

Caution

It may cause a serious damage or
injury if violated.

It may cause a minor damage or
injury if violated.

No disassembly

No touch

Must follow strictly.

Shows plugging out the power cord
without an exception

Shows the warning and caution for an electric shock.

Shows the warning and caution for a fire.

Warning

Pl ea se don ’t use seve ral
products at the same time on
one power socket.

·It may cause a fire due to an

abnormal overheating.

Pl ea se do n’ t i ns ta ll the
pro duc t in the place whe re
there is much oil, smoke or
humidity.

·It may ca us e an elec tric

shock or fire.

Power & Installation

Please don’t bend the power
cabl e excessi vely or it may
cause an electric shock.

·fire when using a damaged

power cable.

Pl ea se do n’ t i ns ta ll the
prod uct with the lig hten ing
and thunder.

·It may ca us e an elec tric

shock or fire.

Pl ea se d on ’t hand le the
power cable with a wet hand.

·It may ca us e an elec tric

shock.

Please don’t use and connect
th is pr od uc t w it h o th er
products with differ ent rated
voltage

·It may cause a disorder or

fire.

Pl ea se pl ug ou t the pow er
cable from the socket when
not using it for a long period
of time.

·It may shorten the product

lifespan or cause a fire.

When installing the product
tha t g ene rates heat , plea se
install the product away from
th e wa ll ( 10 cm) fo r th e
ventilation.

·It may cause a fire due to

th e in cr ea se d in te rn al
temperature.

2

Warning

Please don’t disas sem ble ,
repair or rebuild this product
arbitrarily (please contact the
serv ice cen ter if a r epa ir is
needed.

·It may ca us e an elec tric

shock or fire.

Cleaning & UsePower & Installation

Please plug the power cable
firmly into the inner end

·It may cause a fire.

Please be careful when using
an AC ci rcui t breaker since
the re i s a pos sibil ity of an
electric shock.

If an abnormal sound, burning
smell or smoke is coming out
of the product, please plug out
the power cable and contact a
service center.

·It may ca us e an elec tric

shock or fire.

Caution

Pleas e hold t he plug tigh tly
when unpluggin g the power
cab le (a part of the copp er
wire may be disconnected if
the grabbing is only made on
the cord when pulling out the
cable).

·It may ca us e an elec tric

shock or fire

Please check the use voltage
and current for the DC-only
pr od uc ts an d us e th e
appropriate rectifier.

·It may cause a fire.

Pl ea se do n’ t i nser t a ny
metallic or burnable materials
into the ventilation hole.

·It may ca us e an elec tric

shock or fire.

When connecting the power
cables after cutting the cable,
please install the product with
power off

·It may ca us e an elec tric

shock or fire

Please avoid direct rays of the
sun or heati ng devi ces at a
time of installation.

·It may cause a fire.

Please use only the designated
batteries for th e produ cts of
using DC power.

·It may ca us e an elec tric

shock or fire.

When installing the product,
please fix it firmly while using
the wall- mou nti ng unit and
screws.

·It may cause an injury from

the falling object.

Pl ea se do n’ t i ns ta ll the
product on an unstable place
or small support board.

·It may cause an injury if it

falls down while in use.

When cleani ng the p rodu ct,
please rub it with a soft and
dry cloth after plugg ing out
th e pow er ca bl e. (Ple as e
do n’ t us e an y ch emic al
pr od uc ts su ch as wa x,
benzene, alcohol or cleanser.)

Cleaning & Use

Pl ea se do n’t d rop t he
pro duct on the groun d and
don’t apply a shock .

·It may cause a failure.

Pl ea se use t he d es igna te d
conne ctio n cable with in the
maximu m call in g d is ta nc e
designated for the product

·It may reduce th e product

performance.

3

Start

1 Main function

Function Description

COMMAX

Widget

and

Login
Membership

My Reporter

COMMAX

launcher

Scene control

My house coach Offer various lifestyle tips to users by apps
Device control Funciton to control a wireless device that works with wall-pad

Apps Show all apps that are registered in the wall-pad

Door call /
recording

House to call

Lobby call /
recording
Guard call Voice call to guard station by IP network

Call list

CCTVlive view /
recording

CCTV video

recording vi ew

Security fuction

Scenario Control Multi-control function for device by user condition

System
management

Automatic
device
registration

COMMAX
Setting

Display of widget type such as today's weather, indoor
temperature and humidity, smart plug electricity amount,
absence information

User subscription and login to use UC and Cloud

To view and set the integrated value information provided by
the app
Support for space control / editing / addition to the main
screen and main functions (weather, quick menu, household
device information, individual device control)
It is main functions that can display basic values (away,
burglar), appear user-specified scenes, and register new
scenes and delete

Video call with IP door and recording function through IP
network
Call between household and another household through IP
network

Video call to lobby and recording function by IP network

Checking the call list and recorded video of lobby phone and
IP Door
Real-time and CCTV video monitoring service
Fucntion to display and record multiple images on two or
more monitors

Check recorded CCTV images by date

Using wireless IoT sensor (magnetic, PIR) to away, burglar,
emergency handling

Manual setting of the basic environment (IP setting, etc.) by
the user

User can register interlock device (IP Door, CCTV, IoT
device, etc.)

IP and various environce setting for lobby call and system
operation

4

Mobile call Calls to mobile phones login ID same as wallpad

Video streaming
server

Cloud server Wall pad control by smartphone through cloud server

Notification

x Interlocked mobile phone

(Smart devices are compatible with Android OS (4.4.1 or later), iOS (8.0 or

later)

OS Resolution Mobile phone

Apple

Format reset function to send CCTV / Door image to external
(UC)

Fuction to notify emergency from your house
to mobile phone

1136x640 iPhone5s

1920x1080 iPhone6

1334x750 iPhone6s

1920x1080 iPhone6 Plus

1334x750 iPhone7

1920x1080 Nexus5x

2048x1536 Nexus9

Android

2560x1440 Galaxy Note 4

2560x1440 GalaxyS5 edge

1920x1080 GalaxyS4

2560 x 1440 LG G3 cat6

To ta l 11ea

5

z CIOT-1020M2

0Q %106'065 0Q %106'065

1 Touch screen 8 Dial

2 SPK 9 Mic

3 CMOS 10 Home

4 POWER LED 11 Power S/W

5 Emgergency 12 Wired sensor

6 Guard call 13 PoE

7 Door release 14 RS-485

15 Micro SD Slot 16

SENSOR B/D PIN DESCRIPTION

6

,

1 VCC_5V FIRE_IN 12V GND TRX+
2 BURG_1 EM_IN GND VCC_5V GND
3 BURG_2 GAS_IN UART_TX TRX­4 BURG_3 GND UART_RX
5 BURG_4 BURG3_IN 485_IO
6 BURG_5 BURG2_IN
7 EM BURG1_IN
8 GAS 12V
9 FIRE

10 GND

J1 J6 J3 J4 J5

SENSOR_MAI
N

SENSOR ADAPTOR RS-485_MAIN RS-485

Basic Screen Configuration

The moving of screen for using scrolling

The screen change

The navigation bar of home screen bottom

Go to home screen Go back

Volume control

7

Go to Setting

Home screen bottom setting bar

Wifi setting

IPsetting

Internet
status

Door
registration

User
registration

IoT Device

registration

Wall pad
settings

Go to system wireless Wifi setting

Go to wired network IP setting

Check the status of external Internet connection

Go to IP Door Camera registration

Go to user registration

Go to IoTt device registration

Go to wall pad setting

OS setting

Go to OS setting

8

Home Area

2 Home Screen

View the door

camera

dial

Device
status

all Apps

Scene contorl

Emergency
button

View the door camera

Dial key for call

Door, network, membership status display

* Icons is displayed during abnormal operation

All App list

Scene and Reservation control

User Emergency button

9

2.1. Editing a space list

1) ‘Press an empty space on background screen for one second.

2) Press a Space background.

3) Press the "X" button to delete the space.

4) Press "+" button to add space

5) Press the Cancel button to cancel editing

6) Press the 'complete ' button to save the space list.

10

.

Adding Space

1) Enter the name of the space.

2) Press "Enter" on the keyboard.

3) Select a space image .

4) ‘Press 'OK' button to add space.

5) ‘Previous' button will move to previous screen

* You can link smart phone and space image through the QR code.

2.2. Registering a device

Method 1.

1) Press an empty space on background screen for one second.

11

2) Press register IoT Device

12

3) Connect the device according to the device pairing method

4) The device can be paired for up to 60 seconds.

5) Press Cancel 'button to cancel the device pairing method.

6) When a device is registered, the device is automatically placed on the screen

..

Method 2.

1) Drag or click IoT Device ICON leftside on screen

Click IoT Pairing ICON on upside and drag center on screen.

2)

13

3) Connect the device by using device pairing method.

2.3. Placing device (move / delete)

Method1.

1) Press an empty space on background screen for one second

14

2) Press ‘Device icon placement’.

3) You can move to the desired location by pressing the device you want to

move.

4) Drag the device, move it to the desired location, and release the device

5) To delete a device, press the corresponding icon longer to move to the

desired location

6) To delete a device, press the icon longer and move it to the upper trash...

..

15

Method 2.

1) Drag or click IoT Device ICON leftside on screen

16

2)

You can move to the desired location by pressing the device you want to
move.

2.4. Controlling devices

1) Move to the space to control.

2) You can turn the device on / off by pressing the device you want to control

[The device control sreen]

2.5. Widget Area

1) Provide a summary of our home environment and external environment

information at present

2) Press empty space on background screen for one second.

..

..

17

3) Press widget .

4) Select and drag the widget you want to display on the background

5) To delete a widget, press the widge tlonger and move it to the upper trash.

18

3 House Reporter

We provide value information on the screen that allows us to understand our home
environment and external conditions

3.1. Edit house reporter

1)

) Press edit "button

..

[The house reporter screen]

2)

Press the "(On / Off)" button and you can select the value information

item to be displayed..

3) OK "button to save the changed item.

19

3.2. Setting the weather area

1) ‘Press the "Today's weather information" button.

2) Enter the name of the

3) Press the "Search" button

4) Select one of areas from search list .

* eather information will be provided to our house reporter when the internet is

connected.

area to search.

.

20

Home IoT Device More details.

Press the 'View Details' button on the home IoT device configured in Home

1)

reporter.

2) You can go to the control application and configure it.

21

4 Control

※ The name of the device and the button configuration that are linked with the pad
and the field may be different.
※ For the improvement of function, it may be changed without prior notice.

4.1. Control lighting

22

1) Go to the "Light" tab in the control main screen.

2) You can turn on the lights or off by pressing the

power button.

4.2. Control entire lighting

1) Go to the "Light" tab in the control main screen.

2) You can turn on the entire lights or off by

pressing the power button.

23

4.3. Control smart curtain

1) Go to the "Indoor" tab in the control main screen.

2) The current status of the curtain is displayed.

3) You can control the curtain by pressing the 'Open' and
'Close' buttons.

4.4. Control smart plug

1) Go to the "Energy" tab in the control main screen.

24

2)You can check the power usage of the plug.

3)

Press the lug' icon to turn the smart plug on or

off.

4.5. Control smart boiler

1) Go to the "Indoor" tab in the control main screen.

2) You can turn the smart boiler on or off by

pressing the 'Power' button.

25

4.6. Control gas lock

1) Go to the "Safety" tab in the control main screen.

2) The current status of the gas lock is displayed.

3) If the gas lock is open, you can lock the gas valve by
pressing the 'Lock' button.

※※

For safety, the closed gas valve can not be

opened.

4.7. Monitoring magnetic door sensor

1) Go to the "Safety" tab in the control main screen.

2) 'Detected' is displayed when door open is open.

3) If no door open is detected, 'No detected' is displayed.

26

4.8. Monitoring Leak sensor

1) Go to the "Indoor" tab in the control main screen.

2) If a leak is detected, it displays the information

values collected by the leak sensor.

4.9. Monitoring PIR Multi sensor

1) Go to the "Indoor" tab in the control main screen.

2) Displays the collected information value of the multi-

sensor..

27

4.10. Monitoring Air quality sensor

1) Go to the "Indoor" tab in the control main screen.

2) Displays the collected information value of the

Air quality sensor..

4.11. ZigBee Repeater

28

1) Go to the "Etc" tab in the control main screen.

2) Displays the strength of the ZigBee repeater.

4.12. Smart consent

1) Go to the "Energy" tab in the control main screen.

2) The upper level shows the power value of the power
outlet at all times, and the lower level shows the power
value of the power outlet.

3) The power outlet can be turned on or off with the 'Power'
button.

4.13. Monitoring Gas alarm

1) Go to the "Safety" tab in the control main screen.

2) When the gas is detected, it displays the information

collected from the gas alarm.

29

4.14. Control Standby power cut-off switch

1) Go to the "Energy" tab in the control main screen.

2) The current status of the standby power cut off
switch is displayed.

3) You can turn the standby power off switch on / off via
the power button.

4) Auto mode is automatically switched off when the
power consumption detected by the standby power
switch is less than the set value.

4.15. Monitoring Smartmetering

30

1) Go to the "Energy" tab in the control main screen.

2) You can check the energy usage of electricity, gas, and
water.

4.16. Adding devices

Control standby power

① Press the + button to enter the Add Device mode.
② Pairing mode is for 1 minute

[Standby power Screen]

.

[Standby power Screen]

୔ This function is available only w

hen a wireless device is installed as an option.

4.17. Edit device

Change the device nickname

31

1) Select the device and change the nickname.

¢ Press button and finish changing the nickname of the devices.

[Device edit Screen]

Remove device

1) Select the device you want to delete.

2) Press the “OK” button to complete the deletion of the devices.

¢

32

5 Application

5.1. Interphone

5.1.1. Screen Layout

Call connection screen

¢ £

[Monitoring Screen]

1) Press ྙ button to end the door monitoring.

2) Press ྚ button to save video.

33

Call connection screen

④

1) ྙྙ End call.

2) ྚ Start Call / Open Door

3) ྛ Save video

4) ྜ Adjust call volume

¢ £

[Call connection Screen]

③

5.2. Door entrance

Monitor and call from door camera

1) Click on the door entrance icon in the Quick Menu.

2) You can monitor the door entrance by pressing the 'door entrance' button.

3) To cancel monitoring, click the 'Cancel' button.

4) When you press the bell on the door camera, the call screen appears..

5) To end the call, press the "End call" button.

Open the door

1) When the call comes in and the call button is pressed, the door open button

appears.

2) Press the door open button to open the door.

34

Saving the image of our house / common entrance visitor

1)

When you press the save video button during a call, the icon changes to
and video recording starts

2)

Once you click the save button again, the image will be saved.

.

Get a call on door camera

1) When you receive a call, the bell sound and visitor screen are displayed on

the screen.

2) Press the (Talk) button to connect the call and press the "Reject" button to

hang up.

3) To stop during a call, press the "Exit" button.

4) If you receive calls from two or more during the call, the screen will appear

on the upper left corner and you will be connected immediately when you
click on the screen..

Call house

1) Press dial on background .

2) You can call by entering the number of builidng and household or pressing

the button of guard station and office

35

5.3. Call Log

Using Call Log

1)

When you click
log.

5.4. Security

[Display for Call log]

icon at the top of screen, you can delete the call

36

CCTV

monitoring

Occur

emergency

CCTV monitoring and save the image

Occur emergency on urgent situation

5.4.1. Security

Occur emergency
Detect emergency

The emergency has been activated by users or sensors automatically.
Emergenc y situation will be operated with 3 steps(Occur →

Stop →

Restore).

5.4.2. Occur emergency

1) You can activated the emergency for clicking the emergency button. Also it
can be orpeated by sensors automatically.

2) The siren will be activated and display the emergency icons.

[display for emergency situation]

5.4.3. Stop emergency

1) Click the “Stop” button.

2) Click the password and “OK” button. (Password from factory : 1234)

[Enter password]

5.4.4. Return emergency

1) Click the “Restore” button.

2) When you click it, the emergency will be disarmed.

[Window for restoring emergency]

37

5.4.5. CCTV

Check the display of CCTV

Save the image of CCTV

¥

¢

① CCTV Display
② CCTV list
③ CCTV Setting
④ Return to app main screen

CCTV ࠏە ؼ

¤

[CCTV menu display]

£

38

1)

Click the "CCTV" icon in the app main screen.

2) The connected CCTV list (ྚ) is displayed.

3) Press the desired CCTV list and it will be displayed on CCTV video screen (ྙ).

5.5. Checking visitor

Checking visitor

Check the saved image of enterence or lobby

5.5.1.5. isitor

Check the saved image of enterence or lobby

[Display for saved image]

39

Delete

With icons, you can check the location of saved movie clip.

Enterence

Delete the saved image

Movie clip from enterence

Lobby

Missed Call

Movie clip from lobby

Movie clip from missed call

Check the saved movie clip

You can check the time and date of saved movie clip from the enterence or lobby.

Delete the saved movie clip

1) Click the ‘Delete’ button.

2) Click the individual movie clip or “All movie clip’ for the selection.

3) To un-select the movie clip, click that icon again.

Clic “Delete” button to remove the movie clip.

4)

.5.2. Em y log

5.5.2.5

Emergency log

40

[Display for emergency log]

Delete the emergency log

1) With “

“ icon, you can delete the date of emergency log.

5.6. Etc App

Calculator

Clock

Sign up

Wallpad setting

OS setting

Brower

Calculation

Set the alarm and time

Sign up / Edit / Initialization

Setting for wallpad

Android setting

Internet brower

41

5.6.1. Calculator

You can use it for calculation.

[Display for calculation]

5.6.2. Brower

This is the web brower for internet.

42

5.6.3. Sign up

Sign up / Edit / Initialization

1) Enter ‘ID’ and clikc ‘Duplication check’.

2) Select the living country.

3) Enter ‘Passward’, ‘Retype Passward’ and click ‘Registration’.

Edit & Initialization

1) If you have already siged up, you can see the current ID on the display. You can
change the passward to click ‘P/W change’ button..

2) When you click ‘Initialization’, all your siged up information will be deleted

43

5.7. Wallpad setting

1) Tap the "WallPad Setting" icon on the app home screen.

44

2) Enter the password (initial password: 1234).

[Display for Wallpad setting]

5.7.1. Wallpad setting

You can set the SIP server, call number of guard station and passwords for wallpad.

* Wallpad type setting

- You can set wallpad using Maset or Slave

- If wallpad sets Slave, input IP of Master wallpad and se

510)
୔ If you are a memb
before setting it as Slave.

୔ After the setting of the month pad type is completed, it is automatically rebooted.

er of COMMAX, you need to initialize the member information

lect Slave number (501 ~

Note) a. When operating master and slave in the cab, make sure all the IP of the wall
pad is set to fixed IP

(When set to DHCP, synchronization between master and slave may not be
possible.)

B. When the slave malfunctions or power is off, communication delay between
master and slave occurs and all devices may slow down

There is.

C. If the IP address of the slave is changed, be sure to reboot the master wall
pad to synchronize the master / slave.

D. If changing the slave wall pad to Master, be sure to reboot the existing
Master Wall Pad to synchronize Master / Slave

It will be canceled.

45

1) You can change the password for disarming emergency and Away mode.

x Enter the new password.
x Re-enter the
x If passwords are same, it has been changed.

୔ Initial password is 1234.

2) You can change the building & household number.
୔ If you change those number, you need to reboot the wallpad.

3) You can change the number for guard station.

4) You can change the SIP server IP.
୔ If you change the IP, you need to reboot the wallpad.

5) You can change the update server IP for wallpad.

6) You can re-execute the installation wizard.

same password.

5.7.2. Initialization for connecting control devices

46

You can initialize the control devices for connecting wallpad or mobile app.

When you click the “Initialization” button, all the connecting IoT devices will be
initialized. After initialization, individual devices can be controlled but all the scenario or
scenes will be deleted.

5.7.3. Data initialization

You can initialize all the date from wallpad.

After initialization, you can not restore the data.
[List for initialization]

- Call log

- Saved image

- Saved movie clip

- Emergency log

47

5.7.4. Door camera setting

You can register IP door camera.

48

1)) Clic “Door Camera Setting”, push the button of door camera for 5 seconds, the

camera image will be displayed automatically.

2)) Clic “Camera Preview”, you can check the image of door camera.

3)) Clic ‘Registeration’ button, the door camera will be registered to wallpad

automatically.

4) You can change the name of door camera to click “Edit” button.

5.7.5. CCTV Registration

You can register IP type CCTV camera.

1)) Clic “CCTV camera register’ button, you can see the list of CCTV camera on

the display..

49

2)) Clic “Preview” button and enter the ID & Passward, you can check the

image of CCTV camera.

3) Clikc “Register” button, that CCTV camera will be registered.

50

4) Click “Edit” button, you can change the name of CCTV camera.

5.7.6. Call setting

You can adjust the calling functions.

The menu is as below.

1) Continuous call time : You can select the call time between 30 sec ~ 3 min.

2)

Video recording time : You can select the recording time between 10 sec ~ 60
sec.

3) Video auto save: When you select it, video clip will be saved automatically
Video clip will be saved on your app.

Allow smartphone incoming call : When you seleect it, you can receive tha call

4)

from the visitors to your smart phone.

51

5.7.7. Setting for Home Theme

You can set the home theme.

52

5.7.8. Ringtone

You can select the ringtone from connected devices.

1) Select the place and select the ringtone. (Preview for ringtone)

2) Click the ‘Confirm’ button, the ringtone has been selected.

5.7.9. Wallpad information

You can check the information of systems such as versions of S/W.

53

5.7.10. Check the version of application

1) Click “Application” button.

2) The version of app will be displayed.

 6QWEJMG[RCFUGPUKVKXKV[

You can control sensitivity of keypad, if product has touch keypad.

54

6 Scene / Booking control

①

① Move to Home display
② Add Scene

6.1.1. Add Scene

1) In the menu, click the ‘Add scene‘ button.

2) Click ‘Create the scene with selected device’ button, you can see the
selection of device window.

3) Selected device and clikc ‘Confirm’ button.

4) Select the details for devices.

5) Click ‘+’ button for entering name & icon.

④

②

[Main display of Scene / Scenario menu]

③

③ Detail of Scene
④ Quick move to scenario control

[Display for device setting] [Display for name & icon]

55

6.1.2. Away mode

Activate & Deactivate the away mode
Display for away mode status

You can set the sensors, saving visitor image, turn-off the light or bypass the call in the

away mode..

Activate the away mode

1) Click the away mode icon.

2) After the curtain time, the away mode will be activated.

3) If you cancal the away mode, click “Close” button.

①

③

②

[Display for away mode]

① Lead time for Away mode ② Start the away mode
③ List for activiation with away

mode

୔ Away mode will not be activated during the setting of security.
୔ Lead time for away mode can be set in the menu of ‘Away mode setting → Option

→ Lead time for Away mode”.

Setting for Away mode

1) Setting the activiating functions in away mode.

2) Click “Option” button, the setting menu will be displayed.

3) Check for using sensors or other functions.

4) Click ‘Confirm’ button for saving.

56

[Setting display for away mode]

Disarm for away mode

1) Click away mode icon in home display.

2) Enter the password and click ‘Confirm’ button.

3) If the password is correct, the away mode will be disarmed.

6.1.3. Security

Arm / Disarm the security
Display the status of security sensor

※G This function will be activated when the sensors are installed in the house.

※G You can choose the usage of sensors in the menu of [Setting → Signal → Usage

of sensor].

Set the security

1) Check the security sensor in ‘Security area (ྚ)’ button.

2) Activate the selected area to click ‘Confirm(ྙ)’ button.

② ①

[Display for security setting]

57

୔ The list of sensor will be displayed which has connected with wallpad.

Disarm the security

1) Click ‘Security setting’ button.

2) Enter the password and click “Confirm”.

3) If the password is correct, the selected sensors will be disarmed.

6.1.4. Scene control

1) Click the scene among the list.

2) All the devices will be operated
belongs to its scene.

①

3) Click ‘Details’ in the main menu.

4) All the devices will be operated
to click ‘Apply’ button.

6.1.5. Edit Scene

58

Clic ‘Security: Applying>’

1)

button, you can arm / disarm the
security while you activate the
curtain scene.

2) Clikc ‘Edit’ button, you can edit

the scene.

3) In the editing display, you can
edit the kinds of device, name of
scene or icon.

241&7%6

MODLE
SPEC

CIOT-1020M2

LINE UTP (CAT.5e)

VOLTAGE INPUT : PoE DC 36V ~ 54V / DC5V

POWER STANDBY :4W , MAX :8W

TELECOMUNNICATION AUDIO : VoIP, VIDEO : H.264

LINE & DISTANCE

STANDARD UTP (CAT.5e) 70m

(FROM THE PSE)

TEMPERATURE 0℃ ∼ +40℃

52'%+(+%#6+10

CPU Quad-Core ARM Cortex-A53

MEMORY 1G DDR3 RAM (512M *2)

FLASH 8G eMMC Flash

LCD 10.1” TFT LCD, 1280 x 800

POWER PoE

59

+056#..#6+10

2#%-#)'%106'065

60

tvup{vy

iyhjrl{

OtPGZGG]O{PG[GGX_

zGGzGG

zGiVk

YwOXlhPGVGZwOXlhPGVG_wOXlhP

thu|hs

jvuulj{vy

513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea
Int’l Business Dept. Tel. : [phone]~550 Fax. : [phone]
Web site : www.commax.com

PM10703LCR10

Printed In Korea / 2016.03.104
