Commax CDV-43M User Manual

Thank you for purchasing COMMAX products.
instructions to use a product exactly.
The company is not responsible for any safety accidents caused by abnormal operation of the product.
Thank you for purchasing COMMAX products.
Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
The company is not responsible for any safety accidents caused by abnormal operation of the product.
Color Video Door Phone CDV-43M
User Manual
1
Thank you for choosing COMMAX.
Please read this manual carefully before you use the product.
Greetings ..................................................................................................................1
Table of Contents .....................................................................................................1
1. Warnings and caution ...........................................................................................2
2. Product Overview..................................................................................................4
3. How to use ............................................................................................................5
4. Settings .................................................................................................................7
5. Installation.............................................................................................................9
6. Wiring .................................................................................................................10
7. Package Contents...............................................................................................12
8. Caution in use ....................................................................................................13
9. Miscellaneous .....................................................................................................13
10. Specification......................................................................................................13
Greetings
Table of contents
Greetings ................................................................................................. 1
Table of Contents..................................................................................... 1
1. Warnings and caution .......................................................................... 2
2. Parts Names ........................................................................................ 4
3. How to use this product ....................................................................... 5
4. Monitoring ............................................................................................ 6
5. Settings................................................................................................ 6
6. RESET .................................................................................................8
7. Installation ........................................................................................... 8
8. Wiring .................................................................................................. 9
9. Package Contents ............................................................................. 11
10. Specication .................................................................................... 11
2
Please follow the things described below in order to prevent any danger or property damage.
Warning
Caution
Prohibition.
No disassembly
No touch
Must follow strictly.
Shows plugging out the power cord without an exception
Shows the warning and caution for an electric shock.
Shows the warning and caution for a fire.
It may cause a minor damage or injury if violated.
It may cause a serious damage or injury if violated.
Power & Installation
Warning
Please don’t use several products at the same time on one power socket.
·It may cause a fire due to an
abnormal overheating.
Please don’t bend the power cable excessively or it may cause an electric shock.
·fire when using a damaged
power cable.
Please don’t handle the power cable with a wet hand.
·It may cause an electric
shock.
Please plug out the power cable from the socket when not using it for a long period of time.
·It may shorten the product
lifespan or cause a fire.
Please don’t install the product in the place where there is much oil, smoke or humidity.
·It may cause an electric
shock or fire.
Please don’t install the product with the lightening and thunder.
·It may cause an electric
shock or fire.
Please don’t use and connect this product with other products with different rated voltage
·It may cause a disorder or
fire.
When installing the product that generates heat, please install the product away from the wall (10cm) for the ventilation.
·It may cause a fire due to
the increased internal temperature.
1. Warnings and caution
3
Cleaning & Use
Please don’t disassemble, repair or rebuild this product arbitrarily (please contact the service center if a repair is needed.
·It may cause an electric
shock or fire.
Please plug the power cable firmly into the inner end
·It may cause a fire.
Please hold the plug tightly when unplugging the power cable (a part of the copper wire may be disconnected if the grabbing is only made on the cord when pulling out the cable).
·It may cause an electric
shock or fire
When connecting the power cables after cutting the cable, please install the product with power off
·It may cause an electric
shock or fire
When installing the product, please fix it firmly while using the wall-mounting unit and screws.
·It may cause an injury from
the falling object.
Please be careful when using an AC circuit breaker since there is a possibility of an electric shock.
When cleaning the product, please rub it with a soft and dry cloth after plugging out the power cable. (Please don’t use any chemical products such as wax, benzene, alcohol or cleanser.)
Please don’t drop the product on the ground and don’t apply a shock .
·It may cause a failure.
Please use the designated connection cable within the maximum calling distance designated for the product
·It may reduce the product
performance.
Please check the use voltage and current for the DC-only products and use the appropriate rectifier.
·It may cause a fire.
Please avoid direct rays of the sun or heating devices at a time of installation.
·It may cause a fire.
Please don’t install the product on an unstable place or small support board.
·It may cause an injury if it
falls down while in use.
If an abnormal sound, burning smell or smoke is coming out of the product, please plug out the power cable and contact a service center.
·It may cause an electric
shock or fire.
Please dont insert any metallic or burnable materials into the ventilation hole.
·It may cause an electric
shock or fire.
Please use only the designated batteries for the products of using DC power.
·It may cause an electric
shock or fire.
Cleaning & UsePower & Installation
Warning
Caution
2. Parts Names
No.
PART PART
No.
PART
1 POWER SWITCH 5
MONITOR BUTTON / DOWN BUTTON
9 TALK BUTTO N
2 POWER LED 6
INTERPHONE BUTTON / SELECT BUTTON
10 SPEAKER
3 MICROPHONE 7
DOOR RELEASE BUTTON / UP BUTTON
11
TERMINAL FOR EXTERIOR
4 MONITOR(LCD) 8 MENU BUTTON
1. POWER SWITCH
2. POWER LED : show blue light when the monitor is turned on, no light when off
3. MICROPHONE
4. MONITOR(LCD)
5. MONITOR BUTTON (DOWN BUTTON) : Press to see images from camera. And
press to move (down / left) on menu.
6. INTERPHONE BUTTON (SELECT BUTTON) : Press to call interphone. And
press to select on menu.
7. DOOR RELEASE BUTTON (UP BUTTON) : Press to open the door. And press
to move (up / right) on menu.
8. MENU BUTTON :
Press to enter Menu for display adjustment, calling sound setting, product Information etc.
9. TALK BUTTON : to call and answer for visitor.
10. SPEAKER
11. TERMINAL FOR EXTERIOR : terminal for product upgrade, entrance camera
and interphone connection.
4
3. How to use this product
1. Call from the visitor
① When the visitor calls from the entrance(door camera), the calling sound
rings and the image of the visitor is shown on LCD screen.
② If you press the talk button, you can talk with door camera. By pressing
the door release button, door will be released. (Door release works only while talking.)
③ 3-way communication is possible when another user picks up the
handset of extended interphone, when you are talking with door camera on video door phone. (3-way :
Entrance-Household -Interphone simultaneous communication
mode
)
④ While you are talking with the door camera if you press the talk button,
talking is finished and the video door phone turns to stand-by mode.
2. Call with additional interphone
2-1. Call between door camera and interphone
① When the visitor calls from the door camera, calling sound rings on
interphone and video door phone.
② By picking up the handset of interphone, you can talk with door
camera. By pressing the door release button, door will be released.
2-2. Talk between interphone and video door phone (household). 2-2-1. In case of receiving the call of household phone from interphone
(1) In order to call the household from interphone, pick up the interphone handset and
press the call button. Then, video phone will be ringing.
(2) You can talk with interphone by pressing the talk button of household. (3) 3-way communication is possible among household, interphone and door camera
when visitor calls from door camera, while household is talking with interphone. Image from door camera is displayed on LCD of household with calling sound and 3-way communication gets available.
(4) Press the talk button after ending the call.
2-2-2. In case of calling interphone from household (1) Press the Talk Button and the Interphone Button in order to call the interphone
from the Monitor (Interphone is called only while the interphone button on household is being pressed.)
(2) When you receive the call from interphone, enjoy the call.
5
4. Monitoring :
function to see the image of visitor in the entrance.
(stand-by mode) Operation
-
By pressing the MONITOR button repeatedly, the monitor will work as following in order.
Camera1
Camera2
OFF ............
5. Settings
* Product settings need the following 4 buttons on the product. * Start Menu / Exit : MENU button * Select and in-put : SELECT button (INTERPHONE button) * Move up / Move right: UP button (DOOR RELEASE button) * Move down / Move left: DOWN button (MONITOR button)
You can adjust DOOR VIDEO SET, UTILITY and check INFORMATION (model
name &version) with (UP) / (DOWN) button after pressing MENU button on the right of the product in video talk mode or stand-by mode.
5-1. Screen setting (Brightness/Contrast/Color adjustment function) Press the MENU button and access to DOOR VIDEO SET and enter the setting
menu by pressing the SELECT button. (1) BRIGHTNESS: Adjusting Brightness of Screen. (2) CONTRAST: Adjusting Contrast of Screen. (3) COLOR: Adjusting Color of Screen.
* How to adjust
① Move to Menu you want to adjust with UP/DOWN button on the list of
DOOR VIDEO SET ② Press the SELECT button to choose an icon. ③ Adjust the set value with UP/DOWN button ④ Press the select button, To complete.
(4) RESET : Initializing
* How to adjust
① Move to RESET menu in DOOR VIDEO SET menu. ② Press the SELECT button to enter the menu. ③ Select YES with UP/DOWN button. ④ Press the SELECT button.
(5) EXIT : Go back to setting mode
6
5-2. UTILITY(additional function)
Press the MENU button and access to UTILITY and enter the menu by pressing the SELECT button.
(1) SPEAKER-VOLUME: setting receiver sound level .
* How to adjust
① Move to SPEAKER-VOLUME icon with UP /DOWN button in UTILITY Menu. ② Press the SELECT button to enter the menu.
③ Adjusting receiver level : 1 ~ 3 ④ To complete the set, Press the SELECT button.
(2) CHIME-BELL VOLUME : setting call sound level.
* How to adjust
① Move to CHIME-BELL VOLUME icon with UP /DOWN button in UTILITY Menu. ② Press SELECT to enter the menu.
③ Adjusting call level : 0(MUTE) ~ 3(MAX) ④ Press the SLECT button to complete the set.
(3) SCREEN MODE : to set for screen ratio.
* How to adjust
① Access to SCREEN MODE with UP /DOWN button in UTILITY Menu. ② Press the SELECT button to enter the menu. ③ Adjust screen ratio value with UP/DOWN button. ④ To complete the set, Press the SELECT button.
- ZOOM :
Zoon in(expansion) image maintaining actual ratio(4:3) is shown. (full of the screen).
- 4:3 : Image of 4:3 ratio without expansion is shown.(This is actual ratio for camera).
- WIDE: Full of the screen. Not actual ratio (4:3). Image is expanded according to LCD (WIDE LCD) ratio.(16:9)
(4) EXIT: Go back to the UTILITY Setting menu.
5-3. INFORMATION (The function to check Model name & Version)
In order to check the product information, Press the menu button and move to
INFORMATION menu with UP/DOWN button. (1) MODEL : You can check the model name. (2) VERSION : You can check the model version. (3) SYSTEM : SINGLE (FINE VIEW VIDEOPHONE) (4) TOUCH : You can check the touch-key version. (5) VIDEO : You can check the video transmission formats(NTSC/PAL) (6) SOURCE : You can check the position of camera(DOOR1 / DOOR2) which is
shown on the screen for now.
5-4. EXIT (Finish setting menu)
7
6. RESET : Initializing
Keep pushing interphone and door release button for 3 seconds. (Screen setting and Call volume will be initialized). Caution : If initialization is activated, all data including screen setting and Call volume will be initialized . (Screen setting and Call volume)

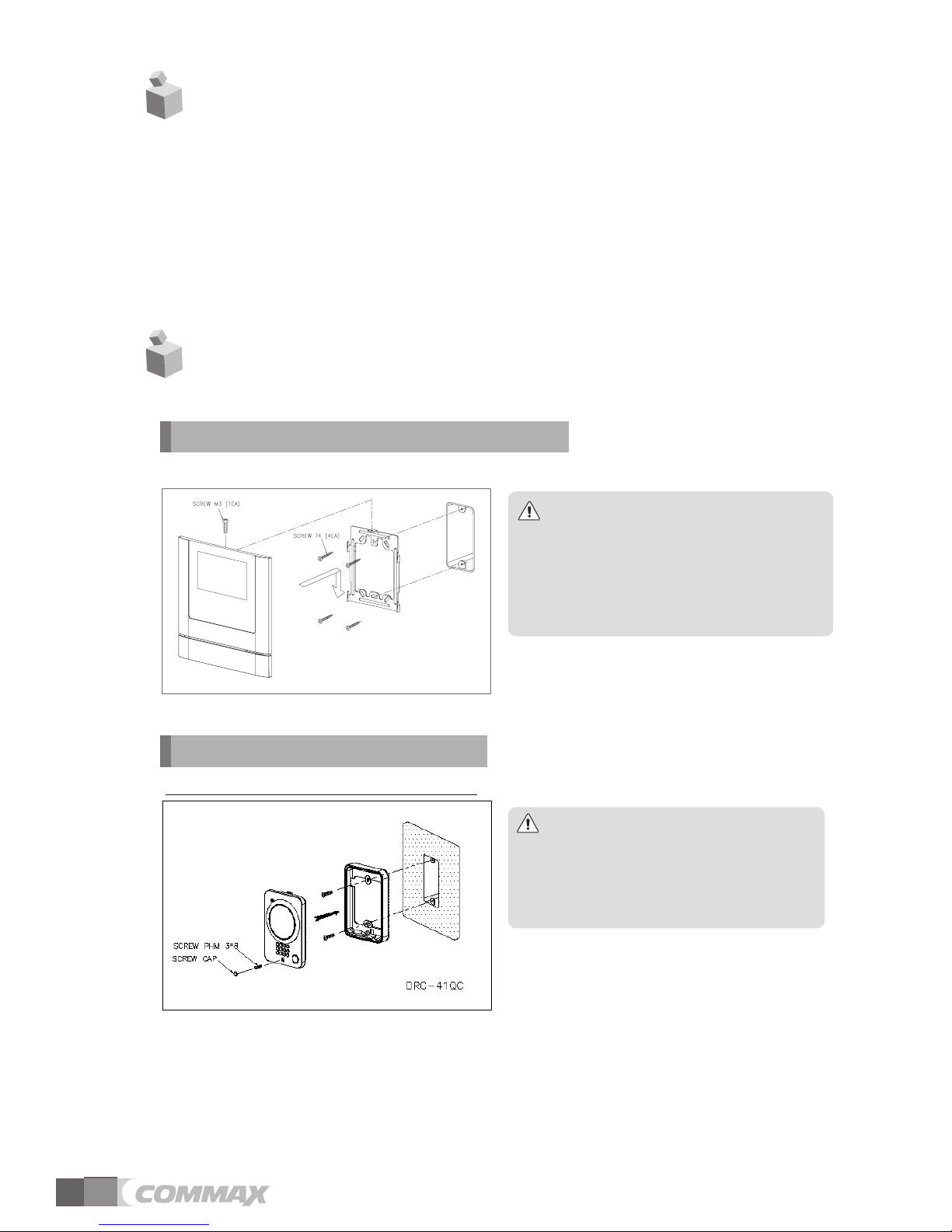

7. Installation
7.
Installation
2. Installation Method of camera
Note
Do not install the camera where
it is exposed to Direct sunlight
Keep cleaning up its lens to
capture good views.
1. Installation Method of camera monitor
Note
Avoid the range of direct sunlightRecommended height is pertinent
from 1450 ~ 1500mm
Avoid the installation near magnetic
activity, humid temperatures and gas
8
8. Wiring
The wiring of this equipment is as follows.
* Camera connector polarity
1. Red : Voice 2. Blue : GND 3. Yellow : Power(+12V) 4. White : Video
9
Wiring precautions
Each device should be connected by separated cables.
If you use UTP CABLE[CAT.5] for Door and Interphone, 2 lines of UTP cable are required.
DOOR Camera Wiring
If you use UTP CABLE[CAT.5], Connect the rest 4 lines to GND after connecting 4 lines between monitor and camera.
INTERPHONE Wiring
If you use UTP CABLE[CAT.5], connect the rest 4 lines to GND after connecting 4 lines between monitor and interphone.
10
9. Package Contents
B ody of CDV- 43M
B racket for wall mount
Manual
T4 X 18( 4E A)
S c rew for wa ll mount
4P C onnec tor( 2EA)
M3 x 6(1E A)
S c rew for body
Main body (CDV-43M) ② Wall bracket ManualScrew for wall bracket (SCREW GH1T 4*18 ZnW) – 4EAScrew for body (S
CR
EW PHM 3*6 ZnY) – 1EA
Camera connector (CONN. 4P*200) – 2EA
10. Specification
SPEC
CDV-43M
Wiring
Door camera 4wires (Polarity), interphone 4wires (polarity)
Rating Voltage 100V-240V~, 50/60Hz (FREE VOLTAGE)
Power consumption
Stand-by : 2.1 W
Maximum: 10 W
Transmission way HANDS FREE (Voice switch circuit)
Screen size 4.3" TFT-DIGITAL LCD
Ringtone
Door : Electronic chime (Sol Mi Do), Interphone : Beep
Display Monitoring : 30 ±5sec Talk : 60 ±5sec
Distance(Cable thickness)
Pie 0.5mm 0.65mm 0.8mm
28m 50m 70m
Working temperature 0 ~ +40℃ (32°F ~ 104°F)
11
Memo
12
Printed In Korea / 2016.05.105
513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea
Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-21 33
Web site : www.commax.com
PM
PM CDV-43M
Printed In Korea / 2016.06.105
Loading...
