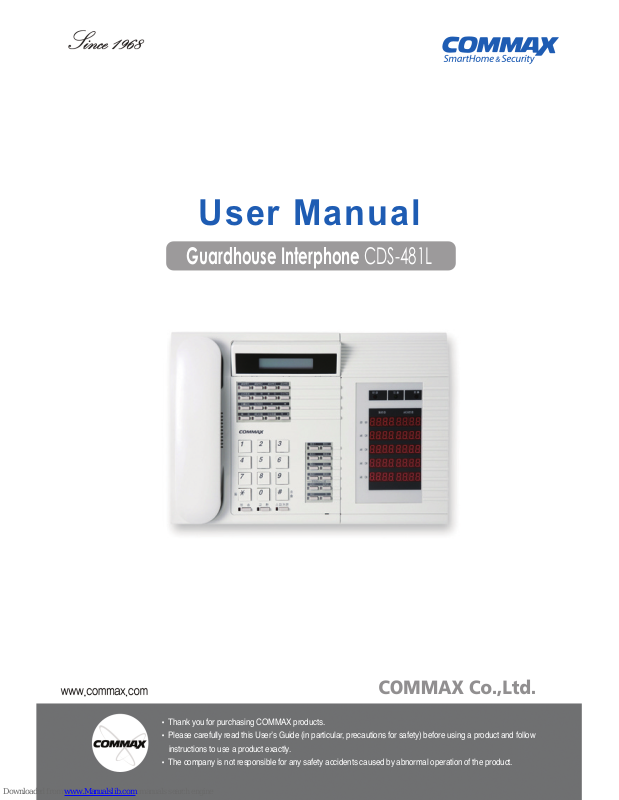

Guardhouse Interphone CDS-481L
User Manual
- 1-
Introduction
WARNING
To prevent fire or shock hazard, do not expose
the unit to rain or moisture.
INFORMATION
This equipment generates and uses radio frequency
energy and if not installed and used properly; that is, in
strict accordance with the manufacturer’s instructions,
may cause interference to radio and television reception.
It has been type tested and found to comply with the
limitations for a Class B computing device in accordance
with the specifications in Subpart J of Part 15 of the FCC
Rules, which are designed to provide reasonable
protection against such interference in a residential
installation. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment to an outlet of a circuit different
from that to which the receiver is connected.
- Consult the dealer or on experienced radio/TV
technicion for help.
This symbol is intended to alert the
user to the presence of
uninsulated “dangerous voltage”
within the product’s enclosure that
may be of sufficient magnitude to
constitute a risk of electric shock to
persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the unit.
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO PREVENT ELECTRIC SHOCK, DO NOT
USE THIS POLARIZED AC PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR
OTHER OUTLET, UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT
BLADE EXPOSURE.
- 2-
Important Safety Instructions
1. Read Instructions - All the safety and operating
instructions should be read before the product is
operated.
2. Retain Instructions - The safety and operating
instructions should be retained for future reference.
3. Heed Warnings - All warnings on the product and in
the operating instructions should be adhered to.
4. Follow Instructions - All operating and use instructions
should be followed.
5. Cleaning - Unplug this product from the wall outlet
before cleaning. Do not use liquid cleaners or aerosol.
Use a damp cloth for cleaning.
6. Attachments - Do not use attachments not
recommended by the product manufacturer, as they
may cause hazards.
7. Water and Moisture - Do not use this product near
water - for example, near a bath tub, wash bowl, kitchen
sink, laundry tub, in a wet basement, near a swimming
pool, and the like.
8. Accessories - Do not place this product on an unstable
cart, stand, tripod bracket, or table. The product may fail,
causing serious injury to a child or adult, and serious
damage to the product. Use only with a cart, stand,
tripod, bracket, or table recommended by the
manufacturer, or sold with the product. Any mounting of
the product should follow the manufacturer’s
instructions, and should use a mounting accessory
recommended by the manufacturer.
9. A product and cart combination should be moved with
care. Quickstops, excessive force, and uneven surfaces
may cause the product and
cart combination
to overturn.
10.
Ventilation - Slots and
openings in the cabinet are
provided for ventilation and to ensure reliable operation
of the product.
They protect it from overheating, and these openings
must not be blocked or covered. The openings should
never be blocked by placing the product on a bed, sofa,
rug, or other similar surface. This product should not be
placed in a built-in installation such as a bookcase or
rack unless proper ventilation is provided, or the
manufacturer’s instructions have been adhered to.
11. Power Sources - This product should be operated
only from the type of power source indicated on the
marking label. If you are not sure of the type of power
supply in your home, consult your product dealer or
local power company. For products intended for
operation from battery power or other sources, refer to
the operating instructions.
12. Grounding or Polarization - This product may be
equipped with a polarized alternating-current line plug
(a plug having one blade wider than the other). This
plug will fit into the power outlet only one way. This is a
safety feature. If you are unable to insert the plug fully
into the outlet, try reversing the plug. If the plug still
cannot be inserted, contact your electrician to replace
your obsolete outlet. Do not defeat the safety purpose
of the polarized plug.
- 3-
Important Safety Instructions
13. Power-Card Protection - Power-supply cords
should be routed so that they are not likely to be
walked on or pinched by items placed upon or
against them paying particular attention to cords at
plugs, convenience receptacles, and the point where
they exit from the product.
14.
Protective Attachment Plug - The product is
equipped with on attachment plug having overload
protection. This is a safety feature. See instruction
Manual for replacement of, or resetting the protective
device. If replacement of the plug is required, be sure
the service technician has uses a replacement plug
specified by the manufacturer that has the same
overload protection as the original plug.
15. Outdoor Antenna Grounding - If an outside
antenna or cable system is connected to the product,
be sure the antenna or cable system is grounded so
as to provide some protection against voltage surges
and built-up static charges. Article 810 of the National
Electrical Code, ANSI/NFPA 70, provides
information with regard to proper grounding of the
mast and supporting structure, grounding of the leadin wire to an antenna discharge unit, size of
grounding conductors, location of antenna-discharge
unit, connection to grounding electrodes, and
requirements for the grounding electrode (Refer to
the figure on page 5 ).
16. Lightning - For added protection of this product
during a lightning storm, or when it is left unattended
and unused for long periods of time, unplug it from
the wall outlet and disconnect the antenna or cable
system. This will prevent damage to the product due
to lightning and power-line surges.
17. Power Lines - An outside antenna system should
not be located in the vicinity of overhead power lines
or other electric light or power circuits, or where it can
fall into such power lines or circuits.
When installing on outside antenna system, extreme
care should be taken to keep from touching such
power lines or circuits as contact with them might be
fatal.
18.
Overloading - Do not overload wall outlets,
extension cords, or integral convenience receptacles,
as this can result in a risk of fire or electric shock.
19. Object and Liquid Entry - Never push objects of
any kind into this product through openings as they
may touch dangerous voltage points or short-out
parts that could result in a fire or electric shock. Never
spill liquid of any kind on the product.
20. Servicing - Do not attempt to service this product
yourself as opening or removing covers my expose
you to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
21. Damage Requiring Service - Unplug this product
from the wall outlet and refer servicing to qualified
service personnel under the following conditions.
A. When the power-supply cord or plug is damaged.
B. If liquid has been spilled, or objects have fallen into
the product.
C. If the product has been exposed to rain or water.
- 4-
D. If the product does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions, as an improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician to
restore the product to its normal operation.
E. If the product has been dropped or damaged in
any way.
F. When the product exhibits a distinct change in
performance - this indicates a need or service.
22. Replacement Parts - When replacement parts are
required, be sure the service technician has used
replacement parts specified by the manufacturer or
have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric
shock or other hazards.
23. Safety Check - Upon completion of any service or
repairs to this product, ask the service technician to
perform safety checks to determine that the product
is in proper operating condition.
24. Wall or Ceiling Mounting - The product should be
mounted to a wall or ceiling only as recommended
by the manufacturer.
25. Heat - The product should be situated away from
heat sources such as radiators, heat resistors, or
other products (including amplifiers) that produce
heat.
Important Safety Instructions
- 5-
Table of Contents
Introduction ................................................................................................................................. 1
Important Safety Instructions ...................................................................................................... 2
Table of Contents ....................................................................................................................... 5
1. Greetings............................................................................................................................. 6
2. Before Getting Started........................................................................................................ 6
3. Overview
3-1. Overview .................................................................................................................... 7
3-2. Essentials.................................................................................................................... 8
4. To Connect with Households
4-1. Being Paged by the Household ............................................................................... 10
4-1-1. Request from the Household to Confirm the Last Household it has Connected
to 10
4-2. Paging the Household from the Guardhouse (Paging another Guardhouse) ............ 11
5. To Connect a Household with another Household............................................................ 12
6. Selecting and Answering Missed Pages .......................................................................... 13
7. Connecting to the Main Entrance
7-1. To Connect to the Guardhouse from the Main Entrance .......................................... 14
7-2. To Connect to the Main Entrance From the Guardhouse ......................................... 15
8. Paging and Connecting to a Household using Registered Vehicle Numbers
(Parking Management System)......................................................................................... 16
9. Announcement ................................................................................................................. 17
10. Call Block ....................................................................................................................... 18
11. Away Mode Setting and Security Mode Extension from the Guardhouse ...................... 19
12. Emergencies within Households ..................................................................................... 22
13. Delivery .......................................................................................................................... 24
14. Confirming Household Conditions.................................................................................. 25
15. Adjusting Time............................................................................................................... 30
16. Advanced Feature (Please use only after understanding its handling to the full)
16-1. Registering Household Numbers........................................................................... 31
16-2 Registering Household Vehicles (Parking Management System)
16-2-1. Registering with Known Vehicle Number ................................................... 32
16-2-2. Registration by the Household through the Guardhouse............................. 34
16-3. Checking Household Numbers using Vehicle Numbers ........................................ 36
16-4. To Open or Close the Main Entrance
16-4-1. To Temporarily Release the Main Entrance ............................................... 36
16-4-2. To Open the Entrance for Indefinitely .......................................................... 38
16-4-3. To Close Main Entrances ............................................................................. 39
17. Guardhouse Interphone Program Confirmation and Modification................................... 41
[Table 1] Guardhouse Interphone Program Number and Description............................. 46
18.
Wiring Method ............................................................................................................... 48
19.
Specifications ................................................................................................................. 57
- 6-
1. Greetings
●
Thank you for purchasing a Commax product.
●
This state-of-the-art Guardhouse Interphone switchboard contains a parking management system,
individual household checking features, and various other essential services in security. Please read this
user manual carefully and familiarize yourself with its contents before use.
●
Being a product that utilizes the common wiring method, adhering yourself to basic wiring instructions
when installing will surely prove this product as a convenient one.
2. Before Getting Started
●
Using 8-wire common wiring method between the Main Entrance interphone and the Guardhouse
interphone, this system supports 3 communication circuits, and each communication circuit is a Balance
Type that supports 2 wires.
●
Using 18-wire common wiring method between the Guardhouse interphone and the Guardhouse
interphone, this system supports 8 communication circuits, and each communication circuit is a Balance
Type that supports 2 wires.
●
Shorts or disconnection in wiring are factors of product malfunction. Please check them before wiring
※
Remarks
- 7-
3. Overview
Number
Description Number
Description
1. Time Adjustment Button
2. Household Selection Button
3. LCD
4. Enter Button
5. Away Button
6. Remote Control Button
7. Extension Button
8. Redial Button
9. Volume Adjustment
10. Key Pad
11. Call Block Button
12. Confirmation Button
13. Change Location Buttons (←,→)
14.
Open
15. Emergency Page
16. Speed Dial Buttons
17. P.A. Button
18. Call Connection Button
19. Speakerphone
20. Call Button
21. Parking Management System
22. Emergency Lamp
23. Away Lamp
24. Call Lamp
25. Guardhouse Indicator Section
26. Household Indicator Section
27. Building Button
28. Outside Line Lamp
29. Internal Line Lamp
30. Delivery Button
3-1. Overview
- 8-
3-2. Essentials
*Household Selection Button/Lamp: Used to select one of the Households indicated on the Household
Indicator Section.
*Time Adjustment Button/Lamp: Used to adjust time.
*Enter Button/Lamp: Used to execute the Guardhouse Interphone’s programs.\
*Confirmation Button/Lamp: Used to confirm changes made to data within the Guardhouse Interphone’s
programs.
*Call Block Button/Lamp: Forwards calls to other Guardhouses or Households. (Available only when a
forwarding number has been entered in Pr03)
* Away Registration Button/Lamp: Controls the Household Videophone’s Away feature from the
Guardhouse.
* Remote Control Button/Lam: Used to verify and adjust various information of the Household
Videophone.
* (
) Button/Lamp: Used to confirm or make changes to entered data.
* Extension Button/Lamp: Used to assign Multi Sub numbers to the Household Videophone and in
various other extension processes.
* Redial Button/Lamp: Pages the last number paged.
* Emergency Page/Lamp: Pages to connect to a Household with an emergency.
* Open Button/Lamp: Used to release the Main Entrance.
No. 1: OFF - cannot be connected to a computer.
: ON - can be connected to a computer.
: (Computer connection feature is optional)
No. 2: OFF - Household emergencies are received by all
installed Guardhouse Interphones.
: ON - Household emergencies are received only by the
corresponding Guardhouse.
ON
1
2
OFF
ON
1
2
ON
ON
1
2
OFF
ON
1
2
ON
Selection Switches
- 9-
* Key Pad: Used to enter in numbers.
* Building Button: Used to distinguish buildings when
entering Household numbers.
* Call Button (#): Used to page after entering a
Household number.\
* P.A. Button/Lamp: Used for announcements among
Guardhouses
* Call Connect Button/Lamp: Used to connect a
Household to another Household or another
Guardhouse.
* Speakerphone Button/Lamp: Activates the
speakerphone.
* Guardhouse Indicator Section
* Household Indicator Section
*
Speed Dial Buttons (No. 1) : Often dialed numbers
*
Line Indicators(LED) Red/Blue: Indicates the status of each
outside line(1 to 8)
* Internal Line Indicator (LED): Indicates the status of each
internal line (1 to 3).
* Confirmation Button: Used when verifying a Household
using Vehicle Number.
* Vehicle Button: Used to page a Household using Vehicle
Number. (Two vehicles can be registered per household)
* Emergency Indicator (Blinks when an Emergency Page
has been made)
* Away Indicator (Blinks when an Emergency Page or Call
has been made from a Household in Away Mode)
* Page Indicator (Blinks with paging and other data
communication)
*The lamp will continuously blink when an error or short
has been detected along the Data Line.
*The following messages are indicated on the LCD:
Int Com Line Err : Internal Line Error
Ext Com Line Err : Outside Line Error
- 10 -
4. To Connect with Households
4-1. Being Paged by the Household
①
A paging signal will sound from the Guardhouse interphone when a Household has
paged the Guardhouse.
①
While staying connected with the Household,
② Press the Extension button.
③ Press Outside Line 1 button. (Indicated while the Outside Line 1 button has been pressed)
④ The last Household connected to the Household on line is displayed on the LCD. Inform the Household of its
last connection.
4-1-1. Request from the Household to Confirm the Last Household it has Connected to
②
Pickup the Receiver to answer.
LCD
Call < 0101 - 0101
Pickup the Receiver to answer.
ex)From Building 101, Unit
101.
Connected to
the Household
Press the
Extension button
Press Call 1
The last household
connected to is
displayed.
- 11 -
4-2. Paging the Household from the Guardhouse (Paging another Guardhouse)
①
Pickup the receiver and enter the Building Number of the Household to connect to
using the Key Pad.(To page another Guardhouse, enter in 9999)
②
Press the Building button (
✽
). (The number indicated on the LCD and the
Guardhouse Indicator Section moves to the Building location)
③
Enter the Household Number using the Key Pad. (To page another Guardhouse, enter
the Guardhouse Interphone’s Serial Number)
④
Press the Call button. (Ringing tone will sound)
⑤
Await a reply.
⑥
If a busy signal is heard, hang-up and page again after a few minutes.
Building button
Call button
Paging Tone will Sound
Ex) Unit 101
Ex) Unit 101
- 12 -
5. To Connect a Household with another Household
①
When a request to connect to another household has been made while connected to the
Household,
②
Press the Call Connection button. (The lamp will light up)
※
(Warning) Guardhouse calls cannot be forwarded.
③
Use the Key Pad to enter in the Household Building Number to connect to and press the
Building button.
⑤
Hang-up.
Building button
After Entering the
Household Building
Number
④
Use the Key Pad to enter in the Household Number to connect to and press the Page
button.(Ringing tone, lit up Call Connect lamp, and ‘Exchange OK’ indicated on the
LCD)
Page button
LCD
Exchange OK....
P.A.
Call Connection
Speakerphone
Beep Beep
If wrong Building Number or Household Number has been entered, use the Correction
(-) button to make changes.
- 13 -
- 14 -
- 15 -
- 16 -
- 17 -
<Note>
(As for Announcement Groups, please refer to data recorded in Pr22 of the
Guardhouse interphone)
00 : All
⇒
Announcement is heard through all installed Guardhouse interphones.
01 : Group 1 only⇒Announcement is heard through Guardhouse interphones
designated under Group 1 only.
※
If the Guardhouse interphone is on a call, the announcement will not be made
through that interphone.
※
On the LCD of the Guardhouse interphone where the announcement is made
from, numbers of announcement receiving interphones are displayed.
- 18 -
<Note>
To configure it so that this feature continues to be active when the Guardhouse
interphone has been turned off then on, enter 8888 for Pr04 from “Guardhouse
Interphone Program Confirmation and Modification.” To disable, enter 0000.
- 19 -
- 20 -
- 21 -
- 22 -
- 23 -
- 24 -
- 25 -
- 26 -
- 27 -
- 28 -
- 29 -
- 30 -
- 31 -
- 32 -
⑤
Enter the Multi Sub Number.
* What is Multi Sub Number?
Refers to individual numbers for each videophone in the Household when there is
more than one.
* The Master’s Serial Number is 0.
* Sub Serial Numbers are from 1 to 9.
* Maximum 10 videophones can be installed in a household, and their serial numbers
must not overlap.
* Register Sub Serial Numbers in the order from 1 to 9.
* A Master must exist among numerous videophones. If only one videophone exists,
that unit shall be registered as the Master.
- 33 -
- 34 -
- 35 -
- 36 -
- 37 -
- 38 -
- 39 -
- 40 -
- 41 -
- 42 -
- 43 -
- 44 -
Floor distributor information change method
* This function only works when floor distributor is installed.
* Public entrance lobby phone will not work while performing this function.
1) Execute internal Program ‘24’’ in guard station interphone
2) After entering 9700-XXXX(8 digits floor distributor ID), press input button
3) Please wait until floor distributor information download is completed.
4) After download is completed, display will show as below. Then, select household (Port No.)
which information change is required by using (←, →) buttons.
5) On selection of household, press input button
6) Select the category and change the information.
- Among category
1) Video Floor distributor : Only display monitoring lobby No.
2) Audio Floor distributor : Only display usage of DTMF
3) Video/Audio Integrated floor distributor : Display all categories above.
- DTMF(0:Disable, 1:Enable), Bell or Ring(0:Bell, 1:Ring)
7) When all change is made, press remote control button.
8) Change information is uploaded to floor distributor.
- 45 -
[Table 1] Guardhouse Interphone Program Number and Description
Program
Number
Description
Selection
Pr 00
Pr 01
Pr 02
Pr
03
Device Number: The Guardhouse Interphone’s Serial
Number
Set “Call”(See below detail explanation)
0000(Basic) : Internal 3 lines/ Budling to building 8 lines
0101 ~ 0308 : Call Lines Change
Call Times
-0000: Calls automatically terminated after 3 minutes.
-0001-0007: Extensions
Building Number and Household Number to forward calls toduring Call Block.
Enter from 0001 to
9000
Basic : 00(Internal)00
(Building to Building)
Internal : Line1~Line
3(01~03)
Building to Building :
Line1~Line8(01~08)
0000 : 3 minutes
Building No. + Unit No.
Pr 04
Call Block Config.
0000: Disable, 8888: Enable
Pr 05
No. 1 Sub Building No. Assigned to the Guardhouse Interphone
1st Building No.
Pr 06
No. 2 Sub Building No. Assigned to the Guardhouse Interphone
Pr 07
No. 3 Sub Building No. Assigned to the Guardhouse Interphone
Pr 08
No. 4 Sub Building No. Assigned to the Guardhouse Interphone
Pr 09
No. 5 Sub Building No. Assigned to the Guardhouse Interphone
Pr 10
No. 6 Sub Building No. Assigned to the Guardhouse Interphone
Pr 11
No. 7 Sub Building No. Assigned to the Guardhouse Interphone
Pr 12
No. 8 Sub Building No. Assigned to the Guardhouse Interphone
Pr 13
No. 9 Sub Building No. Assigned to the Guardhouse Interphone
Pr 14
No. 10 Sub Building No. Assigned to the Guardhouse Interphone
Pr 15
No. 11 Sub Building No. Assigned to the Guardhouse Interphone
Pr 16
No. 12 Sub Building No. Assigned to the Guardhouse Interphone
Pr 17
No. 13 Sub Building No. Assigned to the Guardhouse Interphone
Pr 18
No. 14 Sub Building No. Assigned to the Guardhouse Interphone
Pr 19
No. 15 Sub Building No. Assigned to the Guardhouse Interphone
Pr 20
No. 16 Sub Building No. Assigned to the Guardhouse Interphone
2st Building No.
3st Building No.
4st Building No.
5st Building No.
6st Building No.
7st Building No.
8st Building No.
9st Building No.
10st Building No.
11st Building No.
12st Building No.
13st Building No.
14st Building No.
15st Building No.
16st Building No.
Pr 21
Ringing tone of the Guardhouse Interphone
0000=Bell 0001=Melody
0000=bell
0001=melody
- 46 -
Program
Number
Description
Selection
Pr 24
Floor Distributor Setting Change
Floor Distributor ID input
Pr 25
Household interaction method selection
0000 : 481
0001 : 480
Pr 26
VD-1602 usage setting
0000 : Not in use
0001 : Use
Pr 27
Communication Speed Modulation
Basic : 1200
Option : 2400
Pr 28
Control by Line
0000 : Not in use
0001 : Use
Pr 29
Line No. Setting
Ex) 0104 : Line 1-Line 4 Setting
0000 : Not in use
Pr 30
Master Setting
Guard station master setting is required on SECUMAX
connection. At least 1 master must be installed on
Multiple installation.
0001 : Master
0000 : Basic
Pr 31
Data Storage Requirements
8888
<Note>
Pr 01: Internal & building to building setting is possible and consists of 4 digits(0000).
Basic setting is set 0000(Internal 3 lines /Building to building 8 lines and internal/building to
building can be set separately.
Front 2 digits (Maximum 3 Lines, Line 01~ Line 03) can be set for Internal setting.
Back 2 digits (Maximum 8 Lines, Line 01~Line 08) can be set for building to building setting.
However, all commonly connected guard station setting must be the same.
Pr 02: Call time is set by default as 3 minutes. Values 0001 to 0007 are additional minutes to the
standard 3 minutes.
(Values other than 0001 to 0007 are not accepted)
※
Modified data is stored in all installed Guardhouse and Household Interphones.
Pr 03: Connection is only available when calls are set to forward to Household Interphones.
Various added features do not function.
Pr 05 to Pr 20: If a Building No. is not designated as the Building Number assigned to the
Guardhouse Interphone, pages from the Guardhouse to Households will not go
through.
Pr 31: Always store after making modifications. Failure to store may result in the modification not
being activated
- 47 -
Pr 22
Announcement Groups
01-99: Group Number
Pr 23
Speed Dial 1
Building No. + Household No.
18. Wiring Method
1) Guardhouse Interphone (CDS-481L)
2) Main Entrance Interphone (DRC-481L)
*Security
①
DC 12V used.
②
Designed to be used by connecting to
the lead switch. When not in use, please
connect two wires.
③
When the Main Entrance is opened by
force, the Guardhouse and the computer
are notified.
- 48 -
3) Household Videophone (CH-481SL)
4) Household Videophone (APV-481FT)
- 49 -
5) Household Videophone (CAV-60FSD)
6) Household Videophone (CAV-60FD)
- 50 -
7) Household Videophone (CAV-561D)
8) Household Videophone (CAV-482S)
- 51 -
9) TV-Phone Interface Adaptor(ADT-481)
10) Security Interface Adaptor(ADT-482)
11) System Map
- 52 -
12) Wiring Method for Communications with the Guardhouse
13) Main Entrance Interphone Wiring
chMTXQsl
cameraRHdrcMTXQlI
drcMTba
drcMTca
cavMVPfsd
drcMTba
apvMTXQft
ƃ
ƃ
ƃ
ƃ
ƃ
ƃ
ƃ
ƃ
ƃ
cavMUVQd
drcMTca
b
b
r
o
y
b
b
r
o
y
b
b
r
o
y
Ү
Ү
Ү
Ү
Ү
Ү
Ү
Ү
Ү
Ү
Ү
Ү
cameraQHdrcMTXQlI
tftlcdha s
QRS
TUV
WXY
JPC
fhr
off
mic
on
HsI
↬
ဥ⁜Q
ဥ⁜R
ᾑ ῼ
⧠
㣜⮄O⁝ᄨ
⫭ ᮍ
㥬ၨ
⭬⨸
⭬㦼
ဥ↬
Ạ⥜ᴤ
㔝㦼
Q RS
TUV
WXY
PC
⧠
f hr
㥬ၨ ვ⒈ ဥ↬
Ạ⥜ᴤ
⫭ᮍ
off
onHsI
QR
S
TUV
W XY
PC
⧠
㥬ၨ ⭬㦼 ဥ↬
↬ ᾑῼ
㣜⮄O⁝ᄨ
Ạ⥜ᴤ
⫭ᮍ
off
onHsI
Q
R
S
T
U
V
W
P
X
Y
␔⨑ᾑ´
QN㛿㘟⎣⇿Ꮗᵏ㛿ᩃ⡌ᣬ㘟⎴⎣⛫N
RN⇿Ꮗᵏ㛿㜜⠿㞋H I㔣ᩃዋᨻ⎴⎣⛫N
SN⡟ᮂ⡌ᣬ㙏⠋ᘓH I㔣ᩃ ዋᨻ⎣ට
Ꭻ⎣⡌ᣬ㘟⎴⎣⛫N
TNἋ⎫㛿⎣H Iᵏ⠋ዋᨻ⎴⎣⛫N
UN㗋ᤣᡯᵋ㎃⠇H I⡌ᎏᎫN
card
prog
Q
R
S
T
U
V
W
P
X
Y
␔⨑ᾑ´
QN㛿㘟⎣⇿Ꮗᵏ㛿ᩃ⡌ᣬ㘟⎴⎣⛫N
RN⇿Ꮗᵏ㛿㜜⠿㞋H I㔣ᩃዋᨻ⎴⎣⛫N
SN⡟ᮂ⡌ᣬ㙏⠋ᘓH I㔣ᩃ ዋᨻ⎣ට
Ꭻ⎣⡌ᣬ㘟⎴⎣⛫N
TNἋ⎫㛿⎣H Iᵏ⠋ዋᨻ⎴⎣⛫N
UN㗋ᤣᡯᵋ㎃⠇H I⡌ᎏᎫN
card
prog
b Z b
b Z b
r Z r
o Z o
y Z y
g Z g
b Z b
p Z p
g Z g
w Z w
b
b
r
o
y
b
b
r
o
y
b
b
r
o
y
b
b
r
o
y
b
b
r
o
y
※
NOTE
1.Main Entrance System
•Bk
•Br
•R
•Or
•Y
CALL
GND
VD/IN
VD/OUT
2.Household Videophone
•Bk
•Br
•R
•Or
•Y
CALL
GND
VD/IN
VD/OUT
- 53 -
3.If the Guardhouse Interphone (CDS-481L) has been installed, Number 7 (Data) and 8
(GND) connected to it must be connected to the Household Interphone.
4.Use coaxial cables (3C2V or 5C2V) for Video Out.
14) Wiring ADT-481 and CKV-60T
15) Wiring ADT-482 and CAV-482S
- 54 -
16) Installing Numerous Videophones in a Household
※
Note
1. A: Guardhouse Line (8-wire Common)
B: Main Entrance Line (4-wire Common)
C: Sub Extension (6-wire Common)
2.When registering the Multi Sub number, ADT-481 will not be recognized as the Master and
should be installed last as shown above.
3.Various types of sensors should be connected to the Master, and sensors of the remaining
Subs should be connected with the + wire and the sensor line: if the two lines are not
connected, the Away mode will not function.
17) CCTV and Sensor Wiring
※
NOTE
1.Monitor 1: To view only when being used
by the Main Entrance Interphone
(DRC-481L).
2.Monitor 2: Continuous surveillance of the
Main Entrance.
- 55 -
18) Wiring DRC-481L and CDS-481PC
※
NOTE
To be wired when the Finger Print Recognition device has been installed,
and the wiring must use STP 4P.
19) Wiring CDS-481PC and Multi Port
- 56 -
- 5
-
19. Specifications
Specification
Model
Transmission System
Household Interphone (8-wire common), Outside Line: 8-wire common,
Rated Voltage AC 110 ~ 220V (60Hz) (FREE VOLTAGE)
Power Consumption Max: 10W, Standby: 4.5W
Communication Method Synchronous Communication Method
Communication Distance 1Km Using ф0.65mm Cable
Ambient Temperature -10
℃~
+50
℃
Dimensions 328(W)×230(H)×97(D)mm
CDS-481L
513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea
Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133
Web site : www.commax.com
Printed In Korea / 2014.04.104
PM04481L0010
