AUDIOGATE SECURITY STATION CDS-2AG
User Manual
1
Contents
1. Things to be aware before installation
1. Things to be aware before installation ..........................................................1
2. Important Safeguards .....................................................................................2
3. Parts . . ...........................................................................................................4
4. Household unit call ..........................................................................................7
5. To call a lobby phone .....................................................................................8
6. To page a household unit by Registered LP (License Plate) number .........8
7. Broadcasting ...................................................................................................9
8. "REJECT" function .........................................................................................9
9. "Away" mode and delay setting .....................................................................9
10. In case of Emergency .................................................................................10
11. To alert a delivery package (parcel)............................................................11
12.To check the communication status of a household .................................11
13. To set the time ............................................................................................12
14. Registration (Please review thoroughly)....................................................12
15. Built-in Program (Security Station).............................................................
16
16. System Diagram .........................................................................................18
17. Wiring .........................................................................................................19
18. Other information .......................................................................................20
19. Specification and Feature...........................................................................20
CDS-2AG is to be connected with a lobby phone at the public entrance via 4 common
wires with 1 channel / 2-wire voice communication, “Balanced Type”.
CDS-2AG is expandable up to 4 stations by allocating an ID to each device.
Wiring must be reviewed thoroughly before installation to prevent any damage.
2
2. Important Safeguards
Please follow the things described below in order to prevent any
danger or property damage.
Warning
Caution
P
rohibition.
No disassembly
N
o touch
Must follow strictly.
S
hows plugging out the power cord
without an exception
Shows the warning and caution for an electric shock.
Shows the warning and caution for a fire.
It may cause a minor damage or injury if violated.
It may cause a serious damage or injury if
v
iolated.
Power & Installation
Warning
Please don’t use several
products at the same time on
one power socket.
·
It may cause a fire due to an
abnormal
overheating.
Please don’
t bend the power
cable excessively or it may
cause an electric shock.
·
fire when using a damaged
power cable.
Please don’
t handle the power
cable with a wet hand.
·
It may cause an electric
shock.
Please plug out the power
cable from the socket when
not using it for a long period
of time.
·
It may shorten the product
lifespan or cause a fire.
Please don’
t install the
product in the place where
there is much oil, smoke or
humidity.
·It may cause an electric
shock or fire.
Please don’t install the
product with the lightening
and thunder.
·
It may cause an electric
shock or fire.
Please don’
t use and connect
this product with other
products with different rated
voltage
·It may cause a disorder or
fire.
When installing the product
that generates heat, please
install the product away from
the wall (10cm) for the
ventilation.
·
It may cause a fire due to
the increased internal
temperature.
3

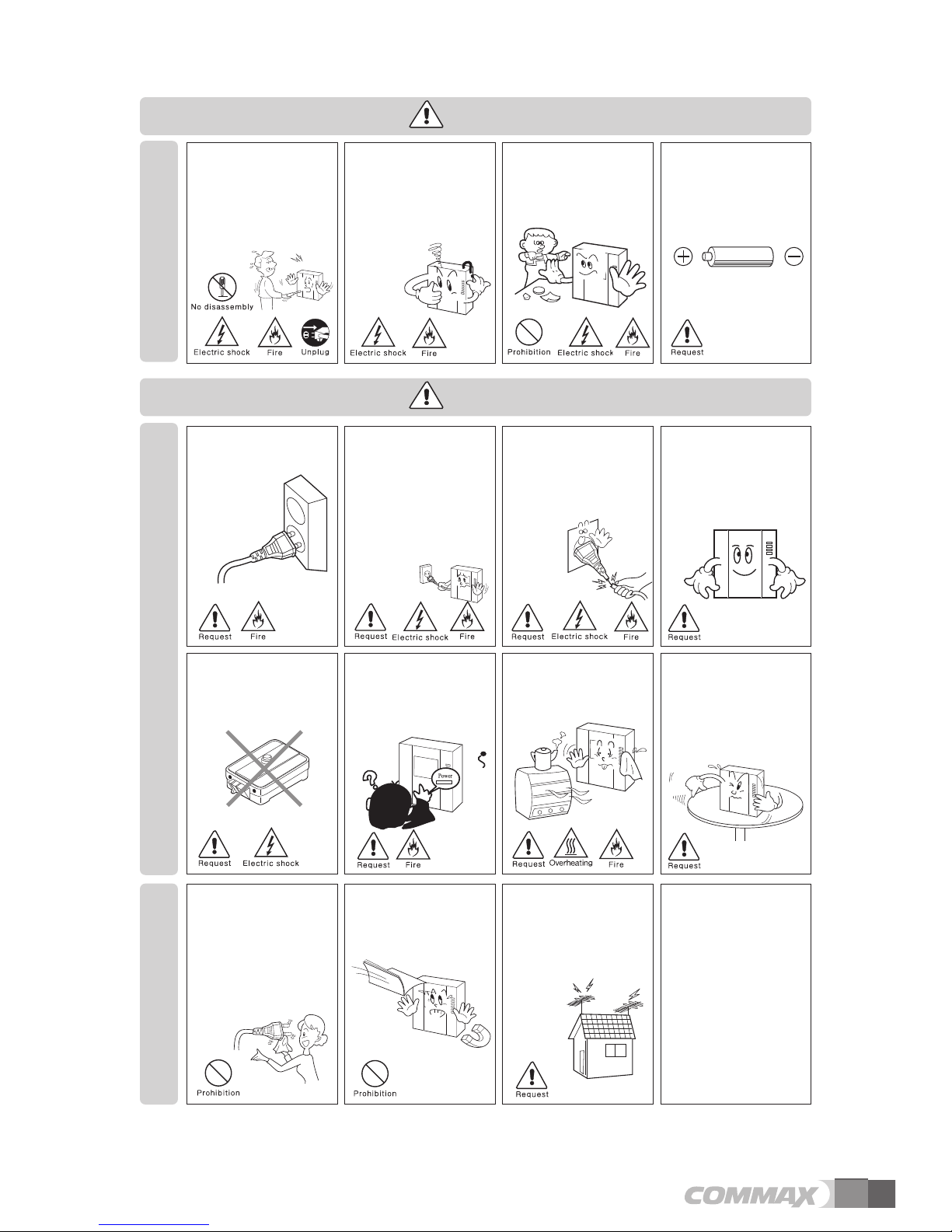

Cleaning & Use
P
lease don’tdisassemble,
repair or rebuild this product
arbitrarily (please contact the
service center if a repair is
n
eeded.
·
I
t may cause an electric
s
hock or fire.
Please plug the power cable
firmly into the inner end
·
It may cause a fire.
Please hold the plug tightly
when unplugging the power
cable (a part of the copper
wire may be disconnected if
the grabbing is only made on
the cord when pulling out the
cable).
·
It may cause an electric
shock or fire
When connecting the power
cables after cutting the cable,
please install the product with
power off
·
It may cause an electric
shock or fire
When installing the product,
please fix it firmly while using
the wall-mounting unit and
screws.
·It may cause an injury from
the falling object.
Please be careful when using
an AC circuit breaker since
there is a possibility of an
electric shock.
When cleaning the product,
please rub it with a soft and
dry cloth after plugging out
the power cable. (Please don’
t
use any chemical products
such as wax, benzene, alcohol
or cleanser.)
Please don’
t drop the product
on the ground and don’
t apply
a shock .
·
It may cause a failure.
Please use the designated
connection cable within the
maximum calling distance
designated for the product
·
It may reduce the product
performance.
Please check the use voltage
and current for the DC-only
products and use the
appropriate rectifier.
·It may cause a fire.
Please avoid direct rays of the
sun or heating devices at a
time of installation.
·
It may cause a fire.
Please don’t install the
product on an unstable place
or small support board.
·
It may cause an injury if it
falls down while in use.
I
f an abnormal sound, burning
s
mell or smoke is coming out
o
f the product, please plug out
the power cable and contact a
service center.
·
It may cause an electric
shock or fire.
P
lease don’
t
insert any
metallic or burnable materials
into the ventilation hole.
·
It may cause an electric
s
hock or fire.
Please use only the designated
b
atteries for the products of
u
sing DC power.
·
I
t may cause an electric
shock or fire.
Cleaning & UsePower & Installation
Warning
Caution
4

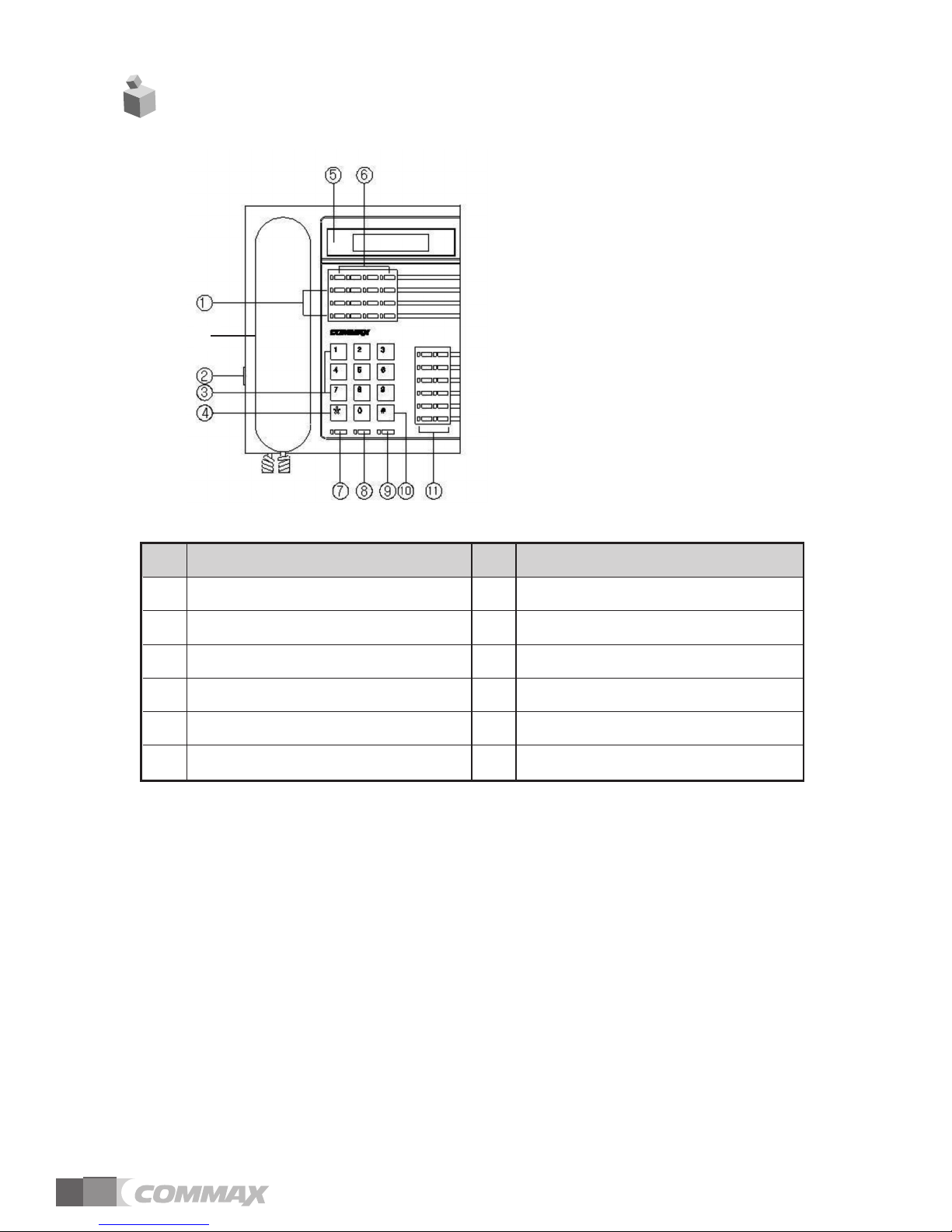

3. Parts names
No. Item No. Item
1 Set up and input button 7 Broadcasting button
2 Paging volume control switch 8 Call operating button
3 10-key button 9 Speakerphone button
4 Building button 10 Paging button
5 LCD 11 Speed dial input and set up button
6 Call waiting button (1~4) 12 Hand set
⑫
5
Button details
,
Buttons
1) “SELECT 1~4” button : check a missed call
2) “TIMER” button : to set up time
3) “PROGRAM” button : to input security station program set up
4) “PROGRAM CHECK” button : to change security station program set up
5) “REJECT” button : to forward a call to other security station
(Number for call forwarding security station must be registered via “Pr03”)
6) “AWAY MODE” button : to set up “away” mode of any household units
7) “REMOTE CONTROL” button : to confirm and/or change household unit
information
8) “◀
, ▶” button : to confirm and/or change input data
9) “EXPANSION” button : to input a multi-sub number for a household unit
or other expansions.
10) “REDIAL” button : to call a last call
11) “EMERGENCY CALL” button : to check and page a household unit with
emergency paging
12) “DOOR RELEASE” button : to release a public entrance lock
6
, ,,,,
Buttons
1) 10 key buttons : to dial numbers
2) Building button(*) : to input building number
3) Paging button(#) : right after entering a household unit number
4) Broadcasting button : Broadcasting among security stations
5) Call operating button : Forwarding a call from a unit to another
unit/security station
6) Speakerphone button : Speakerphone function
Speed dial button
1) Speed dial button (1~8) : For frequently used numbers
2) Extension call 1 lamp (LED) : Indicating extension call line 1
3) Confirm button: Identifying a unit by license plate number
4) Parcel/LP (License Plate) button : Paging a unit by LP number
5) Input1, Input2 : To enter LP number
