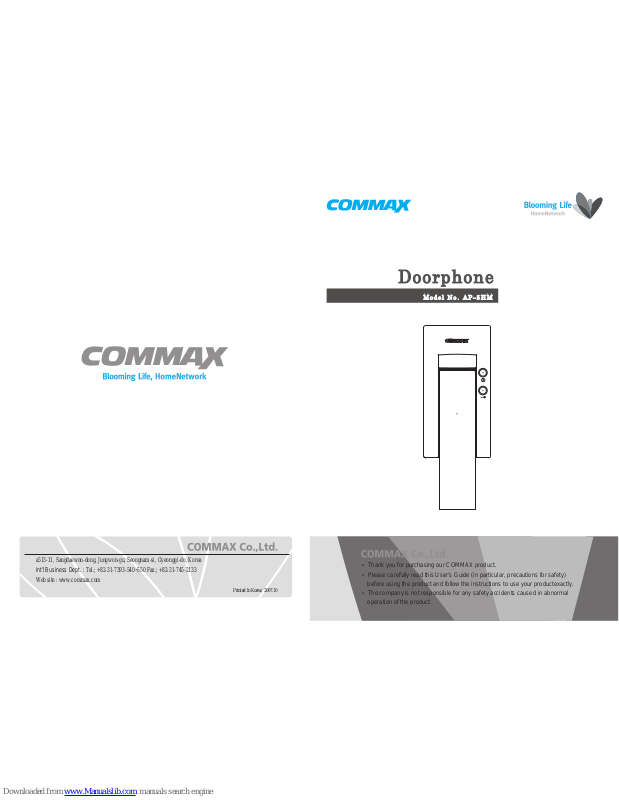

a513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea
Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133
Web site : www.commax.com
Printed In Korea/ 2007.10
• Thank you for purchasing our COMMAX product.
• Please carefully read this User’s Guide (in particular, precautions for safety)
before using the product and follow the instructions to use your productexactly.
• The company is not responsible for any safety accidents caused in abnormal
operation of the product.
Features & Specifications
Part Names & Functions
Multi Entry Panel Calling
Sub unit calling (Intercommunication)
Call / Talk duration
Setting In-House unit as a Master
and Sub Unite
Chime sound
Changing and initialization of the password
Opening the entrance of a Multi-entry Panel
With Password
Wiring
System Diagram
2
3
4
4
4
5
6
6
7
8
10
1
Table of Contents
This is Audio and wall mount type in-house unit.
Up to 4 residences are connectable with a single Floor distributor
through a Building Distributor connected with the Multi Entry Panel.
Each residence can add 2 sub-units, which comes to 3 units in total
including the master unit.
* Ring tone control : this is to adjust the volume of the ring tone or
melody from the Multi Entry Panel.
No. Details
4 Door release button
5 Speaker
6 Connection outlet (9P)
No. Details
1 Handset
2 Ring tone control
3 Extension button
This is an Audio DC type in-house unit.
It can add up to a maximum of 2 sub units in each residence
and is a surface mount type with functions of releasing a door
and intercommunicating.
1) Features
① DC type
② The power is supplied from the floor distributor without
additional power supply.
③ 2 buttons : the “Door release” and “Extension call”
④ COMMAX chime(sol, Mi, Do) is the ringtone from the Multi Entry
Panel And there is a doorbell Ding-Dong sound from a individual door.
⑤ Door release
⑥ 5 wires UTP Cable (CAT.5) including power source.
1. Features & Specifications
2) Specifications
ITEM AP-5HM
Wiring To Floor distributor: 5 wires
(talk 2, data 1, power source 1, GND 1)
Power Voltage DC 24V~ 28V/ 5A
( a power supplied from floor distributor)
Transmission Method Simultaneous phone conversation
Power Standby: 30 mA
Requirements Maximum operation: 70 mA
Distance range Between Floor Distributor to
In-house unit UTP (Ø0.5) 50m
2
2. Part Names & Functions
3
