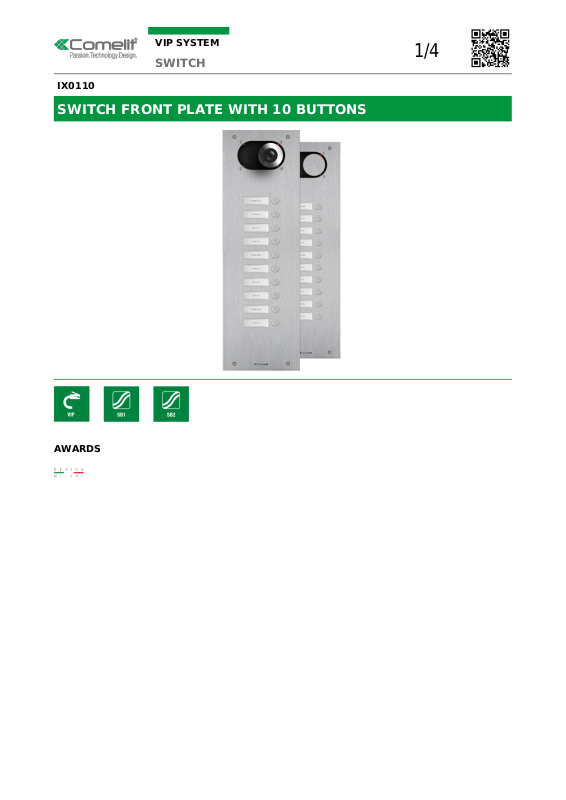

Page 1
VIP SYSTEM
SWITCH
IX0110
SWITCH FRONT PLATE WITH 10 BUTTONS
1/4
AWARDS
Page 2
VIP SYSTEM
SWITCH
IX0110
SWITCH FRONT PLATE WITH 10 BUTTONS
GENERAL DATA
Type Monoblock
Product height (inch) (mm) 475.5
Product width (inch) (mm) 150
Product depth (inch) (mm) 2.5
Product color Steel
Material Stainless steel AISI 316
Flush-mounted Yes, with a dedicated accessory
Wall-mounted Yes, with a dedicated accessory
2/4
COMPATIBLE SYSTEMS
Compatible audio and audio/video units Art.1682, Art.1682HVC, Art.4682HD, Art.1621, Art.1622,
Art.1622VC, Art.4680C, Art.4681
Audio/video Simplebus 2 with power
supply art. 4888C
Audio/video Simplebus 2 with power
supply art. 1210
Simplebus 2 audio/video kit with power
supply art. 1209
Audio Simplebus 2 with power supply
art. 1210
Audio Simplebus 1 Yes
ViP Yes
Yes
Yes
Yes
Yes
AUDIO FEATURES
Technologies implemented Echo canceling
HARDWARE FEATURES
Call type Push-buttons
Type of buttons Mechanical
Number of push-buttons (n°) 10
Backlight color White
The technical specifications are subject to change without prior notice.
Page 3
VIP SYSTEM
SWITCH
IX0110
SWITCH FRONT PLATE WITH 10 BUTTONS
ENVIRONMENTAL AND COMPLIANCE FEATURES
IP protection degree IP54
IK vandal-proof protection degree IK08
Operating temperature (°F) (°C) -25 ÷ 55
Operating humidity (RH max - %) (%) 25 ÷ 75
Environmental class III
3/4
The technical specifications are subject to change without prior notice.
Page 4
VIP SYSTEM
SWITCH
IX0110
SWITCH FRONT PLATE WITH 10 BUTTONS
ACCESSORIES
4/4
IX9152
IX9162
FLUSH-MOUNTED BOX FOR FRONT PLATE W/ 9-10-11-12
HOUSING FOR FRONT PLATE W/ 9-10-11-12 BUTTONS
The technical specifications are subject to change without prior notice.The technical specifications are subject to change without prior notice.
