Comelit 6228W Specsheet

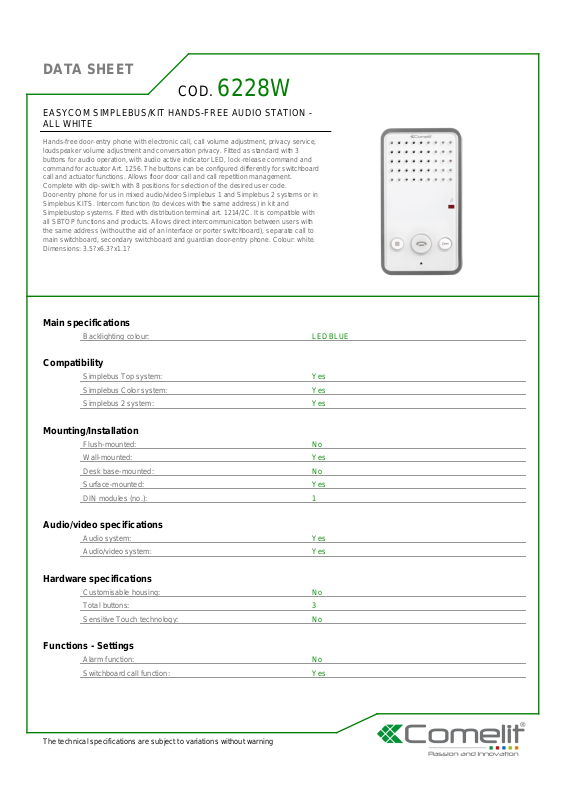

DATA SHEET
COD.
6228W
EASYCOM SIMPLEBUS/KIT HANDS-FREE AUDIO STATION ALL WHITE
Hands-free door-entry phone with electronic call, call volume adjustment, privacy service,
loudspeaker volume adjustment and conversation privacy. Fitted as standard with 3
buttons for audio operation, with audio active indicator LED, lock-release command and
command for actuator Art. 1256. The buttons can be configured differently for switchboard
call and actuator functions. Allows floor door call and call repetition management.
Complete with dip-switch with 8 positions for selection of the desired user code.
Door-entry phone for us in mixed audio/video Simplebus 1 and Simplebus 2 systems or in
Simplebus KITS. Intercom function (to devices with the same address) in kit and
Simplebustop systems. Fitted with distribution terminal art. 1214/2C. It is compatible with
all SBTOP functions and products. Allows direct intercommunication between users with
the same address (without the aid of an interface or porter switchboard), separate call to
main switchboard, secondary switchboard and guardian door-entry phone. Colour: white.
Dimensions: 3.5?x6.3?x1.1?
Main specifications
Backlighting colour: LED BLUE
Compatibility
Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Mounting/Installation
Flush-mounted: No
Wall-mounted: Yes
Desk base-mounted: No
Surface-mounted: Yes
DIN modules (no.): 1
Audio/video specifications
Audio system: Yes
Audio/video system: Yes
Hardware specifications
Customisable housing: No
Total buttons: 3
Sensitive Touch technology: No
Functions - Settings
Alarm function: No
Switchboard call function: Yes
The technical specifications are subject to variations without warning
DATA SHEET
Floor door call function: Yes
Actuator control function: Yes
Privacy conversation function: Yes
Induction loop function: No
Intercom function: Yes
Privacy function: Yes
Key button function: Yes
Hands-free function: Yes
Full Duplex hands-free function: No
Loudspeaker volume control: Yes
Microphone volume control: Yes
Ringtone volume control: Yes
Technical properties
Temperature range: -5 / 55
General info
EAN product code: '8023903211054
Intrastat code: 85176920
Customisable ringtone: No
Product height (mm): 160
Product width (mm): 90
Product depth (mm): 28
Product colour: WHITE RAL9016
Packaging
Single pack height (mm): 58
Single pack width (mm): 95
Single pack weight (g): 340
Single pack depth (mm): 162
Single pack volume (dm3): 0,89
The technical specifications are subject to variations without warning
