Comelit 6202B-C Specsheet

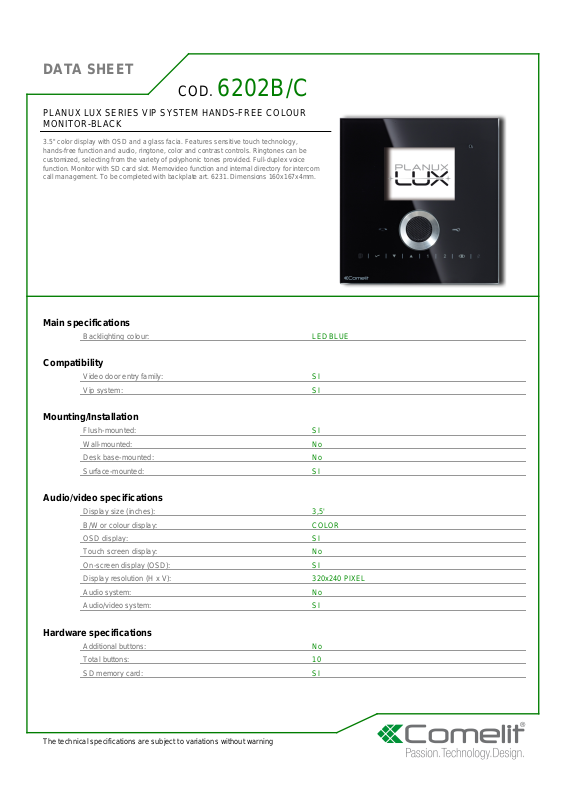

DATA SHEET

COD.

6202B/C

PLANUX LUX SERIES VIP SYSTEM HANDS-FREE COLOUR
MONITOR-BLACK

3.5'' color display with OSD and a glass facia. Features sensitive touch technology,
hands-free function and audio, ringtone, color and contrast controls. Ringtones can be
customized, selecting from the variety of polyphonic tones provided. Full-duplex voice
function. Monitor with SD card slot. Memovideo function and internal directory for intercom
call management. To be completed with backplate art. 6231. Dimensions 160x167x4mm.

Main specifications

Backlighting colour: LED BLUE

Compatibility

Video door entry family: SI
Vip system: SI

Mounting/Installation

Flush-mounted: SI
Wall-mounted: No
Desk base-mounted: No
Surface-mounted: SI

Audio/video specifications

Display size (inches): 3,5'
B/W or colour display: COLOR
OSD display: SI
Touch screen display: No
On-screen display (OSD): SI
Display resolution (H x V): 320x240 PIXEL
Audio system: No
Audio/video system: SI

Hardware specifications

Additional buttons: No
Total buttons: 10
SD memory card: SI

The technical specifications are subject to variations without warning

DATA SHEET

Sensitive Touch technology: SI

Software/firmware specifications

IP assignment: ATUO IP

Connectivity

Type of connections/ports: ETHERNET

Functions - Settings

Automatic gain control (AGC): SI
Alarm function: SI
Switchboard call function: SI
Floor door call function: SI
Actuator control function: YRS
Privacy conversation function: SI
Induction loop function: SI
Intercom function: SI
Privacy function: SI
Key button function: SI
Hands-free function: SI
Full Duplex hands-free function: SI
Display colour control: SI
Display contrast control: SI
Display brightness control: SI
Loudspeaker volume control: SI
Microphone volume control: No
Ringtone volume control: SI

Technical properties

Temperature range (°C): -5/55

Electrical specifications

Maximum current absorption (mA): 150

General info

Self-ignition: SI
EAN product code: 8023903245905
Intrastat code: 85176910
Customisable ringtone: SI
Product height (mm): 167
Product width (mm): 169
Product depth (mm): 38
Product weight: 580 g

The technical specifications are subject to variations without warning
