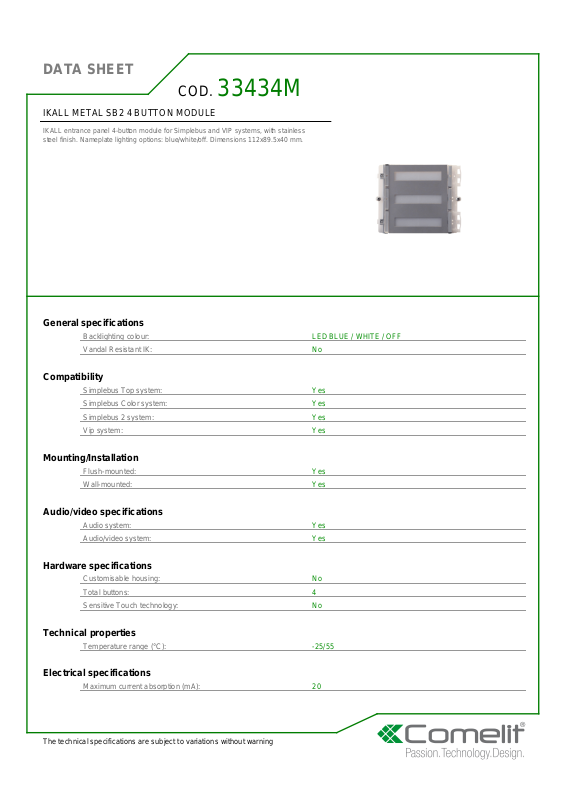

Comelit 33434M Specsheet

DATA SHEET

COD.

33434M

IKALL METAL SB2 4 BUTTON MODULE

IKALL entrance panel 4-button module for Simplebus and VIP systems, with stainless
steel finish. Nameplate lighting options: blue/white/off. Dimensions 112x89.5x40 mm.

General specifications

Backlighting colour: LED BLUE / WHITE / OFF
Vandal Resistant IK: No

Compatibility

Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Vip system: Yes

Mounting/Installation

Flush-mounted: Yes
Wall-mounted: Yes

Audio/video specifications

Audio system: Yes
Audio/video system: Yes

Hardware specifications

Customisable housing: No
Total buttons: 4
Sensitive Touch technology: No

Technical properties

Temperature range (°C): -25/55

Electrical specifications

Maximum current absorption (mA): 20

The technical specifications are subject to variations without warning

DATA SHEET

General info

Intrastat code: 8517709000
Product height (mm): 89,5
Product width (mm): 112
Product depth (mm): 40
Product colour: LIGHT BLUE

Packaging

Single pack height (mm): 55
Single pack width (mm): 110
Single pack weight (g): 225
Single pack depth (mm): 95
Single pack volume (dm3): 0,575

The technical specifications are subject to variations without warning
