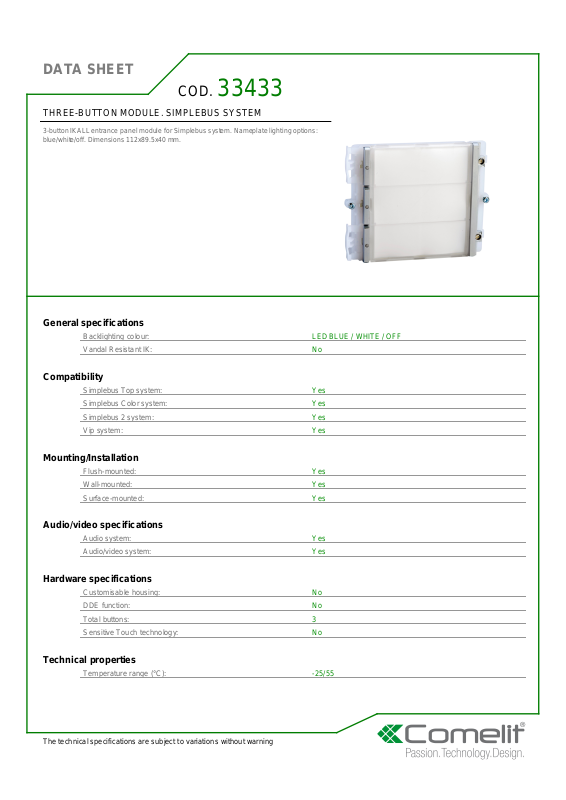

Comelit 33433 Specsheet

DATA SHEET

COD.

33433

THREE-BUTTON MODULE. SIMPLEBUS SYSTEM

3-button IKALL entrance panel module for Simplebus system. Nameplate lighting options:
blue/white/off. Dimensions 112x89.5x40 mm.

General specifications

Backlighting colour: LED BLUE / WHITE / OFF
Vandal Resistant IK: No

Compatibility

Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Vip system: Yes

Mounting/Installation

Flush-mounted: Yes
Wall-mounted: Yes
Surface-mounted: Yes

Audio/video specifications

Audio system: Yes
Audio/video system: Yes

Hardware specifications

Customisable housing: No
DDE function: No
Total buttons: 3
Sensitive Touch technology: No

Technical properties

Temperature range (°C): -25/55

The technical specifications are subject to variations without warning

DATA SHEET

Electrical specifications

Maximum current absorption (mA): 20

General info

EAN product code: 8023903211269
Intrastat code: 85176920
Product height (mm): 89,5
Product width (mm): 112
Product depth (mm): 40
Product colour: LIGHT BLUE

Packaging

Single pack height (mm): 53
Single pack width (mm): 110
Single pack weight (g): 207
Single pack depth (mm): 94
Single pack volume (dm3): 0,548

The technical specifications are subject to variations without warning
