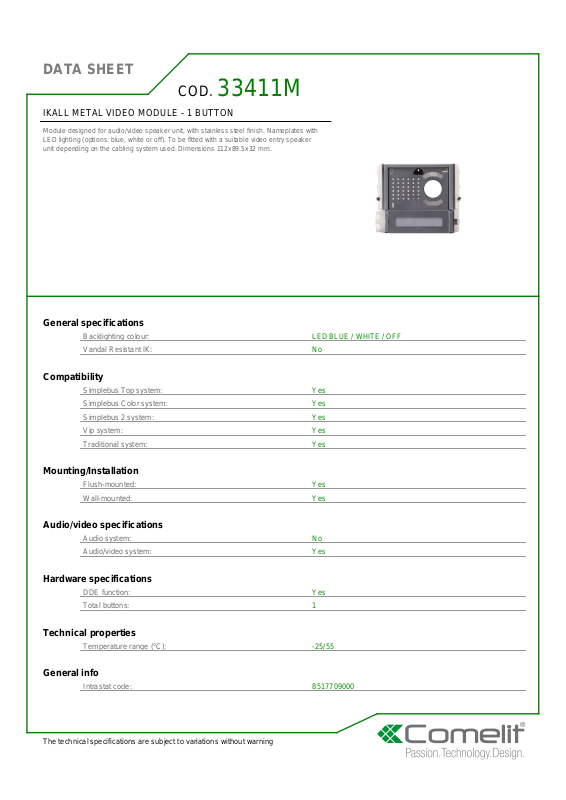

Comelit 33411M Specsheet

DATA SHEET
COD.
33411M
IKALL METAL VIDEO MODULE - 1 BUTTON
Module designed for audio/video speaker unit, with stainless steel finish. Nameplates with LED lighting (options: blue, white or off). To be fitted with a suitable video entry speaker unit depending on the cabling system used. Dimensions 112x89.5x32 mm.
Backlighting colour: LED BLUE / WHITE / OFF Vandal Resistant IK: No
Compatibility
Simplebus Top system: Yes Simplebus Color system: Yes Simplebus 2 system: Yes Vip system: Yes Traditional system: Yes
Mounting/Installation
Flush-mounted: Yes Wall-mounted: Yes
Audio/video specifications
Audio system: No Audio/video system: Yes
Hardware specifications
DDE function: Yes Total buttons: 1
Technical properties
Temperature range (°C): -25/55
General info
Intrastat code: 8517709000
The technical specifications are subject to variations without warning
DATA SHEET
Product height (mm): 89,5 Product width (mm): 112 Product depth (mm): 32 Product colour: BLACK RAL9005
Packaging
Single pack height (mm): 55 Single pack width (mm): 110 Single pack weight (g): 120 Single pack depth (mm): 95 Single pack volume (dm3): 0,575
The technical specifications are subject to variations without warning
