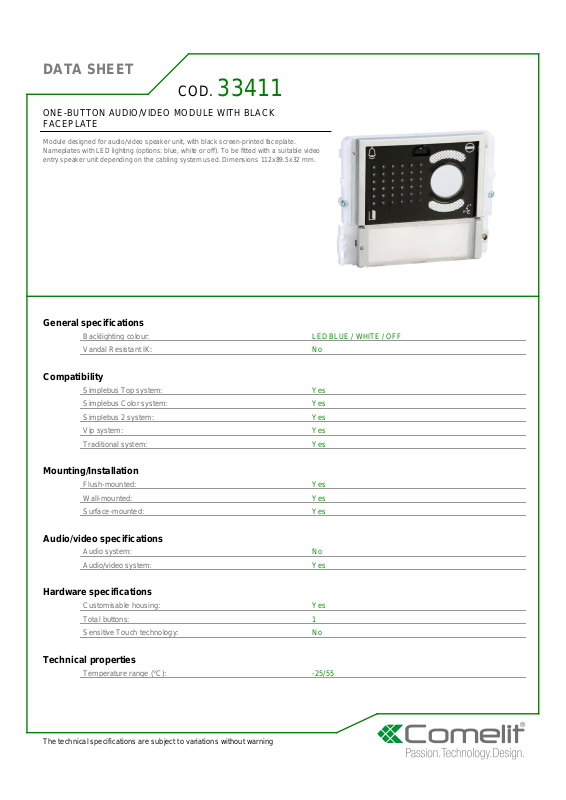

Comelit 33411 Specsheet

DATA SHEET

COD.

33411

ONE-BUTTON AUDIO/VIDEO MODULE WITH BLACK
FACEPLATE

Module designed for audio/video speaker unit, with black screen-printed faceplate.
Nameplates with LED lighting (options: blue, white or off). To be fitted with a suitable video
entry speaker unit depending on the cabling system used. Dimensions 112x89.5x32 mm.

General specifications

Backlighting colour: LED BLUE / WHITE / OFF
Vandal Resistant IK: No

Compatibility

Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Vip system: Yes
Traditional system: Yes

Mounting/Installation

Flush-mounted: Yes
Wall-mounted: Yes
Surface-mounted: Yes

Audio/video specifications

Audio system: No
Audio/video system: Yes

Hardware specifications

Customisable housing: Yes
Total buttons: 1
Sensitive Touch technology: No

Technical properties

Temperature range (°C): -25/55

The technical specifications are subject to variations without warning

DATA SHEET

Electrical specifications

Maximum current absorption (mA): 20

General info

EAN product code: 8023903211191
Intrastat code: 85176920
Product height (mm): 89,5
Product width (mm): 112
Product depth (mm): 32
Product colour: BLACK RAL9005

Packaging

Single pack height (mm): 53
Single pack width (mm): 110
Single pack weight (g): 159
Single pack depth (mm): 94
Single pack volume (dm3): 0,548

The technical specifications are subject to variations without warning
