Comelit 33400 Specsheet

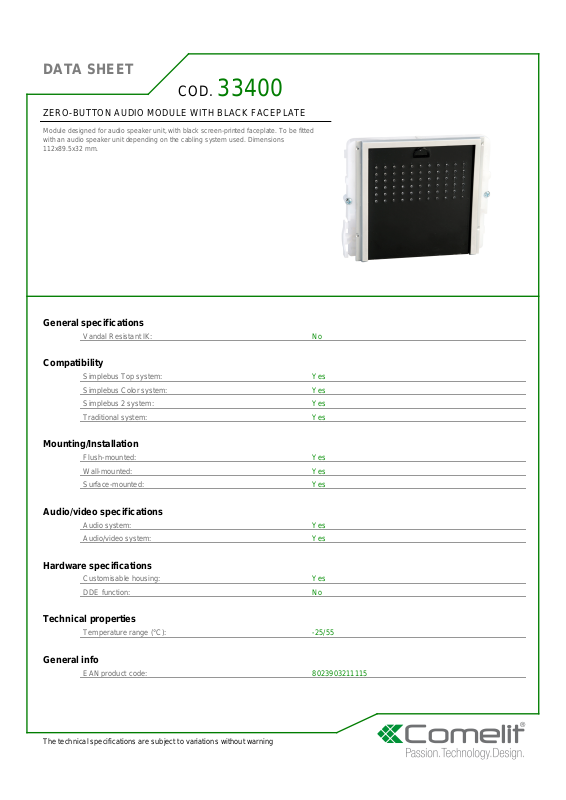

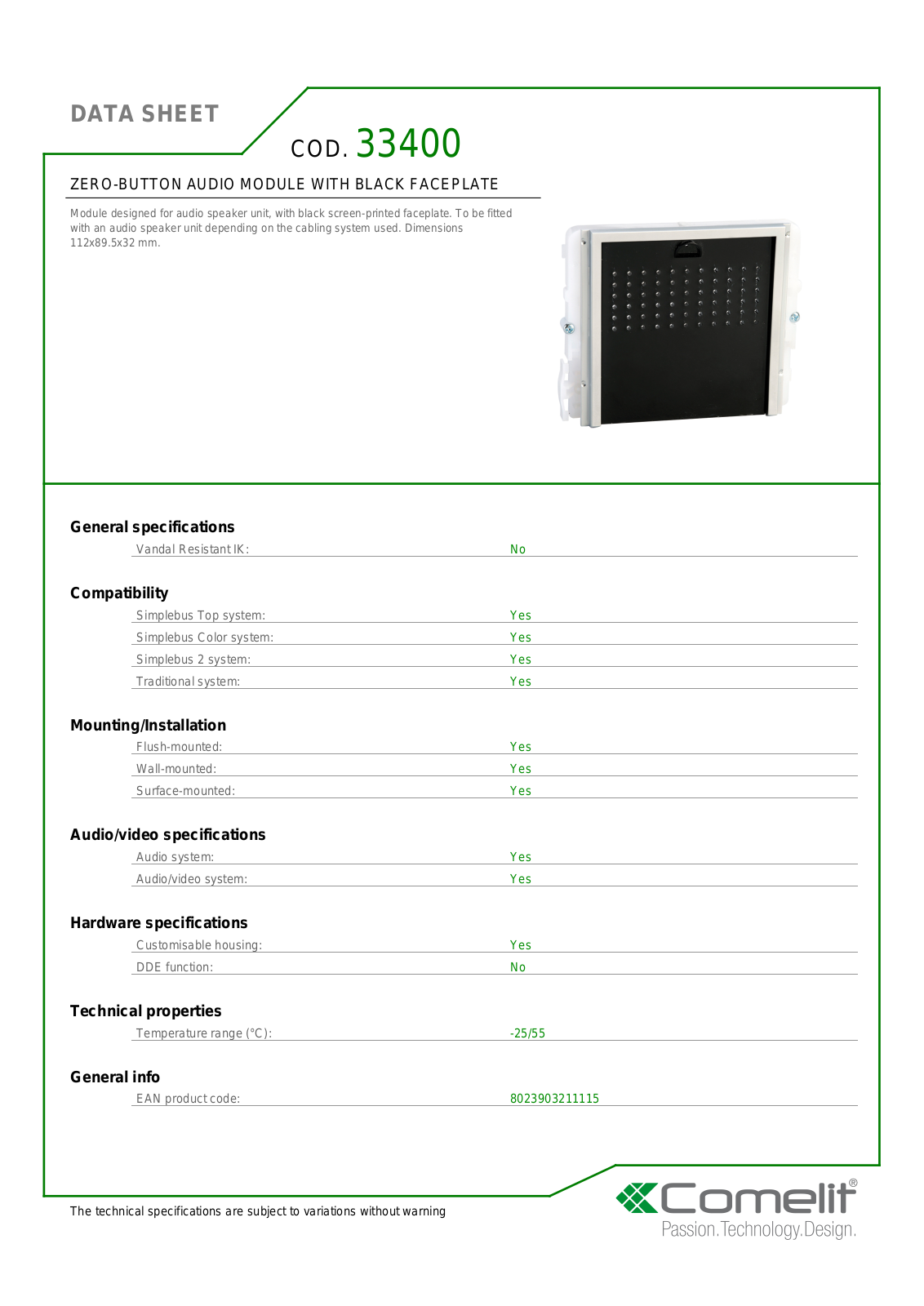

DATA SHEET
COD.
33400
ZERO-BUTTON AUDIO MODULE WITH BLACK FACEPLATE
Module designed for audio speaker unit, with black screen-printed faceplate. To be fitted
with an audio speaker unit depending on the cabling system used. Dimensions
112x89.5x32 mm.
General specifications
Vandal Resistant IK: No
Compatibility
Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Traditional system: Yes
Mounting/Installation
Flush-mounted: Yes
Wall-mounted: Yes
Surface-mounted: Yes
Audio/video specifications
Audio system: Yes
Audio/video system: Yes
Hardware specifications
Customisable housing: Yes
DDE function: No
Technical properties
Temperature range (°C): -25/55
General info
EAN product code: 8023903211115
The technical specifications are subject to variations without warning

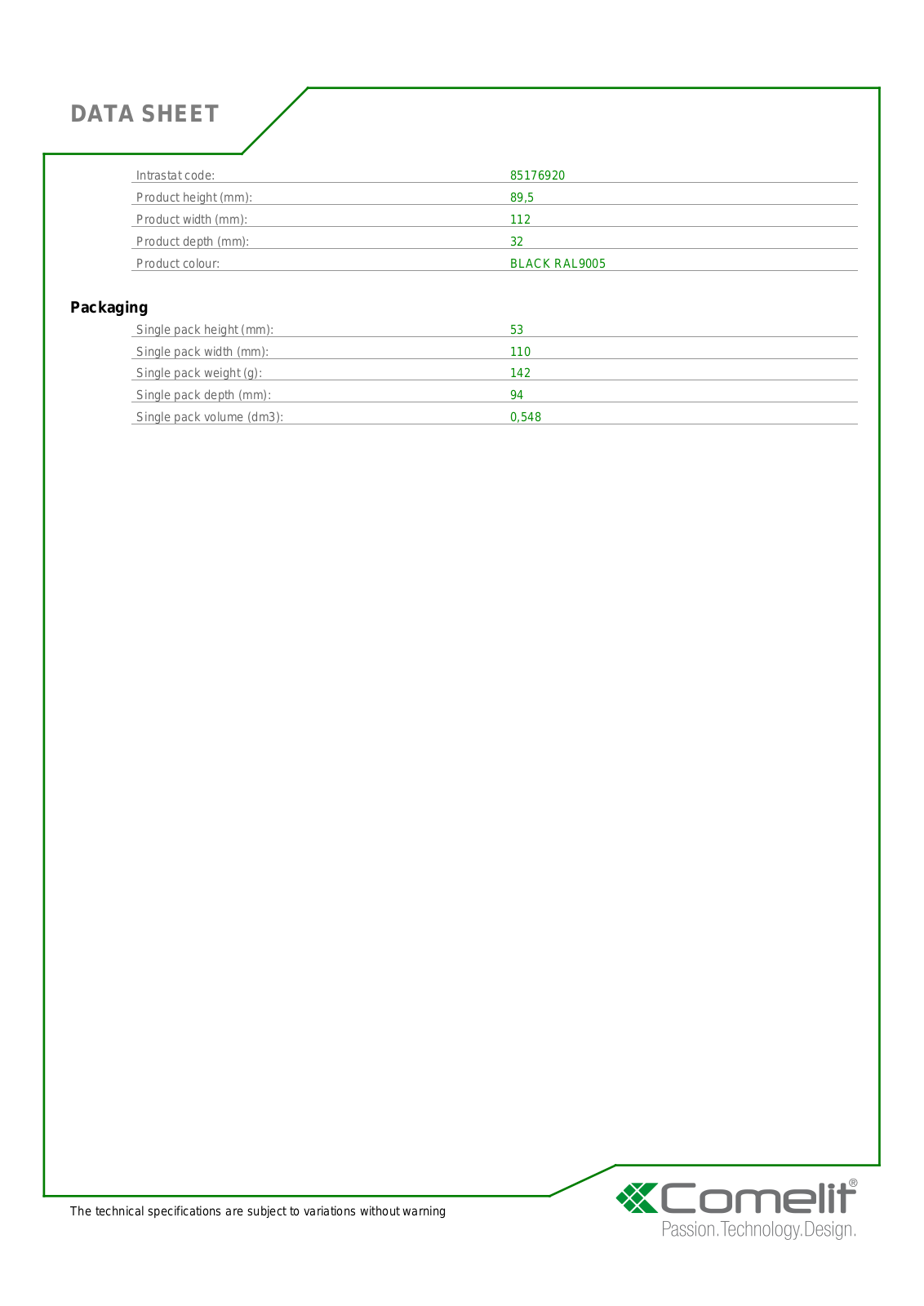

DATA SHEET
Intrastat code: 85176920
Product height (mm): 89,5
Product width (mm): 112
Product depth (mm): 32
Product colour: BLACK RAL9005
Packaging
Single pack height (mm): 53
Single pack width (mm): 110
Single pack weight (g): 142
Single pack depth (mm): 94
Single pack volume (dm3): 0,548
The technical specifications are subject to variations without warning
