Comelit 3340 Specsheet
1/3

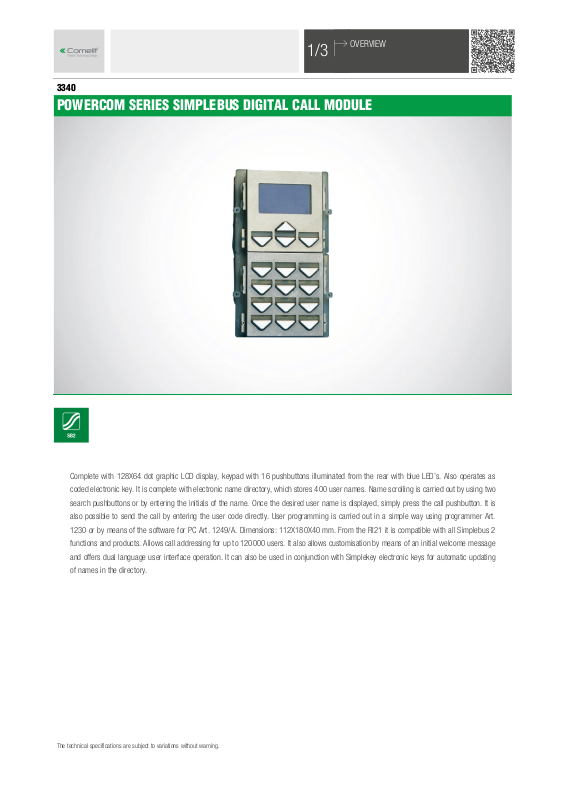

OVERVIEW
3340
POWERCOM SERIES SIMPLEBUS DIGITAL CALL MODULE
Complete with 128X64 dot graphic LCD display, keypad with 16 pushbuttons illuminated from the rear with blue LED’s. Also operates as
coded electronic key. It is complete with electronic name directory, which stores 400 user names. Name scrolling is carried out by using two
search pushbuttons or by entering the initials of the name. Once the desired user name is displayed, simply press the call pushbutton. It is
also possible to send the call by entering the user code directly. User programming is carried out in a simple way using programmer Art.
1230 or by means of the software for PC Art. 1249/A. Dimensions: 112X180X40 mm. From the RI21 it is compatible with all Simplebus 2
functions and products. Allows call addressing for up to 120000 users. It also allows customisation by means of an initial welcome message
and offers dual language user interface operation. It can also be used in conjunction with Simplekey electronic keys for automatic updating
of names in the directory.
The technical specifications are subject to variations without warning.
2/3
FUNCTION AND GENERAL DATA
3340
POWERCOM SERIES SIMPLEBUS DIGITAL CALL MODULE
MAIN FEATURES
Backlighting colour:
Vandal Resistant rating (IK code):
Height (mm): 180
Width (mm): 112
Depth (mm): 40
Operating temperature (°C): -25 ÷ 55
Maximum current absorption (mA): 100
SOFTWARE/FIRMWARE SPECIFICATIONS
Number of user codes: 1000
No. of storable users: 1000
FUNCTIONS
Key button function: Yes
HARDWARE SPECIFICATIONS
Total buttons: 16
GENERAL DATA
Colour: Grey
COMPATIBILITY
Simplebus 2 audio/video system: Yes
Simplebus 2 audio system: Yes
MOUNTING/INSTALLATION
Flush-mounted: Yes
Wall-mounted: Yes
AUDIO/VIDEO FEATURES
Display size (inch): 3
Display resolution (HxV - pixel): 128x64
Audio system: Yes
Audio/video system: Yes
Type of display:
CONNECTIVITY
Type of connections/ports: RS232, RS485, Infrared
The technical specifications are subject to variations without warning.
