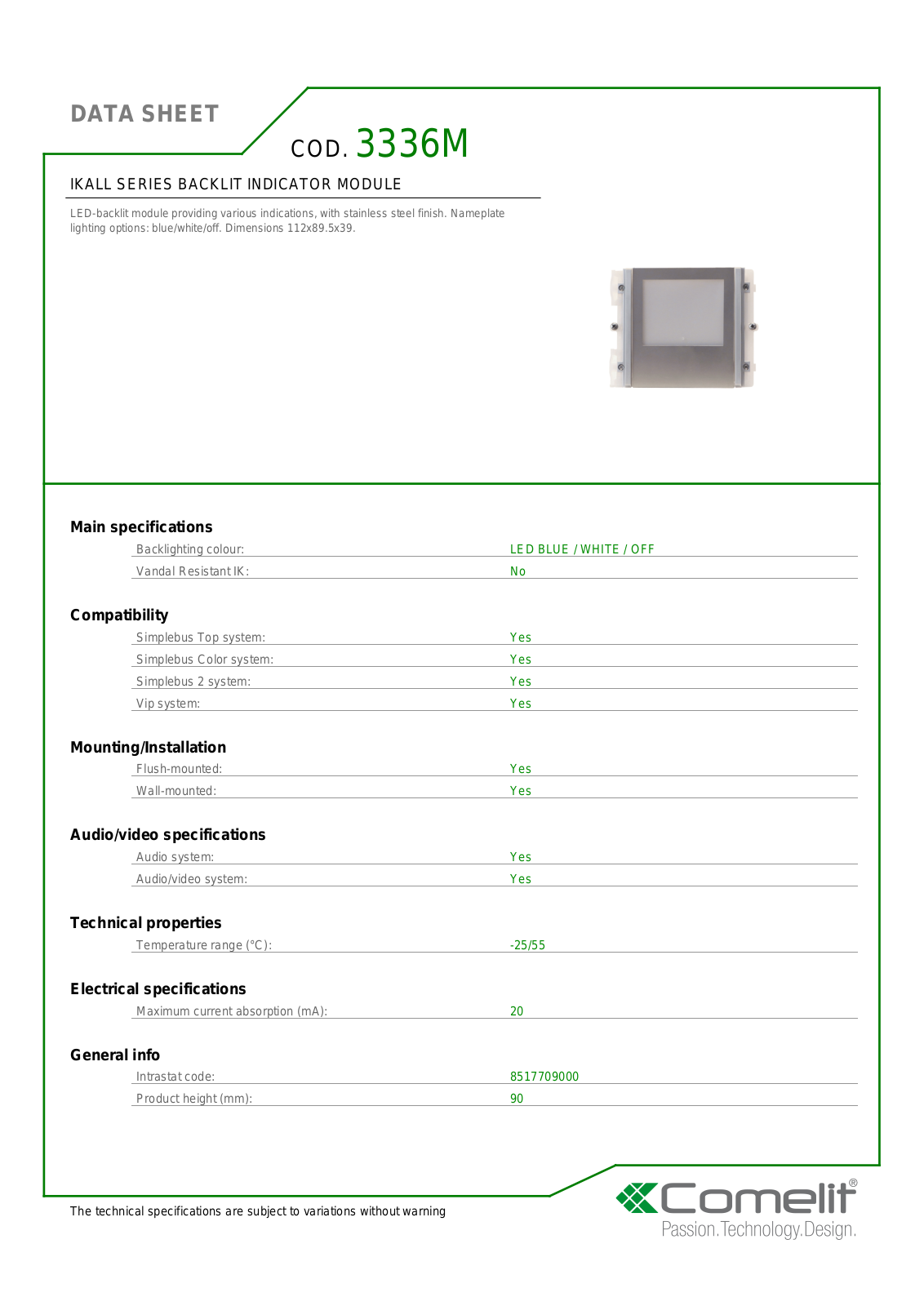

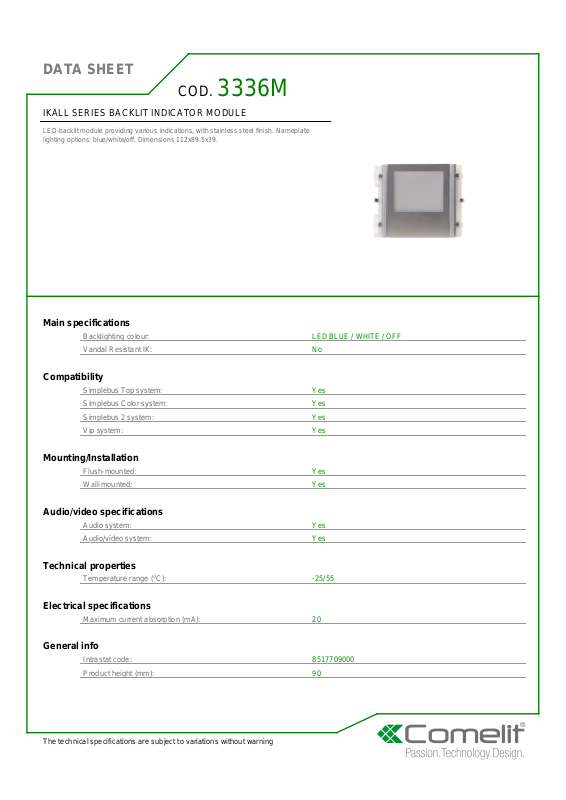

DATA SHEET
COD.
3336M
IKALL SERIES BACKLIT INDICATOR MODULE
LED-backlit module providing various indications, with stainless steel finish. Nameplate
lighting options: blue/white/off. Dimensions 112x89.5x39.
Main specifications
Backlighting colour: LED BLUE / WHITE / OFF
Vandal Resistant IK: No
Compatibility
Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Vip system: Yes
Mounting/Installation
Flush-mounted: Yes
Wall-mounted: Yes
Audio/video specifications
Audio system: Yes
Audio/video system: Yes
Technical properties
Temperature range (°C): -25/55
Electrical specifications
Maximum current absorption (mA): 20
General info
Intrastat code: 8517709000
Product height (mm): 90
The technical specifications are subject to variations without warning

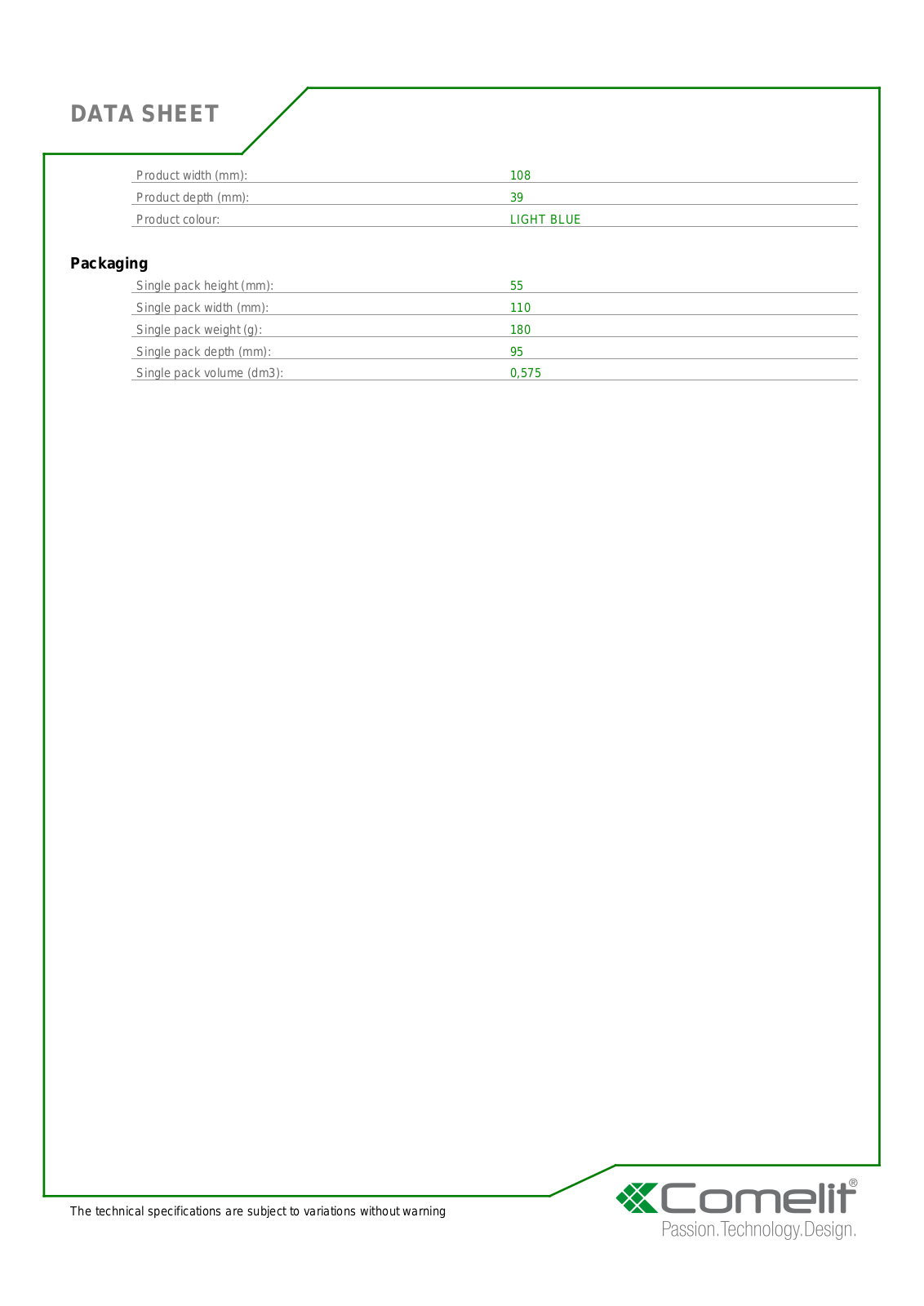

DATA SHEET
Product width (mm): 108
Product depth (mm): 39
Product colour: LIGHT BLUE
Packaging
Single pack height (mm): 55
Single pack width (mm): 110
Single pack weight (g): 180
Single pack depth (mm): 95
Single pack volume (dm3): 0,575
The technical specifications are subject to variations without warning
