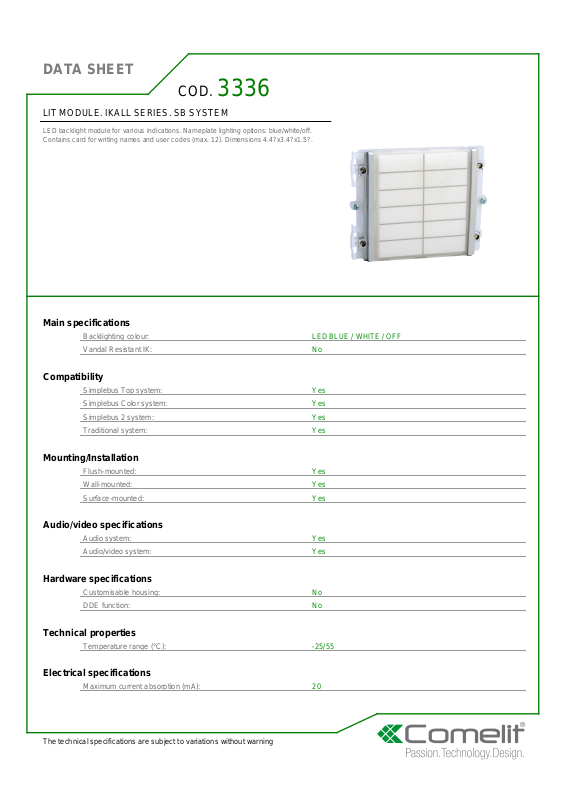

Comelit 3336 Specsheet

DATA SHEET

COD.

3336

LIT MODULE. IKALL SERIES. SB SYSTEM

LED backlight module for various indications. Nameplate lighting options: blue/white/off.
Contains card for writing names and user codes (max. 12). Dimensions 4.4?x3.4?x1.5?.

Main specifications

Backlighting colour: LED BLUE / WHITE / OFF
Vandal Resistant IK: No

Compatibility

Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Traditional system: Yes

Mounting/Installation

Flush-mounted: Yes
Wall-mounted: Yes
Surface-mounted: Yes

Audio/video specifications

Audio system: Yes
Audio/video system: Yes

Hardware specifications

Customisable housing: No
DDE function: No

Technical properties

Temperature range (°C): -25/55

Electrical specifications

Maximum current absorption (mA): 20

The technical specifications are subject to variations without warning

DATA SHEET

General info

EAN product code: 8023903208962
Intrastat code: 85176920
Product height (mm): 90
Product width (mm): 108
Product depth (mm): 39
Product colour: LIGHT BLUE

Packaging

Single pack height (mm): 53
Single pack width (mm): 110
Single pack weight (g): 205
Single pack depth (mm): 94
Single pack volume (dm3): 0,548

The technical specifications are subject to variations without warning
