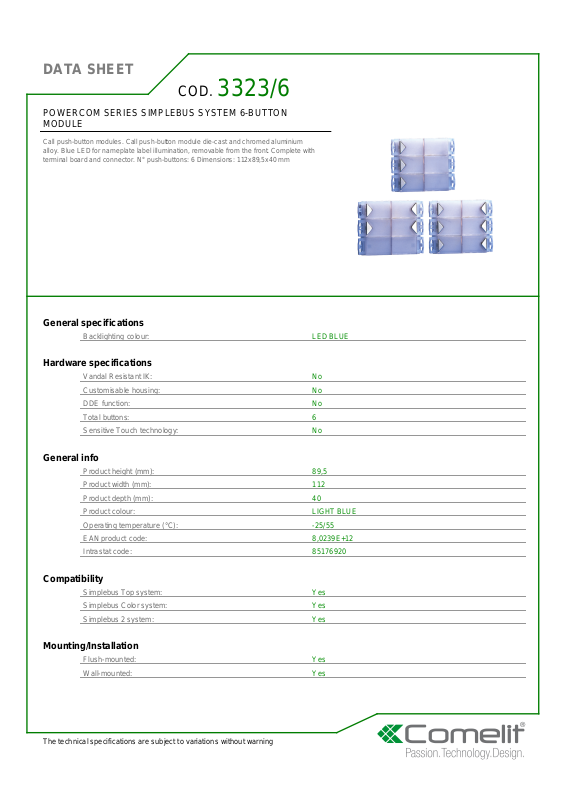

DATA SHEET
COD.
3323/6
POWERCOM SERIES SIMPLEBUS SYSTEM 6-BUTTON
MODULE
Call push-button modules. Call push-button module die-cast and chromed aluminium
alloy. Blue LED for nameplate label illumination, removable from the front. Complete with
terminal board and connector. N° push-buttons: 6 Dimensions: 112x89,5x40 mm
General specifications
Backlighting colour: LED BLUE
Hardware specifications
Vandal Resistant IK: No
Customisable housing: No
DDE function: No
Total buttons: 6
Sensitive Touch technology: No
General info
Product height (mm): 89,5
Product width (mm): 112
Product depth (mm): 40
Product colour: LIGHT BLUE
Operating temperature (°C): -25/55
EAN product code: 8,0239E+12
Intrastat code: 85176920
Compatibility
Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Mounting/Installation
Flush-mounted: Yes
Wall-mounted: Yes
The technical specifications are subject to variations without warning
DATA SHEET
Surface-mounted: Yes
Audio/video specifications
Audio system: Yes
Audio/video system: Yes
Electrical specifications
Maximum current absorption (mA): 20
Packaging
Single pack height (mm): 53
Single pack width (mm): 110
Single pack weight (Kg): 0,233
Single pack depth (mm): 94
Single pack volume (dm3): 0,548
The technical specifications are subject to variations without warning
