Comelit 3323-3 Specsheet

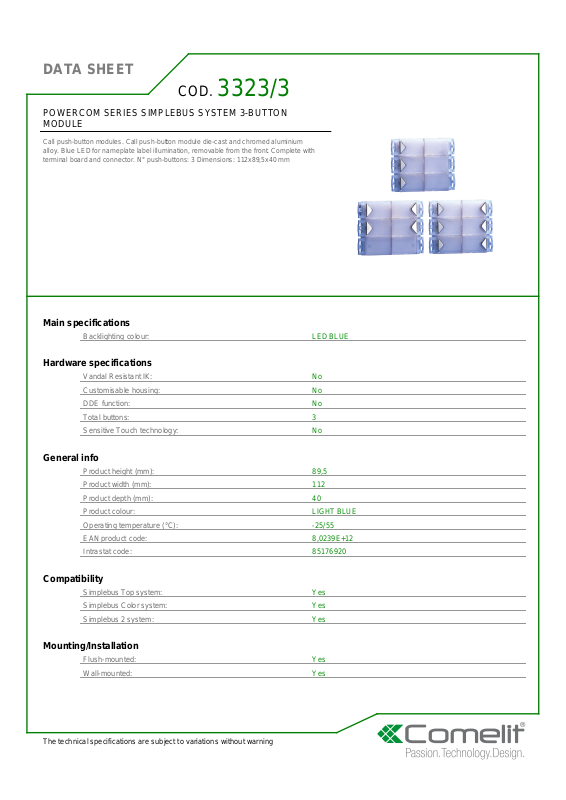

DATA SHEET

COD.

3323/3

POWERCOM SERIES SIMPLEBUS SYSTEM 3-BUTTON
MODULE

Call push-button modules. Call push-button module die-cast and chromed aluminium
alloy. Blue LED for nameplate label illumination, removable from the front. Complete with
terminal board and connector. N° push-buttons: 3 Dimensions: 112x89,5x40 mm

Main specifications

Backlighting colour: LED BLUE

Hardware specifications

Vandal Resistant IK: No
Customisable housing: No
DDE function: No
Total buttons: 3
Sensitive Touch technology: No

General info

Product height (mm): 89,5
Product width (mm): 112
Product depth (mm): 40
Product colour: LIGHT BLUE
Operating temperature (°C): -25/55
EAN product code: 8,0239E+12
Intrastat code: 85176920

Compatibility

Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes

Mounting/Installation

Flush-mounted: Yes
Wall-mounted: Yes

The technical specifications are subject to variations without warning

DATA SHEET

Surface-mounted: Yes

Audio/video specifications

Audio system: Yes
Audio/video system: Yes

Electrical specifications

Maximum current absorption (mA): 20

Packaging

Single pack height (mm): 53
Single pack width (mm): 110
Single pack weight (Kg): 0,238
Single pack depth (mm): 94
Single pack volume (dm3): 0,548

The technical specifications are subject to variations without warning
