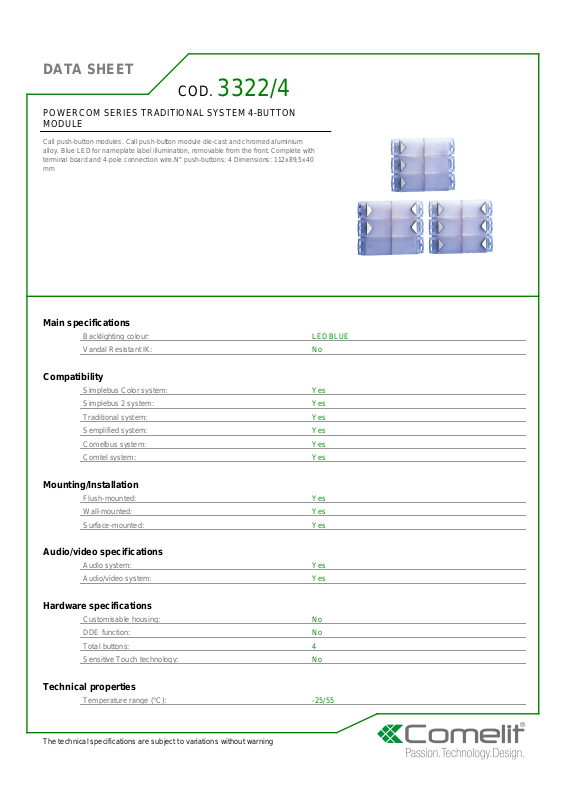

Comelit 3322-4 Specsheet

DATA SHEET

COD.

3322/4

POWERCOM SERIES TRADITIONAL SYSTEM 4-BUTTON
MODULE

Call push-button modules. Call push-button module die-cast and chromed aluminium
alloy. Blue LED for nameplate label illumination, removable from the front. Complete with
terminal board and 4-pole connection wire.N° push-buttons: 4 Dimensions: 112x89,5x40
mm

Main specifications

Backlighting colour: LED BLUE
Vandal Resistant IK: No

Compatibility

Simplebus Color system: Yes
Simplebus 2 system: Yes
Traditional system: Yes
Semplified system: Yes
Comelbus system: Yes
Comtel system: Yes

Mounting/Installation

Flush-mounted: Yes
Wall-mounted: Yes
Surface-mounted: Yes

Audio/video specifications

Audio system: Yes
Audio/video system: Yes

Hardware specifications

Customisable housing: No
DDE function: No
Total buttons: 4
Sensitive Touch technology: No

Technical properties

Temperature range (°C): -25/55

The technical specifications are subject to variations without warning

DATA SHEET

Electrical specifications

Maximum current absorption (mA): 20

General info

EAN product code: 8023903118674
Intrastat code: 85176920
Product height (mm): 89,5
Product width (mm): 112
Product depth (mm): 40
Product colour: LIGHT BLUE

Packaging

Single pack height (mm): 53
Single pack width (mm): 110
Single pack weight (g): 242
Single pack depth (mm): 94
Single pack volume (dm3): 0,548

The technical specifications are subject to variations without warning
