Comelit 3321-1 Specsheet

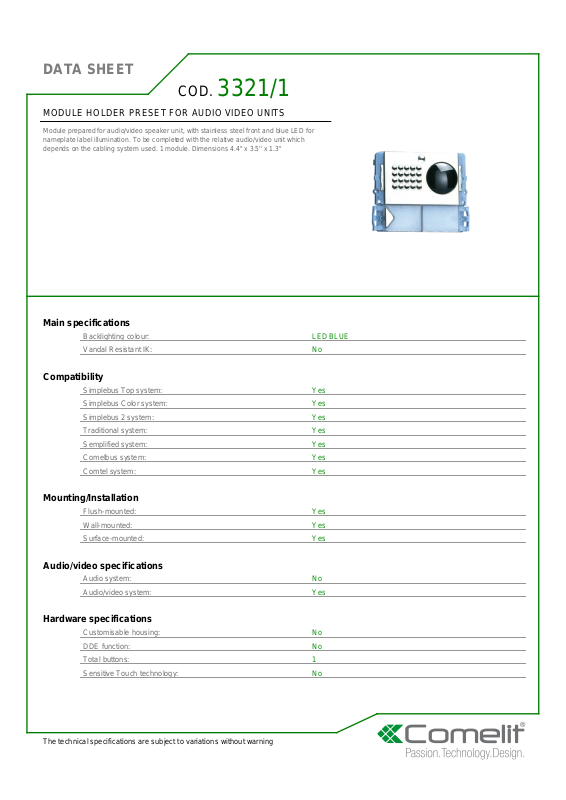

DATA SHEET

COD.

3321/1

MODULE HOLDER PRESET FOR AUDIO VIDEO UNITS

Module prepared for audio/video speaker unit, with stainless steel front and blue LED for
nameplate label illumination. To be completed with the relative audio/video unit which
depends on the cabling system used. 1 module. Dimensions 4.4'' x 3.5'' x 1.3''

Main specifications

Backlighting colour: LED BLUE
Vandal Resistant IK: No

Compatibility

Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Traditional system: Yes
Semplified system: Yes
Comelbus system: Yes
Comtel system: Yes

Mounting/Installation

Flush-mounted: Yes
Wall-mounted: Yes
Surface-mounted: Yes

Audio/video specifications

Audio system: No
Audio/video system: Yes

Hardware specifications

Customisable housing: No
DDE function: No
Total buttons: 1
Sensitive Touch technology: No

The technical specifications are subject to variations without warning

DATA SHEET

Technical properties

Temperature range (°C): -25/55

Electrical specifications

Maximum current absorption (mA): 20

General info

EAN product code: 8023903118612
Intrastat code: 85176920
Product height (mm): 89,5
Product width (mm): 112
Product depth (mm): 32
Product colour: GREY

Packaging

Single pack height (mm): 53
Single pack width (mm): 110
Single pack weight (g): 135
Single pack depth (mm): 94
Single pack volume (dm3): 0,548

The technical specifications are subject to variations without warning
