Comelit 3320-1 Specsheet

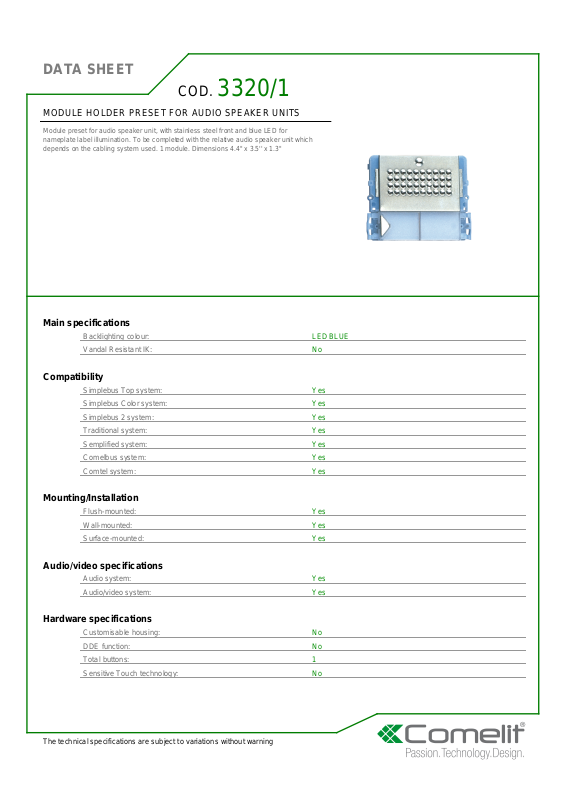

DATA SHEET

COD.

3320/1

MODULE HOLDER PRESET FOR AUDIO SPEAKER UNITS

Module preset for audio speaker unit, with stainless steel front and blue LED for
nameplate label illumination. To be completed with the relative audio speaker unit which
depends on the cabling system used. 1 module. Dimensions 4.4'' x 3.5'' x 1.3''

Main specifications

Backlighting colour: LED BLUE
Vandal Resistant IK: No

Compatibility

Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Traditional system: Yes
Semplified system: Yes
Comelbus system: Yes
Comtel system: Yes

Mounting/Installation

Flush-mounted: Yes
Wall-mounted: Yes
Surface-mounted: Yes

Audio/video specifications

Audio system: Yes
Audio/video system: Yes

Hardware specifications

Customisable housing: No
DDE function: No
Total buttons: 1
Sensitive Touch technology: No

The technical specifications are subject to variations without warning

DATA SHEET

Technical properties

Temperature range (°C): -25/55

Electrical specifications

Maximum current absorption (mA): 20

General info

EAN product code: 8023903118582
Intrastat code: 85176920
Product height (mm): 89,5
Product width (mm): 112
Product depth (mm): 32
Product colour: GREY

Packaging

Single pack height (mm): 53
Single pack width (mm): 110
Single pack weight (g): 159
Single pack depth (mm): 94
Single pack volume (dm3): 0,548

The technical specifications are subject to variations without warning
