Comelit 3311-3AL Specsheet

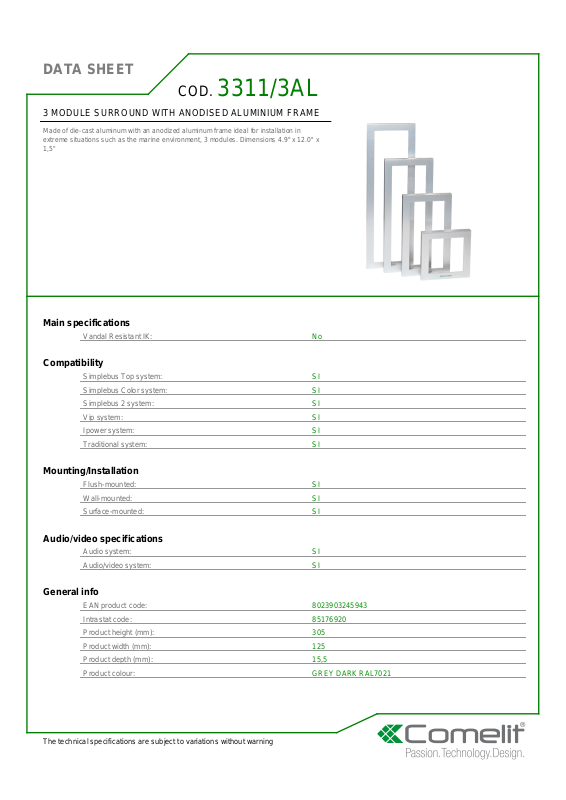

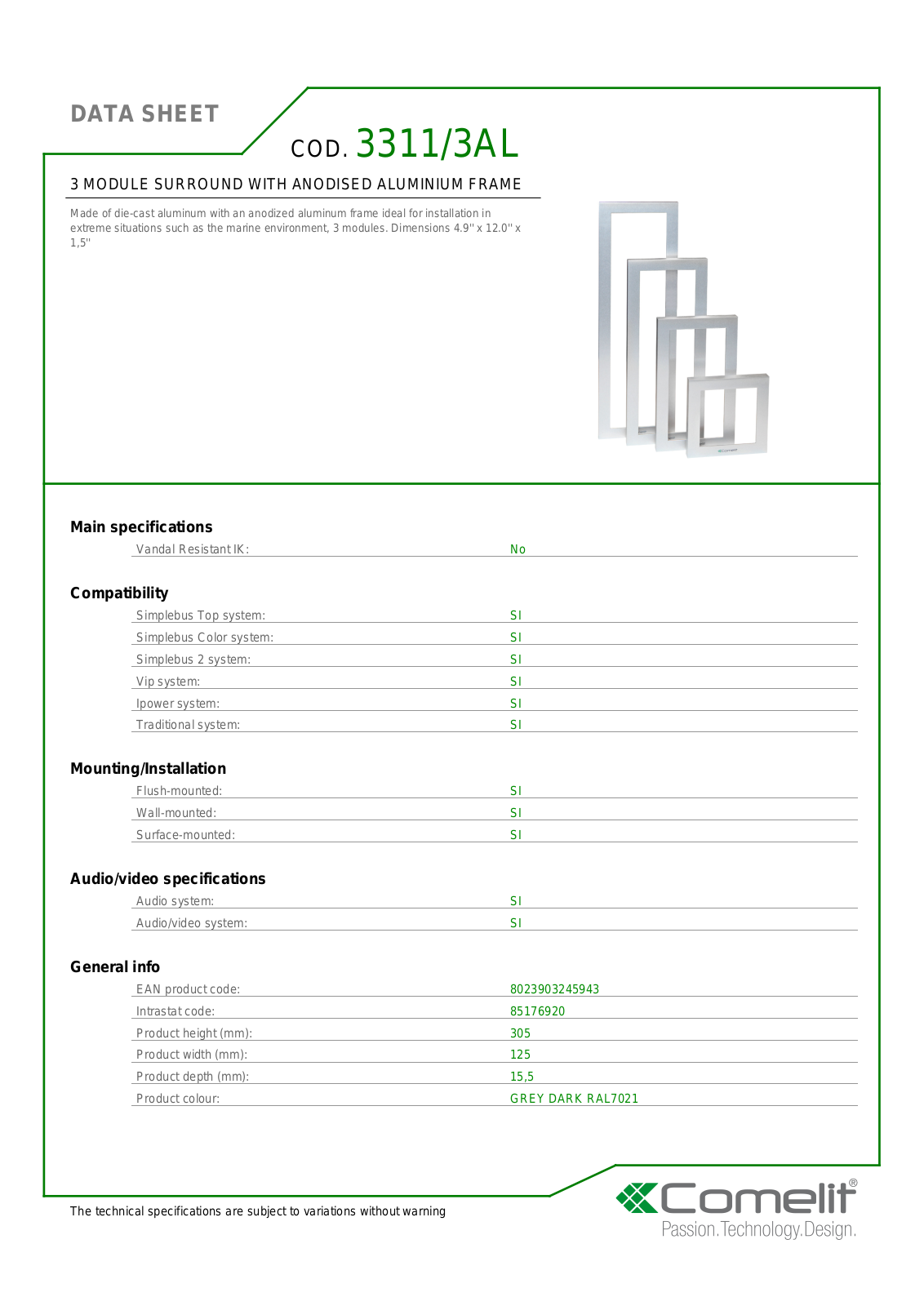

DATA SHEET

COD.

3311/3AL

3 MODULE SURROUND WITH ANODISED ALUMINIUM FRAME

Made of die-cast aluminum with an anodized aluminum frame ideal for installation in
extreme situations such as the marine environment, 3 modules. Dimensions 4.9'' x 12.0'' x
1,5''

Main specifications

Vandal Resistant IK: No

Compatibility

Simplebus Top system: SI
Simplebus Color system: SI
Simplebus 2 system: SI
Vip system: SI
Ipower system: SI
Traditional system: SI

Mounting/Installation

Flush-mounted: SI
Wall-mounted: SI
Surface-mounted: SI

Audio/video specifications

Audio system: SI
Audio/video system: SI

General info

EAN product code: 8023903245943
Intrastat code: 85176920
Product height (mm): 305
Product width (mm): 125
Product depth (mm): 15,5
Product colour: GREY DARK RAL7021

The technical specifications are subject to variations without warning

DATA SHEET

Packaging

Single pack height (mm): 40
Single pack width (mm): 310
Single pack weight (g): 460
Single pack depth (mm): 125
Single pack volume (dm3): 1,55

The technical specifications are subject to variations without warning
