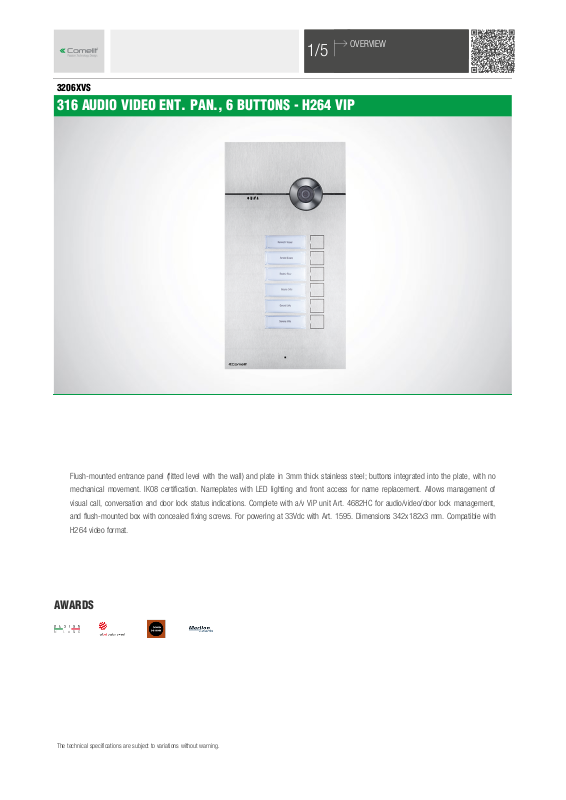

Comelit 3206XVS Specsheet

1/5

3206XVS

316 AUDIO VIDEO ENT. PAN., 6 BUTTONS - H264 VIP

OVERVIEW

Flush-mounted entrance panel (fitted level with the wall) and plate in 3mm thick stainless steel; buttons integrated into the plate, with no

mechanical movement. IK08 certification. Nameplates with LED lighting and front access for name replacement. Allows management of

visual call, conversation and door lock status indications. Complete with a/v ViP unit Art. 4682HC for audio/video/door lock management,

and flush-mounted box with concealed fixing screws. For powering at 33Vdc with Art. 1595. Dimensions 342x182x3 mm. Compatible with

H264 video format.

AWARDS

The technical specifications are subject to variations without warning.

2/5

FUNCTION  AND GENERAL DATA

3206XVS

316 AUDIO VIDEO ENT. PAN., 6 BUTTONS - H264 VIP

MAIN FEATURES

Audio/video system: Yes

Flush-mounted: Yes

Video resolution (H x V - pixel):

Signal/noise ratio (dB): 48

Video output: Composite, 1Vpp, 75 Ohm, PAL

Maximum current absorption (mA): 450

Total buttons: 6

Loudspeaker volume control: Yes

Operating temperature (°F): -13 ÷ 131

Vandal Resistant rating (IK code):

SOFTWARE/FIRMWARE SPECIFICATIONS

No. of storable users: 6

FUNCTIONS

Key button function: Yes

HARDWARE SPECIFICATIONS

Visual signalling: Yes

Acoustic signalling: Yes

Sensitive Touch technology: Yes

GENERAL DATA

Product height (inch): 13.46

Product width (inch): 7.17

Product depth (inch): 2.36

Signal/noise ratio (dB): 48

COMPATIBILITY

Vip system: Yes

CONNECTIVITY

Ethernet ports: 1

TECHNICAL CHARACTERISTICS

Sensitivity (lux): 1.00
