Comelit 3205XVS Specsheet

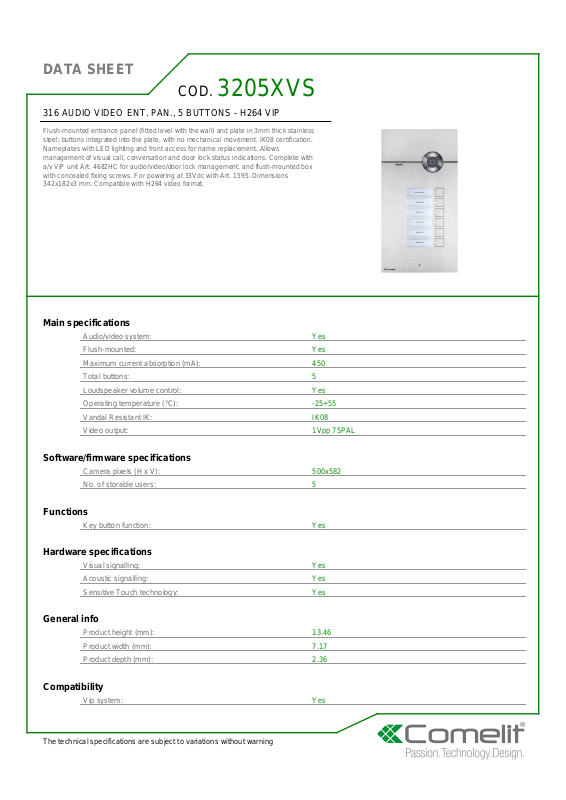

DATA SHEET

COD.

3205XVS

316 AUDIO VIDEO ENT. PAN., 5 BUTTONS - H264 VIP

Flush-mounted entrance panel (fitted level with the wall) and plate in 3mm thick stainless
steel; buttons integrated into the plate, with no mechanical movement. IK08 certification.
Nameplates with LED lighting and front access for name replacement. Allows
management of visual call, conversation and door lock status indications. Complete with
a/v ViP unit Art. 4682HC for audio/video/door lock management, and flush-mounted box
with concealed fixing screws. For powering at 33Vdc with Art. 1595. Dimensions
342x182x3 mm. Compatible with H264 video format.

Main specifications

Audio/video system: Yes
Flush-mounted: Yes
Maximum current absorption (mA): 450
Total buttons: 5
Loudspeaker volume control: Yes
Operating temperature (°C): -25÷55
Vandal Resistant IK: IK08
Video output: 1Vpp 75PAL

Software/firmware specifications

Camera pixels (H x V): 500x582
No. of storable users: 5

Functions

Key button function: Yes

Hardware specifications

Visual signalling: Yes
Acoustic signalling: Yes
Sensitive Touch technology: Yes

General info

Product height (mm): 13.46
Product width (mm): 7.17
Product depth (mm): 2.36

Compatibility

Vip system: Yes

The technical specifications are subject to variations without warning

DATA SHEET

Video door entry family: Yes

Technical specifications

Sensitivity (lux): 1
Type of camera: Color

The technical specifications are subject to variations without warning
