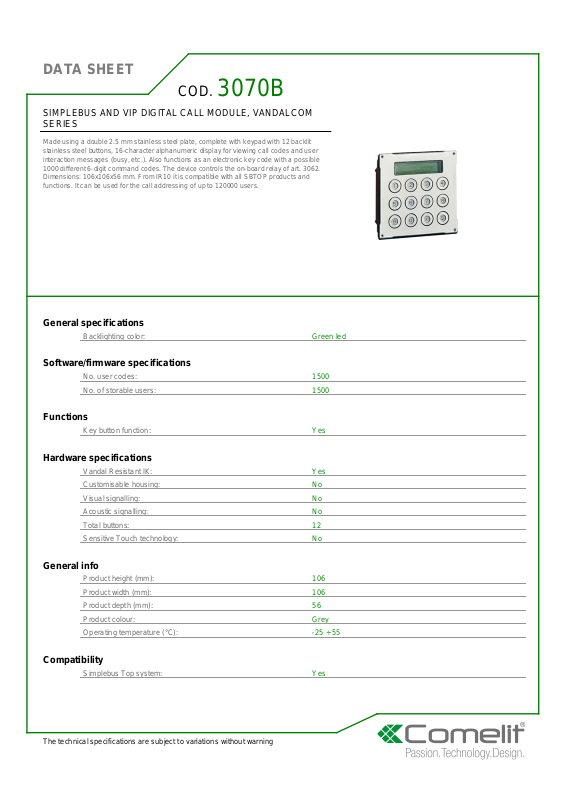

Comelit 3070B Specsheet

DATA SHEET

COD.

3070B

SIMPLEBUS AND VIP DIGITAL CALL MODULE, VANDALCOM
SERIES

Made using a double 2.5 mm stainless steel plate, complete with keypad with 12 backlit
stainless steel buttons, 16-character alphanumeric display for viewing call codes and user
interaction messages (busy, etc.). Also functions as an electronic key code with a possible
1000 different 6-digit command codes. The device controls the on-board relay of art. 3062.
Dimensions: 106x106x56 mm. From IR10 it is compatible with all SBTOP products and
functions. It can be used for the call addressing of up to 120000 users.

General specifications

Backlighting color: Green led

Software/firmware specifications

No. user codes: 1500
No. of storable users: 1500

Functions

Key button function: Yes

Hardware specifications

Vandal Resistant IK: Yes
Customisable housing: No
Visual signalling: No
Acoustic signalling: No
Total buttons: 12
Sensitive Touch technology: No

General info

Product height (mm): 106
Product width (mm): 106
Product depth (mm): 56
Product colour: Grey
Operating temperature (°C): -25 ÷ 55

Compatibility

Simplebus Top system: Yes

The technical specifications are subject to variations without warning

DATA SHEET

Simplebus Color system: Yes
Simplebus 2 system: Yes
Vip system: Yes

Mounting/Installation

Flush-mounted: Yes
Wall-mounted: Yes

Audio/video specifications

Display resolution (H x V): 16x2 characters
Audio system: Yes
Audio/video system: Yes
Type of display: Alphanumeric

Connectivity

Type of connections/ports: RS232, RS485
RS232 ports: 1
RS485 ports: 1

Electrical specifications

Maximum current absorption (mA): 100

The technical specifications are subject to variations without warning
