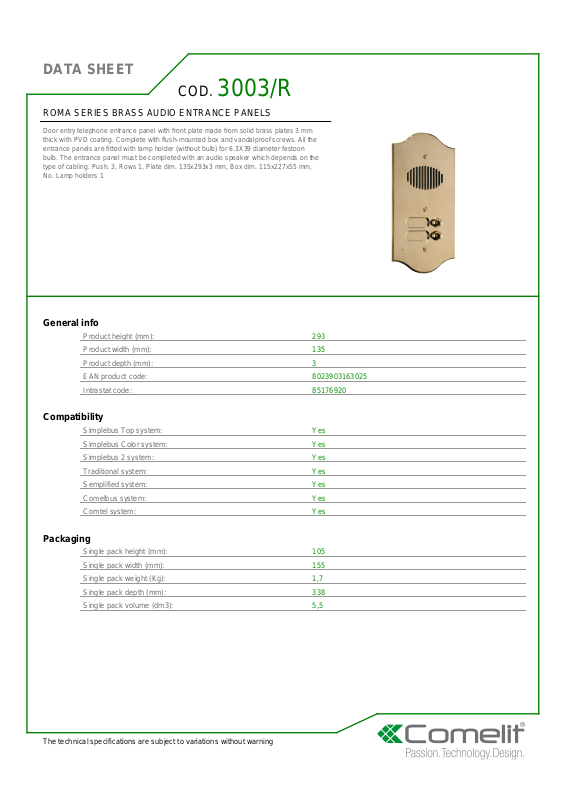

Comelit 3003-R Specsheet

DATA SHEET

COD.

3003/R

ROMA SERIES BRASS AUDIO ENTRANCE PANELS

Door entry telephone entrance panel with front plate made from solid brass plates 3 mm
thick with PVD coating. Complete with flush-mounted box and vandalproof screws. All the
entrance panels are fitted with lamp holder (without bulb) for 6.3X39 diameter festoon
bulb. The entrance panel must be completed with an audio speaker which depends on the
type of cabling. Push. 3, Rows 1, Plate dim. 135x293x3 mm, Box dim. 115x227x55 mm,
No. Lamp holders 1

General info

Product height (mm): 293
Product width (mm): 135
Product depth (mm): 3
EAN product code: 8023903163025
Intrastat code: 85176920

Compatibility

Simplebus Top system: Yes
Simplebus Color system: Yes
Simplebus 2 system: Yes
Traditional system: Yes
Semplified system: Yes
Comelbus system: Yes
Comtel system: Yes

Packaging

Single pack height (mm): 105
Single pack width (mm): 155
Single pack weight (Kg): 1,7
Single pack depth (mm): 338
Single pack volume (dm3): 5,5

The technical specifications are subject to variations without warning
