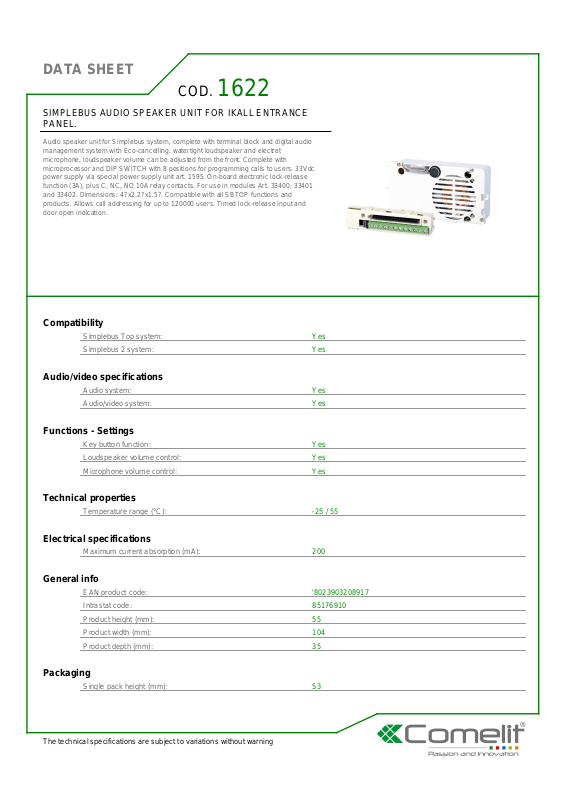

Page 1
DATA SHEET
COD.
1622
SIMPLEBUS AUDIO SPEAKER UNIT FOR IKALL ENTRANCE
PANEL.
Audio speaker unit for Simplebus system, complete with terminal block and digital audio
management system with Eco-cancelling, watertight loudspeaker and electret
microphone, loudspeaker volume can be adjusted from the front. Complete with
microprocessor and DIP SWITCH with 8 positions for programming calls to users. 33Vdc
power supply via special power supply unit art. 1595. On-board electronic lock-release
function (3A), plus C, NC, NO 10A relay contacts. For use in modules Art. 33400, 33401
and 33402. Dimensions: 4?x2.2?x1.5?. Compatible with all SBTOP functions and
products. Allows call addressing for up to 120000 users. Timed lock-release input and
door open indication.
Compatibility
Simplebus Top system: Yes
Simplebus 2 system: Yes
Audio/video specifications
Audio system: Yes
Audio/video system: Yes
Functions - Settings
Key button function: Yes
Loudspeaker volume control: Yes
Microphone volume control: Yes
Technical properties
Temperature range (°C): -25 / 55
Electrical specifications
Maximum current absorption (mA): 200
General info
EAN product code: '8023903208917
Intrastat code: 85176910
Product height (mm): 55
Product width (mm): 104
Product depth (mm): 35
Packaging
Single pack height (mm): 53
The technical specifications are subject to variations without warning
Page 2
DATA SHEET
Single pack width (mm): 110
Single pack weight (g): 187
Single pack depth (mm): 94
Single pack volume (dm3): 0,548
The technical specifications are subject to variations without warning
