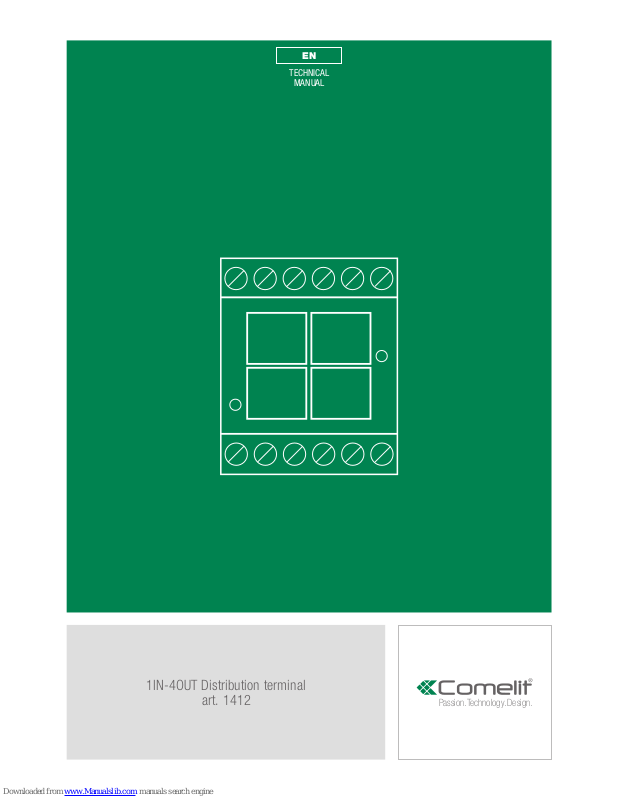

Page 1
EN
TECHNICAL
MANUAL
1IN-4OUT Distribution terminal
art. 1412
Passion.Technology.Design.
Page 2
Table of contents
Description ....................................................................................... 3
Technical specifications ................................................................. 3
Installation ........................................................................................ 4
Connections ..................................................................................... 4
System performance and layouts .................................................. 5
Warning
2
Page 3
Distribution terminal for Kit video, SimpleBus Top and Building Kits; allows distribution of signal on 4 internal terminals.
Compact dimensions allow installation in the round box (60 mm).

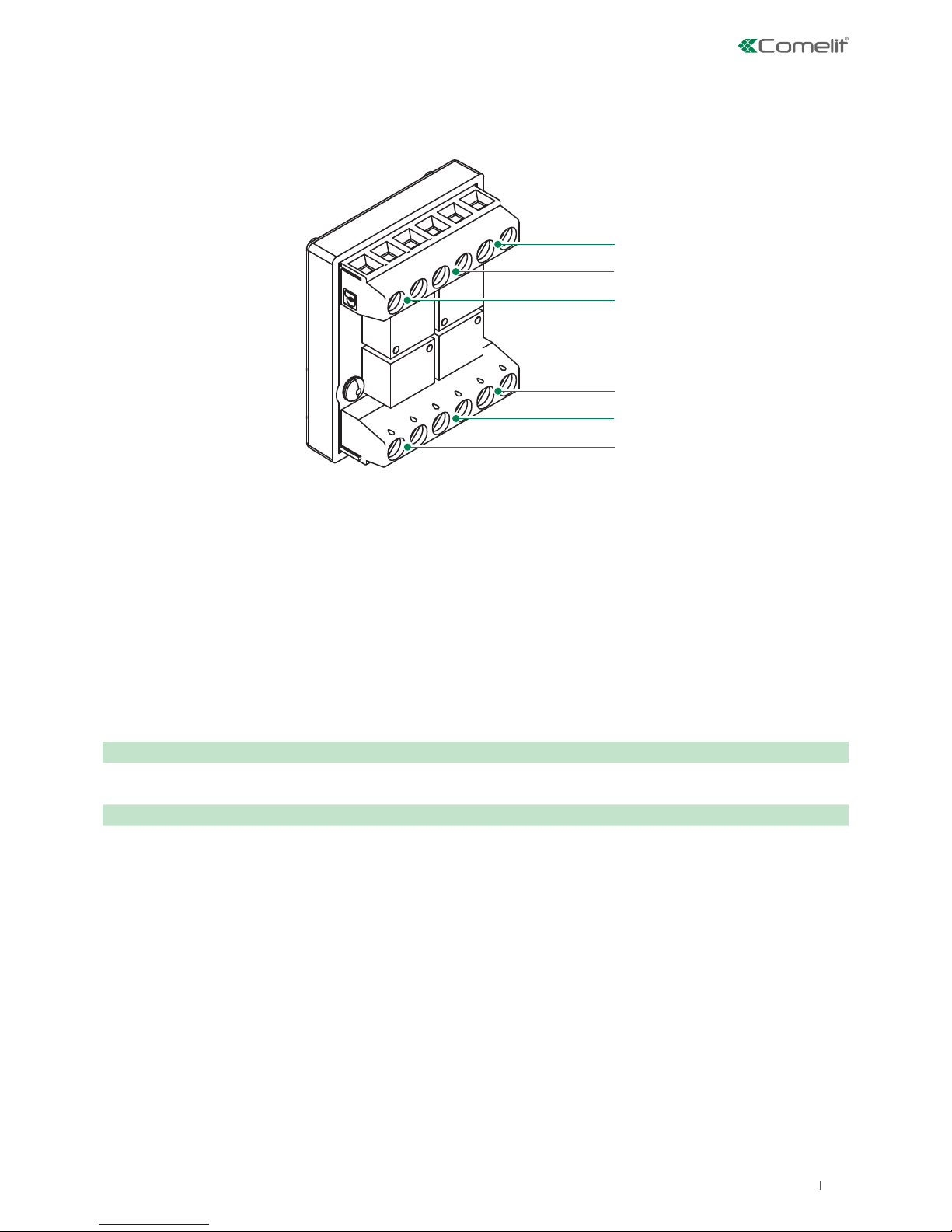

Description
1. LM4 LM4 terminal Internal units 4 line
2. Lout Lout terminal Riser line output
3. LM3 LM3 terminal Internal units 3 line
4. LM1 LM1 terminal Internal units 1 line
5. Lin Lin terminal Riser line input
6. LM2 LM2 terminal Internal units 2 line
3.
2.
1.
6.
5.
4.
Technical specifications
ELECTRICAL SPECIFICATIONS
Power supply voltage MAX 42 Vdc (BUS line power supply)
GENERAL INFO
Operating temperature (°C) 5 - 40
Operating humidity (%) 25 - 75
Weight (g) 50
Dimensions (mm) 34,5 x 40,5 x 20
3
Page 4

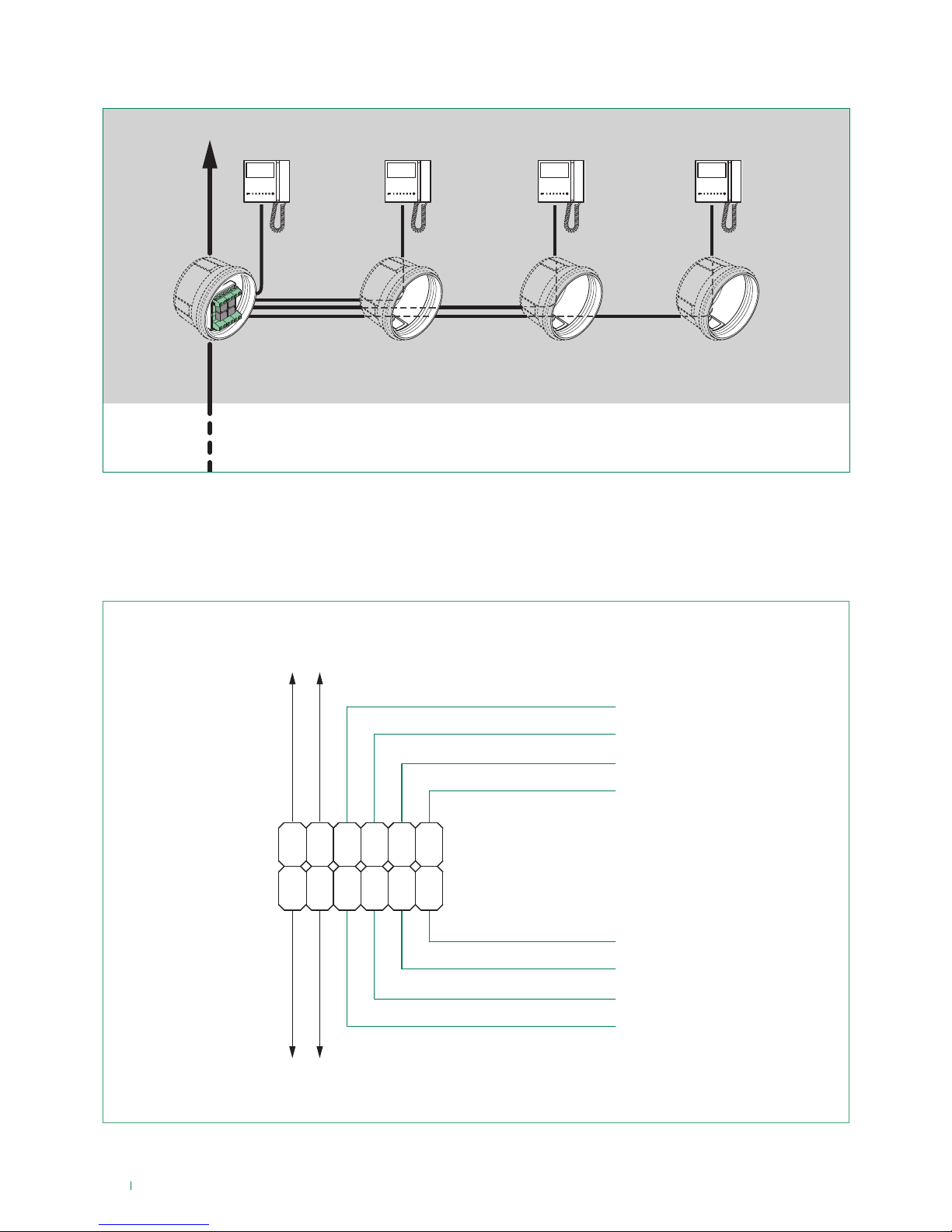

Installation
Max 4 monitors
Connections
1412
VIDEO ENTRY
SYSTEM RISER
VIDEO ENTRY
SYSTEM RISER
Branch 3
Branch 4
Branch 2
Branch 1
L
OUT
LINL
IN
L
OUT
LM1LM1LM2LM
2
LM3LM3LM4LM
4
4
Page 5
System performance and layouts
For further information of system performance and to view installation layouts, click on the type of system that best meets your
needs:
• Audio/video kit for the creation of audio-video systems for individual residences.
• Building Kit audio/video system for the creation of audio-video systems for small apartment blocks.
• SBTOP audio/video system for the creation of audio-video systems for residential complexes.
5
Page 6
www.comelitgroup.com
Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy
1
st
edition 07/2017
code 2G40001986
