Module for SBTOP remote camera module
Art. 1259C
Passion.Technology.Design.
Page 2
2
Warning
Intended use
This Comelit product was designed for use in the creation of audio and video communication systems in residential,
commercial or industrial settings and in public buildings or buildings used by the public.
Installation
All activities connected to the installation of Comelit products must be carried out by qualified technical personnel, with
careful observation of the indications provided in the Manuals / Instruction sheets supplied with those products.
Wires
Cut o the power supply before carrying out any maintenance procedures.
Use wires with a cross-section suited to the distances involved, observing the instructions provided in the system
manual.
We advise against running the system wires through the same duct as the power cables (230V or higher).
Safe usage
To ensure Comelit products are used safely:
• carefully observe the indications provided in the Manuals / Instruction sheets
• make sure the system created using Comelit products has not been tampered with / damaged.
Maintenance
Comelit products do not require maintenance aside from routine cleaning, which should be carried out in accordance
with the indications provided in the Manuals / Instruction sheets.
Any repair work must be carried out
• for the products themselves, exclusively by Comelit Group S.p.A.,
• for systems, by qualified technical personnel.
Disclaimer
Comelit Group S.p.A. does not assume any responsibility for
• any usage other than the intended use
• non-observance of the indications and warnings contained in this Manual / Instruction sheet.
Comelit Group S.p.A. nonetheless reserves the right to change the information provided in this Manual / Instruction
sheet at any time and without prior notice.
Page 3
3
Module that allows the cyclical management of the video signals from up to 3 cameras on a door entry monitor via a dedicated
key. Power supply: 12 V AC or 20 V DC. Can be used in SBTOP systems.

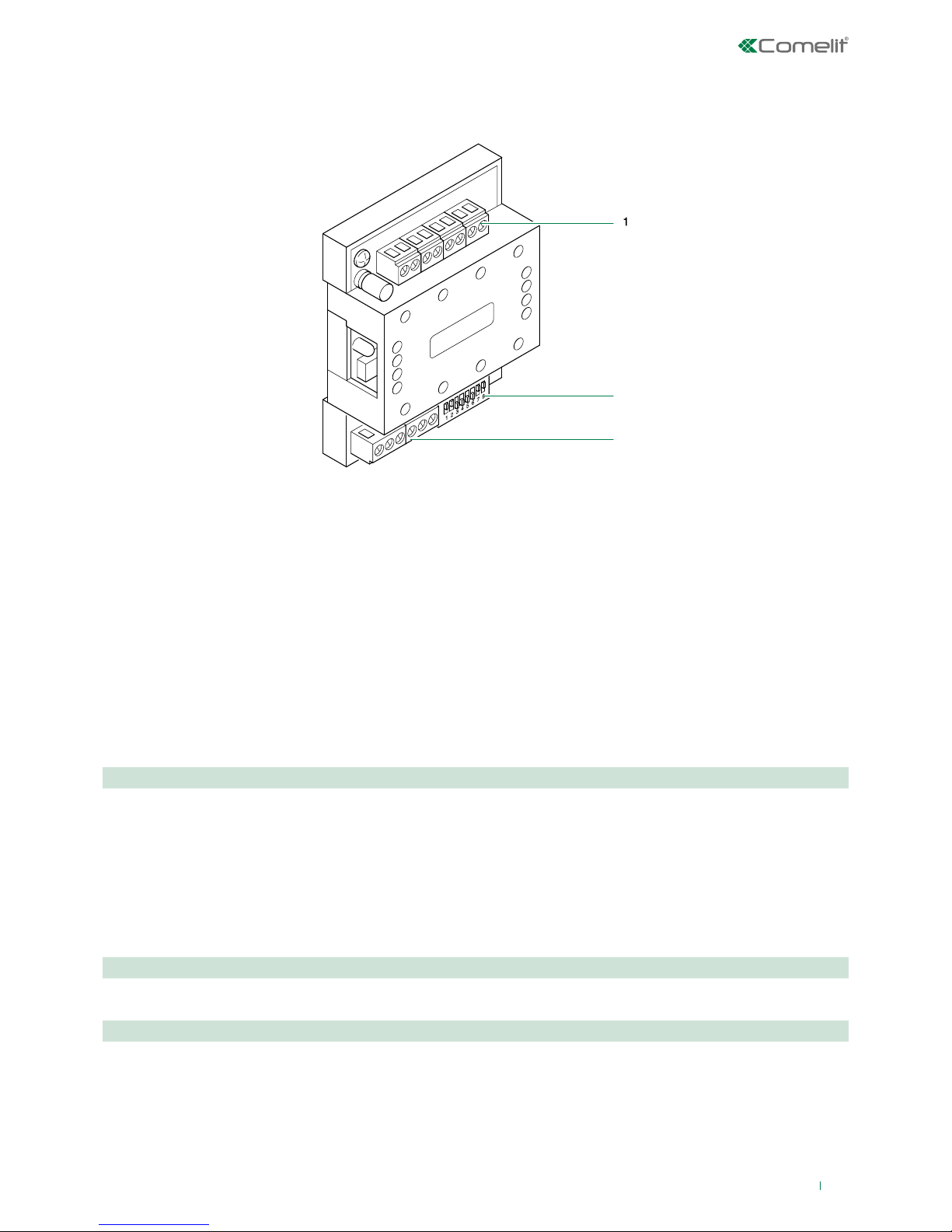

Description
1. Terminal block MR2 for system connection:
V1 S1 Coax input camera 1
V2 S2 Coax input camera 2
V3 S3 Coax input camera 3
IN A Camera module external control contact
GND Common contact
2. Programming microswitches S1
3. Terminal block MR1 for system connection:
L OUT L OUT BUS line output
L IN L IN BUS line input
~- ~+ 12 Vac 20 Vdc power supply input
2
3
Technical features
MAIN FEATURES
Product height (mm) 85
Product width (mm) 60
Product depth (mm) 35
Operating temperature (°C) -25 ÷ 40
DIN rail mounted Yes
DIN modules (no.) 4
Maximum current absorption (mA) 150
COMPATIBILITY
Simplebus Top audio/video system Ye s
AUDIO/VIDEO FEATURES
Audio/video system Yes
Page 4
4

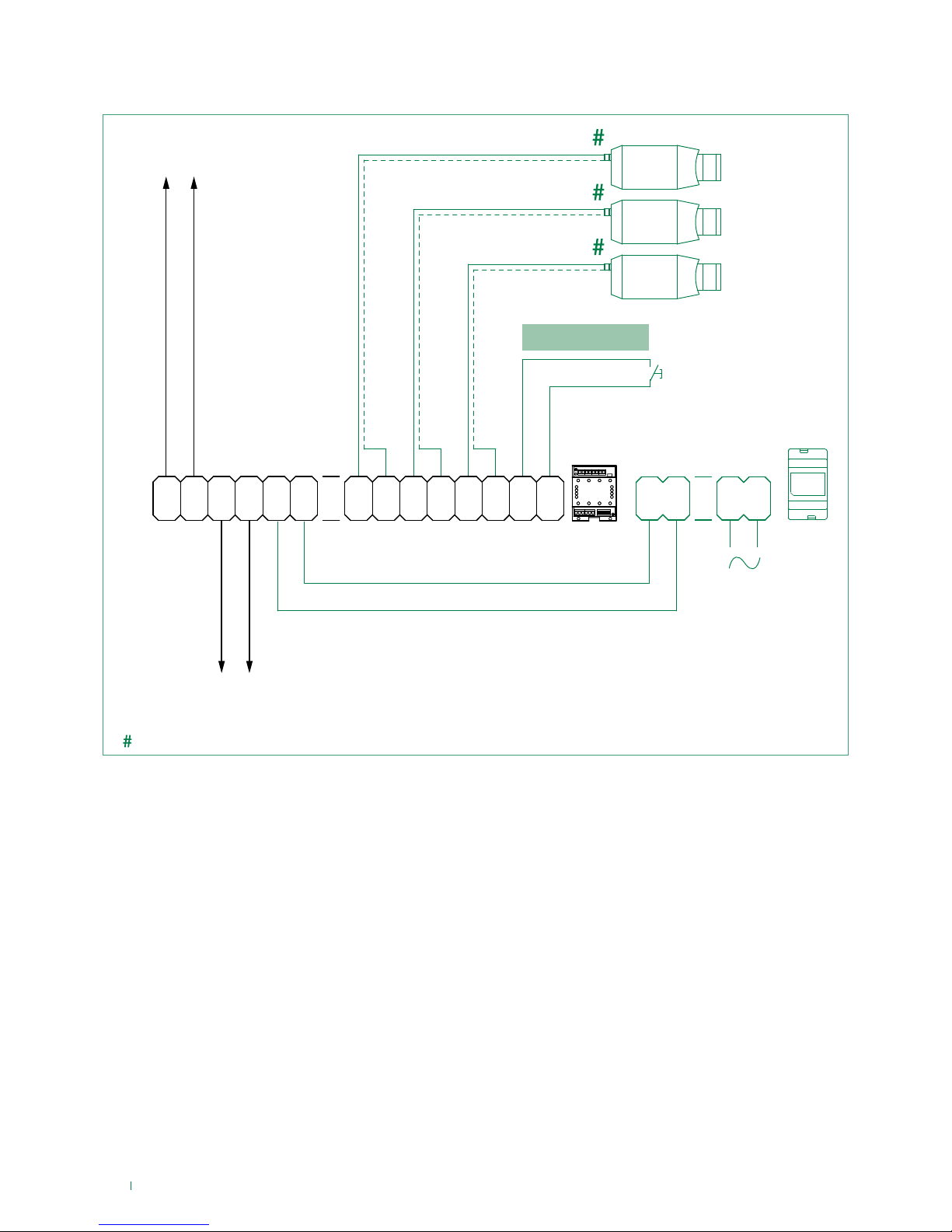

Connection
CAMERA CONTROL KEY
1259C
1200
12V~
230V~
G
N
DA
N
I
3
V S
32
SV
2
S
11
V
+
-
~ ~
LLL
OUT
L
OUT
IN IN
VIDEO ENTRY
SYSTEM RISER
VIDEO ENTRY
SYSTEM RISER
Requires separate power supply.
Page 5
5
Operation and Programming
Art. 1259C can be used to manage analogue CCTV cameras (up to 3).
Art. 1259C can be used in systems with Art. 4888C in the SB1 section (running from the mixer power supply unit towards the
external units).
√ With monitor on
f Press the programmed key to cycle through all connected cameras, in accordance with the diagram below. Sequential
switching can also be activated using a clean contact (C-NO) connected to the INA – GND input.
External
unit
3rd camera2nd camera1st camera
GENERIC OR CODED ACTUATOR MODE
MODE WITH AUDIO PORTER OR SWITCHBOARD
In this mode and with the door entry phone monitor switched on, it is possible to cycle through all the connected cameras by
repeatedly pressing the button programmed as “generic actuator”.
f Microswitch “S1” must be set as illustrated below.
f Set the number of cameras connected using dip switches 7 and 8, as shown in the table below:
Default configuration
Programming the number of cameras connected
1. Generic actuator mode
MODES DIP 1 DIP 2 DIP 3 DIP 4 DIP 5 DIP 6 DIP 7 DIP 8
Actuator coded to
address 5 (actuator code
on monitor 225) with 3
cameras connected
ON OFF ON OFF ON OFF ON ON
DIP 7 DIP 8
0 0
1 0
0 1
1 1
Before programming the module, see “5. Compatibility table for Art. 1259C”.
Page 6
6

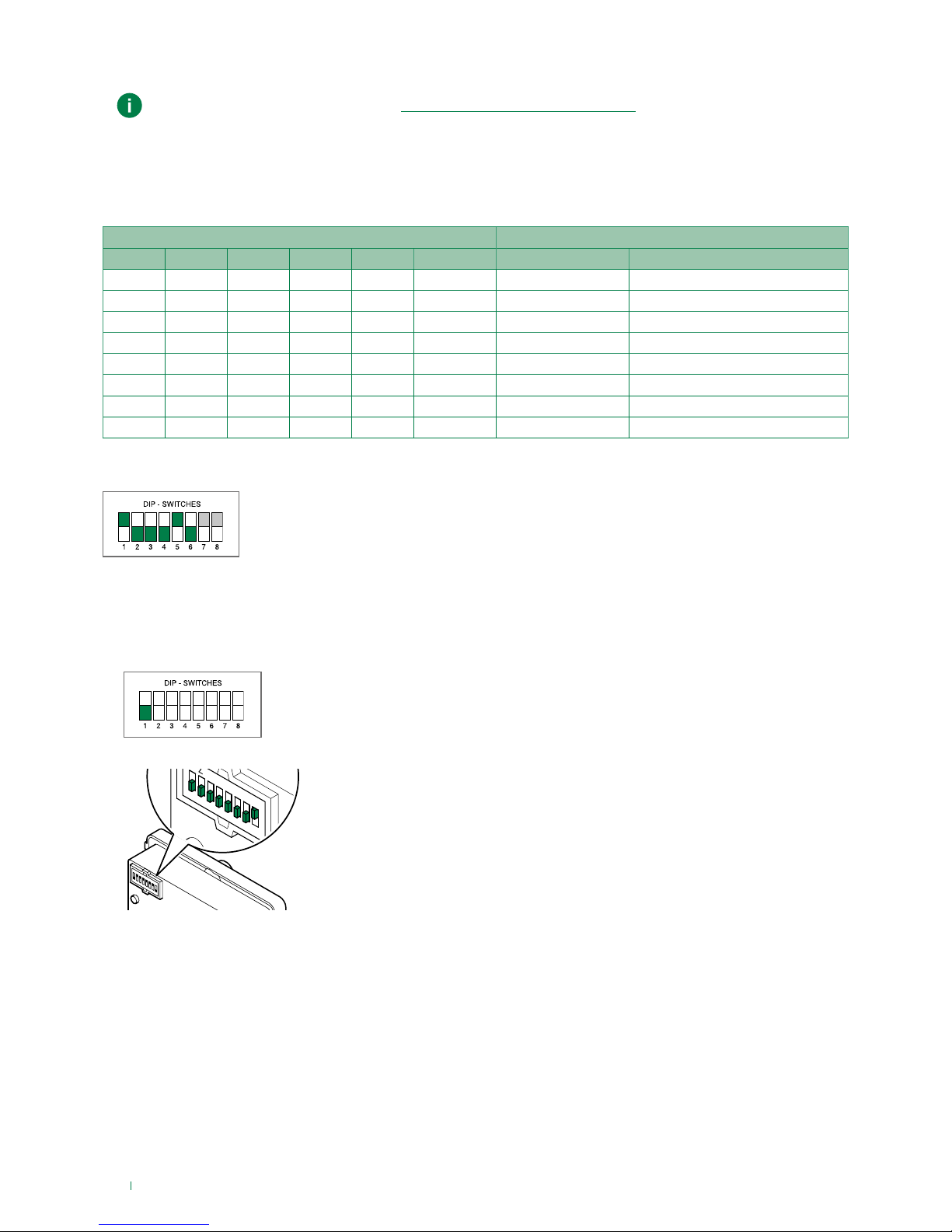

2. Coded actuator mode
3. Mode with external audio unit
Before programming the module, see “5. Compatibility table for Art. 1259C”.
In this mode and with the door entry phone monitor switched on, by repeatedly pressing the button programmed as “coded
actuator”, it is possible to cycle through ONLY the cameras connected to Art. 1259C with the corresponding address.
f To activate the function, program the button on the monitor as coded actuator (with address between 220 and 227
inclusive) and set selector “S1” as illustrated in the table below:
Generic/coded actuator modes can also be used on a system which includes an audio-only external unit Art. 1622.
For operation with “audio only” external unit:
1. set DIP 1 of selector “S1” as illustrated below:
2. set the external unit to video mode as shown in the picture below:
1
2 3
4
5
6 7
8
ON
D
IP
In this mode, every time a call is received from the external unit or when self-ignition takes place, the monitor switches on and
displays the image from the first camera connected to Art. 1259C. It will be possible to cycle through all cameras connected by
repeatedly pressing the programmed button.
Up to 8 modules Art. 1259C with 8 dierent codes can be installed in the same system.
Example for setting address on Art. 1259C for control by means of actuator code 224
S1 1259C address-coded actuator correspondence
DIP 1 DIP 2 DIP 3 DIP 4 DIP 5 DIP 6 Address 1259C Actuator code on monitor
1 0 0 0 0 0 0 220
1 0 1 0 0 0 1 221
1 0 0 1 0 0 2 222
1 0 1 1 0 0 3 223
1 0 0 0 1 0 4 224
1 0 1 0 1 0 5 225
1 0 0 1 1 0 6 226
1 0 1 1 1 0 7 227
Page 7
7
4. Mode with switchboard 1998A -1998VC
5. Compatibility table for Art. 1259C with 1256 or other 1259C units
Generic/coded actuator modes can also be used on a system which includes Video calls from switchboard.
In this mode, every time a video call is made from the switchboard, the monitor switches on as soon as the handset is lifted (or
the audio button is pressed), and the image displayed will be the one from the first camera connected to Art. 1259C.
At this point, each time a control button is pressed (see generic/coded actuator modes) or each time the manual contact is
closed (available by connecting the INA-GND contact to the OUT-OUT terminals of the switchboard), you will be able to cycle
through all available cameras.
f To use this function, the remote camera module must be connected to the outgoing Bus line from terminals LM-LM of the
switchboard, and the switchboard set to “Video mode” before the call.
Generic actuator mode Coded actuator mode
Compatibility with 1256 No. 1256 units in generic actuator mode
No. 1256 units in coded actuator mode
with codes between 220 and 227
Compatibility with Art. 1259C No other 1259C in generic actuator mode
1259C only in mode 2 with 8 separate
codes
System performance and layouts
For further information of system performance and to view installation layouts, click on the type of system that best meets your
needs :
• SBTOP audio/video system for the creation of audio-video systems for residential complexes.
