1200

series

A new aspect of communication

(

®®

1200

series

Excellent materials and stylish design
guarantee the 1200 series a future at the
forefront of the video door entry system
market.

The new AISI 316 (V4A), 8/10 thick
embossed stainless steel entrance panel
can to be flush mounted with backbox
type 9092 and 9093, or surface wall­mounted using an AISI 316 (V4A), 15/10
stainless steel mount.

The entrance panel has a stainless steel
front with two, die-cast aluminium header
pieces to fasten the front to the frame
using a special ELVOX screw. The frame is
also stainless steel.

The call buttons are attached to the front
plate of the entrance panel with a clear,
polycarbonate, tamper-proof support.
The clear, polycarbonate buttons are
protected by a stainless steel cover. Two
slots in the button cover provide excellent
backlighting.
The entrance panel is compatible with
ELVOX digital and analogue systems. The
audio and video versions are identical
externally to create a single solution for
both applications.

The protection class for this series is IP44

Superb

(

communication characteristics

PVD-treated, gold-effect version.

)

The elements of the 1200 series enable
the assembly of entrance panels for the
Two-Wire, DigiBus, Sound System and
A.C. call systems.
The entrance panels are supplied with a
front plate and frame, to be completed
with fl ush or surface mounted boxes,
rainproof frames, push-buttons, LEDs
for illuminating name tags, speech unit,
video camera or electronic unit.
The entrance panels for Two-Wire,
DigiBus, Sound System and A.C. call
systems are similar in appearance, the
differences being determined by the
components used.

The entrance panels for Sound System or
A.C.call systems require the addition of a
speech unit or video camera, call buttons,
LEDs for illuminating the push-buttons
and fl ush or surface wall-mounted boxes.

The entrance panels for Two-Wire or Di­giBus systems require the audio or video
electronic unit, possibly additional push­button modules and the fl ush or surface
wall-mounted boxes.

All of these entrance panels can be
expanded with additional push-button
panels or name tag panels by joining a
number of fl ush-mounted boxes or by
using the surface wall-mounted boxes
with rainproof frames.

The entrance panels are also available
with a gold effect treatment (colour code
.../43, e.g. 1201/43)

1200

series

M

V

+T

8

7

6

5

-

M

V

+

T

8

7

6

5

-

M

V

+

T

8

7

6

5

-

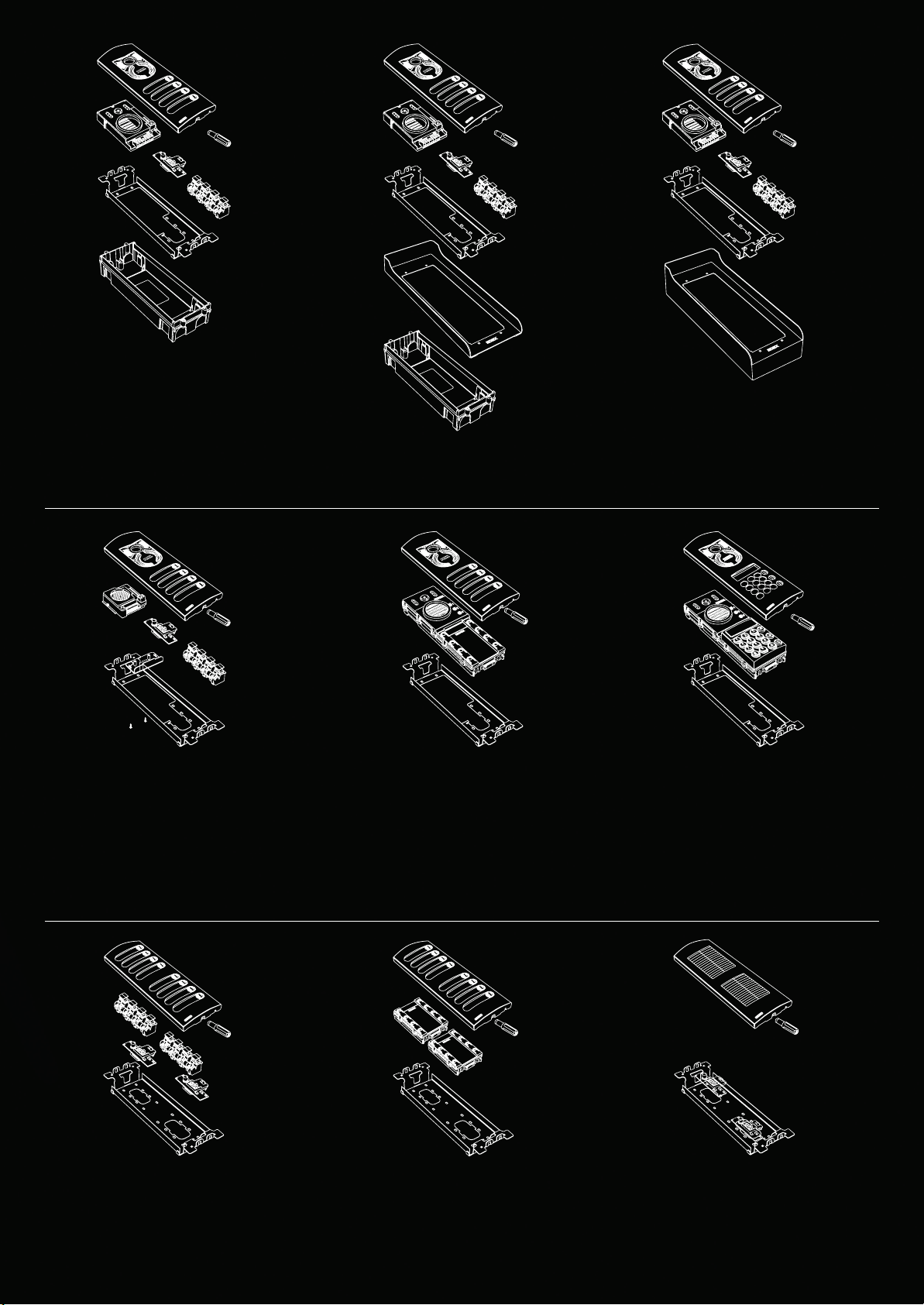

Flush wall-mounted installation. Flush wall-mounted installation with

rainproof cover.

Surface wall-mounted installation with
rainproof cover.

( )

In order to assemble an audio or video
entrance panel including call buttons,
in systems with Sound System or A.C.
call systems, add a speech unit or a
video camera with a speech unit, name

In order to assemble an audio or video
entrance panel, inlcuding call-buttons,
in Two-Wire or DigiBus systems, add
only a video or audio push-button
electronic unit.

In order to assemble an audio or video
entrance panel with a display and
alphanumeric keypad, in Two-Wire or
DigiBus systems, add a video or audio
push-button electronic unit only.

tag illuminating LED art. R260 (one for
every 4 push-buttons), and push-but­tons art. R200 or R200/50.

( )

In order to assemble an extension
entrance panel including call buttons, in
systems with Sound System or A.C. call
systems, add name tag illuminating LED
art. R260 (one for every 4 push-buttons),
and push-buttons art. R200 or R200/50.

In order to assemble an extension
entrance panel, including call buttons,
in Two-Wire or DigiBus systems, add
additional push-button modules only.

In order to assemble an extension
entrance panel with name tags, in Two­Wire or DigiBus systems, no additional
components are required.

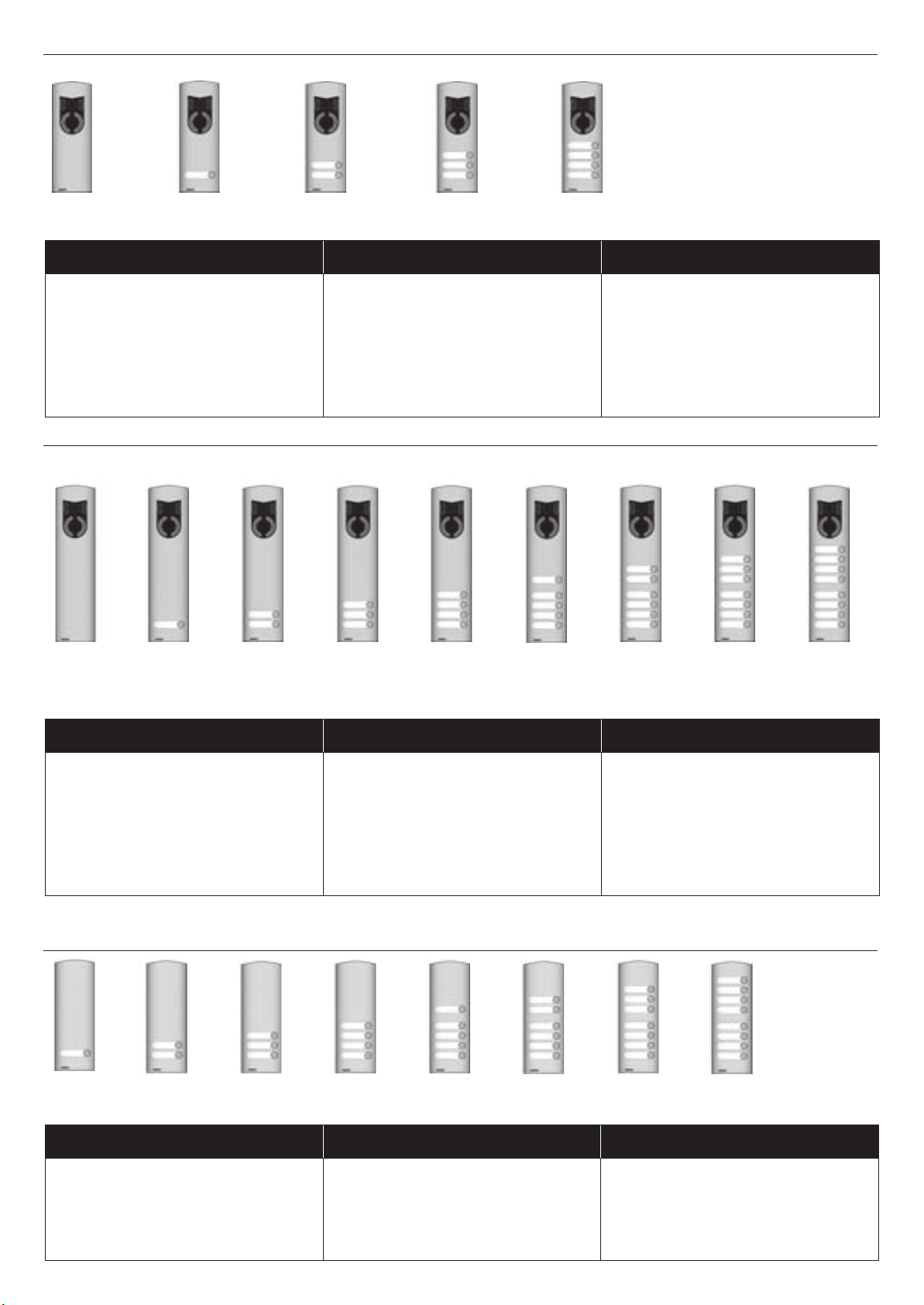

Entrance panels in 2 vertical modules for speech unit, video camera with

( )

speech unit or Two-Wire and DigiBus electronic push-button units.

Dimensions (WxHxD): 282x100x22 mm.Dimensions (WxHxD): 282x100x22 mm.

Art. 1220

without push-buttons

Components
for Sound System and A.C. call systems

Speech unit: art. 930A, 930D, 930F.
Video camera with speech unit:

art. 559A, 559B, 560A.

Push-buttons: art. R200, R200/50.
LEDs for illuminating buttons: art. R260.
Diodes: art. 2/994.

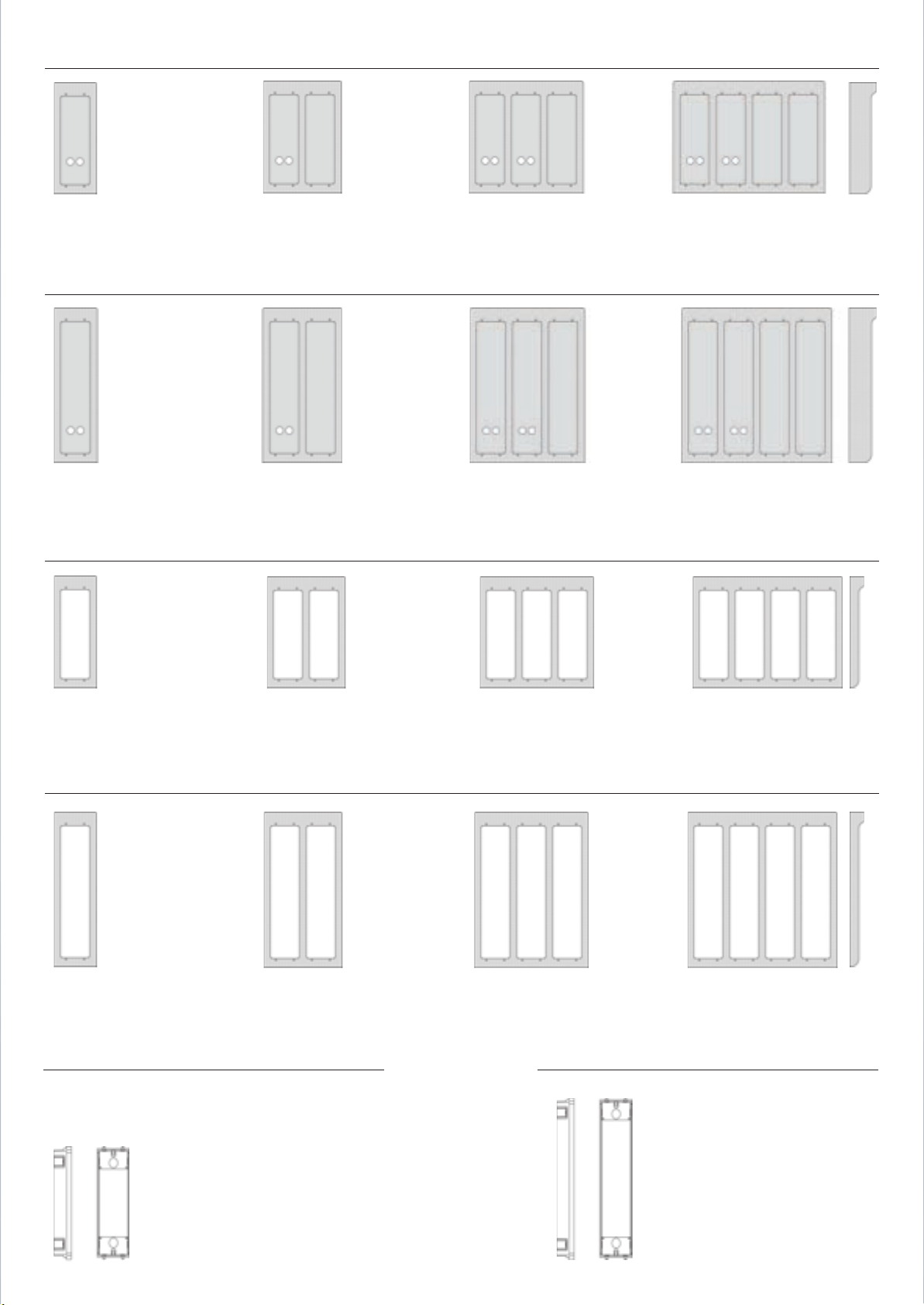

Flush-mounted boxes: art. 9092.
Rainproof covers: art. 1P21, 1P22, 1P23, 1P24.
Surface-mounted boxes with rainproof cover:

art. 1E21, 1E22, 1E23, 1E24.

Entrance panels in 3 vertical modules for speech unit, video camera with

( )

speech unit or Two-Wire and DigiBus push-button electronic units.

Art. 1221

with 1 push-button

Art. 1222

with 2 push-buttons

Art. 1223

with 3 push-buttons

Components
for Two-Wire systems.

Audio electronic unit:

art. 12F3, 12F3/3 (NO for art. 1224).
Video electronic unit: art. 12F5,
12F5/3 (NO for art. 1224).

Flush-mounted boxes: art. 9092 or 9192.
Rainproof covers: art. 1P21, 1P22, 1P23, 1P24.
Surface-mounted boxes with rainproof cover:

art. 1E21, 1E22, 1E23, 1E24.

Art. 1224

with 4 push-buttons

Components
for DigiBus systems.

Audio electronic unit:

art. 1283, 1283/3 (NO for art. 1224).
Video electronic unit: art. 1285,
1285/3 (NO for art. 1224).

Flush-mounted boxes: art. 9092 or 9192.
Rainproof covers: art. 1P21, 1P22, 1P23, 1P24.
Surface-mounted boxes with rainproof cover:

art. 1E21, 1E22, 1E23, 1E24.

Dimensions (WxHxD): 396x100x22 mm.

Art. 1230

without
push-buttons

Components
for Sound System and A.C. call systems.

Speech unit: art. 930A, 930D, 930F.
Video camera with speech unit:

art. 559A, 559B, 560A.

Push-buttons: art. R200, R200/50.
LEDs for illuminating buttons: art. R260.
Diodes: art. 2/994.
Flush-mounted boxes: art. 9093 or 9193.
Rainproof covers: art. 1P31, 1P32, 1P33, 1P34.
Surface-mounted boxes with rainproof cover:

art. 1E31, 1E32, 1E33, 1E34.

Additional push-button panels in 2 vertical modules for art. 122x.

( )

Art. 1251

with 1
push-button

Components
for Sound System and A.C. call systems.

Push-buttons: art. R200, R200/50.
LEDs for illuminating buttons: art. R260.
Diodes: art. 2/994.
Flush-mounted boxes: art. 9092 or 9192.
Rainproof covers: art. 1P21, 1P22, 1P23, 1P24.
Surface-mounted boxes with rainproof cover:

art. 1E21, 1E22, 1E23, 1E24.

Art. 1231

with 1
push-button

Art. 1252

with 2
push-buttons

Art. 1232

with 2
push-buttons

Art. 1253

with 3
push-buttons

Art. 1233

with 3
push-buttons

Art. 1234

with 4
push-buttons

Art. 1235

with 5
push-buttons

Components
for Two-Wire systems.

Audio electronic unit:

art. 12F3, 12F3/3 (NO for art. 1238).

Video electronic unit:

art. 12F5, 12F5/3 (NO for art. 1238).

Push-button modules: art. 12TS.
Flush-mounted boxes: art. 9093 or 9193.
Rainproof covers: art. 1P31, 1P32, 1P33, 1P34.
Surface-mounted boxes with rainproof cover:

art. 1E31, 1E32, 1E33, 1E34.

Art. 1254

with 4
push-buttons

Art. 1255

with 5
push-buttons

Art. 1256

with 6
push-buttons

Additional components
for Two-Wire systems.

Push-button modules: art. 12TS.
Flush-mounted boxes: art. 9092 or 9192.
Rainproof covers: art. 1P21, 1P22, 1P23, 1P24.
Surface-mounted boxes with rainproof cover:

art. 1E21, 1E22, 1E23, 1E24.

Art. 1236

with 6
push-buttons

Art. 1237

with 7
push-buttons

Art. 1238

with 8
push-buttons

Components
for DigiBus systems.

Audio electronic unit:

art. 1283, 1283/3 (NO for art. 1238).

Video electronic unit:

art. 1285, 1285/3 (NO for art. 1238).

Push-button modules: art. 12TS.
Flush-mounted boxes: art. 9093 or 9193.
Rainproof covers: art. 1P31, 1P32, 1P33, 1P34.
Surface-mounted boxes with rainproof cover:

art. 1E31, 1E32, 1E33, 1E34.

Dimensions (WxHxD): 282x100x22 mm.

Art. 1257

with 7
push-buttons

Additional components
for DigiBus systems.

Push-button modules: art. 12TS.
Flush-mounted boxes: art. 9092 or 9192.
Rainproof covers: art. 1P21, 1P22, 1P23, 1P24.
Surface-mounted boxes with rainproof cover:

art. 1E21, 1E22, 1E23, 1E24.

Art. 1258

with 8
push-buttons

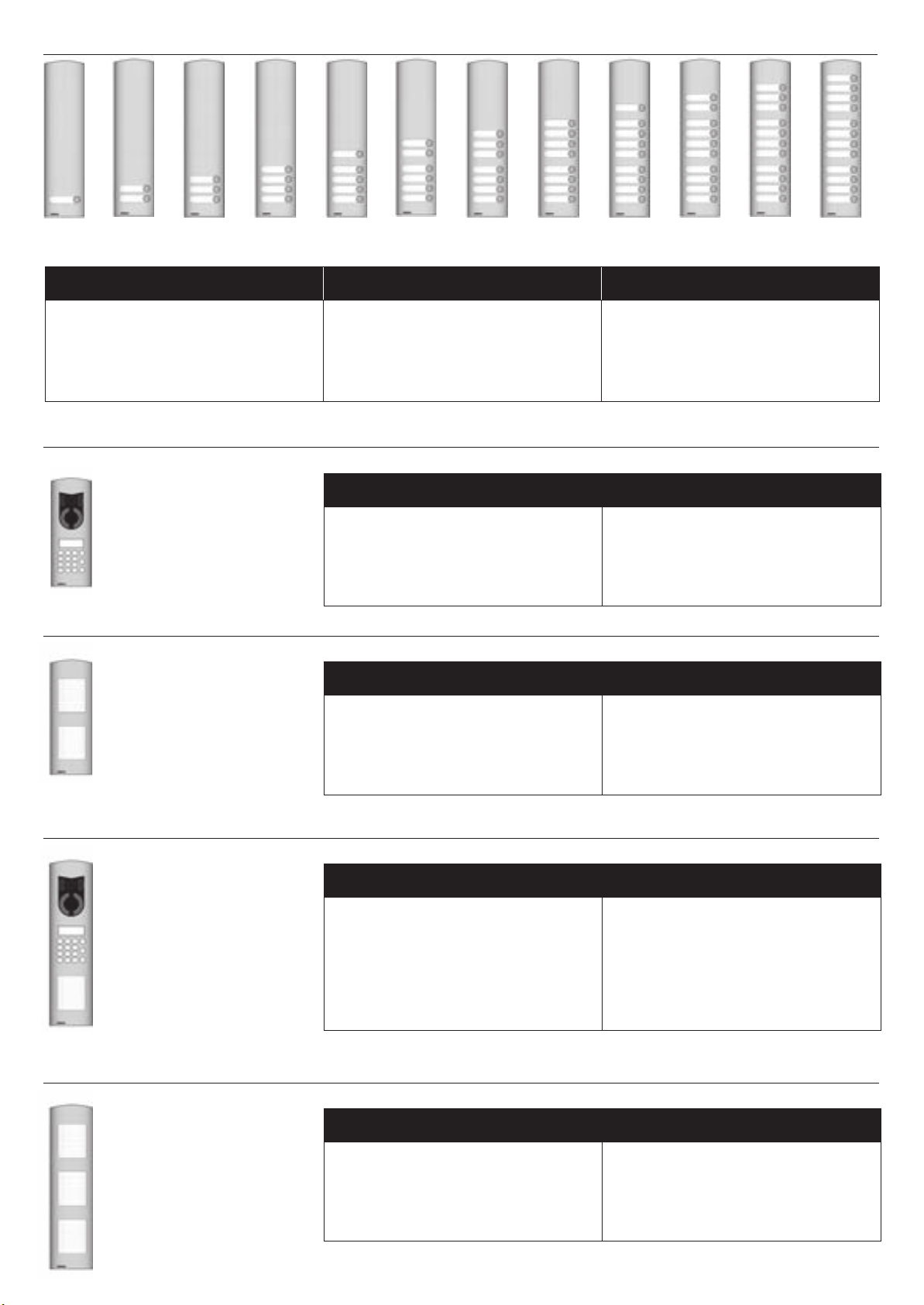

Extension push-button panels in 3 vertical modules for art. 123x.

( )

Dimensions (WxHxD): 396x100x22 mm

Art. 1261

with 1
push-button

Additional components
for Sound System and A.C. call systems.

Push-buttons: art. R200, R200/50.
LEDs for illuminating buttons: art. R260.
Diodes: art. 2/994.
Flush-mounted boxes: art. 9093 or 9193.
Rainproof covers: art. 1P31, 1P32, 1P33, 1P34.
Surface-mounted boxes with rainproof cover:

art. 1E31, 1E32, 1E33, 1E34.

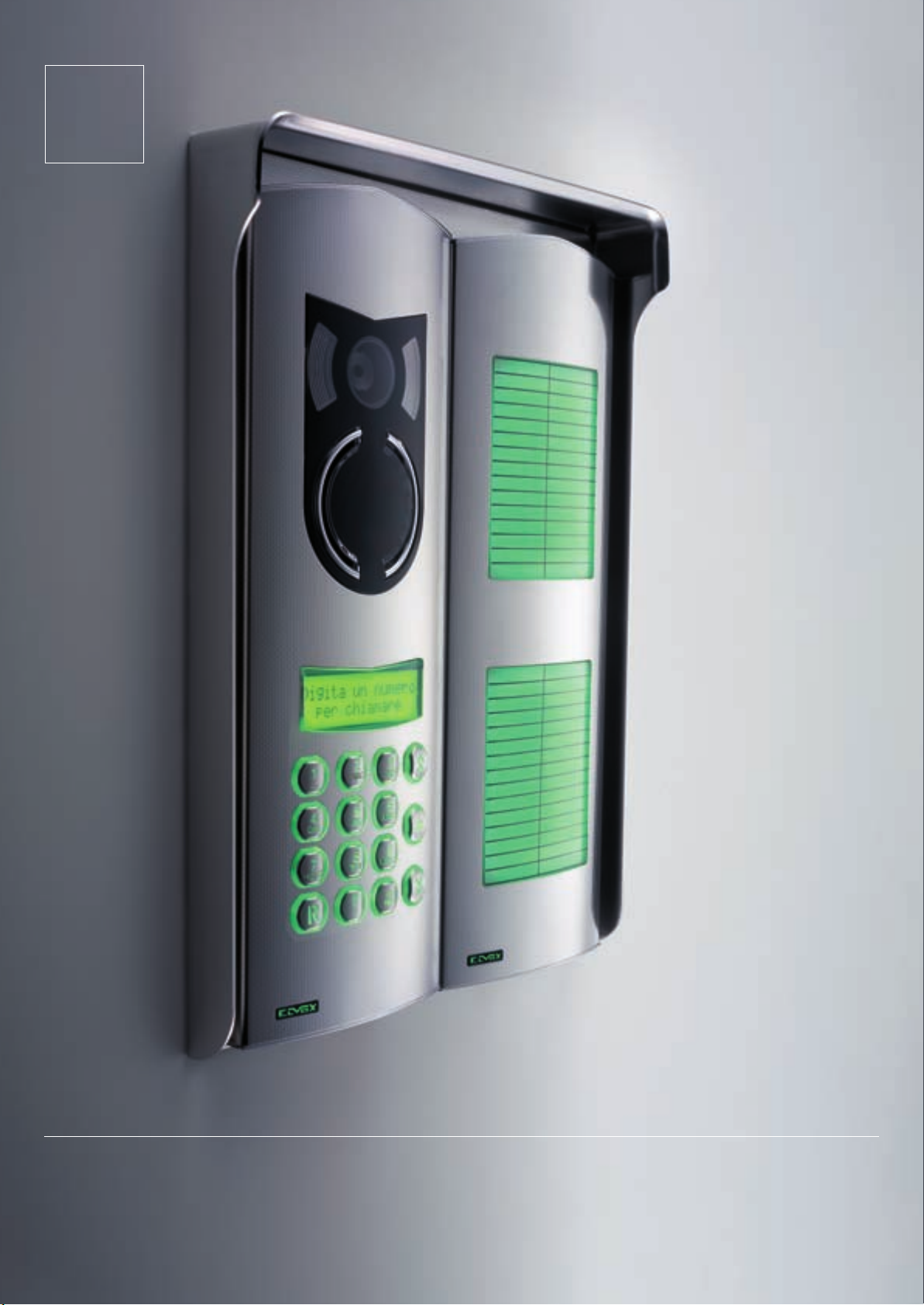

Entrance panels for electronic units with display and alphanumeric keypad.

( )

Extension entrance panels with name tags.

( )

Art. 1262

with 2
push-buttons

Art. 122D

for alphanumeric keypad

Art. 122N

with 15+15 names

Art. 1263

with 3
push-buttons

Art. 1264

with 4
push-buttons

Art. 1265

with 5
push-buttons

Additional components
for Two-Wire systems.

Push-button modules: art. 12TS.
Flush-mounted boxes: art. 9093 or 9193.
Rainproof covers: art. 1P31, 1P32, 1P33, 1P34.
Surface-mounted boxes with rainproof cover:

art. 1E31, 1E32, 1E33, 1E34.

Components
for Two-Wire systems.

Audio electronic unit:
Video electronic unit: art. 12F7.
Flush-mounted boxes: art. 9092 or 9192.
Rainproof covers: art. 1P21, 1P22, 1P23, 1P24.
Surface-mounted boxes with rainproof cover:

art. 1E21, 1E22, 1E23, 1E24.

Additional components
for Two-Wire systems.

LEDs for illuminating name tags:

already incorporated.

Flush-mounted boxes: art. 9092 or 9192.
Rainproof covers: art. 1P21, 1P22, 1P23, 1P24.
Surface-mounted boxes with rainproof cover:

art. 1E21, 1E22, 1E23, 1E24

Art. 1266

with 6
push-buttons

Art. 1267

with 7
push-buttons

art. 12F4.

Art. 1268

with 8
push-buttons

Art. 1269

with 9
push-buttons

Additional components
for DigiBus systems.

Push-button modules: art. 12TS.
Flush-mounted boxes: art. 9093 or 9193.
Rainproof covers: art. 1P31, 1P32, 1P33, 1P34.
Surface-mounted boxes with rainproof cover:

art. 1E31, 1E32, 1E33, 1E34.

Art. 1270

with 10
push-buttons

Art. 1271

with 11
push-buttons

Art. 1272

with 12
push-buttons

Dimensions (WxHxD): 282x100x22 mm.

Components
for DigiBus systems.

Audio electronic unit: art. 1284.
Video electronic unit: art. 1287.
Flush-mounted boxes: art. 9092 or 9192.
Rainproof covers: art. 1P21, 1P22, 1P23, 1P24.
Surface-mounted boxes with rainproof cover:

art. 1E21, 1E22, 1E23, 1E24.

Dimensions (WxHxD): 282x100x22 mm.

Additional components
for DigiBus systems.

LEDs for illuminating name tags:

already incorporated.

Flush-mounted boxes: art. 9092 or 9192.
Rainproof covers: art. 1P21, 1P22, 1P23, 1P24.
Surface-mounted boxes with rainproof cover:

art. 1E21, 1E22, 1E23, 1E24.

Entrance panels for electronic units with display and alphanumeric keypad.

(

Art. 123D

for alphanumeric keypad

Extension entrance panels with name tags.

Components
for Two-Wire systems.

Audio electronic unit:
Video electronic unit: art. 12F7.
LEDs for illuminating name tags:

already incorporated

Flush-mounted boxes: art. 9093 or 9193.
Rainproof covers: art. 1P31, 1P32, 1P33, 1P34.
Surface-mounted boxes with rainproof cover:

art. 1E31, 1E32, 1E33, 1E34.

art. 12F4.

(

Art. 123N

with 15+15+15 names

Additional components
for Two-Wire systems.

LEDs for illuminating name tags:

already incorporated.

Flush-mounted boxes: art. 9093 or 9193.
Rainproof covers: art. 1P31, 1P32, 1P33, 1P34.
Surface-mounted boxes with rainproof cover:

art. 1E31, 1E32, 1E33, 1E234.

Dimensions (WxHxD): 396x100x22 mm.

Components
for DigiBus systems

Audio electronic unit: art. 1284.
Video electronic unit: art. 1287.
LEDs for illuminating name tags:

already incorporated

Flush-mounted boxes: art. 9093 or 9193.
Rainproof covers: art. 1P31, 1P32, 1P33, 1P34.
Surface-mounted boxes with rainproof cover:

art. 1E31, 1E32, 1E33, 1E34.

Dimensions (WxHxD): 396x100x22 mm.

Additional components
for DigiBus systems.

LEDs for illuminating name tags:

already incorporated.

Flush-mounted boxes: art. 9093 or 9193.
Rainproof covers: art. 1P31, 1P32, 1P33, 1P34.
Surface-mounted boxes with rainproof cover:

art. 1E31, 1E32, 1E33, 1E34.

)

)

1200

series

Unparalleled protection

( )

It can be supplied with an optional
rainproof cover made of AISI 316 (V4A),
15/10 thick, embossed-effect stainless
steel (or PVD-treated, gold effect).

Surface wall-mounted boxes with rainproof cover for entrance panels 2 modules high (282 mm).

( )

Art. 1E21

for 1 entrance panel
2 modules high.
Front dimensions (WxHxD): 120x296x74 mm
Back dimensions (WxH): 120x295 mm

Surface wall-mounted boxes with rainproof cover for entrance panels 3 modules high (396 mm).

( )

Art. 1E31

for 1 entrance panel
3 modules high.
Front dimensions (WxHxD): 120x410x74 mm
Back dimensions (WxH): 120x410 mm

Rainproof covers for entrance panels 2 modules high (282 mm).

(

Art. 1E22

for 2 entrance panels
2 modules high.
Front dimensions (WxHxD): 220x296x74 mm
Back dimensions (WxH): 220x295 mm

Art. 1E32

for 2 entrance panels
3 modules high.
Front dimensions (WxHxD): 220x410x74 mm
Back dimensions (WxH): 220x410 mm

Art. 1E23

for 3 entrance panels
2 modules high.
Front dimensions (WxHxD): 320x296x74 mm
Back dimensions (WxH): 320x295 mm

Art. 1E33

for 3 entrance panels
3 modules high.
Front dimensions (WxHxD): 320x410x74 mm
Back dimensions (WxH): 320x410 mm

Art. 1E24

for 4 entrance panels
2 modules high.
Front dimensions (WxHxD): 420x296x74 mm
Back dimensions (WxH): 420x295 mm

Art. 1E34

for 4 entrance panels
3 modules high.
Front dimensions (WxHxD): 420x410x74 mm
Back dimensions (WxH): 420x410 mm

)

Art. 1P21

for 1 entrance panel
2 modules high.
Front dimensions (WxHxD): 120x296x39.5 mm
Back dimensions (WxH): 120x295 mm

Rainproof covers for entrance panels 3 modules high (396 mm).

( )

Art. 1P31

for 1 entrance panel
3 modules high.
Front dimensions (WxHxD): 120x410x39.5 mm
Back dimensions (WxH): 120x410 mm

Flush wall-mounted box for entrance panels

( )

2 modules high.

Art. 1P22

for 2 entrance panels
2 modules high.
Front dimensions (WxHxD): 220x296x39.5 mm
Back dimensions (WxH): 220x295 mm

Art. 1P32

for 2 entrance panels
3 modules high.
Front dimensions (WxHxD): 220x410x39.5 mm
Back dimensions (WxH): 220x410 mm

Art. 1P23

for 3 entrance panels
2 modules high.
Front dimensions (WxHxD): 320x296x39.5 mm
Back dimensions (WxH): 320x295 mm

Art. 1P33

for 3 entrance panels
2 modules high.
Front dimensions (WxHxD): 320x410x39.5 mm
Back dimensions (WxH): 320x410 mm

Flush wall-mounted box for entrance panels

( )

3 modules high.

Art. 1P24

for 4 entrance panels
2 modules high.
Front dimensions (WxHxD): 420x296x39.5 mm
Back dimensions (WxH): 420x295 mm

Art. 1P34

for 4 entrance panels
2 modules high.
Front dimensions (WxHxD): 420x410x39.5 mm
Back dimensions (WxH): 420x410 mm

Art. 9092 o 9192

Dim: 88x248x50 mm

Art. 9093 o 9193

Dim: 88x360x50 mm

1200

series

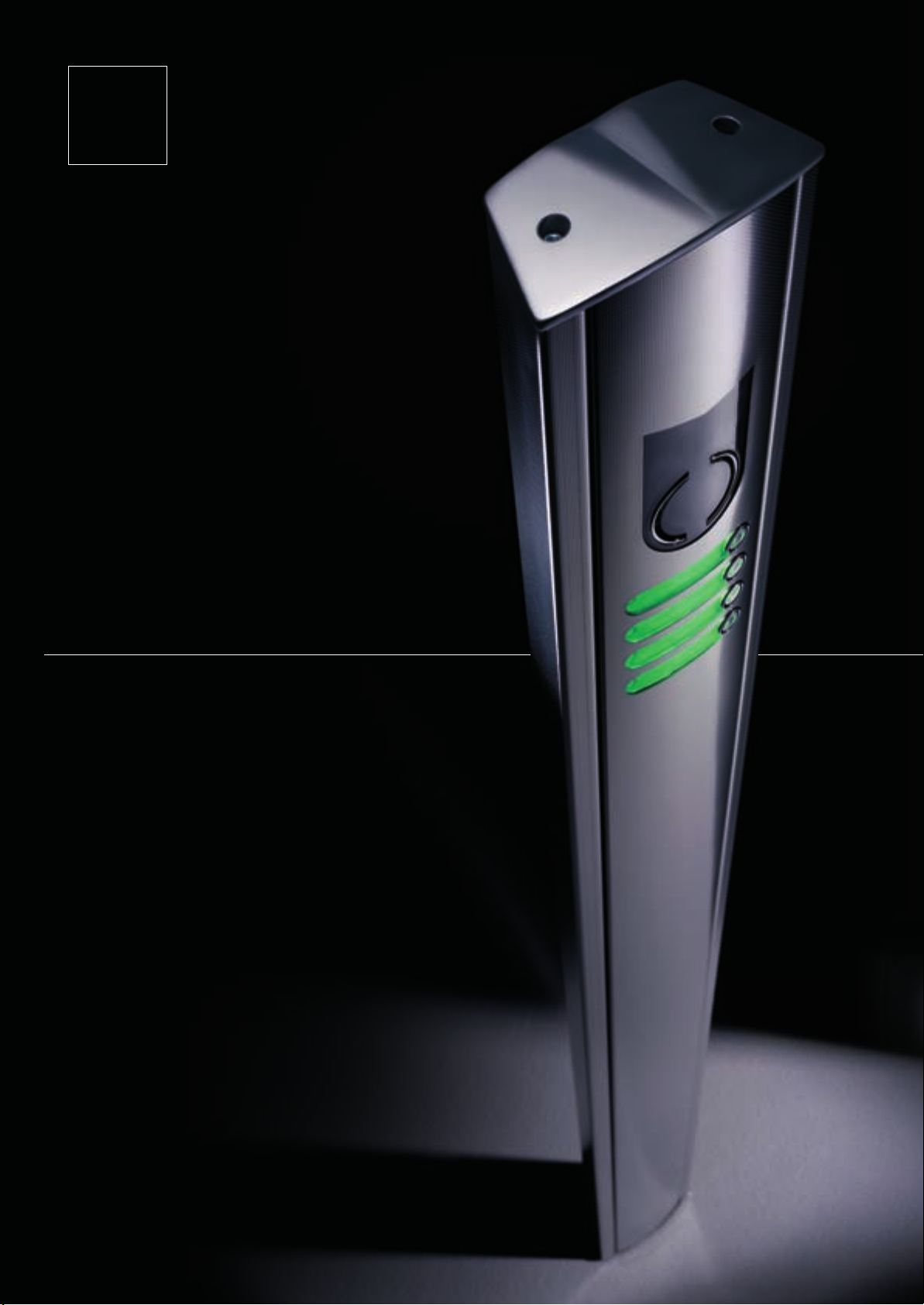

The new free-standing, floor-mounted
communication post features the
same materials and design as the
1200 series entrance panels.
The post is compatible with ELVOX
digital and analogue systems and
comes with individual call buttons or
an alphanumeric keypad.

The new Elvox

(

column-mounted Entrance Panel

Entrance panels for electronic units with display and alphanumeric keypad.

Column dimensions (WxHxD):

145x1725x95 mm.

Base + column

dimensions (WxHxD):

200x1735x200 mm.

Art. 12CD

for alphanumeric keypad

Components
for Two-Wire systems.

Audio electronic unit: art. 12F4
Video electronic unit: art. 12F7

Components
for DigiBus systems.

Audio electronic unit: art. 1284
Video electronic unit: art. 1287

A subtle presence creating a unique link with the future.

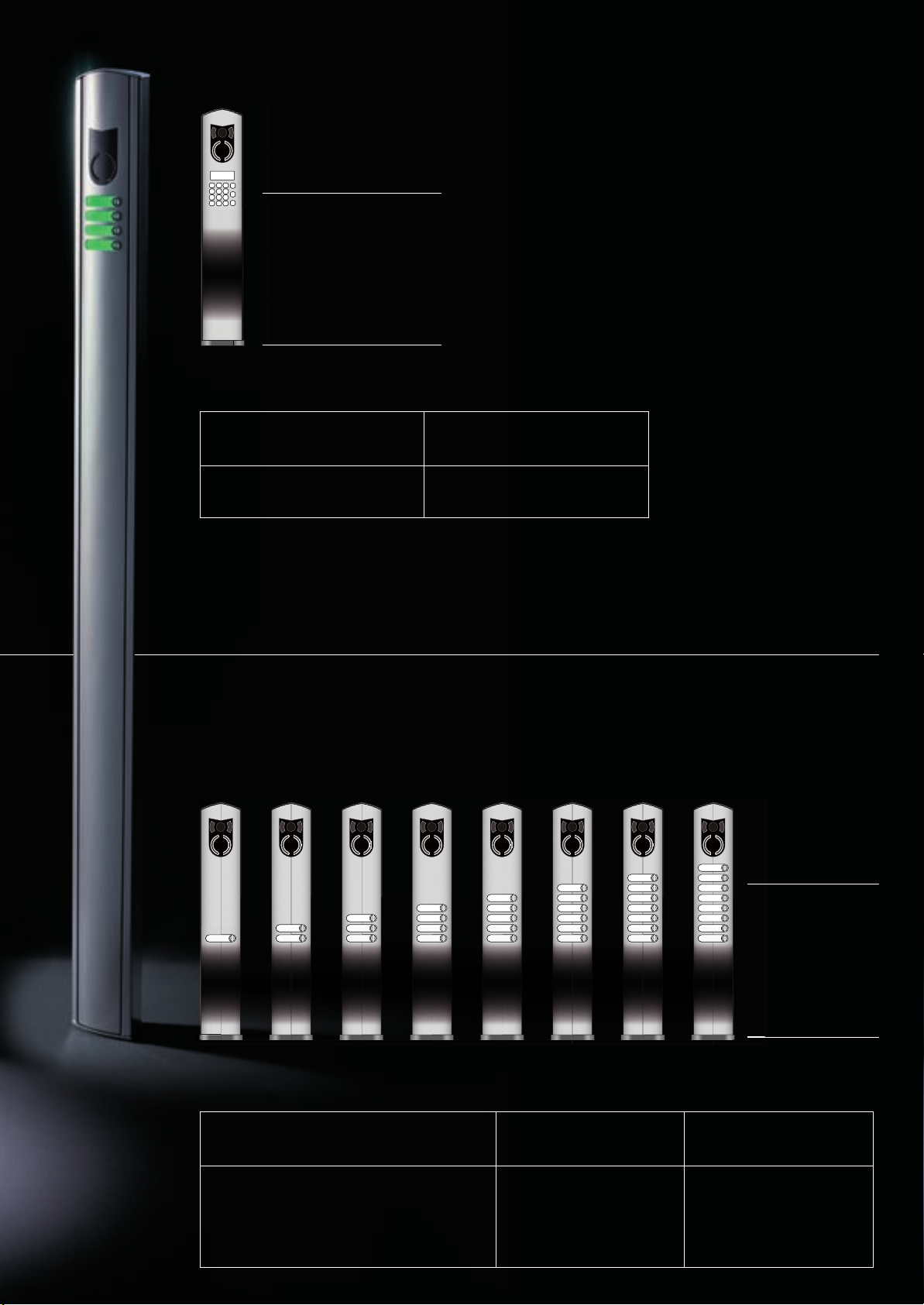

Communication column for speech unit, video camera with speech unit or
Two-Wire and DigiBus push-button electronic units.

)

Column dimensions

(WxHxD):

145x1725x95 mm.

Art. 12C1

with 1
push-button

Components
for Sound System and A.C. call systems.

Speech unit:
Video camera with speech unit:

art. 559A, 559B, 560A

Push-buttons:
LEDs for illuminating buttons:
Diodes:

Art. 12C2

with 2
push-buttons

art. 930A, 930D, 930F

art. R200, R200/50

art. 2/994

Art. 12C3

with 3
push-buttons

Art. 12C4

with 4
push-buttons

art. R260

Art. 12C5

with 5
push-buttons

Components
for Two-Wire systems.

Audio electronic unit: art. 12F3
Video electronic unit: art. 12F5

Art. 12C6

with 6
push-buttons

Art. 12C7

with 7
push-buttons

Base + column

dimensions (WxHxD):

200x1735x200 mm.

Art. 12C8

with 8
push-buttons

Components
for DigiBus systems.

Audio electronic unit: art. 1283
Video electronic unit: art. 1285

www.elvox.com

DEP.PUB.E89 - RL00 - 2/2008 - Studioverde

®®
