DataMan
®
503
Quick Reference Guide
04/13/2017
Version:5.7.0.42
Page 2
Precautions
Observe these precautions when installing the Cognex product, to reduce the risk of
injury or equipment damage:
l To reduce the risk of damage or malfunction due to over-voltage, line noise,
electrostatic discharge (ESD), power surges, or other irregularities in the
power supply, route all cables and wires away from high-voltage power
sources.
l Changes or modifications not expressly approved by the party responsible
for regulatory compliance could void the user’s authority to operate the
equipment.
l Cable shielding can be degraded or cables can be damaged or wear out
more quickly if a service loop or bend radius is tighter than 10X the cable
diameter. The bend radius must begin at least sixinches from the
connector.
l This device should be used in accordance with the instructions in this
manual.
l Allspecifications are for reference purpose only and may be changed
without notice.
2
Page 3
Product Overview

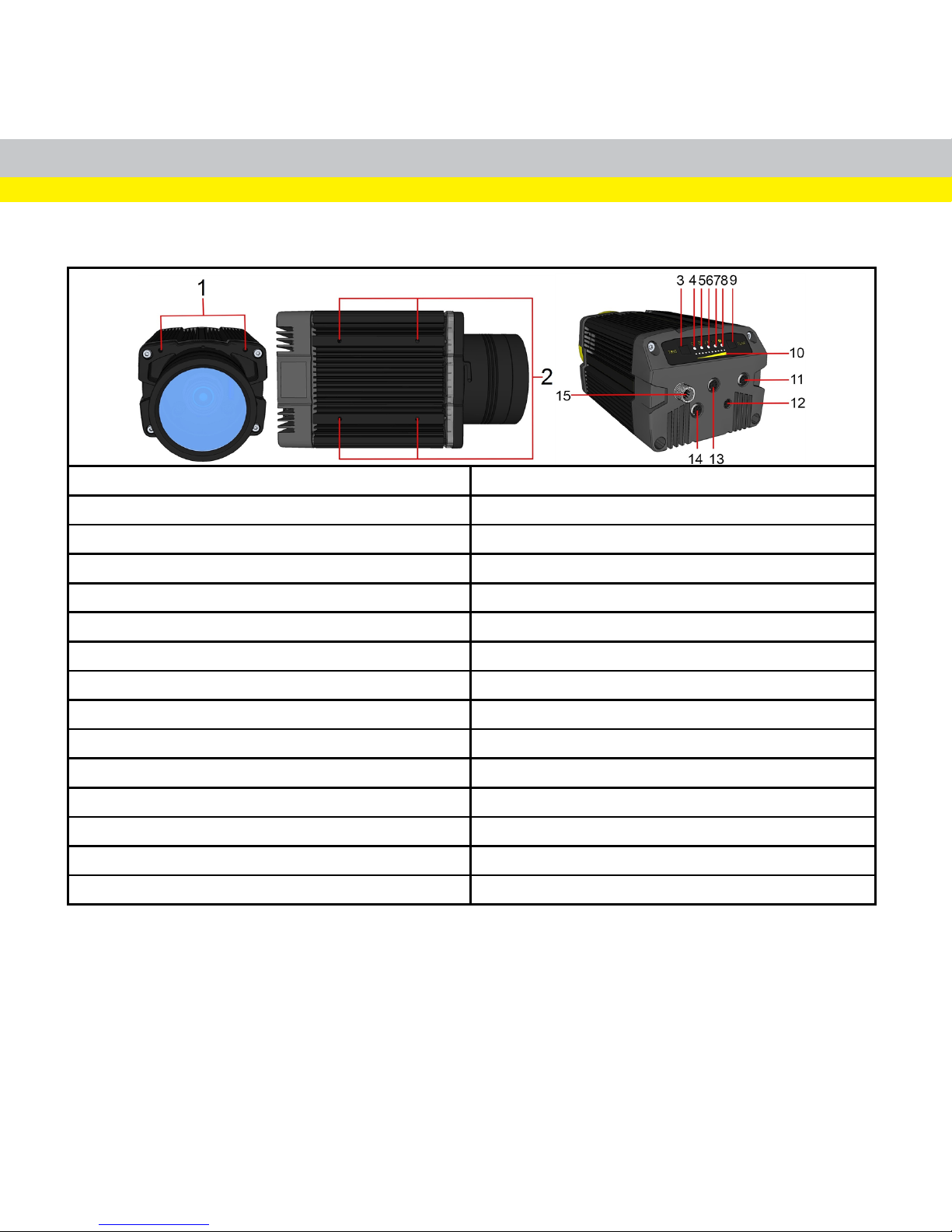

1 External illumination mounting point
2 Mounting holes (M3 x 5mm)
3 Trigger button
4 Power
5 Train status
6 Good/bad read
7 Network
8 Error
9 Tuning button
10 Peak meter
11 Synchronized Acquisition
12 RS-232
13 External light control
14 Ethernet
15 Power I/O
3
Page 4

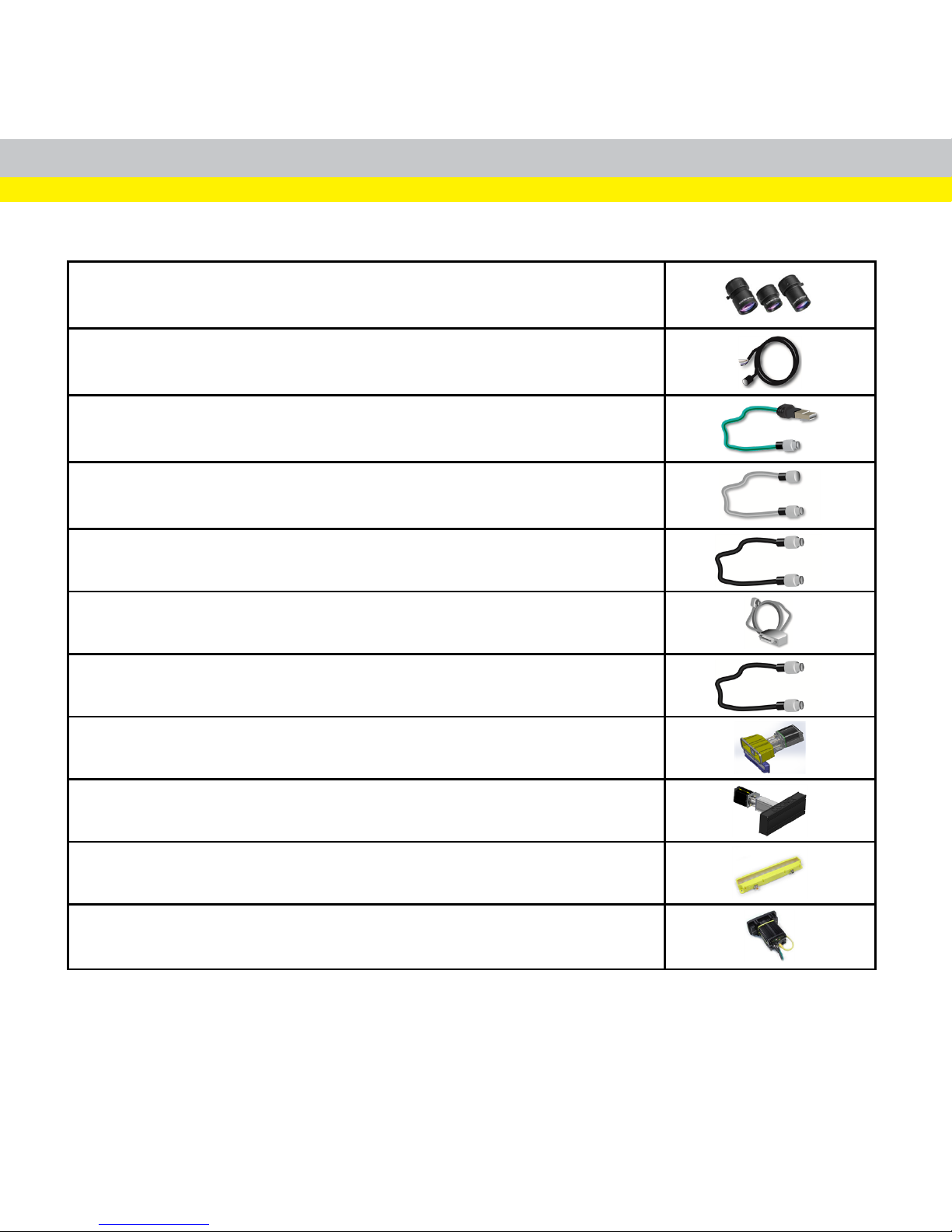

DataMan 503 Accessories
16 mm, 25 mm and 35 mm lens (LEC-CFFxx-F8)
(xx specifies focal length)
Connection cable 24V, I/O (CCBL-05-01)
Ethernet M12 to RJ45 cable (CCB-84901-y00x-xx) (y straight/angled, x-xx
specifies length)
External light cable (CCB-M12x4MS-xxx) (xxx specifies length)
I/O extension cable, 5m straight (CKR-200-CBL-EXT)
RS-232 M8 to SUB-D cable (CCB-M8X4-xx)
Synchronization Cable (DM503-SYNC-012 - 1.2 meter, DM503-SYNC-05 - 5
meter)
Xpand 15 (DMA-FOVE-15)
Xpand 25 (DMA-FOVE-25)
SVL Light Bar (IVSL-YLW300-xxx)
DM503 high power illumination (DM503-HPIA-xxx)
4
Page 5

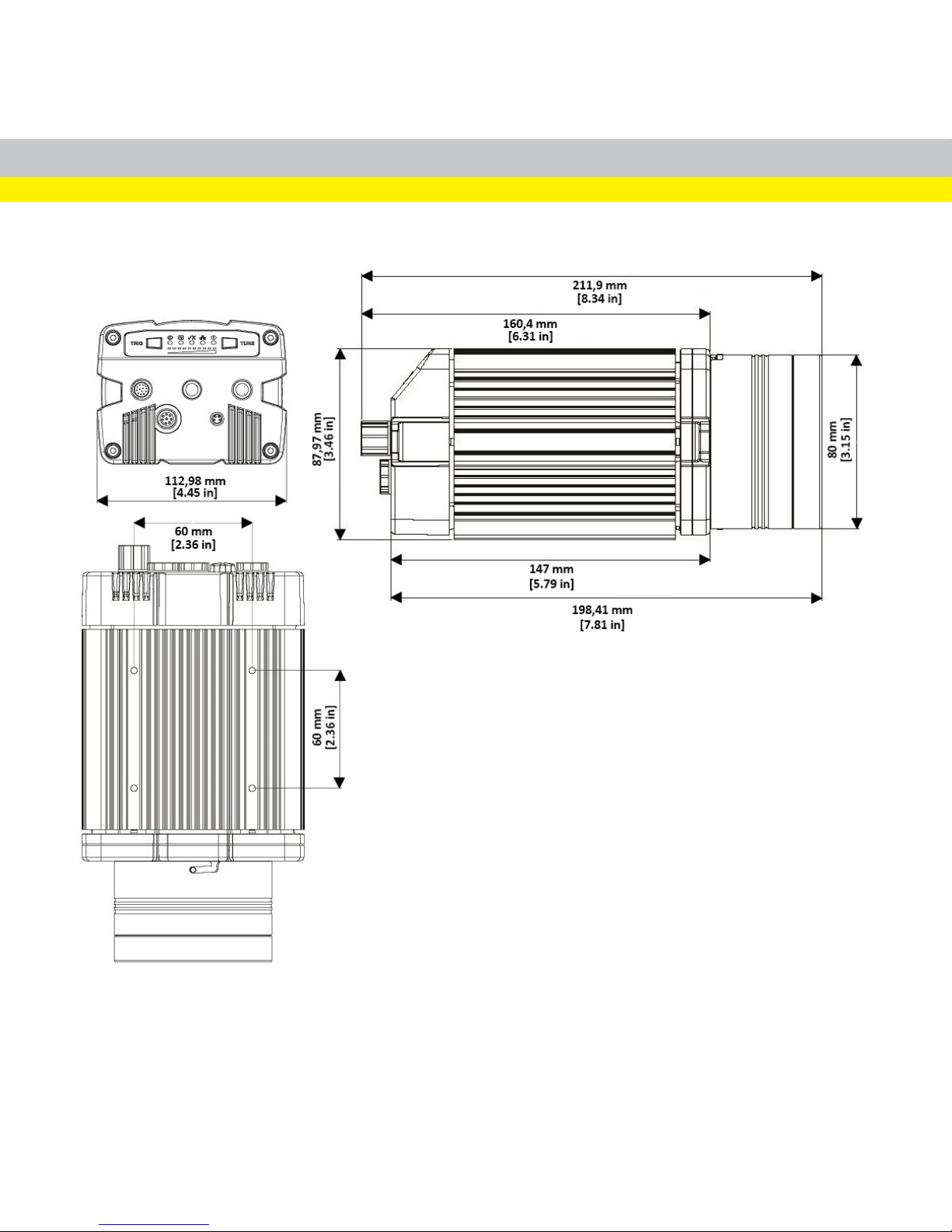

Dimensions
5
Page 6

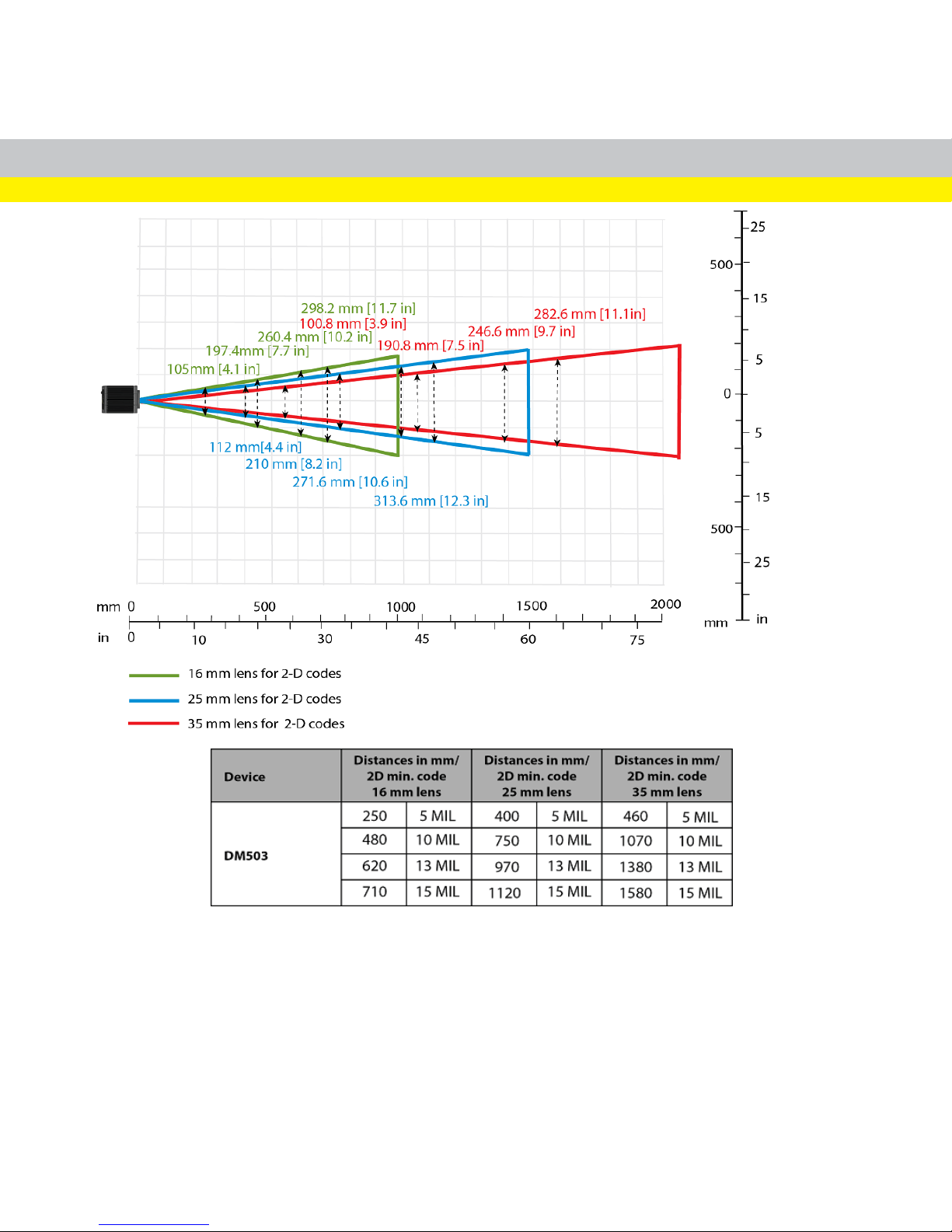

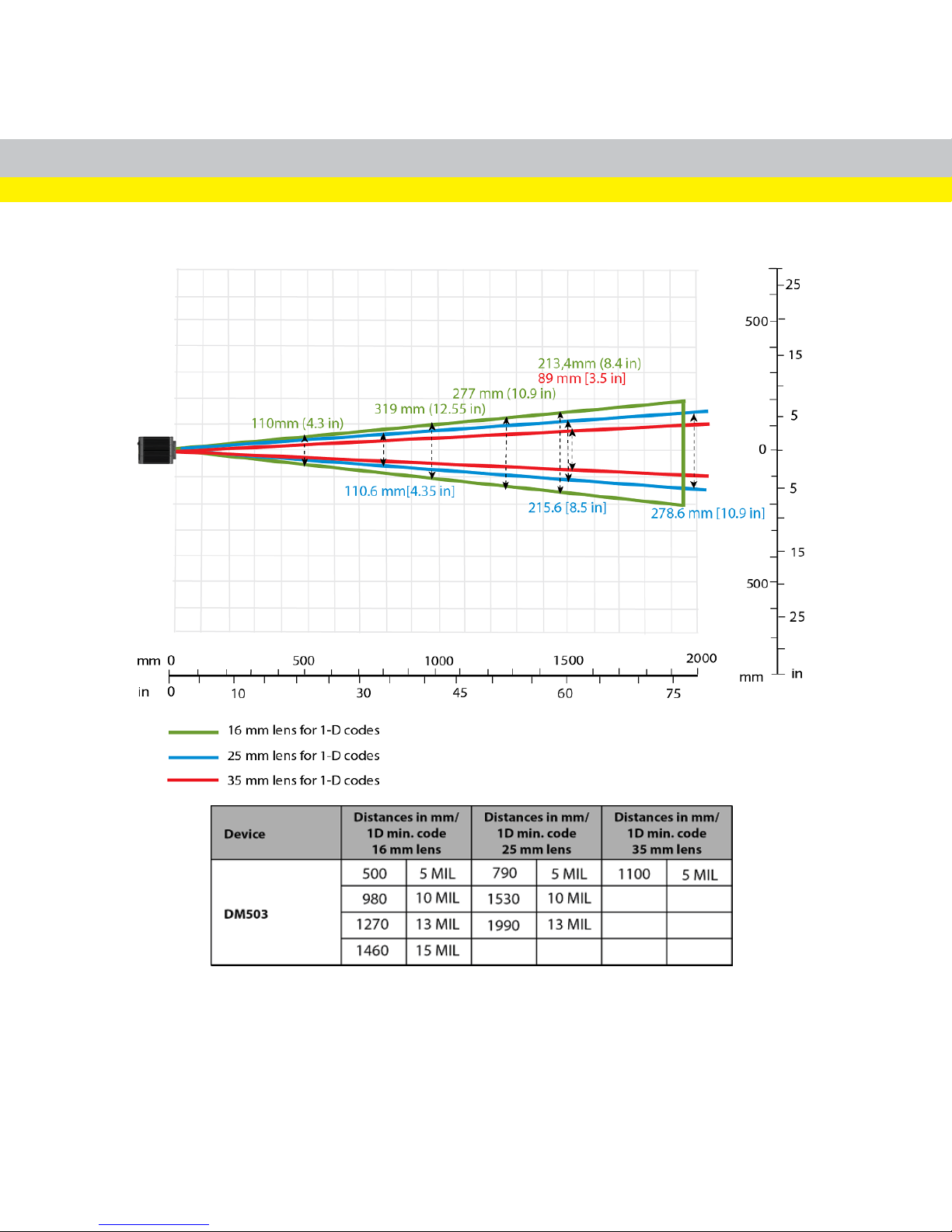

Field of View and Reading Distances
6
Page 7
7
Page 8
Connecting the Reader
8
Page 9
Installation
Installation procedures and specifications are presented in detail in the DataMan
®
503 Reference Manual, which is installed with the DataMan Setup Tool. From the
Windows Start menu, select the following to access the manual: All Programs >
Cognex > DataMan Software vx.x.x > Documentation.
Note:
l Cables are sold separately.
l If any of the standard components appear to be missing or damaged,
immediately contact your Cognex Authorized Service Provider (ASP)
or Cognex Technical Support.
CAUTION: All cable connectors are "keyed" to fit the connectors on the
DataMan system; do not force the connectors or damage may occur.
9
Page 10
Install Software and Documentation and
Connect the Reader

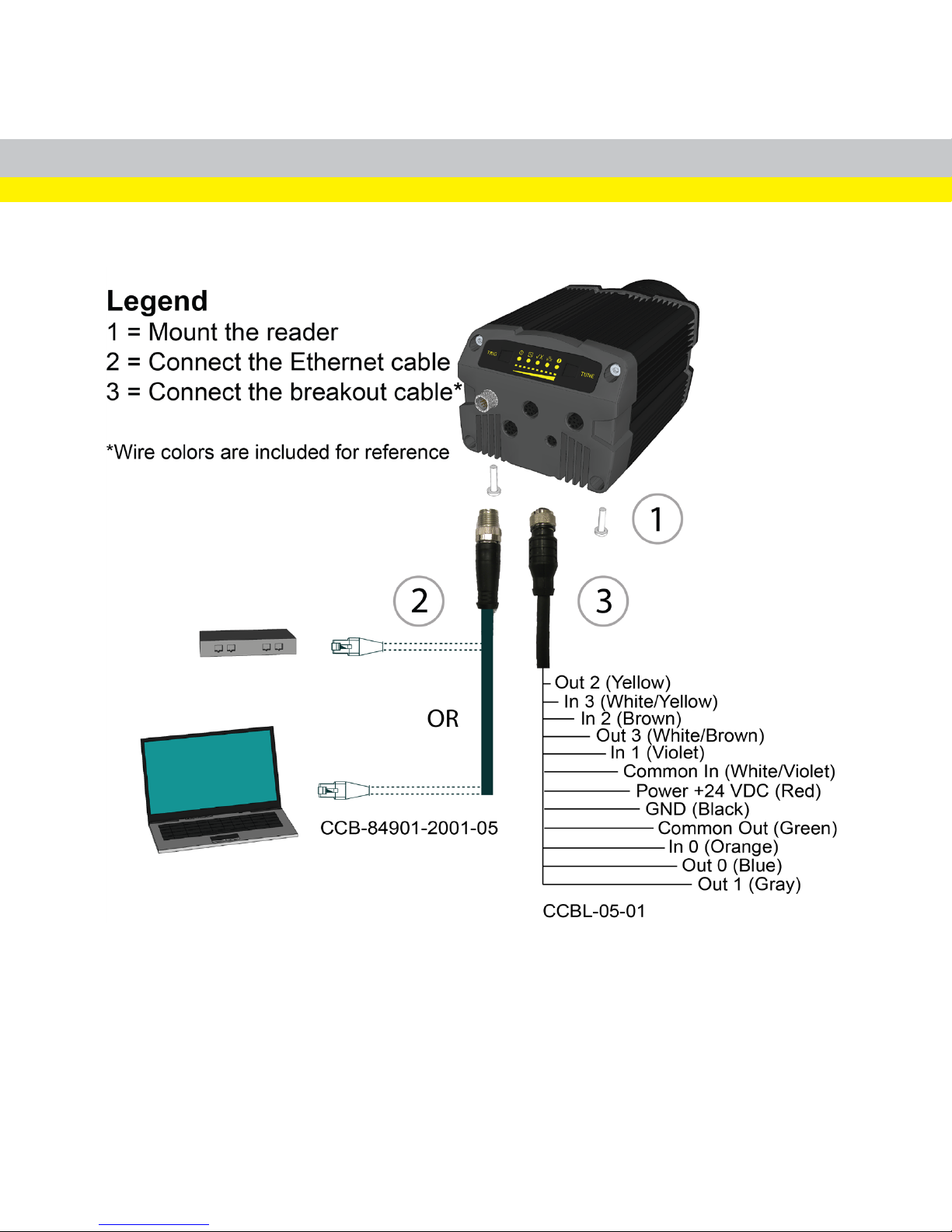

Follow the steps below to connect your reader to power and network:
1. Connect the I/O+RS232+24V cable to your reader.
2. For a network connection, connect your reader through an Ethernet cable
to your network.
3. Connect the cable to a 24V power supply.
To configure a DataMan 503 reader, the DataMan Setup Tool software must be
installed on a networked PC. The DataMan Setup Tool is available from the
DataMan support site: http://www.cognex.com/support/dataman.
1. After installing the software, connect the DataMan 503reader to your PC.
2. Launch the DataMan Setup Tool and click Refresh.
3. Select your DataMan 503 reader from the list and click Connect.
10
Page 11
DataMan 503 Specifications
Weight 1602 g
Operating
Temperature
0ºC — 45ºC (32ºF — 113ºF)
Storage
Temperature
-10ºC — 60ºC (-14ºF — 140ºF)
Maximum
Humidity
<95% (non-condensing)
RS-232 RxD, TxD according to TIA/EIA-232-F
Codes
1-D barcodes: Codabar, Code 39, Code 128, and Code 93, Interleaved 2 of 5, MSI, Pharma,
Postal, UPC/EAN/JAN
2-Dbarcodes: Data MatrixTM(IDMax: ECC 0, 50, 80, 100, 140, and 200; IDQuick: ECC200),
QR Code and microQR Code, RSS/CS, PDF 417, MicroPDF 417
Discrete I/O
operating Limits
HS Output 0, 1
I
MAX
@ 24 VDC 50 mA
R
MAX
@ 12 VDC 150 Ω
@ 24 VDC 470 Ω
Input 0 (Trigger)
Input 1
V
IL
0 — ±7 V
I
TYP
@ 12 VDC 2.0 mA
@ 24 VDC 4.2 mA
Power Supply
Requirements
24V +/- 10%
Maximum current: 500 mA (at 25ºC)
Maximum power: 18W (external lights)
Ethernet Speed
10/100/1000
Duplex Mode
Full duplex or half duplex
11
Page 12
DataMan 503 Imager Specifications
Specification DataMan 503 Imager
Image Sensor 2/3 inch CMOS
Image Sensor Properties 5.5μm square pixels
Image Resolution (Pixels) 2048 x 1088
Image Acquisition Maximum 150 fps
Lens Type C-mount lens
12
Page 13
Compliance Statements
The DataMan 503 series meets or exceeds the requirements of all applicable
standards organizations for safe operation. However, as with any electrical
equipment, the best way to ensure safe operation is to operate them according to
the agency guidelines that follow. Please read these guidelines carefully before using
your device.
Regulator Specification
USA FCC Part 15, Subpart B, Class A
Canada ICES-003, Class A
European Community
EN55022 Class A
EN55024
EN60950
Australia AS/NZS for Class A Equipment
Korea KCC-REM-CGX-DM503
Note: For the most up-to-date CE declaration and regulatory conformity information, please refer to the
Cognex online support site: http://www.cognex.com/Support.
Safety and Regulatory
European
Compliance
WARNING: This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate measures.
The CE mark on the product indicates that the system has been tested to and conforms with the
provisions noted within the 2014/30/EU Electromagnetic Compatibility Directive. For further
information please contact: Cognex Corporation, One Vision Drive Natick, MA 01760 USA.
Cognex Corporation shall not be liable for use of our product with equipment (i.e., power supplies,
personal computers, etc.) that is not CE.
13
Page 14
Safety and Regulatory
FCC Class
A
Compliance
Statement
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which
case the user will be required to correct the interference at personal expense.
Canadian
Compliance
This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la
classe A est conforme à la norme NMB-003 du Canada.
C-Tick
Statement
Conforms to AS/NZS CISPR 22/ EN 55022 for Class A Equipment.
UL and cUL
Statement
UL and cUL listed: UL60950-1 2nd ed. and CSA C22.2 No.60950-1 2nd ed.
For European Community Users
Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT
AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment
(WEEE).
This product has required the extraction and use of natural resources for its
production. It may contain hazardous substances that could impact health and the
environment, if not properly disposed.
In order to avoid the dissemination of those substances in our environment and to
diminish the pressure on the natural resources, we encourage you to use the
appropriate take-back systems for product disposal. Those systems will reuse or
recycle most of the materials of the product you are disposing in a sound way.
14
Page 15
The crossed out wheeled bin symbol informs you that the product should not
be disposed of along with municipal waste and invites you to use the appropriate
separate take-back systems for product disposal.
If you need more information on the collection, reuse, and recycling systems, please
contact your localor regional waste administration.
You may also contact your supplier for more information on the environmental
performance of this product.
China RoHS
Hazardous Substances 有 害 物 质
Part Name
部 件 名 称
Lead (Pb)铅Mercury
(Hg)
汞
Cadmium
(Cd)
镉
Hexavalent
Chromium
(Cr (VI))
六 价 铬
Polybrominated
biphenyls (PBB)
多 溴 联 苯
Polybrominated
diphenyl ethers
(PBDE)
多 溴 二 苯醚
DM503
X O O O O O
This table is prepared in accordance with the provisions of SJ/T 11364.
这 个 标 签是 根据 SJ / T 11364 的 规 定准 备的 。
O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the
limit requirement of GB / T26572 - 2011.
表 示 本 部件 所有 均 质 材 料中 含有 的 有害 物质 低于 GB / T26572 - 2011 的限 量 要求 。
X: Indicates that said hazardous substance contained in at least one of the homogeneous materials used for this
part is above the limit requirement of GB / T26572 - 2011.
表 示 用 于本 部件 的 至 少 一种 均质 材 料中 所含 的危 害 物质 超过 GB / T26572 - 2011 的 限制 要 求。
15
Page 16
Copyright © 2017
Cognex Corporation. All Rights Reserved.
