Code Blue IA500-S User Manual

Models 500-d, 500-s, 501-d, 501-s

Installation & Setup

IA500

Administrator Guide

800.205.7186 • www.codeblue.com

Administrator Guide

Table of Contents

Section Page

2 Introduction...................................................................................3

3 Getting Started..............................................................................4

3.1 Construction....................................................................... 4

4 Wiring Diagram.............................................................................5

5 Installation.....................................................................................6

6 Programming.................................................................................7

6.1 General Programming.........................................................8

6.2 Basic Programming Mode...................................................8

6.3 Additional Programming Commands.................................10

IA500

7 Audio Programming Mode..........................................................12

7.1 Audio Program Effects.......................................................13

8 Auxiliary Relay 1 Output using Command 6.............................14

9 Troubleshooting..........................................................................15

10 Technical Specications.............................................................16

11 Warranty .......................................................................................17

Code Blue • 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com

GU-144-Epage 2 of 17

IA500

Administrator Guide

2 Introduction

Thank you for choosing the Code Blue InterAct 500 series analog speakerphone(s), intercom(s)
and paging device(s) for indoor and outdoor applications. These speakerphones are part of our
Emergency Signaling group of products that are built to meet the latest regulations, withstand the
harshest elements and be proactive solutions for when you need them most. The InterAct 500
series phones meet the need for a cost effective, highly reliable product for multi-level parking
decks, stairwells, hallways and building entrances.

Note: Only recommended for use on Bell POTS lines or dial tone provided by ToolVox®; locations with
private PBX head end phone systems should explore the rest of Code Blue’s speakerphone options.

The InterAct 500 is a series of line powered speakerphones – IA500-d, IA500-s, IA501-d and

IA501-d – featuring piezoelectric touch sensitive buttons, a waterproof speaker and microphone,

and one latching type auxiliary relay output. The units include remote programming, call in
monitoring for Areas of Rescue functionality and live audio setup programming.

These line-powered phones feature single or dual solid-state button activation, two high intensity

LED indicators, a cast metal bezel assembly and stainless steel housings for surface or ush mount

applications.

The InterAct 500 series has conformal-coated electronics to support both indoor and outdoor
installations. Each model includes a built-in contact closure that may be used to activate a strobe or
camera or can be used for door access applications.

The two-piece housing on the surface mount models allows the back plate to be mounted and pre­wired during the rough-in phase and the faceplate/electronics assembly set in place near the end of

the project. The ush mount version includes the ush mounting box and has an oversized faceplate

to eliminate additional trim work.

Accessories include blue beacon lighting, remote mount strobes, identication signage and curb

mount pedestals to support a wide range of installations.

This guide provides basic and advanced programming information for obtaining the best
performance with the InterAct 500 speakerphone.

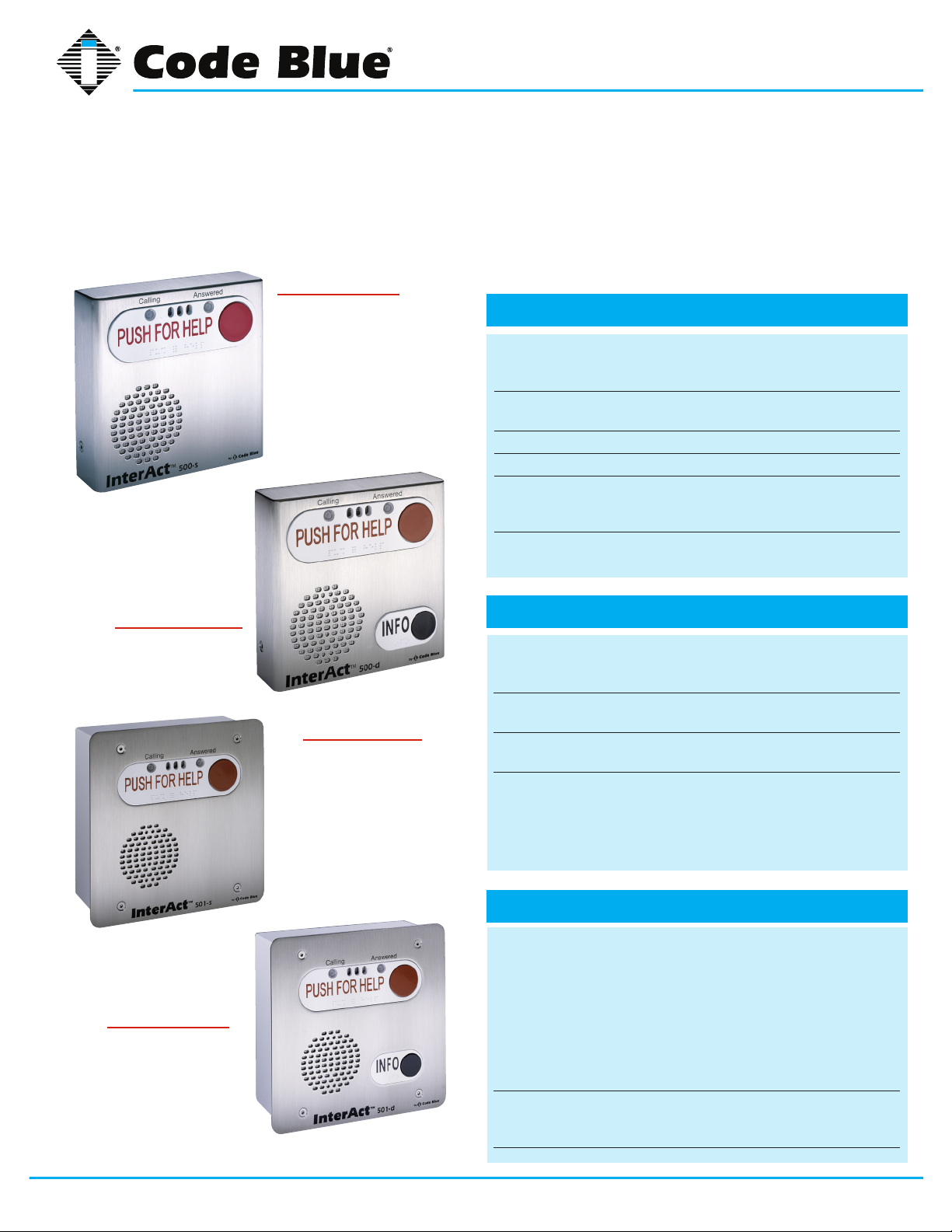

IA501-s Single Button

IA501-d Dual Button Flush Mount

Flush Mount

IA500-d Dual Button Surface Mount

Code Blue • 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com

IA500-s Single Button

Surface Mount

GU-144-Epage 3 of 17

Administrator Guide

3 Getting Started

1. The analog phone line will terminate on the barrier strip at Tip and Ring positions.

a. Talk voltage: 24~48
b. Loop Current Range: 27~50mA

2. Relay: The phone has one relay that can be a straight contact closure or supply low

current through the relay to power a remote strobe.

a. Spec Rating: 1A @ 220V DC or 250V AC (EA2-3TNU.1)

The IA500 series phones are remotely programmed. This enables the installer or end user to pro­gram the unit from a phone on site or from a remote location.

3.1 Construction

IA500

Surface Mount

The IA500 housing shall be constructed of 16 gauge stainless steel and measure 7.375” W x 7.125”
H x 2” D and weigh approximately 5 lbs. The housing shall consist of two pieces, permitting the
backplate to be mounted during the rough in and the faceplate installed during completion. The back
shall have four holes for mounting hardware.

Flush Mount

The IA501 faceplate shall be constructed of 12 gauge stainless steel and the ush mounting box of

14 gauge painted steel. It shall measure 9” H x 9” W x 3.5” D and weigh approximately 9 lbs. The
faceplate shall provide an overlap to the mounting box to eliminate additional trim work.

Code Blue • 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com

GU-144-Epage 4 of 17

4 Wiring Diagram

IA500

Administrator Guide

Relay Output can be used to trigger an optional strobe as shown. Another
application for this output would be a door control system.
Refer to the IA500 programming manual for options.

IA500 SERIES PCB

INFO

HELP

SPKR

See Relay Ratings

Below

RELAY

OUT

RNG

TIP

To analog telephone service

32 Ohm

28 – 50 mA Loop Current required

Always use a
phone line surge
suppressor for
protection.

If loop current is found to be less

than ideal, use either a Ring Voltage

Booster or a Long Loop Adaptor

Ref: Proctor 46222

Optional Strobe

40197

12V DC @ 180ma

RELAY RATINGS

CONTRACT FORM 2 FORM C

Maximum Switching Power 30W (resistive) 62.5 VA (resistive)

Contract Rating

Product wiring diagram reasonably represents current offering and is intended to assist in component identication and service. Earlier product production may have different

components and wiring connections. Reference the model and serial number from the unit ID tag and contact manufacturer to conrm replacement part version and availability.

Maximum Switching Voltage 220V DC 250V AC

Maximum Switching Current 1A

Maximum Carrying Current 2A (@200 C)

Optional

12V DC

Power Supply

(Supplied by Others)

GRD

NEUTRAL

LOAD

Code Blue • 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com

GU-144-Epage 5 of 17

Administrator Guide

5 Installation

The IA500 Series comes in surface and ush mount options. The surface mount allows the

mounting bracket to be installed during rough in and the faceplate with electronics during

completion. The faceplate on the ush mount is ve inches square and provides an overlap to the

mounting box to eliminate additional trim work.

• To install the IA500, rst remove the two retaining screws
(Allen wrench provided), from each side of the case.

• Remove the rear mounting plate by sliding it downward.

• Using the mounting plate as your guide on the wall, mark
the mounting hole and conduit hole locations on the wall.

• Remove the rear mounting plate and create the required
holes, along with any conduit you choose to use. Attach
rear mounting plate to wall.

IA500

• Pull CAT 3 shield twisted pair wire through the conduit
opening in the rear mounting plate, and leave nine inches
of CAT 3 wire beyond the wall.

• Strip the tip and ring wires and attach them to the IA500
(PCB) screw terminals marked tip and ring.

• Slide the IA500 down, starting from the top of the rear

mounting plate until the bottom of the IA500 comes ush

with the rear mounting plate lip.

• Replace the two retaining screws.

7 1/4"

5 3/4

4 1/4

1 1/2"

1 5/16

3.72

REQUIRED MATERIALS

Cat 3 shield twisted phone wire

•

4 - #8 screw (fasteners)

4 7/8"

•

7.00in.

3/16"

Ø 1/2"

Three ½-inch conduit

openings are available

through the

bottom of this panel

Code Blue • 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com

GU-144-Epage 6 of 17
